ns3::RemoteChannelBundleManager Class Reference
MPI Distributed Simulation

Singleton for managing the RemoteChannelBundles for each process. More...

#include "remote-channel-bundle-manager.h"

+ Collaboration diagram for ns3::RemoteChannelBundleManager:

Static Public Member Functions

static Ptr< RemoteChannelBundle > Add (uint32_t systemId)
 Add RemoteChannelBundle from this task to MPI task on other side of the link. More...

static void Destroy ()
 Destroy the singleton. More...

static Ptr< RemoteChannelBundle > Find (uint32_t systemId)
 Get the bundle corresponding to a remote rank. More...

static Time GetSafeTime ()
 Get the safe time across all channels in this bundle. More...

static void InitializeNullMessageEvents ()
 Setup initial Null Message events for every RemoteChannelBundle. More...

static std::size_t Size ()
 Get the number of ns-3 channels in this bundle. More...


Private Types

typedef std::unordered_map< uint32_t, Ptr< RemoteChannelBundle > > RemoteChannelMap
 Container for all remote channel bundles for this task. More...


Private Member Functions

 RemoteChannelBundleManager ()
 Private ctor to prevent creation outside of singleton pattern. More...

 ~RemoteChannelBundleManager ()
 Private dtor to prevent destruction outside of singleton pattern. More...


Static Private Attributes

static bool g_initialized = false
 Protect manager class from being initialized twice or incorrect ordering of method calls. More...

static RemoteChannelMap g_remoteChannelBundles
 The remote channel bundles. More...


Detailed Description

Singleton for managing the RemoteChannelBundles for each process.

Manages collective tasks associated with the bundle collection.

Definition at line 47 of file remote-channel-bundle-manager.h.

Member Typedef Documentation

◆ RemoteChannelMap

typedef std::unordered_map<uint32_t, Ptr<RemoteChannelBundle> > ns3::RemoteChannelBundleManager::RemoteChannelMap
private

Container for all remote channel bundles for this task.

Definition at line 108 of file remote-channel-bundle-manager.h.

Constructor & Destructor Documentation

◆ RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::RemoteChannelBundleManager ( )
inlineprivate

Private ctor to prevent creation outside of singleton pattern.

Definition at line 93 of file remote-channel-bundle-manager.h.

◆ ~RemoteChannelBundleManager()

ns3::RemoteChannelBundleManager::~RemoteChannelBundleManager ( )
inlineprivate

Private dtor to prevent destruction outside of singleton pattern.

Definition at line 100 of file remote-channel-bundle-manager.h.

Member Function Documentation

◆ Add()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Add ( uint32_t  systemId)
static

Add RemoteChannelBundle from this task to MPI task on other side of the link.

Can not be invoked after InitializeNullMessageEvents has been invoked.

Parameters
[in]systemIdThe remote system id.
Returns
The newly added bundle.

Definition at line 57 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateLookAhead().

+ Here is the caller graph for this function:

◆ Destroy()

void ns3::RemoteChannelBundleManager::Destroy ( )
static

Destroy the singleton.

Definition at line 107 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::Destroy().

+ Here is the caller graph for this function:

◆ Find()

Ptr< RemoteChannelBundle > ns3::RemoteChannelBundleManager::Find ( uint32_t  systemId)
static

Get the bundle corresponding to a remote rank.

Parameters
[in]systemIdThe remote system id.
Returns
The bundle for the specified system id.

Definition at line 42 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageSimulatorImpl::CalculateGuaranteeTime(), ns3::NullMessageSimulatorImpl::CalculateLookAhead(), ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers(), ns3::NullMessageMpiInterface::ReceiveMessages(), and ns3::NullMessageSimulatorImpl::RescheduleNullMessageEvent().

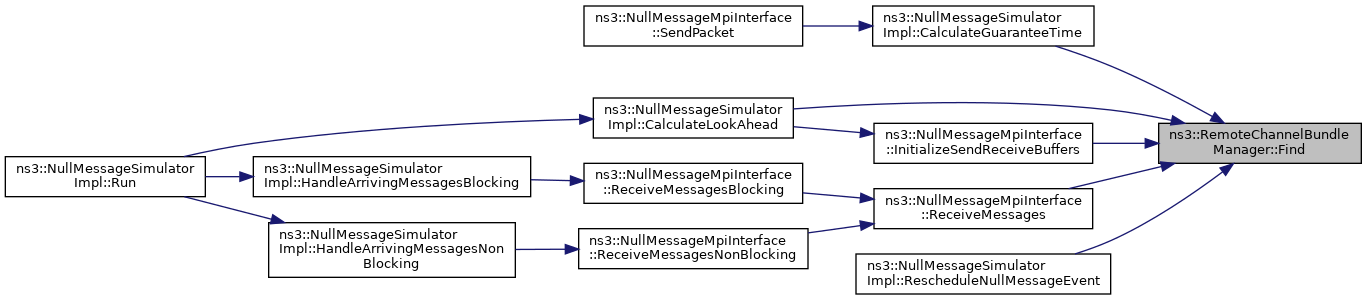

+ Here is the caller graph for this function:

◆ GetSafeTime()

Time ns3::RemoteChannelBundleManager::GetSafeTime ( )
static

Get the safe time across all channels in this bundle.

Returns
The safe time.

Definition at line 92 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::Simulator::GetMaximumSimulationTime(), ns3::Min(), and NS_ASSERT.

Referenced by ns3::NullMessageSimulatorImpl::CalculateSafeTime().

+ Here is the call graph for this function:

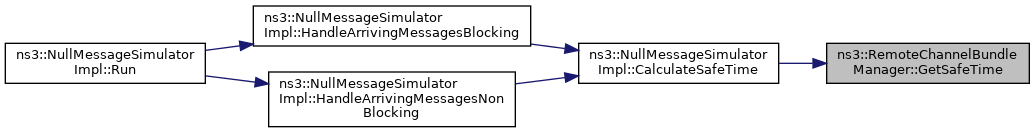

+ Here is the caller graph for this function:

◆ InitializeNullMessageEvents()

void ns3::RemoteChannelBundleManager::InitializeNullMessageEvents ( )
static

Setup initial Null Message events for every RemoteChannelBundle.

All RemoteChannelBundles should be added before this method is invoked.

Definition at line 76 of file remote-channel-bundle-manager.cc.

References g_initialized, g_remoteChannelBundles, ns3::NullMessageSimulatorImpl::GetInstance(), NS_ASSERT, and ns3::NullMessageSimulatorImpl::ScheduleNullMessageEvent().

Referenced by ns3::NullMessageSimulatorImpl::Run().

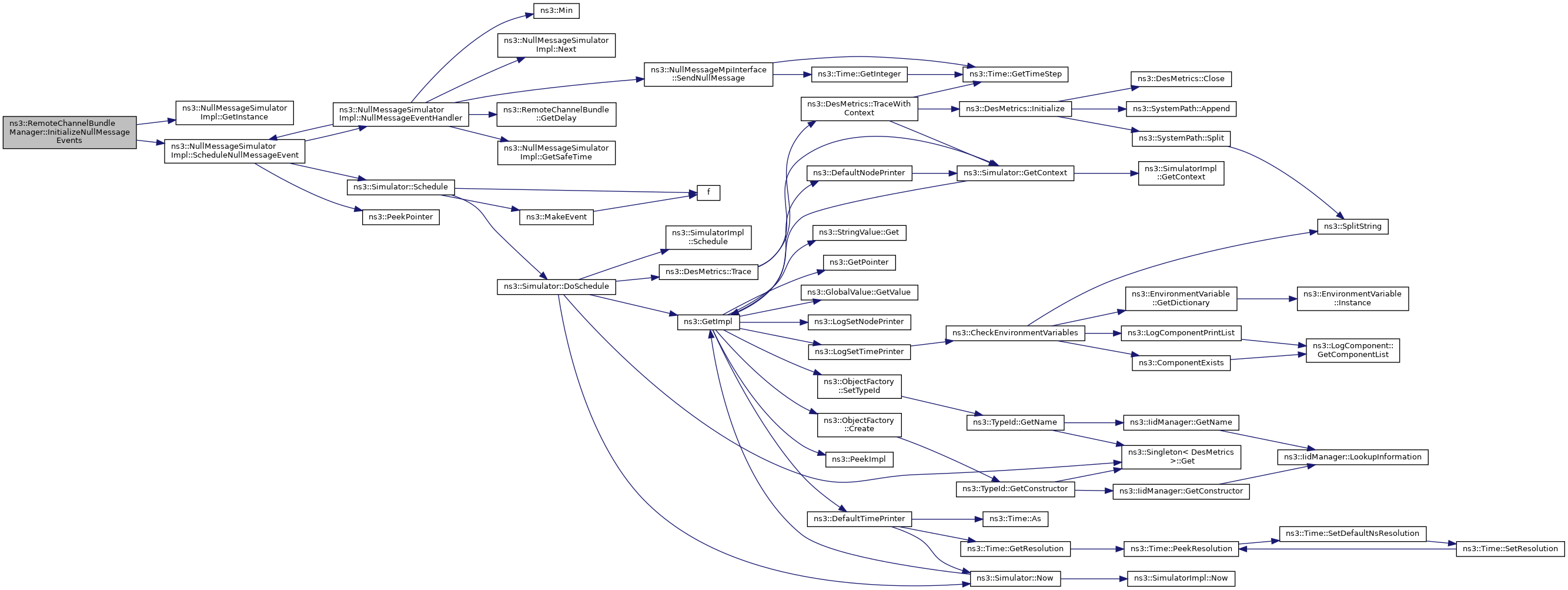

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ Size()

std::size_t ns3::RemoteChannelBundleManager::Size ( )
static

Get the number of ns-3 channels in this bundle.

Returns
The number of channels.

Definition at line 70 of file remote-channel-bundle-manager.cc.

References g_remoteChannelBundles.

Referenced by ns3::NullMessageMpiInterface::InitializeSendReceiveBuffers().

+ Here is the caller graph for this function:

Member Data Documentation

◆ g_initialized

bool ns3::RemoteChannelBundleManager::g_initialized = false
staticprivate

Protect manager class from being initialized twice or incorrect ordering of method calls.

Definition at line 116 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), GetSafeTime(), and InitializeNullMessageEvents().

◆ g_remoteChannelBundles

ns3::RemoteChannelBundleManager::RemoteChannelMap ns3::RemoteChannelBundleManager::g_remoteChannelBundles
staticprivate

The remote channel bundles.

Definition at line 110 of file remote-channel-bundle-manager.h.

Referenced by Add(), Destroy(), Find(), GetSafeTime(), InitializeNullMessageEvents(), and Size().

The documentation for this class was generated from the following files:
