ns3::LteRlcTm::TxPdu Struct Reference

Store an incoming (from layer above us) PDU, waiting to transmit it. More...

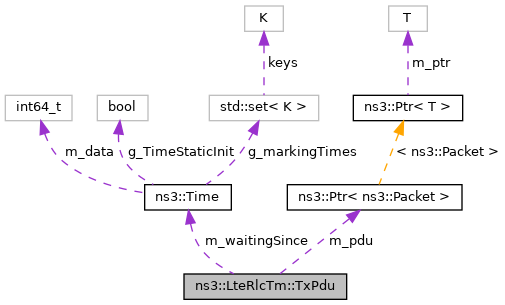

Collaboration diagram for ns3::LteRlcTm::TxPdu:

Public Member Functions
	TxPdu ()=delete
	TxPdu (const Ptr< Packet > &pdu, const Time &time)
	TxPdu default constructor. More...

Public Attributes
Ptr< Packet >	m_pdu
	PDU. More...
Time	m_waitingSince
	Layer arrival time. More...

Detailed Description

Store an incoming (from layer above us) PDU, waiting to transmit it.

Definition at line 81 of file lte-rlc-tm.h.

Constructor & Destructor Documentation

TxPdu() [1/2]

ns3::LteRlcTm::TxPdu::TxPdu ( const Ptr< Packet > &  pdu, const Time &  time  )

inline

TxPdu default constructor.

Parameters

pdu	the PDU
time	the arrival time

Definition at line 88 of file lte-rlc-tm.h.

TxPdu() [2/2]

ns3::LteRlcTm::TxPdu::TxPdu ( )

delete

Member Data Documentation

m_pdu

Ptr<Packet> ns3::LteRlcTm::TxPdu::m_pdu

PDU.

Definition at line 96 of file lte-rlc-tm.h.

m_waitingSince

Time ns3::LteRlcTm::TxPdu::m_waitingSince

Layer arrival time.

Definition at line 97 of file lte-rlc-tm.h.

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-rlc-tm.h
