ns3::TraceSourceAccessor Class Reference

Control access to objects' trace sources. More...

#include "trace-source-accessor.h"

Inheritance diagram for ns3::TraceSourceAccessor:

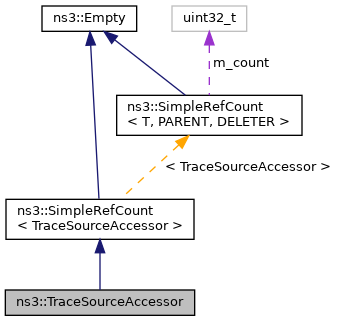

Collaboration diagram for ns3::TraceSourceAccessor:

Public Member Functions
	TraceSourceAccessor ()
	Constructor. More...
virtual	~TraceSourceAccessor ()
	Destructor. More...
virtual bool	Connect (ObjectBase *obj, std::string context, const CallbackBase &cb) const =0
	Connect a Callback to a TraceSource with a context string. More...
virtual bool	ConnectWithoutContext (ObjectBase *obj, const CallbackBase &cb) const =0
	Connect a Callback to a TraceSource (without context.) More...
virtual bool	Disconnect (ObjectBase *obj, std::string context, const CallbackBase &cb) const =0
	Disconnect a Callback from a TraceSource with a context string. More...
virtual bool	DisconnectWithoutContext (ObjectBase *obj, const CallbackBase &cb) const =0
	Disconnect a Callback from a TraceSource (without context). More...
Public Member Functions inherited from ns3::SimpleRefCount< TraceSourceAccessor >
	SimpleRefCount ()
	Default constructor. More...
	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...
uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...
void	Ref () const
	Increment the reference count. More...
void	Unref () const
	Decrement the reference count. More...

Detailed Description

Control access to objects' trace sources.

This class abstracts the kind of trace source to which we want to connect and provides services to Connect and Disconnect a sink to a trace source.

Definition at line 47 of file trace-source-accessor.h.

Constructor & Destructor Documentation

TraceSourceAccessor()

ns3::TraceSourceAccessor::TraceSourceAccessor

(

)

Constructor.

Definition at line 34 of file trace-source-accessor.cc.

~TraceSourceAccessor()

ns3::TraceSourceAccessor::~TraceSourceAccessor ( )

virtual

Destructor.

Definition at line 38 of file trace-source-accessor.cc.

Member Function Documentation

Connect()

virtual bool ns3::TraceSourceAccessor::Connect ( ObjectBase *  obj, std::string  context, const CallbackBase &  cb  ) const

pure virtual

Connect a Callback to a TraceSource with a context string.

The context string will be provided as the first argument to the Callback function.

Parameters

[in]	obj	The object instance which contains the target trace source.
[in]	context	The context to bind to the user callback.
[in]	cb	The callback to connect to the target trace source.

Returns

true unless the connection could not be made, typically because the obj couldn't be cast to the correct type.

ConnectWithoutContext()

virtual bool ns3::TraceSourceAccessor::ConnectWithoutContext ( ObjectBase *  obj, const CallbackBase &  cb  ) const

pure virtual

Connect a Callback to a TraceSource (without context.)

Parameters

[in]	obj	The object instance which contains the target trace source.
[in]	cb	The callback to connect to the target trace source.

Returns

true unless the connection could not be made, typically because the obj couldn't be cast to the correct type.

Disconnect()

virtual bool ns3::TraceSourceAccessor::Disconnect ( ObjectBase *  obj, std::string  context, const CallbackBase &  cb  ) const

pure virtual

Disconnect a Callback from a TraceSource with a context string.

The context string will be provided as the first argument to the Callback function.

Parameters

[in]	obj	the object instance which contains the target trace source.
[in]	context	the context which was bound to the user callback.
[in]	cb	the callback to disconnect from the target trace source.

Returns

true unless the connection could not be made, typically because the obj couldn't be cast to the correct type.

DisconnectWithoutContext()

virtual bool ns3::TraceSourceAccessor::DisconnectWithoutContext ( ObjectBase *  obj, const CallbackBase &  cb  ) const

pure virtual

Disconnect a Callback from a TraceSource (without context).

Parameters

[in]	obj	The object instance which contains the target trace source.
[in]	cb	The callback to disconnect from the target trace source.

Returns

true unless the connection could not be made, typically because the obj couldn't be cast to the correct type.

---

The documentation for this class was generated from the following files:

• src/core/model/trace-source-accessor.h
• src/core/model/trace-source-accessor.cc
