ns3::UeMemberLteUeCmacSapUser Class Reference

UeMemberLteUeCmacSapUser class. More...

Inheritance diagram for ns3::UeMemberLteUeCmacSapUser:

Collaboration diagram for ns3::UeMemberLteUeCmacSapUser:

Public Member Functions
	UeMemberLteUeCmacSapUser (LteUeRrc *rrc)
	Constructor. More...
void	NotifyRandomAccessFailed () override
	Notify the RRC that the MAC Random Access procedure failed. More...
void	NotifyRandomAccessSuccessful () override
	Notify the RRC that the MAC Random Access procedure completed successfully. More...
void	SetTemporaryCellRnti (uint16_t rnti) override
Public Member Functions inherited from ns3::LteUeCmacSapUser
virtual	~LteUeCmacSapUser ()

Private Attributes
LteUeRrc *	m_rrc
	the RRC class More...

Detailed Description

UeMemberLteUeCmacSapUser class.

Definition at line 54 of file lte-ue-rrc.cc.

Constructor & Destructor Documentation

UeMemberLteUeCmacSapUser()

ns3::UeMemberLteUeCmacSapUser::UeMemberLteUeCmacSapUser

(

LteUeRrc *

rrc

)

Constructor.

Parameters

rrc	the RRC class

Definition at line 72 of file lte-ue-rrc.cc.

Member Function Documentation

NotifyRandomAccessFailed()

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessFailed ( )

overridevirtual

Notify the RRC that the MAC Random Access procedure failed.

Implements ns3::LteUeCmacSapUser.

Definition at line 90 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessFailed(), and m_rrc.

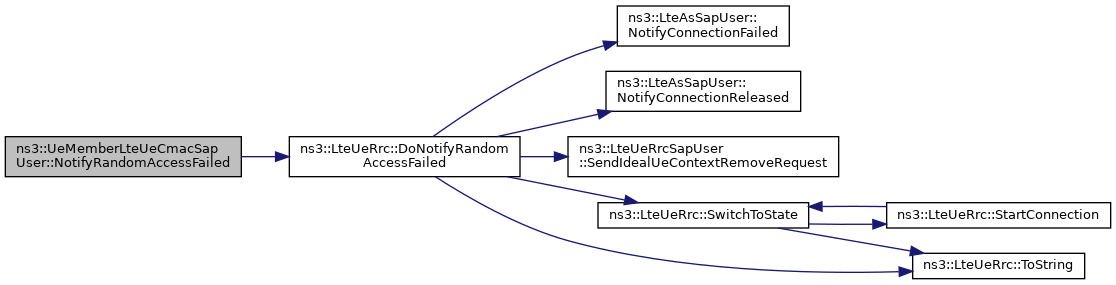

Here is the call graph for this function:

NotifyRandomAccessSuccessful()

void ns3::UeMemberLteUeCmacSapUser::NotifyRandomAccessSuccessful ( )

overridevirtual

Notify the RRC that the MAC Random Access procedure completed successfully.

Implements ns3::LteUeCmacSapUser.

Definition at line 84 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoNotifyRandomAccessSuccessful(), and m_rrc.

Here is the call graph for this function:

SetTemporaryCellRnti()

void ns3::UeMemberLteUeCmacSapUser::SetTemporaryCellRnti ( uint16_t  rnti )

overridevirtual

Parameters

rnti	the T-C-RNTI, which will eventually become the C-RNTI after contention resolution

Implements ns3::LteUeCmacSapUser.

Definition at line 78 of file lte-ue-rrc.cc.

References ns3::LteUeRrc::DoSetTemporaryCellRnti(), and m_rrc.

Here is the call graph for this function:

Member Data Documentation

m_rrc

LteUeRrc* ns3::UeMemberLteUeCmacSapUser::m_rrc

private

the RRC class

Definition at line 69 of file lte-ue-rrc.cc.

Referenced by NotifyRandomAccessFailed(), NotifyRandomAccessSuccessful(), and SetTemporaryCellRnti().

---

The documentation for this class was generated from the following file:

• src/lte/model/lte-ue-rrc.cc
