#include "epc-x2-header.h"

Inheritance diagram for ns3::EpcX2HandoverRequestAckHeader:

Collaboration diagram for ns3::EpcX2HandoverRequestAckHeader:

Public Member Functions
	EpcX2HandoverRequestAckHeader ()

	~EpcX2HandoverRequestAckHeader () override

uint32_t	Deserialize (Buffer::Iterator start) override

std::vector< EpcX2Sap::ErabAdmittedItem >	GetAdmittedBearers () const
	Get admittied bearers function. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint32_t	GetLengthOfIes () const
	Get length of IEs function. More...

uint16_t	GetNewEnbUeX2apId () const
	Get new ENB UE X2 AP ID function. More...

std::vector< EpcX2Sap::ErabNotAdmittedItem >	GetNotAdmittedBearers () const
	Get not admitted bearers function. More...

uint32_t	GetNumberOfIes () const
	Get number of IEs function. More...

uint16_t	GetOldEnbUeX2apId () const
	Get old ENB UE X2 AP ID function. More...

uint32_t	GetSerializedSize () const override

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetAdmittedBearers (std::vector< EpcX2Sap::ErabAdmittedItem > bearers)
	Set admitted bearers function. More...

void	SetNewEnbUeX2apId (uint16_t x2apId)
	Set new ENB UE X2 AP ID function. More...

void	SetNotAdmittedBearers (std::vector< EpcX2Sap::ErabNotAdmittedItem > bearers)
	Set not admitted bearers function. More...

void	SetOldEnbUeX2apId (uint16_t x2apId)
	Set old ENB UE X2 AP ID function. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
std::vector< EpcX2Sap::ErabAdmittedItem >	m_erabsAdmittedList
	ERABs admitted list. More...

std::vector< EpcX2Sap::ErabNotAdmittedItem >	m_erabsNotAdmittedList
	ERABs not admitted list. More...

uint32_t	m_headerLength
	header length More...

uint16_t	m_newEnbUeX2apId
	new ENB UE X2 AP ID More...

uint32_t	m_numberOfIes
	number of IEs More...

uint16_t	m_oldEnbUeX2apId
	old ENB UE X2 AP ID More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

EpcX2HandoverRequestAckHeader.

Definition at line 233 of file epc-x2-header.h.

Constructor & Destructor Documentation

◆ EpcX2HandoverRequestAckHeader()

ns3::EpcX2HandoverRequestAckHeader::EpcX2HandoverRequestAckHeader ( )

Definition at line 435 of file epc-x2-header.cc.

◆ ~EpcX2HandoverRequestAckHeader()

ns3::EpcX2HandoverRequestAckHeader::~EpcX2HandoverRequestAckHeader ( )

override

Definition at line 443 of file epc-x2-header.cc.

References m_erabsAdmittedList, m_erabsNotAdmittedList, m_headerLength, m_newEnbUeX2apId, m_numberOfIes, and m_oldEnbUeX2apId.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::EpcX2HandoverRequestAckHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 502 of file epc-x2-header.cc.

References ns3::EpcX2Sap::ErabNotAdmittedItem::cause, ns3::EpcX2Sap::ErabAdmittedItem::dlGtpTeid, ns3::EpcX2Sap::ErabAdmittedItem::erabId, ns3::EpcX2Sap::ErabNotAdmittedItem::erabId, GetSerializedSize(), m_erabsAdmittedList, m_erabsNotAdmittedList, m_headerLength, m_newEnbUeX2apId, m_numberOfIes, m_oldEnbUeX2apId, ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), two-ray-to-three-gpp-ch-calibration::start, and ns3::EpcX2Sap::ErabAdmittedItem::ulGtpTeid.

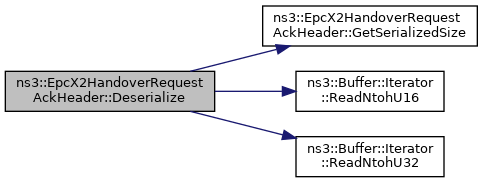

Here is the call graph for this function:

◆ GetAdmittedBearers()

std::vector< EpcX2Sap::ErabAdmittedItem > ns3::EpcX2HandoverRequestAckHeader::GetAdmittedBearers ( ) const

Get admittied bearers function.

Returns: <EpcX2Sap::ErabAdmittedItem>

Definition at line 618 of file epc-x2-header.cc.

References m_erabsAdmittedList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::EpcX2HandoverRequestAckHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 464 of file epc-x2-header.cc.

References GetTypeId().

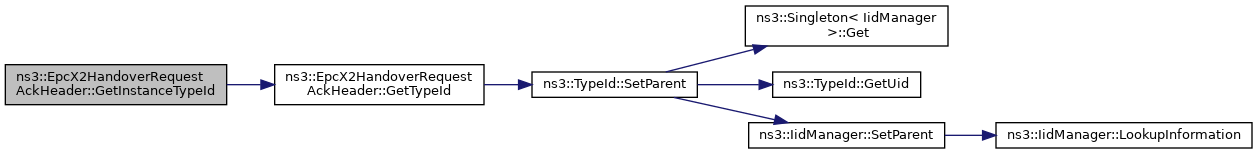

Here is the call graph for this function:

◆ GetLengthOfIes()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetLengthOfIes ( ) const

Get length of IEs function.

Returns: the length of IEs

Definition at line 645 of file epc-x2-header.cc.

References m_headerLength.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

Here is the caller graph for this function:

◆ GetNewEnbUeX2apId()

uint16_t ns3::EpcX2HandoverRequestAckHeader::GetNewEnbUeX2apId ( ) const

Get new ENB UE X2 AP ID function.

Returns: the new ENB UE X2 AP ID

Definition at line 606 of file epc-x2-header.cc.

References m_newEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetNotAdmittedBearers()

std::vector< EpcX2Sap::ErabNotAdmittedItem > ns3::EpcX2HandoverRequestAckHeader::GetNotAdmittedBearers ( ) const

Get not admitted bearers function.

Returns: the not admitted bearers

Definition at line 631 of file epc-x2-header.cc.

References m_erabsNotAdmittedList.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetNumberOfIes()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetNumberOfIes ( ) const

Get number of IEs function.

Returns: the number of IEs

Definition at line 651 of file epc-x2-header.cc.

References m_numberOfIes.

Referenced by ns3::EpcX2::DoSendHandoverRequestAck().

Here is the caller graph for this function:

◆ GetOldEnbUeX2apId()

uint16_t ns3::EpcX2HandoverRequestAckHeader::GetOldEnbUeX2apId ( ) const

Get old ENB UE X2 AP ID function.

Returns: the old ENB UE X2 AP ID

Definition at line 594 of file epc-x2-header.cc.

References m_oldEnbUeX2apId.

Referenced by ns3::EpcX2::RecvFromX2cSocket().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::EpcX2HandoverRequestAckHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 470 of file epc-x2-header.cc.

References m_headerLength.

Referenced by Deserialize().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::EpcX2HandoverRequestAckHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 454 of file epc-x2-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

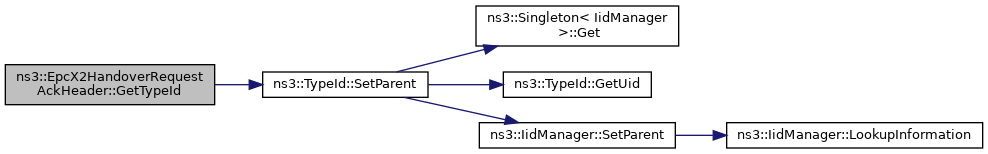

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Print()

void ns3::EpcX2HandoverRequestAckHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 549 of file epc-x2-header.cc.

References m_erabsAdmittedList, m_erabsNotAdmittedList, m_newEnbUeX2apId, and m_oldEnbUeX2apId.

◆ Serialize()

void ns3::EpcX2HandoverRequestAckHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 476 of file epc-x2-header.cc.

References m_erabsAdmittedList, m_erabsNotAdmittedList, m_newEnbUeX2apId, m_oldEnbUeX2apId, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::WriteHtonU16(), and ns3::Buffer::Iterator::WriteHtonU32().

Here is the call graph for this function:
