ns3::ofi::VPortAction Struct Reference

Class for handling virtual port table actions. More...

#include "openflow-interface.h"

Static Public Member Functions
static void	Execute (ofp_vport_action_type type, ofpbuf *buffer, const sw_flow_key *key, const ofp_action_header *ah)
	Executes the action. More...
static bool	IsValidType (ofp_vport_action_type type)
static uint16_t	Validate (ofp_vport_action_type type, size_t len, const ofp_action_header *ah)
	Validates the action on whether its data is valid or not. More...

Detailed Description

Class for handling virtual port table actions.

Definition at line 300 of file openflow-interface.h.

Member Function Documentation

Execute()

void ns3::ofi::VPortAction::Execute ( ofp_vport_action_type  type, ofpbuf *  buffer, const sw_flow_key *  key, const ofp_action_header *  ah  )

static

Executes the action.

Parameters

type	Type of action to execute.
buffer	Buffer of the Packet if it's needed for the action.
key	Matching key for the flow that is tied to this action.
ah	Action's data header.

Definition at line 582 of file openflow-interface.cc.

References check-style-clang-format::type.

Referenced by ns3::ofi::ExecuteVPortActions().

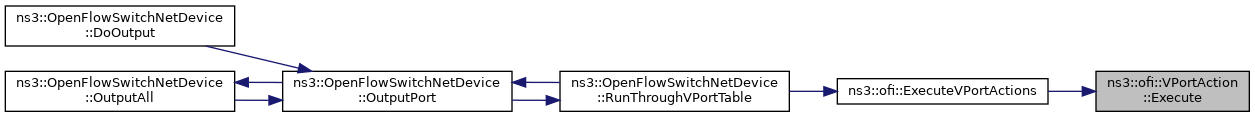

Here is the caller graph for this function:

IsValidType()

bool ns3::ofi::VPortAction::IsValidType ( ofp_vport_action_type  type )

static

Parameters

type	Type of virtual port table Action.

Returns

true if the provided type is a type of virtual port table action.

Definition at line 537 of file openflow-interface.cc.

References check-style-clang-format::type.

Referenced by ns3::ofi::ValidateVPortActions().

Here is the caller graph for this function:

Validate()

uint16_t ns3::ofi::VPortAction::Validate ( ofp_vport_action_type  type, size_t  len, const ofp_action_header *  ah  )

static

Validates the action on whether its data is valid or not.

Parameters

type	Type of action to validate.
len	Length of the action data.
ah	Action's data header.

Returns

ACT_VALIDATION_OK if the action checks out, otherwise an error type.

Definition at line 552 of file openflow-interface.cc.

References check-style-clang-format::type.

Referenced by ns3::ofi::ValidateVPortActions().

Here is the caller graph for this function:

---

The documentation for this struct was generated from the following files:

• src/openflow/model/openflow-interface.h
• src/openflow/model/openflow-interface.cc
