ns3::PingHelper Class Reference

Create a ping application and associate it to a node. More...

#include "ping-helper.h"

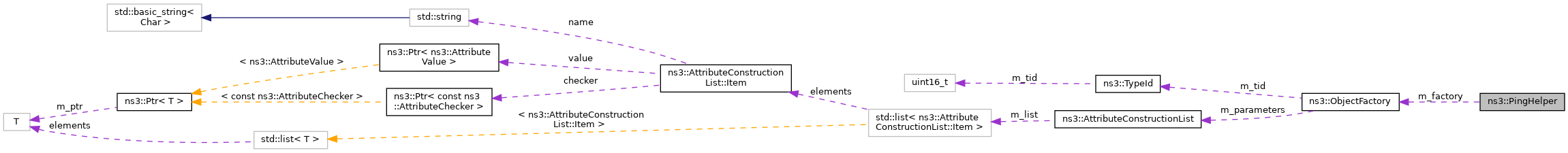

Collaboration diagram for ns3::PingHelper:

Public Member Functions
	PingHelper ()
	Create a PingHelper which is used to make life easier for people wanting to use ping Applications. More...
	PingHelper (Address remote, Address local=Address())
	Create a PingHelper which is used to make life easier for people wanting to use ping Applications. More...
ApplicationContainer	Install (NodeContainer nodes) const
	Install a Ping application on each Node in the provided NodeContainer. More...
ApplicationContainer	Install (Ptr< Node > node) const
	Install a Ping application on the provided Node. More...
ApplicationContainer	Install (std::string nodeName) const
	Install a Ping application on the provided Node. More...
void	SetAttribute (std::string name, const AttributeValue &value)
	Configure ping applications attribute. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const
	Do the actual application installation in the node. More...

Private Attributes
ObjectFactory	m_factory
	Object factory. More...

Detailed Description

Create a ping application and associate it to a node.

This class creates one or multiple instances of ns3::Ping and associates it/them to one/multiple node(s).

Definition at line 47 of file ping-helper.h.

Constructor & Destructor Documentation

PingHelper() [1/2]

ns3::PingHelper::PingHelper

(

)

Create a PingHelper which is used to make life easier for people wanting to use ping Applications.

Definition at line 33 of file ping-helper.cc.

References m_factory, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

PingHelper() [2/2]

ns3::PingHelper::PingHelper	(	Address	remote,
		Address	local = Address()
	)

Create a PingHelper which is used to make life easier for people wanting to use ping Applications.

Parameters

remote	The address which should be pinged
local	The source address

Definition at line 38 of file ping-helper.cc.

References m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::PingHelper::Install

(

NodeContainer

nodes

)

const

Install a Ping application on each Node in the provided NodeContainer.

Parameters

nodes

The NodeContainer containing all of the nodes to get a Ping application.

Returns

A list of Ping applications, one for each input node

Definition at line 65 of file ping-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by CsmaPingTestCase::DoRun(), and AodvExample::InstallApplications().

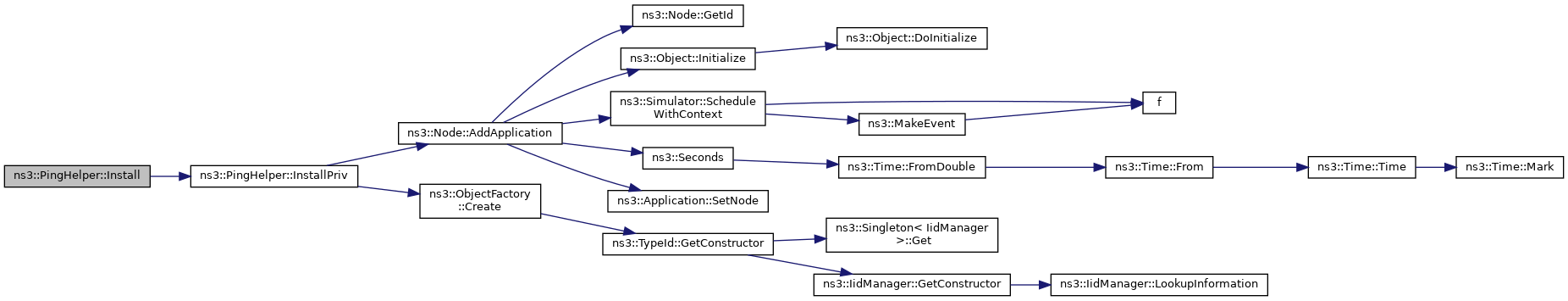

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [2/3]

ApplicationContainer ns3::PingHelper::Install

(

Ptr< Node >

node

)

const

Install a Ping application on the provided Node.

The Node is specified directly by a Ptr<Node>

Parameters

node	The node to install the Ping application on.

Returns

An ApplicationContainer holding the Ping application created.

Definition at line 52 of file ping-helper.cc.

References InstallPriv().

Here is the call graph for this function:

Install() [3/3]

ApplicationContainer ns3::PingHelper::Install

(

std::string

nodeName

)

const

Install a Ping application on the provided Node.

The Node is specified by a string that must have previously been associated with a Node using the Object Name Service.

Parameters

nodeName

The node to install the Ping application on.

Returns

An ApplicationContainer holding the Ping application created.

Definition at line 58 of file ping-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::PingHelper::InstallPriv ( Ptr< Node >  node ) const

private

Do the actual application installation in the node.

Parameters

node

the node

Returns

a Smart pointer to the installed application

Definition at line 77 of file ping-helper.cc.

References ns3::Node::AddApplication(), openflow-switch::app, ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::PingHelper::SetAttribute	(	std::string	name,
		const AttributeValue &	value
	)

Configure ping applications attribute.

Parameters

name	attribute's name
value	attribute's value

Definition at line 46 of file ping-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Referenced by AodvExample::InstallApplications().

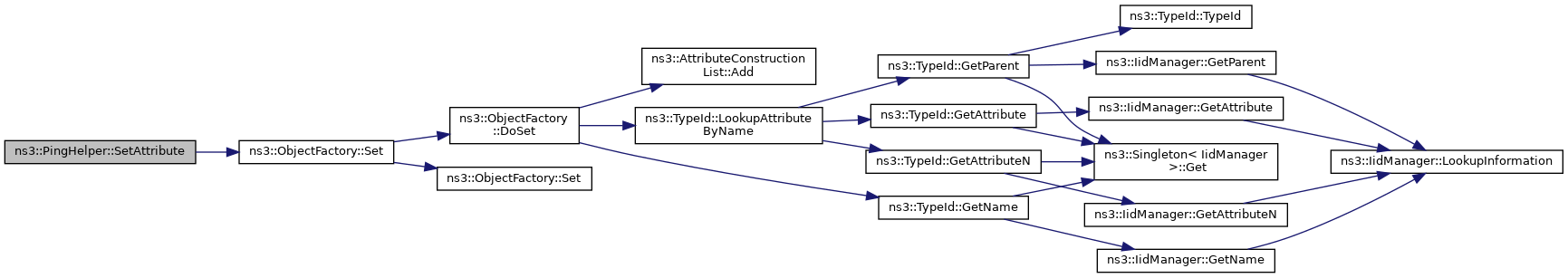

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::PingHelper::m_factory

private

Object factory.

Definition at line 111 of file ping-helper.h.

Referenced by PingHelper(), InstallPriv(), and SetAttribute().

---

The documentation for this class was generated from the following files:

• src/internet-apps/helper/ping-helper.h
• src/internet-apps/helper/ping-helper.cc
