BulkSendBasicTestCase Class Reference

Basic test, checks that the right quantity of packets are sent and received. More...

Inheritance diagram for BulkSendBasicTestCase:

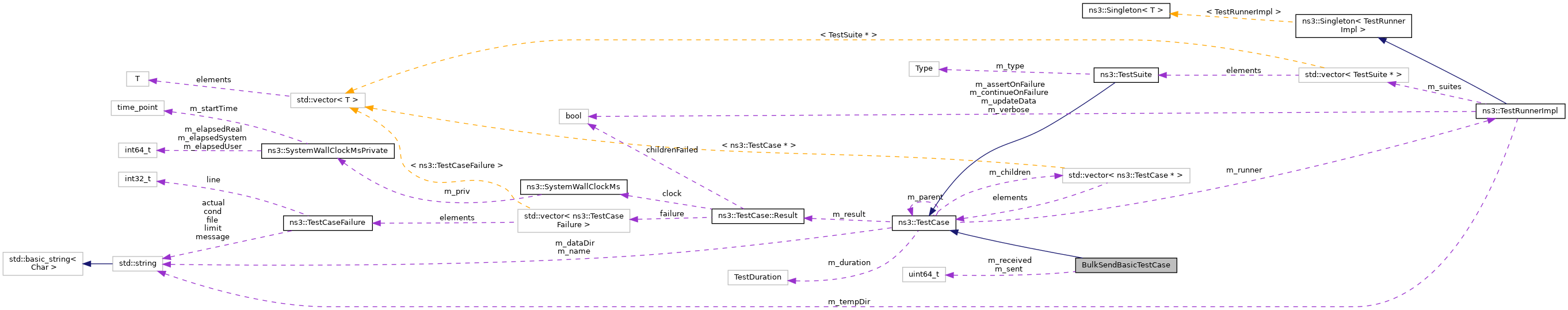

Collaboration diagram for BulkSendBasicTestCase:

Public Member Functions
	BulkSendBasicTestCase ()
	~BulkSendBasicTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	ReceiveRx (Ptr< const Packet > p, const Address &addr)
	Record a packet successfully received. More...
void	SendTx (Ptr< const Packet > p)
	Record a packet successfully sent. More...

Private Attributes
uint64_t	m_received {0}
	number of bytes received More...
uint64_t	m_sent {0}
	number of bytes sent More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Basic test, checks that the right quantity of packets are sent and received.

Definition at line 47 of file bulk-send-application-test-suite.cc.

Constructor & Destructor Documentation

BulkSendBasicTestCase()

BulkSendBasicTestCase::BulkSendBasicTestCase

(

)

Definition at line 70 of file bulk-send-application-test-suite.cc.

~BulkSendBasicTestCase()

BulkSendBasicTestCase::~BulkSendBasicTestCase ( )

override

Definition at line 75 of file bulk-send-application-test-suite.cc.

Member Function Documentation

DoRun()

void BulkSendBasicTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 92 of file bulk-send-application-test-suite.cc.

References ns3::NodeContainer::Add(), first::devices, ns3::ApplicationContainer::Get(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::BulkSendHelper::Install(), ns3::PacketSinkHelper::Install(), ns3::SimpleNetDeviceHelper::Install(), nsclick-simple-lan::internet, nsclick-simple-lan::ipv4, m_received, m_sent, ns3::MakeCallback(), nodes, NS_TEST_ASSERT_MSG_EQ, port, ReceiveRx(), ns3::Seconds(), SendTx(), ns3::BulkSendHelper::SetAttribute(), ns3::SimpleNetDeviceHelper::SetChannelAttribute(), ns3::SimpleNetDeviceHelper::SetDeviceAttribute(), sink, ns3::ApplicationContainer::Start(), ns3::ApplicationContainer::Stop(), and ns3::ObjectBase::TraceConnectWithoutContext().

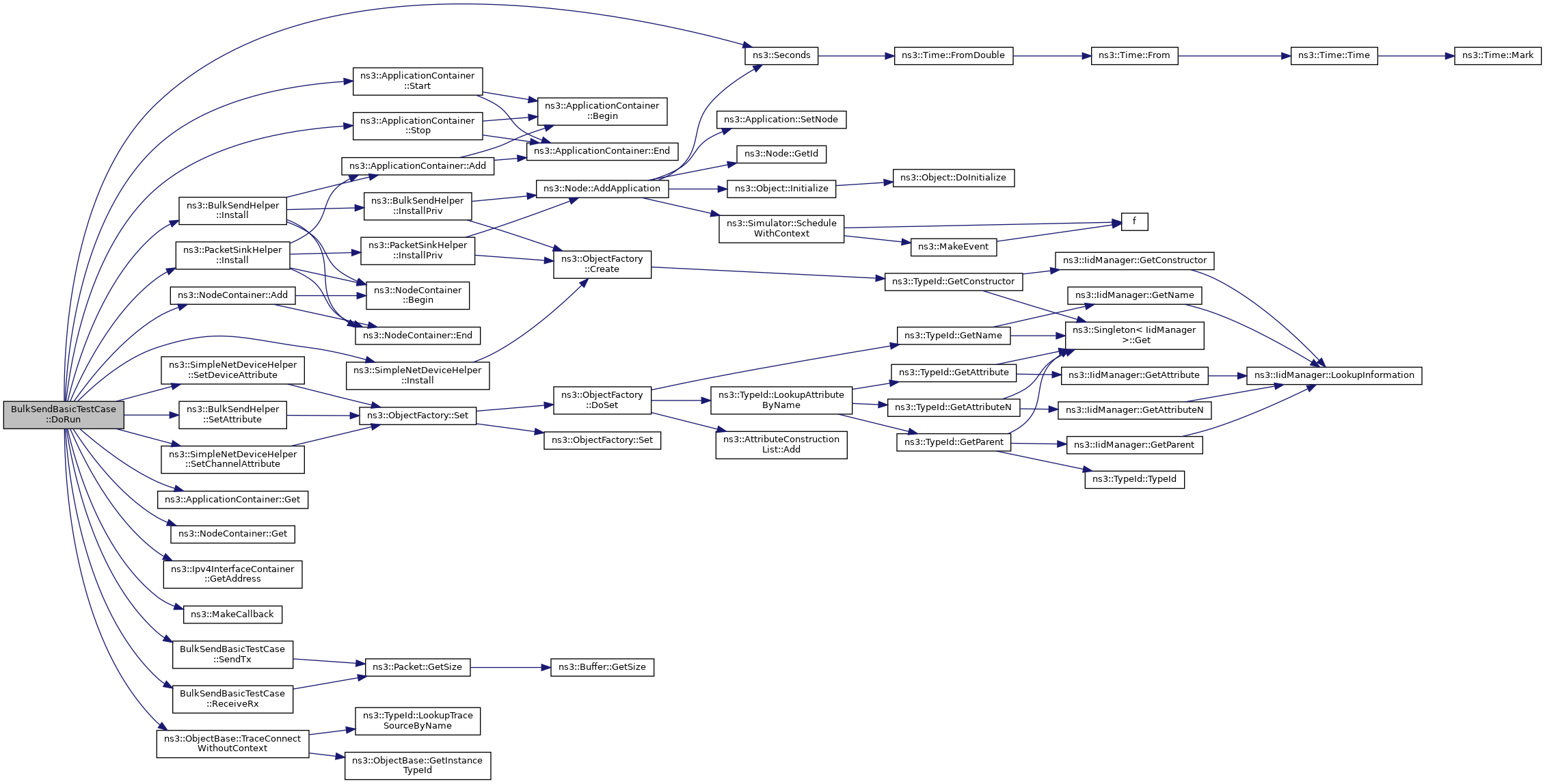

Here is the call graph for this function:

ReceiveRx()

void BulkSendBasicTestCase::ReceiveRx ( Ptr< const Packet >  p, const Address &  addr  )

private

Record a packet successfully received.

Parameters

p	the packet
addr	the sender's address

Definition at line 86 of file bulk-send-application-test-suite.cc.

References ns3::Packet::GetSize(), and m_received.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

SendTx()

void BulkSendBasicTestCase::SendTx ( Ptr< const Packet >  p )

private

Record a packet successfully sent.

Parameters

p	the packet

Definition at line 80 of file bulk-send-application-test-suite.cc.

References ns3::Packet::GetSize(), and m_sent.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_received

uint64_t BulkSendBasicTestCase::m_received {0}

private

number of bytes received

Definition at line 67 of file bulk-send-application-test-suite.cc.

Referenced by DoRun(), and ReceiveRx().

m_sent

uint64_t BulkSendBasicTestCase::m_sent {0}

private

number of bytes sent

Definition at line 66 of file bulk-send-application-test-suite.cc.

Referenced by DoRun(), and SendTx().

---

The documentation for this class was generated from the following file:

• src/applications/test/bulk-send-application-test-suite.cc
