RrcHeaderTestCase Class Reference

This class provides common functions to be inherited by the children TestCases. More...

Inheritance diagram for RrcHeaderTestCase:

Collaboration diagram for RrcHeaderTestCase:

Public Member Functions
	RrcHeaderTestCase (std::string s)
	Constructor. More...
void	AssertEqualRadioResourceConfigDedicated (LteRrcSap::RadioResourceConfigDedicated rrcd1, LteRrcSap::RadioResourceConfigDedicated rrcd2)
	Assert equal radio resource config dedicated. More...
LteRrcSap::RadioResourceConfigDedicated	CreateRadioResourceConfigDedicated ()
	Create radio resource config dedicated. More...
void	DoRun () override=0
	Implementation to actually run this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Protected Attributes
Ptr< Packet >	packet
	the packet More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

This class provides common functions to be inherited by the children TestCases.

Definition at line 114 of file test-asn1-encoding.cc.

Constructor & Destructor Documentation

RrcHeaderTestCase()

RrcHeaderTestCase::RrcHeaderTestCase

(

std::string

s

)

Constructor.

Parameters

s	the reference name

Definition at line 140 of file test-asn1-encoding.cc.

Member Function Documentation

AssertEqualRadioResourceConfigDedicated()

void RrcHeaderTestCase::AssertEqualRadioResourceConfigDedicated	(	LteRrcSap::RadioResourceConfigDedicated	rrcd1,
		LteRrcSap::RadioResourceConfigDedicated	rrcd2
	)

Assert equal radio resource config dedicated.

Parameters

rrcd1	LteRrcSap::RadioResourceConfigDedicated # 1
rrcd2	LteRrcSap::RadioResourceConfigDedicated # 2

Definition at line 201 of file test-asn1-encoding.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::havePdschConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, NS_TEST_ASSERT_MSG_EQ, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsBandwidth, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::type.

Referenced by RrcConnectionSetupTestCase::DoRun(), RrcConnectionReconfigurationTestCase::DoRun(), HandoverPreparationInfoTestCase::DoRun(), and RrcConnectionReestablishmentTestCase::DoRun().

Here is the caller graph for this function:

CreateRadioResourceConfigDedicated()

LteRrcSap::RadioResourceConfigDedicated RrcHeaderTestCase::CreateRadioResourceConfigDedicated

(

)

Create radio resource config dedicated.

Returns

LteRrcSap::RadioResourceConfigDedicated

Definition at line 146 of file test-asn1-encoding.cc.

References ns3::LteRrcSap::PhysicalConfigDedicated::antennaInfo, ns3::LteRrcSap::LogicalChannelConfig::bucketSizeDurationMs, ns3::LteRrcSap::RlcConfig::choice, ns3::LteRrcSap::DrbToAddMod::drbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToAddModList, ns3::LteRrcSap::RadioResourceConfigDedicated::drbToReleaseList, ns3::LteRrcSap::DrbToAddMod::epsBearerIdentity, ns3::LteRrcSap::PhysicalConfigDedicated::haveAntennaInfoDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::havePdschConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::havePhysicalConfigDedicated, ns3::LteRrcSap::PhysicalConfigDedicated::haveSoundingRsUlConfigDedicated, ns3::LteRrcSap::SrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::DrbToAddMod::logicalChannelConfig, ns3::LteRrcSap::LogicalChannelConfig::logicalChannelGroup, ns3::LteRrcSap::DrbToAddMod::logicalChannelIdentity, ns3::LteRrcSap::PdschConfigDedicated::pa, ns3::LteRrcSap::PhysicalConfigDedicated::pdschConfigDedicated, ns3::LteRrcSap::RadioResourceConfigDedicated::physicalConfigDedicated, ns3::LteRrcSap::LogicalChannelConfig::prioritizedBitRateKbps, ns3::LteRrcSap::LogicalChannelConfig::priority, ns3::LteRrcSap::DrbToAddMod::rlcConfig, ns3::LteRrcSap::PhysicalConfigDedicated::soundingRsUlConfigDedicated, ns3::LteRrcSap::SrbToAddMod::srbIdentity, ns3::LteRrcSap::RadioResourceConfigDedicated::srbToAddModList, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsBandwidth, ns3::LteRrcSap::SoundingRsUlConfigDedicated::srsConfigIndex, ns3::LteRrcSap::AntennaInfoDedicated::transmissionMode, and ns3::LteRrcSap::SoundingRsUlConfigDedicated::type.

Referenced by RrcConnectionSetupTestCase::DoRun(), RrcConnectionReconfigurationTestCase::DoRun(), HandoverPreparationInfoTestCase::DoRun(), and RrcConnectionReestablishmentTestCase::DoRun().

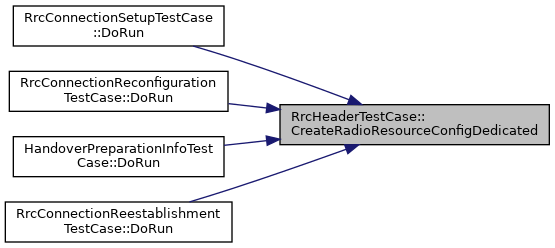

Here is the caller graph for this function:

DoRun()

void RrcHeaderTestCase::DoRun ( )

overridepure virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Implemented in MeasurementReportTestCase, RrcConnectionRejectTestCase, RrcConnectionReestablishmentCompleteTestCase, RrcConnectionReestablishmentTestCase, RrcConnectionReestablishmentRequestTestCase, HandoverPreparationInfoTestCase, RrcConnectionReconfigurationTestCase, RrcConnectionReconfigurationCompleteTestCase, RrcConnectionSetupCompleteTestCase, RrcConnectionSetupTestCase, and RrcConnectionRequestTestCase.

Member Data Documentation

packet

Ptr<Packet> RrcHeaderTestCase::packet

protected

the packet

Definition at line 137 of file test-asn1-encoding.cc.

Referenced by RrcConnectionRequestTestCase::DoRun(), RrcConnectionSetupTestCase::DoRun(), RrcConnectionSetupCompleteTestCase::DoRun(), RrcConnectionReconfigurationCompleteTestCase::DoRun(), RrcConnectionReconfigurationTestCase::DoRun(), HandoverPreparationInfoTestCase::DoRun(), RrcConnectionReestablishmentRequestTestCase::DoRun(), RrcConnectionReestablishmentTestCase::DoRun(), RrcConnectionReestablishmentCompleteTestCase::DoRun(), RrcConnectionRejectTestCase::DoRun(), and MeasurementReportTestCase::DoRun().

---

The documentation for this class was generated from the following file:

• src/lte/test/test-asn1-encoding.cc
