Models a never in-LoS condition model caused by a blocking vehicle. More...

#include "channel-condition-model.h"

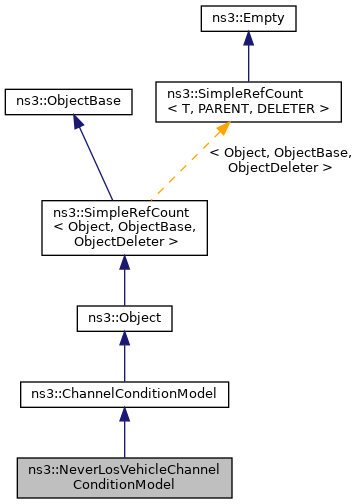

Inheritance diagram for ns3::NeverLosVehicleChannelConditionModel:

Collaboration diagram for ns3::NeverLosVehicleChannelConditionModel:

Public Member Functions
	NeverLosVehicleChannelConditionModel ()
	Constructor. More...

	NeverLosVehicleChannelConditionModel (const NeverLosVehicleChannelConditionModel &)=delete

	~NeverLosVehicleChannelConditionModel () override
	Destructor. More...

int64_t	AssignStreams (int64_t stream) override
	If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'. More...

Ptr< ChannelCondition >	GetChannelCondition (Ptr< const MobilityModel > a, Ptr< const MobilityModel > b) const override
	Computes the condition of the channel between a and b, that will be always NLOSv. More...

NeverLosVehicleChannelConditionModel &	operator= (const NeverLosVehicleChannelConditionModel &)=delete

Public Member Functions inherited from ns3::ChannelConditionModel
	ChannelConditionModel ()
	Constructor for the ChannelConditionModel class. More...

	ChannelConditionModel (const ChannelConditionModel &)=delete

	~ChannelConditionModel () override
	Destructor for the ChannelConditionModel class. More...

ChannelConditionModel &	operator= (const ChannelConditionModel &)=delete

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ChannelConditionModel
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Models a never in-LoS condition model caused by a blocking vehicle.

Definition at line 388 of file channel-condition-model.h.

Constructor & Destructor Documentation

◆ NeverLosVehicleChannelConditionModel() [1/2]

ns3::NeverLosVehicleChannelConditionModel::NeverLosVehicleChannelConditionModel ( )

Constructor.

Definition at line 271 of file channel-condition-model.cc.

◆ ~NeverLosVehicleChannelConditionModel()

ns3::NeverLosVehicleChannelConditionModel::~NeverLosVehicleChannelConditionModel ( )

override

Destructor.

Definition at line 275 of file channel-condition-model.cc.

◆ NeverLosVehicleChannelConditionModel() [2/2]

ns3::NeverLosVehicleChannelConditionModel::NeverLosVehicleChannelConditionModel ( const NeverLosVehicleChannelConditionModel & )

delete

Member Function Documentation

◆ AssignStreams()

int64_t ns3::NeverLosVehicleChannelConditionModel::AssignStreams ( int64_t stream )

overridevirtual

If this model uses objects of type RandomVariableStream, set the stream numbers to the integers starting with the offset 'stream'.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream the offset used to set the stream numbers

Returns: the number of stream indices assigned by this model

Implements ns3::ChannelConditionModel.

Definition at line 289 of file channel-condition-model.cc.

◆ GetChannelCondition()

Ptr< ChannelCondition > ns3::NeverLosVehicleChannelConditionModel::GetChannelCondition	(	Ptr< const MobilityModel >	a,
		Ptr< const MobilityModel >	b
	)		const

overridevirtual

Computes the condition of the channel between a and b, that will be always NLOSv.

Parameters

a	mobility model
b	mobility model

Returns: the condition of the channel between a and b, that will be always NLOSv

Implements ns3::ChannelConditionModel.

Definition at line 280 of file channel-condition-model.cc.

References ns3::ChannelCondition::NLOSv.

◆ GetTypeId()

TypeId ns3::NeverLosVehicleChannelConditionModel::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 262 of file channel-condition-model.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ operator=()

NeverLosVehicleChannelConditionModel& ns3::NeverLosVehicleChannelConditionModel::operator= ( const NeverLosVehicleChannelConditionModel & )
