ns3::ThreeGppHttpClientHelper Class Reference

Helper to make it easier to instantiate an ThreeGppHttpClient on a set of nodes. More...

#include "three-gpp-http-helper.h"

Collaboration diagram for ns3::ThreeGppHttpClientHelper:

Public Member Functions
	ThreeGppHttpClientHelper (const Address &address)
	Create a ThreeGppHttpClientHelper to make it easier to work with ThreeGppHttpClient applications. More...
ApplicationContainer	Install (const std::string &nodeName) const
	Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute(). More...
ApplicationContainer	Install (NodeContainer c) const
	Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute(). More...
ApplicationContainer	Install (Ptr< Node > node) const
	Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute(). More...
void	SetAttribute (const std::string &name, const AttributeValue &value)
	Helper function used to set the underlying application attributes, but not the socket attributes. More...

Private Member Functions
Ptr< Application >	InstallPriv (Ptr< Node > node) const

Private Attributes
ObjectFactory	m_factory
	Used to instantiate an ThreeGppHttpClient instance. More...

Detailed Description

Helper to make it easier to instantiate an ThreeGppHttpClient on a set of nodes.

Definition at line 40 of file three-gpp-http-helper.h.

Constructor & Destructor Documentation

ThreeGppHttpClientHelper()

ns3::ThreeGppHttpClientHelper::ThreeGppHttpClientHelper

(

const Address &

address

)

Create a ThreeGppHttpClientHelper to make it easier to work with ThreeGppHttpClient applications.

Parameters

address

The address of the remote server node to send traffic to.

Definition at line 35 of file three-gpp-http-helper.cc.

References first::address, m_factory, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

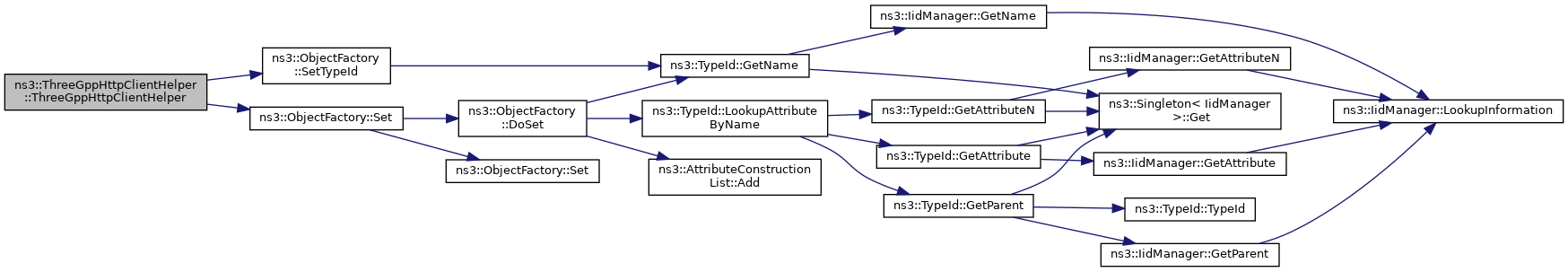

Here is the call graph for this function:

Member Function Documentation

Install() [1/3]

ApplicationContainer ns3::ThreeGppHttpClientHelper::Install

(

const std::string &

nodeName

)

const

Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

nodeName

The name of the node on which an ThreeGppHttpClient will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 54 of file three-gpp-http-helper.cc.

References InstallPriv().

Here is the call graph for this function:

Install() [2/3]

ApplicationContainer ns3::ThreeGppHttpClientHelper::Install

(

NodeContainer

c

)

const

Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

c	NodeContainer of the set of nodes on which an ThreeGppHttpClient will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 61 of file three-gpp-http-helper.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and InstallPriv().

Referenced by ThreeGppHttpObjectTestCase::DoRun().

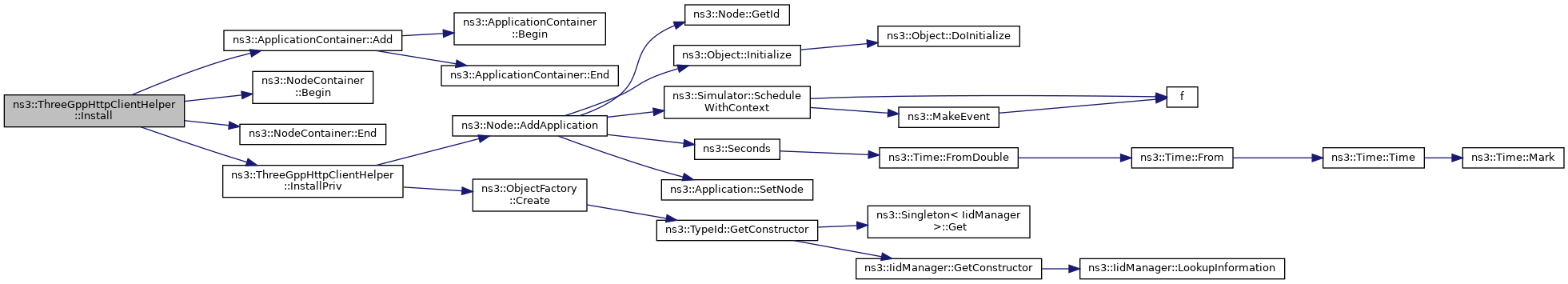

Here is the call graph for this function:

Here is the caller graph for this function:

Install() [3/3]

ApplicationContainer ns3::ThreeGppHttpClientHelper::Install

(

Ptr< Node >

node

)

const

Install a ThreeGppHttpClient on each node of the input container configured with all the attributes set with SetAttribute().

Parameters

node	The node on which an ThreeGppHttpClient will be installed.

Returns

Container of Ptr to the applications installed.

Definition at line 48 of file three-gpp-http-helper.cc.

References InstallPriv().

Here is the call graph for this function:

InstallPriv()

Ptr< Application > ns3::ThreeGppHttpClientHelper::InstallPriv ( Ptr< Node >  node ) const

private

Internal:

Install a ThreeGppHttpClient on the node configured with all the attributes set with SetAttribute().

Parameters

node	The node on which an ThreeGppHttpClient will be installed.

Returns

Ptr to the application installed.

Definition at line 73 of file three-gpp-http-helper.cc.

References ns3::Node::AddApplication(), openflow-switch::app, ns3::ObjectFactory::Create(), and m_factory.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

SetAttribute()

void ns3::ThreeGppHttpClientHelper::SetAttribute	(	const std::string &	name,
		const AttributeValue &	value
	)

Helper function used to set the underlying application attributes, but not the socket attributes.

Parameters

name	The name of the application attribute to set.
value	The value of the application attribute to set.

Definition at line 42 of file three-gpp-http-helper.cc.

References m_factory, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

Member Data Documentation

m_factory

ObjectFactory ns3::ThreeGppHttpClientHelper::m_factory

private

Used to instantiate an ThreeGppHttpClient instance.

Definition at line 95 of file three-gpp-http-helper.h.

Referenced by ThreeGppHttpClientHelper(), InstallPriv(), and SetAttribute().

---

The documentation for this class was generated from the following files:

• src/applications/helper/three-gpp-http-helper.h
• src/applications/helper/three-gpp-http-helper.cc
