CsmaStarTestCase Class Reference

CSMA star mode test. More...

Inheritance diagram for CsmaStarTestCase:

Collaboration diagram for CsmaStarTestCase:

Public Member Functions
	CsmaStarTestCase ()
	~CsmaStarTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	DropEvent (Ptr< const Packet > p)
	Sink called when a packet is dropped. More...
void	SinkRx (Ptr< const Packet > p, const Address &ad)
	Sink called when a packet is received by a node. More...

Private Attributes
uint32_t	m_count
	Counter of received packets. More...
uint32_t	m_drops
	Counter of dropped packets. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

CSMA star mode test.

Definition at line 1036 of file csma-system-test-suite.cc.

Constructor & Destructor Documentation

CsmaStarTestCase()

CsmaStarTestCase::CsmaStarTestCase

(

)

Definition at line 1063 of file csma-system-test-suite.cc.

~CsmaStarTestCase()

CsmaStarTestCase::~CsmaStarTestCase ( )

override

Definition at line 1070 of file csma-system-test-suite.cc.

Member Function Documentation

DoRun()

void CsmaStarTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 1104 of file csma-system-test-suite.cc.

References ns3::ApplicationContainer::Add(), ns3::NodeContainer::Add(), ns3::NetDeviceContainer::Add(), first::address, ns3::CsmaStarHelper::AssignIpv4Addresses(), third::channel, ns3::Config::ConnectWithoutContext(), ns3::NodeContainer::Create(), second::csma, ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::CsmaStarHelper::GetHub(), ns3::CsmaStarHelper::GetHubIpv4Address(), ns3::NodeContainer::GetN(), ns3::CsmaStarHelper::GetSpokeDevices(), ns3::CsmaStarHelper::GetSpokeNode(), ns3::CsmaStarHelper::InstallStack(), nsclick-simple-lan::internet, m_count, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, nsclick-simple-lan::onOffHelper, nsclick-simple-lan::packetSinkHelper, port, nsclick-simple-lan::remoteAddress, ns3::Seconds(), SinkRx(), ns3::CsmaStarHelper::SpokeCount(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

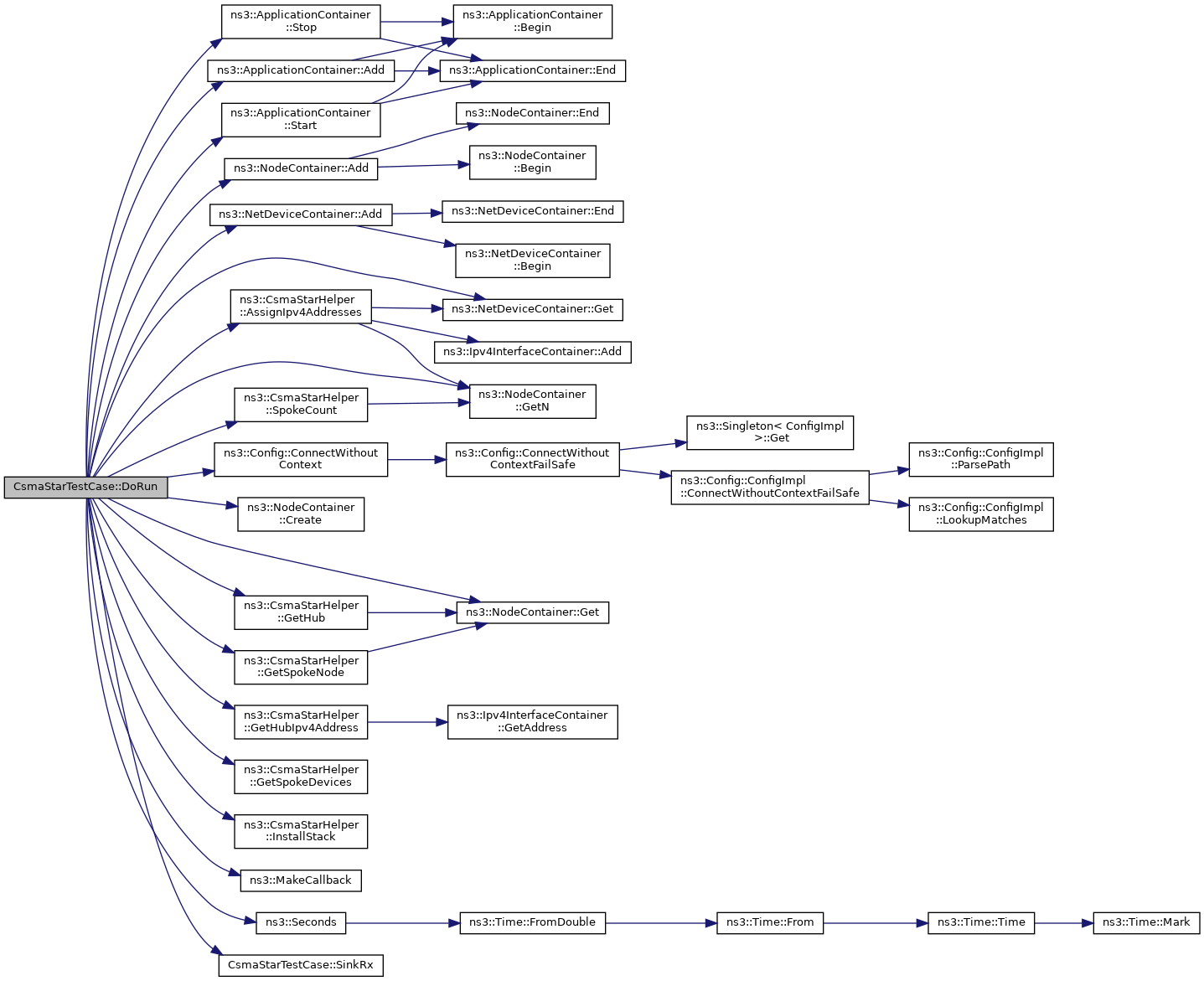

Here is the call graph for this function:

DropEvent()

void CsmaStarTestCase::DropEvent ( Ptr< const Packet >  p )

private

Sink called when a packet is dropped.

Parameters

p	Received packet (unused).

Definition at line 1081 of file csma-system-test-suite.cc.

References m_drops.

SinkRx()

void CsmaStarTestCase::SinkRx ( Ptr< const Packet >  p, const Address &  ad  )

private

Sink called when a packet is received by a node.

Parameters

p	Received packet (unused).
ad	Sender's address (uused).

Definition at line 1075 of file csma-system-test-suite.cc.

References m_count.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

m_count

uint32_t CsmaStarTestCase::m_count

private

Counter of received packets.

Definition at line 1058 of file csma-system-test-suite.cc.

Referenced by DoRun(), and SinkRx().

m_drops

uint32_t CsmaStarTestCase::m_drops

private

Counter of dropped packets.

Definition at line 1059 of file csma-system-test-suite.cc.

Referenced by DropEvent().

---

The documentation for this class was generated from the following file:

• src/test/csma-system-test-suite.cc
