ns3::PhyTransmissionStatParameters Struct Reference

PhyTransmissionStatParameters structure. More...

#include "lte-common.h"

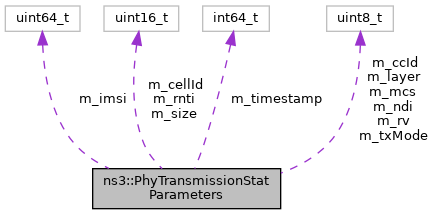

Collaboration diagram for ns3::PhyTransmissionStatParameters:

Public Types
typedef void(*	TracedCallback) (const PhyTransmissionStatParameters params)
	TracedCallback signature. More...

Public Attributes
uint8_t	m_ccId
	component carrier id More...
uint16_t	m_cellId
	Cell ID of the attached Enb. More...
uint64_t	m_imsi
	IMSI of the scheduled UE. More...
uint8_t	m_layer
	the layer (cw) of the transmission More...
uint8_t	m_mcs
	MCS for transport block. More...
uint8_t	m_ndi
	new data indicator flag More...
uint16_t	m_rnti
	C-RNTI scheduled. More...
uint8_t	m_rv
	the redundancy version (HARQ) More...
uint16_t	m_size
	Size of transport block. More...
int64_t	m_timestamp
	in millisecond More...
uint8_t	m_txMode
	the transmission Mode More...

Detailed Description

PhyTransmissionStatParameters structure.

Definition at line 187 of file lte-common.h.

Member Typedef Documentation

TracedCallback

typedef void(* ns3::PhyTransmissionStatParameters::TracedCallback) (const PhyTransmissionStatParameters params)

TracedCallback signature.

Parameters

[in]

params

Value of the PhyTransmissionionStatParameters.

Todo:

The argument should be passed by const reference, since it's large.

Definition at line 207 of file lte-common.h.

Member Data Documentation

m_ccId

uint8_t ns3::PhyTransmissionStatParameters::m_ccId

component carrier id

Definition at line 199 of file lte-common.h.

m_cellId

uint16_t ns3::PhyTransmissionStatParameters::m_cellId

Cell ID of the attached Enb.

Definition at line 190 of file lte-common.h.

m_imsi

uint64_t ns3::PhyTransmissionStatParameters::m_imsi

IMSI of the scheduled UE.

Definition at line 191 of file lte-common.h.

m_layer

uint8_t ns3::PhyTransmissionStatParameters::m_layer

the layer (cw) of the transmission

Definition at line 194 of file lte-common.h.

m_mcs

uint8_t ns3::PhyTransmissionStatParameters::m_mcs

MCS for transport block.

Definition at line 195 of file lte-common.h.

m_ndi

uint8_t ns3::PhyTransmissionStatParameters::m_ndi

new data indicator flag

Definition at line 198 of file lte-common.h.

m_rnti

uint16_t ns3::PhyTransmissionStatParameters::m_rnti

C-RNTI scheduled.

Definition at line 192 of file lte-common.h.

m_rv

uint8_t ns3::PhyTransmissionStatParameters::m_rv

the redundancy version (HARQ)

Definition at line 197 of file lte-common.h.

m_size

uint16_t ns3::PhyTransmissionStatParameters::m_size

Size of transport block.

Definition at line 196 of file lte-common.h.

m_timestamp

int64_t ns3::PhyTransmissionStatParameters::m_timestamp

in millisecond

Definition at line 189 of file lte-common.h.

m_txMode

uint8_t ns3::PhyTransmissionStatParameters::m_txMode

the transmission Mode

Definition at line 193 of file lte-common.h.

---

The documentation for this struct was generated from the following file:

• src/lte/model/lte-common.h
