This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include "lte-test-carrier-aggregation.h"

Inheritance diagram for CarrierAggregationTestCase:

Collaboration diagram for CarrierAggregationTestCase:

Public Member Functions
	CarrierAggregationTestCase (uint16_t nUser, uint16_t dist, uint32_t dlbandwidth, uint32_t ulBandwidth, uint32_t numberOfComponentCarriers)
	Constructor of test case. More...

	~CarrierAggregationTestCase () override

void	DlScheduling (DlSchedulingCallbackInfo dlInfo)
	DL Scheduling function that is used in this test as callback function of DL scheduling trace. More...

void	UlScheduling (uint32_t frameNo, uint32_t subframeNo, uint16_t rnti, uint8_t mcs, uint16_t sizeTb, uint8_t componentCarrierId)
	UL Scheduling function that is used in this test as callback function of UL sceduling trace. More...

void	WriteResultToFile () const
	Write result to file function. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Static Public Attributes
static bool	s_writeResults = false
	write results flag, determines whether to write results to outoput files More...

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist, uint32_t dlBandwidth, uint32_t ulBandwidth, uint32_t numberOfComponentCarriers)
	Builds the test name string based on provided parameter values. More...

Private Attributes
std::map< uint8_t, uint32_t >	m_ccDownlinkTraffic
	CC DL traffic. More...

std::map< uint8_t, uint32_t >	m_ccUplinkTraffic
	CC UL traffic. More...

uint16_t	m_dist
	the distance More...

uint16_t	m_dlBandwidth
	DL bandwidth. More...

uint64_t	m_dlThroughput
	DL throughput. More...

uint32_t	m_numberOfComponentCarriers
	number of component carriers More...

uint16_t	m_nUser
	the number of users More...

double	m_statsDuration
	stats duration More...

uint16_t	m_ulBandwidth
	UL bandwidth. More...

uint64_t	m_ulThroughput
	UL throughput. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. eNb and UEs are configured to use the secondary carrier and the component carrier manager is configured to split the data equally between primary and secondary carrier. The test consists of checking that the throughput obtained over different carriers are equal within a given tolerance.

Definition at line 46 of file lte-test-carrier-aggregation.h.

Constructor & Destructor Documentation

◆ CarrierAggregationTestCase()

CarrierAggregationTestCase::CarrierAggregationTestCase	(	uint16_t	nUser,
		uint16_t	dist,
		uint32_t	dlbandwidth,
		uint32_t	ulBandwidth,
		uint32_t	numberOfComponentCarriers
	)

Constructor of test case.

Parameters

nUser	number of users
dist	the distance
dlbandwidth	the DL bandwidth
ulBandwidth	the UL badnwidth
numberOfComponentCarriers	number of component carriers to be used in test configuration

Definition at line 278 of file lte-test-carrier-aggregation.cc.

References m_dlThroughput, and m_statsDuration.

◆ ~CarrierAggregationTestCase()

CarrierAggregationTestCase::~CarrierAggregationTestCase ( )

override

Definition at line 294 of file lte-test-carrier-aggregation.cc.

Member Function Documentation

◆ BuildNameString()

std::string CarrierAggregationTestCase::BuildNameString	(	uint16_t	nUser,
		uint16_t	dist,
		uint32_t	dlBandwidth,
		uint32_t	ulBandwidth,
		uint32_t	numberOfComponentCarriers
	)

staticprivate

Builds the test name string based on provided parameter values.

Parameters

nUser	number of users
dist	the distance
dlBandwidth	the DL bandwidth
ulBandwidth	the UL badnwidth
numberOfComponentCarriers	number of component carriers

Returns: the test name

Definition at line 265 of file lte-test-carrier-aggregation.cc.

◆ DlScheduling()

void CarrierAggregationTestCase::DlScheduling ( DlSchedulingCallbackInfo dlInfo )

DL Scheduling function that is used in this test as callback function of DL scheduling trace.

Parameters

dlInfo the DL scheduling callback info

Definition at line 487 of file lte-test-carrier-aggregation.cc.

References ns3::DlSchedulingCallbackInfo::componentCarrierId, m_ccDownlinkTraffic, m_dlThroughput, ns3::MilliSeconds(), ns3::Now(), ns3::DlSchedulingCallbackInfo::sizeTb1, and ns3::DlSchedulingCallbackInfo::sizeTb2.

Referenced by LteTestDlSchedulingCallback().

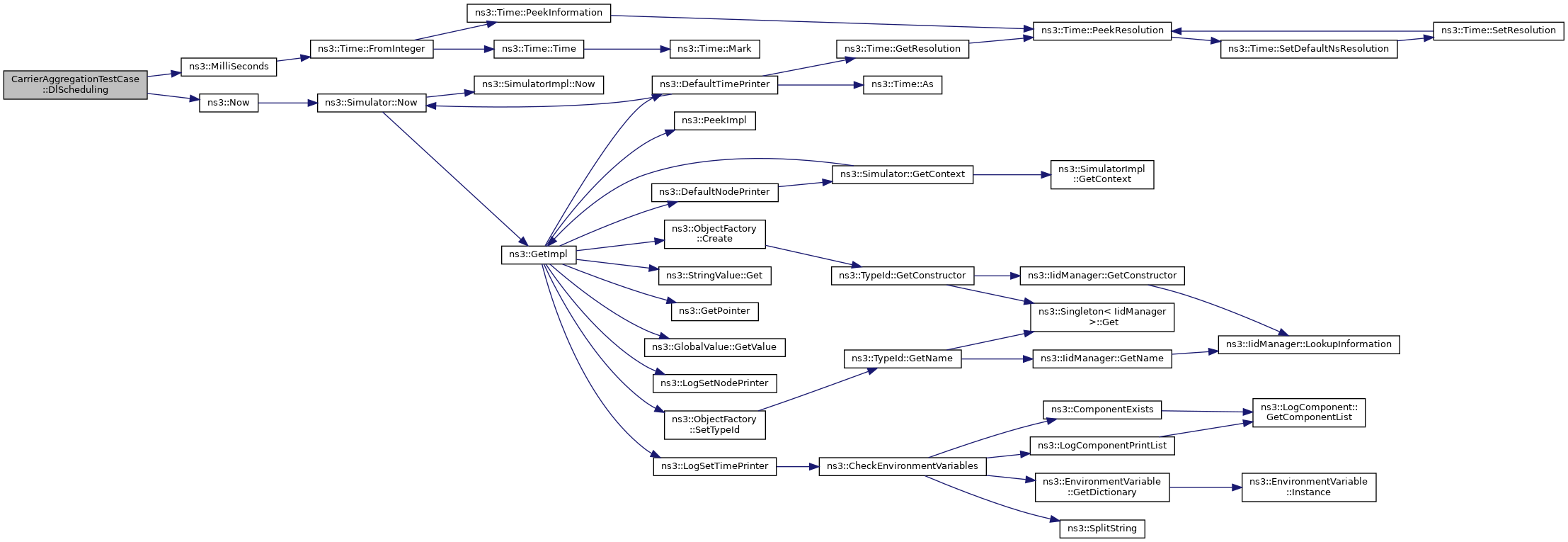

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void CarrierAggregationTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the assignment is done in a RR fashion

Implements ns3::TestCase.

Definition at line 299 of file lte-test-carrier-aggregation.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::Config::Connect(), ns3::NodeContainer::Create(), ns3::TestCase::CreateTempDirFilename(), ns3::LteHelper::EnableTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::Object::GetObject(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), LteTestDlSchedulingCallback(), LteTestUlSchedulingCallback(), m_ccDownlinkTraffic, m_ccUplinkTraffic, m_dist, m_dlBandwidth, m_numberOfComponentCarriers, m_nUser, m_statsDuration, m_ulBandwidth, ns3::MakeBoundCallback(), third::mobility, NS_LOG_FUNCTION, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ, s_writeResults, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::LteHelper::SetSchedulerAttribute(), ns3::LteHelper::SetSchedulerType(), and WriteResultToFile().

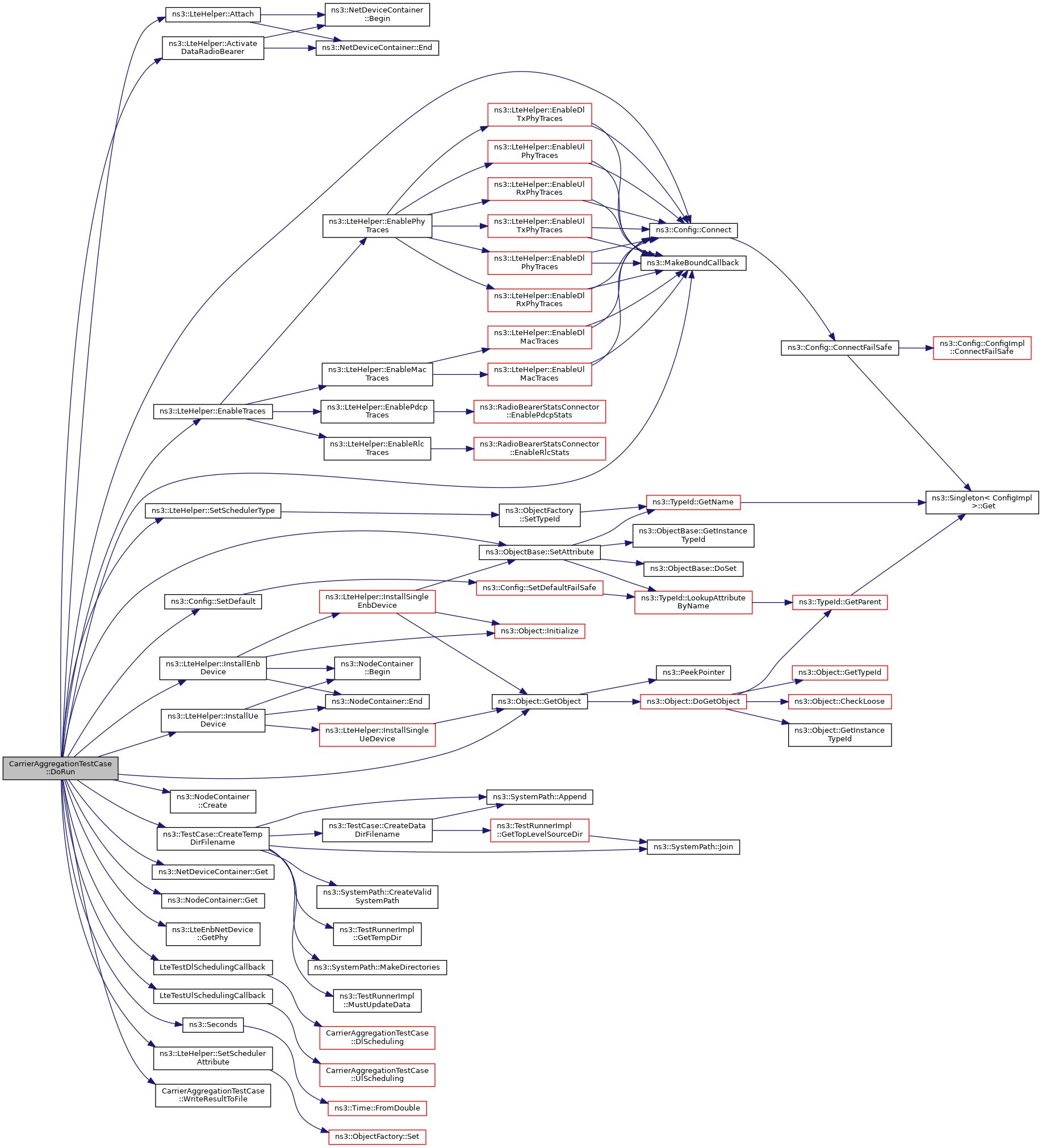

Here is the call graph for this function:

◆ UlScheduling()

void CarrierAggregationTestCase::UlScheduling	(	uint32_t	frameNo,
		uint32_t	subframeNo,
		uint16_t	rnti,
		uint8_t	mcs,
		uint16_t	sizeTb,
		uint8_t	componentCarrierId
	)
