TwoLinkTest Class Reference

IPv4 GlobalRouting Two Link test. More...

Inheritance diagram for TwoLinkTest:

Collaboration diagram for TwoLinkTest:

Public Member Functions
	TwoLinkTest ()
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	DoSetup () override
	Implementation to do any local setup required for this TestCase. More...
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Attributes
NodeContainer	m_nodes
	Nodes used in the test. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

IPv4 GlobalRouting Two Link test.

Definition at line 289 of file ipv4-global-routing-test-suite.cc.

Constructor & Destructor Documentation

TwoLinkTest()

TwoLinkTest::TwoLinkTest

(

)

Definition at line 300 of file ipv4-global-routing-test-suite.cc.

Member Function Documentation

DoRun()

void TwoLinkTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 337 of file ipv4-global-routing-test-suite.cc.

References ns3::NodeContainer::Get(), ns3::Ipv4RoutingTableEntry::GetDest(), ns3::Ipv4RoutingTableEntry::GetGateway(), ns3::Object::GetObject(), m_nodes, NS_LOG_DEBUG, NS_TEST_ASSERT_MSG_EQ, and NS_TEST_ASSERT_MSG_NE.

Here is the call graph for this function:

DoSetup()

void TwoLinkTest::DoSetup ( )

overridevirtual

Implementation to do any local setup required for this TestCase.

Subclasses should override this method to perform any costly per-test setup before DoRun is invoked.

Reimplemented from ns3::TestCase.

Definition at line 306 of file ipv4-global-routing-test-suite.cc.

References ns3::NetDeviceContainer::Add(), third::channel, ns3::NodeContainer::Create(), ns3::NodeContainer::Get(), ns3::SimpleNetDeviceHelper::Install(), nsclick-simple-lan::internet, nsclick-simple-lan::ipv4, m_nodes, and ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode().

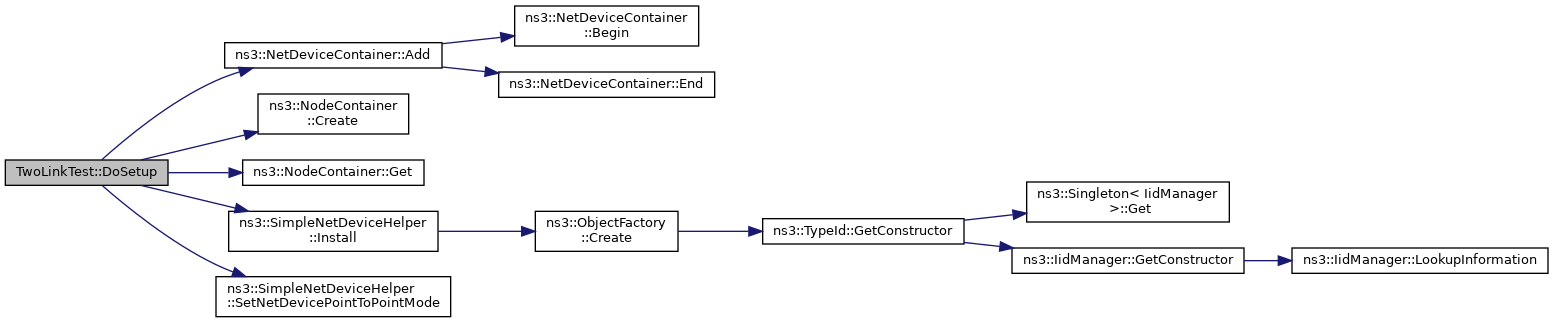

Here is the call graph for this function:

Member Data Documentation

m_nodes

NodeContainer TwoLinkTest::m_nodes

private

Nodes used in the test.

Definition at line 297 of file ipv4-global-routing-test-suite.cc.

Referenced by DoRun(), and DoSetup().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv4-global-routing-test-suite.cc
