ns3::OnoeWifiRemoteStation Struct Reference

hold per-remote-station state for ONOE Wifi manager. More...

Inheritance diagram for ns3::OnoeWifiRemoteStation:

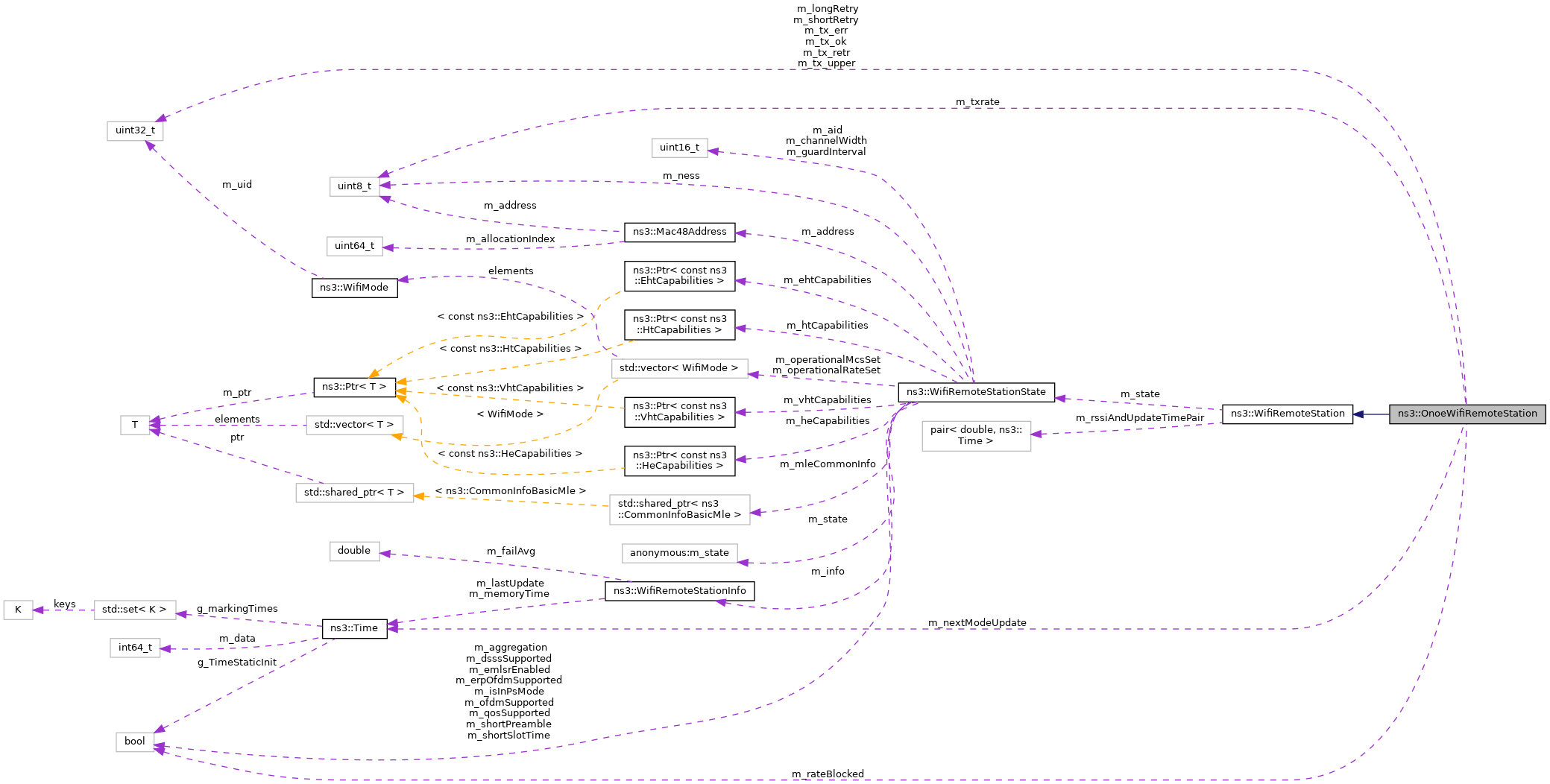

Collaboration diagram for ns3::OnoeWifiRemoteStation:

Public Attributes
uint32_t	m_longRetry
	long retry More...
Time	m_nextModeUpdate
	next mode update More...
bool	m_rateBlocked
	whether the rate cannot be changed More...
uint32_t	m_shortRetry
	short retry More...
uint32_t	m_tx_err
	transmit error More...
uint32_t	m_tx_ok
	transmit OK More...
uint32_t	m_tx_retr
	transmit retry More...
uint32_t	m_tx_upper
	transmit upper More...
uint8_t	m_txrate
	transmit rate More...
Public Attributes inherited from ns3::WifiRemoteStation
std::pair< double, Time >	m_rssiAndUpdateTimePair
	RSSI (in dBm) of the most recent packet received from the remote station along with update time. More...
WifiRemoteStationState *	m_state
	Remote station state. More...

Additional Inherited Members
Public Member Functions inherited from ns3::WifiRemoteStation
virtual	~WifiRemoteStation ()

Detailed Description

hold per-remote-station state for ONOE Wifi manager.

This struct extends from WifiRemoteStation struct to hold additional information required by the ONOE Wifi manager

Definition at line 39 of file onoe-wifi-manager.cc.

Member Data Documentation

m_longRetry

uint32_t ns3::OnoeWifiRemoteStation::m_longRetry

long retry

Definition at line 44 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoReportDataFailed(), and ns3::OnoeWifiManager::UpdateRetry().

m_nextModeUpdate

Time ns3::OnoeWifiRemoteStation::m_nextModeUpdate

next mode update

Definition at line 41 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode().

m_rateBlocked

bool ns3::OnoeWifiRemoteStation::m_rateBlocked

whether the rate cannot be changed

Definition at line 42 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoReportRtsOk(), and ns3::OnoeWifiManager::UpdateMode().

m_shortRetry

uint32_t ns3::OnoeWifiRemoteStation::m_shortRetry

short retry

Definition at line 43 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::DoReportRtsFailed(), and ns3::OnoeWifiManager::UpdateRetry().

m_tx_err

uint32_t ns3::OnoeWifiRemoteStation::m_tx_err

transmit error

Definition at line 46 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode().

m_tx_ok

uint32_t ns3::OnoeWifiRemoteStation::m_tx_ok

transmit OK

Definition at line 45 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode().

m_tx_retr

uint32_t ns3::OnoeWifiRemoteStation::m_tx_retr

transmit retry

Definition at line 47 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode(), and ns3::OnoeWifiManager::UpdateRetry().

m_tx_upper

uint32_t ns3::OnoeWifiRemoteStation::m_tx_upper

transmit upper

Definition at line 48 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode().

m_txrate

uint8_t ns3::OnoeWifiRemoteStation::m_txrate

transmit rate

Definition at line 49 of file onoe-wifi-manager.cc.

Referenced by ns3::OnoeWifiManager::UpdateMode().

---

The documentation for this struct was generated from the following file:

• src/wifi/model/rate-control/onoe-wifi-manager.cc
