Creates and assign an assortment of BatteryModels to Nodes. More...

#include "generic-battery-model-helper.h"

Inheritance diagram for ns3::GenericBatteryModelHelper:

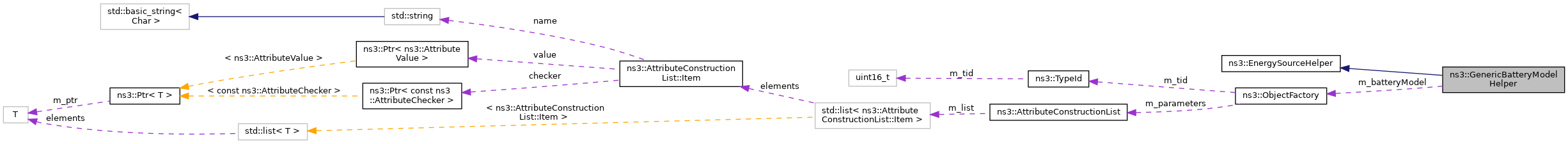

Collaboration diagram for ns3::GenericBatteryModelHelper:

Public Member Functions
	GenericBatteryModelHelper ()

	~GenericBatteryModelHelper () override

Ptr< EnergySourceContainer >	Install (NodeContainer c) const
	This function installs energy sources in a group of nodes in a node container. More...

EnergySourceContainer	Install (NodeContainer c, BatteryModel bm) const
	This function installs energy sources in a group of nodes in a node container. More...

Ptr< EnergySource >	Install (Ptr< Node > node, BatteryModel bm) const
	This function installs an energy source (battery) into a node. More...

void	Set (std::string name, const AttributeValue &v) override
	Sets one of the attributes of underlying EnergySource. More...

void	SetCellPack (EnergySourceContainer energySourceContainer, uint8_t series, uint8_t parallel) const
	This function takes an existing energy source container and transform the values of each of its containing energy sources to form groups of connected identical cells. More...

void	SetCellPack (Ptr< EnergySource > energySource, uint8_t series, uint8_t parallel) const
	This function takes an existing energy source and transform its values to form a group of connected identical cells. More...

Public Member Functions inherited from ns3::EnergySourceHelper
virtual	~EnergySourceHelper ()

EnergySourceContainer	Install (NodeContainer c) const

EnergySourceContainer	Install (Ptr< Node > node) const

EnergySourceContainer	Install (std::string nodeName) const

EnergySourceContainer	InstallAll () const
	This function installs an EnergySource on all nodes in simulation. More...

Private Member Functions
Ptr< EnergySource >	DoInstall (Ptr< Node > node) const override
	Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node. More...

Private Attributes
ObjectFactory	m_batteryModel
	The energy source (battery) used by this helper. More...

Detailed Description

Creates and assign an assortment of BatteryModels to Nodes.

Definition at line 36 of file generic-battery-model-helper.h.

Constructor & Destructor Documentation

◆ GenericBatteryModelHelper()

ns3::GenericBatteryModelHelper::GenericBatteryModelHelper ( )

Definition at line 25 of file generic-battery-model-helper.cc.

References m_batteryModel, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

◆ ~GenericBatteryModelHelper()

ns3::GenericBatteryModelHelper::~GenericBatteryModelHelper ( )

override

Definition at line 30 of file generic-battery-model-helper.cc.

Member Function Documentation

◆ DoInstall()

Ptr< EnergySource > ns3::GenericBatteryModelHelper::DoInstall ( Ptr< Node > node ) const

overrideprivatevirtual

Child classes of EnergySourceHelper only have to implement this function, to create and aggregate an EnergySource object onto a single node.

Rest of the installation process (eg. installing EnergySource on set of nodes) is implemented in the EnergySourceHelper base class.

Parameters

node	Pointer to node where the energy source is to be installed.

Returns: Pointer to the created EnergySource.

Implements ns3::EnergySourceHelper.

Definition at line 41 of file generic-battery-model-helper.cc.

References ns3::ObjectFactory::Create(), m_batteryModel, and NS_ASSERT.

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [1/3]

Ptr< EnergySourceContainer > ns3::GenericBatteryModelHelper::Install ( NodeContainer c ) const

This function installs energy sources in a group of nodes in a node container.

An energy source (Li-Ion battery) with default values is used on each node.

Parameters

c	The node container

Returns: An EnergySourceContainer which contains all the EnergySources.

Definition at line 51 of file generic-battery-model-helper.cc.

References ns3::NodeContainer::Begin(), DoInstall(), and ns3::NodeContainer::End().

Referenced by Install().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Install() [2/3]

EnergySourceContainer ns3::GenericBatteryModelHelper::Install	(	NodeContainer	c,
		BatteryModel	bm
	)		const

This function installs energy sources in a group of nodes in a node container.

Parameters

c	The node container.
bm	The battery model that will be install to the nodes in the node container.

Returns: An EnergySourceContainer which contains all the EnergySources.

Definition at line 90 of file generic-battery-model-helper.cc.

References ns3::EnergySourceContainer::Add(), ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), and Install().

Here is the call graph for this function:

◆ Install() [3/3]

Ptr< EnergySource > ns3::GenericBatteryModelHelper::Install	(	Ptr< Node >	node,
		BatteryModel	bm
	)		const

This function installs an energy source (battery) into a node.

Parameters

node	The node object.
bm	The battery model that will be install to the node.

Returns: A pointer to the energy source object used.

Definition at line 62 of file generic-battery-model-helper.cc.

References ns3::ObjectFactory::Create(), ns3::g_batteryPreset, m_batteryModel, and NS_ASSERT.

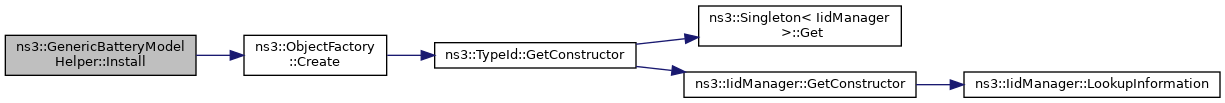

Here is the call graph for this function:

◆ Set()

void ns3::GenericBatteryModelHelper::Set	(	std::string	name,
		const AttributeValue &	v
	)

overridevirtual

Sets one of the attributes of underlying EnergySource.

Parameters

name	Name of attribute to set.
v	Value of the attribute.

Implements ns3::EnergySourceHelper.

Definition at line 35 of file generic-battery-model-helper.cc.

References m_batteryModel, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

◆ SetCellPack() [1/2]

void ns3::GenericBatteryModelHelper::SetCellPack	(	EnergySourceContainer	energySourceContainer,
		uint8_t	series,
		uint8_t	parallel
	)		const

This function takes an existing energy source container and transform the values of each of its containing energy sources to form groups of connected identical cells.

The values of the newly formed cell blocks for each energy source depends on the connection of the cells defined by the user (number of cells connected in series, number of cells connected in parallel).

Parameters

energySourceContainer	The energy source container used.
series	The number of cells connected in series.
parallel	The number of cells connected in parallel.

Definition at line 144 of file generic-battery-model-helper.cc.

References ns3::EnergySourceContainer::Begin(), ns3::EnergySourceContainer::End(), ns3::EnergySourceContainer::GetN(), NS_ASSERT_MSG, and SetCellPack().

Here is the call graph for this function:

◆ SetCellPack() [2/2]

void ns3::GenericBatteryModelHelper::SetCellPack	(	Ptr< EnergySource >	energySource,
		uint8_t	series,
		uint8_t	parallel
	)		const

This function takes an existing energy source and transform its values to form a group of connected identical cells.

The values of the newly formed cell block depends on the connection of the cells defined by the user (number of cells connected in series, number of cells connected in parallel).

Parameters
