Ns3TcpSocketTestCaseP2P Class Reference

Tests of TCP implementations from the application/socket perspective using point-to-point links. More...

Inheritance diagram for Ns3TcpSocketTestCaseP2P:

Collaboration diagram for Ns3TcpSocketTestCaseP2P:

Public Member Functions
	Ns3TcpSocketTestCaseP2P ()
	~Ns3TcpSocketTestCaseP2P () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	SinkRx (std::string path, Ptr< const Packet > p, const Address &address)
	Receive a TCP packet. More...

Private Attributes
TestVectors< uint32_t >	m_inputs
	Sent packets test vector. More...
TestVectors< uint32_t >	m_responses
	Received packets test vector. More...
bool	m_writeResults
	True if write PCAP files. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Tests of TCP implementations from the application/socket perspective using point-to-point links.

Definition at line 49 of file ns3tcp-socket-test-suite.cc.

Constructor & Destructor Documentation

Ns3TcpSocketTestCaseP2P()

Ns3TcpSocketTestCaseP2P::Ns3TcpSocketTestCaseP2P

(

)

Definition at line 74 of file ns3tcp-socket-test-suite.cc.

~Ns3TcpSocketTestCaseP2P()

Ns3TcpSocketTestCaseP2P::~Ns3TcpSocketTestCaseP2P ( )

inlineoverride

Definition at line 54 of file ns3tcp-socket-test-suite.cc.

Member Function Documentation

DoRun()

void Ns3TcpSocketTestCaseP2P::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 88 of file ns3tcp-socket-test-suite.cc.

References ns3::TestVectors< T >::Add(), ns3::Node::AddApplication(), first::address, ns3::Config::Connect(), first::devices, ns3::TestVectors< T >::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::TestVectors< T >::GetN(), nsclick-simple-lan::internet, m_inputs, m_responses, m_writeResults, ns3::MakeCallback(), NS_TEST_ASSERT_MSG_EQ, first::pointToPoint, ns3::Seconds(), sink, SinkRx(), ns3::ApplicationContainer::Start(), and ns3::ApplicationContainer::Stop().

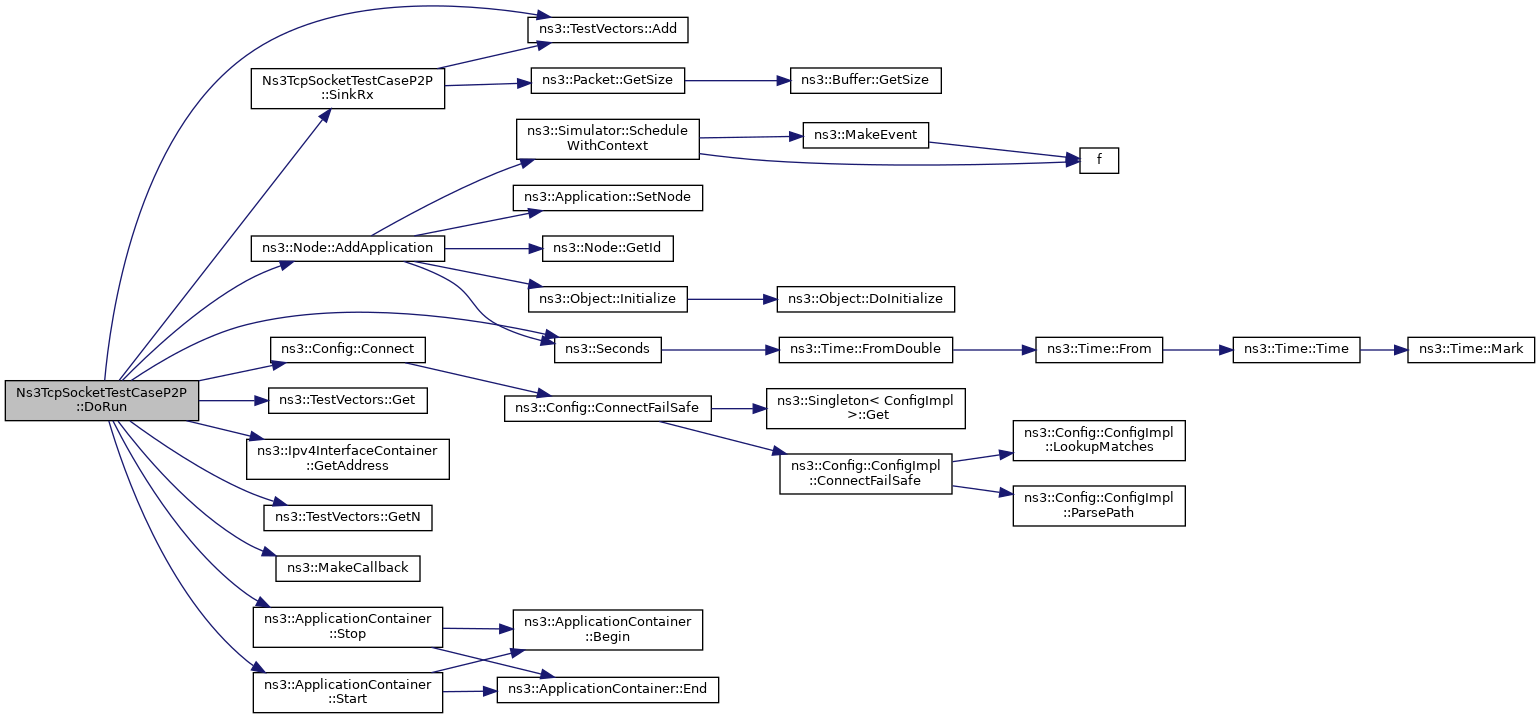

Here is the call graph for this function:

SinkRx()

void Ns3TcpSocketTestCaseP2P::SinkRx ( std::string  path, Ptr< const Packet >  p, const Address &  address  )

private

Receive a TCP packet.

Parameters

path	The callback context (unused).
p	The received packet.
address	The sender's address (unused).

Definition at line 82 of file ns3tcp-socket-test-suite.cc.

References ns3::TestVectors< T >::Add(), ns3::Packet::GetSize(), and m_responses.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_inputs

TestVectors<uint32_t> Ns3TcpSocketTestCaseP2P::m_inputs

private

Sent packets test vector.

Definition at line 70 of file ns3tcp-socket-test-suite.cc.

Referenced by DoRun().

m_responses

TestVectors<uint32_t> Ns3TcpSocketTestCaseP2P::m_responses

private

Received packets test vector.

Definition at line 71 of file ns3tcp-socket-test-suite.cc.

Referenced by DoRun(), and SinkRx().

m_writeResults

bool Ns3TcpSocketTestCaseP2P::m_writeResults

private

True if write PCAP files.

Definition at line 60 of file ns3tcp-socket-test-suite.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/test/ns3tcp/ns3tcp-socket-test-suite.cc
