ns3::CsParameters Class Reference

CsParameters class. More...

#include "cs-parameters.h"

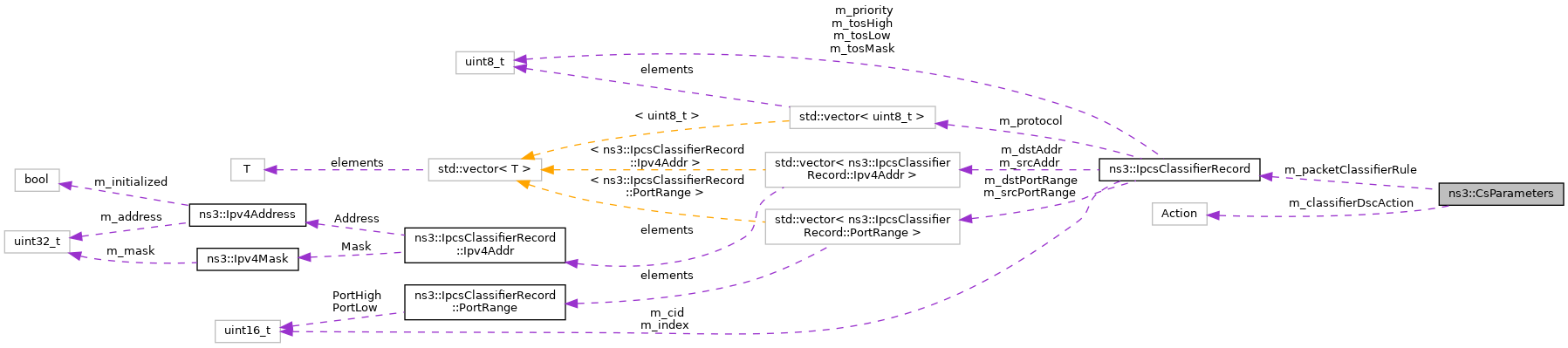

Collaboration diagram for ns3::CsParameters:

Public Types
enum	Action { ADD = 0 , REPLACE = 1 , DELETE = 2 }
	Action enumeration. More...

Public Member Functions
	CsParameters ()
	CsParameters (Action classifierDscAction, IpcsClassifierRecord classifier)
	creates a convergence sub-layer parameters from an ipcs classifier record More...
	CsParameters (Tlv tlv)
	creates a convergence sub-layer parameters from a tlv More...
	~CsParameters ()
Action	GetClassifierDscAction () const
IpcsClassifierRecord	GetPacketClassifierRule () const
void	SetClassifierDscAction (Action action)
	sets the dynamic service classifier action to ADD, Change or delete. More...
void	SetPacketClassifierRule (IpcsClassifierRecord packetClassifierRule)
	sets the packet classifier rules More...
Tlv	ToTlv () const
	creates a tlv from the classifier record More...

Private Attributes
Action	m_classifierDscAction
	classifier DSC action More...
IpcsClassifierRecord	m_packetClassifierRule
	packet classifier rule More...

Detailed Description

CsParameters class.

Definition at line 35 of file cs-parameters.h.

Member Enumeration Documentation

Action

enum ns3::CsParameters::Action

Action enumeration.

Enumerator
ADD
REPLACE
DELETE

Definition at line 39 of file cs-parameters.h.

Constructor & Destructor Documentation

CsParameters() [1/3]

ns3::CsParameters::CsParameters

(

)

Definition at line 26 of file cs-parameters.cc.

References ADD, and m_classifierDscAction.

~CsParameters()

ns3::CsParameters::~CsParameters

(

)

Definition at line 31 of file cs-parameters.cc.

CsParameters() [2/3]

ns3::CsParameters::CsParameters

(

Tlv

tlv

)

creates a convergence sub-layer parameters from a tlv

Parameters

tlv

the TLV

Definition at line 35 of file cs-parameters.cc.

References ns3::VectorTlvValue::Begin(), ns3::CsParamVectorTlvValue::Classifier_DSC_Action, ns3::VectorTlvValue::End(), ns3::Tlv::GetType(), ns3::SfVectorTlvValue::IPV4_CS_Parameters, m_classifierDscAction, m_packetClassifierRule, NS_ASSERT_MSG, ns3::CsParamVectorTlvValue::Packet_Classification_Rule, and ns3::Tlv::PeekValue().

Here is the call graph for this function:

CsParameters() [3/3]

ns3::CsParameters::CsParameters	(	CsParameters::Action	classifierDscAction,
		IpcsClassifierRecord	classifier
	)

creates a convergence sub-layer parameters from an ipcs classifier record

Parameters

classifierDscAction	the DCS action type
classifier	the IPCS classifier record

Definition at line 57 of file cs-parameters.cc.

References m_classifierDscAction, and m_packetClassifierRule.

Member Function Documentation

GetClassifierDscAction()

CsParameters::Action ns3::CsParameters::GetClassifierDscAction

(

)

const

Returns

the dynamic service classifier action

Definition at line 77 of file cs-parameters.cc.

References m_classifierDscAction.

GetPacketClassifierRule()

IpcsClassifierRecord ns3::CsParameters::GetPacketClassifierRule

(

)

const

Returns

the the packet classifier rules

Definition at line 83 of file cs-parameters.cc.

References m_packetClassifierRule.

Referenced by ns3::ServiceFlow::CheckClassifierMatch(), and Ns3WimaxCsParamTlvTestCase::DoRun().

Here is the caller graph for this function:

SetClassifierDscAction()

void ns3::CsParameters::SetClassifierDscAction

(

CsParameters::Action

action

)

sets the dynamic service classifier action to ADD, Change or delete.

Only ADD is supported

Parameters

action

the action enumeration

Definition at line 65 of file cs-parameters.cc.

References check-style-clang-format::action, and m_classifierDscAction.

SetPacketClassifierRule()

void ns3::CsParameters::SetPacketClassifierRule

(

IpcsClassifierRecord

packetClassifierRule

)

sets the packet classifier rules

Parameters

packetClassifierRule

the IPCS classifier record

Definition at line 71 of file cs-parameters.cc.

References m_packetClassifierRule.

ToTlv()

Tlv ns3::CsParameters::ToTlv

(

)

const

creates a tlv from the classifier record

Returns

the created tlv

Definition at line 89 of file cs-parameters.cc.

References ns3::VectorTlvValue::Add(), ns3::CsParamVectorTlvValue::Classifier_DSC_Action, ns3::VectorTlvValue::GetSerializedSize(), ns3::SfVectorTlvValue::IPV4_CS_Parameters, m_classifierDscAction, m_packetClassifierRule, and ns3::IpcsClassifierRecord::ToTlv().

Referenced by Ns3WimaxCsParamTlvTestCase::DoRun(), and ns3::ServiceFlow::ToTlv().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

m_classifierDscAction

Action ns3::CsParameters::m_classifierDscAction

private

classifier DSC action

Definition at line 85 of file cs-parameters.h.

Referenced by CsParameters(), GetClassifierDscAction(), SetClassifierDscAction(), and ToTlv().

m_packetClassifierRule

IpcsClassifierRecord ns3::CsParameters::m_packetClassifierRule

private

packet classifier rule

Definition at line 86 of file cs-parameters.h.

Referenced by CsParameters(), GetPacketClassifierRule(), SetPacketClassifierRule(), and ToTlv().

---

The documentation for this class was generated from the following files:

• src/wimax/model/cs-parameters.h
• src/wimax/model/cs-parameters.cc
