Allocate positions on a rectangular 2d grid. More...

#include "position-allocator.h"

Inheritance diagram for ns3::GridPositionAllocator:

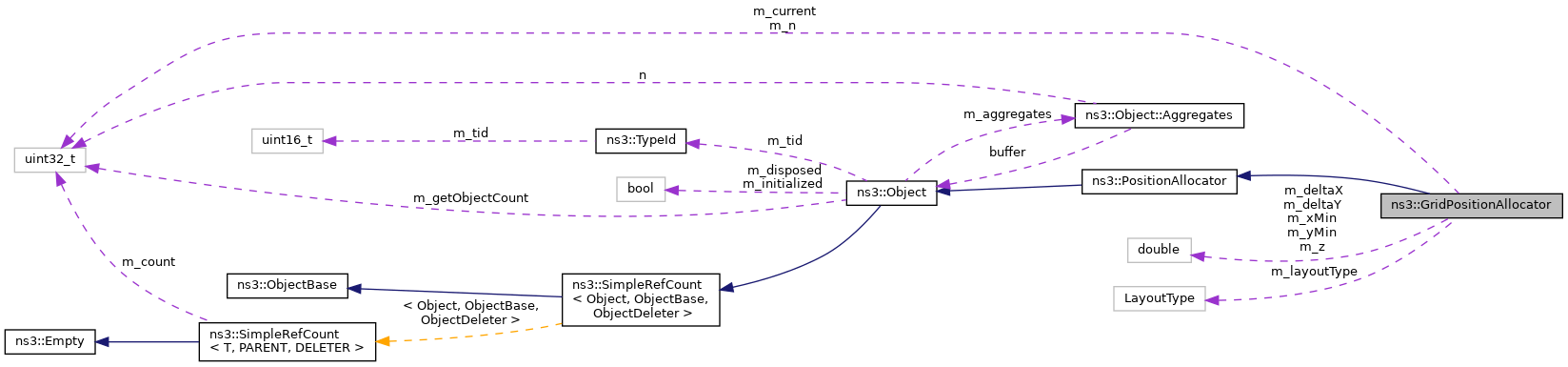

Collaboration diagram for ns3::GridPositionAllocator:

Public Types
enum	LayoutType { ROW_FIRST , COLUMN_FIRST }
	Determine whether positions are allocated row first or column first. More...

Public Member Functions
	GridPositionAllocator ()

int64_t	AssignStreams (int64_t stream) override
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	GetDeltaX () const

double	GetDeltaY () const

LayoutType	GetLayoutType () const

double	GetMinX () const

double	GetMinY () const

uint32_t	GetN () const

Vector	GetNext () const override

void	SetDeltaX (double deltaX)

void	SetDeltaY (double deltaY)

void	SetLayoutType (LayoutType layoutType)

void	SetMinX (double xMin)

void	SetMinY (double yMin)

void	SetN (uint32_t n)

void	SetZ (double z)

Public Member Functions inherited from ns3::PositionAllocator
	PositionAllocator ()

	~PositionAllocator () override

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::PositionAllocator
static TypeId	GetTypeId ()
	Register this type with the TypeId system. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint32_t	m_current
	currently position More...

double	m_deltaX
	x interval between two consecutive x positions More...

double	m_deltaY
	y interval between two consecutive y positions More...

LayoutType	m_layoutType
	currently selected layout type More...

uint32_t	m_n
	number of positions to allocate on each row or column More...

double	m_xMin
	minimum boundary on x positions More...

double	m_yMin
	minimum boundary on y positions More...

double	m_z
	z coordinate of all the positions generated More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Allocate positions on a rectangular 2d grid.

Definition at line 123 of file position-allocator.h.

Member Enumeration Documentation

◆ LayoutType

enum ns3::GridPositionAllocator::LayoutType

Determine whether positions are allocated row first or column first.

Enumerator

ROW_FIRST

In row-first mode, positions are allocated on the first row until N positions have been allocated.

Then, the second row located a yMin + yDelta is used to allocate positions.

COLUMN_FIRST

In column-first mode, positions are allocated on the first column until N positions have been allocated.

Then, the second column located a xMin + xDelta is used to allocate positions.

Definition at line 135 of file position-allocator.h.

Constructor & Destructor Documentation

◆ GridPositionAllocator()

ns3::GridPositionAllocator::GridPositionAllocator ( )

Definition at line 193 of file position-allocator.cc.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::GridPositionAllocator::AssignStreams ( int64_t stream )

overridevirtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

This method must be implement in subclasses.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Implements ns3::PositionAllocator.

Definition at line 297 of file position-allocator.cc.

◆ GetDeltaX()

double ns3::GridPositionAllocator::GetDeltaX ( ) const

Returns: the x interval between two consecutive x-positions.

Definition at line 253 of file position-allocator.cc.

References m_deltaX.

◆ GetDeltaY()

double ns3::GridPositionAllocator::GetDeltaY ( ) const

Returns: the y interval between two consecutive y-positions.

Definition at line 259 of file position-allocator.cc.

References m_deltaY.

◆ GetLayoutType()

GridPositionAllocator::LayoutType ns3::GridPositionAllocator::GetLayoutType ( ) const

Returns: the currently-selected layout type.

Definition at line 271 of file position-allocator.cc.

References m_layoutType.

◆ GetMinX()

double ns3::GridPositionAllocator::GetMinX ( ) const

Returns: the x coordinate of the first allocated position.

Definition at line 241 of file position-allocator.cc.

References m_xMin.

◆ GetMinY()

double ns3::GridPositionAllocator::GetMinY ( ) const

Returns: the y coordinate of the first allocated position.

Definition at line 247 of file position-allocator.cc.

References m_yMin.

◆ GetN()

uint32_t ns3::GridPositionAllocator::GetN ( ) const

Returns: the number of positions to allocate on each row or each column.

Definition at line 265 of file position-allocator.cc.

References m_n.

◆ GetNext()

Vector ns3::GridPositionAllocator::GetNext ( ) const

overridevirtual

Returns: the next chosen position.

This method must be implement in subclasses.

Implements ns3::PositionAllocator.

Definition at line 277 of file position-allocator.cc.

References COLUMN_FIRST, m_current, m_deltaX, m_deltaY, m_layoutType, m_n, m_xMin, m_yMin, m_z, ROW_FIRST, and two-ray-to-three-gpp-ch-calibration::x.

◆ GetTypeId()

TypeId ns3::GridPositionAllocator::GetTypeId ( void )

static

Register this type with the TypeId system.

Returns: the object TypeId

Definition at line 148 of file position-allocator.cc.

References COLUMN_FIRST, m_deltaX, m_deltaY, m_layoutType, m_n, m_xMin, m_yMin, m_z, ns3::MakeDoubleAccessor(), ns3::MakeEnumChecker(), ns3::MakeUintegerAccessor(), ROW_FIRST, and ns3::TypeId::SetParent().

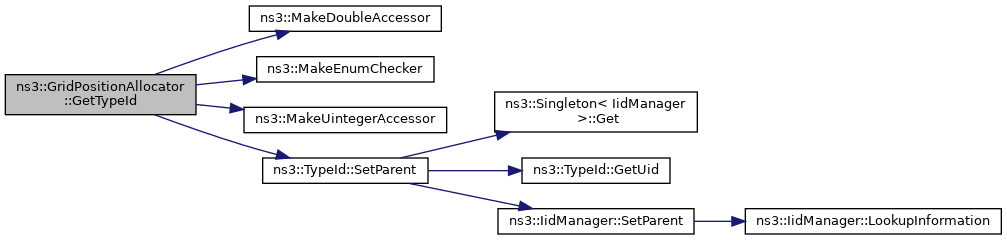

Here is the call graph for this function:

◆ SetDeltaX()

void ns3::GridPositionAllocator::SetDeltaX ( double deltaX )

Parameters

deltaX the x interval between two x-consecutive positions.

Definition at line 217 of file position-allocator.cc.

References m_deltaX.

◆ SetDeltaY()

void ns3::GridPositionAllocator::SetDeltaY ( double deltaY )

Parameters

deltaY the y interval between two y-consecutive positions.

Definition at line 223 of file position-allocator.cc.

References m_deltaY.

◆ SetLayoutType()

void ns3::GridPositionAllocator::SetLayoutType ( LayoutType layoutType )

Parameters

layoutType the type of layout to use (row first or column first).

Definition at line 235 of file position-allocator.cc.

References m_layoutType.

◆ SetMinX()

void ns3::GridPositionAllocator::SetMinX ( double xMin )

Parameters

xMin	the x coordinate where layout will start.

Definition at line 199 of file position-allocator.cc.

References m_xMin.

◆ SetMinY()

void ns3::GridPositionAllocator::SetMinY ( double yMin )

Parameters

yMin	the y coordinate where layout will start

Definition at line 205 of file position-allocator.cc.

References m_yMin.

◆ SetN()

void ns3::GridPositionAllocator::SetN ( uint32_t n )

Parameters

n	the number of positions allocated on each row (or each column) before switching to the next column (or row).

Definition at line 229 of file position-allocator.cc.

References m_n.

◆ SetZ()

void ns3::GridPositionAllocator::SetZ ( double z )

Parameters

z	the Z coordinate of all the positions allocated

Definition at line 211 of file position-allocator.cc.

References m_z.

Member Data Documentation

◆ m_current

uint32_t ns3::GridPositionAllocator::m_current

mutableprivate

currently position

Definition at line 212 of file position-allocator.h.

Referenced by GetNext().

◆ m_deltaX

double ns3::GridPositionAllocator::m_deltaX

private

x interval between two consecutive x positions

Definition at line 218 of file position-allocator.h.

Referenced by GetDeltaX(), GetNext(), GetTypeId(), and SetDeltaX().

◆ m_deltaY

double ns3::GridPositionAllocator::m_deltaY

private

y interval between two consecutive y positions

Definition at line 219 of file position-allocator.h.

Referenced by GetDeltaY(), GetNext(), GetTypeId(), and SetDeltaY().

◆ m_layoutType

LayoutType ns3::GridPositionAllocator::m_layoutType

private

currently selected layout type

Definition at line 213 of file position-allocator.h.

Referenced by GetLayoutType(), GetNext(), GetTypeId(), and SetLayoutType().

◆ m_n

uint32_t ns3::GridPositionAllocator::m_n

private

number of positions to allocate on each row or column

Definition at line 217 of file position-allocator.h.

Referenced by GetN(), GetNext(), GetTypeId(), and SetN().

◆ m_xMin

double ns3::GridPositionAllocator::m_xMin

private

minimum boundary on x positions

Definition at line 214 of file position-allocator.h.

Referenced by GetMinX(), GetNext(), GetTypeId(), and SetMinX().

◆ m_yMin

double ns3::GridPositionAllocator::m_yMin

private

minimum boundary on y positions

Definition at line 215 of file position-allocator.h.

Referenced by GetMinY(), GetNext(), GetTypeId(), and SetMinY().

◆ m_z

double ns3::GridPositionAllocator::m_z

private

z coordinate of all the positions generated

Definition at line 216 of file position-allocator.h.

Referenced by GetNext(), GetTypeId(), and SetZ().

The documentation for this class was generated from the following files:

src/mobility/model/position-allocator.h
src/mobility/model/position-allocator.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LayoutType

Constructor & Destructor Documentation

◆ GridPositionAllocator()

Member Function Documentation

◆ AssignStreams()

◆ GetDeltaX()

◆ GetDeltaY()

◆ GetLayoutType()

◆ GetMinX()

◆ GetMinY()

◆ GetN()

◆ GetNext()

◆ GetTypeId()

◆ SetDeltaX()

◆ SetDeltaY()

◆ SetLayoutType()

◆ SetMinX()

◆ SetMinY()

◆ SetN()

◆ SetZ()

Member Data Documentation

◆ m_current

◆ m_deltaX

◆ m_deltaY

◆ m_layoutType

◆ m_n

◆ m_xMin

◆ m_yMin

◆ m_z
