6LoWPAN HC1 header - see RFC 4944. More...

#include "sixlowpan-header.h"

Inheritance diagram for ns3::SixLowPanHc1:

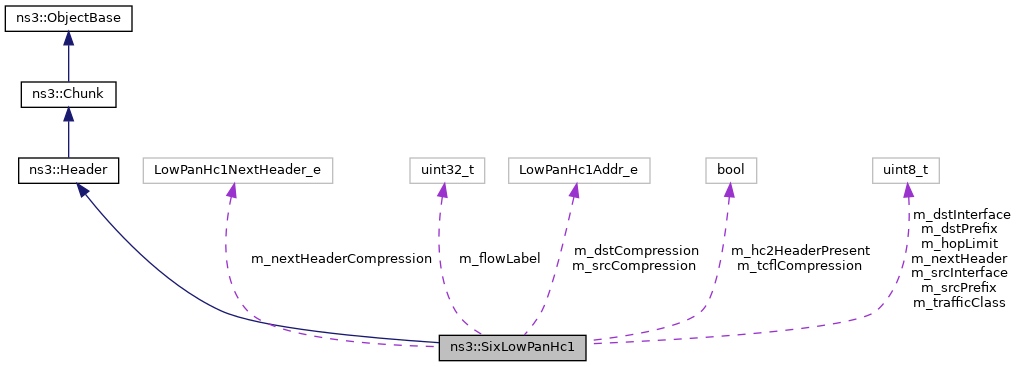

Collaboration diagram for ns3::SixLowPanHc1:

Public Types
enum	LowPanHc1Addr_e { HC1_PIII = 0x00 , HC1_PIIC = 0x01 , HC1_PCII = 0x02 , HC1_PCIC = 0x03 }
	Kind of address compression. More...

enum	LowPanHc1NextHeader_e { HC1_NC = 0x00 , HC1_UDP = 0x01 , HC1_ICMP = 0x02 , HC1_TCP = 0x03 }
	Next header information. More...

Public Member Functions
	SixLowPanHc1 ()

uint32_t	Deserialize (Buffer::Iterator start) override
	Deserialize the packet. More...

LowPanHc1Addr_e	GetDstCompression () const
	Get Destination Compression type. More...

const uint8_t *	GetDstInterface () const
	Get the destination interface. More...

const uint8_t *	GetDstPrefix () const
	Get the destination prefix. More...

uint32_t	GetFlowLabel () const
	Get the Flow Label value. More...

uint8_t	GetHopLimit () const
	Get the "Hop limit" field (TTL). More...

TypeId	GetInstanceTypeId () const override
	Return the instance type identifier. More...

uint8_t	GetNextHeader () const
	Get the Next Header value. More...

uint32_t	GetSerializedSize () const override
	Get the serialized size of the packet. More...

LowPanHc1Addr_e	GetSrcCompression () const
	Get Source Compression type. More...

const uint8_t *	GetSrcInterface () const
	Get the source interface. More...

const uint8_t *	GetSrcPrefix () const
	Get the source prefix. More...

uint8_t	GetTrafficClass () const
	Get the Traffic Class value. More...

bool	IsHc2HeaderPresent () const
	Check if there is a HC2 compressed header. More...

bool	IsTcflCompression () const
	Check if the Traffic Class and Flow Labels are compressed. More...

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override
	Serialize the packet. More...

void	SetDstCompression (LowPanHc1Addr_e dstCompression)
	Set Destination Compression type. More...

void	SetDstInterface (const uint8_t *dstInterface)
	Set the destination interface. More...

void	SetDstPrefix (const uint8_t *dstPrefix)
	Set the destination prefix. More...

void	SetFlowLabel (uint32_t flowLabel)
	Set the Flow Label value. More...

void	SetHc2HeaderPresent (bool hc2HeaderPresent)
	Set the next header a HC2 compressed header. More...

void	SetHopLimit (uint8_t limit)
	Set the "Hop limit" field (TTL). More...

void	SetNextHeader (uint8_t nextHeader)
	Set the Next Header value. More...

void	SetSrcCompression (LowPanHc1Addr_e srcCompression)
	Set Source Compression type. More...

void	SetSrcInterface (const uint8_t *srcInterface)
	Set the source interface. More...

void	SetSrcPrefix (const uint8_t *srcPrefix)
	Set the source prefix. More...

void	SetTcflCompression (bool tcflCompression)
	Set the Traffic Class and Flow Labels as compressed. More...

void	SetTrafficClass (uint8_t trafficClass)
	Set the Traffic Class value. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
LowPanHc1Addr_e	m_dstCompression
	Destination compression type. More...

uint8_t	m_dstInterface [8]
	Destination interface. More...

uint8_t	m_dstPrefix [8]
	Destination prefix. More...

uint32_t	m_flowLabel
	Flow Label. More...

bool	m_hc2HeaderPresent
	Is next header HC2 compressed. More...

uint8_t	m_hopLimit
	Hop Limit. More...

uint8_t	m_nextHeader
	Next header. More...

LowPanHc1NextHeader_e	m_nextHeaderCompression
	Next header compression. More...

LowPanHc1Addr_e	m_srcCompression
	Source compression type. More...

uint8_t	m_srcInterface [8]
	Source interface. More...

uint8_t	m_srcPrefix [8]
	Source prefix. More...

bool	m_tcflCompression
	Is TC and FL compressed. More...

uint8_t	m_trafficClass
	Traffic Class. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

6LoWPAN HC1 header - see RFC 4944.

Definition at line 130 of file sixlowpan-header.h.

Member Enumeration Documentation

◆ LowPanHc1Addr_e

enum ns3::SixLowPanHc1::LowPanHc1Addr_e

Kind of address compression.

The address compression is handled in 4 bits and might mean: PI: Prefix inline, PC: Prefix Compressed, II: Interface Identifier, Inline, IC: Interface Identifier Compressed.

Enumerator
HC1_PIII
HC1_PIIC
HC1_PCII
HC1_PCIC

Definition at line 140 of file sixlowpan-header.h.

◆ LowPanHc1NextHeader_e

enum ns3::SixLowPanHc1::LowPanHc1NextHeader_e

Next header information.

The Next header compression is handled in 4 bits and might mean: NC: Not Compressed, UDP, ICMP or TCP.

Enumerator
HC1_NC
HC1_UDP
HC1_ICMP
HC1_TCP

Definition at line 154 of file sixlowpan-header.h.

Constructor & Destructor Documentation

◆ SixLowPanHc1()

ns3::SixLowPanHc1::SixLowPanHc1 ( )

Definition at line 98 of file sixlowpan-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::SixLowPanHc1::Deserialize ( Buffer::Iterator start )

overridevirtual

Deserialize the packet.

Parameters

[in] start Buffer iterator.

Returns: Size of the packet.

Implements ns3::Header.

Definition at line 276 of file sixlowpan-header.cc.

References two-ray-to-three-gpp-ch-calibration::encoding, GetSerializedSize(), HC1_ICMP, HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

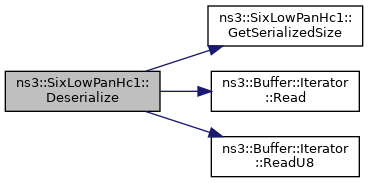

Here is the call graph for this function:

◆ GetDstCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetDstCompression ( ) const

Get Destination Compression type.

Returns: The kind of address compression.

Definition at line 394 of file sixlowpan-header.cc.

References m_dstCompression.

◆ GetDstInterface()

const uint8_t * ns3::SixLowPanHc1::GetDstInterface ( ) const

Get the destination interface.

Returns: The destination interface.

Definition at line 400 of file sixlowpan-header.cc.

References m_dstInterface.

◆ GetDstPrefix()

const uint8_t * ns3::SixLowPanHc1::GetDstPrefix ( ) const

Get the destination prefix.

Returns: The destination prefix.

Definition at line 406 of file sixlowpan-header.cc.

References m_dstPrefix.

◆ GetFlowLabel()

uint32_t ns3::SixLowPanHc1::GetFlowLabel ( ) const

Get the Flow Label value.

Returns: The Flow Label.

Definition at line 412 of file sixlowpan-header.cc.

References m_flowLabel.

◆ GetHopLimit()

uint8_t ns3::SixLowPanHc1::GetHopLimit ( ) const

Get the "Hop limit" field (TTL).

Returns: The hop limit value.

Definition at line 388 of file sixlowpan-header.cc.

References m_hopLimit.

◆ GetInstanceTypeId()

TypeId ns3::SixLowPanHc1::GetInstanceTypeId ( void ) const

overridevirtual

Return the instance type identifier.

Returns: Instance type ID.

Implements ns3::ObjectBase.

Definition at line 114 of file sixlowpan-header.cc.

References GetTypeId().

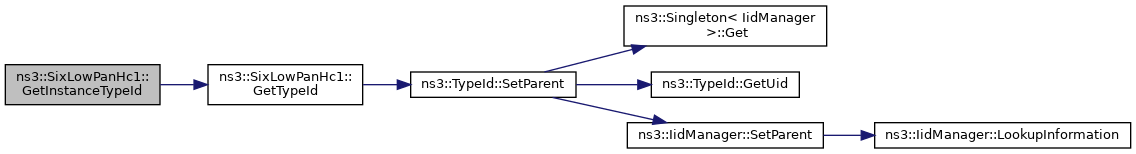

Here is the call graph for this function:

◆ GetNextHeader()

uint8_t ns3::SixLowPanHc1::GetNextHeader ( ) const

Get the Next Header value.

Returns: The Next Header value.

Definition at line 418 of file sixlowpan-header.cc.

References m_nextHeader.

◆ GetSerializedSize()

uint32_t ns3::SixLowPanHc1::GetSerializedSize ( ) const

overridevirtual

Get the serialized size of the packet.

Returns: Size.

Implements ns3::Header.

Definition at line 137 of file sixlowpan-header.cc.

References HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, m_dstCompression, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1(), and Deserialize().

Here is the caller graph for this function:

◆ GetSrcCompression()

SixLowPanHc1::LowPanHc1Addr_e ns3::SixLowPanHc1::GetSrcCompression ( ) const

Get Source Compression type.

Returns: The kind of address compression.

Definition at line 424 of file sixlowpan-header.cc.

References m_srcCompression.

◆ GetSrcInterface()

const uint8_t * ns3::SixLowPanHc1::GetSrcInterface ( ) const

Get the source interface.

Returns: The source interface.

Definition at line 430 of file sixlowpan-header.cc.

References m_srcInterface.

◆ GetSrcPrefix()

const uint8_t * ns3::SixLowPanHc1::GetSrcPrefix ( ) const

Get the source prefix.

Returns: The source prefix.

Definition at line 436 of file sixlowpan-header.cc.

References m_srcPrefix.

◆ GetTrafficClass()

uint8_t ns3::SixLowPanHc1::GetTrafficClass ( ) const

Get the Traffic Class value.

Returns: The Traffic Class value.

Definition at line 442 of file sixlowpan-header.cc.

References m_trafficClass.

◆ GetTypeId()

TypeId ns3::SixLowPanHc1::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId.

Definition at line 104 of file sixlowpan-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsHc2HeaderPresent()

bool ns3::SixLowPanHc1::IsHc2HeaderPresent ( ) const

Check if there is a HC2 compressed header.

Returns: True if next header is HC2 compressed.

Definition at line 454 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

◆ IsTcflCompression()

bool ns3::SixLowPanHc1::IsTcflCompression ( ) const

Check if the Traffic Class and Flow Labels are compressed.

Returns: True if TC and FL are compressed.

Definition at line 448 of file sixlowpan-header.cc.

References m_tcflCompression.

◆ Print()

void ns3::SixLowPanHc1::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 120 of file sixlowpan-header.cc.

References two-ray-to-three-gpp-ch-calibration::encoding, m_dstCompression, m_hc2HeaderPresent, m_hopLimit, m_nextHeaderCompression, m_srcCompression, and m_tcflCompression.

Referenced by ns3::operator<<().

Here is the caller graph for this function:

◆ Serialize()

void ns3::SixLowPanHc1::Serialize ( Buffer::Iterator start ) const

overridevirtual

Serialize the packet.

Parameters

[in] start Buffer iterator.

Implements ns3::Header.

Definition at line 184 of file sixlowpan-header.cc.

References two-ray-to-three-gpp-ch-calibration::encoding, HC1_NC, HC1_PCIC, HC1_PCII, HC1_PIIC, HC1_PIII, ns3::SixLowPanDispatch::LOWPAN_HC1, m_dstCompression, m_dstInterface, m_dstPrefix, m_flowLabel, m_hc2HeaderPresent, m_hopLimit, m_nextHeader, m_nextHeaderCompression, m_srcCompression, m_srcInterface, m_srcPrefix, m_tcflCompression, m_trafficClass, NS_ASSERT_MSG, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetDstCompression()

void ns3::SixLowPanHc1::SetDstCompression ( LowPanHc1Addr_e dstCompression )

Set Destination Compression type.

Parameters

[in] dstCompression The kind of address compression.

Definition at line 460 of file sixlowpan-header.cc.

References m_dstCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetDstInterface()

void ns3::SixLowPanHc1::SetDstInterface ( const uint8_t * dstInterface )

Set the destination interface.

Parameters

[in] dstInterface The destination interface.

Definition at line 466 of file sixlowpan-header.cc.

References m_dstInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetDstPrefix()

void ns3::SixLowPanHc1::SetDstPrefix ( const uint8_t * dstPrefix )

Set the destination prefix.

Parameters

[in] dstPrefix The destination prefix.

Definition at line 475 of file sixlowpan-header.cc.

References m_dstPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetFlowLabel()

void ns3::SixLowPanHc1::SetFlowLabel ( uint32_t flowLabel )

Set the Flow Label value.

Parameters

[in] flowLabel The Flow Label.

Definition at line 484 of file sixlowpan-header.cc.

References m_flowLabel.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetHc2HeaderPresent()

void ns3::SixLowPanHc1::SetHc2HeaderPresent ( bool hc2HeaderPresent )

Set the next header a HC2 compressed header.

Parameters

[in] hc2HeaderPresent True if next header is HC2 compressed.

Definition at line 548 of file sixlowpan-header.cc.

References m_hc2HeaderPresent.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

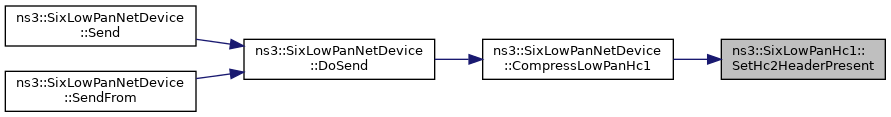

Here is the caller graph for this function:

◆ SetHopLimit()

void ns3::SixLowPanHc1::SetHopLimit ( uint8_t limit )

Set the "Hop limit" field (TTL).

Parameters

[in] limit The hop limit value.

Definition at line 382 of file sixlowpan-header.cc.

References m_hopLimit.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetNextHeader()

void ns3::SixLowPanHc1::SetNextHeader ( uint8_t nextHeader )

Set the Next Header value.

Parameters

[in] nextHeader The Next Header value.

Definition at line 490 of file sixlowpan-header.cc.

References HC1_ICMP, HC1_NC, HC1_TCP, HC1_UDP, ns3::Ipv6Header::IPV6_ICMPV6, ns3::Ipv6Header::IPV6_TCP, ns3::Ipv6Header::IPV6_UDP, m_nextHeader, and m_nextHeaderCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetSrcCompression()

void ns3::SixLowPanHc1::SetSrcCompression ( LowPanHc1Addr_e srcCompression )

Set Source Compression type.

Parameters

[in] srcCompression The kind of address compression.

Definition at line 512 of file sixlowpan-header.cc.

References m_srcCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetSrcInterface()

void ns3::SixLowPanHc1::SetSrcInterface ( const uint8_t * srcInterface )

Set the source interface.

Parameters

[in] srcInterface The source interface.

Definition at line 518 of file sixlowpan-header.cc.

References m_srcInterface.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetSrcPrefix()

void ns3::SixLowPanHc1::SetSrcPrefix ( const uint8_t * srcPrefix )

Set the source prefix.

Parameters

[in] srcPrefix The source prefix.

Definition at line 527 of file sixlowpan-header.cc.

References m_srcPrefix.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

Here is the caller graph for this function:

◆ SetTcflCompression()

void ns3::SixLowPanHc1::SetTcflCompression ( bool tcflCompression )

Set the Traffic Class and Flow Labels as compressed.

Parameters

[in] tcflCompression True if TC and FL are compressed.

Definition at line 536 of file sixlowpan-header.cc.

References m_tcflCompression.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

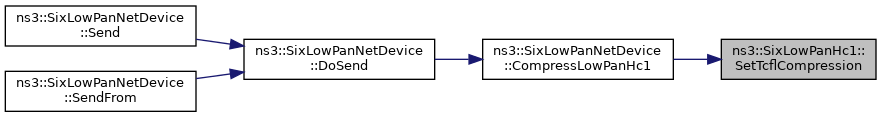

Here is the caller graph for this function:

◆ SetTrafficClass()

void ns3::SixLowPanHc1::SetTrafficClass ( uint8_t trafficClass )

Set the Traffic Class value.

Parameters

[in] trafficClass The Traffic Class value.

Definition at line 542 of file sixlowpan-header.cc.

References m_trafficClass.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanHc1().

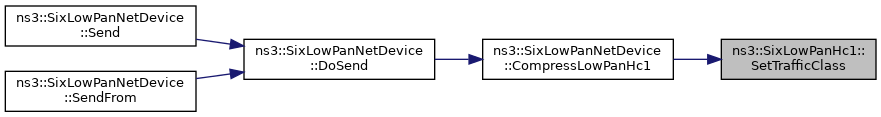

Here is the caller graph for this function:

Member Data Documentation

◆ m_dstCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_dstCompression

private

Destination compression type.

Definition at line 352 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstCompression(), GetSerializedSize(), Print(), Serialize(), and SetDstCompression().

◆ m_dstInterface

uint8_t ns3::SixLowPanHc1::m_dstInterface[8]

private

Destination interface.

Definition at line 347 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstInterface(), Serialize(), and SetDstInterface().

◆ m_dstPrefix

uint8_t ns3::SixLowPanHc1::m_dstPrefix[8]

private

Destination prefix.

Definition at line 346 of file sixlowpan-header.h.

Referenced by Deserialize(), GetDstPrefix(), Serialize(), and SetDstPrefix().

◆ m_flowLabel

uint32_t ns3::SixLowPanHc1::m_flowLabel

private

Flow Label.

Definition at line 349 of file sixlowpan-header.h.

Referenced by Deserialize(), GetFlowLabel(), Serialize(), and SetFlowLabel().

◆ m_hc2HeaderPresent

bool ns3::SixLowPanHc1::m_hc2HeaderPresent

private

Is next header HC2 compressed.

Definition at line 355 of file sixlowpan-header.h.

Referenced by Deserialize(), IsHc2HeaderPresent(), Print(), Serialize(), and SetHc2HeaderPresent().

◆ m_hopLimit

uint8_t ns3::SixLowPanHc1::m_hopLimit

private

Hop Limit.

Definition at line 343 of file sixlowpan-header.h.

Referenced by Deserialize(), GetHopLimit(), Print(), Serialize(), and SetHopLimit().

◆ m_nextHeader

uint8_t ns3::SixLowPanHc1::m_nextHeader

private

Next header.

Definition at line 350 of file sixlowpan-header.h.

Referenced by Deserialize(), GetNextHeader(), Serialize(), and SetNextHeader().

◆ m_nextHeaderCompression

LowPanHc1NextHeader_e ns3::SixLowPanHc1::m_nextHeaderCompression

private

Next header compression.

Definition at line 354 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), Print(), Serialize(), and SetNextHeader().

◆ m_srcCompression

LowPanHc1Addr_e ns3::SixLowPanHc1::m_srcCompression

private

Source compression type.

Definition at line 351 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), GetSrcCompression(), Print(), Serialize(), and SetSrcCompression().

◆ m_srcInterface

uint8_t ns3::SixLowPanHc1::m_srcInterface[8]

private

Source interface.

Definition at line 345 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcInterface(), Serialize(), and SetSrcInterface().

◆ m_srcPrefix

uint8_t ns3::SixLowPanHc1::m_srcPrefix[8]

private

Source prefix.

Definition at line 344 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSrcPrefix(), Serialize(), and SetSrcPrefix().

◆ m_tcflCompression

bool ns3::SixLowPanHc1::m_tcflCompression

private

Is TC and FL compressed.

Definition at line 353 of file sixlowpan-header.h.

Referenced by Deserialize(), GetSerializedSize(), IsTcflCompression(), Print(), Serialize(), and SetTcflCompression().

◆ m_trafficClass

uint8_t ns3::SixLowPanHc1::m_trafficClass

private

Traffic Class.

Definition at line 348 of file sixlowpan-header.h.

Referenced by Deserialize(), GetTrafficClass(), Serialize(), and SetTrafficClass().

The documentation for this class was generated from the following files:

src/sixlowpan/model/sixlowpan-header.h
src/sixlowpan/model/sixlowpan-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ LowPanHc1Addr_e

◆ LowPanHc1NextHeader_e

Constructor & Destructor Documentation

◆ SixLowPanHc1()

Member Function Documentation

◆ Deserialize()

◆ GetDstCompression()

◆ GetDstInterface()

◆ GetDstPrefix()

◆ GetFlowLabel()

◆ GetHopLimit()

◆ GetInstanceTypeId()

◆ GetNextHeader()

◆ GetSerializedSize()

◆ GetSrcCompression()

◆ GetSrcInterface()

◆ GetSrcPrefix()

◆ GetTrafficClass()

◆ GetTypeId()

◆ IsHc2HeaderPresent()

◆ IsTcflCompression()

◆ Print()

◆ Serialize()

◆ SetDstCompression()

◆ SetDstInterface()

◆ SetDstPrefix()

◆ SetFlowLabel()

◆ SetHc2HeaderPresent()

◆ SetHopLimit()

◆ SetNextHeader()

◆ SetSrcCompression()

◆ SetSrcInterface()

◆ SetSrcPrefix()

◆ SetTcflCompression()

◆ SetTrafficClass()

Member Data Documentation

◆ m_dstCompression

◆ m_dstInterface

◆ m_dstPrefix

◆ m_flowLabel

◆ m_hc2HeaderPresent

◆ m_hopLimit

◆ m_nextHeader

◆ m_nextHeaderCompression

◆ m_srcCompression

◆ m_srcInterface

◆ m_srcPrefix

◆ m_tcflCompression

◆ m_trafficClass
