wifi-power-adaptation-distance.cc File Reference

#include "ns3/command-line.h"
#include "ns3/config.h"
#include "ns3/double.h"
#include "ns3/gnuplot.h"
#include "ns3/internet-stack-helper.h"
#include "ns3/ipv4-address-helper.h"
#include "ns3/log.h"
#include "ns3/mobility-helper.h"
#include "ns3/mobility-model.h"
#include "ns3/on-off-helper.h"
#include "ns3/packet-sink-helper.h"
#include "ns3/ssid.h"
#include "ns3/uinteger.h"
#include "ns3/wifi-mac-header.h"
#include "ns3/wifi-mac.h"
#include "ns3/wifi-net-device.h"
#include "ns3/yans-wifi-channel.h"
#include "ns3/yans-wifi-helper.h"

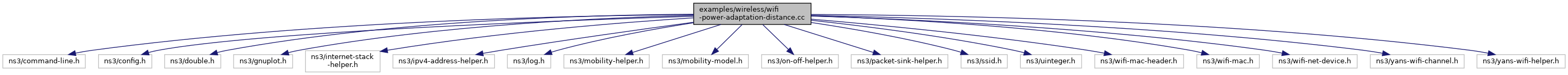

Include dependency graph for wifi-power-adaptation-distance.cc:

Go to the source code of this file.

Classes
class	NodeStatistics
	Class to collect node statistics. More...

Functions
void	PowerCallback (std::string path, double oldPower, double newPower, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange. More...
void	RateCallback (std::string path, DataRate oldRate, DataRate newRate, Mac48Address dest)
	Callback called by WifiNetDevice/RemoteStationManager/x/RateChange. More...

Variables
static const uint32_t	packetSize = 1420
	Packet size generated at the AP. More...

Function Documentation

PowerCallback()

void PowerCallback	(	std::string	path,
		double	oldPower,
		double	newPower,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/PowerChange.

Parameters

path	The trace path.
oldPower	Old Tx power.
newPower	Actual Tx power.
dest	Destination of the transmission.

Definition at line 371 of file wifi-power-adaptation-distance.cc.

References ns3::Simulator::Now(), and NS_LOG_INFO.

Here is the call graph for this function:

RateCallback()

void RateCallback	(	std::string	path,
		DataRate	oldRate,
		DataRate	newRate,
		Mac48Address	dest
	)

Callback called by WifiNetDevice/RemoteStationManager/x/RateChange.

Parameters

path	The trace path.
oldRate	Old rate.
newRate	Actual rate.
dest	Destination of the transmission.

Definition at line 386 of file wifi-power-adaptation-distance.cc.

References ns3::Simulator::Now(), and NS_LOG_INFO.

Here is the call graph for this function:

Variable Documentation

packetSize

const uint32_t packetSize = 1420

static

Packet size generated at the AP.

Definition at line 111 of file wifi-power-adaptation-distance.cc.

Referenced by TcpPacingTestSuite::TcpPacingTestSuite(), ns3::FlowProbe::AddPacketDropStats(), ns3::FlowProbe::AddPacketStats(), ns3::SimpleOfdmWimaxPhy::ConvertBitsToBurst(), ns3::RadioBearerStatsCalculator::DlRxPdu(), ns3::DlRxPduCallback(), ns3::RadioBearerStatsCalculator::DlTxPdu(), ns3::DlTxPduCallback(), ns3::SixLowPanNetDevice::DoFragmentation(), Ipv4FragmentationTest::DoRun(), Ipv6FragmentationTest::DoRun(), LteRadioLinkFailureTestCase::DoRun(), SixlowpanFragmentationTest::DoRun(), ns3::PieQueueDisc::DropEarly(), ns3::QKDAppHelper::InstallPostProcessing(), ns3::LteSimpleHelperDlRxPduCallback(), ns3::LteSimpleHelperDlTxPduCallback(), ns3::LteSimpleHelperUlRxPduCallback(), ns3::LteSimpleHelperUlTxPduCallback(), ns3::SixLowPanNetDevice::ProcessFragment(), ns3::dsdv::RoutingProtocol::RecvDsdv(), ns3::FlowMonitor::ReportDrop(), ns3::FlowMonitor::ReportFirstTx(), ns3::FlowMonitor::ReportForwarding(), ns3::FlowMonitor::ReportLastRx(), ns3::ThreeGppHttpClient::RequestEmbeddedObject(), ns3::ThreeGppHttpClient::RequestMainObject(), WifiPhyReceptionTest::SendPacket(), ns3::UdpTraceClient::SendPacket(), ns3::ThreeGppHttpServer::ServeFromTxBuffer(), ns3::OnOffHelper::SetConstantRate(), ns3::SixLowPanNetDevice::Fragments::SetPacketSize(), ns3::TutorialApp::Setup(), ns3::QKDApp004::Setup(), ns3::QKDApp014::Setup(), NodeStatistics::SetupPhy(), ns3::TcpSeqErrorModel::ShouldDrop(), ns3::RadioBearerStatsCalculator::UlRxPdu(), ns3::UlRxPduCallback(), ns3::RadioBearerStatsCalculator::UlTxPdu(), and ns3::UlTxPduCallback().
