ns3::MlmeAssociateResponseParams Struct Reference

MLME-ASSOCIATE.response params. More...

#include "lr-wpan-mac-base.h"

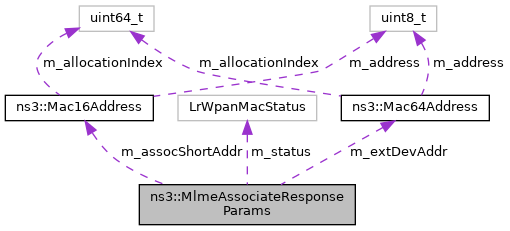

Collaboration diagram for ns3::MlmeAssociateResponseParams:

Public Attributes
Mac16Address	m_assocShortAddr
	The short address allocated by the coordinator on successful assoc. More...
Mac64Address	m_extDevAddr
	The extended address of the device requesting association. More...
LrWpanMacStatus	m_status
	The status of the association attempt (As defined on Table 83 IEEE 802.15.4-2006) More...

Detailed Description

MLME-ASSOCIATE.response params.

See 802.15.4-2011 6.2.2.3.

Definition at line 200 of file lr-wpan-mac-base.h.

Member Data Documentation

m_assocShortAddr

Mac16Address ns3::MlmeAssociateResponseParams::m_assocShortAddr

The short address allocated by the coordinator on successful assoc.

FF:FF = Unsuccessful

Definition at line 203 of file lr-wpan-mac-base.h.

Referenced by AssociateIndication().

m_extDevAddr

Mac64Address ns3::MlmeAssociateResponseParams::m_extDevAddr

The extended address of the device requesting association.

Definition at line 202 of file lr-wpan-mac-base.h.

Referenced by AssociateIndication().

m_status

LrWpanMacStatus ns3::MlmeAssociateResponseParams::m_status

Initial value:

{
        LrWpanMacStatus::ACCESS_DENIED}

The status of the association attempt (As defined on Table 83 IEEE 802.15.4-2006)

Definition at line 205 of file lr-wpan-mac-base.h.

Referenced by AssociateIndication().

---

The documentation for this struct was generated from the following file:

• src/lr-wpan/model/lr-wpan-mac-base.h
