Route Error (RERR) Message Format. More...

#include "aodv-packet.h"

Inheritance diagram for ns3::aodv::RerrHeader:

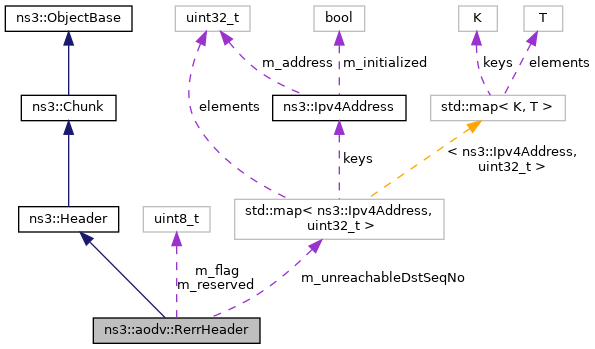

Collaboration diagram for ns3::aodv::RerrHeader:

Public Member Functions
	RerrHeader ()
	constructor More...

bool	AddUnDestination (Ipv4Address dst, uint32_t seqNo)
	Add unreachable node address and its sequence number in RERR header. More...

void	Clear ()
	Clear header. More...

uint32_t	Deserialize (Buffer::Iterator start) override

uint8_t	GetDestCount () const

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

bool	GetNoDelete () const
	Get the no delete flag. More...

uint32_t	GetSerializedSize () const override

bool	operator== (const RerrHeader &o) const
	Comparison operator. More...

void	Print (std::ostream &os) const override

bool	RemoveUnDestination (std::pair< Ipv4Address, uint32_t > &un)
	Delete pair (address + sequence number) from REER header, if the number of unreachable destinations > 0. More...

void	Serialize (Buffer::Iterator i) const override

void	SetNoDelete (bool f)
	Set the no delete flag. More...

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Attributes
uint8_t	m_flag
	No delete flag. More...

uint8_t	m_reserved
	Not used (must be 0) More...

std::map< Ipv4Address, uint32_t >	m_unreachableDstSeqNo
	List of Unreachable destination: IP addresses and sequence numbers. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Error (RERR) Message Format.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |N|          Reserved           |   DestCount   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|            Unreachable Destination IP Address (1)             |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|         Unreachable Destination Sequence Number (1)           |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-|
|  Additional Unreachable Destination IP Addresses (if needed)  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Additional Unreachable Destination Sequence Numbers (if needed)|
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

Definition at line 591 of file aodv-packet.h.

Constructor & Destructor Documentation

◆ RerrHeader()

ns3::aodv::RerrHeader::RerrHeader ( )

constructor

Definition at line 521 of file aodv-packet.cc.

Member Function Documentation

◆ AddUnDestination()

bool ns3::aodv::RerrHeader::AddUnDestination	(	Ipv4Address	dst,
		uint32_t	seqNo
	)

Add unreachable node address and its sequence number in RERR header.

Parameters

dst	unreachable IPv4 address
seqNo	unreachable sequence number

Returns: false if we already added maximum possible number of unreachable destinations

Definition at line 617 of file aodv-packet.cc.

References GetDestCount(), m_unreachableDstSeqNo, and NS_ASSERT.

Referenced by ns3::aodv::RerrHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::RecvError(), ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop(), and ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward().

Here is the call graph for this function:

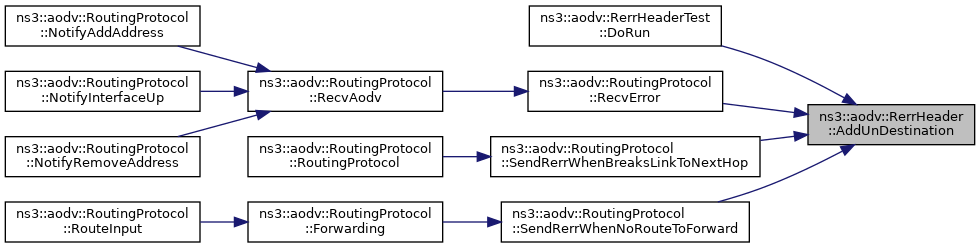

Here is the caller graph for this function:

◆ Clear()

void ns3::aodv::RerrHeader::Clear ( )

Clear header.

Definition at line 643 of file aodv-packet.cc.

References m_flag, m_reserved, and m_unreachableDstSeqNo.

Referenced by ns3::aodv::RoutingProtocol::RecvError(), and ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop().

Here is the caller graph for this function:

◆ Deserialize()

uint32_t ns3::aodv::RerrHeader::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 565 of file aodv-packet.cc.

References first::address, ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), two-ray-to-three-gpp-ch-calibration::k, m_flag, m_reserved, m_unreachableDstSeqNo, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

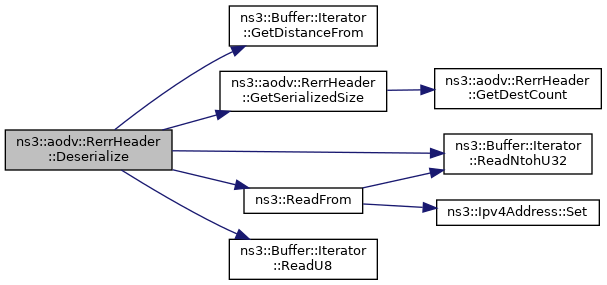

Here is the call graph for this function:

◆ GetDestCount()

uint8_t ns3::aodv::RerrHeader::GetDestCount ( ) const

inline

Returns: number of unreachable destinations in RERR message

Definition at line 640 of file aodv-packet.h.

References m_unreachableDstSeqNo.

Referenced by AddUnDestination(), ns3::aodv::RerrHeaderTest::DoRun(), GetSerializedSize(), operator==(), ns3::aodv::RoutingProtocol::RecvError(), ns3::aodv::RoutingProtocol::SendRerrWhenBreaksLinkToNextHop(), and Serialize().

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::aodv::RerrHeader::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 540 of file aodv-packet.cc.

References GetTypeId().

Here is the call graph for this function:

◆ GetNoDelete()

bool ns3::aodv::RerrHeader::GetNoDelete ( ) const

Get the no delete flag.

Returns: the no delete flag

Definition at line 611 of file aodv-packet.cc.

References m_flag.

Referenced by ns3::aodv::RerrHeaderTest::DoRun().

Here is the caller graph for this function:

◆ GetSerializedSize()

uint32_t ns3::aodv::RerrHeader::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 546 of file aodv-packet.cc.

References GetDestCount().

Referenced by Deserialize(), and ns3::aodv::RerrHeaderTest::DoRun().

Here is the call graph for this function:

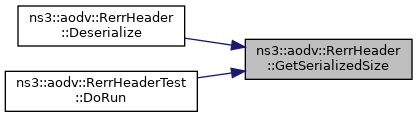

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::aodv::RerrHeader::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 530 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator==()

bool ns3::aodv::RerrHeader::operator== ( const RerrHeader & o ) const

Comparison operator.

Parameters

o	RERR header to compare

Returns: true if the RERR headers are equal

Definition at line 651 of file aodv-packet.cc.

References GetDestCount(), two-ray-to-three-gpp-ch-calibration::k, m_flag, m_reserved, and m_unreachableDstSeqNo.

Here is the call graph for this function:

◆ Print()

void ns3::aodv::RerrHeader::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 587 of file aodv-packet.cc.

References m_unreachableDstSeqNo.

Referenced by ns3::aodv::operator<<().

Here is the caller graph for this function:

◆ RemoveUnDestination()

bool ns3::aodv::RerrHeader::RemoveUnDestination ( std::pair< Ipv4Address, uint32_t > & un )

Delete pair (address + sequence number) from REER header, if the number of unreachable destinations > 0.

Parameters

un	unreachable pair (address + sequence number)

Returns: true on success

Definition at line 630 of file aodv-packet.cc.

References m_unreachableDstSeqNo.

Referenced by ns3::aodv::RoutingProtocol::RecvError().

Here is the caller graph for this function:

◆ Serialize()

void ns3::aodv::RerrHeader::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 552 of file aodv-packet.cc.

References GetDestCount(), m_flag, m_reserved, m_unreachableDstSeqNo, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

◆ SetNoDelete()

void ns3::aodv::RerrHeader::SetNoDelete ( bool f )

Set the no delete flag.

Parameters

f	the no delete flag

Definition at line 598 of file aodv-packet.cc.

References f(), and m_flag.

Referenced by ns3::aodv::RerrHeaderTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_flag

uint8_t ns3::aodv::RerrHeader::m_flag

private

No delete flag.

Definition at line 653 of file aodv-packet.h.

Referenced by Clear(), Deserialize(), GetNoDelete(), operator==(), Serialize(), and SetNoDelete().

◆ m_reserved

uint8_t ns3::aodv::RerrHeader::m_reserved

private

Not used (must be 0)

Definition at line 654 of file aodv-packet.h.

Referenced by Clear(), Deserialize(), operator==(), and Serialize().

◆ m_unreachableDstSeqNo

std::map<Ipv4Address, uint32_t> ns3::aodv::RerrHeader::m_unreachableDstSeqNo

private

List of Unreachable destination: IP addresses and sequence numbers.

Definition at line 657 of file aodv-packet.h.

Referenced by AddUnDestination(), Clear(), Deserialize(), GetDestCount(), operator==(), Print(), RemoveUnDestination(), and Serialize().

The documentation for this class was generated from the following files:

src/aodv/model/aodv-packet.h
