#include "ipv4-header.h"

Inheritance diagram for ns3::Ipv4Header:

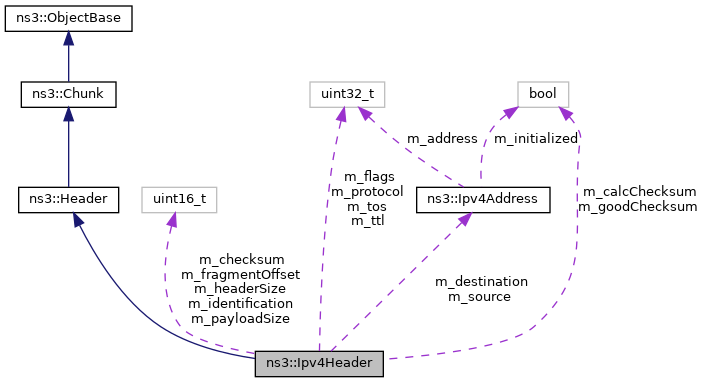

Collaboration diagram for ns3::Ipv4Header:

Public Types
enum	DscpType { DscpDefault = 0x00 , DSCP_CS1 = 0x08 , DSCP_AF11 = 0x0A , DSCP_AF12 = 0x0C , DSCP_AF13 = 0x0E , DSCP_CS2 = 0x10 , DSCP_AF21 = 0x12 , DSCP_AF22 = 0x14 , DSCP_AF23 = 0x16 , DSCP_CS3 = 0x18 , DSCP_AF31 = 0x1A , DSCP_AF32 = 0x1C , DSCP_AF33 = 0x1E , DSCP_CS4 = 0x20 , DSCP_AF41 = 0x22 , DSCP_AF42 = 0x24 , DSCP_AF43 = 0x26 , DSCP_CS5 = 0x28 , DSCP_EF = 0x2E , DSCP_CS6 = 0x30 , DSCP_CS7 = 0x38 }
	DiffServ codepoints. More...

enum	EcnType { ECN_NotECT = 0x00 , ECN_ECT1 = 0x01 , ECN_ECT0 = 0x02 , ECN_CE = 0x03 }
	ECN Type defined in RFC 3168 More...

Public Member Functions
	Ipv4Header ()
	Construct a null IPv4 header. More...

uint32_t	Deserialize (Buffer::Iterator start) override

std::string	DscpTypeToString (DscpType dscp) const

std::string	EcnTypeToString (EcnType ecn) const

void	EnableChecksum ()
	Enable checksum calculation for this header. More...

Ipv4Address	GetDestination () const

DscpType	GetDscp () const

EcnType	GetEcn () const

uint16_t	GetFragmentOffset () const

uint16_t	GetIdentification () const

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

uint16_t	GetPayloadSize () const

uint8_t	GetProtocol () const

uint32_t	GetSerializedSize () const override

Ipv4Address	GetSource () const

uint8_t	GetTos () const

uint8_t	GetTtl () const

bool	IsChecksumOk () const

bool	IsDontFragment () const

bool	IsLastFragment () const

void	Print (std::ostream &os) const override

void	Serialize (Buffer::Iterator start) const override

void	SetDestination (Ipv4Address destination)

void	SetDontFragment ()
	Don't fragment this packet: if you need to anyway, drop it. More...

void	SetDscp (DscpType dscp)
	Set DSCP Field. More...

void	SetEcn (EcnType ecn)
	Set ECN Field. More...

void	SetFragmentOffset (uint16_t offsetBytes)
	The offset is measured in bytes for the packet start. More...

void	SetIdentification (uint16_t identification)

void	SetLastFragment ()
	This packet is the last packet of a fragmented ipv4 packet. More...

void	SetMayFragment ()
	If you need to fragment this packet, you can do it. More...

void	SetMoreFragments ()
	This packet is not the last packet of a fragmented ipv4 packet. More...

void	SetPayloadSize (uint16_t size)

void	SetProtocol (uint8_t num)

void	SetSource (Ipv4Address source)

void	SetTos (uint8_t tos)

void	SetTtl (uint8_t ttl)

Public Member Functions inherited from ns3::Header
	~Header () override

virtual uint32_t	Deserialize (Buffer::Iterator start)=0
	Deserialize the object from a buffer iterator. More...

virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::Chunk
virtual uint32_t	Deserialize (Buffer::Iterator start, Buffer::Iterator end)
	Deserialize the object from a buffer iterator. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Types
enum	FlagsE { DONT_FRAGMENT = (1 << 0) , MORE_FRAGMENTS = (1 << 1) }
	flags related to IP fragmentation More...

Private Attributes
bool	m_calcChecksum
	true if the checksum must be calculated More...

uint16_t	m_checksum
	checksum More...

Ipv4Address	m_destination
	destination address More...

uint32_t	m_flags: 3
	flags More...

uint16_t	m_fragmentOffset
	Fragment offset. More...

bool	m_goodChecksum
	true if checksum is correct More...

uint16_t	m_headerSize
	IP header size. More...

uint16_t	m_identification
	identification More...

uint16_t	m_payloadSize
	payload size More...

uint32_t	m_protocol: 8
	Protocol. More...

Ipv4Address	m_source
	source address More...

uint32_t	m_tos: 8
	TOS, also used as DSCP + ECN value. More...

uint32_t	m_ttl: 8
	TTL. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Packet header for IPv4.

Definition at line 33 of file ipv4-header.h.

Member Enumeration Documentation

◆ DscpType

enum ns3::Ipv4Header::DscpType

DiffServ codepoints.

The values correspond to the 6-bit DSCP codepoint within the 8-bit DS field defined in RFC 2474. ECN bits are separately set with the SetEcn() method. Codepoints are defined in Assured Forwarding (AF) RFC 2597, Expedited Forwarding (EF) RFC 2598, and Default and Class Selector (CS) RFC 2474.

Enumerator
DscpDefault
DSCP_CS1
DSCP_AF11
DSCP_AF12
DSCP_AF13
DSCP_CS2
DSCP_AF21
DSCP_AF22
DSCP_AF23
DSCP_CS3
DSCP_AF31
DSCP_AF32
DSCP_AF33
DSCP_CS4
DSCP_AF41
DSCP_AF42
DSCP_AF43
DSCP_CS5
DSCP_EF
DSCP_CS6
DSCP_CS7

Definition at line 71 of file ipv4-header.h.

◆ EcnType

enum ns3::Ipv4Header::EcnType

ECN Type defined in RFC 3168

Enumerator
ECN_NotECT
ECN_ECT1
ECN_ECT0
ECN_CE

Definition at line 113 of file ipv4-header.h.

◆ FlagsE

enum ns3::Ipv4Header::FlagsE

private

flags related to IP fragmentation

Enumerator
DONT_FRAGMENT
MORE_FRAGMENTS

Definition at line 246 of file ipv4-header.h.

Constructor & Destructor Documentation

◆ Ipv4Header()

ns3::Ipv4Header::Ipv4Header ( )

Construct a null IPv4 header.

Definition at line 34 of file ipv4-header.cc.

Member Function Documentation

◆ Deserialize()

uint32_t ns3::Ipv4Header::Deserialize ( Buffer::Iterator start )

overridevirtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 433 of file ipv4-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), DONT_FRAGMENT, GetSerializedSize(), m_calcChecksum, m_checksum, m_destination, m_flags, m_fragmentOffset, m_goodChecksum, m_headerSize, m_identification, m_payloadSize, m_protocol, m_source, m_tos, m_ttl, MORE_FRAGMENTS, NS_LOG_FUNCTION, NS_LOG_LOGIC, NS_LOG_WARN, ns3::Buffer::Iterator::Prev(), ns3::Buffer::Iterator::ReadNtohU16(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU8(), ns3::Ipv4Address::Set(), and two-ray-to-three-gpp-ch-calibration::start.

Referenced by ns3::Icmpv4DestinationUnreachable::Deserialize(), and ns3::Icmpv4TimeExceeded::Deserialize().

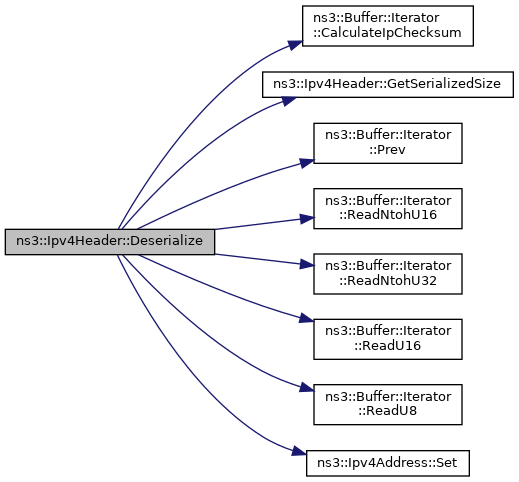

Here is the call graph for this function:

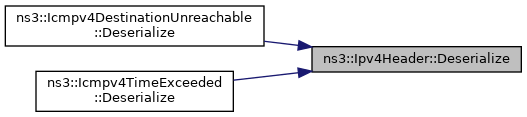

Here is the caller graph for this function:

◆ DscpTypeToString()

std::string ns3::Ipv4Header::DscpTypeToString ( DscpType dscp ) const

Parameters

dscp the dscp

Returns: std::string of DSCPType

Definition at line 116 of file ipv4-header.cc.

References DSCP_AF11, DSCP_AF12, DSCP_AF13, DSCP_AF21, DSCP_AF22, DSCP_AF23, DSCP_AF31, DSCP_AF32, DSCP_AF33, DSCP_AF41, DSCP_AF42, DSCP_AF43, DSCP_CS1, DSCP_CS2, DSCP_CS3, DSCP_CS4, DSCP_CS5, DSCP_CS6, DSCP_CS7, DSCP_EF, DscpDefault, and NS_LOG_FUNCTION.

Referenced by Print().

Here is the caller graph for this function:

◆ EcnTypeToString()

std::string ns3::Ipv4Header::EcnTypeToString ( EcnType ecn ) const

Parameters

ecn	the ECNType

Returns: std::string of ECNType

Definition at line 177 of file ipv4-header.cc.

References ECN_CE, ECN_ECT0, ECN_ECT1, ECN_NotECT, and NS_LOG_FUNCTION.

Referenced by Print().

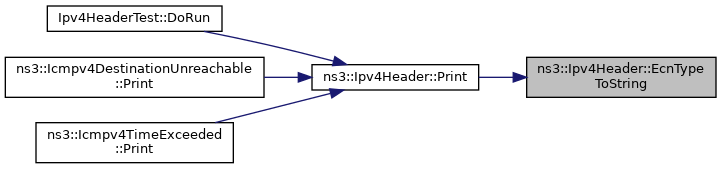

Here is the caller graph for this function:

◆ EnableChecksum()

void ns3::Ipv4Header::EnableChecksum ( )

Enable checksum calculation for this header.

Definition at line 50 of file ipv4-header.cc.

References m_calcChecksum, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::Ipv4L3ClickProtocol::Receive(), ns3::Ipv4L3Protocol::Receive(), ns3::Ipv4L3ClickProtocol::Send(), ns3::Ipv4L3ClickProtocol::SendWithHeader(), and ns3::Ipv4L3Protocol::SendWithHeader().

Here is the caller graph for this function:

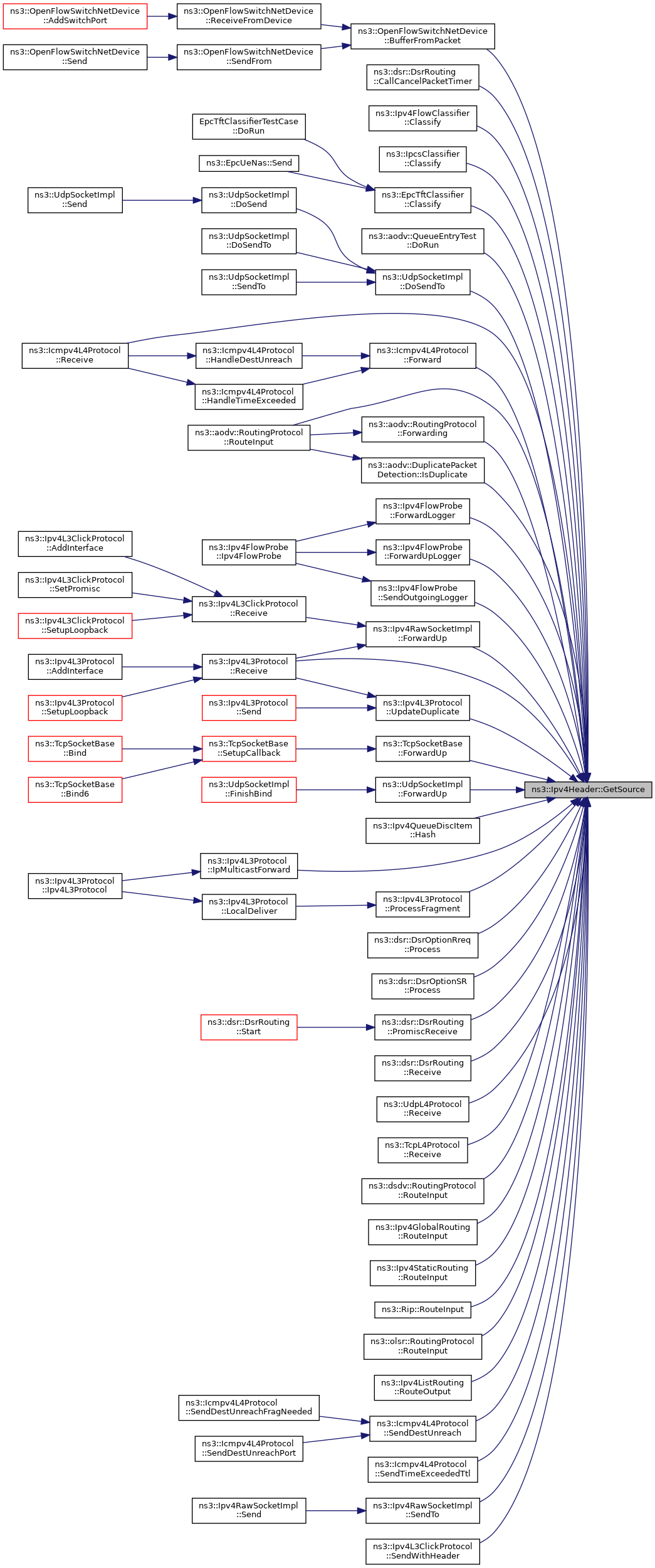

◆ GetDestination()

Ipv4Address ns3::Ipv4Header::GetDestination ( ) const

Returns: the destination address of this packet

Definition at line 316 of file ipv4-header.cc.

References m_destination, and NS_LOG_FUNCTION.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::dsr::DsrRouting::CallCancelPacketTimer(), ns3::Ipv4FlowClassifier::Classify(), ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::aodv::RoutingProtocol::DeferredRouteOutput(), ns3::aodv::QueueEntryTest::DoRun(), ns3::UdpSocketImpl::DoSendTo(), ns3::dsdv::RoutingProtocol::Drop(), ns3::aodv::RequestQueue::Drop(), ns3::dsdv::PacketQueue::Drop(), ns3::Ipv4FlowProbe::DropLogger(), ns3::aodv::RequestQueue::Enqueue(), ns3::dsdv::PacketQueue::Enqueue(), ns3::Icmpv4L4Protocol::Forward(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::TcpSocketBase::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4QueueDiscItem::Hash(), ns3::Ipv4L3Protocol::IpForward(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::Ipv4L3ClickProtocol::LocalDeliver(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::aodv::RoutingProtocol::LoopbackRoute(), ns3::dsdv::RoutingProtocol::LoopbackRoute(), ns3::aodv::QueueEntry::operator==(), ns3::dsdv::QueueEntry::operator==(), ns3::dsr::DsrOptionSR::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::Ipv4L3Protocol::Receive(), ns3::dsr::DsrRouting::Receive(), ns3::Icmpv4L4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::EpcPgwApplication::RecvFromTunDevice(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::Ipv4GlobalRouting::RouteInput(), ns3::Ipv4ListRouting::RouteInput(), ns3::Ipv4StaticRouting::RouteInput(), ns3::Rip::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::aodv::RoutingProtocol::RouteOutput(), ns3::Ipv4ClickRouting::RouteOutput(), ns3::dsdv::RoutingProtocol::RouteOutput(), ns3::Ipv4GlobalRouting::RouteOutput(), ns3::Ipv4ListRouting::RouteOutput(), ns3::Ipv4StaticRouting::RouteOutput(), ns3::Rip::RouteOutput(), ns3::olsr::RoutingProtocol::RouteOutput(), ns3::dsdv::RoutingProtocol::Send(), ns3::Ipv4L3Protocol::Send(), ns3::Ipv4FlowProbe::SendOutgoingLogger(), ns3::Ipv4L3Protocol::SendRealOut(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Ipv4L3ClickProtocol::SendWithHeader(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

Here is the caller graph for this function:

◆ GetDscp()

Ipv4Header::DscpType ns3::Ipv4Header::GetDscp ( ) const

Returns: the DSCP field of this packet.

Definition at line 108 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4FlowClassifier::Classify(), Ipv4HeaderTest::DoRun(), and Print().

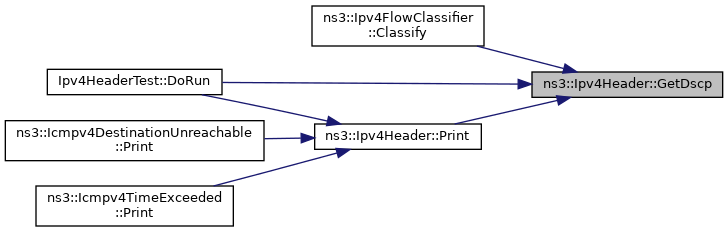

Here is the caller graph for this function:

◆ GetEcn()

Ipv4Header::EcnType ns3::Ipv4Header::GetEcn ( ) const

Returns: the ECN field of this packet.

Definition at line 169 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by Ipv4HeaderTest::DoRun(), ns3::TcpSocketBase::ForwardUp(), ns3::Ipv4QueueDiscItem::Mark(), and Print().

Here is the caller graph for this function:

◆ GetFragmentOffset()

uint16_t ns3::Ipv4Header::GetFragmentOffset ( ) const

Returns: the offset of this fragment measured in bytes from the start.

Definition at line 254 of file ipv4-header.cc.

References m_fragmentOffset, m_payloadSize, NS_LOG_FUNCTION, and NS_LOG_WARN.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::Ipv4FlowClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4QueueDiscItem::Hash(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::dsr::DsrOptionSR::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

Here is the caller graph for this function:

◆ GetIdentification()

uint16_t ns3::Ipv4Header::GetIdentification ( ) const

Returns: the identification field of this packet.

Definition at line 71 of file ipv4-header.cc.

References m_identification, and NS_LOG_FUNCTION.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::EpcTftClassifier::Classify(), ns3::dsr::DsrOptionSR::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

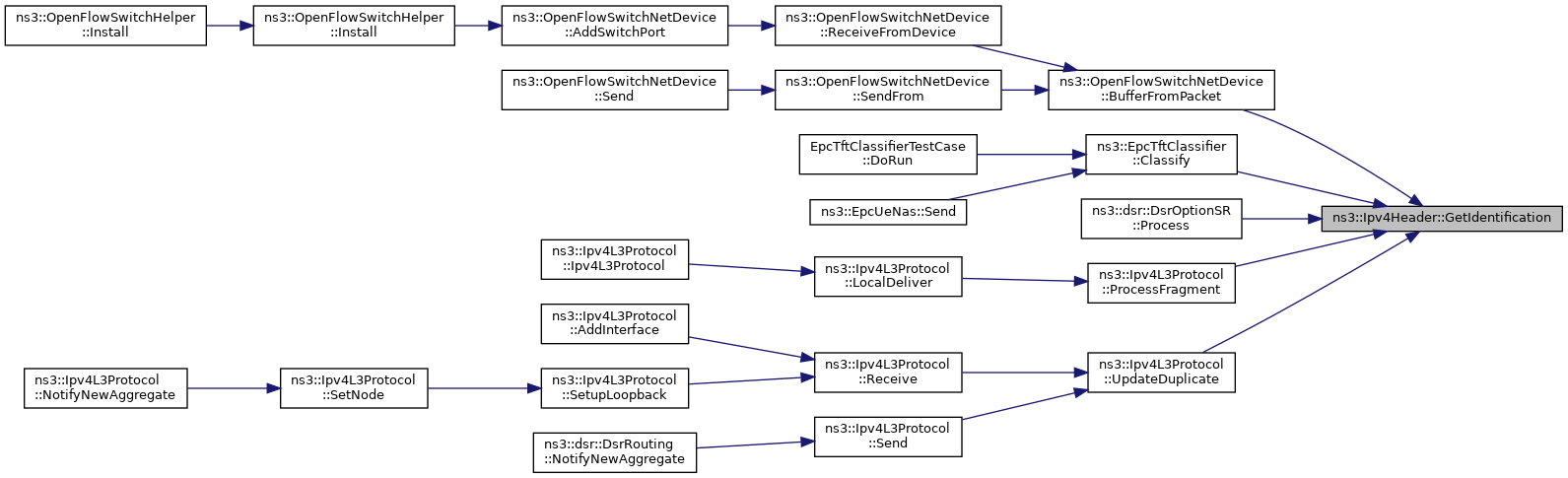

Here is the caller graph for this function:

◆ GetInstanceTypeId()

TypeId ns3::Ipv4Header::GetInstanceTypeId ( ) const

overridevirtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 340 of file ipv4-header.cc.

References GetTypeId(), and NS_LOG_FUNCTION.

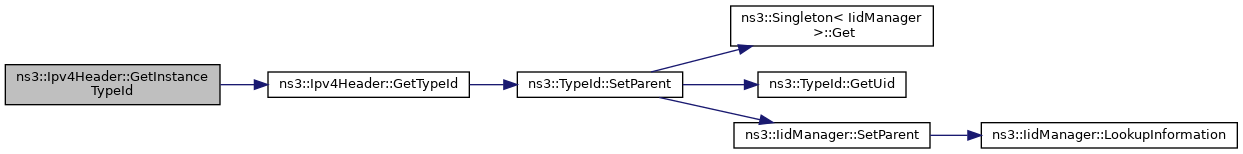

Here is the call graph for this function:

◆ GetPayloadSize()

uint16_t ns3::Ipv4Header::GetPayloadSize ( ) const

Returns: the size of the payload in bytes

Definition at line 64 of file ipv4-header.cc.

References m_payloadSize, and NS_LOG_FUNCTION.

Referenced by ns3::EpcTftClassifier::Classify(), and ns3::Ipv4L3Protocol::Receive().

Here is the caller graph for this function:

◆ GetProtocol()

uint8_t ns3::Ipv4Header::GetProtocol ( ) const

Returns: the protocol field of this packet

Definition at line 281 of file ipv4-header.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::Ipv4FlowClassifier::Classify(), ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::aodv::RoutingProtocol::DeferredRouteOutput(), ns3::Icmpv4L4Protocol::Forward(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::Ipv4QueueDiscItem::Hash(), ns3::Ipv4L3ClickProtocol::LocalDeliver(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::Send(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

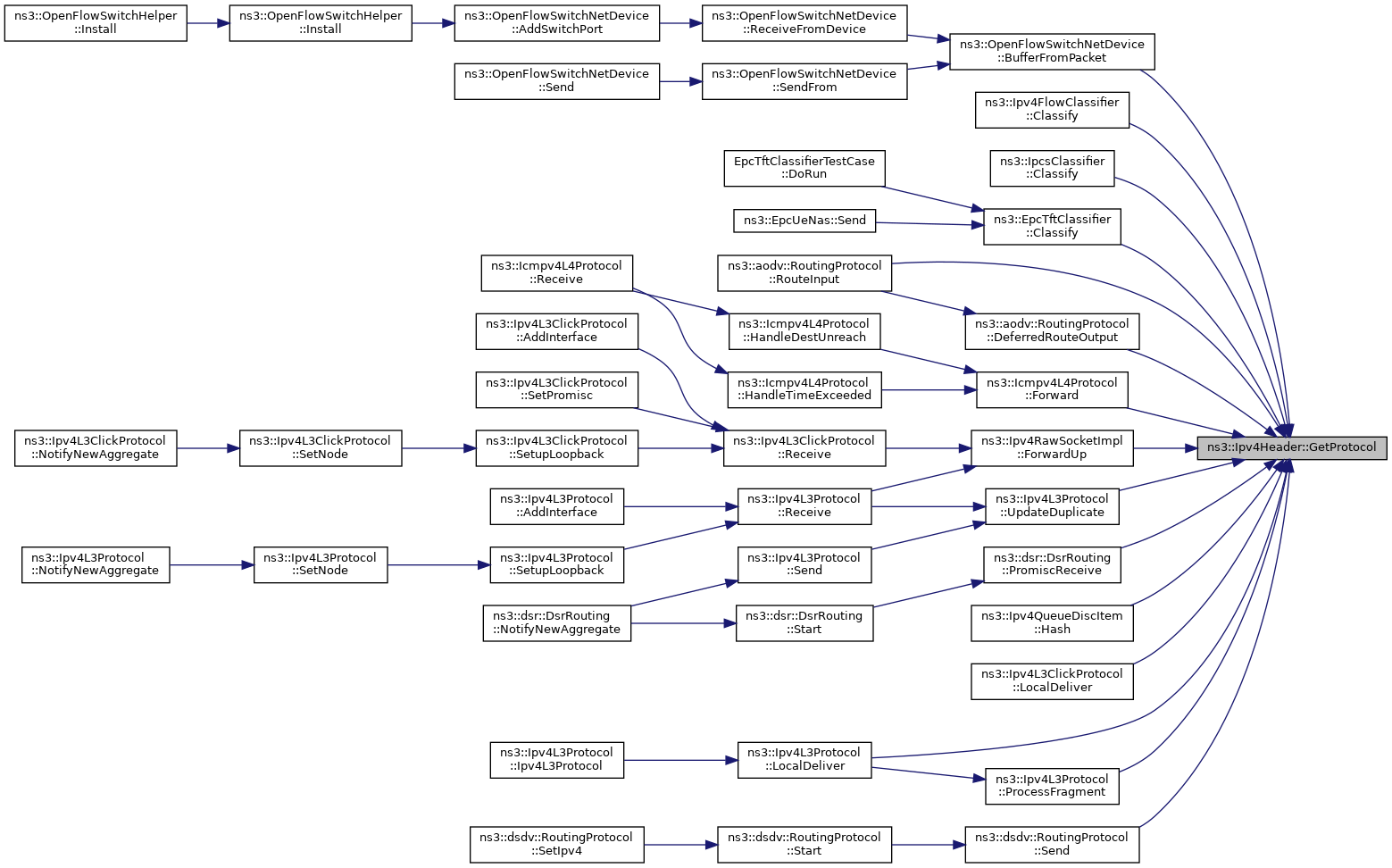

Here is the caller graph for this function:

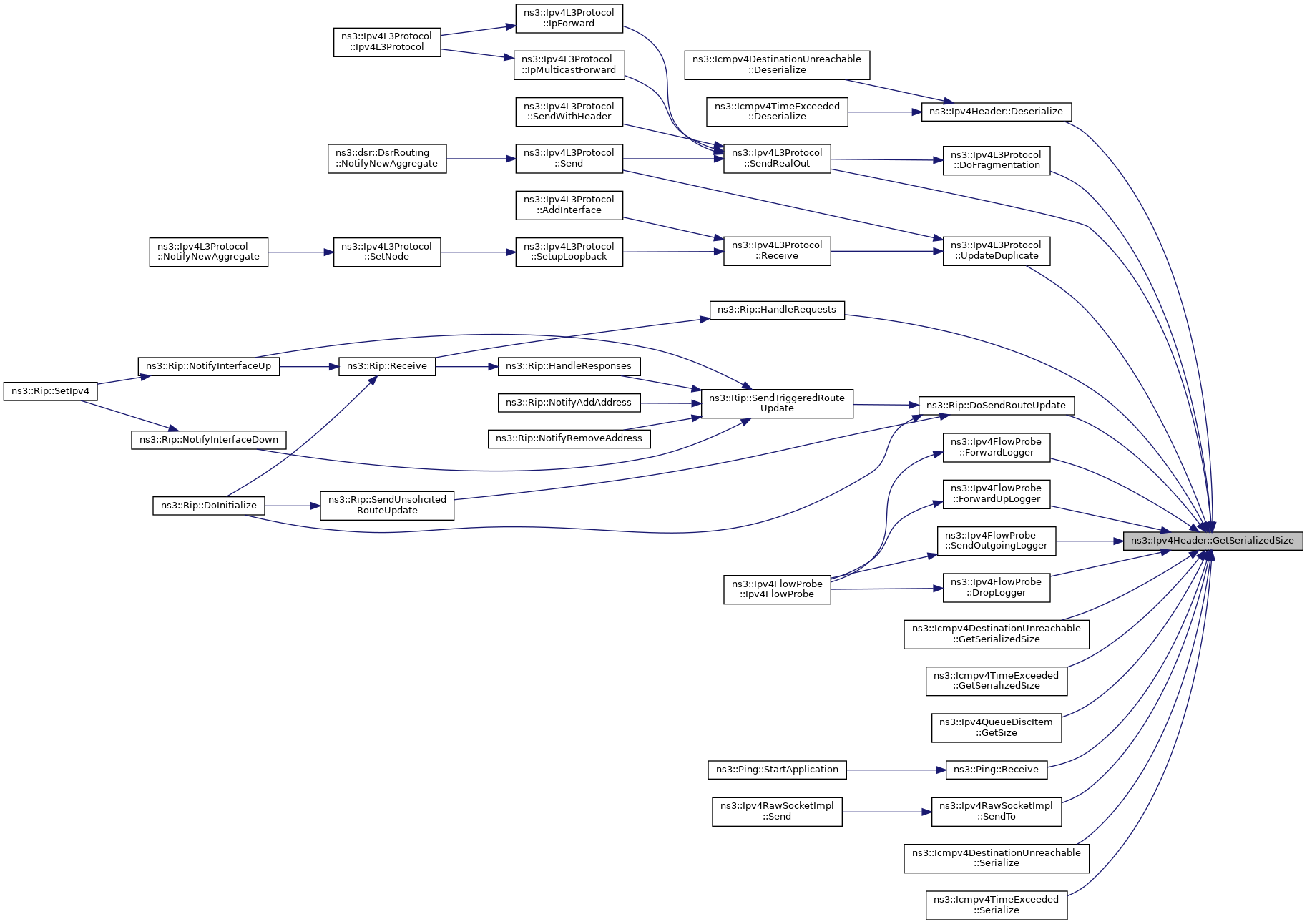

◆ GetSerializedSize()

uint32_t ns3::Ipv4Header::GetSerializedSize ( ) const

overridevirtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 384 of file ipv4-header.cc.

References m_headerSize, and NS_LOG_FUNCTION.

Referenced by Deserialize(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::Rip::DoSendRouteUpdate(), ns3::Ipv4FlowProbe::DropLogger(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Icmpv4DestinationUnreachable::GetSerializedSize(), ns3::Icmpv4TimeExceeded::GetSerializedSize(), ns3::Ipv4QueueDiscItem::GetSize(), ns3::Rip::HandleRequests(), ns3::Ping::Receive(), ns3::Ipv4FlowProbe::SendOutgoingLogger(), ns3::Ipv4L3Protocol::SendRealOut(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Icmpv4DestinationUnreachable::Serialize(), ns3::Icmpv4TimeExceeded::Serialize(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

Here is the caller graph for this function:

◆ GetSource()

Ipv4Address ns3::Ipv4Header::GetSource ( ) const

Returns: the source address of this packet

Definition at line 302 of file ipv4-header.cc.

References m_source, and NS_LOG_FUNCTION.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::dsr::DsrRouting::CallCancelPacketTimer(), ns3::Ipv4FlowClassifier::Classify(), ns3::IpcsClassifier::Classify(), ns3::EpcTftClassifier::Classify(), ns3::aodv::QueueEntryTest::DoRun(), ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv4L4Protocol::Forward(), ns3::aodv::RoutingProtocol::Forwarding(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::TcpSocketBase::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::Ipv4FlowProbe::ForwardUpLogger(), ns3::Ipv4QueueDiscItem::Hash(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::aodv::DuplicatePacketDetection::IsDuplicate(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::Ipv4L3Protocol::ProcessFragment(), ns3::dsr::DsrRouting::PromiscReceive(), ns3::Ipv4L3Protocol::Receive(), ns3::dsr::DsrRouting::Receive(), ns3::Icmpv4L4Protocol::Receive(), ns3::UdpL4Protocol::Receive(), ns3::TcpL4Protocol::Receive(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::Ipv4GlobalRouting::RouteInput(), ns3::Ipv4StaticRouting::RouteInput(), ns3::Rip::RouteInput(), ns3::olsr::RoutingProtocol::RouteInput(), ns3::Ipv4ListRouting::RouteOutput(), ns3::Icmpv4L4Protocol::SendDestUnreach(), ns3::Ipv4FlowProbe::SendOutgoingLogger(), ns3::Icmpv4L4Protocol::SendTimeExceededTtl(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::Ipv4L3ClickProtocol::SendWithHeader(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

Here is the caller graph for this function:

◆ GetTos()

uint8_t ns3::Ipv4Header::GetTos ( ) const

Returns: the TOS field of this packet.

Definition at line 196 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by PfifoFastQueueDiscOverflow::AddPacket(), ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::EpcTftClassifier::Classify(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), UdpSocketImplTest::GetTos(), ns3::Ipv4QueueDiscItem::GetUint8Value(), ns3::Ipv4L3Protocol::IpForward(), WifiAcMappingTest::PacketEnqueuedInWifiMacQueue(), ns3::Icmpv4L4Protocol::Receive(), and PfifoFastQueueDiscDscpPrioritization::TestDscpValue().

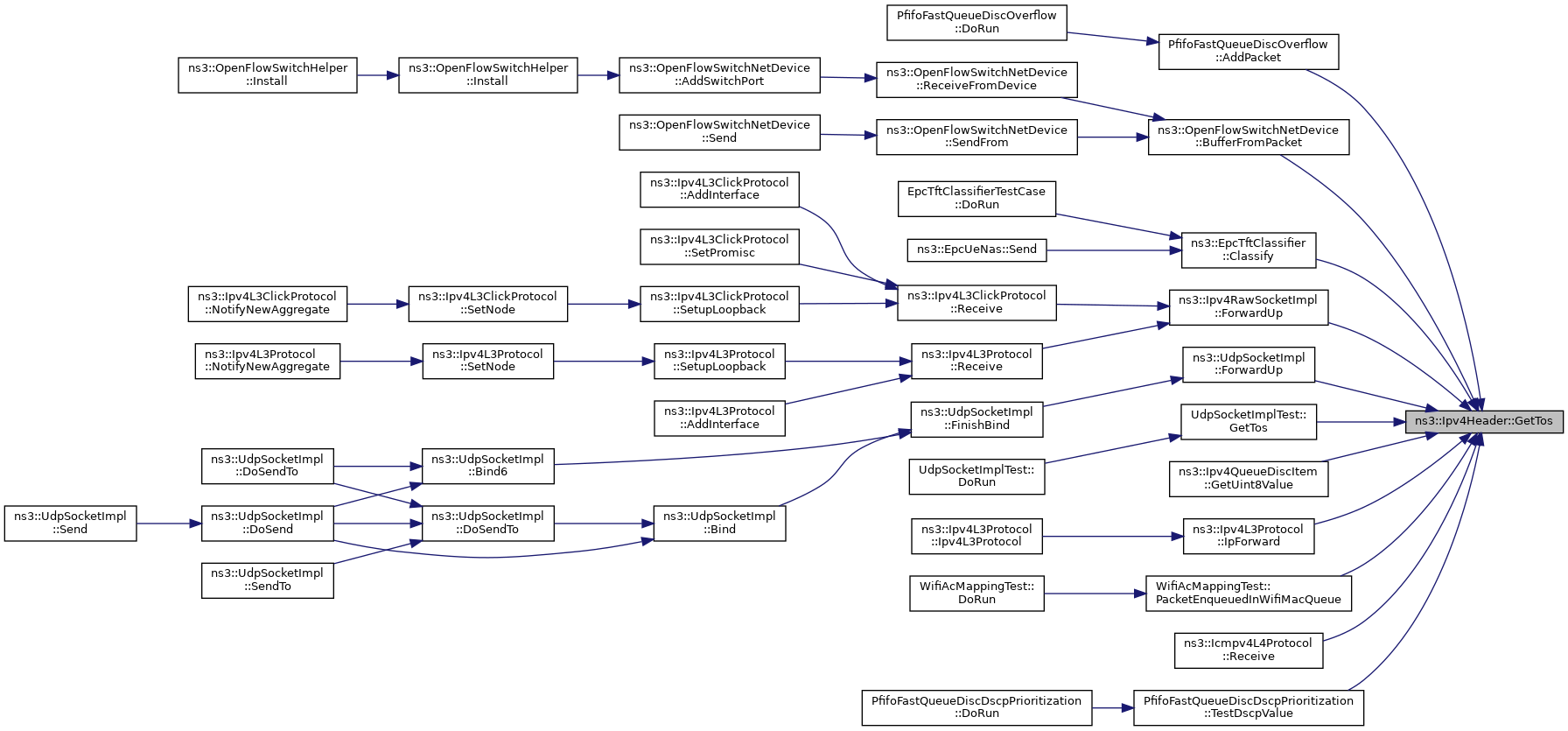

Here is the caller graph for this function:

◆ GetTtl()

uint8_t ns3::Ipv4Header::GetTtl ( ) const

Returns: the TTL field of this packet

Definition at line 274 of file ipv4-header.cc.

References m_ttl, and NS_LOG_FUNCTION.

Referenced by ns3::OpenFlowSwitchNetDevice::BufferFromPacket(), ns3::Icmpv4L4Protocol::Forward(), ns3::Ipv4RawSocketImpl::ForwardUp(), ns3::UdpSocketImpl::ForwardUp(), ns3::Ipv4L3Protocol::IpForward(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::dsr::DsrOptionRreq::Process(), ns3::Ping::Receive(), ns3::aodv::RoutingProtocol::RouteInput(), ns3::dsdv::RoutingProtocol::RouteInput(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), and ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::Ipv4Header::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 330 of file ipv4-header.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

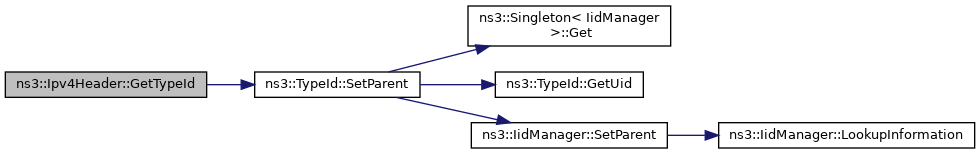

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsChecksumOk()

bool ns3::Ipv4Header::IsChecksumOk ( ) const

Returns: true if the ipv4 checksum is correct, false otherwise.

If Ipv4Header::EnableChecksums has not been called prior to deserializing this header, this method will always return true.

Definition at line 323 of file ipv4-header.cc.

References m_goodChecksum, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::Receive().

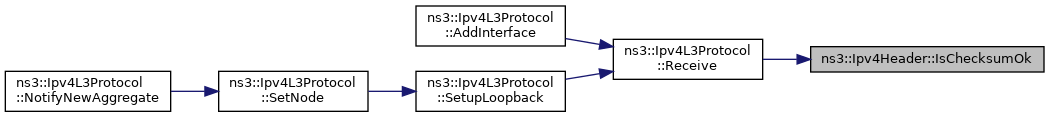

Here is the caller graph for this function:

◆ IsDontFragment()

bool ns3::Ipv4Header::IsDontFragment ( ) const

Returns: true if this is this packet can be fragmented.

Definition at line 238 of file ipv4-header.cc.

References DONT_FRAGMENT, m_flags, and NS_LOG_FUNCTION.

◆ IsLastFragment()

bool ns3::Ipv4Header::IsLastFragment ( ) const

Returns: true if this is the last fragment of a packet, false otherwise.

Definition at line 217 of file ipv4-header.cc.

References m_flags, MORE_FRAGMENTS, and NS_LOG_FUNCTION.

Referenced by ns3::EpcTftClassifier::Classify(), ns3::Ipv4L3Protocol::DoFragmentation(), ns3::Ipv4FlowProbe::ForwardLogger(), ns3::Ipv4L3Protocol::LocalDeliver(), ns3::Ipv4L3Protocol::ProcessFragment(), and ns3::Ipv4L3Protocol::UpdateDuplicate().

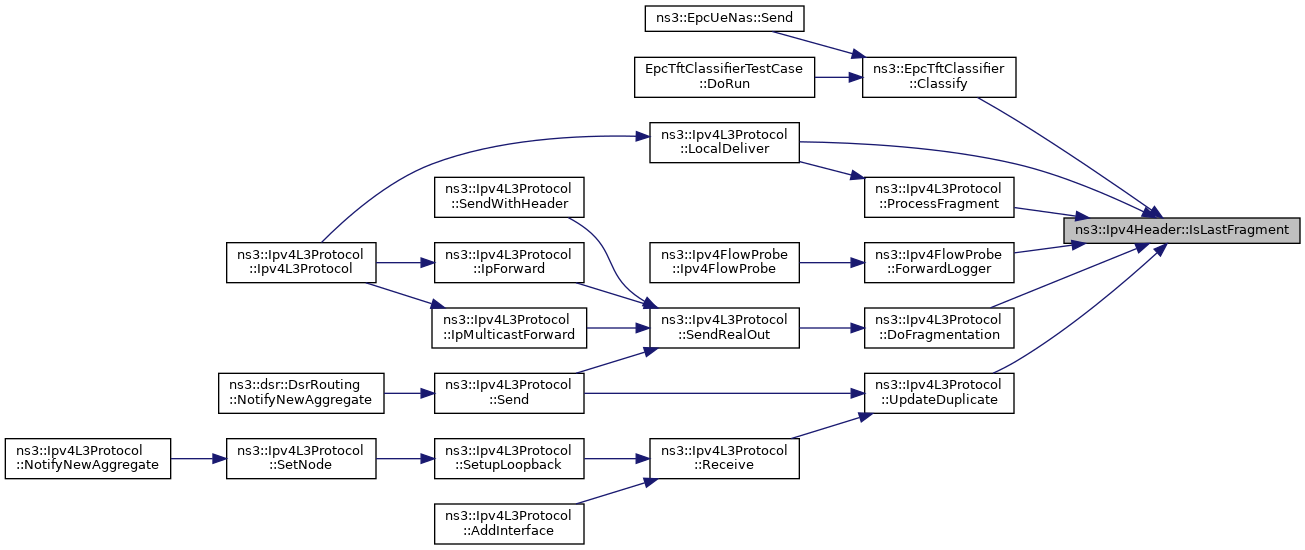

Here is the caller graph for this function:

◆ Print()

void ns3::Ipv4Header::Print ( std::ostream & os ) const

overridevirtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 347 of file ipv4-header.cc.

References DONT_FRAGMENT, DscpTypeToString(), EcnTypeToString(), GetDscp(), GetEcn(), m_destination, m_flags, m_fragmentOffset, m_identification, m_payloadSize, m_protocol, m_source, m_tos, m_ttl, MORE_FRAGMENTS, and NS_LOG_FUNCTION.

Referenced by Ipv4HeaderTest::DoRun(), ns3::Icmpv4DestinationUnreachable::Print(), and ns3::Icmpv4TimeExceeded::Print().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Serialize()

void ns3::Ipv4Header::Serialize ( Buffer::Iterator start ) const

overridevirtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 392 of file ipv4-header.cc.

References ns3::Buffer::Iterator::CalculateIpChecksum(), DONT_FRAGMENT, ns3::Ipv4Address::Get(), m_calcChecksum, m_destination, m_flags, m_fragmentOffset, m_identification, m_payloadSize, m_protocol, m_source, m_tos, m_ttl, MORE_FRAGMENTS, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, NS_LOG_LOGIC, two-ray-to-three-gpp-ch-calibration::start, ns3::Buffer::Iterator::WriteHtonU16(), ns3::Buffer::Iterator::WriteHtonU32(), ns3::Buffer::Iterator::WriteU16(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::Icmpv4DestinationUnreachable::Serialize(), and ns3::Icmpv4TimeExceeded::Serialize().

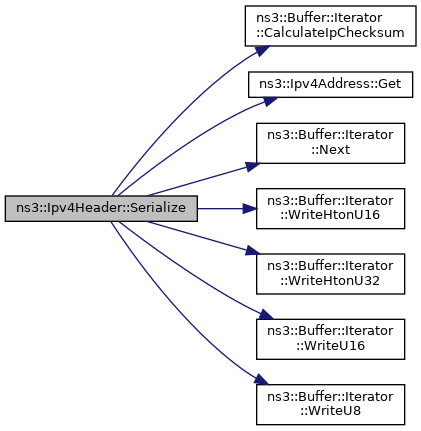

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetDestination()

void ns3::Ipv4Header::SetDestination ( Ipv4Address destination )

Parameters

destination the destination of this packet.

Definition at line 309 of file ipv4-header.cc.

References m_destination, and NS_LOG_FUNCTION.

Referenced by EpcTftClassifierTestCase::EpcTftClassifierTestCase(), ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), FqCobaltQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCobaltQueueDiscDeficit::DoRun(), FqCobaltQueueDiscTCPFlowsSeparation::DoRun(), FqCobaltQueueDiscUDPFlowsSeparation::DoRun(), FqCobaltQueueDiscEcnMarking::DoRun(), FqCobaltQueueDiscSetLinearProbing::DoRun(), FqCobaltQueueDiscL4sMode::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), FqCoDelQueueDiscUDPFlowsSeparation::DoRun(), FqCoDelQueueDiscECNMarking::DoRun(), FqCoDelQueueDiscSetLinearProbing::DoRun(), FqCoDelQueueDiscL4sMode::DoRun(), FqPieQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqPieQueueDiscDeficit::DoRun(), FqPieQueueDiscTCPFlowsSeparation::DoRun(), FqPieQueueDiscUDPFlowsSeparation::DoRun(), FqPieQueueDiscSetLinearProbing::DoRun(), FqPieQueueDiscL4sMode::DoRun(), Ipv4RawSocketImplTest::DoSendData_IpHdr(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), ns3::UdpSocketImpl::DoSendTo(), ns3::AnimationInterface::RecursiveIpv4RoutePathSearch(), ns3::Icmpv4L4Protocol::SendMessage(), ns3::TcpL4Protocol::SendPacketV4(), ns3::Ipv4RawSocketImpl::SendTo(), ns3::TcpSocketBase::SetupEndpoint(), and ns3::AnimationInterface::TrackIpv4RoutePaths().

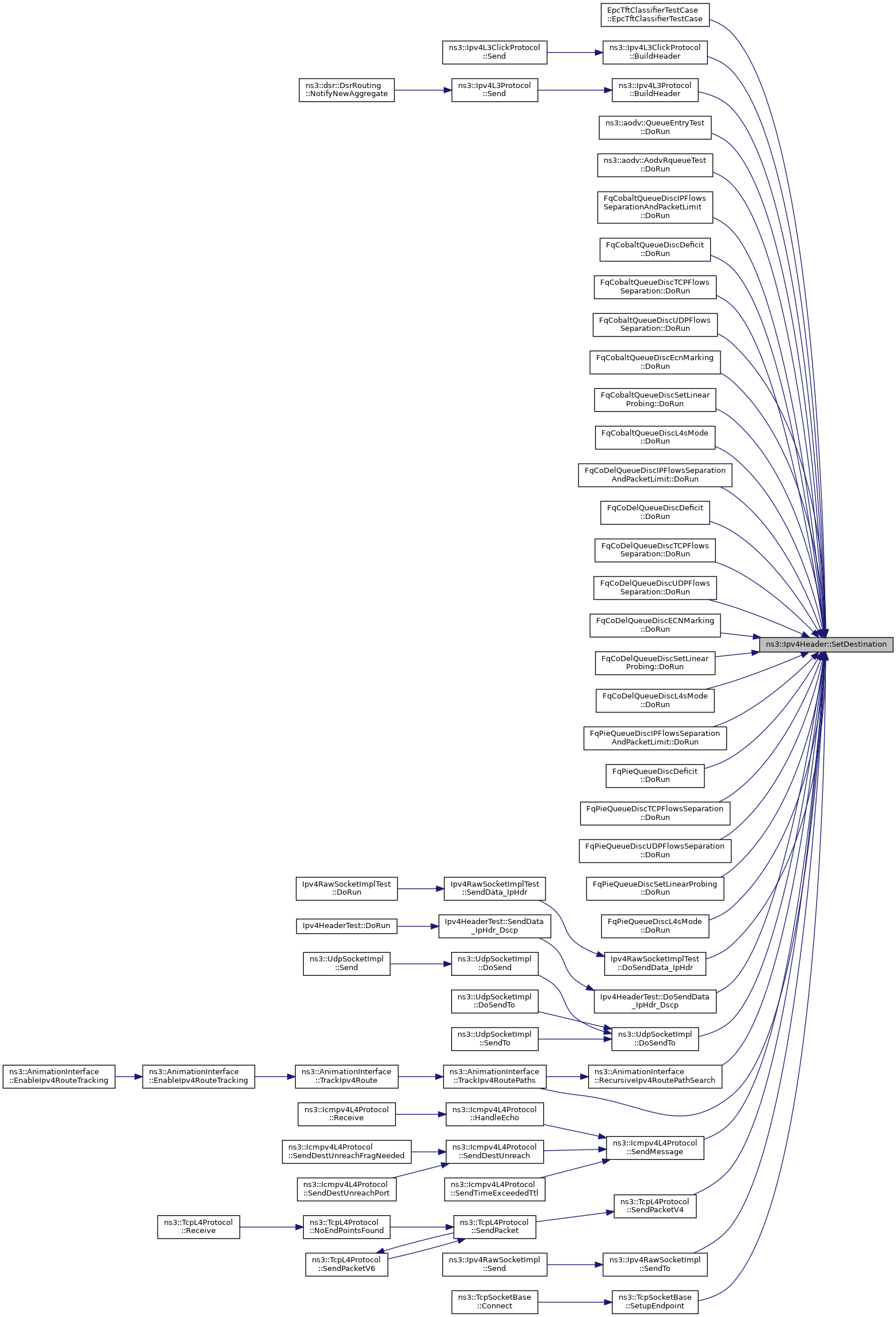

Here is the caller graph for this function:

◆ SetDontFragment()

void ns3::Ipv4Header::SetDontFragment ( )

Don't fragment this packet: if you need to anyway, drop it.

Definition at line 224 of file ipv4-header.cc.

References DONT_FRAGMENT, m_flags, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::BuildHeader(), and ns3::Ipv4L3Protocol::BuildHeader().

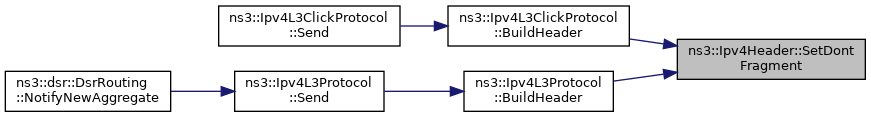

Here is the caller graph for this function:

◆ SetDscp()

void ns3::Ipv4Header::SetDscp ( DscpType dscp )

Set DSCP Field.

Parameters

dscp	DSCP value

Definition at line 92 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by PfifoFastQueueDiscOverflow::AddPacket(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), and PfifoFastQueueDiscDscpPrioritization::TestDscpValue().

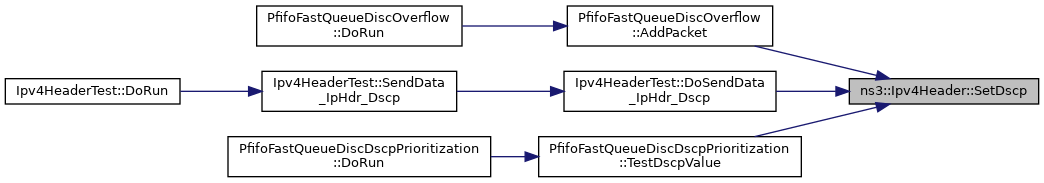

Here is the caller graph for this function:

◆ SetEcn()

void ns3::Ipv4Header::SetEcn ( EcnType ecn )

Set ECN Field.

Parameters

ecn ECN Type

Definition at line 100 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by FqCobaltQueueDiscEcnMarking::DoRun(), FqCobaltQueueDiscL4sMode::DoRun(), FqCoDelQueueDiscECNMarking::DoRun(), FqCoDelQueueDiscL4sMode::DoRun(), FqPieQueueDiscL4sMode::DoRun(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), and ns3::Ipv4QueueDiscItem::Mark().

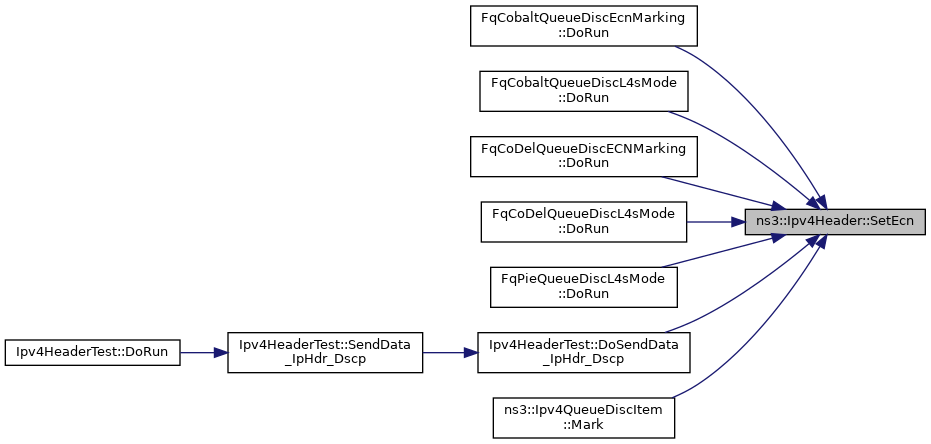

Here is the caller graph for this function:

◆ SetFragmentOffset()

void ns3::Ipv4Header::SetFragmentOffset ( uint16_t offsetBytes )

The offset is measured in bytes for the packet start.

Mind that IPv4 "fragment offset" field is 13 bits long and is measured in 8-bytes words. Hence, the function does enforce that the offset is a multiple of 8.

Parameters

offsetBytes the ipv4 fragment offset measured in bytes from the start.

Definition at line 245 of file ipv4-header.cc.

References m_fragmentOffset, NS_ABORT_MSG_IF, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::DoFragmentation(), and ns3::Ipv4L3Protocol::LocalDeliver().

Here is the caller graph for this function:

◆ SetIdentification()

void ns3::Ipv4Header::SetIdentification ( uint16_t identification )

Parameters

identification the Identification field of IPv4 packets.

By default, set to zero.

Definition at line 78 of file ipv4-header.cc.

References m_identification, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::BuildHeader(), and ns3::Ipv4L3Protocol::BuildHeader().

Here is the caller graph for this function:

◆ SetLastFragment()

void ns3::Ipv4Header::SetLastFragment ( )

This packet is the last packet of a fragmented ipv4 packet.

Definition at line 210 of file ipv4-header.cc.

References m_flags, MORE_FRAGMENTS, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::DoFragmentation().

Here is the caller graph for this function:

◆ SetMayFragment()

void ns3::Ipv4Header::SetMayFragment ( )

If you need to fragment this packet, you can do it.

Definition at line 231 of file ipv4-header.cc.

References DONT_FRAGMENT, m_flags, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::BuildHeader(), and ns3::Ipv4L3Protocol::BuildHeader().

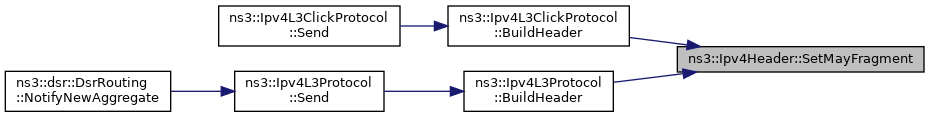

Here is the caller graph for this function:

◆ SetMoreFragments()

void ns3::Ipv4Header::SetMoreFragments ( )

This packet is not the last packet of a fragmented ipv4 packet.

Definition at line 203 of file ipv4-header.cc.

References m_flags, MORE_FRAGMENTS, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3Protocol::DoFragmentation().

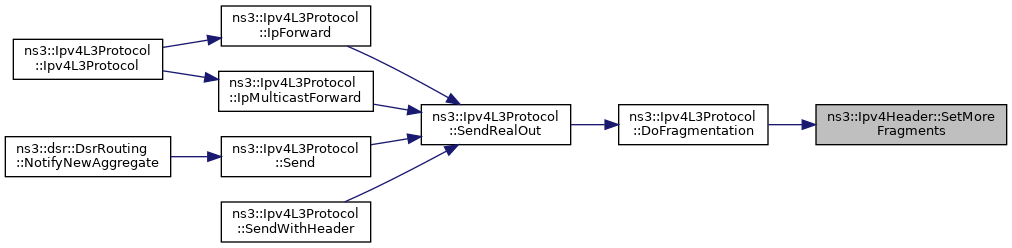

Here is the caller graph for this function:

◆ SetPayloadSize()

void ns3::Ipv4Header::SetPayloadSize ( uint16_t size )

Parameters

size	the size of the payload in bytes

Definition at line 57 of file ipv4-header.cc.

References m_payloadSize, and NS_LOG_FUNCTION.

Referenced by EpcTftClassifierTestCase::EpcTftClassifierTestCase(), PfifoFastQueueDiscOverflow::AddPacket(), ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), ns3::Ipv4L3Protocol::DoFragmentation(), FqCobaltQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCobaltQueueDiscDeficit::DoRun(), FqCobaltQueueDiscTCPFlowsSeparation::DoRun(), FqCobaltQueueDiscUDPFlowsSeparation::DoRun(), FqCobaltQueueDiscEcnMarking::DoRun(), FqCobaltQueueDiscSetLinearProbing::DoRun(), FqCobaltQueueDiscL4sMode::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), FqCoDelQueueDiscUDPFlowsSeparation::DoRun(), FqCoDelQueueDiscECNMarking::DoRun(), FqCoDelQueueDiscSetLinearProbing::DoRun(), FqCoDelQueueDiscL4sMode::DoRun(), FqPieQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqPieQueueDiscDeficit::DoRun(), FqPieQueueDiscTCPFlowsSeparation::DoRun(), FqPieQueueDiscUDPFlowsSeparation::DoRun(), FqPieQueueDiscSetLinearProbing::DoRun(), FqPieQueueDiscL4sMode::DoRun(), Ipv4RawSocketImplTest::DoSendData_IpHdr(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), ns3::Ipv4L3Protocol::LocalDeliver(), PfifoFastQueueDiscDscpPrioritization::TestDscpValue(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

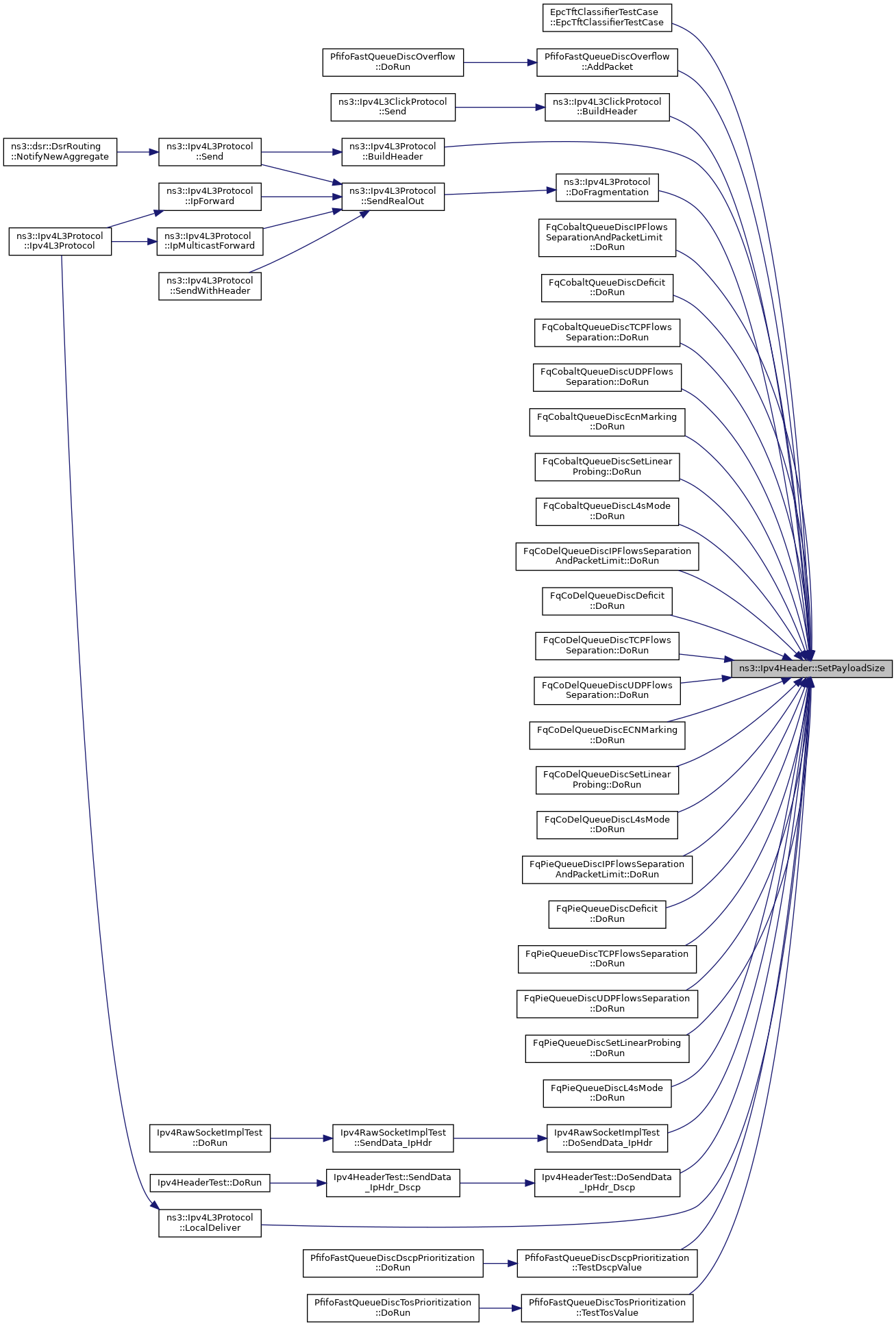

Here is the caller graph for this function:

◆ SetProtocol()

void ns3::Ipv4Header::SetProtocol ( uint8_t num )

Parameters

num	the ipv4 protocol field

Definition at line 288 of file ipv4-header.cc.

References m_protocol, and NS_LOG_FUNCTION.

Referenced by EpcTftClassifierTestCase::EpcTftClassifierTestCase(), PfifoFastQueueDiscOverflow::AddPacket(), ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), FqCobaltQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCobaltQueueDiscDeficit::DoRun(), FqCobaltQueueDiscTCPFlowsSeparation::DoRun(), FqCobaltQueueDiscUDPFlowsSeparation::DoRun(), FqCobaltQueueDiscEcnMarking::DoRun(), FqCobaltQueueDiscSetLinearProbing::DoRun(), FqCobaltQueueDiscL4sMode::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), FqCoDelQueueDiscUDPFlowsSeparation::DoRun(), FqCoDelQueueDiscECNMarking::DoRun(), FqCoDelQueueDiscSetLinearProbing::DoRun(), FqCoDelQueueDiscL4sMode::DoRun(), FqPieQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqPieQueueDiscDeficit::DoRun(), FqPieQueueDiscTCPFlowsSeparation::DoRun(), FqPieQueueDiscUDPFlowsSeparation::DoRun(), FqPieQueueDiscSetLinearProbing::DoRun(), FqPieQueueDiscL4sMode::DoRun(), Ipv4RawSocketImplTest::DoSendData_IpHdr(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), ns3::UdpSocketImpl::DoSendTo(), ns3::Icmpv4L4Protocol::SendMessage(), ns3::TcpL4Protocol::SendPacketV4(), ns3::Ipv4RawSocketImpl::SendTo(), PfifoFastQueueDiscDscpPrioritization::TestDscpValue(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

Here is the caller graph for this function:

◆ SetSource()

void ns3::Ipv4Header::SetSource ( Ipv4Address source )

Parameters

source the source of this packet

Definition at line 295 of file ipv4-header.cc.

References m_source, and NS_LOG_FUNCTION.

Referenced by EpcTftClassifierTestCase::EpcTftClassifierTestCase(), ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), ns3::aodv::QueueEntryTest::DoRun(), ns3::aodv::AodvRqueueTest::DoRun(), FqCobaltQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCobaltQueueDiscDeficit::DoRun(), FqCobaltQueueDiscTCPFlowsSeparation::DoRun(), FqCobaltQueueDiscUDPFlowsSeparation::DoRun(), FqCobaltQueueDiscEcnMarking::DoRun(), FqCobaltQueueDiscSetLinearProbing::DoRun(), FqCobaltQueueDiscL4sMode::DoRun(), FqCoDelQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqCoDelQueueDiscDeficit::DoRun(), FqCoDelQueueDiscTCPFlowsSeparation::DoRun(), FqCoDelQueueDiscUDPFlowsSeparation::DoRun(), FqCoDelQueueDiscECNMarking::DoRun(), FqCoDelQueueDiscSetLinearProbing::DoRun(), FqCoDelQueueDiscL4sMode::DoRun(), FqPieQueueDiscIPFlowsSeparationAndPacketLimit::DoRun(), FqPieQueueDiscDeficit::DoRun(), FqPieQueueDiscTCPFlowsSeparation::DoRun(), FqPieQueueDiscUDPFlowsSeparation::DoRun(), FqPieQueueDiscSetLinearProbing::DoRun(), FqPieQueueDiscL4sMode::DoRun(), Ipv4RawSocketImplTest::DoSendData_IpHdr(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), ns3::UdpSocketImpl::DoSendTo(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), ns3::dsdv::RoutingProtocol::SendPacketFromQueue(), and ns3::TcpL4Protocol::SendPacketV4().

Here is the caller graph for this function:

◆ SetTos()

void ns3::Ipv4Header::SetTos ( uint8_t tos )

Parameters

tos	the 8 bits of Ipv4 TOS.

Definition at line 85 of file ipv4-header.cc.

References m_tos, and NS_LOG_FUNCTION.

Referenced by EpcTftClassifierTestCase::EpcTftClassifierTestCase(), ns3::Ipv4L3Protocol::BuildHeader(), and PfifoFastQueueDiscTosPrioritization::TestTosValue().

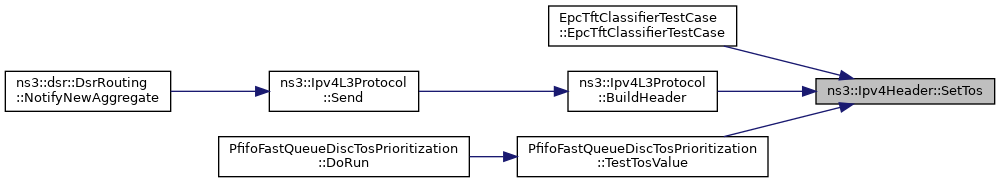

Here is the caller graph for this function:

◆ SetTtl()

void ns3::Ipv4Header::SetTtl ( uint8_t ttl )

Parameters

ttl	the ipv4 TTL

Definition at line 267 of file ipv4-header.cc.

References m_ttl, and NS_LOG_FUNCTION.

Referenced by ns3::Ipv4L3ClickProtocol::BuildHeader(), ns3::Ipv4L3Protocol::BuildHeader(), Ipv4RawSocketImplTest::DoSendData_IpHdr(), Ipv4HeaderTest::DoSendData_IpHdr_Dscp(), ns3::Ipv4L3Protocol::IpForward(), ns3::Ipv4L3Protocol::IpMulticastForward(), ns3::aodv::RoutingProtocol::SendPacketFromQueue(), and ns3::dsdv::RoutingProtocol::SendPacketFromQueue().

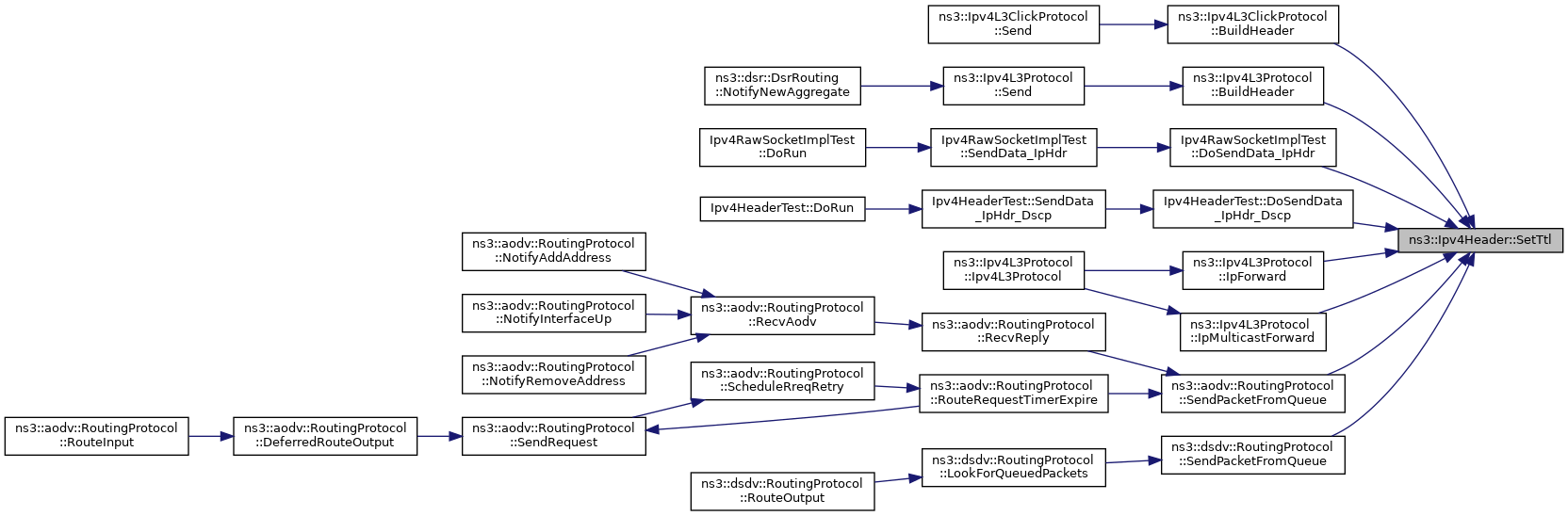

Here is the caller graph for this function:

Member Data Documentation

◆ m_calcChecksum

bool ns3::Ipv4Header::m_calcChecksum

private

true if the checksum must be calculated

Definition at line 252 of file ipv4-header.h.

Referenced by Deserialize(), EnableChecksum(), and Serialize().

◆ m_checksum

uint16_t ns3::Ipv4Header::m_checksum

private

checksum

Definition at line 263 of file ipv4-header.h.

Referenced by Deserialize().

◆ m_destination

Ipv4Address ns3::Ipv4Header::m_destination

private

destination address

Definition at line 262 of file ipv4-header.h.

Referenced by Deserialize(), GetDestination(), Print(), Serialize(), and SetDestination().

◆ m_flags

uint32_t ns3::Ipv4Header::m_flags

private

flags

Definition at line 259 of file ipv4-header.h.

Referenced by Deserialize(), IsDontFragment(), IsLastFragment(), Print(), Serialize(), SetDontFragment(), SetLastFragment(), SetMayFragment(), and SetMoreFragments().

◆ m_fragmentOffset

uint16_t ns3::Ipv4Header::m_fragmentOffset

private

Fragment offset.

Definition at line 260 of file ipv4-header.h.

Referenced by Deserialize(), GetFragmentOffset(), Print(), Serialize(), and SetFragmentOffset().

◆ m_goodChecksum

bool ns3::Ipv4Header::m_goodChecksum

private

true if checksum is correct

Definition at line 264 of file ipv4-header.h.

Referenced by Deserialize(), and IsChecksumOk().

◆ m_headerSize

uint16_t ns3::Ipv4Header::m_headerSize

private

IP header size.

Definition at line 265 of file ipv4-header.h.

Referenced by Deserialize(), and GetSerializedSize().

◆ m_identification

uint16_t ns3::Ipv4Header::m_identification

private

identification

Definition at line 255 of file ipv4-header.h.

Referenced by Deserialize(), GetIdentification(), Print(), Serialize(), and SetIdentification().

◆ m_payloadSize

uint16_t ns3::Ipv4Header::m_payloadSize

private

payload size

Definition at line 254 of file ipv4-header.h.

Referenced by Deserialize(), GetFragmentOffset(), GetPayloadSize(), Print(), Serialize(), and SetPayloadSize().

◆ m_protocol

uint32_t ns3::Ipv4Header::m_protocol

private

Protocol.

Definition at line 258 of file ipv4-header.h.

Referenced by Deserialize(), GetProtocol(), Print(), Serialize(), and SetProtocol().

◆ m_source

Ipv4Address ns3::Ipv4Header::m_source

private

source address

Definition at line 261 of file ipv4-header.h.

Referenced by Deserialize(), GetSource(), Print(), Serialize(), and SetSource().

◆ m_tos

uint32_t ns3::Ipv4Header::m_tos

private

TOS, also used as DSCP + ECN value.

Definition at line 256 of file ipv4-header.h.

Referenced by Deserialize(), GetDscp(), GetEcn(), GetTos(), Print(), Serialize(), SetDscp(), SetEcn(), and SetTos().

◆ m_ttl

uint32_t ns3::Ipv4Header::m_ttl

private

TTL.

Definition at line 257 of file ipv4-header.h.

Referenced by Deserialize(), GetTtl(), Print(), Serialize(), and SetTtl().

The documentation for this class was generated from the following files:

src/internet/model/ipv4-header.h
src/internet/model/ipv4-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ DscpType

◆ EcnType

◆ FlagsE

Constructor & Destructor Documentation

◆ Ipv4Header()

Member Function Documentation

◆ Deserialize()

◆ DscpTypeToString()

◆ EcnTypeToString()

◆ EnableChecksum()

◆ GetDestination()

◆ GetDscp()

◆ GetEcn()

◆ GetFragmentOffset()

◆ GetIdentification()

◆ GetInstanceTypeId()

◆ GetPayloadSize()

◆ GetProtocol()

◆ GetSerializedSize()

◆ GetSource()

◆ GetTos()

◆ GetTtl()

◆ GetTypeId()

◆ IsChecksumOk()

◆ IsDontFragment()

◆ IsLastFragment()

◆ Print()

◆ Serialize()

◆ SetDestination()

◆ SetDontFragment()

◆ SetDscp()

◆ SetEcn()

◆ SetFragmentOffset()

◆ SetIdentification()

◆ SetLastFragment()

◆ SetMayFragment()

◆ SetMoreFragments()

◆ SetPayloadSize()

◆ SetProtocol()

◆ SetSource()

◆ SetTos()

◆ SetTtl()

Member Data Documentation

◆ m_calcChecksum

◆ m_checksum

◆ m_destination

◆ m_flags

◆ m_fragmentOffset

◆ m_goodChecksum

◆ m_headerSize

◆ m_identification

◆ m_payloadSize

◆ m_protocol

◆ m_source

◆ m_tos

◆ m_ttl
