Inheritance diagram for InterferenceHelperSequenceTest:

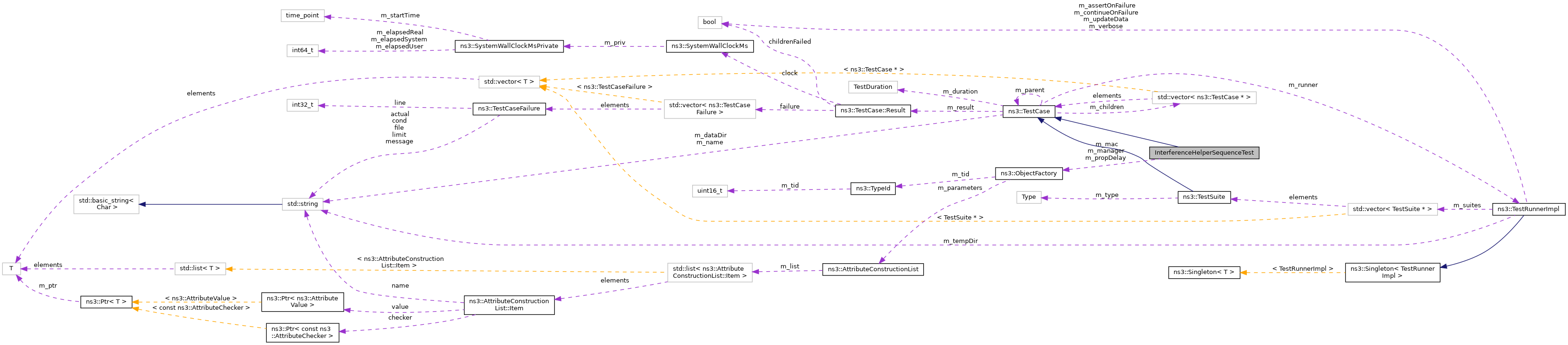

Collaboration diagram for InterferenceHelperSequenceTest:

Public Member Functions
	InterferenceHelperSequenceTest ()

void	DoRun () override
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete

virtual	~TestCase ()
	Destructor. More...

std::string	GetName () const

TestCase &	operator= (const TestCase &)=delete

Private Member Functions
Ptr< Node >	CreateOne (Vector pos, Ptr< YansWifiChannel > channel)
	Create one function. More...

void	SendOnePacket (Ptr< WifiNetDevice > dev)
	Send one packet function. More...

void	SwitchCh (Ptr< WifiNetDevice > dev)
	Switch channel function. More...

Private Attributes
ObjectFactory	m_mac
	MAC. More...

ObjectFactory	m_manager
	manager More...

ObjectFactory	m_propDelay
	propagation delay More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCase. More...

bool	IsStatusFailure () const
	Check if any tests failed. More...

bool	IsStatusSuccess () const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

See Bug 991

Definition at line 284 of file wifi-test.cc.

Constructor & Destructor Documentation

◆ InterferenceHelperSequenceTest()

InterferenceHelperSequenceTest::InterferenceHelperSequenceTest ( )

Definition at line 315 of file wifi-test.cc.

Member Function Documentation

◆ CreateOne()

Ptr< Node > InterferenceHelperSequenceTest::CreateOne	(	Vector	pos,
		Ptr< YansWifiChannel >	channel
	)

private

Create one function.

Parameters

pos	the position
channel	the wifi channel

Returns: the node

Definition at line 335 of file wifi-test.cc.

References ns3::Node::AddDevice(), ns3::Object::AggregateObject(), third::channel, ns3::ObjectFactory::Create(), m_mac, m_manager, third::mac, third::mobility, third::phy, ns3::WifiNetDevice::SetMac(), ns3::WifiNetDevice::SetPhy(), ns3::WifiNetDevice::SetRemoteStationManager(), and ns3::WIFI_STANDARD_80211a.

Referenced by DoRun().

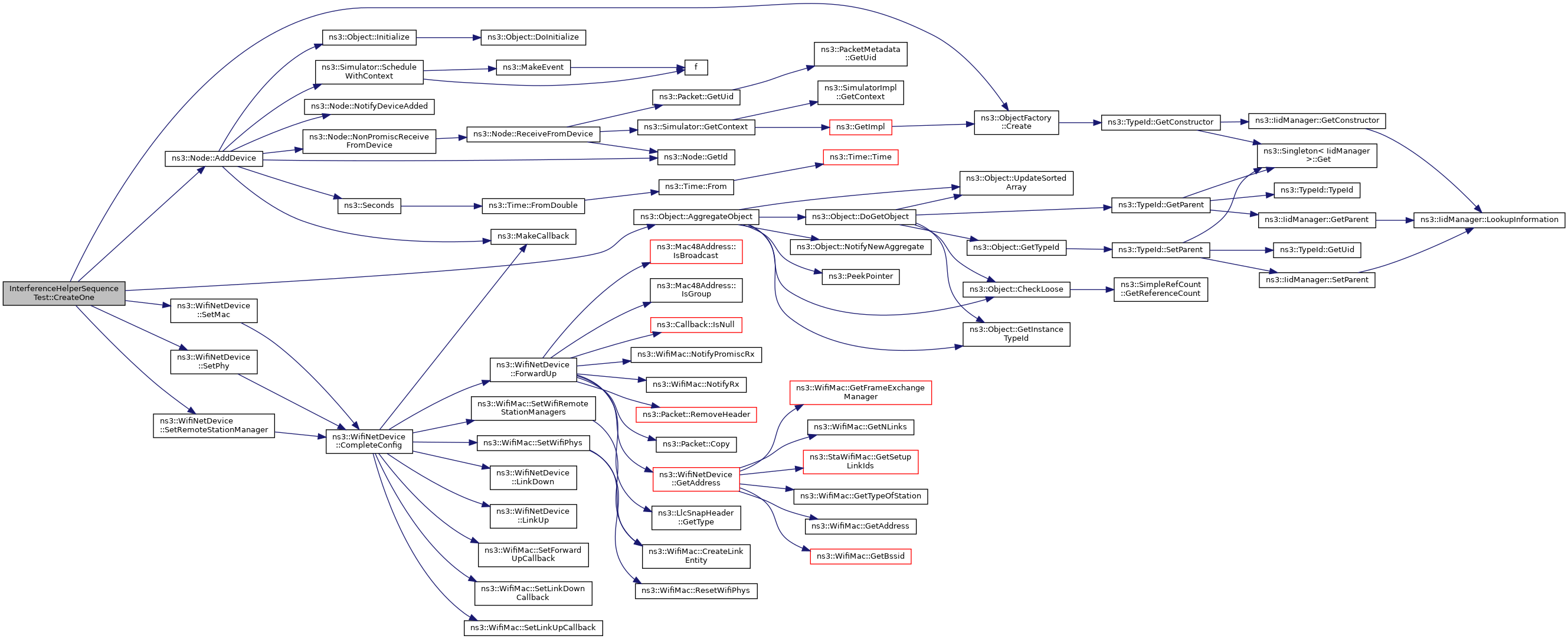

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoRun()

void InterferenceHelperSequenceTest::DoRun ( )

overridevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 376 of file wifi-test.cc.

References third::channel, ns3::ObjectFactory::Create(), CreateOne(), ns3::Node::GetDevice(), ns3::Object::GetObject(), m_mac, m_manager, m_propDelay, ns3::Seconds(), SendOnePacket(), ns3::ObjectFactory::SetTypeId(), and SwitchCh().

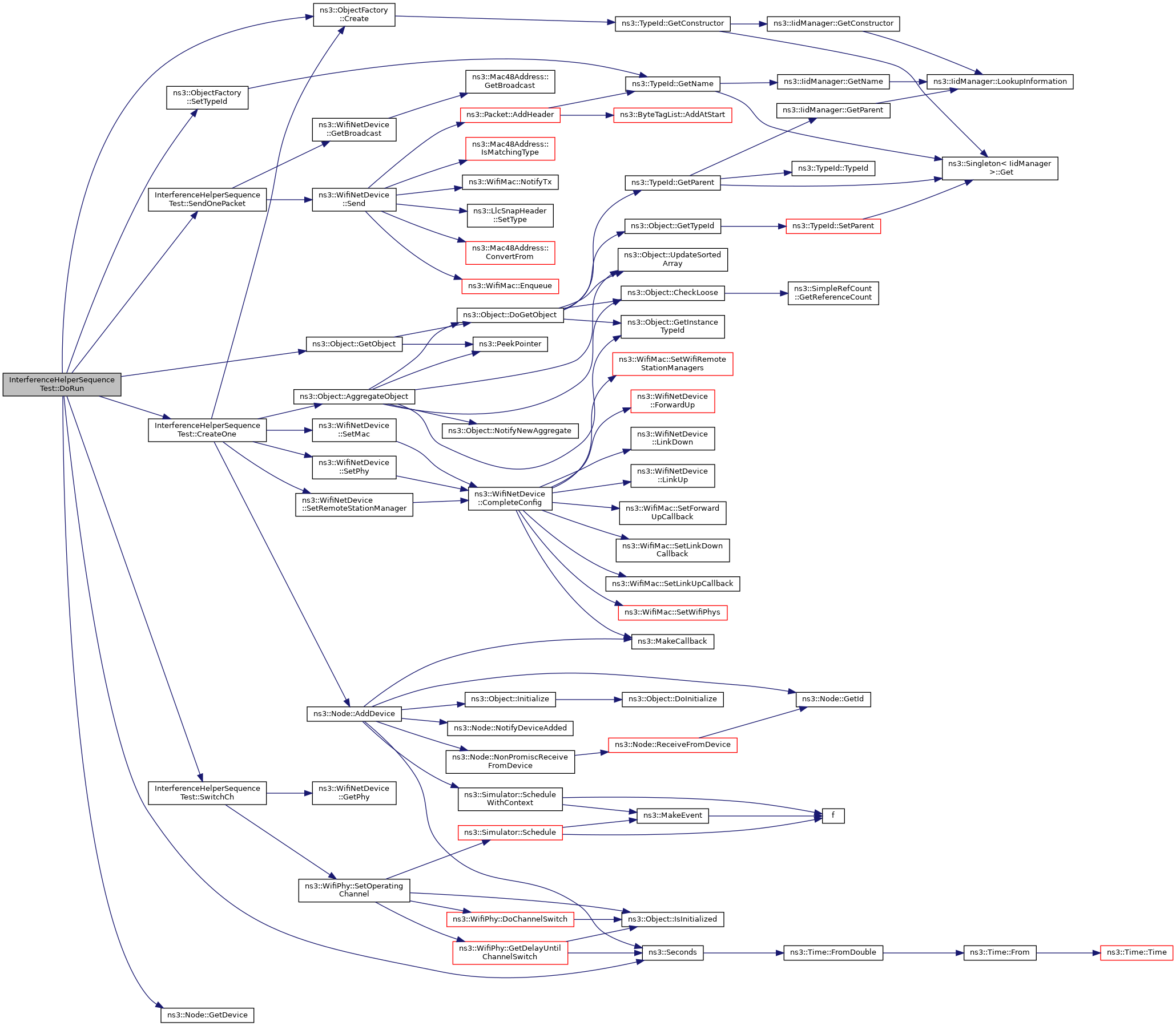

Here is the call graph for this function:

◆ SendOnePacket()

void InterferenceHelperSequenceTest::SendOnePacket ( Ptr< WifiNetDevice > dev )

private

Send one packet function.

Parameters

dev	the device

Definition at line 321 of file wifi-test.cc.

References ns3::WifiNetDevice::GetBroadcast(), and ns3::WifiNetDevice::Send().

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SwitchCh()

void InterferenceHelperSequenceTest::SwitchCh ( Ptr< WifiNetDevice > dev )

private

Switch channel function.

Parameters

dev	the device

Definition at line 328 of file wifi-test.cc.

References ns3::WifiNetDevice::GetPhy(), ns3::WifiPhy::SetOperatingChannel(), and ns3::WIFI_PHY_BAND_5GHZ.

Referenced by DoRun().

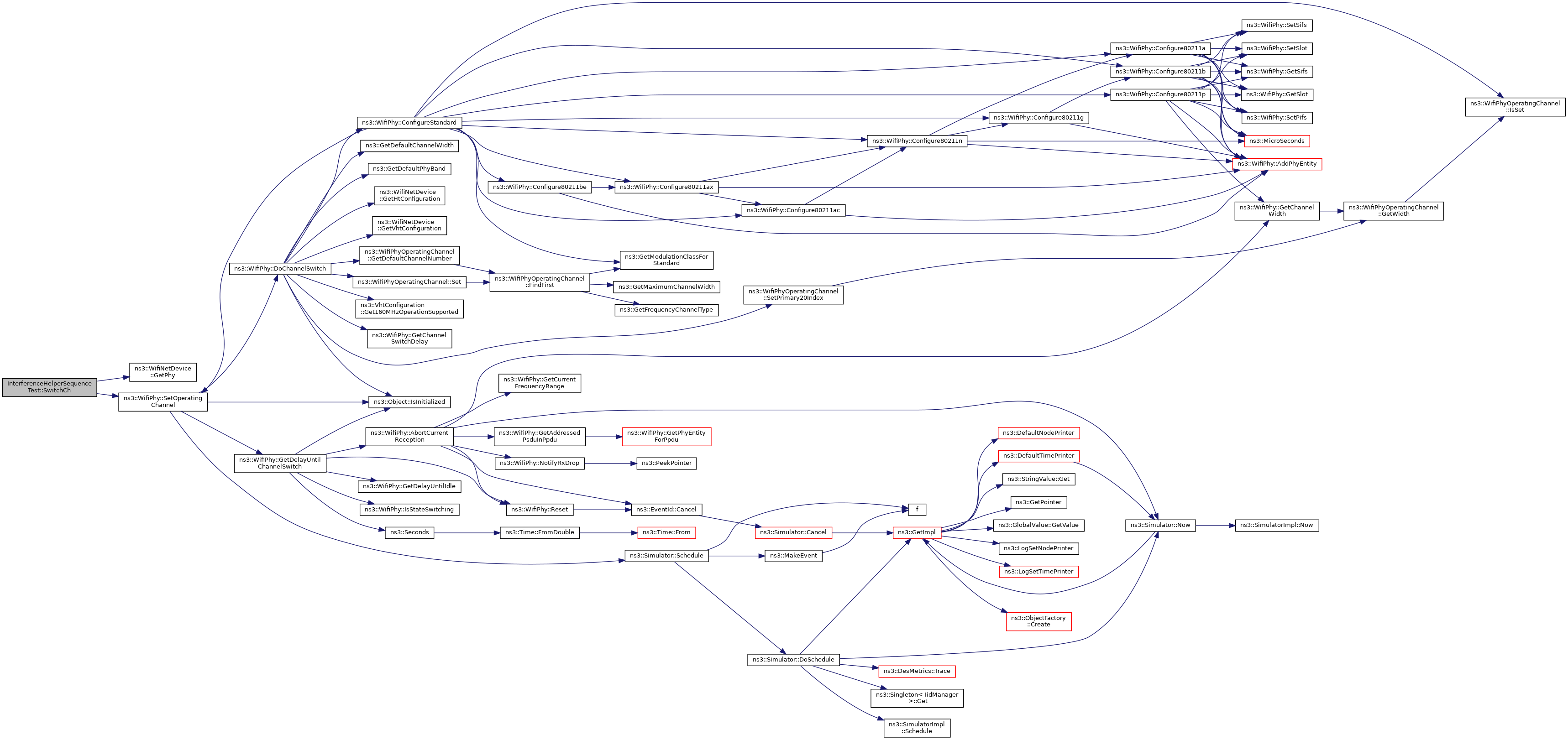

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_mac

ObjectFactory InterferenceHelperSequenceTest::m_mac

private

MAC.

Definition at line 311 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

◆ m_manager

ObjectFactory InterferenceHelperSequenceTest::m_manager

private

manager

Definition at line 310 of file wifi-test.cc.

Referenced by CreateOne(), and DoRun().

◆ m_propDelay

ObjectFactory InterferenceHelperSequenceTest::m_propDelay

private

propagation delay

Definition at line 312 of file wifi-test.cc.

Referenced by DoRun().

The documentation for this class was generated from the following file:

src/wifi/test/wifi-test.cc
