CsmaBroadcastTestCase Class Reference

CSMA Broadcast mode test. More...

Inheritance diagram for CsmaBroadcastTestCase:

Collaboration diagram for CsmaBroadcastTestCase:

Public Member Functions
	CsmaBroadcastTestCase ()
	~CsmaBroadcastTestCase () override
Public Member Functions inherited from ns3::TestCase
	TestCase (const TestCase &)=delete
virtual	~TestCase ()
	Destructor. More...
std::string	GetName () const
TestCase &	operator= (const TestCase &)=delete

Private Member Functions
void	DoRun () override
	Implementation to actually run this TestCase. More...
void	DropEvent (Ptr< const Packet > p)
	Sink called when a packet is dropped. More...
void	SinkRxNode1 (Ptr< const Packet > p, const Address &ad)
	Sink called when a packet is received by a node. More...
void	SinkRxNode2 (Ptr< const Packet > p, const Address &ad)
	Sink called when a packet is received by a node. More...

Private Attributes
uint32_t	m_countNode1
	Counter of received packets on node 1. More...
uint32_t	m_countNode2
	Counter of received packets on node 2. More...
uint32_t	m_drops
	Counter of dropped packets. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1 , EXTENSIVE = 2 , TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCase. More...
bool	IsStatusFailure () const
	Check if any tests failed. More...
bool	IsStatusSuccess () const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure () const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure () const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

CSMA Broadcast mode test.

Definition at line 175 of file csma-system-test-suite.cc.

Constructor & Destructor Documentation

CsmaBroadcastTestCase()

CsmaBroadcastTestCase::CsmaBroadcastTestCase

(

)

Definition at line 206 of file csma-system-test-suite.cc.

~CsmaBroadcastTestCase()

CsmaBroadcastTestCase::~CsmaBroadcastTestCase ( )

override

Definition at line 214 of file csma-system-test-suite.cc.

Member Function Documentation

DoRun()

void CsmaBroadcastTestCase::DoRun ( )

overrideprivatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 250 of file csma-system-test-suite.cc.

References openflow-switch::app, ns3::Config::ConnectWithoutContext(), ns3::NodeContainer::Create(), second::csma, ns3::NodeContainer::Get(), nsclick-simple-lan::internet, nsclick-simple-lan::ipv4, m_countNode1, m_countNode2, ns3::MakeCallback(), ns3::MilliSeconds(), NS_TEST_ASSERT_MSG_EQ, openflow-switch::onoff, port, ns3::Seconds(), sink, SinkRxNode1(), and SinkRxNode2().

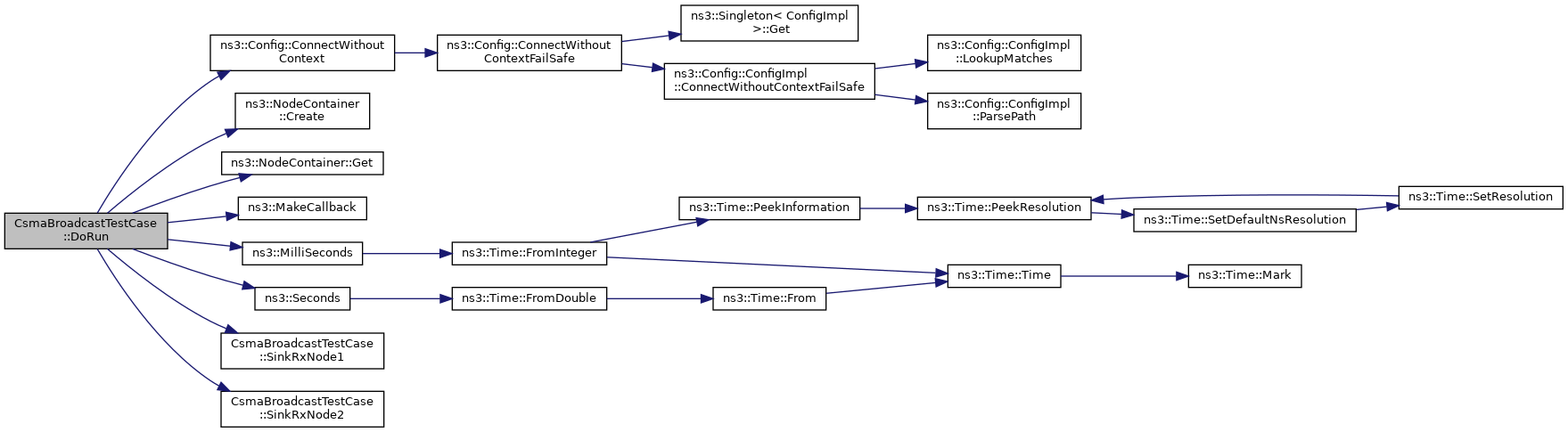

Here is the call graph for this function:

DropEvent()

void CsmaBroadcastTestCase::DropEvent ( Ptr< const Packet >  p )

private

Sink called when a packet is dropped.

Parameters

p	Received packet (unused).

Definition at line 231 of file csma-system-test-suite.cc.

References m_drops.

SinkRxNode1()

void CsmaBroadcastTestCase::SinkRxNode1 ( Ptr< const Packet >  p, const Address &  ad  )

private

Sink called when a packet is received by a node.

Parameters

p	Received packet (unused).
ad	Sender's address (uused).

Definition at line 219 of file csma-system-test-suite.cc.

References m_countNode1.

Referenced by DoRun().

Here is the caller graph for this function:

SinkRxNode2()

void CsmaBroadcastTestCase::SinkRxNode2 ( Ptr< const Packet >  p, const Address &  ad  )

private

Sink called when a packet is received by a node.

Parameters

p	Received packet (unused).
ad	Sender's address (uused).

Definition at line 225 of file csma-system-test-suite.cc.

References m_countNode2.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

m_countNode1

uint32_t CsmaBroadcastTestCase::m_countNode1

private

Counter of received packets on node 1.

Definition at line 200 of file csma-system-test-suite.cc.

Referenced by DoRun(), and SinkRxNode1().

m_countNode2

uint32_t CsmaBroadcastTestCase::m_countNode2

private

Counter of received packets on node 2.

Definition at line 201 of file csma-system-test-suite.cc.

Referenced by DoRun(), and SinkRxNode2().

m_drops

uint32_t CsmaBroadcastTestCase::m_drops

private

Counter of dropped packets.

Definition at line 202 of file csma-system-test-suite.cc.

Referenced by DropEvent().

---

The documentation for this class was generated from the following file:

• src/test/csma-system-test-suite.cc
