ns3::XmlConfigLoad Class Reference

A class to enable loading of configuration store from an XML file. More...

#include "xml-config.h"

Inheritance diagram for ns3::XmlConfigLoad:

Collaboration diagram for ns3::XmlConfigLoad:

Public Member Functions
	XmlConfigLoad ()
	~XmlConfigLoad () override
void	Attributes () override
	Load or save the attributes values. More...
void	Default () override
	Load or save the default values. More...
void	Global () override
	Load or save the global values. More...
void	SetFilename (std::string filename) override
	Set the file name. More...
Public Member Functions inherited from ns3::FileConfig
virtual	~FileConfig ()
void	SetSaveDeprecated (bool saveDeprecated)
	Set if to save deprecated attributes. More...

Private Attributes
std::string	m_filename
	the file name More...

Additional Inherited Members
Protected Attributes inherited from ns3::FileConfig
bool	m_saveDeprecated
	save deprecated attributes More...

Detailed Description

A class to enable loading of configuration store from an XML file.

Definition at line 59 of file xml-config.h.

Constructor & Destructor Documentation

XmlConfigLoad()

ns3::XmlConfigLoad::XmlConfigLoad

(

)

Definition at line 303 of file xml-config.cc.

References NS_LOG_FUNCTION.

~XmlConfigLoad()

ns3::XmlConfigLoad::~XmlConfigLoad ( )

override

Definition at line 308 of file xml-config.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Attributes()

void ns3::XmlConfigLoad::Attributes ( )

overridevirtual

Load or save the attributes values.

Implements ns3::FileConfig.

Definition at line 399 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, two-ray-to-three-gpp-ch-calibration::rc, ns3::Config::Set(), and check-style-clang-format::type.

Here is the call graph for this function:

Default()

void ns3::XmlConfigLoad::Default ( )

overridevirtual

Load or save the default values.

Implements ns3::FileConfig.

Definition at line 321 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, two-ray-to-three-gpp-ch-calibration::rc, ns3::Config::SetDefault(), and check-style-clang-format::type.

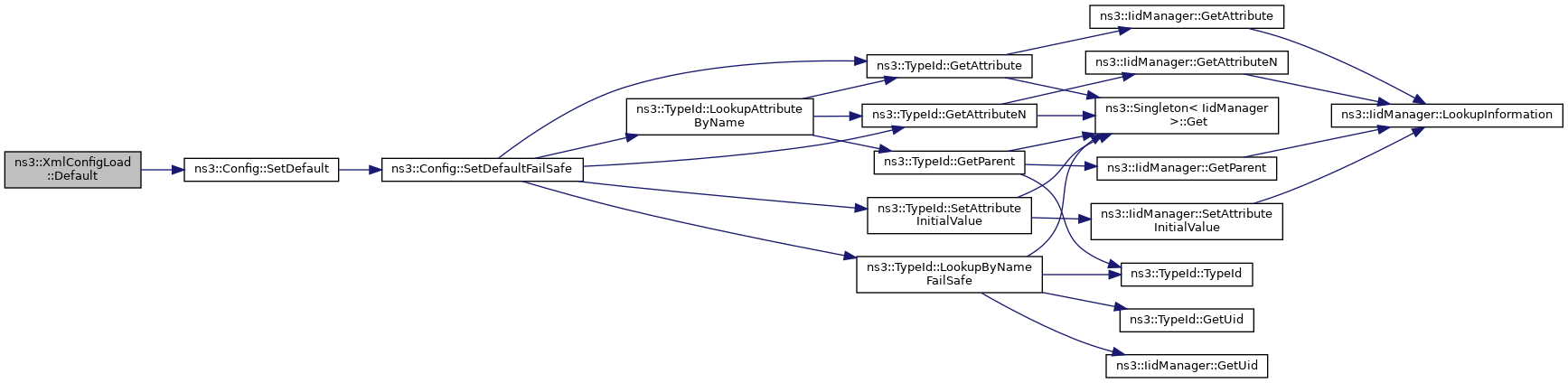

Here is the call graph for this function:

Global()

void ns3::XmlConfigLoad::Global ( )

overridevirtual

Load or save the global values.

Implements ns3::FileConfig.

Definition at line 360 of file xml-config.cc.

References m_filename, NS_FATAL_ERROR, NS_LOG_DEBUG, two-ray-to-three-gpp-ch-calibration::rc, ns3::Config::SetGlobal(), and check-style-clang-format::type.

Here is the call graph for this function:

SetFilename()

void ns3::XmlConfigLoad::SetFilename ( std::string  filename )

overridevirtual

Set the file name.

Parameters

filename

the filename

Implements ns3::FileConfig.

Definition at line 314 of file xml-config.cc.

References m_filename, and NS_LOG_FUNCTION.

Member Data Documentation

m_filename

std::string ns3::XmlConfigLoad::m_filename

private

the file name

Definition at line 71 of file xml-config.h.

Referenced by Attributes(), Default(), Global(), and SetFilename().

---

The documentation for this class was generated from the following files:

• src/config-store/model/xml-config.h
• src/config-store/model/xml-config.cc
