Implementation class of Ipv6AddressGenerator This generator assigns addresses sequentially from a provided network address; used in topology code. More...

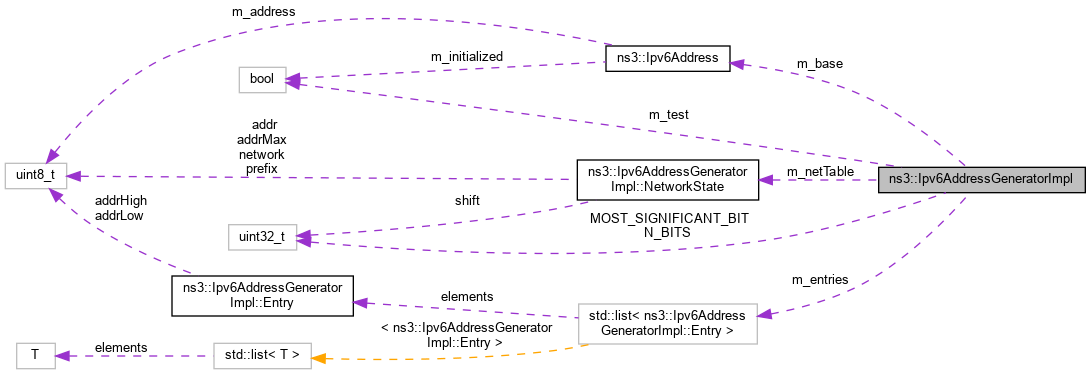

Collaboration diagram for ns3::Ipv6AddressGeneratorImpl:

Classes
class	Entry
	This class holds the allocated addresses. More...

class	NetworkState
	This class holds the state for a given network. More...

Public Member Functions
	Ipv6AddressGeneratorImpl ()

virtual	~Ipv6AddressGeneratorImpl ()

bool	AddAllocated (const Ipv6Address addr)
	Add the Ipv6Address to the list of IPv6 entries. More...

Ipv6Address	GetAddress (const Ipv6Prefix prefix) const
	Get the Ipv6Address that will be allocated upon NextAddress () More...

Ipv6Address	GetNetwork (const Ipv6Prefix prefix) const
	Get the current network of the given Ipv6Prefix. More...

void	Init (const Ipv6Address net, const Ipv6Prefix prefix, const Ipv6Address interfaceId)
	Initialise the base network and interfaceId for the generator. More...

void	InitAddress (const Ipv6Address interfaceId, const Ipv6Prefix prefix)
	Set the interfaceId for the given Ipv6Prefix. More...

bool	IsAddressAllocated (const Ipv6Address addr)
	Check the Ipv6Address allocation in the list of IPv6 entries. More...

bool	IsNetworkAllocated (const Ipv6Address addr, const Ipv6Prefix prefix)
	Check if a network has already allocated addresses. More...

Ipv6Address	NextAddress (const Ipv6Prefix prefix)
	Allocate the next Ipv6Address for the configured network and prefix. More...

Ipv6Address	NextNetwork (const Ipv6Prefix prefix)
	Get the next network according to the given Ipv6Prefix. More...

void	Reset (void)
	Reset the networks and Ipv6Address to zero. More...

void	TestMode (void)
	Used to turn off fatal errors and assertions, for testing. More...

Private Member Functions
uint32_t	PrefixToIndex (Ipv6Prefix prefix) const
	Create an index number for the prefix. More...

Private Attributes
Ipv6Address	m_base
	base address More...

std::list< Entry >	m_entries
	contained of allocated addresses More...

NetworkState	m_netTable [N_BITS]
	the available networks More...

bool	m_test
	test mode (if true) More...

Static Private Attributes
static const uint32_t	MOST_SIGNIFICANT_BIT = 0x80
	MSB set to 1. More...

static const uint32_t	N_BITS = 128
	the number of bits in the address More...

Detailed Description

Implementation class of Ipv6AddressGenerator This generator assigns addresses sequentially from a provided network address; used in topology code.

It also keeps track of all addresses assigned to perform duplicate detection.

Definition at line 40 of file ipv6-address-generator.cc.

Constructor & Destructor Documentation

◆ Ipv6AddressGeneratorImpl()

ns3::Ipv6AddressGeneratorImpl::Ipv6AddressGeneratorImpl ( )

Definition at line 194 of file ipv6-address-generator.cc.

References NS_LOG_FUNCTION, and Reset().

Here is the call graph for this function:

◆ ~Ipv6AddressGeneratorImpl()

ns3::Ipv6AddressGeneratorImpl::~Ipv6AddressGeneratorImpl ( )

virtual

Definition at line 243 of file ipv6-address-generator.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ AddAllocated()

bool ns3::Ipv6AddressGeneratorImpl::AddAllocated ( const Ipv6Address addr )

Add the Ipv6Address to the list of IPv6 entries.

Typically, this is used by external address allocators that want to make use of this class's ability to track duplicates. AddAllocated is always called internally for any address generated by NextAddress ()

Parameters

addr	The Ipv6Address to be added to the list of Ipv6 entries

Returns: true on success

Definition at line 465 of file ipv6-address-generator.cc.

References first::address, ns3::Ipv6AddressGeneratorImpl::Entry::addrHigh, ns3::Ipv6AddressGeneratorImpl::Entry::addrLow, m_entries, m_test, NS_FATAL_ERROR, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by NextAddress().

Here is the caller graph for this function:

◆ GetAddress()

Ipv6Address ns3::Ipv6AddressGeneratorImpl::GetAddress ( const Ipv6Prefix prefix ) const

Get the Ipv6Address that will be allocated upon NextAddress ()

Does not change the internal state; just is used to peek the next address that will be allocated upon NextAddress ()

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address

Definition at line 390 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

◆ GetNetwork()

Ipv6Address ns3::Ipv6AddressGeneratorImpl::GetNetwork ( const Ipv6Prefix prefix ) const

Get the current network of the given Ipv6Prefix.

Does not change the internal state; this just peeks at the current network

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address of the current network

Definition at line 300 of file ipv6-address-generator.cc.

References m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

◆ Init()

void ns3::Ipv6AddressGeneratorImpl::Init	(	const Ipv6Address	net,
		const Ipv6Prefix	prefix,
		const Ipv6Address	interfaceId
	)

Initialise the base network and interfaceId for the generator.

The first call to NextAddress() or GetAddress() will return the value passed in.

Parameters

net	The network for the base Ipv6Address
prefix	The prefix of the base Ipv6Address
interfaceId	The base interface ID used for initialization

Definition at line 249 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), ns3::Ipv6Prefix::GetBytes(), m_base, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_DEBUG, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

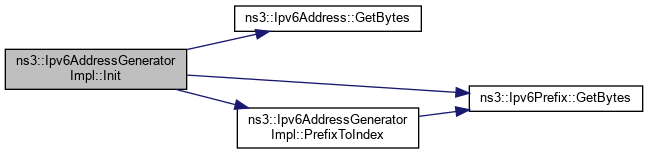

Here is the call graph for this function:

◆ InitAddress()

void ns3::Ipv6AddressGeneratorImpl::InitAddress	(	const Ipv6Address	interfaceId,
		const Ipv6Prefix	prefix
	)

Set the interfaceId for the given Ipv6Prefix.

Parameters

interfaceId	The interfaceId to set for the current Ipv6Prefix
prefix	The Ipv6Prefix whose address is to be set

Definition at line 373 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), m_netTable, NS_LOG_FUNCTION, and PrefixToIndex().

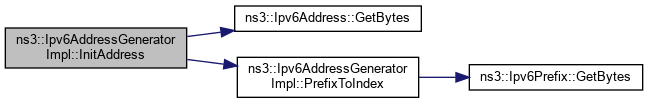

Here is the call graph for this function:

◆ IsAddressAllocated()

bool ns3::Ipv6AddressGeneratorImpl::IsAddressAllocated ( const Ipv6Address addr )

Check the Ipv6Address allocation in the list of IPv6 entries.

Parameters

addr	The Ipv6Address to be checked in the list of Ipv4 entries

Returns: true if the network is already allocated

Definition at line 579 of file ipv6-address-generator.cc.

References first::address, m_entries, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

◆ IsNetworkAllocated()

bool ns3::Ipv6AddressGeneratorImpl::IsNetworkAllocated	(	const Ipv6Address	addr,
		const Ipv6Prefix	prefix
	)

Check if a network has already allocated addresses.

Parameters

addr	The Ipv6 network to be checked
prefix	The Ipv6 network prefix

Returns: true if the network is already allocated

Definition at line 605 of file ipv6-address-generator.cc.

References first::address, ns3::Ipv6Address::CombinePrefix(), m_entries, NS_ABORT_MSG_UNLESS, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

◆ NextAddress()

Ipv6Address ns3::Ipv6AddressGeneratorImpl::NextAddress ( const Ipv6Prefix prefix )

Allocate the next Ipv6Address for the configured network and prefix.

This operation is a post-increment, meaning that the first address allocated will be the one that was initially configured.

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address

Definition at line 418 of file ipv6-address-generator.cc.

References AddAllocated(), ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

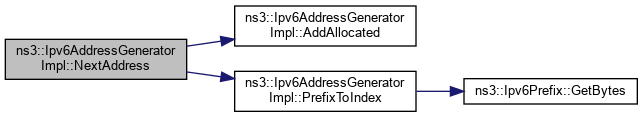

Here is the call graph for this function:

◆ NextNetwork()

Ipv6Address ns3::Ipv6AddressGeneratorImpl::NextNetwork ( const Ipv6Prefix prefix )

Get the next network according to the given Ipv6Prefix.

This operation is a pre-increment, meaning that the internal state is changed before returning the new network address.

This also resets the interface ID to the base interface ID that was used for initialization.

Parameters

prefix The Ipv6Prefix used to set the next network

Returns: the IPv6 address of the next network

Definition at line 323 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6Address::GetBytes(), m_base, m_netTable, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, PrefixToIndex(), and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Here is the call graph for this function:

◆ PrefixToIndex()

uint32_t ns3::Ipv6AddressGeneratorImpl::PrefixToIndex ( Ipv6Prefix prefix ) const

private

Create an index number for the prefix.

Parameters

prefix the prefix to index

Returns: an index

Definition at line 641 of file ipv6-address-generator.cc.

References ns3::Ipv6Prefix::GetBytes(), N_BITS, NS_ABORT_MSG_UNLESS, and NS_ASSERT_MSG.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), and NextNetwork().

Here is the call graph for this function:

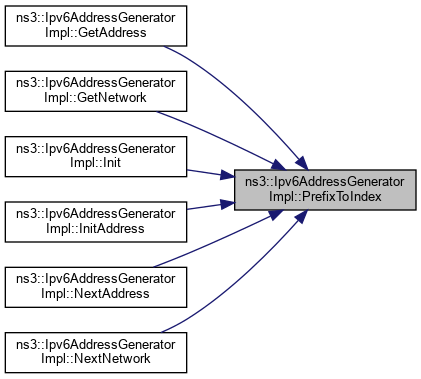

Here is the caller graph for this function:

◆ Reset()

void ns3::Ipv6AddressGeneratorImpl::Reset ( void )

Reset the networks and Ipv6Address to zero.

Definition at line 204 of file ipv6-address-generator.cc.

References ns3::Ipv6AddressGeneratorImpl::NetworkState::addr, ns3::Ipv6AddressGeneratorImpl::NetworkState::addrMax, m_base, m_entries, m_netTable, m_test, MOST_SIGNIFICANT_BIT, N_BITS, ns3::Ipv6AddressGeneratorImpl::NetworkState::network, NS_LOG_FUNCTION, ns3::Ipv6AddressGeneratorImpl::NetworkState::prefix, and ns3::Ipv6AddressGeneratorImpl::NetworkState::shift.

Referenced by Ipv6AddressGeneratorImpl().

Here is the caller graph for this function:

◆ TestMode()

void ns3::Ipv6AddressGeneratorImpl::TestMode ( void )

Used to turn off fatal errors and assertions, for testing.

Definition at line 634 of file ipv6-address-generator.cc.

References m_test, and NS_LOG_FUNCTION.

Member Data Documentation

◆ m_base

Ipv6Address ns3::Ipv6AddressGeneratorImpl::m_base

private

base address

Definition at line 190 of file ipv6-address-generator.cc.

Referenced by Init(), NextNetwork(), and Reset().

◆ m_entries

std::list<Entry> ns3::Ipv6AddressGeneratorImpl::m_entries

private

contained of allocated addresses

Definition at line 189 of file ipv6-address-generator.cc.

Referenced by AddAllocated(), IsAddressAllocated(), IsNetworkAllocated(), and Reset().

◆ m_netTable

NetworkState ns3::Ipv6AddressGeneratorImpl::m_netTable[N_BITS]

private

the available networks

Definition at line 177 of file ipv6-address-generator.cc.

Referenced by GetAddress(), GetNetwork(), Init(), InitAddress(), NextAddress(), NextNetwork(), and Reset().

◆ m_test

bool ns3::Ipv6AddressGeneratorImpl::m_test

private

test mode (if true)

Definition at line 191 of file ipv6-address-generator.cc.

Referenced by AddAllocated(), Reset(), and TestMode().

◆ MOST_SIGNIFICANT_BIT

const uint32_t ns3::Ipv6AddressGeneratorImpl::MOST_SIGNIFICANT_BIT = 0x80

staticprivate

MSB set to 1.

Definition at line 155 of file ipv6-address-generator.cc.

Referenced by Reset().

◆ N_BITS

const uint32_t ns3::Ipv6AddressGeneratorImpl::N_BITS = 128

staticprivate

the number of bits in the address

Definition at line 154 of file ipv6-address-generator.cc.

Referenced by PrefixToIndex(), and Reset().

The documentation for this class was generated from the following file:

src/internet/model/ipv6-address-generator.cc
