This generator assigns addresses sequentially from a provided network address; used in topology code. More...

#include "ipv6-address-generator.h"

Static Public Member Functions
static bool	AddAllocated (const Ipv6Address addr)
	Add the Ipv6Address to the list of IPv6 entries. More...

static Ipv6Address	GetAddress (const Ipv6Prefix prefix)
	Get the Ipv6Address that will be allocated upon NextAddress () More...

static Ipv6Address	GetNetwork (const Ipv6Prefix prefix)
	Get the current network of the given Ipv6Prefix. More...

static void	Init (const Ipv6Address net, const Ipv6Prefix prefix, const Ipv6Address interfaceId="::1")
	Initialise the base network and interfaceId for the generator. More...

static void	InitAddress (const Ipv6Address interfaceId, const Ipv6Prefix prefix)
	Set the interfaceId for the given Ipv6Prefix. More...

static bool	IsAddressAllocated (const Ipv6Address addr)
	Check the Ipv6Address allocation in the list of IPv6 entries. More...

static bool	IsNetworkAllocated (const Ipv6Address addr, const Ipv6Prefix prefix)
	Check if a network has already allocated addresses. More...

static Ipv6Address	NextAddress (const Ipv6Prefix prefix)
	Allocate the next Ipv6Address for the configured network and prefix. More...

static Ipv6Address	NextNetwork (const Ipv6Prefix prefix)
	Get the next network according to the given Ipv6Prefix. More...

static void	Reset (void)
	Reset the networks and Ipv6Address to zero. More...

static void	TestMode (void)
	Used to turn off fatal errors and assertions, for testing. More...

Detailed Description

This generator assigns addresses sequentially from a provided network address; used in topology code.

It also keeps track of all addresses assigned to perform duplicate detection.

Global unicast IPv6 addresses based on RFC 4291 definition:

|         n bits          |   m bits  |       128-n-m bits         |
+-------------------------+-----------+----------------------------+
| global routing prefix   | subnet ID |       interface ID         |
+-------------------------+-----------+----------------------------+

In this class, the first two quantities (n + m) are what is called the 'net', and the 'prefix' defines the length in bits of (n + m).

The way this is expected to be used is that, after initializing the network and interfaceId to a number, a user can call NextAddress () repeatedly to obtain new interface IDs with the current network (for multiple addresses on the link) and can call NextNetwork () to increment the subnet ID.

The interface ID is often an EUI-64 address derived from the MAC address, but can also be a pseudo-random value (RFC 3041). This implementation does not generate EUI-64-based interface IDs.

Note: BEWARE: this class acts as a Singleton. In other terms, two different instances of Ipv6AddressGenerator will pick IPv6 numbers from the same pool. Changing the network in one of them will also change the network in the other instances.

Definition at line 61 of file ipv6-address-generator.h.

Member Function Documentation

◆ AddAllocated()

bool ns3::Ipv6AddressGenerator::AddAllocated ( const Ipv6Address addr )

static

Add the Ipv6Address to the list of IPv6 entries.

Typically, this is used by external address allocators that want to make use of this class's ability to track duplicates. AddAllocated is always called internally for any address generated by NextAddress ()

Parameters

addr	The Ipv6Address to be added to the list of Ipv6 entries

Returns: true on success

Definition at line 743 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::Ipv6AddressHelper::NewAddress().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetAddress()

Ipv6Address ns3::Ipv6AddressGenerator::GetAddress ( const Ipv6Prefix prefix )

static

Get the Ipv6Address that will be allocated upon NextAddress ()

Does not change the internal state; just is used to peek the next address that will be allocated upon NextAddress ()

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address

Definition at line 716 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetNetwork()

Ipv6Address ns3::Ipv6AddressGenerator::GetNetwork ( const Ipv6Prefix prefix )

static

Get the current network of the given Ipv6Prefix.

Does not change the internal state; this just peeks at the current network

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address of the current network

Definition at line 696 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::CsmaStarHelper::AssignIpv6Addresses(), ns3::PointToPointDumbbellHelper::AssignIpv6Addresses(), ns3::PointToPointGridHelper::AssignIpv6Addresses(), and ns3::PointToPointStarHelper::AssignIpv6Addresses().

Here is the call graph for this function:

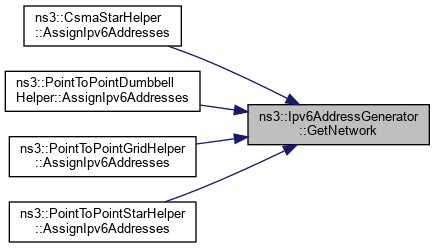

Here is the caller graph for this function:

◆ Init()

void ns3::Ipv6AddressGenerator::Init	(	const Ipv6Address	net,
		const Ipv6Prefix	prefix,
		const Ipv6Address	interfaceId = `"::1"`
	)

static

Initialise the base network and interfaceId for the generator.

The first call to NextAddress() or GetAddress() will return the value passed in.

Parameters

net	The network for the base Ipv6Address
prefix	The prefix of the base Ipv6Address
interfaceId	The base interface ID used for initialization

Definition at line 675 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::CsmaStarHelper::AssignIpv6Addresses(), ns3::PointToPointDumbbellHelper::AssignIpv6Addresses(), ns3::PointToPointGridHelper::AssignIpv6Addresses(), and ns3::PointToPointStarHelper::AssignIpv6Addresses().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitAddress()

void ns3::Ipv6AddressGenerator::InitAddress	(	const Ipv6Address	interfaceId,
		const Ipv6Prefix	prefix
	)

static

Set the interfaceId for the given Ipv6Prefix.

Parameters

interfaceId	The interfaceId to set for the current Ipv6Prefix
prefix	The Ipv6Prefix whose address is to be set

Definition at line 705 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsAddressAllocated()

bool ns3::Ipv6AddressGenerator::IsAddressAllocated ( const Ipv6Address addr )

static

Check the Ipv6Address allocation in the list of IPv6 entries.

Parameters

addr	The Ipv6Address to be checked in the list of Ipv4 entries

Returns: true if the address is already allocated

Definition at line 752 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ IsNetworkAllocated()

bool ns3::Ipv6AddressGenerator::IsNetworkAllocated	(	const Ipv6Address	addr,
		const Ipv6Prefix	prefix
	)

static

Check if a network has already allocated addresses.

Parameters

addr	The Ipv6 network to be checked
prefix	The Ipv6 network prefix

Returns: true if the network is already allocated

Definition at line 761 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NextAddress()

Ipv6Address ns3::Ipv6AddressGenerator::NextAddress ( const Ipv6Prefix prefix )

static

Allocate the next Ipv6Address for the configured network and prefix.

This operation is a post-increment, meaning that the first address allocated will be the one that was initially configured.

Parameters

prefix The Ipv6Prefix for the current network

Returns: the IPv6 address

Definition at line 725 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ NextNetwork()

Ipv6Address ns3::Ipv6AddressGenerator::NextNetwork ( const Ipv6Prefix prefix )

static

Get the next network according to the given Ipv6Prefix.

This operation is a pre-increment, meaning that the internal state is changed before returning the new network address.

This also resets the interface ID to the base interface ID that was used for initialization.

Parameters

prefix The Ipv6Prefix used to set the next network

Returns: the IPv6 address of the next network

Definition at line 687 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION.

Referenced by ns3::CsmaStarHelper::AssignIpv6Addresses(), ns3::PointToPointDumbbellHelper::AssignIpv6Addresses(), ns3::PointToPointGridHelper::AssignIpv6Addresses(), and ns3::PointToPointStarHelper::AssignIpv6Addresses().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Reset()

void ns3::Ipv6AddressGenerator::Reset ( void )

static

Reset the networks and Ipv6Address to zero.

Definition at line 734 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

◆ TestMode()

void ns3::Ipv6AddressGenerator::TestMode ( void )

static

Used to turn off fatal errors and assertions, for testing.

Definition at line 770 of file ipv6-address-generator.cc.

References ns3::SimulationSingleton< T >::Get(), and NS_LOG_FUNCTION_NOARGS.

Here is the call graph for this function:

The documentation for this class was generated from the following files:

src/internet/model/ipv6-address-generator.h
src/internet/model/ipv6-address-generator.cc
