The Multi-Link element. More...

#include "multi-link-element.h"

Inheritance diagram for ns3::MultiLinkElement:

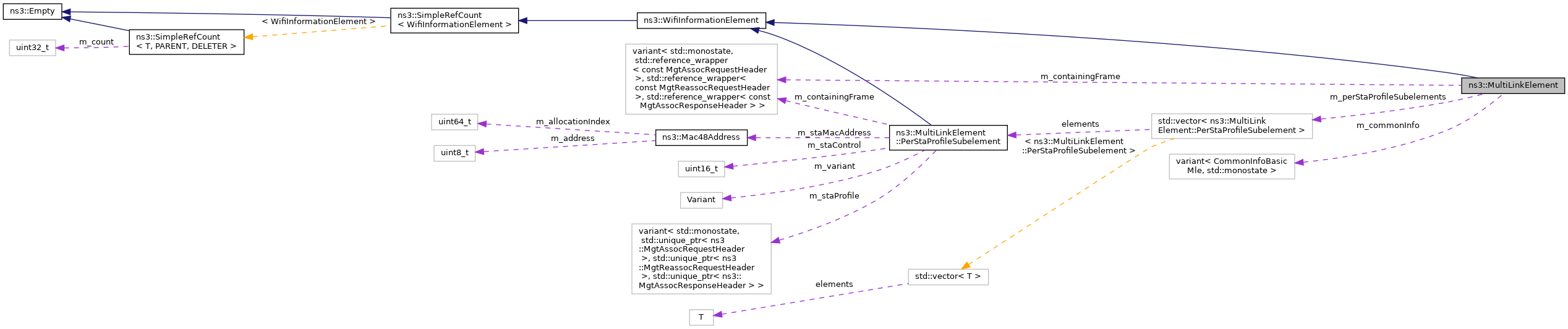

Collaboration diagram for ns3::MultiLinkElement:

Classes
class	PerStaProfileSubelement
	Per-STA Profile Subelement of Multi-Link element. More...

Public Types
using	ContainingFrame = std::variant< std::monostate, std::reference_wrapper< const MgtAssocRequestHeader >, std::reference_wrapper< const MgtReassocRequestHeader >, std::reference_wrapper< const MgtAssocResponseHeader > >
	Typedef for structure holding a reference to the containing frame. More...

enum	SubElementId : uint8_t { PER_STA_PROFILE_SUBELEMENT_ID = 0 }
	SubElement IDs. More...

enum	Variant : uint8_t { BASIC_VARIANT = 0 , UNSET }
	Multi-Link element variants. More...

Public Member Functions
	MultiLinkElement (ContainingFrame frame={})
	Construct a Multi-Link Element with no variant set. More...

	MultiLinkElement (Variant variant, ContainingFrame frame={})
	Constructor. More...

void	AddPerStaProfileSubelement ()
	Add a Per-STA Profile Subelement in the Link Info field. More...

uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

WifiInformationElementId	ElementIdExt () const override
	Get the wifi information element ID extension. More...

uint8_t	GetBssParamsChangeCount () const
	Return the BSS Parameters Change Count subfield in the Common Info field. More...

CommonInfoBasicMle &	GetCommonInfoBasic ()

const CommonInfoBasicMle &	GetCommonInfoBasic () const

Time	GetEmlsrPaddingDelay () const
	Get the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field. More...

Time	GetEmlsrTransitionDelay () const
	Get the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field. More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetLinkIdInfo () const
	Return the Link ID Info subfield in the Common Info field. More...

Mac48Address	GetMldMacAddress () const
	Return the MLD MAC Address subfield in the Common Info field. More...

std::size_t	GetNPerStaProfileSubelements () const
	Return the number of Per-STA Profile Subelement in the Link Info field. More...

PerStaProfileSubelement &	GetPerStaProfile (std::size_t i)
	Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. More...

const PerStaProfileSubelement &	GetPerStaProfile (std::size_t i) const
	Get a reference to the i-th Per-STA Profile Subelement in the Link Info field. More...

Time	GetTransitionTimeout () const
	Get the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field. More...

Variant	GetVariant () const
	Get the Multi-Link element variant. More...

bool	HasBssParamsChangeCount () const
	Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise. More...

bool	HasEmlCapabilities () const
	Return true if the EML Capabilities subfield in the Common Info field is present and false otherwise. More...

bool	HasLinkIdInfo () const
	Return true if the Link ID Info subfield in the Common Info field is present and false otherwise. More...

bool	IsEmlsrSupported () const
	Return true if the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field is set to 1 and false otherwise. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBssParamsChangeCount (uint8_t count)
	Set the BSS Parameters Change Count subfield in the Common Info field. More...

void	SetEmlsrPaddingDelay (Time delay)
	Set the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field. More...

void	SetEmlsrSupported (bool supported)
	Set the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field to 1 if EMLSR mode is supported and set it to 0 otherwise. More...

void	SetEmlsrTransitionDelay (Time delay)
	Set the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field. More...

void	SetLinkIdInfo (uint8_t linkIdInfo)
	Set the Link ID Info subfield in the Common Info field. More...

void	SetMldMacAddress (Mac48Address address)
	Set the MLD MAC Address subfield in the Common Info field. More...

void	SetTransitionTimeout (Time timeout)
	Set the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Attributes
ContainingFrame	m_containingFrame
	reference to the mgt frame containing this MLE More...

Private Types
using	CommonInfo = std::variant< CommonInfoBasicMle, std::monostate >
	Typedef for structure holding a Common Info field. More...

Private Member Functions
void	SetVariant (Variant variant)
	Set the variant of this Multi-Link Element. More...

Private Attributes
CommonInfo	m_commonInfo
	Common Info field. More...

std::vector< PerStaProfileSubelement >	m_perStaProfileSubelements
	Per-STA Profile Subelements. More...

Detailed Description

The Multi-Link element.

The 802.11be Multi-Link element (see Sec.9.4.2.312 of 802.11be D1.5)

TODO:

Add setters/getters for EML Capabilities and MLD Capabilities subfields of the Common Info field of the Basic variant of a Multi-Link Element.
Add support for variants other than the Basic one.

Definition at line 204 of file multi-link-element.h.

Member Typedef Documentation

◆ CommonInfo

using ns3::MultiLinkElement::CommonInfo = std::variant<CommonInfoBasicMle, std::monostate >

private

Typedef for structure holding a Common Info field.

Definition at line 610 of file multi-link-element.h.

◆ ContainingFrame

using ns3::MultiLinkElement::ContainingFrame = std::variant<std::monostate, std::reference_wrapper<const MgtAssocRequestHeader>, std::reference_wrapper<const MgtReassocRequestHeader>, std::reference_wrapper<const MgtAssocResponseHeader> >

Typedef for structure holding a reference to the containing frame.

Definition at line 236 of file multi-link-element.h.

Constructor & Destructor Documentation

◆ MultiLinkElement() [1/2]

ns3::MultiLinkElement::MultiLinkElement ( ContainingFrame frame = {} )

Construct a Multi-Link Element with no variant set.

MultiLinkElement.

Parameters

frame the management frame containing this Multi-Link Element

Definition at line 298 of file multi-link-element.cc.

◆ MultiLinkElement() [2/2]

ns3::MultiLinkElement::MultiLinkElement	(	Variant	variant,
		ContainingFrame	frame = `{}`
	)

Constructor.

Parameters

variant	the Multi-Link element variant (cannot be UNSET)
frame	the management frame containing this Multi-Link Element

Definition at line 304 of file multi-link-element.cc.

References NS_ASSERT, SetVariant(), and UNSET.

Here is the call graph for this function:

Member Function Documentation

◆ AddPerStaProfileSubelement()

void ns3::MultiLinkElement::AddPerStaProfileSubelement ( )

Add a Per-STA Profile Subelement in the Link Info field.

Definition at line 805 of file multi-link-element.cc.

References GetVariant(), m_perStaProfileSubelements, NS_ABORT_IF, and UNSET.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DeserializeInformationField()

uint16_t ns3::MultiLinkElement::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 888 of file multi-link-element.cc.

References AddPerStaProfileSubelement(), ns3::Buffer::Iterator::GetDistanceFrom(), GetNPerStaProfileSubelements(), GetPerStaProfile(), m_commonInfo, m_containingFrame, ns3::Buffer::Iterator::Next(), NS_ABORT_MSG, ns3::Buffer::Iterator::PeekU8(), PER_STA_PROFILE_SUBELEMENT_ID, ns3::Buffer::Iterator::ReadLsbtohU16(), SetVariant(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::MultiLinkElement::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 312 of file multi-link-element.cc.

References IE_EXTENSION.

◆ ElementIdExt()

WifiInformationElementId ns3::MultiLinkElement::ElementIdExt ( ) const

overridevirtual

Get the wifi information element ID extension.

Returns: the wifi information element ID extension

Reimplemented from ns3::WifiInformationElement.

Definition at line 318 of file multi-link-element.cc.

References IE_EXT_MULTI_LINK_ELEMENT.

◆ GetBssParamsChangeCount()

uint8_t ns3::MultiLinkElement::GetBssParamsChangeCount ( ) const

Return the BSS Parameters Change Count subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the BSS Parameters Change Count subfield is present.

Returns: the BSS Parameters Change Count subfield in the Common Info field

Definition at line 400 of file multi-link-element.cc.

References m_commonInfo.

◆ GetCommonInfoBasic() [1/2]

CommonInfoBasicMle & ns3::MultiLinkElement::GetCommonInfoBasic ( )

Returns: a reference to the Common Info field (the MLE variant must be Basic)

Definition at line 346 of file multi-link-element.cc.

References m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

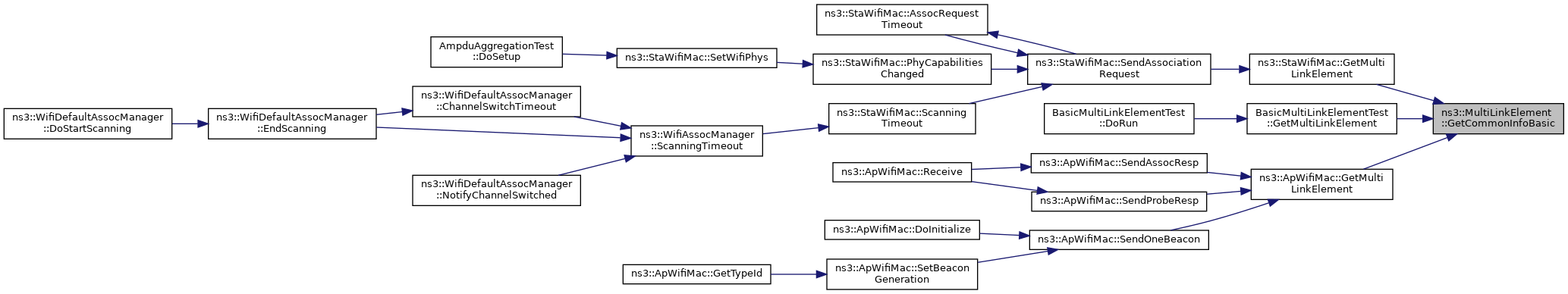

Here is the caller graph for this function:

◆ GetCommonInfoBasic() [2/2]

const CommonInfoBasicMle & ns3::MultiLinkElement::GetCommonInfoBasic ( ) const

Returns: a const reference to the Common Info field (the MLE variant must be Basic)

Definition at line 352 of file multi-link-element.cc.

References m_commonInfo.

◆ GetEmlsrPaddingDelay()

Time ns3::MultiLinkElement::GetEmlsrPaddingDelay ( ) const

Get the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.

Returns: the EMLSR Padding Delay

Definition at line 480 of file multi-link-element.cc.

References ns3::CommonInfoBasicMle::DecodeEmlsrPaddingDelay(), m_commonInfo, and NS_ASSERT.

Here is the call graph for this function:

◆ GetEmlsrTransitionDelay()

Time ns3::MultiLinkElement::GetEmlsrTransitionDelay ( ) const

Get the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.

Returns: the EMLSR Transition Delay

Definition at line 488 of file multi-link-element.cc.

References ns3::CommonInfoBasicMle::DecodeEmlsrTransitionDelay(), m_commonInfo, and NS_ASSERT.

Here is the call graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::MultiLinkElement::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 831 of file multi-link-element.cc.

References m_commonInfo, m_containingFrame, m_perStaProfileSubelements, and NS_ABORT_MSG.

◆ GetLinkIdInfo()

uint8_t ns3::MultiLinkElement::GetLinkIdInfo ( ) const

Return the Link ID Info subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the Link ID Info subfield is present.

Returns: the Link ID Info subfield in the Common Info field

Definition at line 382 of file multi-link-element.cc.

References m_commonInfo.

◆ GetMldMacAddress()

Mac48Address ns3::MultiLinkElement::GetMldMacAddress ( ) const

Return the MLD MAC Address subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Returns: the MLD MAC Address subfield in the Common Info field.

Definition at line 364 of file multi-link-element.cc.

References m_commonInfo.

◆ GetNPerStaProfileSubelements()

std::size_t ns3::MultiLinkElement::GetNPerStaProfileSubelements ( ) const

Return the number of Per-STA Profile Subelement in the Link Info field.

Returns: the number of Per-STA Profile Subelement in the Link Info field

Definition at line 813 of file multi-link-element.cc.

References m_perStaProfileSubelements.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ GetPerStaProfile() [1/2]

MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile ( std::size_t i )

Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.

Parameters

i	the index of the Per-STA Profile Subelement in the Link Info field

Returns: a reference to the i-th Per-STA Profile Subelement in the Link Info field

Definition at line 819 of file multi-link-element.cc.

References m_perStaProfileSubelements.

Referenced by DeserializeInformationField(), ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ GetPerStaProfile() [2/2]

const MultiLinkElement::PerStaProfileSubelement & ns3::MultiLinkElement::GetPerStaProfile ( std::size_t i ) const

Get a reference to the i-th Per-STA Profile Subelement in the Link Info field.

Parameters

i	the index of the Per-STA Profile Subelement in the Link Info field

Returns: a reference to the i-th Per-STA Profile Subelement in the Link Info field

Definition at line 825 of file multi-link-element.cc.

References m_perStaProfileSubelements.

◆ GetTransitionTimeout()

Time ns3::MultiLinkElement::GetTransitionTimeout ( ) const

Get the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.

Returns: the Transition Timeout

Definition at line 496 of file multi-link-element.cc.

References m_commonInfo, ns3::MicroSeconds(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetVariant()

MultiLinkElement::Variant ns3::MultiLinkElement::GetVariant ( ) const

Get the Multi-Link element variant.

Returns: the Multi-Link element variant

Definition at line 324 of file multi-link-element.cc.

References m_commonInfo.

Referenced by AddPerStaProfileSubelement(), SerializeInformationField(), and SetVariant().

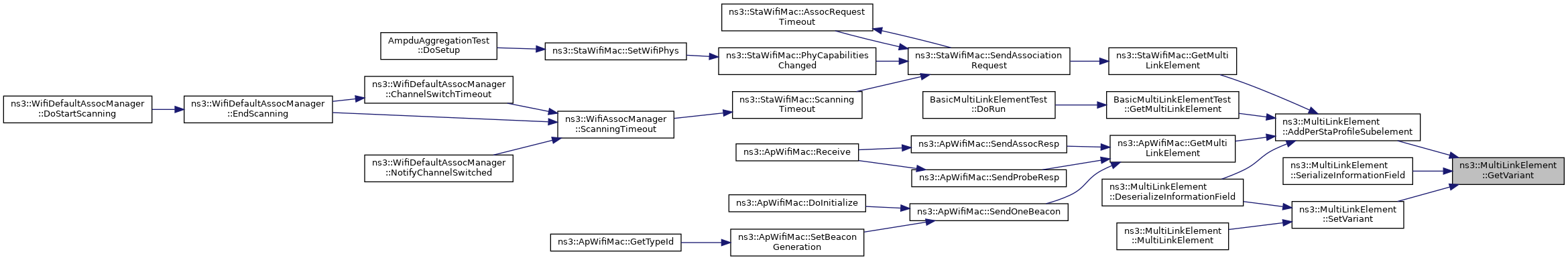

Here is the caller graph for this function:

◆ HasBssParamsChangeCount()

bool ns3::MultiLinkElement::HasBssParamsChangeCount ( ) const

Return true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: true if the BSS Parameters Change Count subfield in the Common Info field is present and false otherwise

Definition at line 394 of file multi-link-element.cc.

References m_commonInfo.

◆ HasEmlCapabilities()

bool ns3::MultiLinkElement::HasEmlCapabilities ( ) const

Return true if the EML Capabilities subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: whether the EML Capabilities subfield in the Common Info field is present

Definition at line 468 of file multi-link-element.cc.

References m_commonInfo.

◆ HasLinkIdInfo()

bool ns3::MultiLinkElement::HasLinkIdInfo ( ) const

Return true if the Link ID Info subfield in the Common Info field is present and false otherwise.

Make sure that this is a Basic Multi-Link Element.

Returns: true if the Link ID Info subfield in the Common Info field is present and false otherwise

Definition at line 376 of file multi-link-element.cc.

References m_commonInfo.

◆ IsEmlsrSupported()

bool ns3::MultiLinkElement::IsEmlsrSupported ( ) const

Return true if the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field is set to 1 and false otherwise.

Make sure that this is a Basic Multi-Link Element and the EML Capabilities subfield is present.

Returns: whether the EMLSR Support subfield is set to 1

Definition at line 474 of file multi-link-element.cc.

References m_commonInfo.

◆ SerializeInformationField()

void ns3::MultiLinkElement::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 861 of file multi-link-element.cc.

References GetVariant(), m_commonInfo, m_perStaProfileSubelements, NS_ABORT_MSG, and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ SetBssParamsChangeCount()

void ns3::MultiLinkElement::SetBssParamsChangeCount ( uint8_t count )

Set the BSS Parameters Change Count subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

count the BSS Parameters Change Count

Definition at line 388 of file multi-link-element.cc.

References m_commonInfo.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetEmlsrPaddingDelay()

void ns3::MultiLinkElement::SetEmlsrPaddingDelay ( Time delay )

Set the EMLSR Padding Delay subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

delay the EMLSR Padding delay (0us, 32us, 64us, 128us or 256us)

Definition at line 417 of file multi-link-element.cc.

References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrPaddingDelay, ns3::CommonInfoBasicMle::EncodeEmlsrPaddingDelay(), and m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and BasicMultiLinkElementTest::GetMultiLinkElement().

Here is the call graph for this function:

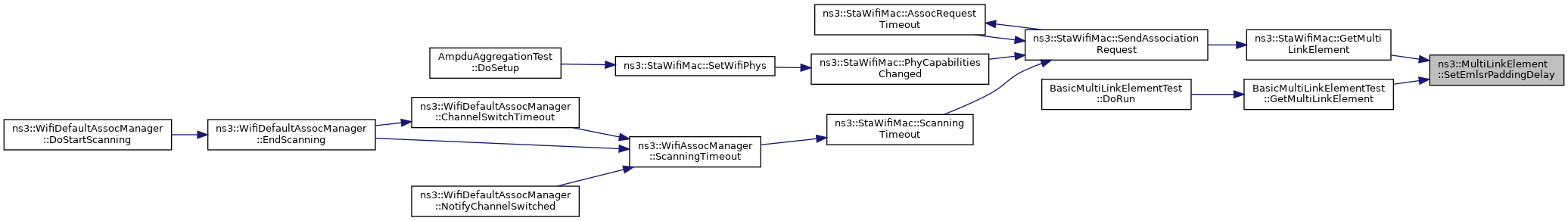

Here is the caller graph for this function:

◆ SetEmlsrSupported()

void ns3::MultiLinkElement::SetEmlsrSupported ( bool supported )

Set the EMLSR Support subfield of the EML Capabilities subfield in the Common Info field to 1 if EMLSR mode is supported and set it to 0 otherwise.

Make sure that this is a Basic Multi-Link Element.

Parameters

supported whether EMLSR mode is supported

Definition at line 406 of file multi-link-element.cc.

References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrSupport, and m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetEmlsrTransitionDelay()

void ns3::MultiLinkElement::SetEmlsrTransitionDelay ( Time delay )

Set the EMLSR Transition Delay subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

delay the EMLSR Transition delay (0us, 16us, 32us, 64us, 128us or 256us)

Definition at line 428 of file multi-link-element.cc.

References ns3::CommonInfoBasicMle::EmlCapabilities::emlsrTransitionDelay, ns3::CommonInfoBasicMle::EncodeEmlsrTransitionDelay(), and m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), and BasicMultiLinkElementTest::GetMultiLinkElement().

Here is the call graph for this function:

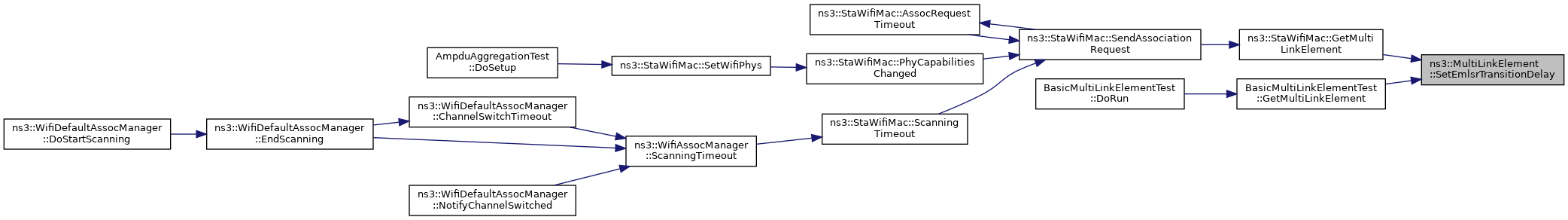

Here is the caller graph for this function:

◆ SetLinkIdInfo()

void ns3::MultiLinkElement::SetLinkIdInfo ( uint8_t linkIdInfo )

Set the Link ID Info subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

linkIdInfo the link ID information

Definition at line 370 of file multi-link-element.cc.

References m_commonInfo.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetMldMacAddress()

void ns3::MultiLinkElement::SetMldMacAddress ( Mac48Address address )

Set the MLD MAC Address subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

address the MLD MAC address

Definition at line 358 of file multi-link-element.cc.

References first::address, and m_commonInfo.

Referenced by ns3::StaWifiMac::GetMultiLinkElement(), BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the caller graph for this function:

◆ SetTransitionTimeout()

void ns3::MultiLinkElement::SetTransitionTimeout ( Time timeout )

Set the Transition Timeout subfield of the EML Capabilities subfield in the Common Info field.

Make sure that this is a Basic Multi-Link Element.

Parameters

timeout the Transition Timeout (0us or 2^n us, with n=7..16)

Definition at line 439 of file multi-link-element.cc.

References ns3::Time::As(), ns3::Time::GetMicroSeconds(), m_commonInfo, NS_ABORT_MSG_IF, timeout, and ns3::Time::US.

Referenced by BasicMultiLinkElementTest::GetMultiLinkElement(), and ns3::ApWifiMac::GetMultiLinkElement().

Here is the call graph for this function:

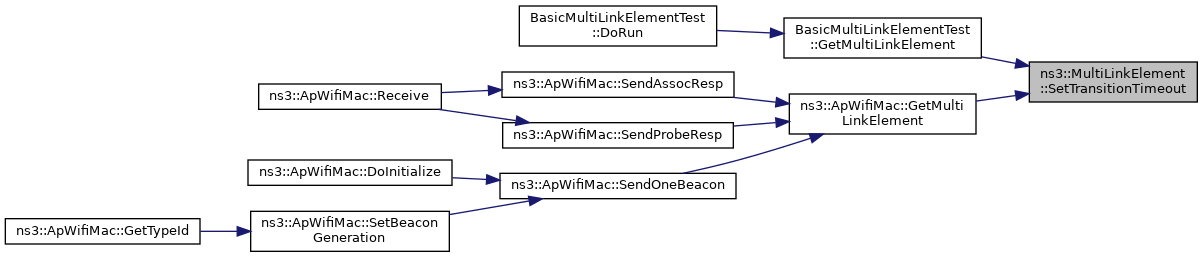

Here is the caller graph for this function:

◆ SetVariant()

void ns3::MultiLinkElement::SetVariant ( Variant variant )

private

Set the variant of this Multi-Link Element.

Parameters

variant the variant of this Multi-Link Element

Definition at line 330 of file multi-link-element.cc.

References BASIC_VARIANT, GetVariant(), m_commonInfo, NS_ABORT_MSG, NS_ABORT_MSG_IF, and UNSET.

Referenced by MultiLinkElement(), and DeserializeInformationField().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_commonInfo

CommonInfo ns3::MultiLinkElement::m_commonInfo

private

◆ m_containingFrame

ContainingFrame ns3::MultiLinkElement::m_containingFrame

mutable

reference to the mgt frame containing this MLE

Definition at line 405 of file multi-link-element.h.

Referenced by DeserializeInformationField(), ns3::MultiLinkElement::PerStaProfileSubelement::DeserializeInformationField(), GetInformationFieldSize(), ns3::MultiLinkElement::PerStaProfileSubelement::GetInformationFieldSize(), and ns3::MultiLinkElement::PerStaProfileSubelement::SerializeInformationField().

◆ m_perStaProfileSubelements

std::vector<PerStaProfileSubelement> ns3::MultiLinkElement::m_perStaProfileSubelements

private

Per-STA Profile Subelements.

Definition at line 620 of file multi-link-element.h.

Referenced by AddPerStaProfileSubelement(), GetInformationFieldSize(), GetNPerStaProfileSubelements(), GetPerStaProfile(), and SerializeInformationField().

The documentation for this class was generated from the following files:

src/wifi/model/eht/multi-link-element.h
src/wifi/model/eht/multi-link-element.cc

Classes

Public Types

Public Member Functions

Public Attributes

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ CommonInfo

◆ ContainingFrame

Constructor & Destructor Documentation

◆ MultiLinkElement() [1/2]

◆ MultiLinkElement() [2/2]

Member Function Documentation

◆ AddPerStaProfileSubelement()

◆ DeserializeInformationField()

◆ ElementId()

◆ ElementIdExt()

◆ GetBssParamsChangeCount()

◆ GetCommonInfoBasic() [1/2]

◆ GetCommonInfoBasic() [2/2]

◆ GetEmlsrPaddingDelay()

◆ GetEmlsrTransitionDelay()

◆ GetInformationFieldSize()

◆ GetLinkIdInfo()

◆ GetMldMacAddress()

◆ GetNPerStaProfileSubelements()

◆ GetPerStaProfile() [1/2]

◆ GetPerStaProfile() [2/2]

◆ GetTransitionTimeout()

◆ GetVariant()

◆ HasBssParamsChangeCount()

◆ HasEmlCapabilities()

◆ HasLinkIdInfo()

◆ IsEmlsrSupported()

◆ SerializeInformationField()

◆ SetBssParamsChangeCount()

◆ SetEmlsrPaddingDelay()

◆ SetEmlsrSupported()

◆ SetEmlsrTransitionDelay()

◆ SetLinkIdInfo()

◆ SetMldMacAddress()

◆ SetTransitionTimeout()

◆ SetVariant()

Member Data Documentation

◆ m_commonInfo

◆ m_containingFrame

◆ m_perStaProfileSubelements
