Wifi Models

This section documents the API of the ns-3 Wifi module. More...

+ Collaboration diagram for Wifi Models:

Modules

 wifi module tests


Files

file  dsss-phy.h
 Declaration of ns3::DsssPhy class.

file  dsss-ppdu.h
 Declaration of ns3::DsssPpdu class.

file  eht-phy.h
 Declaration of ns3::EhtPhy class.

file  eht-ppdu.h
 Declaration of ns3::EhtPpdu class.

file  erp-ofdm-phy.h
 Declaration of ns3::ErpOfdmPhy class.

file  erp-ofdm-ppdu.h
 Declaration of ns3::ErpOfdmPpdu class.

file  he-phy.h
 Declaration of ns3::HePhy class and ns3::HeSigAParameters struct.

file  he-ppdu.h
 Declaration of ns3::HePpdu class.

file  ht-phy.h
 Declaration of ns3::HtPhy class.

file  ht-ppdu.h
 Declaration of ns3::HtPpdu class.

file  ofdm-phy.h
 Declaration of ns3::OfdmPhy class and ns3::OfdmPhyVariant enum.

file  ofdm-ppdu.h
 Declaration of ns3::OfdmPpdu class.

file  phy-entity.h
 Declaration of:

file  vht-phy.h
 Declaration of ns3::VhtPhy class.

file  vht-ppdu.h
 Declaration of ns3::VhtPpdu class.

file  wifi-phy-common.h
 Declaration of the following enums:

file  wifi-ppdu.h
 Declaration of ns3::WifiPpdu class and ns3::WifiConstPsduMap.


Classes

class  ns3::AarfcdWifiManager
 an implementation of the AARF-CD algorithm More...

class  ns3::AarfWifiManager
 AARF Rate control algorithm. More...

class  ns3::AddbaExtension
 The IEEE 802.11 ADDBA Extension Element (Sec. More...

class  ns3::AdhocWifiMac
 Wifi MAC high model for an ad-hoc Wifi MAC. More...

struct  ns3::AllSupportedRates
 Struct containing all supported rates. More...

class  ns3::AmpduSubframeHeader
 Headers for A-MPDU subframes. More...

class  ns3::AmpduTag
 The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3. More...

class  ns3::AmrrWifiManager
 AMRR Rate control algorithm. More...

class  ns3::AmsduSubframeHeader
 Headers for A-MSDU subframes. More...

class  ns3::AparfWifiManager
 APARF Power and rate control algorithm. More...

class  ns3::ApWifiMac
 Wi-Fi AP state machine. More...

class  ns3::ArfWifiManager
 ARF Rate control algorithm. More...

class  ns3::BlockAckAgreement
 Maintains information for a block ack agreement. More...

class  ns3::BlockAckManager
 Manages all block ack agreements for an originator station. More...

struct  ns3::BlockAckReqType
 The different BlockAckRequest variants. More...

struct  ns3::BlockAckType
 The different BlockAck variants. More...

class  ns3::BlockAckWindow
 Block ack window. More...

struct  ns3::CanBeInPerStaProfile< T >
 Inspect a type to deduce whether it is an Information Element that can be included in a Per-STA Profile subelement of a Multi-Link Element. More...

class  ns3::CapabilityInformation
 Capability information. More...

class  ns3::CaraWifiManager
 implement the CARA rate control algorithm More...

class  ns3::ChannelAccessManager
 Manage a set of ns3::Txop. More...

class  ns3::ConstantObssPdAlgorithm
 Constant OBSS PD algorithm. More...

class  ns3::ConstantRateWifiManager
 use constant rates for data and RTS transmissions More...

class  ns3::CtrlBAckRequestHeader
 Headers for BlockAckRequest. More...

class  ns3::CtrlBAckResponseHeader
 Headers for BlockAck response. More...

class  ns3::CtrlTriggerHeader
 Headers for Trigger frames. More...

class  ns3::CtrlTriggerUserInfoField
 User Info field of Trigger frames. More...

class  ns3::DefaultEmlsrManager
 DefaultEmlsrManager is the default EMLSR manager. More...

class  ns3::DsssErrorRateModel
 an implementation of DSSS error rate model More...

class  ns3::DsssParameterSet
 The DSSS Parameter Set. More...

class  ns3::DsssPhy
 PHY entity for HR/DSSS (11b) More...

class  ns3::DsssPpdu
 DSSS (HR/DSSS) PPDU (11b) More...

class  ns3::EdcaParameterSet
 The EDCA Parameter Set. More...

class  ns3::EhtCapabilities
 The IEEE 802.11be EHT Capabilities. More...

class  ns3::EhtConfiguration
 EHT configuration. More...

class  ns3::EhtFrameExchangeManager
 EhtFrameExchangeManager handles the frame exchange sequences for EHT stations. More...

class  ns3::EhtOperation
 EHT Operation Information Element. More...

class  ns3::EhtPhy
 PHY entity for EHT (11be) More...

class  ns3::EhtPpdu
 EHT PPDU (11be) More...

class  ns3::EmlsrManager
 EmlsrManager is an abstract base class defining the API that EHT non-AP MLDs with EMLSR activated can use to handle the operations on the EMLSR links. More...

class  ns3::ErpInformation
 The ErpInformation Information Element. More...

class  ns3::ErpOfdmPhy
 PHY entity for ERP-OFDM (11g) More...

class  ns3::ErpOfdmPpdu
 ERP-OFDM PPDU (11g) More...

class  ns3::ErrorRateModel
 the interface for Wifi's error models More...

class  ns3::Event
 handles interference calculations More...

class  ns3::ExtendedCapabilities
 The Extended Capabilities Information Element. More...

class  ns3::ExtendedSupportedRatesIE
 The Extended Supported Rates Information Element. More...

struct  ns3::FcfsPrio
 Definition of priority for container queues. More...

class  ns3::FcfsWifiQueueScheduler
 FcfsWifiQueueScheduler is a wifi queue scheduler that serves data frames in a first come first serve fashion. More...

class  ns3::FrameCaptureModel
 the interface for Wifi's frame capture models More...

class  ns3::FrameExchangeManager
 FrameExchangeManager is a base class handling the basic frame exchange sequences for non-QoS stations. More...

struct  std::hash< ns3::WifiContainerQueueId >
 Hashing functor taking a QueueId and returning a std::size_t. More...

class  ns3::HeCapabilities
 The IEEE 802.11ax HE Capabilities. More...

class  ns3::HeConfiguration
 HE configuration. More...

class  ns3::HeFrameExchangeManager
 HeFrameExchangeManager handles the frame exchange sequences for HE stations. More...

class  ns3::HeOperation
 The HE Operation Information Element. More...

class  ns3::HePhy
 PHY entity for HE (11ax) More...

class  ns3::HePpdu
 HE PPDU (11ax) More...

class  ns3::HtCapabilities
 The HT Capabilities Information Element. More...

class  ns3::HtConfiguration
 HT configuration. More...

class  ns3::HtFrameExchangeManager
 HtFrameExchangeManager handles the frame exchange sequences for HT stations. More...

class  ns3::HtOperation
 The HT Operation Information Element. More...

class  ns3::HtPhy
 PHY entity for HT (11n) More...

class  ns3::HtPpdu
 HT PPDU (11n) More...

class  ns3::IdealWifiManager
 Ideal rate control algorithm. More...

class  ns3::InterferenceHelper
 handles interference calculations More...

class  ns3::MacRxMiddle
 This class handles duplicate detection and recomposition of fragments. More...

class  ns3::MacTxMiddle
 Handles sequence numbering of IEEE 802.11 data frames. More...

class  ns3::MeshInformationElementVector
 Information element vector. More...

class  ns3::MgtAddBaRequestHeader
 Implement the header for management frames of type Add Block Ack request. More...

class  ns3::MgtAddBaResponseHeader
 Implement the header for management frames of type Add Block Ack response. More...

class  ns3::MgtAssocRequestHeader
 Implement the header for management frames of type association request. More...

class  ns3::MgtAssocResponseHeader
 Implement the header for management frames of type association and reassociation response. More...

class  ns3::MgtBeaconHeader
 Implement the header for management frames of type beacon. More...

class  ns3::MgtDelBaHeader
 Implement the header for management frames of type Delete Block Ack. More...

class  ns3::MgtEmlOmn
 Implement the header for Action frames of type EML Operating Mode Notification. More...

class  ns3::MgtHeaderInPerStaProfile< Derived, Tuple >
 Implement the header for management frames that can be included in a Per-STA Profile subelement of a Multi-Link Element. More...

class  ns3::MgtHeaderInPerStaProfile< Derived, std::tuple< Elems... > >
 Add methods needed to serialize/deserialize a management header into a Per-STA Profile subelement of a Multi-Link Element. More...

class  ns3::MgtProbeRequestHeader
 Implement the header for management frames of type probe request. More...

class  ns3::MgtProbeResponseHeader
 Implement the header for management frames of type probe response. More...

class  ns3::MgtReassocRequestHeader
 Implement the header for management frames of type reassociation request. More...

class  ns3::MinstrelHtWifiManager
 Implementation of Minstrel-HT Rate Control Algorithm. More...

class  ns3::MinstrelWifiManager
 Implementation of Minstrel Rate Control Algorithm. More...

class  ns3::MpduAggregator
 Aggregator used to construct A-MPDUs. More...

class  ns3::MsduAggregator
 Aggregator used to construct A-MSDUs. More...

class  ns3::MuEdcaParameterSet
 The MU EDCA Parameter Set. More...

class  ns3::MultiLinkElement
 The Multi-Link element. More...

class  ns3::MultiUserScheduler
 MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission. More...

class  ns3::MuSnrTag
 A tag to be attached to a response to a multi-user UL frame, that carries the SNR values with which the individual frames have been received. More...

class  ns3::NistErrorRateModel
 A model for the error rate for different modulations. More...

class  ns3::NonInheritance
 The IEEE 802.11 Non-Inheritance Information Element. More...

class  ns3::ObssPdAlgorithm
 OBSS PD algorithm interface. More...

class  ns3::OfdmPhy
 PHY entity for OFDM (11a) More...

class  ns3::OfdmPpdu
 OFDM PPDU (11a) More...

class  ns3::OnoeWifiManager
 an implementation of the rate control algorithm developed by Atsushi Onoe More...

class  ns3::OriginatorBlockAckAgreement
 Maintains the state and information about transmitted MPDUs with Ack Policy set to Block Ack for an originator station. More...

class  ns3::ParfWifiManager
 PARF Rate control algorithm. More...

class  ns3::MultiLinkElement::PerStaProfileSubelement
 Per-STA Profile Subelement of Multi-Link element. More...

class  ns3::PhyEntity
 Abstract class for PHY entities. More...

class  ns3::PreambleDetectionModel
 the interface for Wifi's preamble detection models More...

class  ns3::QosFrameExchangeManager
 QosFrameExchangeManager handles the frame exchange sequences for QoS stations. More...

class  ns3::QosTxop
 Handle packet fragmentation and retransmissions for QoS data frames as well as MSDU aggregation (A-MSDU) and block ack sessions, for a given access class. More...

class  ns3::RecipientBlockAckAgreement
 Maintains the scoreboard and the receive reordering buffer used by a recipient of a Block Ack agreement. More...

class  ns3::ReducedNeighborReport
 The Reduced Neighbor Report element. More...

class  ns3::RraaWifiManager
 Robust Rate Adaptation Algorithm. More...

class  ns3::RrMultiUserScheduler
 RrMultiUserScheduler is a simple OFDMA scheduler that indicates to perform a DL OFDMA transmission if the AP has frames to transmit to at least one station. More...

class  ns3::SimpleFrameCaptureModel
 A simple threshold-based model for frame capture effect. More...

class  ns3::SpectrumWifiPhy
 802.11 PHY layer model More...

class  ns3::Ssid
 The IEEE 802.11 SSID Information Element. More...

class  ns3::StaWifiMac
 The Wifi MAC high model for a non-AP STA in a BSS. More...

class  ns3::SupportedRates
 The Supported Rates Information Element. More...

class  ns3::ThompsonSamplingWifiManager
 Thompson Sampling rate control algorithm. More...

class  ns3::ThresholdPreambleDetectionModel
 A threshold-based model for detecting PHY preamble. More...

class  ns3::TidToLinkMapping
 TID-to-Link Mapping Information Element. More...

class  ns3::Txop
 Handle packet fragmentation and retransmissions for data and management frames. More...

class  ns3::VhtCapabilities
 The IEEE 802.11ac VHT Capabilities. More...

class  ns3::VhtConfiguration
 VHT configuration. More...

class  ns3::VhtFrameExchangeManager
 VhtFrameExchangeManager handles the frame exchange sequences for VHT stations. More...

class  ns3::VhtOperation
 The VHT Operation Information Element. More...

class  ns3::VhtPhy
 PHY entity for VHT (11ac) More...

class  ns3::VhtPpdu
 VHT PPDU (11ac) More...

class  ns3::WifiAc
 This class stores the pair of TIDs of an Access Category. More...

struct  ns3::WifiAckAfterTbPpdu
 WifiAckAfterTbPpdu is used when a station prepares a TB PPDU to send in response to a Basic Trigger Frame. More...

class  ns3::WifiAckManager
 WifiAckManager is an abstract base class. More...

struct  ns3::WifiAcknowledgment
 WifiAcknowledgment is an abstract base struct. More...

class  ns3::WifiActionHeader
 See IEEE 802.11 chapter 7.3.1.11 Header format: | category: 1 | action value: 1 |. More...

class  ns3::WifiAssocManager
 Abstract base class for the Association Manager, which manages scanning and association for single link devices and ML discovery and setup for multi-link devices. More...

struct  ns3::WifiBarBlockAck
 WifiBarBlockAck specifies that a BlockAckReq is sent to solicit a Block Ack response. More...

struct  ns3::WifiBlockAck
 WifiBlockAck specifies that acknowledgment via Block Ack is required. More...

struct  ns3::WifiCtsToSelfProtection
 WifiCtsToSelfProtection specifies that CTS-to-self protection method is used. More...

class  ns3::WifiDefaultAckManager
 WifiDefaultAckManager is the default ack manager. More...

class  ns3::WifiDefaultAssocManager
 Default wifi Association Manager. More...

class  ns3::WifiDefaultProtectionManager
 WifiDefaultProtectionManager is the default protection manager, which selects the protection method for a frame based on its size. More...

struct  ns3::WifiDlMuAggregateTf
 WifiDlMuAggregateTf specifies that a DL MU PPDU made of PSDUs including each a MU-BAR Trigger Frame is acknowledged through BlockAck frames sent as HE TB PPDUs. More...

struct  ns3::WifiDlMuBarBaSequence
 WifiDlMuBarBaSequence specifies that a DL MU PPDU is acknowledged through a sequence of BlockAckReq and BlockAck frames. More...

struct  ns3::WifiDlMuTfMuBar
 WifiDlMuTfMuBar specifies that a DL MU PPDU is followed after a SIFS duration by a MU-BAR Trigger Frame (sent as single user frame) soliciting BlockAck frames sent as HE TB PPDUs. More...

class  ns3::WifiInformationElement
 Information element, as defined in 802.11-2007 standard. More...

class  ns3::WifiMac
 base class for all MAC-level wifi objects. More...

class  ns3::WifiMacHeader
 Implements the IEEE 802.11 MAC header. More...

class  ns3::WifiMacQueue
 This queue implements the timeout procedure described in (Section 9.19.2.6 "Retransmit procedures" paragraph 6; IEEE 802.11-2012). More...

class  ns3::WifiMacQueueContainer
 Class for the container used by WifiMacQueue. More...

struct  ns3::WifiMacQueueElem
 Type of elements stored in a WifiMacQueue container. More...

class  ns3::WifiMacQueueScheduler
 WifiMacQueueScheduler is an abstract base class defining the public interface for a wifi MAC queue scheduler. More...

class  ns3::WifiMacQueueSchedulerImpl< Priority, Compare >
 WifiMacQueueSchedulerImpl is a template class enabling the definition of different types of priority values for the container queues. More...

class  ns3::WifiMacTrailer
 Implements the IEEE 802.11 MAC trailer. More...

class  ns3::WifiMgtHeader< Derived, Tuple >
 Implement the header for management frames. More...

class  ns3::WifiMgtHeader< Derived, std::tuple< Elems... > >
 Base class for implementing management frame headers. More...

class  ns3::WifiMode
 represent a single transmission mode More...

class  ns3::WifiMpdu
 WifiMpdu stores a (const) packet along with a MAC header. More...

struct  ns3::WifiMuRtsCtsProtection
 WifiMuRtsCtsProtection specifies that MU-RTS/CTS protection method is used. More...

class  ns3::WifiNetDevice
 Hold together all Wifi-related objects. More...

struct  ns3::WifiNoAck
 WifiNoAck specifies that no acknowledgment is required. More...

struct  ns3::WifiNoProtection
 WifiNoProtection specifies that no protection method is used. More...

struct  ns3::WifiNormalAck
 WifiNormalAck specifies that acknowledgment via Normal Ack is required. More...

class  ns3::WifiPhy
 802.11 PHY layer model More...

class  ns3::WifiPhyOperatingChannel
 Class that keeps track of all information about the current PHY operating channel. More...

class  ns3::WifiPhyStateHelper
 This objects implements the PHY state machine of the Wifi device. More...

class  ns3::WifiPpdu
 WifiPpdu stores a preamble, a modulation class, PHY headers and a PSDU. More...

struct  ns3::WifiProtection
 WifiProtection is an abstract base struct. More...

class  ns3::WifiProtectionManager
 WifiProtectionManager is an abstract base class. More...

class  ns3::WifiPsdu
 WifiPsdu stores an MPDU, S-MPDU or A-MPDU, by keeping header(s) and payload(s) separate for each constituent MPDU. More...

class  ns3::WifiRemoteStationManager
 hold a list of per-remote-station state. More...

struct  ns3::WifiRrpaaThresholds
 Robust Rate and Power Adaptation Algorithm. More...

struct  ns3::WifiRtsCtsProtection
 WifiRtsCtsProtection specifies that RTS/CTS protection method is used. More...

struct  ns3::WifiScanParams
 Structure holding scan parameters. More...

class  ns3::WifiSpectrumPhyInterface
 This class is an adaptor between class SpectrumWifiPhy (which inherits from WifiPhy) and class SpectrumChannel (which expects objects derived from class SpectrumPhy to be connected to it). More...

struct  ns3::WifiSpectrumSignalParameters
 Signal parameters for wifi. More...

class  ns3::WifiTxParameters
 This class stores the TX parameters (TX vector, protection mechanism, acknowledgment mechanism, TX duration, ...) for a frame of different types (MPDU, A-MPDU, multi-TID A-MPDU, MU PPDU, ...). More...

class  ns3::WifiTxTimer
 This class is used to handle the timer that a station starts when transmitting a frame that solicits a response. More...

struct  ns3::WifiUlMuMultiStaBa
 WifiUlMuMultiStaBa specifies that a Basic Trigger Frame is being sent to solicit TB PPDUs that will be acknowledged through a multi-STA BlockAck frame. More...

class  ns3::WmqIteratorTag
 Tag used to allow (only) WifiMacQueue to access the queue iterator stored by a WifiMpdu. More...

class  ns3::YansErrorRateModel
 Model the error rate for different modulations. More...

class  ns3::YansWifiChannel
 a channel to interconnect ns3::YansWifiPhy objects. More...

class  ns3::YansWifiPhy
 802.11 PHY layer model More...


Enumerations

enum  ns3::AcIndex : uint8_t {
  ns3::AC_BE = 0 , ns3::AC_BK = 1 , ns3::AC_VI = 2 , ns3::AC_VO = 3 ,
  ns3::AC_BE_NQOS = 4 , ns3::AC_BEACON = 5 , ns3::AC_UNDEF
}
 This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012). More...

enum  ns3::Center26ToneRuIndication : uint8_t {
  ns3::CENTER_26_TONE_RU_UNALLOCATED = 0 , ns3::CENTER_26_TONE_RU_LOW_80_MHZ_ALLOCATED , ns3::CENTER_26_TONE_RU_HIGH_80_MHZ_ALLOCATED , ns3::CENTER_26_TONE_RU_LOW_AND_HIGH_80_MHZ_ALLOCATED ,
  ns3::CENTER_26_TONE_RU_INDICATION_MAX
}
 Enum for the different values for CENTER_26_TONE_RU. More...

enum  ns3::FrequencyChannelType : uint8_t { ns3::WIFI_PHY_DSSS_CHANNEL = 0 , ns3::WIFI_PHY_OFDM_CHANNEL , ns3::WIFI_PHY_80211p_CHANNEL }
 Enumeration of frequency channel types. More...

enum  ns3::MpduType {
  ns3::NORMAL_MPDU , ns3::SINGLE_MPDU , ns3::FIRST_MPDU_IN_AGGREGATE , ns3::MIDDLE_MPDU_IN_AGGREGATE ,
  ns3::LAST_MPDU_IN_AGGREGATE
}
 The type of an MPDU. More...

enum  ns3::OfdmPhyVariant { ns3::OFDM_PHY_DEFAULT , ns3::OFDM_PHY_10_MHZ , ns3::OFDM_PHY_5_MHZ }
 The OFDM (11a) PHY variants. More...

enum  ns3::MultiLinkElement::SubElementId : uint8_t { ns3::MultiLinkElement::PER_STA_PROFILE_SUBELEMENT_ID = 0 }
 SubElement IDs. More...

enum class  ns3::TriggerFrameType : uint8_t {
  ns3::BASIC_TRIGGER = 0 , ns3::BFRP_TRIGGER = 1 , ns3::MU_BAR_TRIGGER = 2 , ns3::MU_RTS_TRIGGER = 3 ,
  ns3::BSRP_TRIGGER = 4 , ns3::GCR_MU_BAR_TRIGGER = 5 , ns3::BQRP_TRIGGER = 6 , ns3::NFRP_TRIGGER = 7
}
 The different Trigger frame types. More...

enum class  ns3::TriggerFrameVariant : uint8_t { ns3::HE = 0 , ns3::EHT }
 The different variants for Common Info field and User Info field of Trigger Frames. More...

enum  ns3::TypeOfStation {
  ns3::STA , ns3::AP , ns3::ADHOC_STA , ns3::MESH ,
  ns3::OCB
}
 Enumeration for type of WiFi station. More...

enum  ns3::MultiLinkElement::Variant : uint8_t { ns3::MultiLinkElement::BASIC_VARIANT = 0 , ns3::MultiLinkElement::UNSET }
 Multi-Link element variants. More...

enum  ns3::WifiChannelListType : uint8_t { ns3::WIFI_CHANLIST_PRIMARY = 0 , ns3::WIFI_CHANLIST_SECONDARY , ns3::WIFI_CHANLIST_SECONDARY40 , ns3::WIFI_CHANLIST_SECONDARY80 }
 Enumeration of the possible channel-list parameter elements defined in Table 8-5 of IEEE 802.11-2016. More...

enum  ns3::WifiMacDropReason : uint8_t { ns3::WIFI_MAC_DROP_FAILED_ENQUEUE = 0 , ns3::WIFI_MAC_DROP_EXPIRED_LIFETIME , ns3::WIFI_MAC_DROP_REACHED_RETRY_LIMIT , ns3::WIFI_MAC_DROP_QOS_OLD_PACKET }
 The reason why an MPDU was dropped. More...

enum  ns3::WifiModulationClass {
  ns3::WIFI_MOD_CLASS_UNKNOWN = 0 , ns3::WIFI_MOD_CLASS_DSSS , ns3::WIFI_MOD_CLASS_HR_DSSS , ns3::WIFI_MOD_CLASS_ERP_OFDM ,
  ns3::WIFI_MOD_CLASS_OFDM , ns3::WIFI_MOD_CLASS_HT , ns3::WIFI_MOD_CLASS_VHT , ns3::WIFI_MOD_CLASS_DMG_CTRL ,
  ns3::WIFI_MOD_CLASS_DMG_OFDM , ns3::WIFI_MOD_CLASS_DMG_SC , ns3::WIFI_MOD_CLASS_DMG_LP_SC , ns3::WIFI_MOD_CLASS_HE ,
  ns3::WIFI_MOD_CLASS_EHT
}
 This enumeration defines the modulation classes per (Table 10-6 "Modulation classes"; IEEE 802.11-2016, with updated in 802.11ax/D6.0 as Table 10-9). More...

enum  ns3::WifiPhyBand {
  ns3::WIFI_PHY_BAND_2_4GHZ , ns3::WIFI_PHY_BAND_5GHZ , ns3::WIFI_PHY_BAND_6GHZ , ns3::WIFI_PHY_BAND_60GHZ ,
  ns3::WIFI_PHY_BAND_UNSPECIFIED
}
 Identifies the PHY band. More...

enum  ns3::WifiPhyRxfailureReason {
  ns3::UNKNOWN = 0 , ns3::UNSUPPORTED_SETTINGS , ns3::CHANNEL_SWITCHING , ns3::RXING ,
  ns3::TXING , ns3::SLEEPING , ns3::POWERED_OFF , ns3::TRUNCATED_TX ,
  ns3::BUSY_DECODING_PREAMBLE , ns3::PREAMBLE_DETECT_FAILURE , ns3::RECEPTION_ABORTED_BY_TX , ns3::L_SIG_FAILURE ,
  ns3::HT_SIG_FAILURE , ns3::SIG_A_FAILURE , ns3::SIG_B_FAILURE , ns3::U_SIG_FAILURE ,
  ns3::EHT_SIG_FAILURE , ns3::PREAMBLE_DETECTION_PACKET_SWITCH , ns3::FRAME_CAPTURE_PACKET_SWITCH , ns3::OBSS_PD_CCA_RESET ,
  ns3::PPDU_TOO_LATE , ns3::FILTERED , ns3::DMG_HEADER_FAILURE , ns3::DMG_ALLOCATION_ENDED
}
 Enumeration of the possible reception failure reasons. More...

enum  ns3::WifiPowerManagementMode : uint8_t { ns3::WIFI_PM_ACTIVE = 0 , ns3::WIFI_PM_SWITCHING_TO_PS , ns3::WIFI_PM_POWERSAVE , ns3::WIFI_PM_SWITCHING_TO_ACTIVE }
 Enumeration for power management modes. More...

enum  ns3::WifiPpduField {
  ns3::WIFI_PPDU_FIELD_PREAMBLE = 0 , ns3::WIFI_PPDU_FIELD_NON_HT_HEADER , ns3::WIFI_PPDU_FIELD_HT_SIG , ns3::WIFI_PPDU_FIELD_TRAINING ,
  ns3::WIFI_PPDU_FIELD_SIG_A , ns3::WIFI_PPDU_FIELD_SIG_B , ns3::WIFI_PPDU_FIELD_U_SIG , ns3::WIFI_PPDU_FIELD_EHT_SIG ,
  ns3::WIFI_PPDU_FIELD_DATA
}
 The type of PPDU field (grouped for convenience) More...

enum  ns3::WifiPpduType { ns3::WIFI_PPDU_TYPE_SU = 0 , ns3::WIFI_PPDU_TYPE_DL_MU , ns3::WIFI_PPDU_TYPE_UL_MU }
 The type of PPDU (SU, DL MU, or UL MU) More...

enum  ns3::WifiPreamble {
  ns3::WIFI_PREAMBLE_LONG , ns3::WIFI_PREAMBLE_SHORT , ns3::WIFI_PREAMBLE_HT_MF , ns3::WIFI_PREAMBLE_VHT_SU ,
  ns3::WIFI_PREAMBLE_VHT_MU , ns3::WIFI_PREAMBLE_DMG_CTRL , ns3::WIFI_PREAMBLE_DMG_SC , ns3::WIFI_PREAMBLE_DMG_OFDM ,
  ns3::WIFI_PREAMBLE_HE_SU , ns3::WIFI_PREAMBLE_HE_ER_SU , ns3::WIFI_PREAMBLE_HE_MU , ns3::WIFI_PREAMBLE_HE_TB ,
  ns3::WIFI_PREAMBLE_EHT_MU , ns3::WIFI_PREAMBLE_EHT_TB
}
 The type of preamble to be used by an IEEE 802.11 transmission. More...

enum class  ns3::WifiQueueBlockedReason : uint8_t {
  ns3::WAITING_ADDBA_RESP = 0 , ns3::POWER_SAVE_MODE , ns3::USING_OTHER_EMLSR_LINK , ns3::WAITING_EMLSR_TRANSITION_DELAY ,
  ns3::TID_NOT_MAPPED , ns3::REASONS_COUNT
}
 Enumeration of the reasons to block container queues. More...

enum class  ns3::WifiScanType : uint8_t { ns3::ACTIVE = 0 , ns3::PASSIVE }
 Scan type (active or passive) More...

enum  ns3::WifiStandard {
  ns3::WIFI_STANDARD_UNSPECIFIED , ns3::WIFI_STANDARD_80211a , ns3::WIFI_STANDARD_80211b , ns3::WIFI_STANDARD_80211g ,
  ns3::WIFI_STANDARD_80211p , ns3::WIFI_STANDARD_80211n , ns3::WIFI_STANDARD_80211ac , ns3::WIFI_STANDARD_80211ad ,
  ns3::WIFI_STANDARD_80211ax , ns3::WIFI_STANDARD_80211be
}
 Identifies the IEEE 802.11 specifications that a Wifi device can be configured to use. More...


Functions

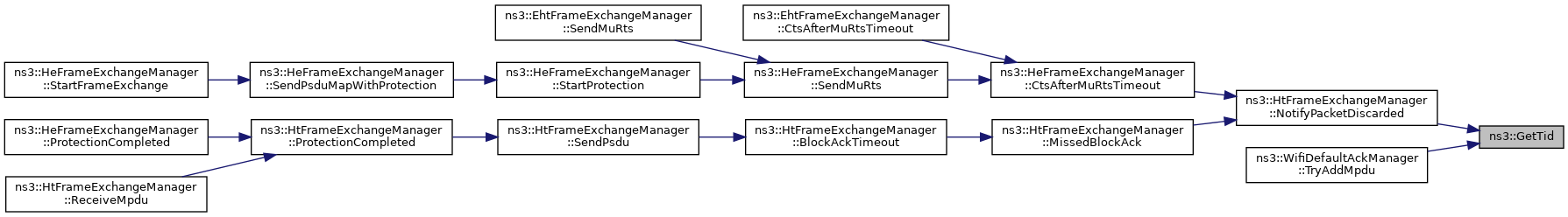

uint8_t ns3::GetTid (Ptr< const Packet > packet, const WifiMacHeader hdr)
 This function is useful to get traffic id of different packet types. More...

bool ns3::operator< (AcIndex left, AcIndex right)
 Operator< overload returning true if the AC on the left has lower priority than the AC on the right. More...

bool ns3::operator< (const WifiSpectrumBandInfo &lhs, const WifiSpectrumBandInfo &rhs)
 Compare two bands. More...

bool ns3::operator<= (AcIndex left, AcIndex right)
 Operator<= overload returning true if the AC on the left has lower or the same priority than the AC on the right. More...

bool ns3::operator> (AcIndex left, AcIndex right)
 Operator> overload returning true if the AC on the left has higher priority than the AC on the right. More...

bool ns3::operator>= (AcIndex left, AcIndex right)
 Operator>= overload returning true if the AC on the left has higher or the same priority than the AC on the right. More...

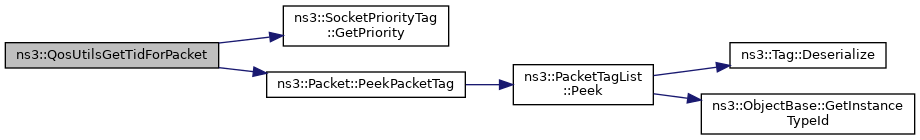

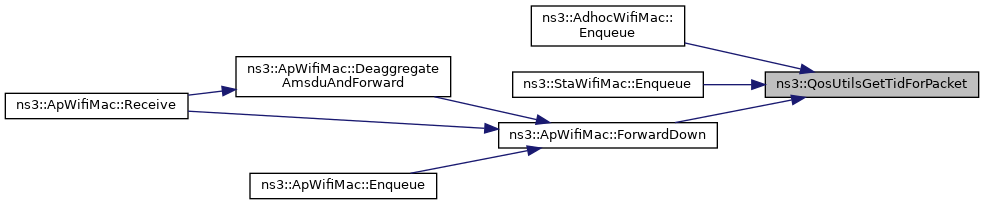

uint8_t ns3::QosUtilsGetTidForPacket (Ptr< const Packet > packet)
 If a QoS tag is attached to the packet, returns a value < 8. More...

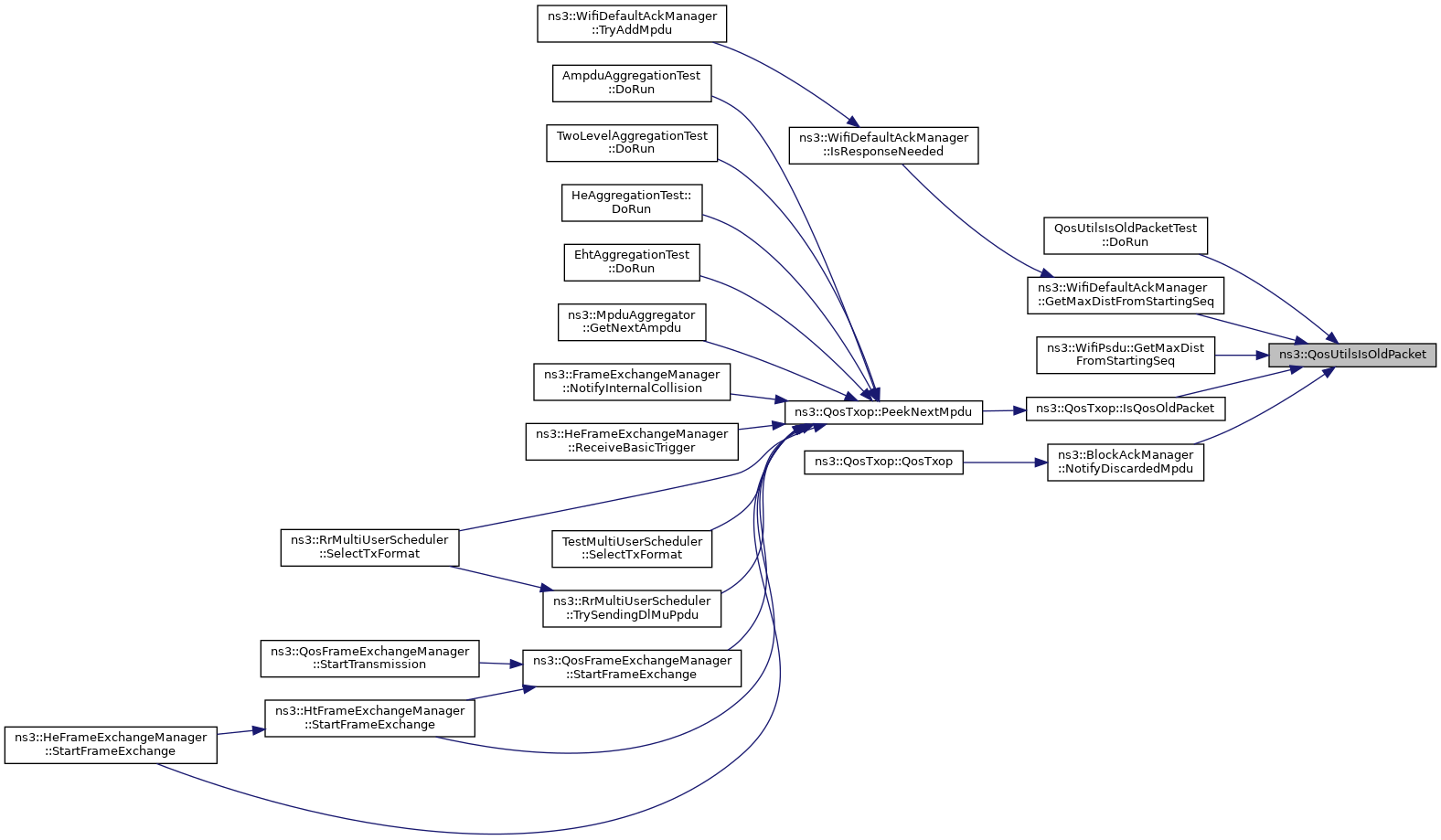

bool ns3::QosUtilsIsOldPacket (uint16_t startingSeq, uint16_t seqNumber)
 This function checks if packet with sequence number seqNumber is an "old" packet. More...

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger (uint16_t seqControl, uint16_t endSequence)
 Next function is useful to correctly sort buffered packets under block ack. More...

AcIndex ns3::QosUtilsMapTidToAc (uint8_t tid)
 Maps TID (Traffic ID) to Access classes. More...

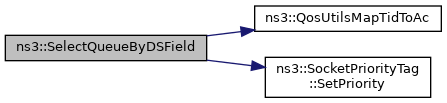

uint8_t ns3::SelectQueueByDSField (Ptr< QueueItem > item)
 Determine the TX queue for a given packet. More...


Detailed Description

This section documents the API of the ns-3 Wifi module.

For a generic functional description, please refer to the ns-3 manual.

Enumeration Type Documentation

◆ AcIndex

enum ns3::AcIndex : uint8_t

This enumeration defines the Access Categories as an enumeration with values corresponding to the AC index (ACI) values specified (Table 8-104 "ACI-to-AC coding"; IEEE 802.11-2012).

Enumerator
AC_BE

Best Effort.

AC_BK

Background.

AC_VI

Video.

AC_VO

Voice.

AC_BE_NQOS

Non-QoS.

AC_BEACON

Beacon queue.

AC_UNDEF

Total number of ACs.

Definition at line 72 of file qos-utils.h.

◆ Center26ToneRuIndication

Enum for the different values for CENTER_26_TONE_RU.

Enumerator
CENTER_26_TONE_RU_UNALLOCATED
CENTER_26_TONE_RU_LOW_80_MHZ_ALLOCATED
CENTER_26_TONE_RU_HIGH_80_MHZ_ALLOCATED
CENTER_26_TONE_RU_LOW_AND_HIGH_80_MHZ_ALLOCATED
CENTER_26_TONE_RU_INDICATION_MAX

Definition at line 71 of file wifi-tx-vector.h.

◆ FrequencyChannelType

enum ns3::FrequencyChannelType : uint8_t

Enumeration of frequency channel types.

Enumerator
WIFI_PHY_DSSS_CHANNEL
WIFI_PHY_OFDM_CHANNEL
WIFI_PHY_80211p_CHANNEL

Definition at line 105 of file wifi-standards.h.

◆ MpduType

The type of an MPDU.

Enumerator
NORMAL_MPDU

The MPDU is not part of an A-MPDU.

SINGLE_MPDU

The MPDU is a single MPDU.

FIRST_MPDU_IN_AGGREGATE

The MPDU is the first aggregate in an A-MPDU with multiple MPDUs, but is not the last aggregate.

MIDDLE_MPDU_IN_AGGREGATE

The MPDU is part of an A-MPDU with multiple MPDUs, but is neither the first nor the last aggregate.

LAST_MPDU_IN_AGGREGATE

The MPDU is the last aggregate in an A-MPDU with multiple MPDUs.

Definition at line 30 of file wifi-mpdu-type.h.

◆ OfdmPhyVariant

The OFDM (11a) PHY variants.

See also
OfdmPhy
Enumerator
OFDM_PHY_DEFAULT
OFDM_PHY_10_MHZ
OFDM_PHY_5_MHZ

Definition at line 43 of file ofdm-phy.h.

◆ SubElementId

SubElement IDs.

Enumerator
PER_STA_PROFILE_SUBELEMENT_ID

Definition at line 230 of file multi-link-element.h.

◆ TriggerFrameType

enum ns3::TriggerFrameType : uint8_t
strong

The different Trigger frame types.

Enumerator
BASIC_TRIGGER
BFRP_TRIGGER
MU_BAR_TRIGGER
MU_RTS_TRIGGER
BSRP_TRIGGER
GCR_MU_BAR_TRIGGER
BQRP_TRIGGER
NFRP_TRIGGER

Definition at line 559 of file ctrl-headers.h.

◆ TriggerFrameVariant

enum ns3::TriggerFrameVariant : uint8_t
strong

The different variants for Common Info field and User Info field of Trigger Frames.

Enumerator
HE
EHT

Definition at line 575 of file ctrl-headers.h.

◆ TypeOfStation

Enumeration for type of WiFi station.

Enumerator
STA
AP
ADHOC_STA
MESH
OCB

Definition at line 63 of file wifi-mac.h.

◆ Variant

Multi-Link element variants.

Note that Multi-Link element variants can be added to this enum only when the corresponding CommonInfo variant is implemented. This is because the index of m_commonInfo, which is a std::variant, is casted to this enum and the index of the "unset" variant must correspond to UNSET.

Enumerator
BASIC_VARIANT
UNSET

Definition at line 216 of file multi-link-element.h.

◆ WifiChannelListType

enum ns3::WifiChannelListType : uint8_t

Enumeration of the possible channel-list parameter elements defined in Table 8-5 of IEEE 802.11-2016.

Enumerator
WIFI_CHANLIST_PRIMARY
WIFI_CHANLIST_SECONDARY
WIFI_CHANLIST_SECONDARY40
WIFI_CHANLIST_SECONDARY80

Definition at line 504 of file wifi-phy-common.h.

◆ WifiMacDropReason

enum ns3::WifiMacDropReason : uint8_t

The reason why an MPDU was dropped.

Enumerator
WIFI_MAC_DROP_FAILED_ENQUEUE
WIFI_MAC_DROP_EXPIRED_LIFETIME
WIFI_MAC_DROP_REACHED_RETRY_LIMIT
WIFI_MAC_DROP_QOS_OLD_PACKET

Definition at line 76 of file wifi-mac.h.

◆ WifiModulationClass

This enumeration defines the modulation classes per (Table 10-6 "Modulation classes"; IEEE 802.11-2016, with updated in 802.11ax/D6.0 as Table 10-9).

Enumerator
WIFI_MOD_CLASS_UNKNOWN

Modulation class unknown or unspecified.

A WifiMode with this WifiModulationClass has not been properly initialized.

WIFI_MOD_CLASS_DSSS

DSSS (Clause 15)

WIFI_MOD_CLASS_HR_DSSS

HR/DSSS (Clause 16)

WIFI_MOD_CLASS_ERP_OFDM

ERP-OFDM (18.4)

WIFI_MOD_CLASS_OFDM

OFDM (Clause 17)

WIFI_MOD_CLASS_HT

HT (Clause 19)

WIFI_MOD_CLASS_VHT

VHT (Clause 22)

WIFI_MOD_CLASS_DMG_CTRL

DMG (Clause 21)

WIFI_MOD_CLASS_DMG_OFDM

DMG (Clause 21)

WIFI_MOD_CLASS_DMG_SC

DMG (Clause 21)

WIFI_MOD_CLASS_DMG_LP_SC

DMG (Clause 21)

WIFI_MOD_CLASS_HE

HE (Clause 27)

WIFI_MOD_CLASS_EHT

EHT (Clause 36)

Definition at line 241 of file wifi-phy-common.h.

◆ WifiPhyBand

Identifies the PHY band.

Enumerator
WIFI_PHY_BAND_2_4GHZ

The 2.4 GHz band.

WIFI_PHY_BAND_5GHZ

The 5 GHz band.

WIFI_PHY_BAND_6GHZ

The 6 GHz band.

WIFI_PHY_BAND_60GHZ

The 60 GHz band.

WIFI_PHY_BAND_UNSPECIFIED

Unspecified.

Definition at line 32 of file wifi-phy-band.h.

◆ WifiPhyRxfailureReason

Enumeration of the possible reception failure reasons.

Enumerator
UNKNOWN
UNSUPPORTED_SETTINGS
CHANNEL_SWITCHING
RXING
TXING
SLEEPING
POWERED_OFF
TRUNCATED_TX
BUSY_DECODING_PREAMBLE
PREAMBLE_DETECT_FAILURE
RECEPTION_ABORTED_BY_TX
L_SIG_FAILURE
HT_SIG_FAILURE
SIG_A_FAILURE
SIG_B_FAILURE
U_SIG_FAILURE
EHT_SIG_FAILURE
PREAMBLE_DETECTION_PACKET_SWITCH
FRAME_CAPTURE_PACKET_SWITCH
OBSS_PD_CCA_RESET
PPDU_TOO_LATE
FILTERED
DMG_HEADER_FAILURE
DMG_ALLOCATION_ENDED

Definition at line 406 of file wifi-phy-common.h.

◆ WifiPowerManagementMode

Enumeration for power management modes.

Enumerator
WIFI_PM_ACTIVE
WIFI_PM_SWITCHING_TO_PS
WIFI_PM_POWERSAVE
WIFI_PM_SWITCHING_TO_ACTIVE

Definition at line 89 of file sta-wifi-mac.h.

◆ WifiPpduField

The type of PPDU field (grouped for convenience)

Enumerator
WIFI_PPDU_FIELD_PREAMBLE

SYNC + SFD fields for DSSS or ERP, shortSYNC + shortSFD fields for HR/DSSS or ERP, HT-GF-STF + HT-GF-LTF1 fields for HT-GF, L-STF + L-LTF fields otherwise.

WIFI_PPDU_FIELD_NON_HT_HEADER

PHY header field for DSSS or ERP, short PHY header field for HR/DSSS or ERP, field not present for HT-GF, L-SIG field or L-SIG + RL-SIG fields otherwise.

WIFI_PPDU_FIELD_HT_SIG

HT-SIG field.

WIFI_PPDU_FIELD_TRAINING

STF + LTF fields (excluding those in preamble for HT-GF)

WIFI_PPDU_FIELD_SIG_A

SIG-A field.

WIFI_PPDU_FIELD_SIG_B

SIG-B field.

WIFI_PPDU_FIELD_U_SIG

U-SIG field.

WIFI_PPDU_FIELD_EHT_SIG

EHT-SIG field.

WIFI_PPDU_FIELD_DATA

data field

Definition at line 306 of file wifi-phy-common.h.

◆ WifiPpduType

The type of PPDU (SU, DL MU, or UL MU)

Enumerator
WIFI_PPDU_TYPE_SU
WIFI_PPDU_TYPE_DL_MU
WIFI_PPDU_TYPE_UL_MU

Definition at line 371 of file wifi-phy-common.h.

◆ WifiPreamble

The type of preamble to be used by an IEEE 802.11 transmission.

Enumerator
WIFI_PREAMBLE_LONG
WIFI_PREAMBLE_SHORT
WIFI_PREAMBLE_HT_MF
WIFI_PREAMBLE_VHT_SU
WIFI_PREAMBLE_VHT_MU
WIFI_PREAMBLE_DMG_CTRL
WIFI_PREAMBLE_DMG_SC
WIFI_PREAMBLE_DMG_OFDM
WIFI_PREAMBLE_HE_SU
WIFI_PREAMBLE_HE_ER_SU
WIFI_PREAMBLE_HE_MU
WIFI_PREAMBLE_HE_TB
WIFI_PREAMBLE_EHT_MU
WIFI_PREAMBLE_EHT_TB

Definition at line 171 of file wifi-phy-common.h.

◆ WifiQueueBlockedReason

enum ns3::WifiQueueBlockedReason : uint8_t
strong

Enumeration of the reasons to block container queues.

Enumerator
WAITING_ADDBA_RESP
POWER_SAVE_MODE
USING_OTHER_EMLSR_LINK
WAITING_EMLSR_TRANSITION_DELAY
TID_NOT_MAPPED
REASONS_COUNT

Definition at line 42 of file wifi-mac-queue-scheduler.h.

◆ WifiScanType

enum ns3::WifiScanType : uint8_t
strong

Scan type (active or passive)

Enumerator
ACTIVE
PASSIVE

Definition at line 48 of file sta-wifi-mac.h.

◆ WifiStandard

Identifies the IEEE 802.11 specifications that a Wifi device can be configured to use.

Enumerator
WIFI_STANDARD_UNSPECIFIED
WIFI_STANDARD_80211a
WIFI_STANDARD_80211b
WIFI_STANDARD_80211g
WIFI_STANDARD_80211p
WIFI_STANDARD_80211n
WIFI_STANDARD_80211ac
WIFI_STANDARD_80211ad
WIFI_STANDARD_80211ax
WIFI_STANDARD_80211be

Definition at line 37 of file wifi-standards.h.

Function Documentation

◆ GetTid()

◆ operator<() [1/2]

bool ns3::operator< ( AcIndex  left,
AcIndex  right
)

Operator< overload returning true if the AC on the left has lower priority than the AC on the right.

Parameters
leftthe AC on the left of operator<
rightthe AC on the right of operator<
Returns
true if the AC on the left has lower priority than the AC on the right

Definition at line 114 of file qos-utils.cc.

◆ operator<() [2/2]

bool ns3::operator< ( const WifiSpectrumBandInfo lhs,
const WifiSpectrumBandInfo rhs
)
inline

Compare two bands.

Parameters
lhsthe band on the left of operator<
rhsthe band on the right of operator<
Returns
true if the start/stop frequencies of left are lower than the start/stop frequencies of right, false otherwise

Definition at line 78 of file wifi-phy-common.h.

References ns3::WifiSpectrumBandInfo::frequencies.

◆ operator<=()

bool ns3::operator<= ( AcIndex  left,
AcIndex  right
)

Operator<= overload returning true if the AC on the left has lower or the same priority than the AC on the right.

Parameters
leftthe AC on the left of operator<=
rightthe AC on the right of operator<=
Returns
true if the AC on the left has lower or the same priority than the AC on the right

Definition at line 120 of file qos-utils.cc.

◆ operator>()

bool ns3::operator> ( AcIndex  left,
AcIndex  right
)

Operator> overload returning true if the AC on the left has higher priority than the AC on the right.

Parameters
leftthe AC on the left of operator>
rightthe AC on the right of operator>
Returns
true if the AC on the left has higher priority than the AC on the right

Definition at line 87 of file qos-utils.cc.

References ns3::AC_BK, and NS_ABORT_MSG_IF.

◆ operator>=()

bool ns3::operator>= ( AcIndex  left,
AcIndex  right
)

Operator>= overload returning true if the AC on the left has higher or the same priority than the AC on the right.

Parameters
leftthe AC on the left of operator>=
rightthe AC on the right of operator>=
Returns
true if the AC on the left has higher or the same priority than the AC on the right

Definition at line 107 of file qos-utils.cc.

References NS_ABORT_MSG_IF.

◆ QosUtilsGetTidForPacket()

uint8_t ns3::QosUtilsGetTidForPacket ( Ptr< const Packet packet)

If a QoS tag is attached to the packet, returns a value < 8.

A value >= 8 is returned otherwise.

Parameters
packetthe packet to checked for a QoS tag
Returns
a value less than 8 if QoS tag was present, a value >= 8 is returned if no QoS tag was present

Definition at line 156 of file qos-utils.cc.

References ns3::SocketPriorityTag::GetPriority(), and ns3::Packet::PeekPacketTag().

Referenced by ns3::AdhocWifiMac::Enqueue(), ns3::StaWifiMac::Enqueue(), and ns3::ApWifiMac::ForwardDown().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ QosUtilsIsOldPacket()

bool ns3::QosUtilsIsOldPacket ( uint16_t  startingSeq,
uint16_t  seqNumber
)

This function checks if packet with sequence number seqNumber is an "old" packet.

The sequence number space is considered divided into two parts, one of which is "old" and one of which is "new" by means of a boundary created by adding half the sequence number range to the starting sequence number startingSeq. So this function works fine also when seqNumber is smaller than startingSeq and startingSeq + 2048 is greater than 4096 because all comparison are circular modulo 2^12. The following are possible scenarios:

--— = old packets +++++ = new packets

CASE A:

0 4095 |++++++|-------------—|++++++| ^ ^ | endSeq | startingSeq

CASE B:

0 4095 |---—|++++++++++++++++|--—| ^ ^ | startingSeq | endSeq

Here in the examples endSeq is the sequenceNumber of the "last" new packet. So this function, when specified a starting sequence and a sequence number, returns true if that packet (with sequence number numberSeq)) belongs to the section of the sequence number space marked with '-' characters. The function returns false otherwise.

Parameters
startingSeqthe starting sequence number
seqNumberthe sequence number to be checked
Returns
true if the packet is old, false otherwise

Definition at line 182 of file qos-utils.cc.

References NS_ASSERT.

Referenced by QosUtilsIsOldPacketTest::DoRun(), ns3::WifiDefaultAckManager::GetMaxDistFromStartingSeq(), ns3::WifiPsdu::GetMaxDistFromStartingSeq(), ns3::QosTxop::IsQosOldPacket(), and ns3::BlockAckManager::NotifyDiscardedMpdu().

+ Here is the caller graph for this function:

◆ QosUtilsMapSeqControlToUniqueInteger()

uint32_t ns3::QosUtilsMapSeqControlToUniqueInteger ( uint16_t  seqControl,
uint16_t  endSequence
)

Next function is useful to correctly sort buffered packets under block ack.

When an BAR is received from originator station, completed "old" (see section 9.10.3 in IEEE 802.11e) packets must be forwarded up before "new" packets.

Parameters
seqControlthe sequence control field
endSequencethe sequence number ending the acknowledgment window
Returns
a unique integer for the given sequence control and end sequence

Definition at line 171 of file qos-utils.cc.

Referenced by PacketBufferingCaseA::DoRun(), and PacketBufferingCaseB::DoRun().

+ Here is the caller graph for this function:

◆ QosUtilsMapTidToAc()

◆ SelectQueueByDSField()

uint8_t ns3::SelectQueueByDSField ( Ptr< QueueItem item)

Determine the TX queue for a given packet.

Parameters
itemthe packet
Returns
the access category

Modeled after the Linux function ieee80211_select_queue (net/mac80211/wme.c). A SocketPriority tag is attached to the packet (or the existing one is replaced) to carry the user priority, which is set to the three most significant bits of the DS field (TOS field in case of IPv4 and Traffic Class field in case of IPv6). The Access Category corresponding to the user priority according to the QosUtilsMapTidToAc function is returned.

The following table shows the mapping for the Diffserv Per Hop Behaviors.

PHB TOS (binary) UP Access Category
EF 101110xx 5 AC_VI
AF11 001010xx 1 AC_BK
AF21 010010xx 2 AC_BK
AF31 011010xx 3 AC_BE
AF41 100010xx 4 AC_VI
AF12 001100xx 1 AC_BK
AF22 010100xx 2 AC_BK
AF32 011100xx 3 AC_BE
AF42 100100xx 4 AC_VI
AF13 001110xx 1 AC_BK
AF23 010110xx 2 AC_BK
AF33 011110xx 3 AC_BE
AF43 100110xx 4 AC_VI
CS0 000000xx 0 AC_BE
CS1 001000xx 1 AC_BK
CS2 010000xx 2 AC_BK
CS3 011000xx 3 AC_BE
CS4 100000xx 4 AC_VI
CS5 101000xx 5 AC_VI
CS6 110000xx 6 AC_VO
CS7 111000xx 7 AC_VO

This method is called by the traffic control layer before enqueuing a packet in the queue disc, if a queue disc is installed on the outgoing device, or passing a packet to the device, otherwise.

Definition at line 253 of file qos-utils.cc.

References ns3::QueueItem::IP_DSFIELD, ns3::QosUtilsMapTidToAc(), and ns3::SocketPriorityTag::SetPriority().

+ Here is the call graph for this function:
