Maintains the state and information about transmitted MPDUs with Ack Policy set to Block Ack for an originator station. More...

#include "originator-block-ack-agreement.h"

Inheritance diagram for ns3::OriginatorBlockAckAgreement:

Collaboration diagram for ns3::OriginatorBlockAckAgreement:

Public Types
enum	State { PENDING , ESTABLISHED , NO_REPLY , RESET , REJECTED }
	Represents the state for this agreement. More...

Public Member Functions
	OriginatorBlockAckAgreement (Mac48Address recipient, uint8_t tid)
	Constructor. More...

	~OriginatorBlockAckAgreement () override

std::size_t	GetDistance (uint16_t seqNumber) const
	Get the distance between the current starting sequence number and the given sequence number. More...

uint16_t	GetStartingSequence () const override
	Return the starting sequence number of the transmit window, if a transmit window has been initialized. More...

void	InitTxWindow ()
	Initialize the originator's transmit window by setting its size and starting sequence number equal to the values stored by the BlockAckAgreement base class. More...

bool	IsEstablished () const
	Check if the current state of this agreement is ESTABLISHED. More...

bool	IsNoReply () const
	Check if the current state of this agreement is NO_REPLY. More...

bool	IsPending () const
	Check if the current state of this agreement is PENDING. More...

bool	IsRejected () const
	Check if the current state of this agreement is REJECTED. More...

bool	IsReset () const
	Check if the current state of this agreement is RESET. More...

void	NotifyAckedMpdu (Ptr< const WifiMpdu > mpdu)
	Record that the given MPDU has been acknowledged and advance the transmit window if possible. More...

void	NotifyDiscardedMpdu (Ptr< const WifiMpdu > mpdu)
	Advance the transmit window beyond the MPDU that has been reported to be discarded. More...

void	NotifyTransmittedMpdu (Ptr< const WifiMpdu > mpdu)
	Advance the transmit window so as to include the transmitted MPDU, if the latter is not an old packet and is beyond the current transmit window. More...

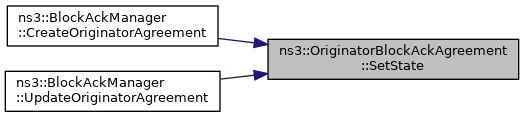

void	SetState (State state)
	Set the current state. More...

Public Member Functions inherited from ns3::BlockAckAgreement
	BlockAckAgreement (Mac48Address peer, uint8_t tid)
	Constructor for BlockAckAgreement with given peer and TID. More...

virtual	~BlockAckAgreement ()

BlockAckReqType	GetBlockAckReqType () const
	Get the type of the Block Ack Requests sent by the originator of this agreement. More...

BlockAckType	GetBlockAckType () const
	Get the type of the Block Acks sent by the recipient of this agreement. More...

uint16_t	GetBufferSize () const
	Return the buffer size. More...

Mac48Address	GetPeer () const
	Return the peer address. More...

uint16_t	GetStartingSequenceControl () const
	Return the starting sequence control. More...

uint8_t	GetTid () const
	Return the Traffic ID (TID). More...

uint16_t	GetTimeout () const
	Return the timeout. More...

uint16_t	GetWinEnd () const
	Return the last sequence number covered by the ack window. More...

bool	IsAmsduSupported () const
	Check whether A-MSDU is supported. More...

bool	IsHtSupported () const
	Check whether HT is supported. More...

bool	IsImmediateBlockAck () const
	Check whether the current ack policy is immediate BlockAck. More...

void	SetAmsduSupport (bool supported)
	Enable or disable A-MSDU support. More...

void	SetBufferSize (uint16_t bufferSize)
	Set buffer size. More...

void	SetDelayedBlockAck ()
	Set block ack policy to delayed Ack. More...

void	SetHtSupported (bool htSupported)
	Enable or disable HT support. More...

void	SetImmediateBlockAck ()
	Set block ack policy to immediate Ack. More...

void	SetStartingSequence (uint16_t seq)
	Set starting sequence number. More...

void	SetStartingSequenceControl (uint16_t seq)
	Set starting sequence control. More...

void	SetTimeout (uint16_t timeout)
	Set timeout. More...

Private Member Functions
void	AdvanceTxWindow ()
	Advance the transmit window so that the starting sequence number is the nearest unacknowledged MPDU. More...

Private Attributes
State	m_state
	state More...

BlockAckWindow	m_txWindow
	originator's transmit window More...

Friends
class	::OriginatorBlockAckWindowTest
	allow OriginatorBlockAckWindowTest class access More...

class	BlockAckManager
	allow BlockAckManager class access More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::BlockAckAgreement
static std::size_t	GetDistance (uint16_t seqNumber, uint16_t startingSeqNumber)
	Get the distance between the given starting sequence number and the given sequence number. More...

Protected Attributes inherited from ns3::BlockAckAgreement
uint8_t	m_amsduSupported
	Flag whether MSDU aggregation is supported. More...

uint8_t	m_blockAckPolicy
	Type of block ack: immediate or delayed. More...

uint16_t	m_bufferSize
	Buffer size. More...

uint8_t	m_htSupported
	Flag whether HT is supported. More...

EventId	m_inactivityEvent
	inactivity event More...

Mac48Address	m_peer
	Peer address. More...

uint16_t	m_startingSeq
	Starting sequence control. More...

uint8_t	m_tid
	Traffic ID. More...

uint16_t	m_timeout
	Timeout. More...

uint16_t	m_winEnd
	Ending sequence number. More...

Detailed Description

Maintains the state and information about transmitted MPDUs with Ack Policy set to Block Ack for an originator station.

The state diagram is as follows:

   /------------\ send ADDBARequest ----------------
   |   START    |------------------>|   PENDING    |-------
   \------------/                   ----------------       \
         ^            receive     /        |                \
         |        ADDBAResponse  /         |                 \
         |          (failure)   v          |                  \
         |        ---------------          |                   --------------------->
---------------- |        |  REJECTED   |          |          receive ADDBAResponse (success)  |
ESTABLISHED | |        ---------------          |      no            -------------------->
---------------- |           receive    ^          | ADDBAResponse     / |        ADDBAResponse \
|                  / |          (failure)     \        v                 / | ---------------- /
         |-------------------------|   NO_REPLY   |---------
           Reset after timeout     ----------------

Definition at line 56 of file originator-block-ack-agreement.h.

Member Enumeration Documentation

◆ State

enum ns3::OriginatorBlockAckAgreement::State

Represents the state for this agreement.

PENDING: If an agreement is in PENDING state it means that an ADDBARequest frame was sent to recipient in order to setup the block ack and the originator is waiting for the relative ADDBAResponse frame.

ESTABLISHED: The block ack is active and all packets relative to this agreement are transmitted with Ack Policy set to Block Ack.

NO_REPLY No reply after an ADDBA request. In this state the originator will send the rest of packets in queue using normal MPDU.

RESET A transient state to mark the agreement for reinitialization after failed ADDBA request. Since it is a temporary state, it is not included in the state diagram above. In this state the next transmission will be treated as if the BA agreement is not created yet.

REJECTED (not used for now): The agreement's state becomes REJECTED if an ADDBAResponse frame is received from recipient and the Status Code field is set to failure. State enumeration

Enumerator
PENDING
ESTABLISHED
NO_REPLY
RESET
REJECTED

Definition at line 99 of file originator-block-ack-agreement.h.

Constructor & Destructor Documentation

◆ OriginatorBlockAckAgreement()

ns3::OriginatorBlockAckAgreement::OriginatorBlockAckAgreement	(	Mac48Address	recipient,
		uint8_t	tid
	)

Constructor.

Parameters

recipient	MAC address
tid	Traffic ID

Definition at line 33 of file originator-block-ack-agreement.cc.

◆ ~OriginatorBlockAckAgreement()

ns3::OriginatorBlockAckAgreement::~OriginatorBlockAckAgreement ( )

override

Definition at line 39 of file originator-block-ack-agreement.cc.

Member Function Documentation

◆ AdvanceTxWindow()

void ns3::OriginatorBlockAckAgreement::AdvanceTxWindow ( )

private

Advance the transmit window so that the starting sequence number is the nearest unacknowledged MPDU.

Definition at line 103 of file originator-block-ack-agreement.cc.

References ns3::BlockAckWindow::Advance(), ns3::BlockAckWindow::At(), and m_txWindow.

Referenced by NotifyAckedMpdu(), NotifyDiscardedMpdu(), and NotifyTransmittedMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDistance()

std::size_t ns3::OriginatorBlockAckAgreement::GetDistance ( uint16_t seqNumber ) const

Get the distance between the current starting sequence number and the given sequence number.

Parameters

seqNumber the given sequence number

Returns: the distance of the given sequence number from the current winstart

Definition at line 91 of file originator-block-ack-agreement.cc.

References ns3::BlockAckAgreement::GetDistance(), ns3::BlockAckWindow::GetWinStart(), and m_txWindow.

Referenced by NotifyAckedMpdu(), NotifyDiscardedMpdu(), and NotifyTransmittedMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetStartingSequence()

uint16_t ns3::OriginatorBlockAckAgreement::GetStartingSequence ( ) const

overridevirtual

Return the starting sequence number of the transmit window, if a transmit window has been initialized.

Otherwise, return the starting sequence number stored by the BlockAckAgreement base class.

Returns: the starting sequence number.

Reimplemented from ns3::BlockAckAgreement.

Definition at line 80 of file originator-block-ack-agreement.cc.

References ns3::BlockAckWindow::GetWinSize(), ns3::BlockAckWindow::GetWinStart(), ns3::BlockAckAgreement::m_startingSeq, and m_txWindow.

Referenced by OriginatorBlockAckWindowTest::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ InitTxWindow()

void ns3::OriginatorBlockAckAgreement::InitTxWindow ( )

Initialize the originator's transmit window by setting its size and starting sequence number equal to the values stored by the BlockAckAgreement base class.

Definition at line 97 of file originator-block-ack-agreement.cc.

References ns3::BlockAckWindow::Init(), ns3::BlockAckAgreement::m_bufferSize, ns3::BlockAckAgreement::m_startingSeq, and m_txWindow.

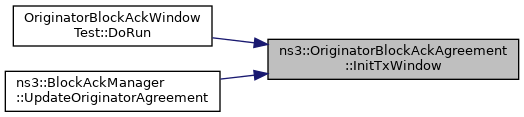

Referenced by OriginatorBlockAckWindowTest::DoRun(), and ns3::BlockAckManager::UpdateOriginatorAgreement().

Here is the call graph for this function:
