Block ack window. More...

#include "block-ack-window.h"

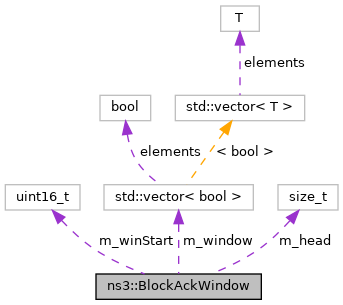

Collaboration diagram for ns3::BlockAckWindow:

Public Member Functions
	BlockAckWindow ()
	Constructor. More...

void	Advance (std::size_t count)
	Advance the current winStart by the given number of positions. More...

std::vector< bool >::reference	At (std::size_t distance)
	Get a reference to the element in the window having the given distance from the current winStart. More...

std::vector< bool >::const_reference	At (std::size_t distance) const
	Get a const reference to the element in the window having the given distance from the current winStart. More...

uint16_t	GetWinEnd () const
	Get the current winEnd value. More...

std::size_t	GetWinSize () const
	Get the window size. More...

uint16_t	GetWinStart () const
	Get the current winStart value. More...

void	Init (uint16_t winStart, uint16_t winSize)
	Initialize the window with the given starting sequence number and size. More...

void	Reset (uint16_t winStart)
	Reset the window by clearing all the elements and setting winStart to the given value. More...

Private Attributes
std::size_t	m_head
	index of winStart in the vector More...

std::vector< bool >	m_window
	window More...

uint16_t	m_winStart
	window start (sequence number) More...

Detailed Description

Block ack window.

This class provides the basic functionalities of a window sliding over a bitmap: accessing any element in the bitmap and moving the window forward a given number of positions. This class can be used to implement both an originator's window and a recipient's window.

The window is implemented as a vector of bool and managed as a circular queue. The window is moved forward by advancing the head of the queue and clearing the elements that become part of the tail of the queue. Hence, no element is required to be shifted when the window moves forward.

Example:

|0|1|1|0|1|1|1|0|1|1|1|1|1|1|1|0| ^ | HEAD

After moving the window forward three positions:

|0|1|1|0|1|1|1|0|1|1|0|0|0|1|1|0| ^ | HEAD

Definition at line 57 of file block-ack-window.h.

Constructor & Destructor Documentation

◆ BlockAckWindow()

ns3::BlockAckWindow::BlockAckWindow ( )

Constructor.

Definition at line 31 of file block-ack-window.cc.

Member Function Documentation

◆ Advance()

void ns3::BlockAckWindow::Advance ( std::size_t count )

Advance the current winStart by the given number of positions.

Parameters

count the number of positions the current winStart must be advanced by

Definition at line 87 of file block-ack-window.cc.

References m_head, m_window, m_winStart, NS_LOG_FUNCTION, Reset(), and ns3::SEQNO_SPACE_SIZE.

Referenced by ns3::OriginatorBlockAckAgreement::AdvanceTxWindow(), ns3::OriginatorBlockAckAgreement::NotifyDiscardedMpdu(), ns3::RecipientBlockAckAgreement::NotifyReceivedBar(), ns3::RecipientBlockAckAgreement::NotifyReceivedMpdu(), and ns3::OriginatorBlockAckAgreement::NotifyTransmittedMpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ At() [1/2]

std::vector< bool >::reference ns3::BlockAckWindow::At ( std::size_t distance )

Get a reference to the element in the window having the given distance from the current winStart.

Note that the given distance must be less than the window size.

Parameters

distance the given distance

Returns: a reference to the element in the window having the given distance from the current winStart

Definition at line 71 of file block-ack-window.cc.

References m_head, m_window, and NS_ASSERT.

Referenced by ns3::OriginatorBlockAckAgreement::AdvanceTxWindow(), OriginatorBlockAckWindowTest::DoRun(), ns3::RecipientBlockAckAgreement::FillBlockAckBitmap(), ns3::OriginatorBlockAckAgreement::NotifyAckedMpdu(), and ns3::RecipientBlockAckAgreement::NotifyReceivedMpdu().

Here is the caller graph for this function:

◆ At() [2/2]

std::vector< bool >::const_reference ns3::BlockAckWindow::At ( std::size_t distance ) const

Get a const reference to the element in the window having the given distance from the current winStart.

Note that the given distance must be less than the window size.

Parameters

distance the given distance

Returns: a const reference to the element in the window having the given distance from the current winStart

Definition at line 79 of file block-ack-window.cc.

References m_head, m_window, and NS_ASSERT.

◆ GetWinEnd()

uint16_t ns3::BlockAckWindow::GetWinEnd ( ) const

Get the current winEnd value.

Returns: the current winEnd value

Definition at line 59 of file block-ack-window.cc.

References m_window, m_winStart, and ns3::SEQNO_SPACE_SIZE.

Referenced by OriginatorBlockAckWindowTest::DoRun().

Here is the caller graph for this function:

◆ GetWinSize()

std::size_t ns3::BlockAckWindow::GetWinSize ( ) const

Get the window size.

Returns: the window size

Definition at line 65 of file block-ack-window.cc.

References m_window.

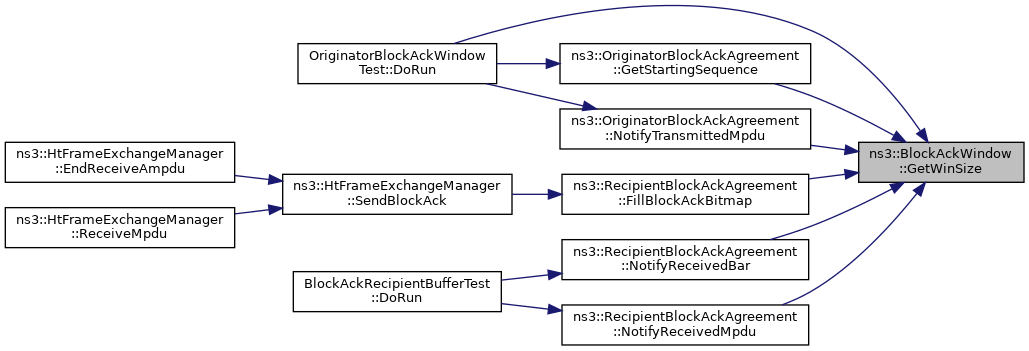

Referenced by OriginatorBlockAckWindowTest::DoRun(), ns3::RecipientBlockAckAgreement::FillBlockAckBitmap(), ns3::OriginatorBlockAckAgreement::GetStartingSequence(), ns3::RecipientBlockAckAgreement::NotifyReceivedBar(), ns3::RecipientBlockAckAgreement::NotifyReceivedMpdu(), and ns3::OriginatorBlockAckAgreement::NotifyTransmittedMpdu().

Here is the caller graph for this function:

◆ GetWinStart()

uint16_t ns3::BlockAckWindow::GetWinStart ( ) const

Get the current winStart value.

Returns: the current winStart value

Definition at line 53 of file block-ack-window.cc.

References m_winStart.

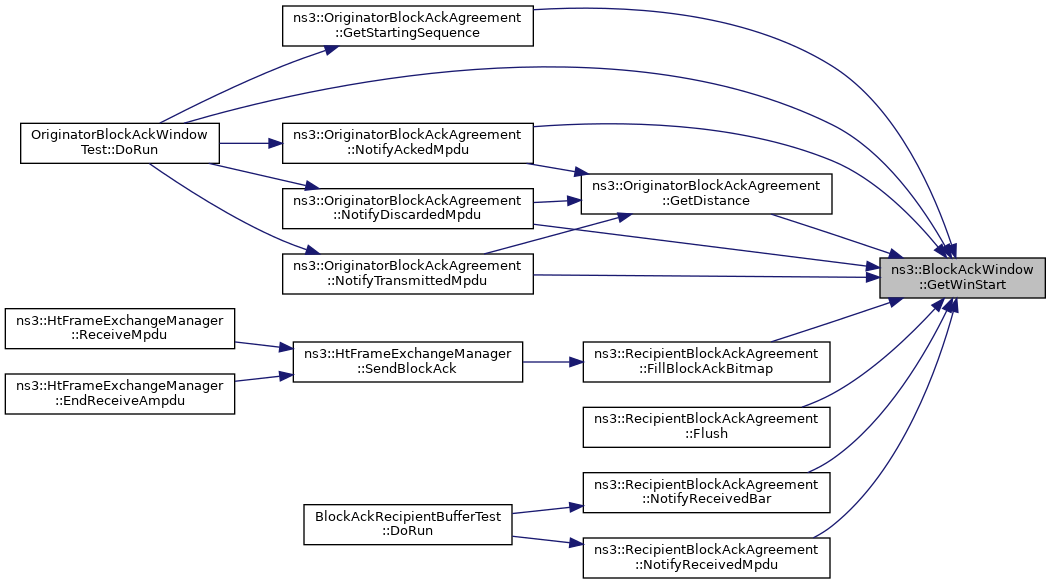

Referenced by OriginatorBlockAckWindowTest::DoRun(), ns3::RecipientBlockAckAgreement::FillBlockAckBitmap(), ns3::RecipientBlockAckAgreement::Flush(), ns3::OriginatorBlockAckAgreement::GetDistance(), ns3::OriginatorBlockAckAgreement::GetStartingSequence(), ns3::OriginatorBlockAckAgreement::NotifyAckedMpdu(), ns3::OriginatorBlockAckAgreement::NotifyDiscardedMpdu(), ns3::RecipientBlockAckAgreement::NotifyReceivedBar(), ns3::RecipientBlockAckAgreement::NotifyReceivedMpdu(), and ns3::OriginatorBlockAckAgreement::NotifyTransmittedMpdu().

Here is the caller graph for this function:

◆ Init()

void ns3::BlockAckWindow::Init	(	uint16_t	winStart,
		uint16_t	winSize
	)

Initialize the window with the given starting sequence number and size.

Parameters

winStart	the window start
winSize	the window size

Definition at line 38 of file block-ack-window.cc.

References m_head, m_window, m_winStart, and NS_LOG_FUNCTION.

Referenced by ns3::RecipientBlockAckAgreement::RecipientBlockAckAgreement(), ns3::OriginatorBlockAckAgreement::InitTxWindow(), and Reset().

Here is the caller graph for this function:

◆ Reset()

void ns3::BlockAckWindow::Reset ( uint16_t winStart )

Reset the window by clearing all the elements and setting winStart to the given value.

Parameters

winStart the window start

Definition at line 47 of file block-ack-window.cc.

References Init(), and m_window.

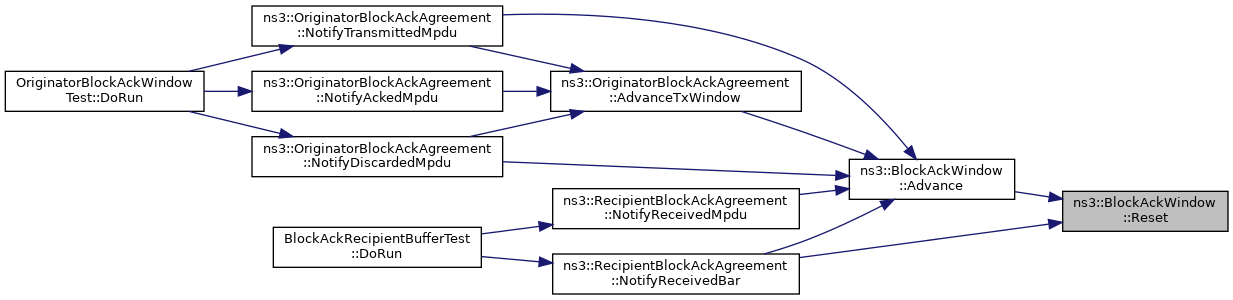

Referenced by Advance(), and ns3::RecipientBlockAckAgreement::NotifyReceivedBar().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_head

std::size_t ns3::BlockAckWindow::m_head

private

index of winStart in the vector

Definition at line 126 of file block-ack-window.h.

Referenced by Advance(), At(), and Init().

◆ m_window

std::vector<bool> ns3::BlockAckWindow::m_window

private

window

Definition at line 125 of file block-ack-window.h.

Referenced by Advance(), At(), GetWinEnd(), GetWinSize(), Init(), and Reset().

◆ m_winStart

uint16_t ns3::BlockAckWindow::m_winStart

private

window start (sequence number)

Definition at line 124 of file block-ack-window.h.

Referenced by Advance(), GetWinEnd(), GetWinStart(), and Init().

The documentation for this class was generated from the following files:

src/wifi/model/block-ack-window.h
src/wifi/model/block-ack-window.cc
