phy-entity.h File Reference

Declaration of: More...

#include "wifi-mpdu-type.h"
#include "wifi-phy-band.h"
#include "wifi-ppdu.h"
#include "wifi-tx-vector.h"
#include "ns3/event-id.h"
#include "ns3/nstime.h"
#include "ns3/simple-ref-count.h"
#include <list>
#include <map>
#include <optional>
#include <tuple>
#include <utility>

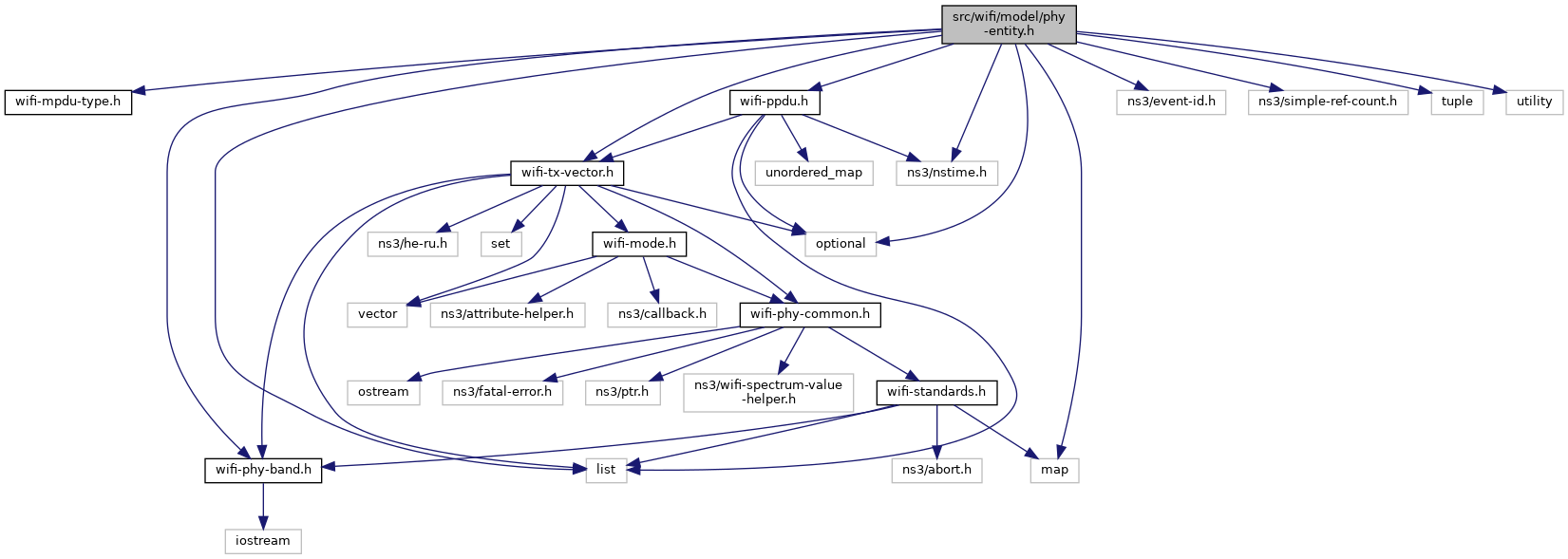

Include dependency graph for phy-entity.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ns3::MpduInfo
	MpduInfo structure. More...
class	ns3::PhyEntity
	Abstract class for PHY entities. More...
struct	ns3::PhyEntity::PhyFieldRxStatus
	Status of the reception of the PPDU field. More...
struct	ns3::RxSignalInfo
	RxSignalInfo structure containing info on the received signal. More...
struct	ns3::SignalNoiseDbm
	SignalNoiseDbm structure. More...
struct	ns3::PhyEntity::SnrPer
	A struct for both SNR and PER. More...

Namespaces
	ns3
	Every class exported by the ns3 library is enclosed in the ns3 namespace.

Typedefs
using	ns3::RxPowerWattPerChannelBand = std::map< WifiSpectrumBandInfo, double >
	A map of the received power (Watts) for each band. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, const PhyEntity::PhyFieldRxStatus &status)
	Stream insertion operator. More...
std::ostream &	ns3::operator<< (std::ostream &os, const PhyEntity::PhyRxFailureAction &action)
	Stream insertion operator. More...

Detailed Description

Declaration of:

• ns3::PhyEntity class
• ns3::SignalNoiseDbm, ns3::MpduInfo, and ns3::RxSignalInfo structs
• ns3::RxPowerWattPerChannelBand typedef

Definition in file phy-entity.h.
