Status of the reception of the PPDU field. More...

#include "phy-entity.h"

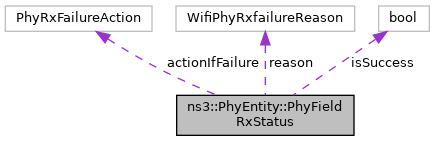

Collaboration diagram for ns3::PhyEntity::PhyFieldRxStatus:

Public Member Functions
	PhyFieldRxStatus (bool s)
	Constructor setting outcome of reception. More...

	PhyFieldRxStatus (bool s, WifiPhyRxfailureReason r, PhyRxFailureAction a)
	Constructor. More...

Public Attributes
PhyRxFailureAction	actionIfFailure
	action to perform in case of failure More...

bool	isSuccess {true}
	outcome (`true` if success) of the reception More...

WifiPhyRxfailureReason	reason {UNKNOWN}
	failure reason More...

Detailed Description

Status of the reception of the PPDU field.

Definition at line 111 of file phy-entity.h.

Constructor & Destructor Documentation

◆ PhyFieldRxStatus() [1/2]

ns3::PhyEntity::PhyFieldRxStatus::PhyFieldRxStatus ( bool s )

inline

Constructor setting outcome of reception.

Parameters

s	`true` if success

Definition at line 123 of file phy-entity.h.

◆ PhyFieldRxStatus() [2/2]

ns3::PhyEntity::PhyFieldRxStatus::PhyFieldRxStatus	(	bool	s,
		WifiPhyRxfailureReason	r,
		PhyRxFailureAction	a
	)

inline

Constructor.

Parameters

s	`true` if success
r	reason of failure
a	action to perform in case of failure

Definition at line 135 of file phy-entity.h.

Member Data Documentation

◆ actionIfFailure

PhyRxFailureAction ns3::PhyEntity::PhyFieldRxStatus::actionIfFailure

Initial value:

{

DROP}

ns3::PhyEntity::DROP

@ DROP

drop PPDU and set CCA_BUSY

Definition: phy-entity.h:103

action to perform in case of failure

See also: PhyRxFailureAction

Definition at line 115 of file phy-entity.h.

Referenced by ns3::PhyEntity::EndReceiveField(), ns3::DsssPhy::EndReceiveHeader(), ns3::OfdmPhy::EndReceiveHeader(), ns3::HtPhy::EndReceiveHtSig(), ns3::VhtPhy::EndReceiveSig(), and ns3::operator<<().

◆ isSuccess

bool ns3::PhyEntity::PhyFieldRxStatus::isSuccess {true}

outcome (true if success) of the reception

Definition at line 113 of file phy-entity.h.

Referenced by ns3::PhyEntity::EndReceiveField(), ns3::DsssPhy::EndReceiveHeader(), ns3::OfdmPhy::EndReceiveHeader(), ns3::HtPhy::EndReceiveHtSig(), ns3::VhtPhy::EndReceiveSig(), ns3::operator<<(), ns3::HePhy::ProcessSigA(), and ns3::HePhy::ProcessSigB().

◆ reason

WifiPhyRxfailureReason ns3::PhyEntity::PhyFieldRxStatus::reason {UNKNOWN}

failure reason

Definition at line 114 of file phy-entity.h.
