Signal parameters for wifi. More...

#include "wifi-spectrum-signal-parameters.h"

Inheritance diagram for ns3::WifiSpectrumSignalParameters:

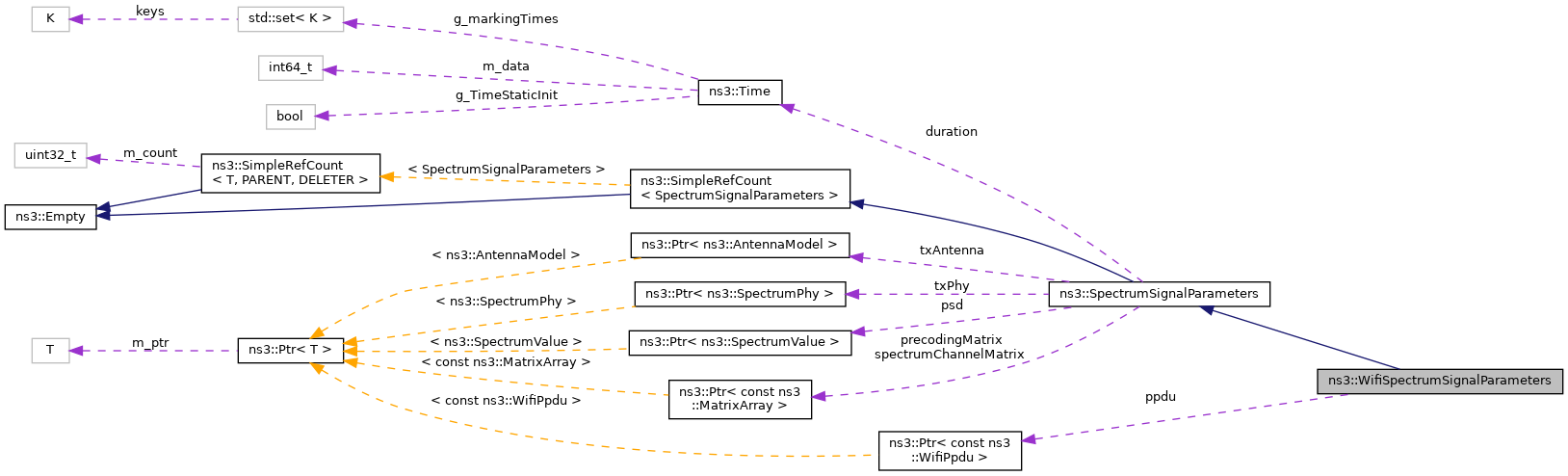

Collaboration diagram for ns3::WifiSpectrumSignalParameters:

Public Member Functions
	WifiSpectrumSignalParameters ()
	default constructor More...

	WifiSpectrumSignalParameters (const WifiSpectrumSignalParameters &p)
	copy constructor More...

Ptr< SpectrumSignalParameters >	Copy () const override
	make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. More...

Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()
	default constructor More...

	SpectrumSignalParameters (const SpectrumSignalParameters &p)
	copy constructor More...

virtual	~SpectrumSignalParameters ()
	destructor More...

Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Attributes
Ptr< const WifiPpdu >	ppdu
	The PPDU being transmitted. More...

Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration
	The duration of the packet transmission. More...

Ptr< const ComplexMatrixArray >	precodingMatrix
	The 3D precoding matrix where the dimensions are: the number of TX ports, the number of TX streams, the number of RBs. More...

Ptr< SpectrumValue >	psd
	The Power Spectral Density of the waveform, in linear units. More...

Ptr< const ComplexMatrixArray >	spectrumChannelMatrix
	The 3D channel matrix where the dimensions are: the number of RX ports, the number of TX Ports, the number of resource blocks (RBs). More...

Ptr< AntennaModel >	txAntenna
	The AntennaModel instance that was used to transmit this signal. More...

Ptr< SpectrumPhy >	txPhy
	The SpectrumPhy instance that is making the transmission. More...

Detailed Description

Signal parameters for wifi.

Definition at line 36 of file wifi-spectrum-signal-parameters.h.

Constructor & Destructor Documentation

◆ WifiSpectrumSignalParameters() [1/2]

ns3::WifiSpectrumSignalParameters::WifiSpectrumSignalParameters ( )

default constructor

Definition at line 32 of file wifi-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

Referenced by Copy().

Here is the caller graph for this function:

◆ WifiSpectrumSignalParameters() [2/2]

ns3::WifiSpectrumSignalParameters::WifiSpectrumSignalParameters ( const WifiSpectrumSignalParameters & p )

copy constructor

Parameters

p	the wifi spectrum signal parameters

Definition at line 39 of file wifi-spectrum-signal-parameters.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ Copy()

Ptr< SpectrumSignalParameters > ns3::WifiSpectrumSignalParameters::Copy ( void ) const

overridevirtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type.

Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.
