WifiAcknowledgment is an abstract base struct. More...

#include "wifi-acknowledgment.h"

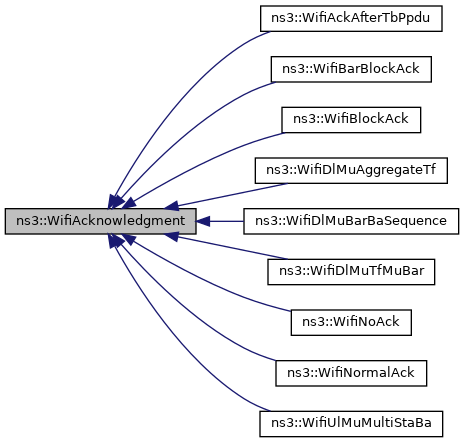

Inheritance diagram for ns3::WifiAcknowledgment:

Collaboration diagram for ns3::WifiAcknowledgment:

Public Types
enum	Method { NONE = 0 , NORMAL_ACK , BLOCK_ACK , BAR_BLOCK_ACK , DL_MU_BAR_BA_SEQUENCE , DL_MU_TF_MU_BAR , DL_MU_AGGREGATE_TF , UL_MU_MULTI_STA_BA , ACK_AFTER_TB_PPDU }
	Available acknowledgment methods. More...

Public Member Functions
	WifiAcknowledgment (Method m)
	Constructor. More...

virtual	~WifiAcknowledgment ()

virtual std::unique_ptr< WifiAcknowledgment >	Copy () const =0
	Clone this object. More...

WifiMacHeader::QosAckPolicy	GetQosAckPolicy (Mac48Address receiver, uint8_t tid) const
	Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

virtual void	Print (std::ostream &os) const =0
	Print the object contents. More...

void	SetQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy)
	Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID. More...

Public Attributes
Time	acknowledgmentTime
	time required by the acknowledgment method More...

const Method	method
	acknowledgment method More...

Private Member Functions
virtual bool	CheckQosAckPolicy (Mac48Address receiver, uint8_t tid, WifiMacHeader::QosAckPolicy ackPolicy) const =0
	Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID. More...

Private Attributes
std::map< std::pair< Mac48Address, uint8_t >, WifiMacHeader::QosAckPolicy >	m_ackPolicy
	Qos Ack Policy to set for MPDUs addressed to a given receiver and having a given TID. More...

Detailed Description

WifiAcknowledgment is an abstract base struct.

Each derived struct defines an acknowledgment method and stores the information needed to perform acknowledgment according to that method.

Definition at line 45 of file wifi-acknowledgment.h.

Member Enumeration Documentation

◆ Method

enum ns3::WifiAcknowledgment::Method

Available acknowledgment methods.

Enumerator
NONE
NORMAL_ACK
BLOCK_ACK
BAR_BLOCK_ACK
DL_MU_BAR_BA_SEQUENCE
DL_MU_TF_MU_BAR
DL_MU_AGGREGATE_TF
UL_MU_MULTI_STA_BA
ACK_AFTER_TB_PPDU

Definition at line 51 of file wifi-acknowledgment.h.

Constructor & Destructor Documentation

◆ WifiAcknowledgment()

ns3::WifiAcknowledgment::WifiAcknowledgment ( Method m )

Constructor.

Parameters

m	the acknowledgment method for this object

Definition at line 33 of file wifi-acknowledgment.cc.

◆ ~WifiAcknowledgment()

ns3::WifiAcknowledgment::~WifiAcknowledgment ( )

virtual

Definition at line 39 of file wifi-acknowledgment.cc.

Member Function Documentation

◆ CheckQosAckPolicy()

virtual bool ns3::WifiAcknowledgment::CheckQosAckPolicy	(	Mac48Address	receiver,
		uint8_t	tid,
		WifiMacHeader::QosAckPolicy	ackPolicy
	)		const

privatepure virtual

Check whether the given QoS Ack policy can be used for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Returns: true if the given QoS Ack policy can be used, false otherwise

Implemented in ns3::WifiAckAfterTbPpdu, ns3::WifiUlMuMultiStaBa, ns3::WifiDlMuAggregateTf, ns3::WifiDlMuTfMuBar, ns3::WifiDlMuBarBaSequence, ns3::WifiBarBlockAck, ns3::WifiBlockAck, ns3::WifiNormalAck, and ns3::WifiNoAck.

Referenced by SetQosAckPolicy().

Here is the caller graph for this function:

◆ Copy()

virtual std::unique_ptr<WifiAcknowledgment> ns3::WifiAcknowledgment::Copy ( ) const

pure virtual

Clone this object.

Returns: a pointer to the cloned object

Implemented in ns3::WifiAckAfterTbPpdu, ns3::WifiUlMuMultiStaBa, ns3::WifiDlMuAggregateTf, ns3::WifiDlMuTfMuBar, ns3::WifiDlMuBarBaSequence, ns3::WifiBarBlockAck, ns3::WifiBlockAck, ns3::WifiNormalAck, and ns3::WifiNoAck.

◆ GetQosAckPolicy()

WifiMacHeader::QosAckPolicy ns3::WifiAcknowledgment::GetQosAckPolicy	(	Mac48Address	receiver,
		uint8_t	tid
	)		const

Get the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID.

Parameters

receiver	the MAC address of the receiver
tid	the TID

Returns: the QoS Ack policy to use

Definition at line 44 of file wifi-acknowledgment.cc.

References m_ackPolicy, and NS_ASSERT.

Referenced by ns3::WifiAckManager::SetQosAckPolicy().

Here is the caller graph for this function:

◆ Print()

virtual void ns3::WifiAcknowledgment::Print ( std::ostream & os ) const

pure virtual

Print the object contents.

Parameters

os	output stream in which the data should be printed.

Implemented in ns3::WifiAckAfterTbPpdu, ns3::WifiUlMuMultiStaBa, ns3::WifiDlMuAggregateTf, ns3::WifiDlMuTfMuBar, ns3::WifiDlMuBarBaSequence, ns3::WifiBarBlockAck, ns3::WifiBlockAck, ns3::WifiNormalAck, and ns3::WifiNoAck.

Referenced by ns3::operator<<().

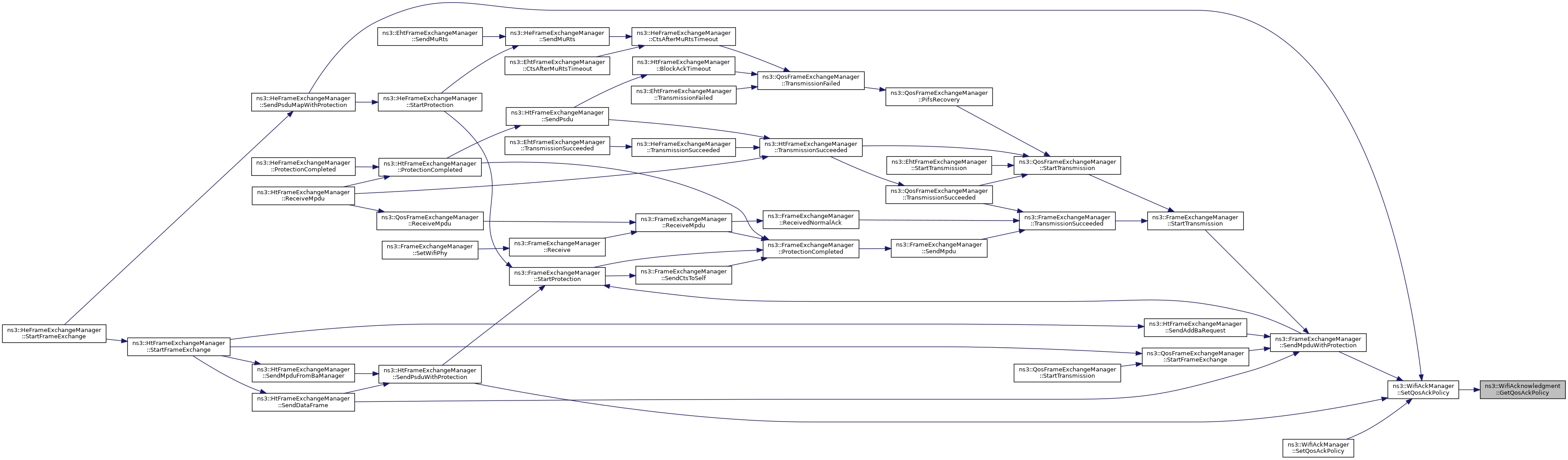

Here is the caller graph for this function:

◆ SetQosAckPolicy()

void ns3::WifiAcknowledgment::SetQosAckPolicy	(	Mac48Address	receiver,
		uint8_t	tid,
		WifiMacHeader::QosAckPolicy	ackPolicy
	)

Set the QoS Ack policy to use for the MPDUs addressed to the given receiver and belonging to the given TID.

If the pair (receiver, TID) already exists, it is overwritten with the given QoS Ack policy.

Parameters

receiver	the MAC address of the receiver
tid	the TID
ackPolicy	the QoS Ack policy to use

Definition at line 52 of file wifi-acknowledgment.cc.

References CheckQosAckPolicy(), m_ackPolicy, and NS_ABORT_MSG_IF.

Referenced by ns3::WifiDefaultAckManager::GetAckInfoIfAggregatedMuBar(), ns3::WifiDefaultAckManager::GetAckInfoIfBarBaSequence(), and ns3::WifiDefaultAckManager::GetAckInfoIfTfMuBar().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ acknowledgmentTime

Time ns3::WifiAcknowledgment::acknowledgmentTime

time required by the acknowledgment method

Definition at line 105 of file wifi-acknowledgment.h.

Referenced by ns3::WifiNoAck::WifiNoAck(), ns3::FrameExchangeManager::CalculateAcknowledgmentTime(), and ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime().

◆ m_ackPolicy

std::map<std::pair<Mac48Address, uint8_t>, WifiMacHeader::QosAckPolicy> ns3::WifiAcknowledgment::m_ackPolicy

private

Qos Ack Policy to set for MPDUs addressed to a given receiver and having a given TID.

Definition at line 122 of file wifi-acknowledgment.h.

Referenced by GetQosAckPolicy(), and SetQosAckPolicy().

◆ method

const Method ns3::WifiAcknowledgment::method

acknowledgment method

Definition at line 104 of file wifi-acknowledgment.h.

Referenced by ns3::FrameExchangeManager::CalculateAcknowledgmentTime(), ns3::HeFrameExchangeManager::CalculateAcknowledgmentTime(), and ns3::HtFrameExchangeManager::CalculateAcknowledgmentTime().

The documentation for this struct was generated from the following files:

src/wifi/model/wifi-acknowledgment.h
src/wifi/model/wifi-acknowledgment.cc
