The HT Capabilities Information Element. More...

#include "ht-capabilities.h"

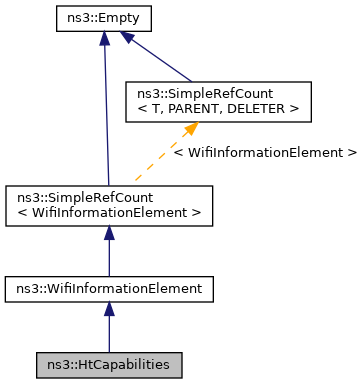

Inheritance diagram for ns3::HtCapabilities:

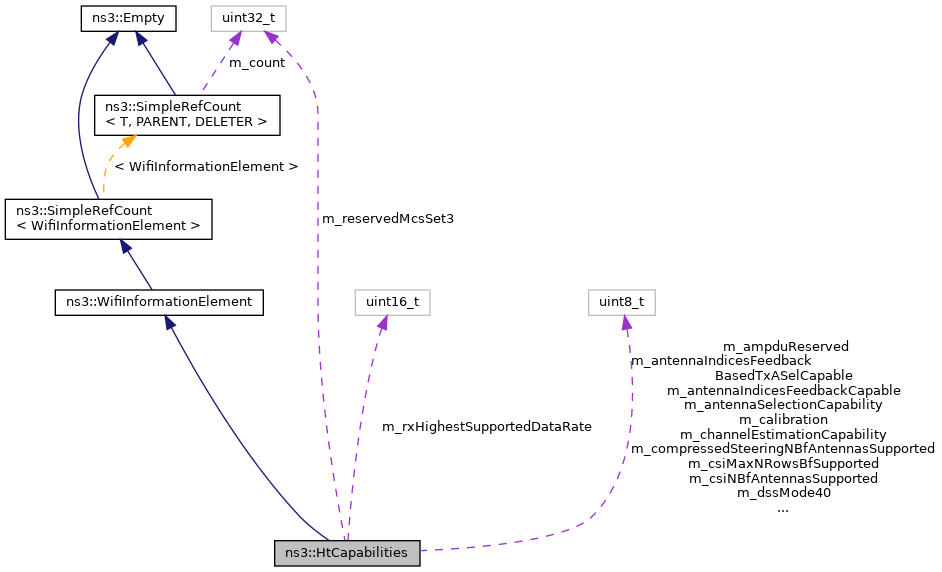

Collaboration diagram for ns3::HtCapabilities:

Public Member Functions
	HtCapabilities ()

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

uint8_t	GetAmpduParameters () const
	Return the A-MPDU Parameters field in the HT Capabilities information element. More...

uint8_t	GetAntennaSelectionCapabilities () const
	Return the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element. More...

uint16_t	GetExtendedHtCapabilities () const
	Return the Extended HT Capabilities field in the HT Capabilities information element. More...

uint16_t	GetHtCapabilitiesInfo () const
	Return the HT Capabilities Info field in the HT Capabilities information element. More...

uint8_t	GetLdpc () const
	Return LDPC. More...

uint32_t	GetMaxAmpduLength () const
	Return the maximum A-MPDU length. More...

uint16_t	GetMaxAmsduLength () const
	Return the maximum A-MSDU length. More...

uint8_t	GetRxHighestSupportedAntennas () const
	Return the receive highest supported antennas. More...

uint8_t	GetShortGuardInterval20 () const
	Return the short guard interval 20 value. More...

uint8_t	GetSupportedChannelWidth () const
	Return the supported channel width. More...

uint64_t	GetSupportedMcsSet1 () const
	Return the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element. More...

uint64_t	GetSupportedMcsSet2 () const
	Return the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element. More...

uint32_t	GetTxBfCapabilities () const
	Return the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element. More...

bool	IsSupportedMcs (uint8_t mcs) const
	Return the is MCS supported flag. More...

void	SetAmpduParameters (uint8_t ctrl)
	Set the A-MPDU Parameters field in the HT Capabilities information element. More...

void	SetAntennaSelectionCapabilities (uint8_t ctrl)
	Set the the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element. More...

void	SetExtendedHtCapabilities (uint16_t ctrl)
	Set the Extended HT Capabilities field in the HT Capabilities information element. More...

void	SetHtCapabilitiesInfo (uint16_t ctrl)
	Set the HT Capabilities Info field in the HT Capabilities information element. More...

void	SetLdpc (uint8_t ldpc)
	Set the LDPC field. More...

void	SetLSigProtectionSupport (uint8_t lSigProtection)
	Set the LSIG protection support. More...

void	SetMaxAmpduLength (uint32_t maxAmpduLength)
	Set the maximum AMPDU length. More...

void	SetMaxAmsduLength (uint16_t maxAmsduLength)
	Set the maximum AMSDU length. More...

void	SetRxHighestSupportedDataRate (uint16_t maxSupportedRate)
	Set the receive highest supported data rate. More...

void	SetRxMcsBitmask (uint8_t index)
	Set the receive MCS bitmask. More...

void	SetShortGuardInterval20 (uint8_t shortGuardInterval)
	Set the short guard interval 20 field. More...

void	SetShortGuardInterval40 (uint8_t shortGuardInterval)
	Set the short guard interval 40 field. More...

void	SetSupportedChannelWidth (uint8_t supportedChannelWidth)
	Set the supported channel width field. More...

void	SetSupportedMcsSet (uint64_t ctrl1, uint64_t ctrl2)
	Set the Supported MCS Set field in the HT Capabilities information element. More...

void	SetTxBfCapabilities (uint32_t ctrl)
	Set the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element. More...

void	SetTxMaxNSpatialStreams (uint8_t maxTxSpatialStreams)
	Set the transmit maximum N spatial streams. More...

void	SetTxMcsSetDefined (uint8_t txMcsSetDefined)
	Set the transmit MCS set defined. More...

void	SetTxRxMcsSetUnequal (uint8_t txRxMcsSetUnequal)
	Set the transmit / receive MCS set unequal. More...

void	SetTxUnequalModulation (uint8_t txUnequalModulation)
	Set the transmit unequal modulation. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

void	Print (std::ostream &os) const override
	Generate human-readable form of IE. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Private Attributes
uint8_t	m_ampduReserved
	A-MPDU reserved. More...

uint8_t	m_antennaIndicesFeedbackBasedTxASelCapable
	antenna indices feedback based transmit antenna selection capable More...

uint8_t	m_antennaIndicesFeedbackCapable
	antenna indices feedback capable More...

uint8_t	m_antennaSelectionCapability
	antenna selection capability More...

uint8_t	m_calibration
	calibration More...

uint8_t	m_channelEstimationCapability
	channel estimation capability More...

uint8_t	m_compressedSteeringNBfAntennasSupported
	compressed steering NBF antenna supported More...

uint8_t	m_csiMaxNRowsBfSupported
	CSI maximum number rows BF supported. More...

uint8_t	m_csiNBfAntennasSupported
	CSI NBF antenna supported. More...

uint8_t	m_dssMode40
	DSS mode 40. More...

uint8_t	m_explicitCompressedBfFeedbackCapable
	explicit compressed BF feedback capable More...

uint8_t	m_explicitCompressedSteeringCapable
	explicit compressed steering capable More...

uint8_t	m_explicitCsiFeedbackBasedTxASelCapable
	explicit CSI feedback based transmit antenna selection capable More...

uint8_t	m_explicitCsiFeedbackCapable
	explicit CSI feedback capable More...

uint8_t	m_explicitCsiTxBfCapable
	explicit CSI transmit BF capable More...

uint8_t	m_explicitNoncompressedBfFeedbackCapable
	explicit non compressed BF feedback capable More...

uint8_t	m_explicitNoncompressedSteeringCapable
	explicit non compressed steering capable More...

uint8_t	m_explicitTxBfCsiFeedback
	explicit transmit BF CSI feedback More...

uint8_t	m_fortyMhzIntolerant
	40 MHz intolerant More...

uint8_t	m_greenField
	Greenfield. More...

uint8_t	m_htcSupport
	HTC support. More...

uint8_t	m_htDelayedBlockAck
	HT delayed block ack. More...

uint8_t	m_implicitRxBfCapable
	implicit receive BF capable More...

uint8_t	m_implicitTxBfCapable
	implicit transmit BF capable More...

uint8_t	m_ldpc
	LDPC. More...

uint8_t	m_lsigProtectionSupport
	L-SIG protection support. More...

uint8_t	m_maxAmpduLengthExponent
	maximum A-MPDU length More...

uint8_t	m_maxAmsduLength
	maximum A-MSDU length More...

uint8_t	m_mcsFeedback
	MCS feedback. More...

uint8_t	m_minimalGrouping
	minimal grouping More...

uint8_t	m_minMpduStartSpace
	minimum MPDU start space More...

uint8_t	m_noncompressedSteeringNBfAntennasSupported
	non compressed steering NBF antenna supported More...

uint8_t	m_pco
	PCO. More...

uint8_t	m_pcoTransitionTime
	PCO transition time. More...

uint8_t	m_psmpSupport
	PSMP support. More...

uint8_t	m_reservedASel
	reserved ASEL More...

uint8_t	m_reservedExtendedCapabilities
	reserved extended capabilities More...

uint8_t	m_reservedExtendedCapabilities2
	reserver extended capabilities 2 More...

uint8_t	m_reservedMcsSet1
	reserved MCS set 1 More...

uint8_t	m_reservedMcsSet2
	reserved MCS set 2 More...

uint32_t	m_reservedMcsSet3
	reserved MCS set 3 More...

uint8_t	m_reservedTxBf
	reserved transmit BF More...

uint8_t	m_reverseDirectionResponder
	reverse direction responder More...

uint8_t	m_rxASelCapable
	receive antenna selection capable More...

uint16_t	m_rxHighestSupportedDataRate
	receive highest supported data rate More...

uint8_t	m_rxMcsBitmask [MAX_SUPPORTED_MCS]
	receive MCS bitmask More...

uint8_t	m_rxNdpCapable
	receive NDP capable More...

uint8_t	m_rxStaggeredSoundingCapable
	receive staggered sounding capable More...

uint8_t	m_rxStbc
	receive STBC More...

uint8_t	m_shortGuardInterval20
	short guard interval 20 MHz More...

uint8_t	m_shortGuardInterval40
	short guard interval 40 MHz More...

uint8_t	m_smPowerSave
	SM power save. More...

uint8_t	m_supportedChannelWidth
	supported channel width More...

uint8_t	m_txMaxNSpatialStreams
	transmit maximum number spatial streams More...

uint8_t	m_txMcsSetDefined
	transmit MCS set defined More...

uint8_t	m_txNdpCapable
	transmit NDP capable More...

uint8_t	m_txRxMcsSetUnequal
	transmit / receive MCS set unequal More...

uint8_t	m_txSoundingPpdusCapable
	sounding PPDUS capable More...

uint8_t	m_txStaggeredSoundingCapable
	transmit staggered sounding capable More...

uint8_t	m_txStbc
	transmit STBC More...

uint8_t	m_txUnequalModulation
	transmit unequal modulation More...

Detailed Description

The HT Capabilities Information Element.

This class knows how to serialise and deserialise the HT Capabilities Information Element

Definition at line 41 of file ht-capabilities.h.

Constructor & Destructor Documentation

◆ HtCapabilities()

ns3::HtCapabilities::HtCapabilities ( )

Definition at line 26 of file ht-capabilities.cc.

References m_rxMcsBitmask, and MAX_SUPPORTED_MCS.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::HtCapabilities::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 497 of file ht-capabilities.cc.

References ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU64(), ns3::Buffer::Iterator::ReadU16(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), SetAmpduParameters(), SetAntennaSelectionCapabilities(), SetExtendedHtCapabilities(), SetHtCapabilitiesInfo(), SetSupportedMcsSet(), SetTxBfCapabilities(), and two-ray-to-three-gpp-ch-calibration::start.

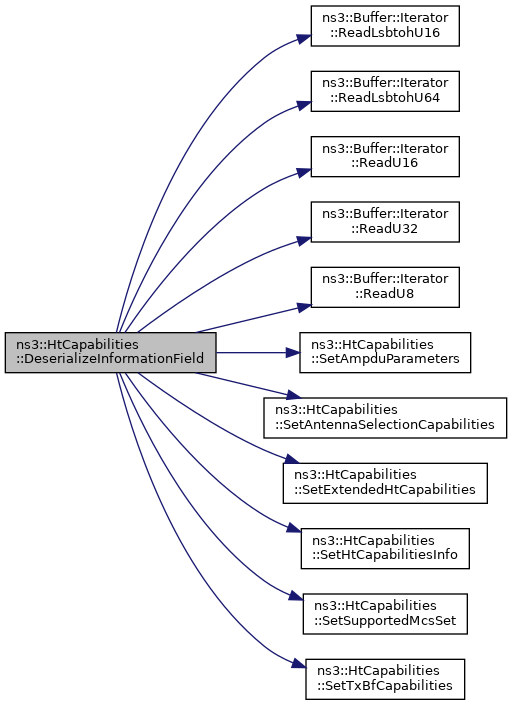

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::HtCapabilities::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 95 of file ht-capabilities.cc.

References IE_HT_CAPABILITIES.

◆ GetAmpduParameters()

uint8_t ns3::HtCapabilities::GetAmpduParameters ( ) const

Return the A-MPDU Parameters field in the HT Capabilities information element.

Returns: the A-MPDU Parameters field in the HT Capabilities information element

Definition at line 312 of file ht-capabilities.cc.

References m_ampduReserved, m_maxAmpduLengthExponent, and m_minMpduStartSpace.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetAntennaSelectionCapabilities()

uint8_t ns3::HtCapabilities::GetAntennaSelectionCapabilities ( ) const

Return the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

Returns: the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element

Definition at line 456 of file ht-capabilities.cc.

References m_antennaIndicesFeedbackBasedTxASelCapable, m_antennaIndicesFeedbackCapable, m_antennaSelectionCapability, m_explicitCsiFeedbackBasedTxASelCapable, m_explicitCsiFeedbackCapable, m_reservedASel, m_rxASelCapable, and m_txSoundingPpdusCapable.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetExtendedHtCapabilities()

uint16_t ns3::HtCapabilities::GetExtendedHtCapabilities ( ) const

Return the Extended HT Capabilities field in the HT Capabilities information element.

Returns: the Extended HT Capabilities field in the HT Capabilities information element

Definition at line 378 of file ht-capabilities.cc.

References m_htcSupport, m_mcsFeedback, m_pco, m_pcoTransitionTime, m_reservedExtendedCapabilities, m_reservedExtendedCapabilities2, and m_reverseDirectionResponder.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetHtCapabilitiesInfo()

uint16_t ns3::HtCapabilities::GetHtCapabilitiesInfo ( ) const

Return the HT Capabilities Info field in the HT Capabilities information element.

Returns: the HT Capabilities Info field in the HT Capabilities information element

Definition at line 264 of file ht-capabilities.cc.

References m_dssMode40, m_fortyMhzIntolerant, m_greenField, m_htDelayedBlockAck, m_ldpc, m_lsigProtectionSupport, m_maxAmsduLength, m_psmpSupport, m_rxStbc, m_shortGuardInterval20, m_shortGuardInterval40, m_smPowerSave, m_supportedChannelWidth, and m_txStbc.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::HtCapabilities::GetInformationFieldSize ( ) const

overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 258 of file ht-capabilities.cc.

◆ GetLdpc()

uint8_t ns3::HtCapabilities::GetLdpc ( ) const

Return LDPC.

Returns: the LDPC value

Definition at line 200 of file ht-capabilities.cc.

References m_ldpc.

Referenced by Print().

Here is the caller graph for this function:

◆ GetMaxAmpduLength()

uint32_t ns3::HtCapabilities::GetMaxAmpduLength ( ) const

Return the maximum A-MPDU length.

Returns: the maximum A-MPDU length

Definition at line 228 of file ht-capabilities.cc.

References m_maxAmpduLengthExponent.

◆ GetMaxAmsduLength()

uint16_t ns3::HtCapabilities::GetMaxAmsduLength ( ) const

Return the maximum A-MSDU length.

Returns: the maximum A-MSDU length

Definition at line 218 of file ht-capabilities.cc.

References m_maxAmsduLength.

◆ GetRxHighestSupportedAntennas()

uint8_t ns3::HtCapabilities::GetRxHighestSupportedAntennas ( ) const

Return the receive highest supported antennas.

Returns: the receive highest supported antennas

Definition at line 240 of file ht-capabilities.cc.

References IsSupportedMcs().

Here is the call graph for this function:

◆ GetShortGuardInterval20()

uint8_t ns3::HtCapabilities::GetShortGuardInterval20 ( ) const

Return the short guard interval 20 value.

Returns: the short guard interval 20 value

Definition at line 212 of file ht-capabilities.cc.

References m_shortGuardInterval20.

Referenced by Print().

Here is the caller graph for this function:

◆ GetSupportedChannelWidth()

uint8_t ns3::HtCapabilities::GetSupportedChannelWidth ( ) const

Return the supported channel width.

Returns: the supported channel width

Definition at line 206 of file ht-capabilities.cc.

References m_supportedChannelWidth.

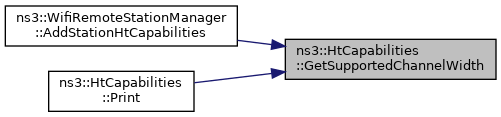

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), and Print().

Here is the caller graph for this function:

◆ GetSupportedMcsSet1()

uint64_t ns3::HtCapabilities::GetSupportedMcsSet1 ( ) const

Return the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

Returns: the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 346 of file ht-capabilities.cc.

References m_rxMcsBitmask.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetSupportedMcsSet2()

uint64_t ns3::HtCapabilities::GetSupportedMcsSet2 ( ) const

Return the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element.

Returns: the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 358 of file ht-capabilities.cc.

References m_reservedMcsSet1, m_reservedMcsSet2, m_reservedMcsSet3, m_rxHighestSupportedDataRate, m_rxMcsBitmask, m_txMaxNSpatialStreams, m_txMcsSetDefined, m_txRxMcsSetUnequal, and m_txUnequalModulation.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ GetTxBfCapabilities()

uint32_t ns3::HtCapabilities::GetTxBfCapabilities ( ) const

Return the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element.

Returns: the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element

Definition at line 404 of file ht-capabilities.cc.

References m_calibration, m_channelEstimationCapability, m_compressedSteeringNBfAntennasSupported, m_csiMaxNRowsBfSupported, m_csiNBfAntennasSupported, m_explicitCompressedBfFeedbackCapable, m_explicitCompressedSteeringCapable, m_explicitCsiTxBfCapable, m_explicitNoncompressedBfFeedbackCapable, m_explicitNoncompressedSteeringCapable, m_explicitTxBfCsiFeedback, m_implicitRxBfCapable, m_implicitTxBfCapable, m_minimalGrouping, m_noncompressedSteeringNBfAntennasSupported, m_reservedTxBf, m_rxNdpCapable, m_rxStaggeredSoundingCapable, m_txNdpCapable, and m_txStaggeredSoundingCapable.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ IsSupportedMcs()

bool ns3::HtCapabilities::IsSupportedMcs ( uint8_t mcs ) const

Return the is MCS supported flag.

Parameters

mcs	is MCS supported flag

Returns: true if successful

Definition at line 234 of file ht-capabilities.cc.

References m_rxMcsBitmask.

Referenced by ns3::WifiRemoteStationManager::AddStationHtCapabilities(), GetRxHighestSupportedAntennas(), and Print().

Here is the caller graph for this function:

◆ Print()

void ns3::HtCapabilities::Print ( std::ostream & os ) const

overrideprivatevirtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 101 of file ht-capabilities.cc.

References GetLdpc(), GetShortGuardInterval20(), GetSupportedChannelWidth(), IsSupportedMcs(), and MAX_SUPPORTED_MCS.

Here is the call graph for this function:

◆ SerializeInformationField()

void ns3::HtCapabilities::SerializeInformationField ( Buffer::Iterator start ) const

overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 484 of file ht-capabilities.cc.

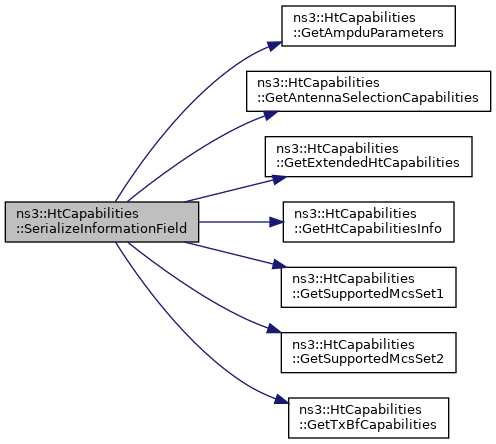

References GetAmpduParameters(), GetAntennaSelectionCapabilities(), GetExtendedHtCapabilities(), GetHtCapabilitiesInfo(), GetSupportedMcsSet1(), GetSupportedMcsSet2(), GetTxBfCapabilities(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ SetAmpduParameters()

void ns3::HtCapabilities::SetAmpduParameters ( uint8_t ctrl )

Set the A-MPDU Parameters field in the HT Capabilities information element.

Parameters

ctrl	the A-MPDU Parameters field in the HT Capabilities information element

Definition at line 304 of file ht-capabilities.cc.

References m_ampduReserved, m_maxAmpduLengthExponent, and m_minMpduStartSpace.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetAntennaSelectionCapabilities()

void ns3::HtCapabilities::SetAntennaSelectionCapabilities ( uint8_t ctrl )

Set the the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element.

Parameters

ctrl	the Antenna Selection (ASEL) Capabilities field in the HT Capabilities information element

Definition at line 471 of file ht-capabilities.cc.

References m_antennaIndicesFeedbackBasedTxASelCapable, m_antennaIndicesFeedbackCapable, m_antennaSelectionCapability, m_explicitCsiFeedbackBasedTxASelCapable, m_explicitCsiFeedbackCapable, m_reservedASel, m_rxASelCapable, and m_txSoundingPpdusCapable.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetExtendedHtCapabilities()

void ns3::HtCapabilities::SetExtendedHtCapabilities ( uint16_t ctrl )

Set the Extended HT Capabilities field in the HT Capabilities information element.

Parameters

ctrl	the Extended HT Capabilities field in the HT Capabilities information element

Definition at line 392 of file ht-capabilities.cc.

References m_htcSupport, m_mcsFeedback, m_pco, m_pcoTransitionTime, m_reservedExtendedCapabilities, m_reservedExtendedCapabilities2, and m_reverseDirectionResponder.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetHtCapabilitiesInfo()

void ns3::HtCapabilities::SetHtCapabilitiesInfo ( uint16_t ctrl )

Set the HT Capabilities Info field in the HT Capabilities information element.

Parameters

ctrl	the HT Capabilities Info field in the HT Capabilities information element

Definition at line 285 of file ht-capabilities.cc.

References m_dssMode40, m_fortyMhzIntolerant, m_greenField, m_htDelayedBlockAck, m_ldpc, m_lsigProtectionSupport, m_maxAmsduLength, m_psmpSupport, m_rxStbc, m_shortGuardInterval20, m_shortGuardInterval40, m_smPowerSave, m_supportedChannelWidth, and m_txStbc.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetLdpc()

void ns3::HtCapabilities::SetLdpc ( uint8_t ldpc )

Set the LDPC field.

Parameters

ldpc	the LDPC field

Definition at line 112 of file ht-capabilities.cc.

References m_ldpc.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetLSigProtectionSupport()

void ns3::HtCapabilities::SetLSigProtectionSupport ( uint8_t lSigProtection )

Set the LSIG protection support.

Parameters

lSigProtection the LSIG protection support field

Definition at line 144 of file ht-capabilities.cc.

References m_lsigProtectionSupport.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetMaxAmpduLength()

void ns3::HtCapabilities::SetMaxAmpduLength ( uint32_t maxAmpduLength )

Set the maximum AMPDU length.

Parameters

maxAmpduLength 2^(13 + x) - 1, x in the range 0 to 3

Definition at line 150 of file ht-capabilities.cc.

References m_maxAmpduLengthExponent, and NS_ABORT_MSG.

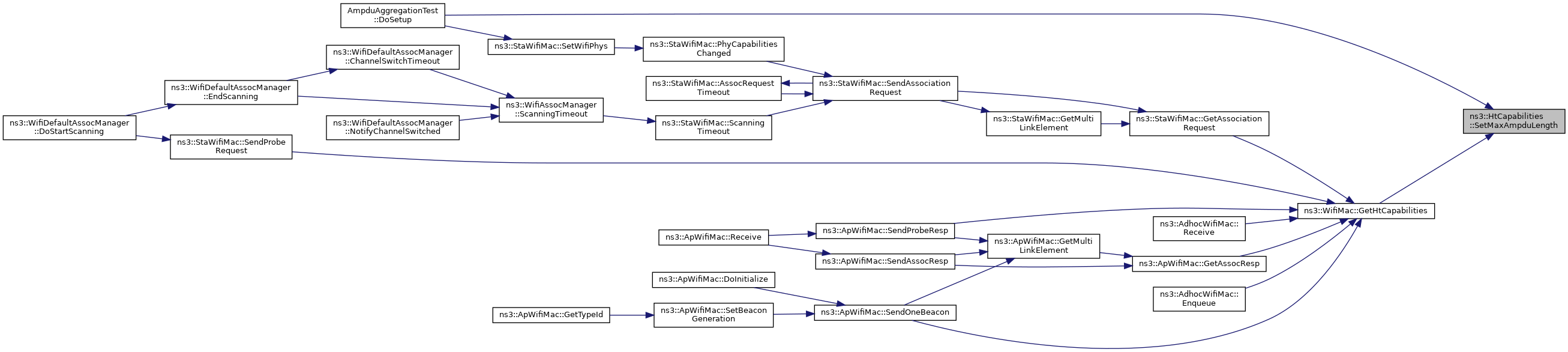

Referenced by AmpduAggregationTest::DoSetup(), and ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetMaxAmsduLength()

void ns3::HtCapabilities::SetMaxAmsduLength ( uint16_t maxAmsduLength )

Set the maximum AMSDU length.

Parameters

maxAmsduLength Either 3839 or 7935

Definition at line 136 of file ht-capabilities.cc.

References m_maxAmsduLength, and NS_ABORT_MSG_IF.

Referenced by AmpduAggregationTest::DoSetup(), and ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetRxHighestSupportedDataRate()

void ns3::HtCapabilities::SetRxHighestSupportedDataRate ( uint16_t maxSupportedRate )

Set the receive highest supported data rate.

Parameters

maxSupportedRate the maximum supported data rate

Definition at line 170 of file ht-capabilities.cc.

References m_rxHighestSupportedDataRate.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetRxMcsBitmask()

void ns3::HtCapabilities::SetRxMcsBitmask ( uint8_t index )

Set the receive MCS bitmask.

Parameters

index the index of the receive MCS

Definition at line 164 of file ht-capabilities.cc.

References m_rxMcsBitmask.

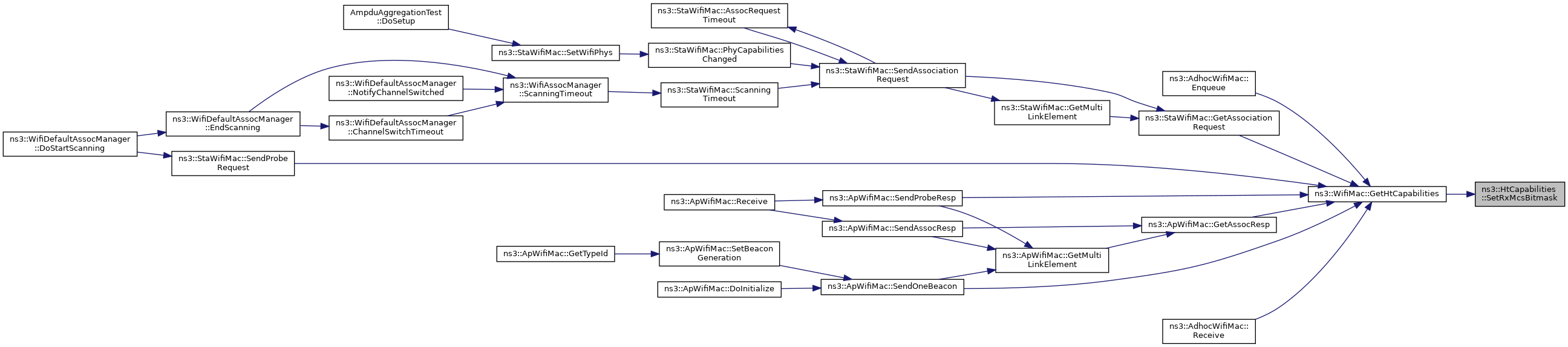

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetShortGuardInterval20()

void ns3::HtCapabilities::SetShortGuardInterval20 ( uint8_t shortGuardInterval )

Set the short guard interval 20 field.

Parameters

shortGuardInterval the short guard interval

Definition at line 124 of file ht-capabilities.cc.

References m_shortGuardInterval20.

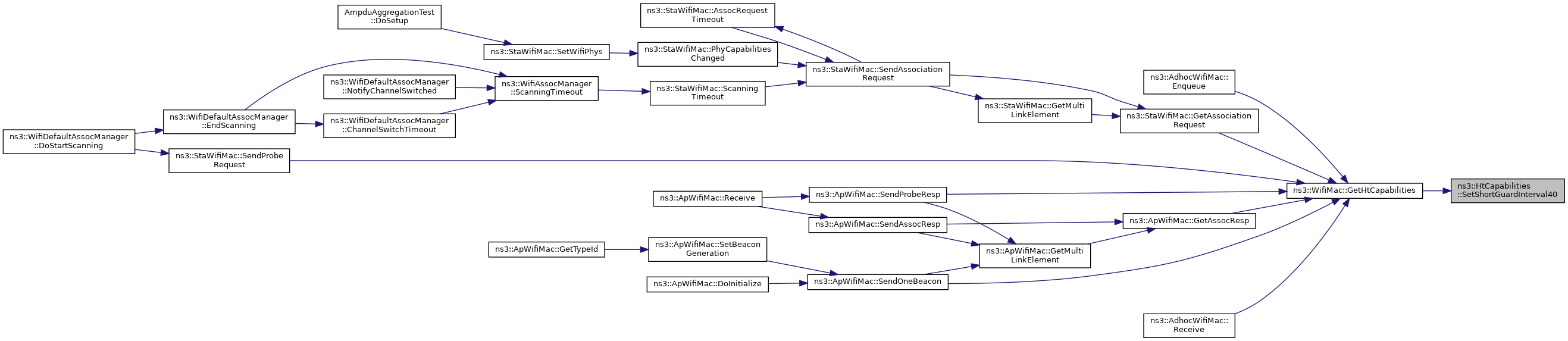

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetShortGuardInterval40()

void ns3::HtCapabilities::SetShortGuardInterval40 ( uint8_t shortGuardInterval )

Set the short guard interval 40 field.

Parameters

shortGuardInterval the short guard interval

Definition at line 130 of file ht-capabilities.cc.

References m_shortGuardInterval40.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedChannelWidth()

void ns3::HtCapabilities::SetSupportedChannelWidth ( uint8_t supportedChannelWidth )

Set the supported channel width field.

Parameters

supportedChannelWidth the supported channel width field

Definition at line 118 of file ht-capabilities.cc.

References m_supportedChannelWidth.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetSupportedMcsSet()

void ns3::HtCapabilities::SetSupportedMcsSet	(	uint64_t	ctrl1,
		uint64_t	ctrl2
	)

Set the Supported MCS Set field in the HT Capabilities information element.

Parameters

ctrl1	the first 64 bytes of the Supported MCS Set field in the HT Capabilities information element
ctrl2	the last 64 bytes of the Supported MCS Set field in the HT Capabilities information element

Definition at line 322 of file ht-capabilities.cc.

References m_reservedMcsSet1, m_reservedMcsSet2, m_reservedMcsSet3, m_rxHighestSupportedDataRate, m_rxMcsBitmask, m_txMaxNSpatialStreams, m_txMcsSetDefined, m_txRxMcsSetUnequal, and m_txUnequalModulation.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetTxBfCapabilities()

void ns3::HtCapabilities::SetTxBfCapabilities ( uint32_t ctrl )

Set the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element.

Parameters

ctrl	the Transmit Beamforming (TxBF) Capabilities field in the HT Capabilities information element

Definition at line 431 of file ht-capabilities.cc.

References m_calibration, m_channelEstimationCapability, m_compressedSteeringNBfAntennasSupported, m_csiMaxNRowsBfSupported, m_csiNBfAntennasSupported, m_explicitCompressedBfFeedbackCapable, m_explicitCompressedSteeringCapable, m_explicitCsiTxBfCapable, m_explicitNoncompressedBfFeedbackCapable, m_explicitNoncompressedSteeringCapable, m_explicitTxBfCsiFeedback, m_implicitRxBfCapable, m_implicitTxBfCapable, m_minimalGrouping, m_noncompressedSteeringNBfAntennasSupported, m_reservedTxBf, m_rxNdpCapable, m_rxStaggeredSoundingCapable, m_txNdpCapable, and m_txStaggeredSoundingCapable.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetTxMaxNSpatialStreams()

void ns3::HtCapabilities::SetTxMaxNSpatialStreams ( uint8_t maxTxSpatialStreams )

Set the transmit maximum N spatial streams.

Parameters

maxTxSpatialStreams the maximum number of TX SSs

Definition at line 188 of file ht-capabilities.cc.

References m_txMaxNSpatialStreams.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetTxMcsSetDefined()

void ns3::HtCapabilities::SetTxMcsSetDefined ( uint8_t txMcsSetDefined )

Set the transmit MCS set defined.

Parameters

txMcsSetDefined the TX MCS set defined

Definition at line 176 of file ht-capabilities.cc.

References m_txMcsSetDefined.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetTxRxMcsSetUnequal()

void ns3::HtCapabilities::SetTxRxMcsSetUnequal ( uint8_t txRxMcsSetUnequal )

Set the transmit / receive MCS set unequal.

Parameters

txRxMcsSetUnequal the TX/RX MCS set unequal field

Definition at line 182 of file ht-capabilities.cc.

References m_txRxMcsSetUnequal.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

◆ SetTxUnequalModulation()

void ns3::HtCapabilities::SetTxUnequalModulation ( uint8_t txUnequalModulation )

Set the transmit unequal modulation.

Parameters

txUnequalModulation the TX unequal modulation field

Definition at line 194 of file ht-capabilities.cc.

References m_txUnequalModulation.

Referenced by ns3::WifiMac::GetHtCapabilities().

Here is the caller graph for this function:

Member Data Documentation

◆ m_ampduReserved

uint8_t ns3::HtCapabilities::m_ampduReserved

private

A-MPDU reserved.

Definition at line 295 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), and SetAmpduParameters().

◆ m_antennaIndicesFeedbackBasedTxASelCapable

uint8_t ns3::HtCapabilities::m_antennaIndicesFeedbackBasedTxASelCapable

private

antenna indices feedback based transmit antenna selection capable

Definition at line 345 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_antennaIndicesFeedbackCapable

uint8_t ns3::HtCapabilities::m_antennaIndicesFeedbackCapable

private

antenna indices feedback capable

Definition at line 348 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_antennaSelectionCapability

uint8_t ns3::HtCapabilities::m_antennaSelectionCapability

private

antenna selection capability

Definition at line 342 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_calibration

uint8_t ns3::HtCapabilities::m_calibration

private

calibration

Definition at line 324 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_channelEstimationCapability

uint8_t ns3::HtCapabilities::m_channelEstimationCapability

private

channel estimation capability

Definition at line 338 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_compressedSteeringNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_compressedSteeringNBfAntennasSupported

private

compressed steering NBF antenna supported

Definition at line 336 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_csiMaxNRowsBfSupported

uint8_t ns3::HtCapabilities::m_csiMaxNRowsBfSupported

private

CSI maximum number rows BF supported.

Definition at line 337 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_csiNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_csiNBfAntennasSupported

private

CSI NBF antenna supported.

Definition at line 333 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_dssMode40

uint8_t ns3::HtCapabilities::m_dssMode40

private

DSS mode 40.

Definition at line 287 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_explicitCompressedBfFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitCompressedBfFeedbackCapable

private

explicit compressed BF feedback capable

Definition at line 331 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitCompressedSteeringCapable

uint8_t ns3::HtCapabilities::m_explicitCompressedSteeringCapable

private

explicit compressed steering capable

Definition at line 327 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitCsiFeedbackBasedTxASelCapable

uint8_t ns3::HtCapabilities::m_explicitCsiFeedbackBasedTxASelCapable

private

explicit CSI feedback based transmit antenna selection capable

Definition at line 343 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_explicitCsiFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitCsiFeedbackCapable

private

explicit CSI feedback capable

Definition at line 347 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_explicitCsiTxBfCapable

uint8_t ns3::HtCapabilities::m_explicitCsiTxBfCapable

private

explicit CSI transmit BF capable

Definition at line 325 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitNoncompressedBfFeedbackCapable

uint8_t ns3::HtCapabilities::m_explicitNoncompressedBfFeedbackCapable

private

explicit non compressed BF feedback capable

Definition at line 330 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitNoncompressedSteeringCapable

uint8_t ns3::HtCapabilities::m_explicitNoncompressedSteeringCapable

private

explicit non compressed steering capable

Definition at line 326 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_explicitTxBfCsiFeedback

uint8_t ns3::HtCapabilities::m_explicitTxBfCsiFeedback

private

explicit transmit BF CSI feedback

Definition at line 328 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_fortyMhzIntolerant

uint8_t ns3::HtCapabilities::m_fortyMhzIntolerant

private

40 MHz intolerant

Definition at line 289 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_greenField

uint8_t ns3::HtCapabilities::m_greenField

private

Greenfield.

Definition at line 280 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_htcSupport

uint8_t ns3::HtCapabilities::m_htcSupport

private

HTC support.

Definition at line 313 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_htDelayedBlockAck

uint8_t ns3::HtCapabilities::m_htDelayedBlockAck

private

HT delayed block ack.

Definition at line 285 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_implicitRxBfCapable

uint8_t ns3::HtCapabilities::m_implicitRxBfCapable

private

implicit receive BF capable

Definition at line 318 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_implicitTxBfCapable

uint8_t ns3::HtCapabilities::m_implicitTxBfCapable

private

implicit transmit BF capable

Definition at line 323 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_ldpc

uint8_t ns3::HtCapabilities::m_ldpc

private

LDPC.

Definition at line 277 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetLdpc(), SetHtCapabilitiesInfo(), and SetLdpc().

◆ m_lsigProtectionSupport

uint8_t ns3::HtCapabilities::m_lsigProtectionSupport

private

L-SIG protection support.

Definition at line 290 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), SetHtCapabilitiesInfo(), and SetLSigProtectionSupport().

◆ m_maxAmpduLengthExponent

uint8_t ns3::HtCapabilities::m_maxAmpduLengthExponent

private

maximum A-MPDU length

Definition at line 293 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), GetMaxAmpduLength(), SetAmpduParameters(), and SetMaxAmpduLength().

◆ m_maxAmsduLength

uint8_t ns3::HtCapabilities::m_maxAmsduLength

private

maximum A-MSDU length

Definition at line 286 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetMaxAmsduLength(), SetHtCapabilitiesInfo(), and SetMaxAmsduLength().

◆ m_mcsFeedback

uint8_t ns3::HtCapabilities::m_mcsFeedback

private

MCS feedback.

Definition at line 312 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_minimalGrouping

uint8_t ns3::HtCapabilities::m_minimalGrouping

private

minimal grouping

Definition at line 332 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_minMpduStartSpace

uint8_t ns3::HtCapabilities::m_minMpduStartSpace

private

minimum MPDU start space

Definition at line 294 of file ht-capabilities.h.

Referenced by GetAmpduParameters(), and SetAmpduParameters().

◆ m_noncompressedSteeringNBfAntennasSupported

uint8_t ns3::HtCapabilities::m_noncompressedSteeringNBfAntennasSupported

private

non compressed steering NBF antenna supported

Definition at line 334 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_pco

uint8_t ns3::HtCapabilities::m_pco

private

PCO.

Definition at line 309 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_pcoTransitionTime

uint8_t ns3::HtCapabilities::m_pcoTransitionTime

private

PCO transition time.

Definition at line 310 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_psmpSupport

uint8_t ns3::HtCapabilities::m_psmpSupport

private

PSMP support.

Definition at line 288 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_reservedASel

uint8_t ns3::HtCapabilities::m_reservedASel

private

reserved ASEL

Definition at line 351 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_reservedExtendedCapabilities

uint8_t ns3::HtCapabilities::m_reservedExtendedCapabilities

private

reserved extended capabilities

Definition at line 311 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_reservedExtendedCapabilities2

uint8_t ns3::HtCapabilities::m_reservedExtendedCapabilities2

private

reserver extended capabilities 2

Definition at line 315 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_reservedMcsSet1

uint8_t ns3::HtCapabilities::m_reservedMcsSet1

private

reserved MCS set 1

Definition at line 298 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedMcsSet2

uint8_t ns3::HtCapabilities::m_reservedMcsSet2

private

reserved MCS set 2

Definition at line 300 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedMcsSet3

uint32_t ns3::HtCapabilities::m_reservedMcsSet3

private

reserved MCS set 3

Definition at line 305 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), and SetSupportedMcsSet().

◆ m_reservedTxBf

uint8_t ns3::HtCapabilities::m_reservedTxBf

private

reserved transmit BF

Definition at line 339 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_reverseDirectionResponder

uint8_t ns3::HtCapabilities::m_reverseDirectionResponder

private

reverse direction responder

Definition at line 314 of file ht-capabilities.h.

Referenced by GetExtendedHtCapabilities(), and SetExtendedHtCapabilities().

◆ m_rxASelCapable

uint8_t ns3::HtCapabilities::m_rxASelCapable

private

receive antenna selection capable

Definition at line 349 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_rxHighestSupportedDataRate

uint16_t ns3::HtCapabilities::m_rxHighestSupportedDataRate

private

receive highest supported data rate

Definition at line 299 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetRxHighestSupportedDataRate(), and SetSupportedMcsSet().

◆ m_rxMcsBitmask

uint8_t ns3::HtCapabilities::m_rxMcsBitmask[MAX_SUPPORTED_MCS]

private

receive MCS bitmask

Definition at line 306 of file ht-capabilities.h.

Referenced by HtCapabilities(), GetSupportedMcsSet1(), GetSupportedMcsSet2(), IsSupportedMcs(), SetRxMcsBitmask(), and SetSupportedMcsSet().

◆ m_rxNdpCapable

uint8_t ns3::HtCapabilities::m_rxNdpCapable

private

receive NDP capable

Definition at line 321 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_rxStaggeredSoundingCapable

uint8_t ns3::HtCapabilities::m_rxStaggeredSoundingCapable

private

receive staggered sounding capable

Definition at line 319 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_rxStbc

uint8_t ns3::HtCapabilities::m_rxStbc

private

receive STBC

Definition at line 284 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_shortGuardInterval20

uint8_t ns3::HtCapabilities::m_shortGuardInterval20

private

short guard interval 20 MHz

Definition at line 281 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetShortGuardInterval20(), SetHtCapabilitiesInfo(), and SetShortGuardInterval20().

◆ m_shortGuardInterval40

uint8_t ns3::HtCapabilities::m_shortGuardInterval40

private

short guard interval 40 MHz

Definition at line 282 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), SetHtCapabilitiesInfo(), and SetShortGuardInterval40().

◆ m_smPowerSave

uint8_t ns3::HtCapabilities::m_smPowerSave

private

SM power save.

Definition at line 279 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_supportedChannelWidth

uint8_t ns3::HtCapabilities::m_supportedChannelWidth

private

supported channel width

Definition at line 278 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), GetSupportedChannelWidth(), SetHtCapabilitiesInfo(), and SetSupportedChannelWidth().

◆ m_txMaxNSpatialStreams

uint8_t ns3::HtCapabilities::m_txMaxNSpatialStreams

private

transmit maximum number spatial streams

Definition at line 303 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxMaxNSpatialStreams().

◆ m_txMcsSetDefined

uint8_t ns3::HtCapabilities::m_txMcsSetDefined

private

transmit MCS set defined

Definition at line 301 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxMcsSetDefined().

◆ m_txNdpCapable

uint8_t ns3::HtCapabilities::m_txNdpCapable

private

transmit NDP capable

Definition at line 322 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_txRxMcsSetUnequal

uint8_t ns3::HtCapabilities::m_txRxMcsSetUnequal

private

transmit / receive MCS set unequal

Definition at line 302 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxRxMcsSetUnequal().

◆ m_txSoundingPpdusCapable

uint8_t ns3::HtCapabilities::m_txSoundingPpdusCapable

private

sounding PPDUS capable

Definition at line 350 of file ht-capabilities.h.

Referenced by GetAntennaSelectionCapabilities(), and SetAntennaSelectionCapabilities().

◆ m_txStaggeredSoundingCapable

uint8_t ns3::HtCapabilities::m_txStaggeredSoundingCapable

private

transmit staggered sounding capable

Definition at line 320 of file ht-capabilities.h.

Referenced by GetTxBfCapabilities(), and SetTxBfCapabilities().

◆ m_txStbc

uint8_t ns3::HtCapabilities::m_txStbc

private

transmit STBC

Definition at line 283 of file ht-capabilities.h.

Referenced by GetHtCapabilitiesInfo(), and SetHtCapabilitiesInfo().

◆ m_txUnequalModulation

uint8_t ns3::HtCapabilities::m_txUnequalModulation

private

transmit unequal modulation

Definition at line 304 of file ht-capabilities.h.

Referenced by GetSupportedMcsSet2(), SetSupportedMcsSet(), and SetTxUnequalModulation().

The documentation for this class was generated from the following files:

src/wifi/model/ht/ht-capabilities.h
src/wifi/model/ht/ht-capabilities.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ HtCapabilities()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ GetAmpduParameters()

◆ GetAntennaSelectionCapabilities()

◆ GetExtendedHtCapabilities()

◆ GetHtCapabilitiesInfo()

◆ GetInformationFieldSize()

◆ GetLdpc()

◆ GetMaxAmpduLength()

◆ GetMaxAmsduLength()

◆ GetRxHighestSupportedAntennas()

◆ GetShortGuardInterval20()

◆ GetSupportedChannelWidth()

◆ GetSupportedMcsSet1()

◆ GetSupportedMcsSet2()

◆ GetTxBfCapabilities()

◆ IsSupportedMcs()

◆ Print()

◆ SerializeInformationField()

◆ SetAmpduParameters()

◆ SetAntennaSelectionCapabilities()

◆ SetExtendedHtCapabilities()

◆ SetHtCapabilitiesInfo()

◆ SetLdpc()

◆ SetLSigProtectionSupport()

◆ SetMaxAmpduLength()

◆ SetMaxAmsduLength()

◆ SetRxHighestSupportedDataRate()

◆ SetRxMcsBitmask()

◆ SetShortGuardInterval20()

◆ SetShortGuardInterval40()

◆ SetSupportedChannelWidth()

◆ SetSupportedMcsSet()

◆ SetTxBfCapabilities()

◆ SetTxMaxNSpatialStreams()

◆ SetTxMcsSetDefined()

◆ SetTxRxMcsSetUnequal()

◆ SetTxUnequalModulation()

Member Data Documentation

◆ m_ampduReserved

◆ m_antennaIndicesFeedbackBasedTxASelCapable

◆ m_antennaIndicesFeedbackCapable

◆ m_antennaSelectionCapability

◆ m_calibration

◆ m_channelEstimationCapability

◆ m_compressedSteeringNBfAntennasSupported

◆ m_csiMaxNRowsBfSupported

◆ m_csiNBfAntennasSupported

◆ m_dssMode40

◆ m_explicitCompressedBfFeedbackCapable

◆ m_explicitCompressedSteeringCapable

◆ m_explicitCsiFeedbackBasedTxASelCapable

◆ m_explicitCsiFeedbackCapable

◆ m_explicitCsiTxBfCapable

◆ m_explicitNoncompressedBfFeedbackCapable

◆ m_explicitNoncompressedSteeringCapable

◆ m_explicitTxBfCsiFeedback

◆ m_fortyMhzIntolerant

◆ m_greenField

◆ m_htcSupport

◆ m_htDelayedBlockAck

◆ m_implicitRxBfCapable

◆ m_implicitTxBfCapable

◆ m_ldpc

◆ m_lsigProtectionSupport

◆ m_maxAmpduLengthExponent

◆ m_maxAmsduLength

◆ m_mcsFeedback

◆ m_minimalGrouping

◆ m_minMpduStartSpace

◆ m_noncompressedSteeringNBfAntennasSupported

◆ m_pco

◆ m_pcoTransitionTime
