The IEEE 802.11ax HE Capabilities. More...

#include "he-capabilities.h"

Inheritance diagram for ns3::HeCapabilities:

Collaboration diagram for ns3::HeCapabilities:

Public Member Functions
	HeCapabilities ()

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

WifiInformationElementId	ElementIdExt () const override
	Get the wifi information element ID extension. More...

uint8_t	GetChannelWidthSet () const
	Get channel width set. More...

uint32_t	GetHeMacCapabilitiesInfo1 () const
	Return the 4 first octets of the HE MAC Capabilities Info field in the HE Capabilities information element. More...

uint16_t	GetHeMacCapabilitiesInfo2 () const
	Return the last 2 octets of the HE MAC Capabilities Info field in the HE Capabilities information element. More...

uint64_t	GetHePhyCapabilitiesInfo1 () const
	Return the 8 first octets of the HE PHY Capabilities Info field in the HE Capabilities information element. More...

uint16_t	GetHePhyCapabilitiesInfo2 () const
	Return the octets 9-10 of the HE PHY Capabilities Info field in the HE Capabilities information element. More...

uint8_t	GetHePhyCapabilitiesInfo3 () const
	Return the last octet of the HE PHY Capabilities Info field in the HE Capabilities information element. More...

bool	GetHePpdu4xHeLtf800nsGi () const
	Get 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception support. More...

bool	GetHeSuPpdu1xHeLtf800nsGi () const
	Get 1xHE-LTF and 800ns GI in HE SU PPDU reception support. More...

uint8_t	GetHighestMcsSupported () const
	Get highest MCS supported. More...

uint8_t	GetHighestNssSupported () const
	Get highest NSS supported. More...

uint8_t	GetLdpcCodingInPayload () const
	Indicates support for the transmission and reception of LDPC encoded packets. More...

uint32_t	GetMaxAmpduLength () const
	Return the maximum A-MPDU length. More...

uint16_t	GetSupportedMcsAndNss () const
	Return the MCS and NSS field in the HE Capabilities information element. More...

bool	IsSupportedRxMcs (uint8_t mcs) const
	Is RX MCS supported. More...

bool	IsSupportedTxMcs (uint8_t mcs) const
	Is RX MCS supported. More...

void	Print (std::ostream &os) const override
	Generate human-readable form of IE. More...

void	SetChannelWidthSet (uint8_t channelWidthSet)
	Set channel width set. More...

void	SetHeMacCapabilitiesInfo (uint32_t ctrl1, uint16_t ctrl2)
	Set the HE MAC Capabilities Info field in the HE Capabilities information element. More...

void	SetHePhyCapabilitiesInfo (uint64_t ctrl1, uint16_t ctrl2, uint8_t ctrl3)
	Set the HE PHY Capabilities Info field in the HE Capabilities information element. More...

void	SetHePpdu4xHeLtf800nsGi (bool heSuPpdu4xHeLtf800nsGi)
	Set 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception support. More...

void	SetHeSuPpdu1xHeLtf800nsGi (bool heSuPpdu1xHeLtf800nsGi)
	Set 1xHE-LTF and 800ns GI in HE SU PPDU reception support. More...

void	SetHighestMcsSupported (uint8_t mcs)
	Set highest MCS supported. More...

void	SetHighestNssSupported (uint8_t nss)
	Set highest NSS supported. More...

void	SetLdpcCodingInPayload (uint8_t ldpcCodingInPayload)
	Set indication whether the transmission and reception of LDPC encoded packets is supported. More...

void	SetMaxAmpduLength (uint32_t maxAmpduLength)
	Set the maximum AMPDU length. More...

void	SetSupportedMcsAndNss (uint16_t ctrl)
	Set the MCS and NSS field in the HE Capabilities information element. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

Private Attributes
uint8_t	m_32bitBaBitmapSupport
	32-bit BA bitmap support More...

uint8_t	m_ackEnabledAggregationSupport
	ack enabled aggregation support More...

uint8_t	m_allAckSupport
	all Ack support More...

uint8_t	m_amsduFragmentationSupport
	A-MSDU fragmentation support. More...

uint8_t	m_amsduNotUnderBaInAmpduSupport
	AMSDU not under BA in Ack enabled A-MPDU support. More...

uint8_t	m_beamformeeStsForLargerThan80Mhz
	beamformee STS for > 80MHz More...

uint8_t	m_beamformeeStsForSmallerOrEqualThan80Mhz
	beam formee STS for < 80 MHz More...

uint8_t	m_bqrSupport
	BQR support. More...

uint8_t	m_broadcastTwtSupport
	broadcast TXT support More...

uint8_t	m_bsrpBqrpAmpduAggregation
	BSRP BQRP A-MPDU aggregation. More...

uint8_t	m_bsrSupport
	BSR support. More...

uint8_t	m_channelWidthSet
	channel width set More...

uint8_t	m_codebookSize42SuFeedback
	Codebook Size = {4, 2} SU feedback. More...

uint8_t	m_codebookSize75MuFeedback
	Codebook Size = {7, 5} MU feedback. More...

uint8_t	m_dcmMaxConstellationRx
	DCM Max Constellation Rx. More...

uint8_t	m_dcmMaxConstellationTx
	DCM Max Constellation Tx. More...

uint8_t	m_dcmMaxNssRx
	DCM Max NSS Rx. More...

uint8_t	m_dcmMaxNssTx
	DCM Max NSS Tx. More...

uint8_t	m_dcmMaxRu
	DCM Max RU. More...

uint8_t	m_deviceClass
	device class More...

uint8_t	m_dlMuMimoOnPartialBandwidth
	DL MU-MIMO on partial bandwidth. More...

uint8_t	m_dopplerRx
	Doppler Rx. More...

uint8_t	m_dopplerTx
	Doppler Tx. More...

uint8_t	m_erPartialBandwidth
	Extended range partial bandwidth. More...

uint8_t	m_flexibleTwtScheduleSupport
	flexible TWT schedule support More...

uint8_t	m_fragmentationSupport
	fragmentation support More...

uint8_t	m_fullBwUlMuMimo
	Full Bandwidth UL MU-MIMO. More...

uint8_t	m_heDynamicSmPowerSave
	HE dynamic SM power save. More...

uint8_t	m_heErSuPpdu1xHeLtf08Gi
	HE ER SU PPDU with 1x HE LTF and 0.8us GI. More...

uint8_t	m_heErSuPpdu4xHeLtf08sGi
	HE ER SU PPDU with 4x HE LTF and 0.8us GI. More...

uint8_t	m_heLinkAdaptation
	HE link adaptation. More...

uint8_t	m_hePpdu20MHzIn160MHz
	20MHz in 160/80+80MHz HE PPDU More...

uint8_t	m_hePpdu20MHzIn40MHz24GHz
	20MHz in 40MHz HE PPDU in 2.4GHz band More...

uint8_t	m_hePpdu4xHeLtf800nsGi
	4 times HE-LFT and 800ns GI support for HE-PPDUs More...

uint8_t	m_hePpdu80MHzIn160MHz
	80MHz in 160/80+80MHz HE PPDU More...

uint8_t	m_heSubchannelSelectiveTxSupport
	HE subchannel selective transmission support. More...

uint8_t	m_heSuPpdu1xHeLtf800nsGi
	HE SU PPDU with 1x HE LTF and 0.8us GI. More...

uint8_t	m_heVhtTriggerFrameRxSupport
	HE and VHT trigger frame RX support. More...

uint8_t	m_highestMcsSupported
	highest MCS support More...

uint8_t	m_highestNssSupportedM1
	highest NSS support M1 More...

uint8_t	m_ldpcCodingInPayload
	LDPC coding in payload. More...

uint8_t	m_longerThan16HeSigbOfdm
	Longer than 16 HE SIG-=B OFDM symbols support. More...

uint8_t	m_maxAmpduLengthExponent
	maximum A-MPDU length exponent extension More...

uint8_t	m_maxHeLtfRxInHeMuMoreThanOneRu
	max HE-LTF symbols STA can Rx in HE MU PPDU with more than one RU More...

uint8_t	m_maximumNumberOfFragmentedMsdus
	maximum number of fragmentation MSDUs More...

uint8_t	m_maxNc
	Max Nc for HE compressed beamforming/CQI report. More...

uint8_t	m_midamble2xAnd1xHeLtf
	Midamble TX/RX 2x and 1x HE-LTF. More...

uint8_t	m_midambleRxMaxNsts
	Midamble TX/RX max NSTS. More...

uint8_t	m_minimumFragmentSize
	minimum fragment size More...

uint8_t	m_muBeamformer
	MU beamformer. More...

uint8_t	m_muCascadeSupport
	MU cascade support. More...

uint8_t	m_multiTidAggregationRxSupport
	multi-TID aggregation Rx support More...

uint8_t	m_multiTidAggregationTxSupport
	Multi-TID aggregation TX support. More...

uint8_t	m_ndp4xHeLtfAnd32msGi
	NDP with 4x HE-LTF and 3.2us GI. More...

uint8_t	m_ndpFeedbackReportSupport
	NDP feedback report support. More...

uint8_t	m_ngEqual16ForMuFeedbackSupport
	equal 16 for MU feedback More...

uint8_t	m_ngEqual16ForSuFeedbackSupport
	equal 16 for SU feedback More...

uint8_t	m_nominalPacketPadding
	Nominal packet padding. More...

uint8_t	m_nonTriggeredCqiFeedback
	Non-Triggered CQI feedback. More...

uint8_t	m_numberOfSoundingDimensionsForLargerThan80Mhz

uint8_t	m_numberOfSoundingDimensionsForSmallerOrEqualThan80Mhz

uint8_t	m_ofdmaRaSupport
	OFDMA RA support. More...

uint8_t	m_omControlSupport
	operation mode control support More...

uint8_t	m_omControlUlMuDataDisableRxSupport
	OM control UL MU data disable RX support. More...

uint8_t	m_opsSupport
	OPS support. More...

uint8_t	m_partialBwUlMuMimo
	Partial Bandwidth UL MU-MIMO. More...

uint8_t	m_plusHtcHeSupport
	HTC HE support. More...

uint8_t	m_powerBoostFactorAlphaSupport
	power boost factor alpha support More...

uint8_t	m_ppeThresholdPresent
	PPE threshold present. More...

uint8_t	m_psrBasedSrSupport
	PSR based SR support. More...

uint8_t	m_psrResponder
	PSR responder. More...

uint8_t	m_puncturedPreambleRx
	Punctured preamble Rx. More...

uint8_t	m_puncturedSoundingSupport
	punctured sounding support More...

uint8_t	m_qtpSupport
	QTP support. More...

uint8_t	m_rx1024QamLt242Ru
	TX 1024 QAM < 242 =-tone RU support. More...

std::vector< uint8_t >	m_rxBwMap
	receive BW map More...

uint8_t	m_rxControlFrameToMultiBss
	receive control frame to multi-BSS More...

uint8_t	m_rxFullBwSuInHeMuCompressedSigB
	RX full BW SU using HE MU PPDU with compressed SIGB. More...

uint8_t	m_rxFullBwSuInHeMuNonCompressedSigB
	RX full BW SU using HE MU PPDU with non-compressed SIGB. More...

uint8_t	m_rxPartialBwSuInHeMu
	Rx Partial BW SU in 20 MHz HE MU PPDU. More...

uint8_t	m_stbcRxGt80MHz
	STBC RX > 80MHz. More...

uint8_t	m_stbcRxLeq80MHz
	STBC RX <= 80Mhz. More...

uint8_t	m_stbcTxGt80MHz
	STBC Tx > 80MHz. More...

uint8_t	m_stbcTxLeq80MHz
	STBC TX <= 80MHz. More...

uint8_t	m_suBeamformee
	SU beamformee. More...

uint8_t	m_suBeamformer
	SU beamformer. More...

uint8_t	m_triggeredCqiFeedback
	Triggered CQI feedback. More...

uint8_t	m_triggeredMuBfFeedback
	Triggered MU beamforming feedback. More...

uint8_t	m_triggeredSuBfFeedback
	Triggered SU beamforming feedback. More...

uint8_t	m_triggerFrameMacPaddingDuration
	trigger frame MAC padding duration More...

uint8_t	m_trsSupport
	TRS support. More...

uint8_t	m_twtRequesterSupport
	TWT requester support. More...

uint8_t	m_twtResponderSupport
	TWT responder support. More...

uint8_t	m_tx1024QamLt242Ru
	TX 1024 QAM < 242 =-tone RU support. More...

std::vector< uint8_t >	m_txBwMap
	transmit BW map More...

uint8_t	m_ul2x996ToneRuSupport
	UL 2x996 tone RU support. More...

Detailed Description

The IEEE 802.11ax HE Capabilities.

Definition at line 33 of file he-capabilities.h.

Constructor & Destructor Documentation

◆ HeCapabilities()

ns3::HeCapabilities::HeCapabilities ( )

Definition at line 27 of file he-capabilities.cc.

References m_rxBwMap, and m_txBwMap.

Member Function Documentation

◆ DeserializeInformationField()

uint16_t ns3::HeCapabilities::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overrideprivatevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 173 of file he-capabilities.cc.

References ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU32(), ns3::Buffer::Iterator::ReadLsbtohU64(), ns3::Buffer::Iterator::ReadU32(), ns3::Buffer::Iterator::ReadU8(), SetHeMacCapabilitiesInfo(), SetHePhyCapabilitiesInfo(), SetSupportedMcsAndNss(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::HeCapabilities::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 128 of file he-capabilities.cc.

References IE_EXTENSION.

◆ ElementIdExt()

WifiInformationElementId ns3::HeCapabilities::ElementIdExt ( ) const

overridevirtual

Get the wifi information element ID extension.

Returns: the wifi information element ID extension

Reimplemented from ns3::WifiInformationElement.

Definition at line 134 of file he-capabilities.cc.

References IE_EXT_HE_CAPABILITIES.

◆ GetChannelWidthSet()

uint8_t ns3::HeCapabilities::GetChannelWidthSet ( ) const

Get channel width set.

Returns: the channel width set

Definition at line 579 of file he-capabilities.cc.

References m_channelWidthSet.

Referenced by ns3::WifiRemoteStationManager::AddStationHeCapabilities().

Here is the caller graph for this function:

◆ GetHeMacCapabilitiesInfo1()

uint32_t ns3::HeCapabilities::GetHeMacCapabilitiesInfo1 ( ) const

Return the 4 first octets of the HE MAC Capabilities Info field in the HE Capabilities information element.

Returns: the 4 first octets of the HE MAC Capabilities Info field in the HE Capabilities information element

Definition at line 234 of file he-capabilities.cc.

References m_32bitBaBitmapSupport, m_ackEnabledAggregationSupport, m_allAckSupport, m_amsduFragmentationSupport, m_broadcastTwtSupport, m_bsrSupport, m_flexibleTwtScheduleSupport, m_fragmentationSupport, m_heLinkAdaptation, m_maxAmpduLengthExponent, m_maximumNumberOfFragmentedMsdus, m_minimumFragmentSize, m_muCascadeSupport, m_multiTidAggregationRxSupport, m_ofdmaRaSupport, m_omControlSupport, m_plusHtcHeSupport, m_rxControlFrameToMultiBss, m_triggerFrameMacPaddingDuration, m_trsSupport, m_twtRequesterSupport, and m_twtResponderSupport.

Referenced by Print(), and SerializeInformationField().

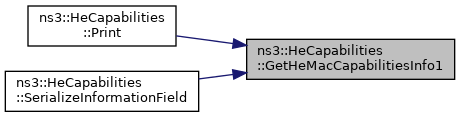

Here is the caller graph for this function:

◆ GetHeMacCapabilitiesInfo2()

uint16_t ns3::HeCapabilities::GetHeMacCapabilitiesInfo2 ( ) const

Return the last 2 octets of the HE MAC Capabilities Info field in the HE Capabilities information element.

Returns: the last 2 octets of the HE MAC Capabilities Info field in the HE Capabilities information element

Definition at line 265 of file he-capabilities.cc.

References m_amsduNotUnderBaInAmpduSupport, m_bqrSupport, m_bsrpBqrpAmpduAggregation, m_heDynamicSmPowerSave, m_heSubchannelSelectiveTxSupport, m_heVhtTriggerFrameRxSupport, m_multiTidAggregationTxSupport, m_ndpFeedbackReportSupport, m_omControlUlMuDataDisableRxSupport, m_opsSupport, m_psrResponder, m_puncturedSoundingSupport, m_qtpSupport, and m_ul2x996ToneRuSupport.

Referenced by Print(), and SerializeInformationField().

Here is the caller graph for this function:

◆ GetHePhyCapabilitiesInfo1()

uint64_t ns3::HeCapabilities::GetHePhyCapabilitiesInfo1 ( ) const

Return the 8 first octets of the HE PHY Capabilities Info field in the HE Capabilities information element.

Returns: the 8 first octets of the HE PHY Capabilities Info field in the HE Capabilities information element

Definition at line 351 of file he-capabilities.cc.

References m_beamformeeStsForLargerThan80Mhz, m_beamformeeStsForSmallerOrEqualThan80Mhz, m_channelWidthSet, m_codebookSize42SuFeedback, m_codebookSize75MuFeedback, m_dcmMaxConstellationRx, m_dcmMaxConstellationTx, m_dcmMaxNssRx, m_dcmMaxNssTx, m_deviceClass, m_dlMuMimoOnPartialBandwidth, m_dopplerRx, m_dopplerTx, m_erPartialBandwidth, m_fullBwUlMuMimo, m_hePpdu4xHeLtf800nsGi, m_heSuPpdu1xHeLtf800nsGi, m_ldpcCodingInPayload, m_maxNc, m_midambleRxMaxNsts, m_muBeamformer, m_ndp4xHeLtfAnd32msGi, m_ngEqual16ForMuFeedbackSupport, m_ngEqual16ForSuFeedbackSupport, m_numberOfSoundingDimensionsForLargerThan80Mhz, m_numberOfSoundingDimensionsForSmallerOrEqualThan80Mhz, m_partialBwUlMuMimo, m_powerBoostFactorAlphaSupport, m_ppeThresholdPresent, m_psrBasedSrSupport, m_puncturedPreambleRx, m_rxPartialBwSuInHeMu, m_stbcRxGt80MHz, m_stbcRxLeq80MHz, m_stbcTxGt80MHz, m_stbcTxLeq80MHz, m_suBeamformee, m_suBeamformer, m_triggeredCqiFeedback, m_triggeredMuBfFeedback, and m_triggeredSuBfFeedback.

Referenced by Print(), and SerializeInformationField().

Here is the caller graph for this function:

◆ GetHePhyCapabilitiesInfo2()

uint16_t ns3::HeCapabilities::GetHePhyCapabilitiesInfo2 ( ) const

Return the octets 9-10 of the HE PHY Capabilities Info field in the HE Capabilities information element.

Returns: the octets 9-10 of the HE PHY Capabilities Info field in the HE Capabilities information element

Definition at line 402 of file he-capabilities.cc.

References m_dcmMaxRu, m_heErSuPpdu1xHeLtf08Gi, m_heErSuPpdu4xHeLtf08sGi, m_hePpdu20MHzIn160MHz, m_hePpdu20MHzIn40MHz24GHz, m_hePpdu80MHzIn160MHz, m_longerThan16HeSigbOfdm, m_midamble2xAnd1xHeLtf, m_nominalPacketPadding, m_nonTriggeredCqiFeedback, m_rx1024QamLt242Ru, m_rxFullBwSuInHeMuCompressedSigB, m_rxFullBwSuInHeMuNonCompressedSigB, and m_tx1024QamLt242Ru.

Referenced by Print(), and SerializeInformationField().

Here is the caller graph for this function:

◆ GetHePhyCapabilitiesInfo3()

uint8_t ns3::HeCapabilities::GetHePhyCapabilitiesInfo3 ( ) const

Return the last octet of the HE PHY Capabilities Info field in the HE Capabilities information element.

Returns: the last octet of the HE PHY Capabilities Info field in the HE Capabilities information element

Definition at line 423 of file he-capabilities.cc.

References m_maxHeLtfRxInHeMuMoreThanOneRu.

Referenced by Print(), and SerializeInformationField().

Here is the caller graph for this function:

◆ GetHePpdu4xHeLtf800nsGi()

bool ns3::HeCapabilities::GetHePpdu4xHeLtf800nsGi ( ) const

Get 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception support.

Returns: true if 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception is supported, false otherwise

Definition at line 597 of file he-capabilities.cc.

References m_hePpdu4xHeLtf800nsGi.

◆ GetHeSuPpdu1xHeLtf800nsGi()

bool ns3::HeCapabilities::GetHeSuPpdu1xHeLtf800nsGi ( ) const

Get 1xHE-LTF and 800ns GI in HE SU PPDU reception support.

Returns: true if 1xHE-LTF and 800ns GI in HE SU PPDU reception is supported, false otherwise

Definition at line 591 of file he-capabilities.cc.

References m_heSuPpdu1xHeLtf800nsGi.

Referenced by ns3::WifiRemoteStationManager::AddStationHeCapabilities().

Here is the caller graph for this function:

◆ GetHighestMcsSupported()

uint8_t ns3::HeCapabilities::GetHighestMcsSupported ( ) const

Get highest MCS supported.

Returns: the highest MCS is supported

Definition at line 603 of file he-capabilities.cc.

References m_highestMcsSupported.

Referenced by ns3::WifiRemoteStationManager::AddStationHeCapabilities().

Here is the caller graph for this function:

◆ GetHighestNssSupported()

uint8_t ns3::HeCapabilities::GetHighestNssSupported ( ) const

Get highest NSS supported.

Returns: the highest supported NSS

Definition at line 609 of file he-capabilities.cc.

References m_highestNssSupportedM1.

◆ GetInformationFieldSize()

uint16_t ns3::HeCapabilities::GetInformationFieldSize ( ) const

overrideprivatevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 148 of file he-capabilities.cc.

◆ GetLdpcCodingInPayload()

uint8_t ns3::HeCapabilities::GetLdpcCodingInPayload ( ) const

Indicates support for the transmission and reception of LDPC encoded packets.

Returns: indication whether the transmission and reception of LDPC encoded packets is supported

Definition at line 585 of file he-capabilities.cc.

References m_ldpcCodingInPayload.

◆ GetMaxAmpduLength()

uint32_t ns3::HeCapabilities::GetMaxAmpduLength ( ) const

Return the maximum A-MPDU length.

Returns: the maximum A-MPDU length

Definition at line 615 of file he-capabilities.cc.

References m_maxAmpduLengthExponent.

◆ GetSupportedMcsAndNss()

uint16_t ns3::HeCapabilities::GetSupportedMcsAndNss ( ) const

Return the MCS and NSS field in the HE Capabilities information element.

Returns: the MCS and NSS field in the HE Capabilities information element

Definition at line 451 of file he-capabilities.cc.

References m_highestMcsSupported, m_highestNssSupportedM1, m_rxBwMap, and m_txBwMap.

Referenced by Print(), and SerializeInformationField().

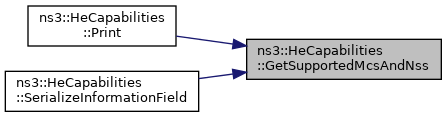

Here is the caller graph for this function:

◆ IsSupportedRxMcs()

bool ns3::HeCapabilities::IsSupportedRxMcs ( uint8_t mcs ) const

Is RX MCS supported.

Parameters

mcs the MCS

Returns: true if MCS receive supported

Definition at line 499 of file he-capabilities.cc.

References m_highestMcsSupported, and NS_ASSERT.

◆ IsSupportedTxMcs()

bool ns3::HeCapabilities::IsSupportedTxMcs ( uint8_t mcs ) const

Is RX MCS supported.

Parameters

mcs the MCS

Returns: true if MCS transmit supported

Definition at line 472 of file he-capabilities.cc.

References m_highestMcsSupported, and NS_ASSERT.

◆ Print()

void ns3::HeCapabilities::Print ( std::ostream & os ) const

overridevirtual

Generate human-readable form of IE.

Parameters

os	output stream

Reimplemented from ns3::WifiInformationElement.

Definition at line 140 of file he-capabilities.cc.

References GetHeMacCapabilitiesInfo1(), GetHeMacCapabilitiesInfo2(), GetHePhyCapabilitiesInfo1(), GetHePhyCapabilitiesInfo2(), GetHePhyCapabilitiesInfo3(), and GetSupportedMcsAndNss().

Here is the call graph for this function:

◆ SerializeInformationField()

void ns3::HeCapabilities::SerializeInformationField ( Buffer::Iterator start ) const

overrideprivatevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 159 of file he-capabilities.cc.

References GetHeMacCapabilitiesInfo1(), GetHeMacCapabilitiesInfo2(), GetHePhyCapabilitiesInfo1(), GetHePhyCapabilitiesInfo2(), GetHePhyCapabilitiesInfo3(), GetSupportedMcsAndNss(), and two-ray-to-three-gpp-ch-calibration::start.

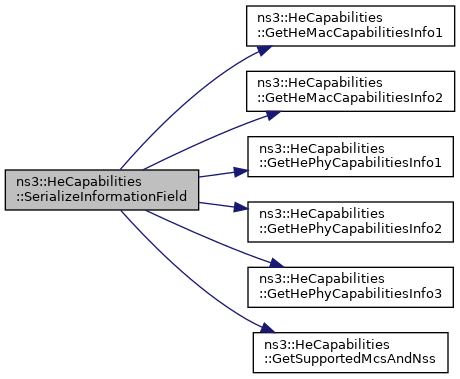

Here is the call graph for this function:

◆ SetChannelWidthSet()

void ns3::HeCapabilities::SetChannelWidthSet ( uint8_t channelWidthSet )

Set channel width set.

Parameters

channelWidthSet the channel width set

Definition at line 526 of file he-capabilities.cc.

References m_channelWidthSet, and NS_ASSERT.

Referenced by WifiEhtCapabilitiesIeTest::GetHeCapabilities(), and ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetHeMacCapabilitiesInfo()

void ns3::HeCapabilities::SetHeMacCapabilitiesInfo	(	uint32_t	ctrl1,
		uint16_t	ctrl2
	)

Set the HE MAC Capabilities Info field in the HE Capabilities information element.

Parameters

ctrl1	the HE MAC Capabilities Info field 1 in the HE Capabilities information element
ctrl2	the HE MAC Capabilities Info field 2 in the HE Capabilities information element

Definition at line 191 of file he-capabilities.cc.

References m_32bitBaBitmapSupport, m_ackEnabledAggregationSupport, m_allAckSupport, m_amsduFragmentationSupport, m_amsduNotUnderBaInAmpduSupport, m_bqrSupport, m_broadcastTwtSupport, m_bsrpBqrpAmpduAggregation, m_bsrSupport, m_flexibleTwtScheduleSupport, m_fragmentationSupport, m_heDynamicSmPowerSave, m_heLinkAdaptation, m_heSubchannelSelectiveTxSupport, m_heVhtTriggerFrameRxSupport, m_maxAmpduLengthExponent, m_maximumNumberOfFragmentedMsdus, m_minimumFragmentSize, m_muCascadeSupport, m_multiTidAggregationRxSupport, m_multiTidAggregationTxSupport, m_ndpFeedbackReportSupport, m_ofdmaRaSupport, m_omControlSupport, m_omControlUlMuDataDisableRxSupport, m_opsSupport, m_plusHtcHeSupport, m_psrResponder, m_puncturedSoundingSupport, m_qtpSupport, m_rxControlFrameToMultiBss, m_triggerFrameMacPaddingDuration, m_trsSupport, m_twtRequesterSupport, m_twtResponderSupport, and m_ul2x996ToneRuSupport.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetHePhyCapabilitiesInfo()

void ns3::HeCapabilities::SetHePhyCapabilitiesInfo	(	uint64_t	ctrl1,
		uint16_t	ctrl2,
		uint8_t	ctrl3
	)

Set the HE PHY Capabilities Info field in the HE Capabilities information element.

Parameters

ctrl1	the HE PHY Capabilities Info field 1 in the HE Capabilities information element
ctrl2	the HE PHY Capabilities Info field 2 in the HE Capabilities information element
ctrl3	the HE PHY Capabilities Info field 3 in the HE Capabilities information element

Definition at line 286 of file he-capabilities.cc.

References m_beamformeeStsForLargerThan80Mhz, m_beamformeeStsForSmallerOrEqualThan80Mhz, m_channelWidthSet, m_codebookSize42SuFeedback, m_codebookSize75MuFeedback, m_dcmMaxConstellationRx, m_dcmMaxConstellationTx, m_dcmMaxNssRx, m_dcmMaxNssTx, m_dcmMaxRu, m_deviceClass, m_dlMuMimoOnPartialBandwidth, m_dopplerRx, m_dopplerTx, m_erPartialBandwidth, m_fullBwUlMuMimo, m_heErSuPpdu1xHeLtf08Gi, m_heErSuPpdu4xHeLtf08sGi, m_hePpdu20MHzIn160MHz, m_hePpdu20MHzIn40MHz24GHz, m_hePpdu4xHeLtf800nsGi, m_hePpdu80MHzIn160MHz, m_heSuPpdu1xHeLtf800nsGi, m_ldpcCodingInPayload, m_longerThan16HeSigbOfdm, m_maxHeLtfRxInHeMuMoreThanOneRu, m_maxNc, m_midamble2xAnd1xHeLtf, m_midambleRxMaxNsts, m_muBeamformer, m_ndp4xHeLtfAnd32msGi, m_ngEqual16ForMuFeedbackSupport, m_ngEqual16ForSuFeedbackSupport, m_nominalPacketPadding, m_nonTriggeredCqiFeedback, m_numberOfSoundingDimensionsForLargerThan80Mhz, m_numberOfSoundingDimensionsForSmallerOrEqualThan80Mhz, m_partialBwUlMuMimo, m_powerBoostFactorAlphaSupport, m_ppeThresholdPresent, m_psrBasedSrSupport, m_puncturedPreambleRx, m_rx1024QamLt242Ru, m_rxFullBwSuInHeMuCompressedSigB, m_rxFullBwSuInHeMuNonCompressedSigB, m_rxPartialBwSuInHeMu, m_stbcRxGt80MHz, m_stbcRxLeq80MHz, m_stbcTxGt80MHz, m_stbcTxLeq80MHz, m_suBeamformee, m_suBeamformer, m_triggeredCqiFeedback, m_triggeredMuBfFeedback, m_triggeredSuBfFeedback, and m_tx1024QamLt242Ru.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SetHePpdu4xHeLtf800nsGi()

void ns3::HeCapabilities::SetHePpdu4xHeLtf800nsGi ( bool heSuPpdu4xHeLtf800nsGi )

Set 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception support.

Parameters

heSuPpdu4xHeLtf800nsGi 4xHE-LTF and 800ns GI in HE SU PPDU and HE MU PPDU reception support

Definition at line 545 of file he-capabilities.cc.

References m_hePpdu4xHeLtf800nsGi.

Referenced by ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetHeSuPpdu1xHeLtf800nsGi()

void ns3::HeCapabilities::SetHeSuPpdu1xHeLtf800nsGi ( bool heSuPpdu1xHeLtf800nsGi )

Set 1xHE-LTF and 800ns GI in HE SU PPDU reception support.

Parameters

heSuPpdu1xHeLtf800nsGi 1xHE-LTF and 800ns GI in HE SU PPDU reception support

Definition at line 539 of file he-capabilities.cc.

References m_heSuPpdu1xHeLtf800nsGi.

Referenced by ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetHighestMcsSupported()

void ns3::HeCapabilities::SetHighestMcsSupported ( uint8_t mcs )

Set highest MCS supported.

Parameters

mcs the MCS

Definition at line 565 of file he-capabilities.cc.

References m_highestMcsSupported, and NS_ASSERT.

Referenced by ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetHighestNssSupported()

void ns3::HeCapabilities::SetHighestNssSupported ( uint8_t nss )

Set highest NSS supported.

Parameters

nss the NSS

Definition at line 572 of file he-capabilities.cc.

References m_highestNssSupportedM1, and NS_ASSERT.

Referenced by ns3::WifiMac::GetHeCapabilities().

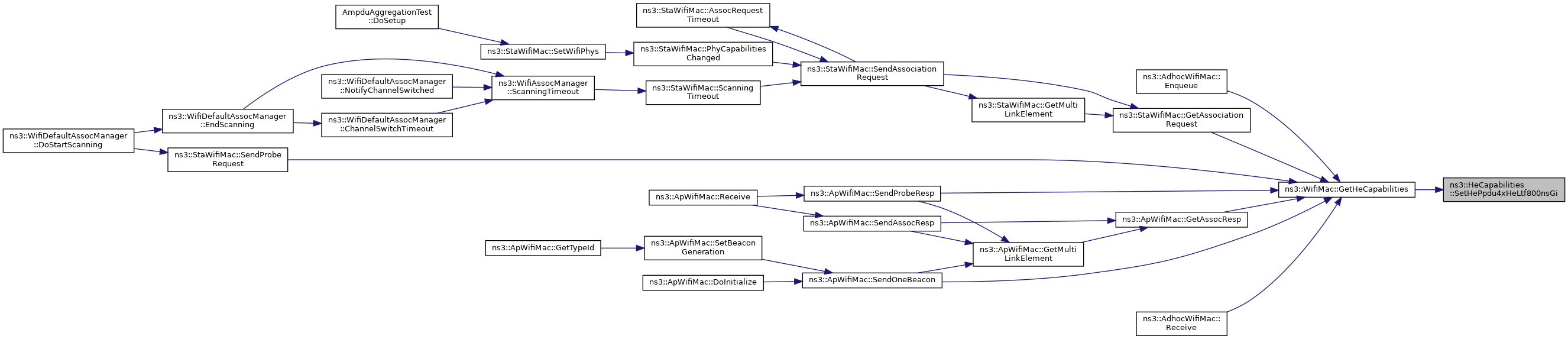

Here is the caller graph for this function:

◆ SetLdpcCodingInPayload()

void ns3::HeCapabilities::SetLdpcCodingInPayload ( uint8_t ldpcCodingInPayload )

Set indication whether the transmission and reception of LDPC encoded packets is supported.

Parameters

ldpcCodingInPayload indication whether the transmission and reception of LDPC encoded packets is supported

Definition at line 533 of file he-capabilities.cc.

References m_ldpcCodingInPayload.

Referenced by ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetMaxAmpduLength()

void ns3::HeCapabilities::SetMaxAmpduLength ( uint32_t maxAmpduLength )

Set the maximum AMPDU length.

Parameters

maxAmpduLength 2^(20 + x) - 1, x in the range 0 to 3

Definition at line 551 of file he-capabilities.cc.

References m_maxAmpduLengthExponent, and NS_ABORT_MSG.

Referenced by AmpduAggregationTest::DoSetup(), and ns3::WifiMac::GetHeCapabilities().

Here is the caller graph for this function:

◆ SetSupportedMcsAndNss()

void ns3::HeCapabilities::SetSupportedMcsAndNss ( uint16_t ctrl )

Set the MCS and NSS field in the HE Capabilities information element.

Parameters

ctrl	the MCS and NSS field in the HE Capabilities information element

Definition at line 433 of file he-capabilities.cc.

References m_highestMcsSupported, m_highestNssSupportedM1, m_rxBwMap, m_txBwMap, and NS_ASSERT.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

Member Data Documentation

◆ m_32bitBaBitmapSupport

uint8_t ns3::HeCapabilities::m_32bitBaBitmapSupport

private

32-bit BA bitmap support

Definition at line 242 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_ackEnabledAggregationSupport

uint8_t ns3::HeCapabilities::m_ackEnabledAggregationSupport

private

ack enabled aggregation support

Definition at line 244 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_allAckSupport

uint8_t ns3::HeCapabilities::m_allAckSupport

private

all Ack support

Definition at line 238 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_amsduFragmentationSupport

uint8_t ns3::HeCapabilities::m_amsduFragmentationSupport

private

A-MSDU fragmentation support.

Definition at line 248 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_amsduNotUnderBaInAmpduSupport

uint8_t ns3::HeCapabilities::m_amsduNotUnderBaInAmpduSupport

private

AMSDU not under BA in Ack enabled A-MPDU support.

Definition at line 257 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_beamformeeStsForLargerThan80Mhz

uint8_t ns3::HeCapabilities::m_beamformeeStsForLargerThan80Mhz

private

beamformee STS for > 80MHz

Definition at line 290 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_beamformeeStsForSmallerOrEqualThan80Mhz

uint8_t ns3::HeCapabilities::m_beamformeeStsForSmallerOrEqualThan80Mhz

private

beam formee STS for < 80 MHz

Definition at line 289 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_bqrSupport

uint8_t ns3::HeCapabilities::m_bqrSupport

private

BQR support.

Definition at line 253 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_broadcastTwtSupport

uint8_t ns3::HeCapabilities::m_broadcastTwtSupport

private

broadcast TXT support

Definition at line 241 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_bsrpBqrpAmpduAggregation

uint8_t ns3::HeCapabilities::m_bsrpBqrpAmpduAggregation

private

BSRP BQRP A-MPDU aggregation.

Definition at line 251 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_bsrSupport

uint8_t ns3::HeCapabilities::m_bsrSupport

private

BSR support.

Definition at line 240 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_channelWidthSet

uint8_t ns3::HeCapabilities::m_channelWidthSet

private

channel width set

Definition at line 268 of file he-capabilities.h.

Referenced by GetChannelWidthSet(), GetHePhyCapabilitiesInfo1(), SetChannelWidthSet(), and SetHePhyCapabilitiesInfo().

◆ m_codebookSize42SuFeedback

uint8_t ns3::HeCapabilities::m_codebookSize42SuFeedback

private

Codebook Size = {4, 2} SU feedback.

Definition at line 297 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_codebookSize75MuFeedback

uint8_t ns3::HeCapabilities::m_codebookSize75MuFeedback

private

Codebook Size = {7, 5} MU feedback.

Definition at line 298 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dcmMaxConstellationRx

uint8_t ns3::HeCapabilities::m_dcmMaxConstellationRx

private

DCM Max Constellation Rx.

Definition at line 283 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dcmMaxConstellationTx

uint8_t ns3::HeCapabilities::m_dcmMaxConstellationTx

private

DCM Max Constellation Tx.

Definition at line 281 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dcmMaxNssRx

uint8_t ns3::HeCapabilities::m_dcmMaxNssRx

private

DCM Max NSS Rx.

Definition at line 284 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dcmMaxNssTx

uint8_t ns3::HeCapabilities::m_dcmMaxNssTx

private

DCM Max NSS Tx.

Definition at line 282 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dcmMaxRu

uint8_t ns3::HeCapabilities::m_dcmMaxRu

private

DCM Max RU.

Definition at line 317 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_deviceClass

uint8_t ns3::HeCapabilities::m_deviceClass

private

device class

Definition at line 270 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dlMuMimoOnPartialBandwidth

uint8_t ns3::HeCapabilities::m_dlMuMimoOnPartialBandwidth

private

DL MU-MIMO on partial bandwidth.

Definition at line 303 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dopplerRx

uint8_t ns3::HeCapabilities::m_dopplerRx

private

Doppler Rx.

Definition at line 278 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_dopplerTx

uint8_t ns3::HeCapabilities::m_dopplerTx

private

Doppler Tx.

Definition at line 277 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_erPartialBandwidth

uint8_t ns3::HeCapabilities::m_erPartialBandwidth

private

Extended range partial bandwidth.

Definition at line 302 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_flexibleTwtScheduleSupport

uint8_t ns3::HeCapabilities::m_flexibleTwtScheduleSupport

private

flexible TWT schedule support

Definition at line 249 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_fragmentationSupport

uint8_t ns3::HeCapabilities::m_fragmentationSupport

private

fragmentation support

Definition at line 232 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_fullBwUlMuMimo

uint8_t ns3::HeCapabilities::m_fullBwUlMuMimo

private

Full Bandwidth UL MU-MIMO.

Definition at line 279 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_heDynamicSmPowerSave

uint8_t ns3::HeCapabilities::m_heDynamicSmPowerSave

private

HE dynamic SM power save.

Definition at line 262 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_heErSuPpdu1xHeLtf08Gi

uint8_t ns3::HeCapabilities::m_heErSuPpdu1xHeLtf08Gi

private

HE ER SU PPDU with 1x HE LTF and 0.8us GI.

Definition at line 315 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_heErSuPpdu4xHeLtf08sGi

uint8_t ns3::HeCapabilities::m_heErSuPpdu4xHeLtf08sGi

private

HE ER SU PPDU with 4x HE LTF and 0.8us GI.

Definition at line 311 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_heLinkAdaptation

uint8_t ns3::HeCapabilities::m_heLinkAdaptation

private

HE link adaptation.

Definition at line 237 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_hePpdu20MHzIn160MHz

uint8_t ns3::HeCapabilities::m_hePpdu20MHzIn160MHz

private

20MHz in 160/80+80MHz HE PPDU

Definition at line 313 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_hePpdu20MHzIn40MHz24GHz

uint8_t ns3::HeCapabilities::m_hePpdu20MHzIn40MHz24GHz

private

20MHz in 40MHz HE PPDU in 2.4GHz band

Definition at line 312 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_hePpdu4xHeLtf800nsGi

uint8_t ns3::HeCapabilities::m_hePpdu4xHeLtf800nsGi

private

4 times HE-LFT and 800ns GI support for HE-PPDUs

Definition at line 307 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), GetHePpdu4xHeLtf800nsGi(), SetHePhyCapabilitiesInfo(), and SetHePpdu4xHeLtf800nsGi().

◆ m_hePpdu80MHzIn160MHz

uint8_t ns3::HeCapabilities::m_hePpdu80MHzIn160MHz

private

80MHz in 160/80+80MHz HE PPDU

Definition at line 314 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_heSubchannelSelectiveTxSupport

uint8_t ns3::HeCapabilities::m_heSubchannelSelectiveTxSupport

private

HE subchannel selective transmission support.

Definition at line 259 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_heSuPpdu1xHeLtf800nsGi

uint8_t ns3::HeCapabilities::m_heSuPpdu1xHeLtf800nsGi

private

HE SU PPDU with 1x HE LTF and 0.8us GI.

Definition at line 272 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), GetHeSuPpdu1xHeLtf800nsGi(), SetHePhyCapabilitiesInfo(), and SetHeSuPpdu1xHeLtf800nsGi().

◆ m_heVhtTriggerFrameRxSupport

uint8_t ns3::HeCapabilities::m_heVhtTriggerFrameRxSupport

private

HE and VHT trigger frame RX support.

Definition at line 264 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_highestMcsSupported

uint8_t ns3::HeCapabilities::m_highestMcsSupported

private

highest MCS support

Definition at line 332 of file he-capabilities.h.

Referenced by GetHighestMcsSupported(), GetSupportedMcsAndNss(), IsSupportedRxMcs(), IsSupportedTxMcs(), SetHighestMcsSupported(), and SetSupportedMcsAndNss().

◆ m_highestNssSupportedM1

uint8_t ns3::HeCapabilities::m_highestNssSupportedM1

private

highest NSS support M1

Definition at line 331 of file he-capabilities.h.

Referenced by GetHighestNssSupported(), GetSupportedMcsAndNss(), SetHighestNssSupported(), and SetSupportedMcsAndNss().

◆ m_ldpcCodingInPayload

uint8_t ns3::HeCapabilities::m_ldpcCodingInPayload

private

LDPC coding in payload.

Definition at line 271 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), GetLdpcCodingInPayload(), SetHePhyCapabilitiesInfo(), and SetLdpcCodingInPayload().

◆ m_longerThan16HeSigbOfdm

uint8_t ns3::HeCapabilities::m_longerThan16HeSigbOfdm

private

Longer than 16 HE SIG-=B OFDM symbols support.

Definition at line 318 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_maxAmpduLengthExponent

uint8_t ns3::HeCapabilities::m_maxAmpduLengthExponent

private

maximum A-MPDU length exponent extension

Definition at line 247 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), GetMaxAmpduLength(), SetHeMacCapabilitiesInfo(), and SetMaxAmpduLength().

◆ m_maxHeLtfRxInHeMuMoreThanOneRu

uint8_t ns3::HeCapabilities::m_maxHeLtfRxInHeMuMoreThanOneRu

private

max HE-LTF symbols STA can Rx in HE MU PPDU with more than one RU

Definition at line 327 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo3(), and SetHePhyCapabilitiesInfo().

◆ m_maximumNumberOfFragmentedMsdus

uint8_t ns3::HeCapabilities::m_maximumNumberOfFragmentedMsdus

private

maximum number of fragmentation MSDUs

Definition at line 233 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_maxNc

uint8_t ns3::HeCapabilities::m_maxNc

private

Max Nc for HE compressed beamforming/CQI report.

Definition at line 308 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_midamble2xAnd1xHeLtf

uint8_t ns3::HeCapabilities::m_midamble2xAnd1xHeLtf

private

Midamble TX/RX 2x and 1x HE-LTF.

Definition at line 316 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_midambleRxMaxNsts

uint8_t ns3::HeCapabilities::m_midambleRxMaxNsts

private

Midamble TX/RX max NSTS.

Definition at line 273 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_minimumFragmentSize

uint8_t ns3::HeCapabilities::m_minimumFragmentSize

private

minimum fragment size

Definition at line 234 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_muBeamformer

uint8_t ns3::HeCapabilities::m_muBeamformer

private

MU beamformer.

Definition at line 288 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_muCascadeSupport

uint8_t ns3::HeCapabilities::m_muCascadeSupport

private

MU cascade support.

Definition at line 243 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_multiTidAggregationRxSupport

uint8_t ns3::HeCapabilities::m_multiTidAggregationRxSupport

private

multi-TID aggregation Rx support

Definition at line 236 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_multiTidAggregationTxSupport

uint8_t ns3::HeCapabilities::m_multiTidAggregationTxSupport

private

Multi-TID aggregation TX support.

Definition at line 258 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_ndp4xHeLtfAnd32msGi

uint8_t ns3::HeCapabilities::m_ndp4xHeLtfAnd32msGi

private

NDP with 4x HE-LTF and 3.2us GI.

Definition at line 274 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_ndpFeedbackReportSupport

uint8_t ns3::HeCapabilities::m_ndpFeedbackReportSupport

private

NDP feedback report support.

Definition at line 255 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_ngEqual16ForMuFeedbackSupport

uint8_t ns3::HeCapabilities::m_ngEqual16ForMuFeedbackSupport

private

equal 16 for MU feedback

Definition at line 296 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_ngEqual16ForSuFeedbackSupport

uint8_t ns3::HeCapabilities::m_ngEqual16ForSuFeedbackSupport

private

equal 16 for SU feedback

Definition at line 295 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_nominalPacketPadding

uint8_t ns3::HeCapabilities::m_nominalPacketPadding

private

Nominal packet padding.

Definition at line 326 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_nonTriggeredCqiFeedback

uint8_t ns3::HeCapabilities::m_nonTriggeredCqiFeedback

private

Non-Triggered CQI feedback.

Definition at line 319 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_numberOfSoundingDimensionsForLargerThan80Mhz

uint8_t ns3::HeCapabilities::m_numberOfSoundingDimensionsForLargerThan80Mhz

private

of sounding dimensions for > 80 MHz

Definition at line 294 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_numberOfSoundingDimensionsForSmallerOrEqualThan80Mhz

uint8_t ns3::HeCapabilities::m_numberOfSoundingDimensionsForSmallerOrEqualThan80Mhz

private

of sounding dimensions

for < 80 MHz

Definition at line 291 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_ofdmaRaSupport

uint8_t ns3::HeCapabilities::m_ofdmaRaSupport

private

OFDMA RA support.

Definition at line 246 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_omControlSupport

uint8_t ns3::HeCapabilities::m_omControlSupport

private

operation mode control support

Definition at line 245 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_omControlUlMuDataDisableRxSupport

uint8_t ns3::HeCapabilities::m_omControlUlMuDataDisableRxSupport

private

OM control UL MU data disable RX support.

Definition at line 261 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_opsSupport

uint8_t ns3::HeCapabilities::m_opsSupport

private

OPS support.

Definition at line 256 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_partialBwUlMuMimo

uint8_t ns3::HeCapabilities::m_partialBwUlMuMimo

private

Partial Bandwidth UL MU-MIMO.

Definition at line 280 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_plusHtcHeSupport

uint8_t ns3::HeCapabilities::m_plusHtcHeSupport

private

HTC HE support.

Definition at line 229 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_powerBoostFactorAlphaSupport

uint8_t ns3::HeCapabilities::m_powerBoostFactorAlphaSupport

private

power boost factor alpha support

Definition at line 306 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_ppeThresholdPresent

uint8_t ns3::HeCapabilities::m_ppeThresholdPresent

private

PPE threshold present.

Definition at line 304 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_psrBasedSrSupport

uint8_t ns3::HeCapabilities::m_psrBasedSrSupport

private

PSR based SR support.

Definition at line 305 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_psrResponder

uint8_t ns3::HeCapabilities::m_psrResponder

private

PSR responder.

Definition at line 254 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_puncturedPreambleRx

uint8_t ns3::HeCapabilities::m_puncturedPreambleRx

private

Punctured preamble Rx.

Definition at line 269 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_puncturedSoundingSupport

uint8_t ns3::HeCapabilities::m_puncturedSoundingSupport

private

punctured sounding support

Definition at line 263 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_qtpSupport

uint8_t ns3::HeCapabilities::m_qtpSupport

private

QTP support.

Definition at line 252 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

◆ m_rx1024QamLt242Ru

uint8_t ns3::HeCapabilities::m_rx1024QamLt242Ru

private

TX 1024 QAM < 242 =-tone RU support.

Definition at line 321 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_rxBwMap

std::vector<uint8_t> ns3::HeCapabilities::m_rxBwMap

private

receive BW map

Definition at line 334 of file he-capabilities.h.

Referenced by HeCapabilities(), GetSupportedMcsAndNss(), and SetSupportedMcsAndNss().

◆ m_rxControlFrameToMultiBss

uint8_t ns3::HeCapabilities::m_rxControlFrameToMultiBss

private

receive control frame to multi-BSS

Definition at line 250 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_rxFullBwSuInHeMuCompressedSigB

uint8_t ns3::HeCapabilities::m_rxFullBwSuInHeMuCompressedSigB

private

RX full BW SU using HE MU PPDU with compressed SIGB.

Definition at line 323 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_rxFullBwSuInHeMuNonCompressedSigB

uint8_t ns3::HeCapabilities::m_rxFullBwSuInHeMuNonCompressedSigB

private

RX full BW SU using HE MU PPDU with non-compressed SIGB.

Definition at line 324 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_rxPartialBwSuInHeMu

uint8_t ns3::HeCapabilities::m_rxPartialBwSuInHeMu

private

Rx Partial BW SU in 20 MHz HE MU PPDU.

Definition at line 285 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_stbcRxGt80MHz

uint8_t ns3::HeCapabilities::m_stbcRxGt80MHz

private

STBC RX > 80MHz.

Definition at line 310 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_stbcRxLeq80MHz

uint8_t ns3::HeCapabilities::m_stbcRxLeq80MHz

private

STBC RX <= 80Mhz.

Definition at line 276 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_stbcTxGt80MHz

uint8_t ns3::HeCapabilities::m_stbcTxGt80MHz

private

STBC Tx > 80MHz.

Definition at line 309 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_stbcTxLeq80MHz

uint8_t ns3::HeCapabilities::m_stbcTxLeq80MHz

private

STBC TX <= 80MHz.

Definition at line 275 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_suBeamformee

uint8_t ns3::HeCapabilities::m_suBeamformee

private

SU beamformee.

Definition at line 287 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_suBeamformer

uint8_t ns3::HeCapabilities::m_suBeamformer

private

SU beamformer.

Definition at line 286 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_triggeredCqiFeedback

uint8_t ns3::HeCapabilities::m_triggeredCqiFeedback

private

Triggered CQI feedback.

Definition at line 301 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_triggeredMuBfFeedback

uint8_t ns3::HeCapabilities::m_triggeredMuBfFeedback

private

Triggered MU beamforming feedback.

Definition at line 300 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_triggeredSuBfFeedback

uint8_t ns3::HeCapabilities::m_triggeredSuBfFeedback

private

Triggered SU beamforming feedback.

Definition at line 299 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo1(), and SetHePhyCapabilitiesInfo().

◆ m_triggerFrameMacPaddingDuration

uint8_t ns3::HeCapabilities::m_triggerFrameMacPaddingDuration

private

trigger frame MAC padding duration

Definition at line 235 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_trsSupport

uint8_t ns3::HeCapabilities::m_trsSupport

private

TRS support.

Definition at line 239 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_twtRequesterSupport

uint8_t ns3::HeCapabilities::m_twtRequesterSupport

private

TWT requester support.

Definition at line 230 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_twtResponderSupport

uint8_t ns3::HeCapabilities::m_twtResponderSupport

private

TWT responder support.

Definition at line 231 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo1(), and SetHeMacCapabilitiesInfo().

◆ m_tx1024QamLt242Ru

uint8_t ns3::HeCapabilities::m_tx1024QamLt242Ru

private

TX 1024 QAM < 242 =-tone RU support.

Definition at line 320 of file he-capabilities.h.

Referenced by GetHePhyCapabilitiesInfo2(), and SetHePhyCapabilitiesInfo().

◆ m_txBwMap

std::vector<uint8_t> ns3::HeCapabilities::m_txBwMap

private

transmit BW map

Definition at line 333 of file he-capabilities.h.

Referenced by HeCapabilities(), GetSupportedMcsAndNss(), and SetSupportedMcsAndNss().

◆ m_ul2x996ToneRuSupport

uint8_t ns3::HeCapabilities::m_ul2x996ToneRuSupport

private

UL 2x996 tone RU support.

Definition at line 260 of file he-capabilities.h.

Referenced by GetHeMacCapabilitiesInfo2(), and SetHeMacCapabilitiesInfo().

The documentation for this class was generated from the following files:

src/wifi/model/he/he-capabilities.h
src/wifi/model/he/he-capabilities.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ HeCapabilities()

Member Function Documentation

◆ DeserializeInformationField()

◆ ElementId()

◆ ElementIdExt()

◆ GetChannelWidthSet()

◆ GetHeMacCapabilitiesInfo1()

◆ GetHeMacCapabilitiesInfo2()

◆ GetHePhyCapabilitiesInfo1()

◆ GetHePhyCapabilitiesInfo2()

◆ GetHePhyCapabilitiesInfo3()

◆ GetHePpdu4xHeLtf800nsGi()

◆ GetHeSuPpdu1xHeLtf800nsGi()

◆ GetHighestMcsSupported()

◆ GetHighestNssSupported()

◆ GetInformationFieldSize()

◆ GetLdpcCodingInPayload()

◆ GetMaxAmpduLength()

◆ GetSupportedMcsAndNss()

◆ IsSupportedRxMcs()

◆ IsSupportedTxMcs()

◆ Print()

◆ SerializeInformationField()

◆ SetChannelWidthSet()

◆ SetHeMacCapabilitiesInfo()

◆ SetHePhyCapabilitiesInfo()

◆ SetHePpdu4xHeLtf800nsGi()

◆ SetHeSuPpdu1xHeLtf800nsGi()

◆ SetHighestMcsSupported()

◆ SetHighestNssSupported()

◆ SetLdpcCodingInPayload()

◆ SetMaxAmpduLength()

◆ SetSupportedMcsAndNss()

Member Data Documentation

◆ m_32bitBaBitmapSupport

◆ m_ackEnabledAggregationSupport

◆ m_allAckSupport

◆ m_amsduFragmentationSupport

◆ m_amsduNotUnderBaInAmpduSupport

◆ m_beamformeeStsForLargerThan80Mhz

◆ m_beamformeeStsForSmallerOrEqualThan80Mhz

◆ m_bqrSupport

◆ m_broadcastTwtSupport

◆ m_bsrpBqrpAmpduAggregation

◆ m_bsrSupport

◆ m_channelWidthSet

◆ m_codebookSize42SuFeedback

◆ m_codebookSize75MuFeedback

◆ m_dcmMaxConstellationRx

◆ m_dcmMaxConstellationTx

◆ m_dcmMaxNssRx

◆ m_dcmMaxNssTx

◆ m_dcmMaxRu

◆ m_deviceClass

◆ m_dlMuMimoOnPartialBandwidth

◆ m_dopplerRx

◆ m_dopplerTx

◆ m_erPartialBandwidth

◆ m_flexibleTwtScheduleSupport

◆ m_fragmentationSupport

◆ m_fullBwUlMuMimo

◆ m_heDynamicSmPowerSave

◆ m_heErSuPpdu1xHeLtf08Gi

◆ m_heErSuPpdu4xHeLtf08sGi

◆ m_heLinkAdaptation

◆ m_hePpdu20MHzIn160MHz

◆ m_hePpdu20MHzIn40MHz24GHz

◆ m_hePpdu4xHeLtf800nsGi

◆ m_hePpdu80MHzIn160MHz

◆ m_heSubchannelSelectiveTxSupport

◆ m_heSuPpdu1xHeLtf800nsGi

◆ m_heVhtTriggerFrameRxSupport

◆ m_highestMcsSupported

◆ m_highestNssSupportedM1

◆ m_ldpcCodingInPayload
