PHY entity for EHT (11be) More...

#include "eht-phy.h"

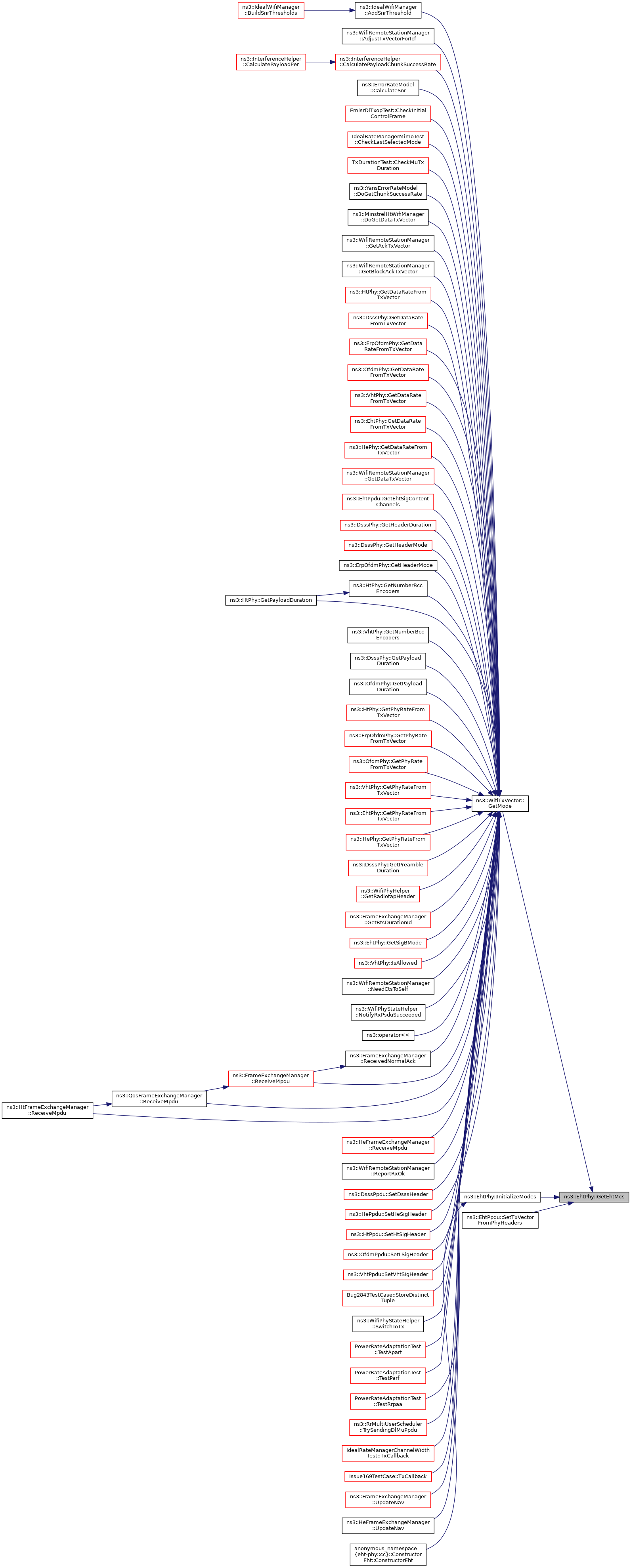

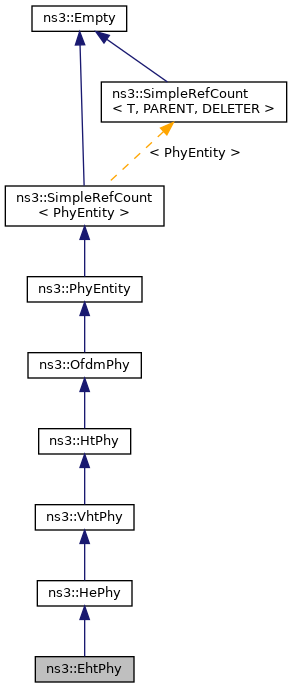

Inheritance diagram for ns3::EhtPhy:

Collaboration diagram for ns3::EhtPhy:

Public Member Functions
	EhtPhy (bool buildModeList=true)
	Constructor for EHT PHY. More...

	~EhtPhy () override
	Destructor for EHT PHY. More...

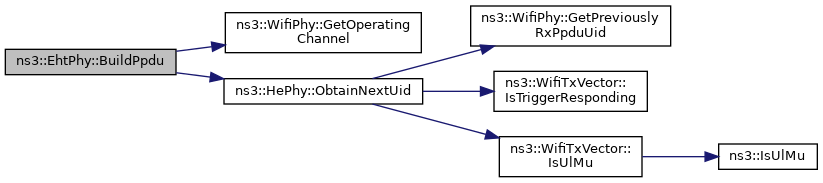

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

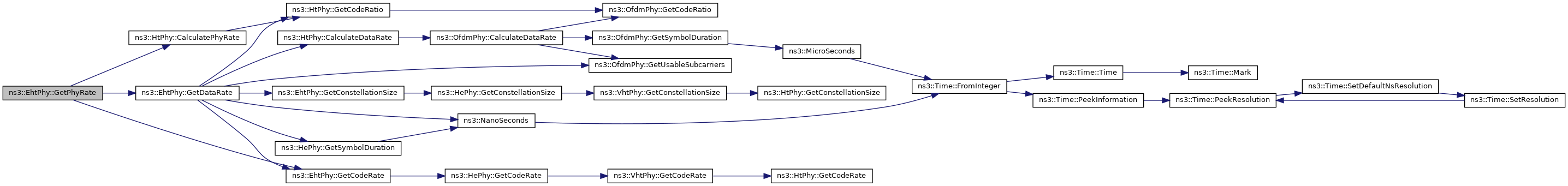

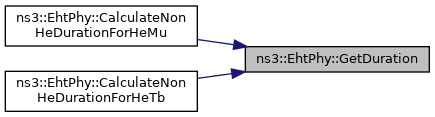

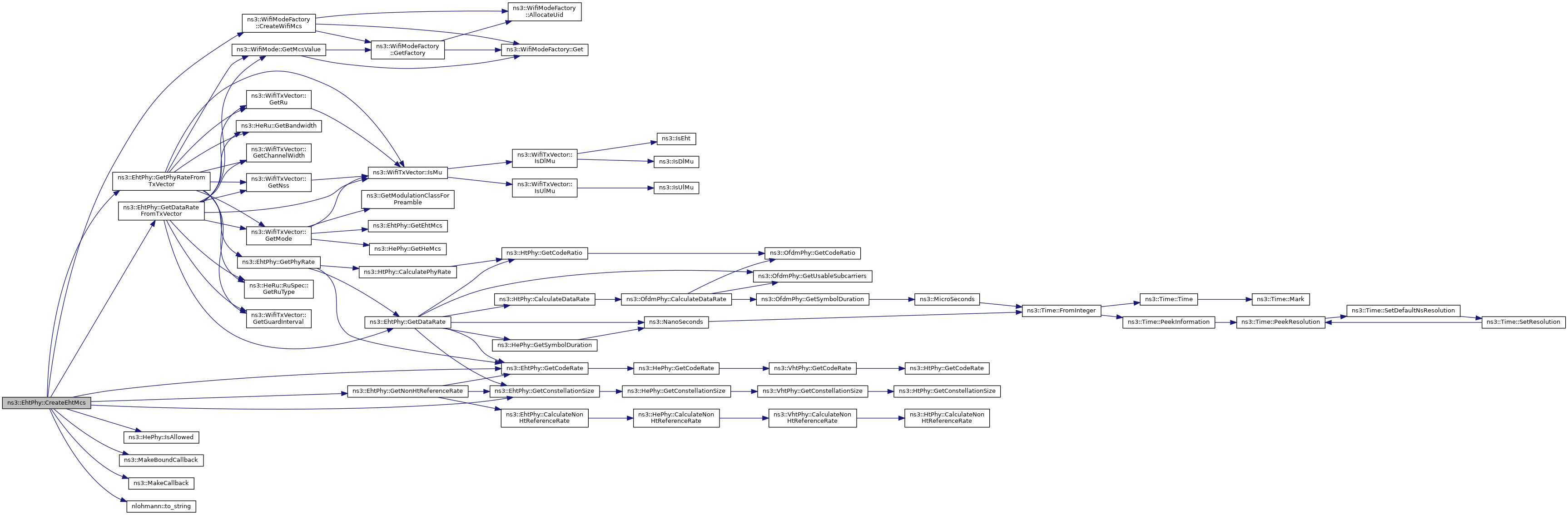

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More...

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY. More...

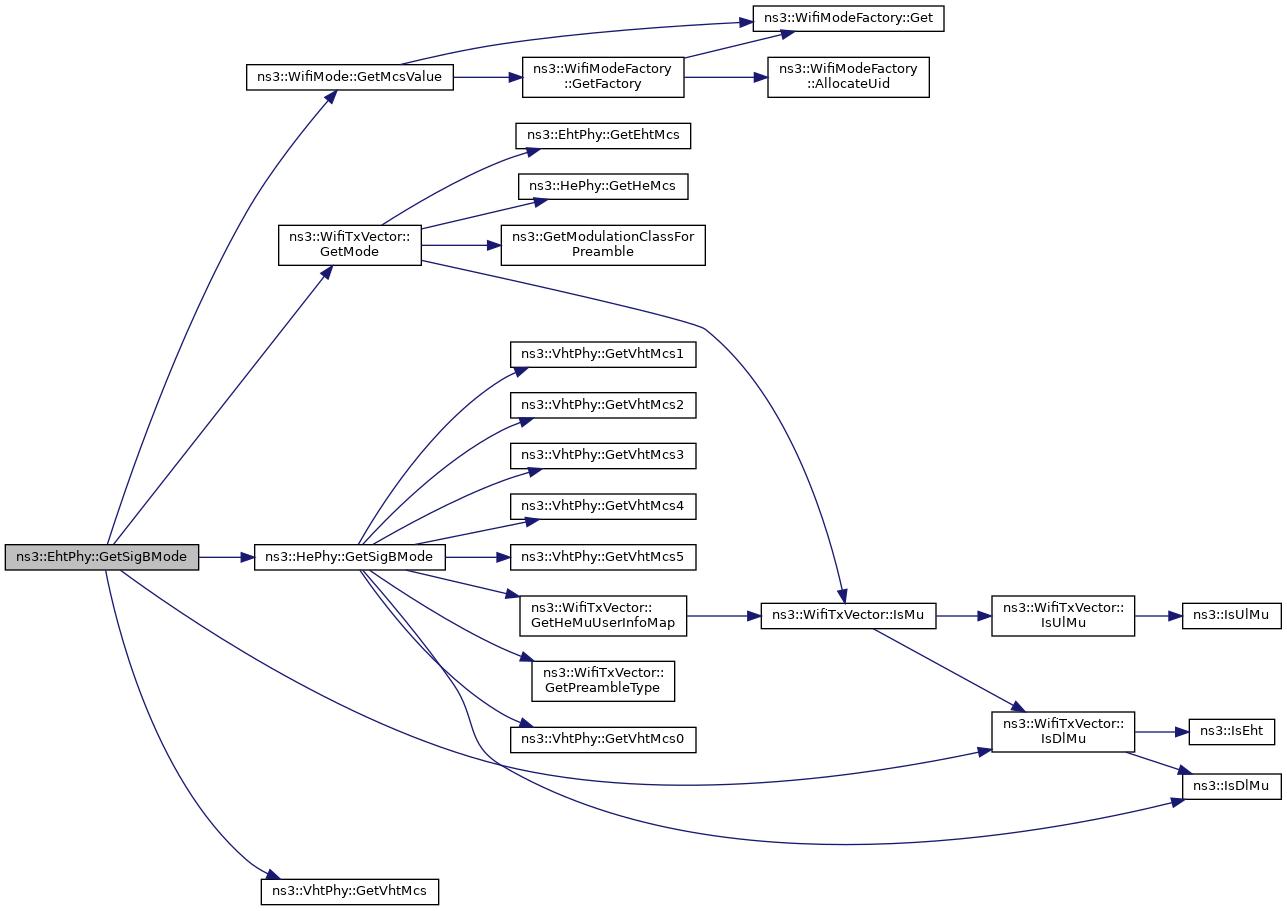

WifiMode	GetSigBMode (const WifiTxVector &txVector) const override

Public Member Functions inherited from ns3::HePhy
	HePhy (bool buildModeList=true)
	Constructor for HE PHY. More...

	~HePhy () override
	Destructor for HE PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const override

void	CancelAllEvents () override
	Cancel and clear all running events. More...

bool	CanStartRx (Ptr< const WifiPpdu > ppdu) const override
	Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU. More...

Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const override
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU). More...

uint8_t	GetBssColor () const

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type. More...

uint16_t	GetCenterFrequencyForNonHePart (const WifiTxVector &txVector, uint16_t staId) const
	Get the center frequency of the non-HE portion of the current TxVector for the given STA-ID. More...

uint64_t	GetCurrentHeTbPpduUid () const

Time	GetLSigDuration (WifiPreamble preamble) const override

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI. More...

WifiSpectrumBandInfo	GetNonOfdmaBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the band used to transmit the non-OFDMA part of an HE TB PPDU. More...

uint16_t	GetNonOfdmaWidth (HeRu::RuSpec ru) const
	Get the width in MHz of the non-OFDMA portion of an HE TB PPDU. More...

Ptr< ObssPdAlgorithm >	GetObssPdAlgorithm () const
	Gets the OBSS-PD algorithm. More...

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY. More...

WifiSpectrumBandInfo	GetRuBandForRx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More...

WifiSpectrumBandInfo	GetRuBandForTx (const WifiTxVector &txVector, uint16_t staId) const
	Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More...

Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel. More...

Time	GetSigADuration (WifiPreamble preamble) const override

WifiMode	GetSigAMode () const override

Time	GetSigBDuration (const WifiTxVector &txVector) const override

WifiMode	GetSigBMode (const WifiTxVector &txVector) const override

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const override
	Return the STA ID that has been assigned to the station this PHY belongs to. More...

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType) override
	Notify PHY state helper to switch to CCA busy state,. More...

void	NotifyEndOfHeSigA (HeSigAParameters params)
	Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received. More...

void	SetEndOfHeSigACallback (EndOfHeSigACallback callback)
	Set a callback for a end of HE-SIG-A. More...

void	SetObssPdAlgorithm (const Ptr< ObssPdAlgorithm > algorithm)
	Sets the OBSS-PD algorithm. More...

void	SetTrigVector (const WifiTxVector &trigVector, Time validity)
	Set the TRIGVECTOR and the associated expiration time. More...

void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration) override
	Start receiving the PHY preamble of a PPDU (i.e. More...

void	StartTx (Ptr< const WifiPpdu > ppdu) override
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions. More...

void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu) override
	Check if PHY state should move to CCA busy state based on current state of interference tracker. More...

Public Member Functions inherited from ns3::VhtPhy
	VhtPhy (bool buildModeList=true)
	Constructor for VHT PHY. More...

	~VhtPhy () override
	Destructor for VHT PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type. More...

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More...

Time	GetLSigDuration (WifiPreamble preamble) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY. More...

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

Time	GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override

Public Member Functions inherited from ns3::HtPhy
	HtPhy (uint8_t maxNss=1, bool buildModeList=true)
	Constructor for HT PHY. More...

	~HtPhy () override
	Destructor for HT PHY. More...

uint8_t	GetBssMembershipSelector () const

uint8_t	GetMaxSupportedMcsIndexPerSs () const
	Set the maximum supported MCS index per spatial stream. More...

WifiMode	GetMcs (uint8_t index) const override
	Get the WifiMode corresponding to the given MCS index. More...

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

bool	HandlesMcsModes () const override
	Check if the WifiModes handled by this PHY are MCSs. More...

bool	IsMcsSupported (uint8_t index) const override
	Check if the WifiMode corresponding to the given MCS index is supported. More...

void	SetMaxSupportedMcsIndexPerSs (uint8_t maxIndex)
	Set the maximum supported MCS index per spatial stream. More...

void	SetMaxSupportedNss (uint8_t maxNss)
	Configure the maximum number of spatial streams supported by this HT PHY. More...

Public Member Functions inherited from ns3::OfdmPhy
	OfdmPhy (OfdmPhyVariant variant=OFDM_PHY_DEFAULT, bool buildModeList=true)
	Constructor for OFDM PHY. More...

	~OfdmPhy () override
	Destructor for OFDM PHY. More...

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel. More...

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity. More...

std::list< WifiMode >::const_iterator	begin () const
	Return a const iterator to the first WifiMode. More...

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

void	CancelRunningEndPreambleDetectionEvents ()
	Cancel all end preamble detection events. More...

std::list< WifiMode >::const_iterator	end () const
	Return a const iterator to past-the-last WifiMode. More...

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field. More...

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived. More...

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field. More...

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one. More...

virtual uint8_t	GetNumModes () const

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field. More...

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field. More...

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported. More...

bool	NoEndPreambleDetectionEvents () const

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header. More...

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity. More...

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field. More...

void	Transmit (Time txDuration, Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, const std::string &type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method. More...

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Static Public Member Functions
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied EHT MCS index. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied EHT MCS index. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied EHT MCS index, channel width, guard interval, and number of spatial streams. More...

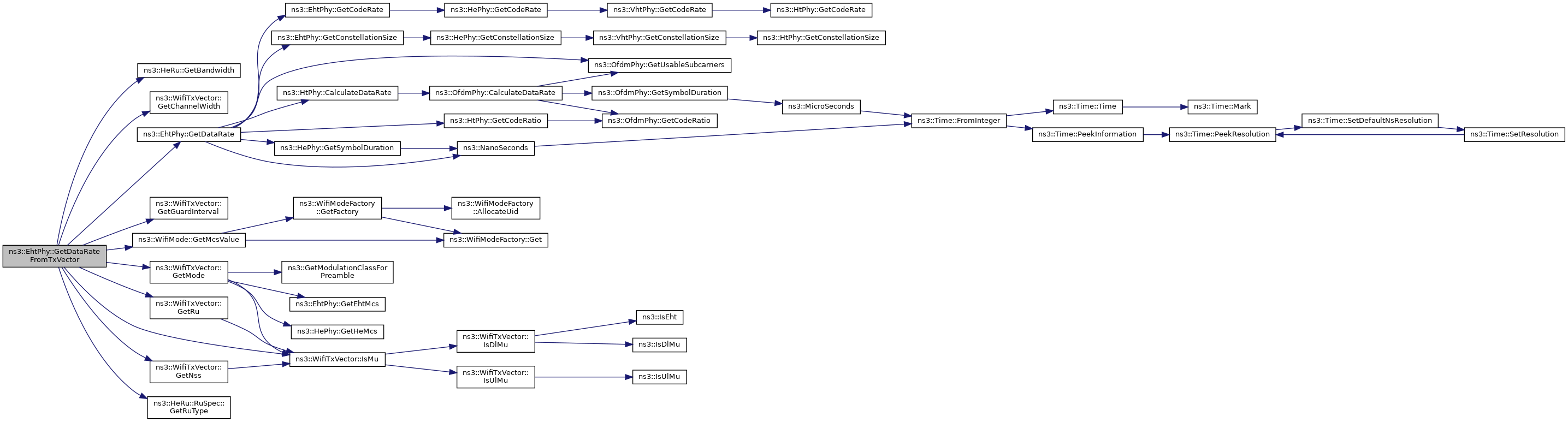

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the data rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static WifiMode	GetEhtMcs (uint8_t index)
	Return the EHT MCS corresponding to the provided index. More...

static WifiMode	GetEhtMcs0 ()
	Return MCS 0 from EHT MCS values. More...

static WifiMode	GetEhtMcs1 ()
	Return MCS 1 from EHT MCS values. More...

static WifiMode	GetEhtMcs10 ()
	Return MCS 10 from EHT MCS values. More...

static WifiMode	GetEhtMcs11 ()
	Return MCS 11 from EHT MCS values. More...

static WifiMode	GetEhtMcs12 ()
	Return MCS 12 from EHT MCS values. More...

static WifiMode	GetEhtMcs13 ()
	Return MCS 13 from EHT MCS values. More...

static WifiMode	GetEhtMcs2 ()
	Return MCS 2 from EHT MCS values. More...

static WifiMode	GetEhtMcs3 ()
	Return MCS 3 from EHT MCS values. More...

static WifiMode	GetEhtMcs4 ()
	Return MCS 4 from EHT MCS values. More...

static WifiMode	GetEhtMcs5 ()
	Return MCS 5 from EHT MCS values. More...

static WifiMode	GetEhtMcs6 ()
	Return MCS 6 from EHT MCS values. More...

static WifiMode	GetEhtMcs7 ()
	Return MCS 7 from EHT MCS values. More...

static WifiMode	GetEhtMcs8 ()
	Return MCS 8 from EHT MCS values. More...

static WifiMode	GetEhtMcs9 ()
	Return MCS 9 from EHT MCS values. More...

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied EHT MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static void	InitializeModes ()
	Initialize all EHT modes. More...

Static Public Member Functions inherited from ns3::HePhy
static WifiSpectrumBandIndices	ConvertHeRuSubcarriers (uint16_t bandWidth, uint16_t guardBandwidth, uint32_t subcarrierSpacing, HeRu::SubcarrierRange subcarrierRange, uint8_t bandIndex=0)

static std::pair< uint16_t, Time >	ConvertHeTbPpduDurationToLSigLength (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band)
	Compute the L-SIG length value corresponding to the given HE TB PPDU duration. More...

static Time	ConvertLSigLengthToHeTbPpduDuration (uint16_t length, const WifiTxVector &txVector, WifiPhyBand band)

static WifiMode	CreateHeMcs (uint8_t index)
	Create and return the HE MCS corresponding to the provided index. More...

static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HE MCS index. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HE MCS index. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the data rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static WifiMode	GetHeMcs (uint8_t index)
	Return the HE MCS corresponding to the provided index. More...

static WifiMode	GetHeMcs0 ()
	Return MCS 0 from HE MCS values. More...

static WifiMode	GetHeMcs1 ()
	Return MCS 1 from HE MCS values. More...

static WifiMode	GetHeMcs10 ()
	Return MCS 10 from HE MCS values. More...

static WifiMode	GetHeMcs11 ()
	Return MCS 11 from HE MCS values. More...

static WifiMode	GetHeMcs2 ()
	Return MCS 2 from HE MCS values. More...

static WifiMode	GetHeMcs3 ()
	Return MCS 3 from HE MCS values. More...

static WifiMode	GetHeMcs4 ()
	Return MCS 4 from HE MCS values. More...

static WifiMode	GetHeMcs5 ()
	Return MCS 5 from HE MCS values. More...

static WifiMode	GetHeMcs6 ()
	Return MCS 6 from HE MCS values. More...

static WifiMode	GetHeMcs7 ()
	Return MCS 7 from HE MCS values. More...

static WifiMode	GetHeMcs8 ()
	Return MCS 8 from HE MCS values. More...

static WifiMode	GetHeMcs9 ()
	Return MCS 9 from HE MCS values. More...

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID)
	Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID. More...

static void	InitializeModes ()
	Initialize all HE modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Static Public Member Functions inherited from ns3::VhtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied VHT MCS index. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied VHT MCS index. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied VHT MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static WifiMode	GetVhtMcs (uint8_t index)
	Return the VHT MCS corresponding to the provided index. More...

static WifiMode	GetVhtMcs0 ()
	Return MCS 0 from VHT MCS values. More...

static WifiMode	GetVhtMcs1 ()
	Return MCS 1 from VHT MCS values. More...

static WifiMode	GetVhtMcs2 ()
	Return MCS 2 from VHT MCS values. More...

static WifiMode	GetVhtMcs3 ()
	Return MCS 3 from VHT MCS values. More...

static WifiMode	GetVhtMcs4 ()
	Return MCS 4 from VHT MCS values. More...

static WifiMode	GetVhtMcs5 ()
	Return MCS 5 from VHT MCS values. More...

static WifiMode	GetVhtMcs6 ()
	Return MCS 6 from VHT MCS values. More...

static WifiMode	GetVhtMcs7 ()
	Return MCS 7 from VHT MCS values. More...

static WifiMode	GetVhtMcs8 ()
	Return MCS 8 from VHT MCS values. More...

static WifiMode	GetVhtMcs9 ()
	Return MCS 9 from VHT MCS values. More...

static void	InitializeModes ()
	Initialize all VHT modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

static bool	IsCombinationAllowed (uint8_t mcsValue, uint16_t channelWidth, uint8_t nss)
	Check whether the combination of <MCS, channel width, NSS> is allowed. More...

Static Public Member Functions inherited from ns3::HtPhy
static WifiCodeRate	GetCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More...

static uint16_t	GetConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More...

static uint64_t	GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the data rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial streams. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static WifiCodeRate	GetHtCodeRate (uint8_t mcsValue)
	Return the coding rate corresponding to the supplied HT MCS index. More...

static uint16_t	GetHtConstellationSize (uint8_t mcsValue)
	Return the constellation size corresponding to the supplied HT MCS index. More...

static WifiMode	GetHtMcs (uint8_t index)
	Return the HT MCS corresponding to the provided index. More...

static WifiMode	GetHtMcs0 ()
	Return MCS 0 from HT MCS values. More...

static WifiMode	GetHtMcs1 ()
	Return MCS 1 from HT MCS values. More...

static WifiMode	GetHtMcs10 ()
	Return MCS 10 from HT MCS values. More...

static WifiMode	GetHtMcs11 ()
	Return MCS 11 from HT MCS values. More...

static WifiMode	GetHtMcs12 ()
	Return MCS 12 from HT MCS values. More...

static WifiMode	GetHtMcs13 ()
	Return MCS 13 from HT MCS values. More...

static WifiMode	GetHtMcs14 ()
	Return MCS 14 from HT MCS values. More...

static WifiMode	GetHtMcs15 ()
	Return MCS 15 from HT MCS values. More...

static WifiMode	GetHtMcs16 ()
	Return MCS 16 from HT MCS values. More...

static WifiMode	GetHtMcs17 ()
	Return MCS 17 from HT MCS values. More...

static WifiMode	GetHtMcs18 ()
	Return MCS 18 from HT MCS values. More...

static WifiMode	GetHtMcs19 ()
	Return MCS 19 from HT MCS values. More...

static WifiMode	GetHtMcs2 ()
	Return MCS 2 from HT MCS values. More...

static WifiMode	GetHtMcs20 ()
	Return MCS 20 from HT MCS values. More...

static WifiMode	GetHtMcs21 ()
	Return MCS 21 from HT MCS values. More...

static WifiMode	GetHtMcs22 ()
	Return MCS 22 from HT MCS values. More...

static WifiMode	GetHtMcs23 ()
	Return MCS 23 from HT MCS values. More...

static WifiMode	GetHtMcs24 ()
	Return MCS 24 from HT MCS values. More...

static WifiMode	GetHtMcs25 ()
	Return MCS 25 from HT MCS values. More...

static WifiMode	GetHtMcs26 ()
	Return MCS 26 from HT MCS values. More...

static WifiMode	GetHtMcs27 ()
	Return MCS 27 from HT MCS values. More...

static WifiMode	GetHtMcs28 ()
	Return MCS 28 from HT MCS values. More...

static WifiMode	GetHtMcs29 ()
	Return MCS 29 from HT MCS values. More...

static WifiMode	GetHtMcs3 ()
	Return MCS 3 from HT MCS values. More...

static WifiMode	GetHtMcs30 ()
	Return MCS 30 from HT MCS values. More...

static WifiMode	GetHtMcs31 ()
	Return MCS 31 from HT MCS values. More...

static WifiMode	GetHtMcs4 ()
	Return MCS 4 from HT MCS values. More...

static WifiMode	GetHtMcs5 ()
	Return MCS 5 from HT MCS values. More...

static WifiMode	GetHtMcs6 ()
	Return MCS 6 from HT MCS values. More...

static WifiMode	GetHtMcs7 ()
	Return MCS 7 from HT MCS values. More...

static WifiMode	GetHtMcs8 ()
	Return MCS 8 from HT MCS values. More...

static WifiMode	GetHtMcs9 ()
	Return MCS 9 from HT MCS values. More...

static WifiMode	GetLSigMode ()

static uint64_t	GetNonHtReferenceRate (uint8_t mcsValue)
	Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HT MCS index. More...

static uint64_t	GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss)
	Return the PHY rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial stream. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static void	InitializeModes ()
	Initialize all HT modes. More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Static Public Member Functions inherited from ns3::OfdmPhy
static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable. More...

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the OFDM mode's unique name using ModulationLookupTable. More...

static uint64_t	GetDataRate (const std::string &name, uint16_t channelWidth)
	Return the data rate from the OFDM mode's unique name and the supplied parameters. More...

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

static WifiMode	GetOfdmRate (uint64_t rate, uint16_t bw=20)
	Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz). More...

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18 Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24 Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36 Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48 Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54 Mbps. More...

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6 Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9 Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing. More...

static uint64_t	GetPhyRate (const std::string &name, uint16_t channelWidth)
	Return the PHY rate from the OFDM mode's unique name and the supplied parameters. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

static void	InitializeModes ()
	Initialize all OFDM modes (for all variants). More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Protected Member Functions
void	BuildModeList () override
	Build mode list. More...

Time	CalculateNonHeDurationForHeMu (const WifiTxVector &txVector) const override

Time	CalculateNonHeDurationForHeTb (const WifiTxVector &txVector) const override

PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More...

WifiPhyRxfailureReason	GetFailureReason (WifiPpduField field) const override
	Get the failure reason corresponding to the unsuccessful processing of a given PPDU field. More...

uint32_t	GetSigBSize (const WifiTxVector &txVector) const override

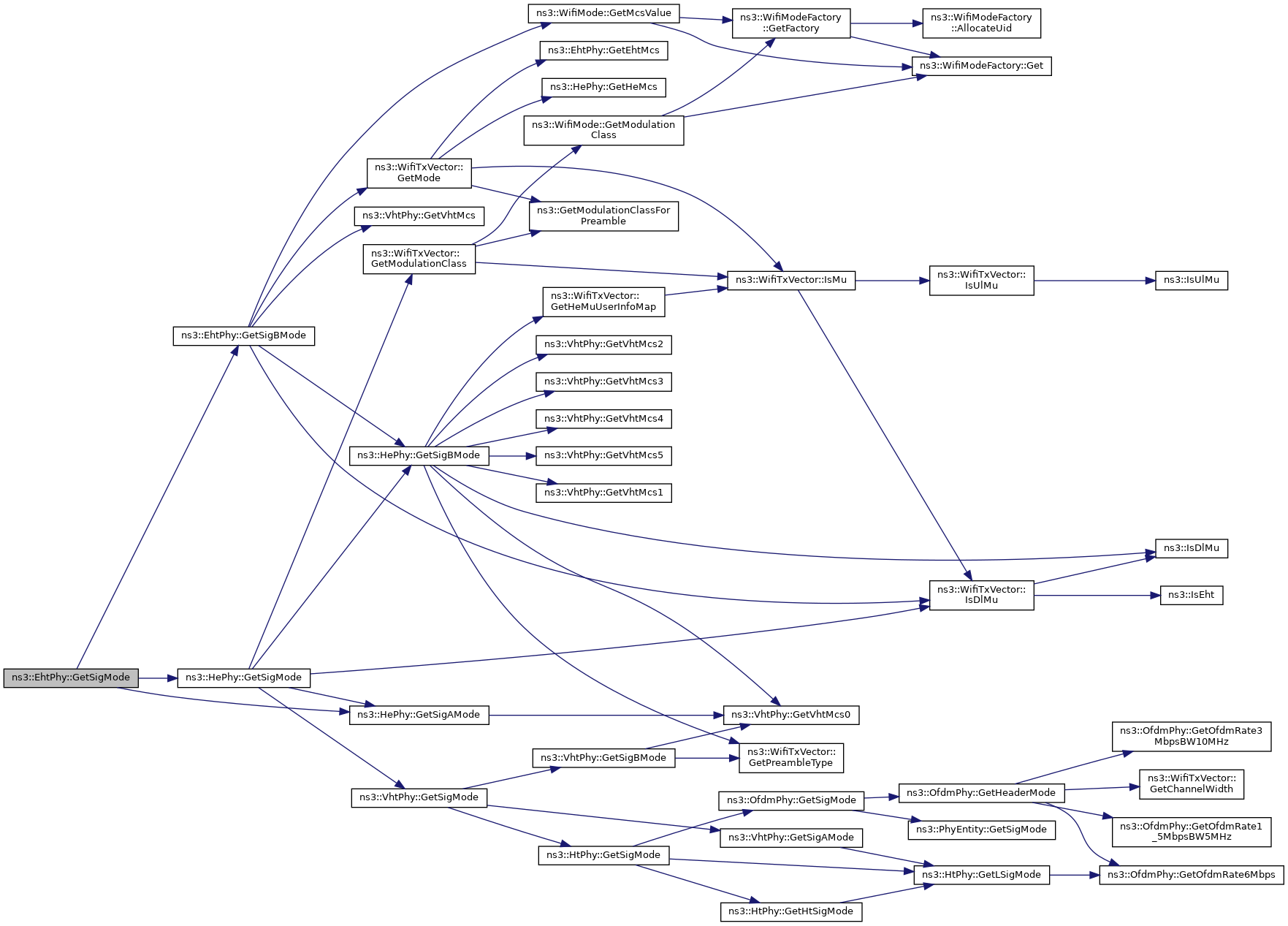

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

PhyFieldRxStatus	ProcessSig (Ptr< Event > event, PhyFieldRxStatus status, WifiPpduField field) override
	Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More...

Protected Member Functions inherited from ns3::HePhy
void	DoAbortCurrentReception (WifiPhyRxfailureReason reason) override
	Perform amendment-specific actions before aborting the current reception. More...

void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu) override
	Perform amendment-specific actions at the end of the reception of the payload. More...

Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW) override
	Get the event corresponding to the incoming PPDU. More...

void	DoResetReceive (Ptr< Event > event) override
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header. More...

Time	DoStartReceivePayload (Ptr< Event > event) override
	Start receiving the PSDU (i.e. More...

std::pair< uint16_t, WifiSpectrumBandInfo >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const override
	Get the channel width and band to use (will be overloaded by child classes). More...

Time	GetMaxDelayPpduSameUid (const WifiTxVector &txVector) override
	Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively. More...

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes. More...

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const override
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

void	HandleRxPpduWithSameContent (Ptr< Event > event, Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPower) override
	Handle reception of a PPDU that carries the same content of another PPDU. More...

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

uint64_t	ObtainNextUid (const WifiTxVector &txVector) override
	Obtain the next UID for the PPDU to transmit. More...

PhyFieldRxStatus	ProcessSig (Ptr< Event > event, PhyFieldRxStatus status, WifiPpduField field) override
	Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More...

virtual PhyFieldRxStatus	ProcessSigA (Ptr< Event > event, PhyFieldRxStatus status)
	Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception. More...

virtual PhyFieldRxStatus	ProcessSigB (Ptr< Event > event, PhyFieldRxStatus status)
	Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More...

void	RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector) override
	Perform amendment-specific actions when the payload is unsuccessfuly received. More...

void	RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu) override
	Perform amendment-specific actions when the payload is successfully received. More...

void	StartReceiveMuPayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

Protected Member Functions inherited from ns3::VhtPhy
PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More...

PhyFieldRxStatus	EndReceiveSig (Ptr< Event > event, WifiPpduField field)
	End receiving the SIG-A or SIG-B, perform VHT-specific actions, and provide the status of the reception. More...

CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu) override
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY. More...

Time	GetHtSigDuration () const override

WifiMode	GetHtSigMode () const override

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes. More...

uint8_t	GetNumberBccEncoders (const WifiTxVector &txVector) const override

bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (including bandwidth) is supported by the PHY. More...

Protected Member Functions inherited from ns3::HtPhy
Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

Protected Member Functions inherited from ns3::OfdmPhy
PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform OFDM-specific actions, and provide the status of the reception. More...

virtual Time	GetHeaderDuration (const WifiTxVector &txVector) const

virtual WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI. More...

uint8_t	GetNumberServiceBits () const

virtual Time	GetPreambleDuration (const WifiTxVector &txVector) const

Time	GetSignalExtension (WifiPhyBand band) const

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

virtual bool	IsChannelWidthSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the PPDU's bandwidth is supported by the PHY. More...

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception. More...

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy). More...

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartHePortionRxing=false)
	Create an event using WifiPhy's InterferenceHelper class. More...

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception. More...

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported. More...

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event. More...

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived. More...

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period. More...

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event. More...

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More...

Ptr< const Event >	GetCurrentEvent () const
	Get the pointer to the current event (stored in WifiPhy). More...

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents () const
	Get the map of current preamble events (stored in WifiPhy). More...

Time	GetDelayUntilCcaEnd (double thresholdDbm, const WifiSpectrumBandInfo &band)
	Return the delay until CCA busy is ended for a given sensitivity threshold (in dBm) and a given band. More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class. More...

WifiSpectrumBandInfo	GetPrimaryBand (uint16_t bandWidth) const
	If the operating channel width is a multiple of 20 MHz, return the info corresponding to the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More...

double	GetRandomValue () const
	Obtain a random value from the WifiPhy's generator. More...

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify. More...

virtual uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const
	Return the channel width used in the reception spectrum model. More...

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band. More...

WifiSpectrumBandInfo	GetSecondaryBand (uint16_t bandWidth) const
	If the channel bonding is used, return the info corresponding to the secondary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More...

std::tuple< double, double, double >	GetTxMaskRejectionParams () const

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy. More...

void	NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration)
	Fire the trace indicating that the PHY is starting to receive the payload of a PPDU. More...

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events. More...

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

Static Protected Member Functions
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static WifiMode	CreateEhtMcs (uint8_t index)
	Create and return the EHT MCS corresponding to the provided index. More...

Static Protected Member Functions inherited from ns3::HePhy
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static Time	GetSymbolDuration (Time guardInterval)

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::VhtPhy
static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::HtPhy
static uint64_t	CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate, uint8_t nss)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize)
	Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More...

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Return the PHY rate corresponding to the supplied code rate and data rate. More...

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More...

static Time	GetSymbolDuration (Time guardInterval)

static Time	GetSymbolDuration (uint16_t channelWidth)

static uint16_t	GetUsableSubcarriers (uint16_t channelWidth)

Static Protected Member Functions inherited from ns3::OfdmPhy
static uint64_t	CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculateDataRate (WifiCodeRate codeRate, uint16_t constellationSize, uint16_t channelWidth)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Calculate the PHY rate in bps from code rate and data rate. More...

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More...

static Time	GetSymbolDuration (uint16_t channelWidth)

static uint16_t	GetUsableSubcarriers ()

Static Protected Attributes
static const PpduFormats	m_ehtPpduFormats
	EHT PPDU formats. More...

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID. More...

Additional Inherited Members
Public Types inherited from ns3::HePhy
typedef Callback< void, HeSigAParameters >	EndOfHeSigACallback
	Callback upon end of HE-SIG-A. More...

Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used. More...

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field. More...

enum	PhyRxFailureAction { DROP = 0 , ABORT , IGNORE }
	Action to perform in case of RX failure. More...

Protected Types inherited from ns3::PhyEntity
using	CcaIndication = std::optional< std::pair< Time, WifiChannelListType > >
	CCA end time and its corresponding channel list type (can be std::nullopt if IDLE) More...

typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size. More...

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key. More...

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type. More...

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID. More...

Protected Attributes inherited from ns3::HePhy
std::map< uint16_t, EventId >	m_beginMuPayloadRxEvents
	the beginning of the MU payload reception events (indexed by STA-ID) More...

uint64_t	m_currentMuPpduUid
	UID of the HE MU or HE TB PPDU being received. More...

std::optional< WifiTxVector >	m_currentTxVector
	If the STA is an AP STA, this holds the TXVECTOR of the PPDU that has been sent. More...

EndOfHeSigACallback	m_endOfHeSigACallback
	end of HE-SIG-A callback More...

uint64_t	m_previouslyTxPpduUid
	UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs. More...

std::optional< WifiTxVector >	m_trigVector
	the TRIGVECTOR More...

std::optional< Time >	m_trigVectorExpirationTime
	expiration time of the TRIGVECTOR More...

Protected Attributes inherited from ns3::HtPhy
uint8_t	m_bssMembershipSelector
	the BSS membership selector More...

uint8_t	m_maxMcsIndexPerSs
	the maximum MCS index per spatial stream as defined by the standard More...

uint8_t	m_maxSupportedMcsIndexPerSs
	the maximum supported MCS index per spatial stream More...

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs) More...

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events More...

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception) More...

std::list< WifiMode >	m_modeList
	the list of supported modes More...

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes) More...

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU. More...

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy. More...

Detailed Description

PHY entity for EHT (11be)

EHT PHY is based on HE PHY.

Refer to P802.11be/D1.5.

Definition at line 47 of file eht-phy.h.

Constructor & Destructor Documentation

◆ EhtPhy()

ns3::EhtPhy::EhtPhy ( bool buildModeList = true )

Constructor for EHT PHY.

Parameters

buildModeList flag used to add EHT modes to list (disabled by child classes to only add child classes' modes)

Definition at line 56 of file eht-phy.cc.

References BuildModeList(), EHT_PHY, ns3::HtPhy::m_bssMembershipSelector, ns3::HtPhy::m_maxMcsIndexPerSs, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, and NS_LOG_FUNCTION.

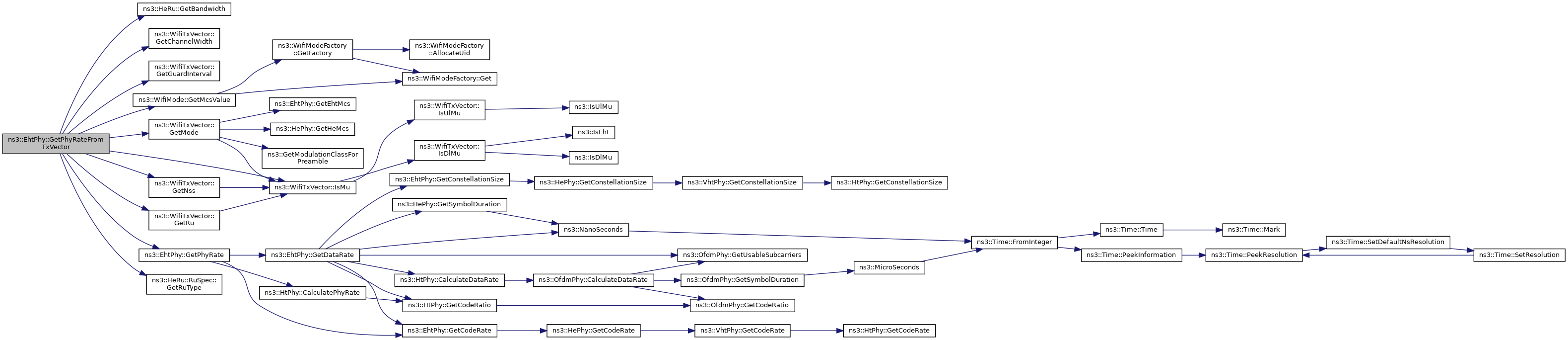

Here is the call graph for this function:

◆ ~EhtPhy()

ns3::EhtPhy::~EhtPhy ( )

override

Destructor for EHT PHY.

Definition at line 69 of file eht-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BuildModeList()

void ns3::EhtPhy::BuildModeList ( )

overrideprotectedvirtual

Build mode list.

Should be redone whenever the maximum MCS index per spatial stream ,or any other important parameter having an impact on the MCS index (e.g. number of spatial streams for HT), changes.

Reimplemented from ns3::HtPhy.

Definition at line 75 of file eht-phy.cc.

References CreateEhtMcs(), EHT_PHY, ns3::HtPhy::m_bssMembershipSelector, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, ns3::PhyEntity::m_modeList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Referenced by EhtPhy().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ BuildPpdu()

Ptr< WifiPpdu > ns3::EhtPhy::BuildPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		Time	ppduDuration
	)

overridevirtual

Build amendment-specific PPDU.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for the PPDU
ppduDuration	the transmission duration of the PPDU

Returns: the amendment-specific WifiPpdu

Reimplemented from ns3::PhyEntity.

Definition at line 174 of file eht-phy.cc.

References ns3::WifiPhy::GetOperatingChannel(), ns3::PhyEntity::m_wifiPhy, NS_LOG_FUNCTION, ns3::HePhy::ObtainNextUid(), and ns3::HePpdu::PSD_NON_HE_PORTION.

Here is the call graph for this function:

◆ CalculateNonHeDurationForHeMu()

Time ns3::EhtPhy::CalculateNonHeDurationForHeMu ( const WifiTxVector & txVector ) const

overrideprotectedvirtual

Parameters

txVector the transmission parameters used for the HE MU PPDU

Returns: the duration of the non-HE portion of the HE MU PPDU.

Reimplemented from ns3::HePhy.

Definition at line 158 of file eht-phy.cc.

References GetDuration(), ns3::WIFI_PPDU_FIELD_EHT_SIG, ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, and ns3::WIFI_PPDU_FIELD_U_SIG.

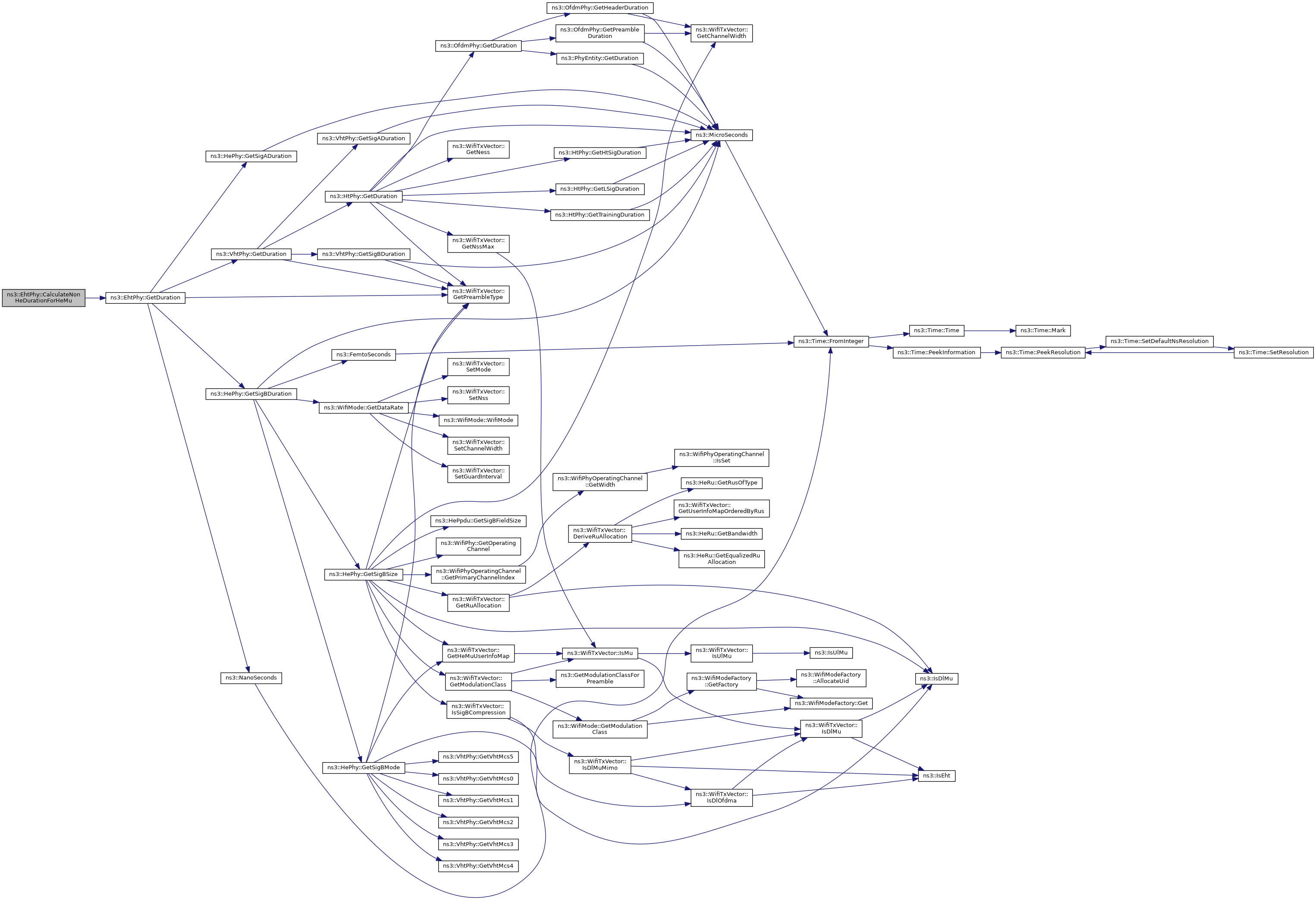

Here is the call graph for this function:

◆ CalculateNonHeDurationForHeTb()

Time ns3::EhtPhy::CalculateNonHeDurationForHeTb ( const WifiTxVector & txVector ) const

overrideprotectedvirtual

Parameters

txVector the transmission parameters used for the HE TB PPDU

Returns: the duration of the non-HE portion of the HE TB PPDU.

Reimplemented from ns3::HePhy.

Definition at line 149 of file eht-phy.cc.

References GetDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, and ns3::WIFI_PPDU_FIELD_U_SIG.

Here is the call graph for this function:

◆ CalculateNonHtReferenceRate()

uint64_t ns3::EhtPhy::CalculateNonHtReferenceRate	(	WifiCodeRate	codeRate,
		uint16_t	constellationSize
	)

staticprotected

Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.

Parameters

codeRate	the convolutional coding rate
constellationSize	the size of modulation constellation

Returns: the rate in bps.

To convert an HE MCS to its corresponding non-HT Reference Rate use the modulation and coding rate of the HT MCS and lookup in Table 10-10 of IEEE P802.11ax/D6.0.

Definition at line 393 of file eht-phy.cc.

References ns3::HePhy::CalculateNonHtReferenceRate(), NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.

Referenced by GetNonHtReferenceRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateEhtMcs()

WifiMode ns3::EhtPhy::CreateEhtMcs ( uint8_t index )

staticprotected

Create and return the EHT MCS corresponding to the provided index.

This method binds all the callbacks used by WifiMode.

Parameters

index the index of the MCS

Returns: an EHT MCS

Definition at line 293 of file eht-phy.cc.

References ns3::WifiModeFactory::CreateWifiMcs(), GetCodeRate(), GetConstellationSize(), GetDataRateFromTxVector(), GetNonHtReferenceRate(), GetPhyRateFromTxVector(), ns3::HePhy::IsAllowed(), ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, nlohmann::to_string(), and ns3::WIFI_MOD_CLASS_EHT.

Referenced by BuildModeList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoEndReceiveField()

PhyEntity::PhyFieldRxStatus ns3::EhtPhy::DoEndReceiveField	(	WifiPpduField	field,
		Ptr< Event >	event
	)

overrideprotectedvirtual

End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

Parameters

field	the ending PPDU field
event	the event holding incoming PPDU's information

Returns: status of the reception of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 186 of file eht-phy.cc.

References ns3::VhtPhy::DoEndReceiveField(), ns3::VhtPhy::EndReceiveSig(), NS_LOG_FUNCTION, ns3::WIFI_PPDU_FIELD_EHT_SIG, and ns3::WIFI_PPDU_FIELD_U_SIG.

Here is the call graph for this function:

◆ GetCodeRate()

WifiCodeRate ns3::EhtPhy::GetCodeRate ( uint8_t mcsValue )

static

Return the coding rate corresponding to the supplied EHT MCS index.

This function is used as a callback for WifiMode operation.

Parameters

mcsValue the MCS index

Returns: the coding rate.

Definition at line 309 of file eht-phy.cc.

References ns3::HePhy::GetCodeRate(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.

Referenced by CreateEhtMcs(), GetDataRate(), GetNonHtReferenceRate(), and GetPhyRate().

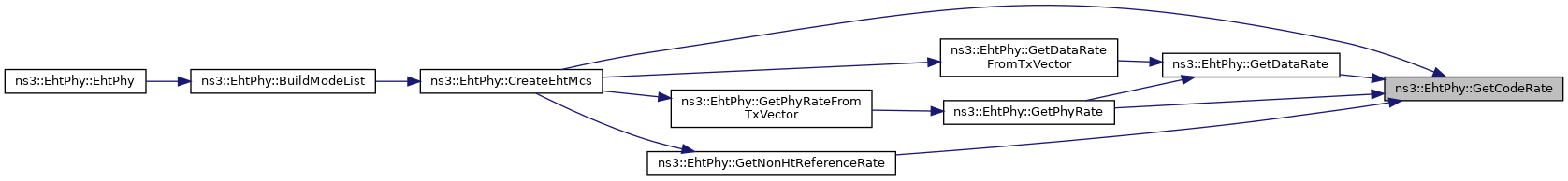

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetConstellationSize()

uint16_t ns3::EhtPhy::GetConstellationSize ( uint8_t mcsValue )

static

Return the constellation size corresponding to the supplied EHT MCS index.

This function is used as a callback for WifiMode operation.

Parameters

mcsValue the MCS index

Returns: the size of modulation constellation.

Definition at line 323 of file eht-phy.cc.

References ns3::HePhy::GetConstellationSize().

Referenced by CreateEhtMcs(), GetDataRate(), and GetNonHtReferenceRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataRate()

uint64_t ns3::EhtPhy::GetDataRate	(	uint8_t	mcsValue,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		uint8_t	nss
	)

static

Return the data rate corresponding to the supplied EHT MCS index, channel width, guard interval, and number of spatial streams.

Parameters

mcsValue	the EHT MCS index
channelWidth	the channel width in MHz
guardInterval	the guard interval duration in nanoseconds
nss	the number of spatial streams

Returns: the data bit rate in bps.

Definition at line 373 of file eht-phy.cc.

References ns3::HtPhy::CalculateDataRate(), GetCodeRate(), ns3::HtPhy::GetCodeRatio(), GetConstellationSize(), ns3::HePhy::GetSymbolDuration(), ns3::OfdmPhy::GetUsableSubcarriers(), ns3::NanoSeconds(), and NS_ASSERT.

Referenced by GetDataRateFromTxVector(), and GetPhyRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataRateFromTxVector()

uint64_t ns3::EhtPhy::GetDataRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId = `SU_STA_ID`
	)

static

Return the data rate corresponding to the supplied TXVECTOR for the STA-ID.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID for MU (unused if SU)

Returns: the data bit rate in bps.

Definition at line 359 of file eht-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), GetDataRate(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().

Referenced by CreateEhtMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDuration()

Time ns3::EhtPhy::GetDuration	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Parameters

field	the PPDU field (or group of fields)
txVector	the transmission parameters

Returns: the duration of the PPDU field

Reimplemented from ns3::PhyEntity.

Definition at line 115 of file eht-phy.cc.

References ns3::VhtPhy::GetDuration(), ns3::WifiTxVector::GetPreambleType(), ns3::HePhy::GetSigADuration(), ns3::HePhy::GetSigBDuration(), ns3::NanoSeconds(), ns3::WIFI_PPDU_FIELD_EHT_SIG, ns3::WIFI_PPDU_FIELD_SIG_A, ns3::WIFI_PPDU_FIELD_SIG_B, and ns3::WIFI_PPDU_FIELD_U_SIG.

Referenced by CalculateNonHeDurationForHeMu(), and CalculateNonHeDurationForHeTb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetEhtMcs()

WifiMode ns3::EhtPhy::GetEhtMcs ( uint8_t index )

static

Return the EHT MCS corresponding to the provided index.

Parameters

index the index of the MCS

Returns: an EHT MCS

Definition at line 240 of file eht-phy.cc.

References CASE, and NS_ABORT_MSG.

Referenced by ns3::WifiTxVector::GetMode(), InitializeModes(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ GetEhtMcs0()

static WifiMode ns3::EhtPhy::GetEhtMcs0 ( )

static

Return MCS 0 from EHT MCS values.

Returns: MCS 0 from EHT MCS values

◆ GetEhtMcs1()

static WifiMode ns3::EhtPhy::GetEhtMcs1 ( )

static

Return MCS 1 from EHT MCS values.

Returns: MCS 1 from EHT MCS values

◆ GetEhtMcs10()

static WifiMode ns3::EhtPhy::GetEhtMcs10 ( )

static

Return MCS 10 from EHT MCS values.

Returns: MCS 10 from EHT MCS values

◆ GetEhtMcs11()

static WifiMode ns3::EhtPhy::GetEhtMcs11 ( )

static

Return MCS 11 from EHT MCS values.

Returns: MCS 11 from EHT MCS values

◆ GetEhtMcs12()

static WifiMode ns3::EhtPhy::GetEhtMcs12 ( )

static

Return MCS 12 from EHT MCS values.

Returns: MCS 12 from EHT MCS values

◆ GetEhtMcs13()

static WifiMode ns3::EhtPhy::GetEhtMcs13 ( )

static

Return MCS 13 from EHT MCS values.

Returns: MCS 13 from EHT MCS values

◆ GetEhtMcs2()

static WifiMode ns3::EhtPhy::GetEhtMcs2 ( )

static

Return MCS 2 from EHT MCS values.

Returns: MCS 2 from EHT MCS values

◆ GetEhtMcs3()

static WifiMode ns3::EhtPhy::GetEhtMcs3 ( )

static

Return MCS 3 from EHT MCS values.

Returns: MCS 3 from EHT MCS values

◆ GetEhtMcs4()

static WifiMode ns3::EhtPhy::GetEhtMcs4 ( )

static

Return MCS 4 from EHT MCS values.

Returns: MCS 4 from EHT MCS values

◆ GetEhtMcs5()

static WifiMode ns3::EhtPhy::GetEhtMcs5 ( )

static

Return MCS 5 from EHT MCS values.

Returns: MCS 5 from EHT MCS values

◆ GetEhtMcs6()

static WifiMode ns3::EhtPhy::GetEhtMcs6 ( )

static

Return MCS 6 from EHT MCS values.

Returns: MCS 6 from EHT MCS values

◆ GetEhtMcs7()

static WifiMode ns3::EhtPhy::GetEhtMcs7 ( )

static

Return MCS 7 from EHT MCS values.

Returns: MCS 7 from EHT MCS values

◆ GetEhtMcs8()

static WifiMode ns3::EhtPhy::GetEhtMcs8 ( )

static

Return MCS 8 from EHT MCS values.

Returns: MCS 8 from EHT MCS values

◆ GetEhtMcs9()

static WifiMode ns3::EhtPhy::GetEhtMcs9 ( )

static

Return MCS 9 from EHT MCS values.

Returns: MCS 9 from EHT MCS values

◆ GetFailureReason()

WifiPhyRxfailureReason ns3::EhtPhy::GetFailureReason ( WifiPpduField field ) const

overrideprotectedvirtual

Get the failure reason corresponding to the unsuccessful processing of a given PPDU field.

Parameters

field the PPDU field

Returns: the failure reason corresponding to the unsuccessful processing of the PPDU field

Reimplemented from ns3::VhtPhy.

Definition at line 217 of file eht-phy.cc.

References ns3::EHT_SIG_FAILURE, ns3::VhtPhy::GetFailureReason(), ns3::U_SIG_FAILURE, ns3::WIFI_PPDU_FIELD_EHT_SIG, and ns3::WIFI_PPDU_FIELD_U_SIG.

Here is the call graph for this function:

◆ GetNonHtReferenceRate()

uint64_t ns3::EhtPhy::GetNonHtReferenceRate ( uint8_t mcsValue )

static

Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index.

This function calls CalculateNonHtReferenceRate and is used as a callback for WifiMode operation.

Parameters

mcsValue the HE MCS index

Returns: the rate in bps of the non-HT Reference Rate.

Definition at line 385 of file eht-phy.cc.

References CalculateNonHtReferenceRate(), GetCodeRate(), and GetConstellationSize().

Referenced by CreateEhtMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPhyRate()

uint64_t ns3::EhtPhy::GetPhyRate	(	uint8_t	mcsValue,
		uint16_t	channelWidth,
		uint16_t	guardInterval,
		uint8_t	nss
	)

static

Return the PHY rate corresponding to the supplied EHT MCS index, channel width, guard interval, and number of spatial stream.

This function calls HtPhy::CalculatePhyRate and is mainly used as a callback for WifiMode operation.

Parameters

mcsValue	the EHT MCS index
channelWidth	the considered channel width in MHz
guardInterval	the considered guard interval duration in nanoseconds
nss	the considered number of stream

Returns: the physical bit rate of this signal in bps.

Definition at line 337 of file eht-phy.cc.

References ns3::HtPhy::CalculatePhyRate(), GetCodeRate(), and GetDataRate().

Referenced by GetPhyRateFromTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPhyRateFromTxVector()

uint64_t ns3::EhtPhy::GetPhyRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId = `SU_STA_ID`
	)

static

Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID for MU (unused if SU)

Returns: the physical bit rate of this signal in bps.

Definition at line 345 of file eht-phy.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), GetPhyRate(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().

Referenced by CreateEhtMcs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPpduFormats()

const PhyEntity::PpduFormats & ns3::EhtPhy::GetPpduFormats ( ) const

overridevirtual

Return the PPDU formats of the PHY.

Returns: the PPDU formats of the PHY

Implements ns3::PhyEntity.

Definition at line 168 of file eht-phy.cc.

References m_ehtPpduFormats.

◆ GetSigBMode()

WifiMode ns3::EhtPhy::GetSigBMode ( const WifiTxVector & txVector ) const

overridevirtual

Parameters

txVector the transmission parameters

Returns: the WifiMode used for the SIG-B field

Reimplemented from ns3::VhtPhy.

Definition at line 102 of file eht-phy.cc.

References ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::HePhy::GetSigBMode(), ns3::VhtPhy::GetVhtMcs(), and ns3::WifiTxVector::IsDlMu().

Referenced by GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigBSize()

uint32_t ns3::EhtPhy::GetSigBSize ( const WifiTxVector & txVector ) const

overrideprotectedvirtual

Parameters

txVector the transmission parameters

Returns: the number of bits of the HE-SIG-B

Reimplemented from ns3::HePhy.

Definition at line 133 of file eht-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetEhtPpduType(), ns3::EhtPpdu::GetEhtSigFieldSize(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiTxVector::GetPreambleType(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRuAllocation(), ns3::HePhy::GetSigBSize(), ns3::IsDlMu(), ns3::IsEht(), ns3::WifiTxVector::IsSigBCompression(), and ns3::PhyEntity::m_wifiPhy.

Here is the call graph for this function:

◆ GetSigMode()

WifiMode ns3::EhtPhy::GetSigMode	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overrideprotectedvirtual

Get the WifiMode for the SIG field specified by the PPDU field.

Parameters

field	the PPDU field
txVector	the transmission parameters

Returns: the WifiMode used for the SIG field

Reimplemented from ns3::PhyEntity.

Definition at line 88 of file eht-phy.cc.

References ns3::HePhy::GetSigAMode(), GetSigBMode(), ns3::HePhy::GetSigMode(), ns3::WIFI_PPDU_FIELD_EHT_SIG, and ns3::WIFI_PPDU_FIELD_U_SIG.

Here is the call graph for this function:

◆ InitializeModes()

void ns3::EhtPhy::InitializeModes ( )

static

Initialize all EHT modes.

Definition at line 231 of file eht-phy.cc.

References GetEhtMcs().

Referenced by anonymous_namespace{eht-phy.cc}::ConstructorEht::ConstructorEht().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSig()

PhyEntity::PhyFieldRxStatus ns3::EhtPhy::ProcessSig	(	Ptr< Event >	event,
		PhyFieldRxStatus	status,
		WifiPpduField	field
	)

overrideprotectedvirtual

Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception.

Parameters

event	the event holding incoming PPDU's information
status	the status of the reception of the correctly received SIG-A or SIG-B after the configuration support check
field	the current PPDU field to identify whether it is SIG-A or SIG-B

Returns: the updated status of the reception of the SIG-A or SIG-B

Reimplemented from ns3::VhtPhy.

Definition at line 201 of file eht-phy.cc.

References NS_LOG_FUNCTION, ns3::HePhy::ProcessSig(), ns3::HePhy::ProcessSigA(), ns3::HePhy::ProcessSigB(), ns3::WIFI_PPDU_FIELD_EHT_SIG, and ns3::WIFI_PPDU_FIELD_U_SIG.

Here is the call graph for this function:

Member Data Documentation

◆ m_ehtPpduFormats

const PhyEntity::PpduFormats ns3::EhtPhy::m_ehtPpduFormats

staticprotected

Initial value:

{
    { WIFI_PREAMBLE_EHT_MU, { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_U_SIG,
                              WIFI_PPDU_FIELD_EHT_SIG,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } },
    { WIFI_PREAMBLE_EHT_TB, { WIFI_PPDU_FIELD_PREAMBLE,
                              WIFI_PPDU_FIELD_NON_HT_HEADER,
                              WIFI_PPDU_FIELD_U_SIG,
                              WIFI_PPDU_FIELD_TRAINING,
                              WIFI_PPDU_FIELD_DATA } }
}

EHT PPDU formats.

Definition at line 292 of file eht-phy.h.

Referenced by GetPpduFormats().

The documentation for this class was generated from the following files:

src/wifi/model/eht/eht-phy.h
src/wifi/model/eht/eht-phy.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ EhtPhy()

◆ ~EhtPhy()

Member Function Documentation

◆ BuildModeList()

◆ BuildPpdu()

◆ CalculateNonHeDurationForHeMu()

◆ CalculateNonHeDurationForHeTb()

◆ CalculateNonHtReferenceRate()

◆ CreateEhtMcs()

◆ DoEndReceiveField()

◆ GetCodeRate()

◆ GetConstellationSize()

◆ GetDataRate()

◆ GetDataRateFromTxVector()

◆ GetDuration()

◆ GetEhtMcs()

◆ GetEhtMcs0()

◆ GetEhtMcs1()

◆ GetEhtMcs10()

◆ GetEhtMcs11()

◆ GetEhtMcs12()

◆ GetEhtMcs13()

◆ GetEhtMcs2()

◆ GetEhtMcs3()

◆ GetEhtMcs4()

◆ GetEhtMcs5()

◆ GetEhtMcs6()

◆ GetEhtMcs7()

◆ GetEhtMcs8()

◆ GetEhtMcs9()

◆ GetFailureReason()

◆ GetNonHtReferenceRate()

◆ GetPhyRate()

◆ GetPhyRateFromTxVector()

◆ GetPpduFormats()

◆ GetSigBMode()

◆ GetSigBSize()

◆ GetSigMode()

◆ InitializeModes()

◆ ProcessSig()

Member Data Documentation

◆ m_ehtPpduFormats
