PHY entity for OFDM (11a) More...

#include "ofdm-phy.h"

Inheritance diagram for ns3::OfdmPhy:

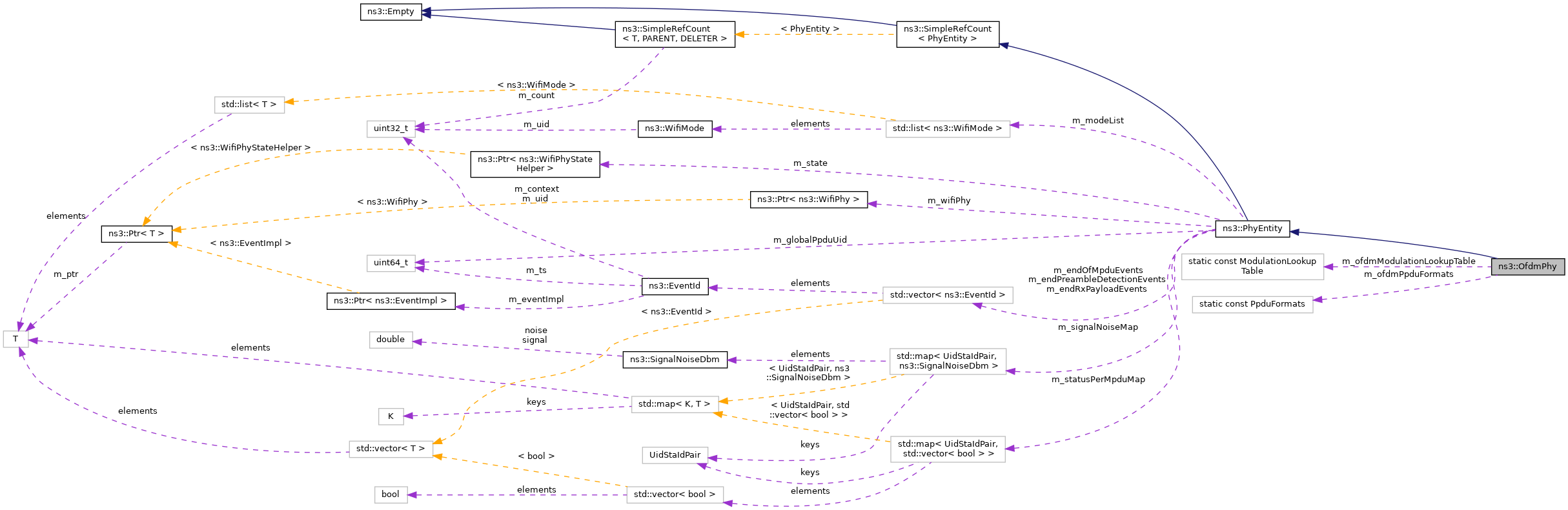

Collaboration diagram for ns3::OfdmPhy:

Public Member Functions
	OfdmPhy (OfdmPhyVariant variant=OFDM_PHY_DEFAULT, bool buildModeList=true)
	Constructor for OFDM PHY. More...

	~OfdmPhy () override
	Destructor for OFDM PHY. More...

Ptr< WifiPpdu >	BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override
	Build amendment-specific PPDU. More...

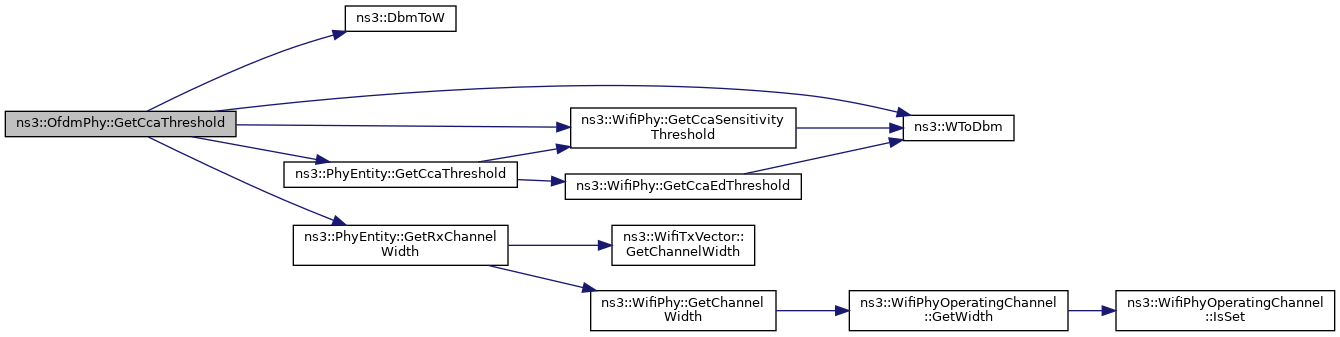

double	GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override
	Return the CCA threshold in dBm for a given channel type. More...

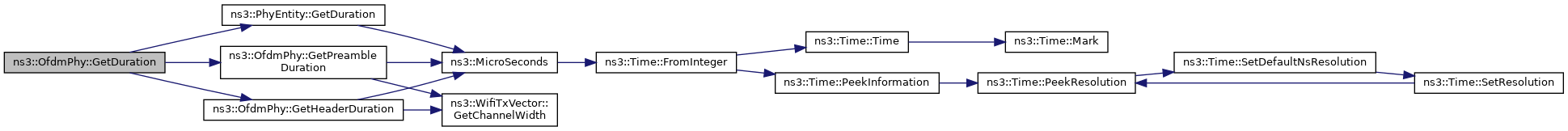

Time	GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More...

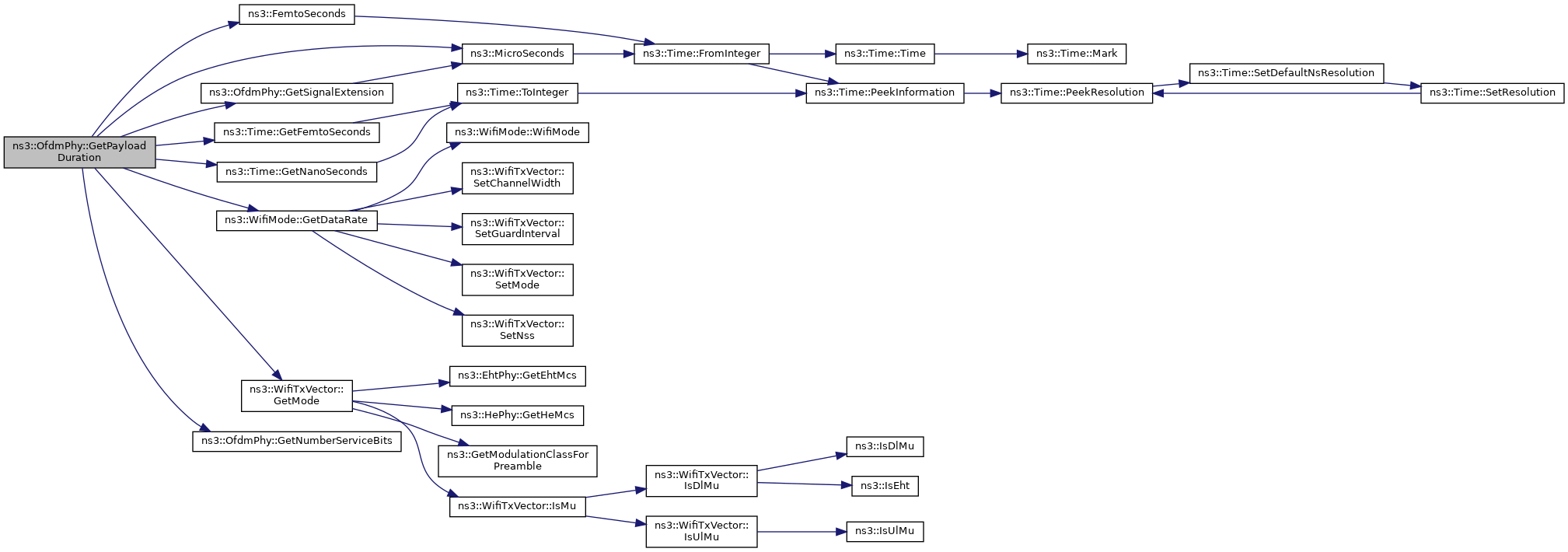

Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override

const PpduFormats &	GetPpduFormats () const override
	Return the PPDU formats of the PHY. More...

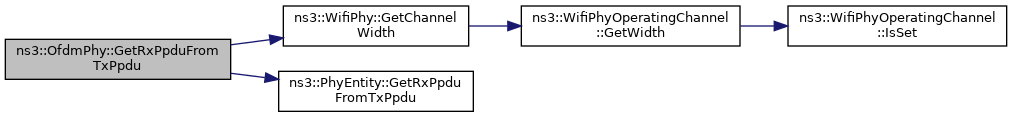

Ptr< const WifiPpdu >	GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override
	The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel. More...

WifiMode	GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override
	Get the WifiMode for the SIG field specified by the PPDU field. More...

Public Member Functions inherited from ns3::PhyEntity
virtual	~PhyEntity ()
	Destructor for PHY entity. More...

std::list< WifiMode >::const_iterator	begin () const
	Return a const iterator to the first WifiMode. More...

Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const

virtual Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const

virtual void	CancelAllEvents ()
	Cancel and clear all running events. More...

void	CancelRunningEndPreambleDetectionEvents ()
	Cancel all end preamble detection events. More...

virtual bool	CanStartRx (Ptr< const WifiPpdu > ppdu) const
	Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU. More...

std::list< WifiMode >::const_iterator	end () const
	Return a const iterator to past-the-last WifiMode. More...

void	EndReceiveField (WifiPpduField field, Ptr< Event > event)
	End receiving a given field. More...

void	EndReceivePayload (Ptr< Event > event)
	The last symbol of the PPDU has arrived. More...

virtual Ptr< const WifiPsdu >	GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const
	Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU). More...

Time	GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const
	Get the duration of the PPDU up to (but excluding) the given field. More...

virtual Time	GetMaxDelayPpduSameUid (const WifiTxVector &txVector)
	Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively. More...

virtual WifiMode	GetMcs (uint8_t index) const
	Get the WifiMode corresponding to the given MCS index. More...

WifiPpduField	GetNextField (WifiPpduField currentField, WifiPreamble preamble) const
	Return the field following the provided one. More...

virtual uint8_t	GetNumModes () const

PhyHeaderSections	GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const
	Return a map of PHY header chunk information per PPDU field. More...

Time	GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const
	Get the remaining duration of the PPDU after the end of the given field. More...

virtual uint16_t	GetStaId (const Ptr< const WifiPpdu > ppdu) const
	Return the STA ID that has been assigned to the station this PHY belongs to. More...

virtual WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

virtual bool	HandlesMcsModes () const
	Check if the WifiModes handled by this PHY are MCSs. More...

virtual bool	IsMcsSupported (uint8_t index) const
	Check if the WifiMode corresponding to the given MCS index is supported. More...

virtual bool	IsModeSupported (WifiMode mode) const
	Check if the WifiMode is supported. More...

bool	NoEndPreambleDetectionEvents () const

virtual void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType)
	Notify PHY state helper to switch to CCA busy state,. More...

virtual uint64_t	ObtainNextUid (const WifiTxVector &txVector)
	Obtain the next UID for the PPDU to transmit. More...

void	ResetReceive (Ptr< Event > event)
	Reset PHY at the end of the PPDU under reception after it has failed the PHY header. More...

void	SetOwner (Ptr< WifiPhy > wifiPhy)
	Set the WifiPhy owning this PHY entity. More...

void	StartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field. More...

virtual void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e. More...

virtual void	StartTx (Ptr< const WifiPpdu > ppdu)
	This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions. More...

virtual void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu)
	Check if PHY state should move to CCA busy state based on current state of interference tracker. More...

void	Transmit (Time txDuration, Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, const std::string &type)
	This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method. More...

Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Static Public Member Functions

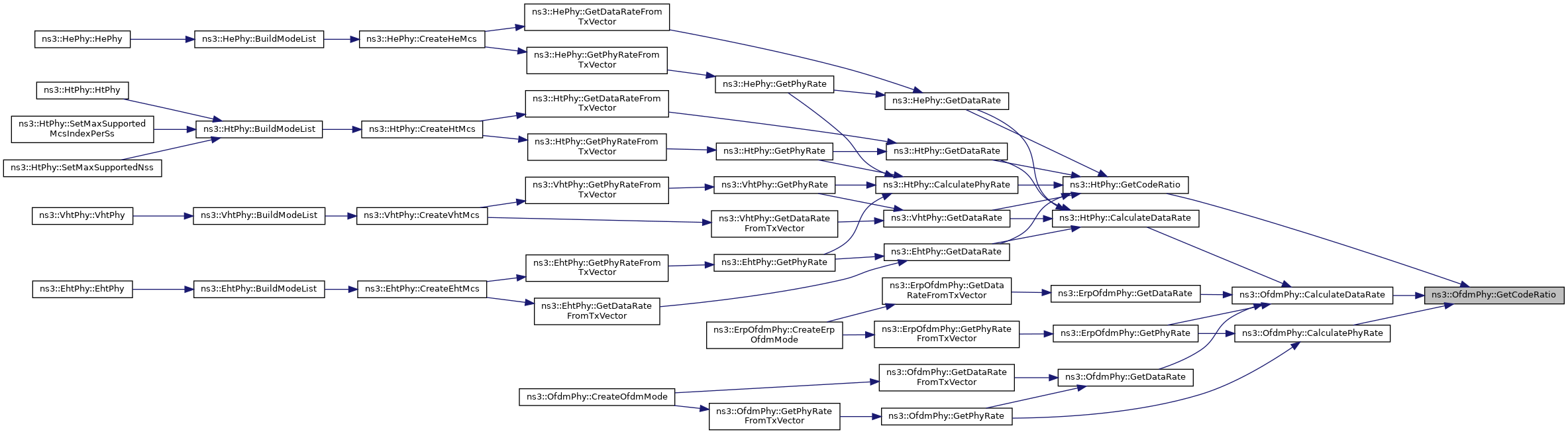

static WifiCodeRate	GetCodeRate (const std::string &name)
	Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable. More...

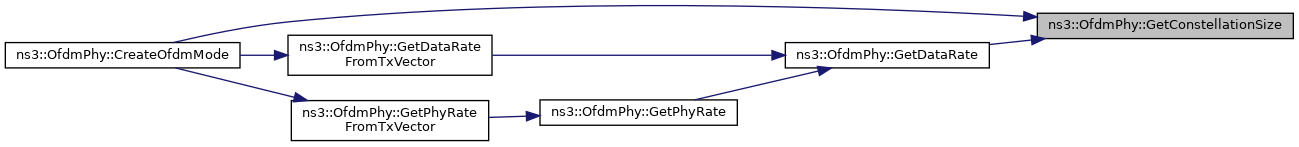

static uint16_t	GetConstellationSize (const std::string &name)
	Return the constellation size from the OFDM mode's unique name using ModulationLookupTable. More...

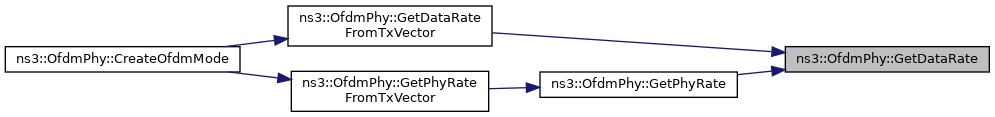

static uint64_t	GetDataRate (const std::string &name, uint16_t channelWidth)
	Return the data rate from the OFDM mode's unique name and the supplied parameters. More...

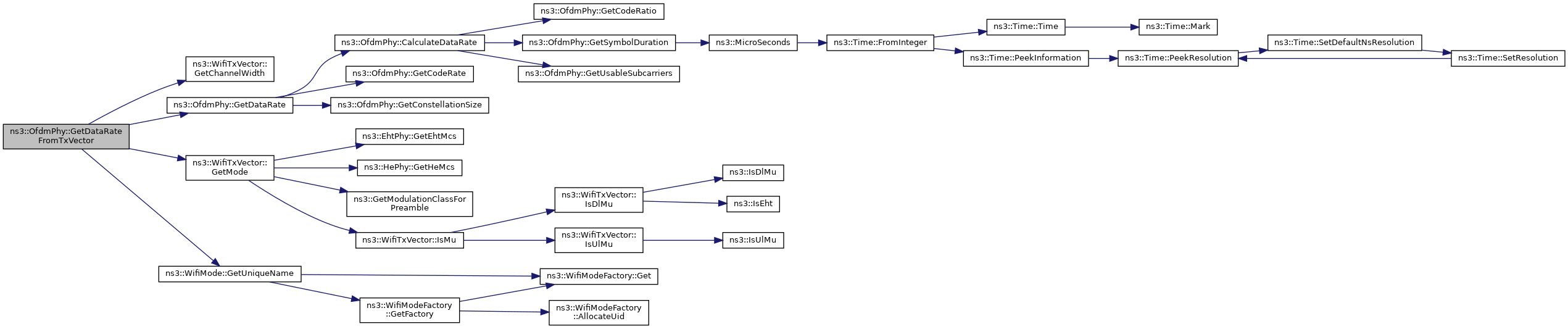

static uint64_t	GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the data rate corresponding to the supplied TXVECTOR. More...

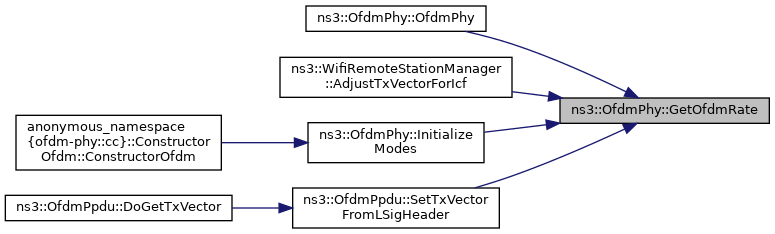

static WifiMode	GetOfdmRate (uint64_t rate, uint16_t bw=20)
	Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz). More...

static WifiMode	GetOfdmRate12Mbps ()
	Return a WifiMode for OFDM at 12Mbps. More...

static WifiMode	GetOfdmRate12MbpsBW10MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate12MbpsBW5MHz ()
	Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing. More...

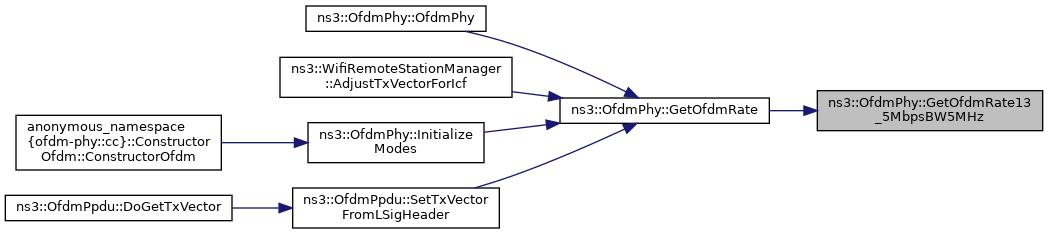

static WifiMode	GetOfdmRate13_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing. More...

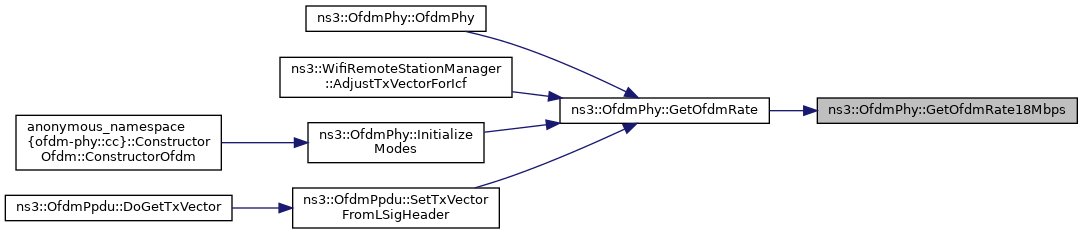

static WifiMode	GetOfdmRate18Mbps ()
	Return a WifiMode for OFDM at 18 Mbps. More...

static WifiMode	GetOfdmRate18MbpsBW10MHz ()
	Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate1_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate24Mbps ()
	Return a WifiMode for OFDM at 24 Mbps. More...

static WifiMode	GetOfdmRate24MbpsBW10MHz ()
	Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate27MbpsBW10MHz ()
	Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate2_25MbpsBW5MHz ()
	Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate36Mbps ()
	Return a WifiMode for OFDM at 36 Mbps. More...

static WifiMode	GetOfdmRate3MbpsBW10MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate3MbpsBW5MHz ()
	Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate48Mbps ()
	Return a WifiMode for OFDM at 48 Mbps. More...

static WifiMode	GetOfdmRate4_5MbpsBW10MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing. More...

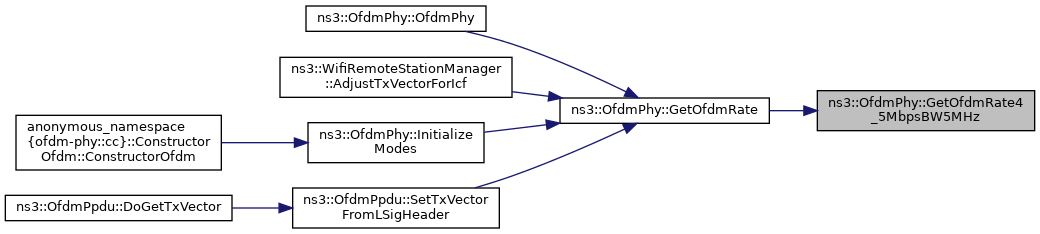

static WifiMode	GetOfdmRate4_5MbpsBW5MHz ()
	Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate54Mbps ()
	Return a WifiMode for OFDM at 54 Mbps. More...

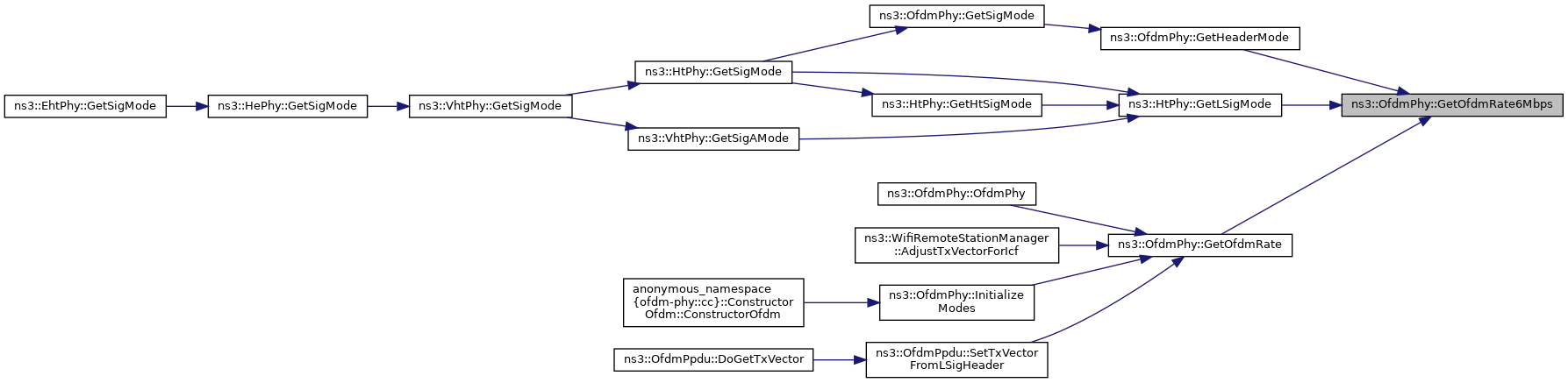

static WifiMode	GetOfdmRate6Mbps ()
	Return a WifiMode for OFDM at 6 Mbps. More...

static WifiMode	GetOfdmRate6MbpsBW10MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate6MbpsBW5MHz ()
	Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing. More...

static WifiMode	GetOfdmRate9Mbps ()
	Return a WifiMode for OFDM at 9 Mbps. More...

static WifiMode	GetOfdmRate9MbpsBW10MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing. More...

static WifiMode	GetOfdmRate9MbpsBW5MHz ()
	Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing. More...

static uint64_t	GetPhyRate (const std::string &name, uint16_t channelWidth)
	Return the PHY rate from the OFDM mode's unique name and the supplied parameters. More...

static uint64_t	GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId)
	Return the PHY rate corresponding to the supplied TXVECTOR. More...

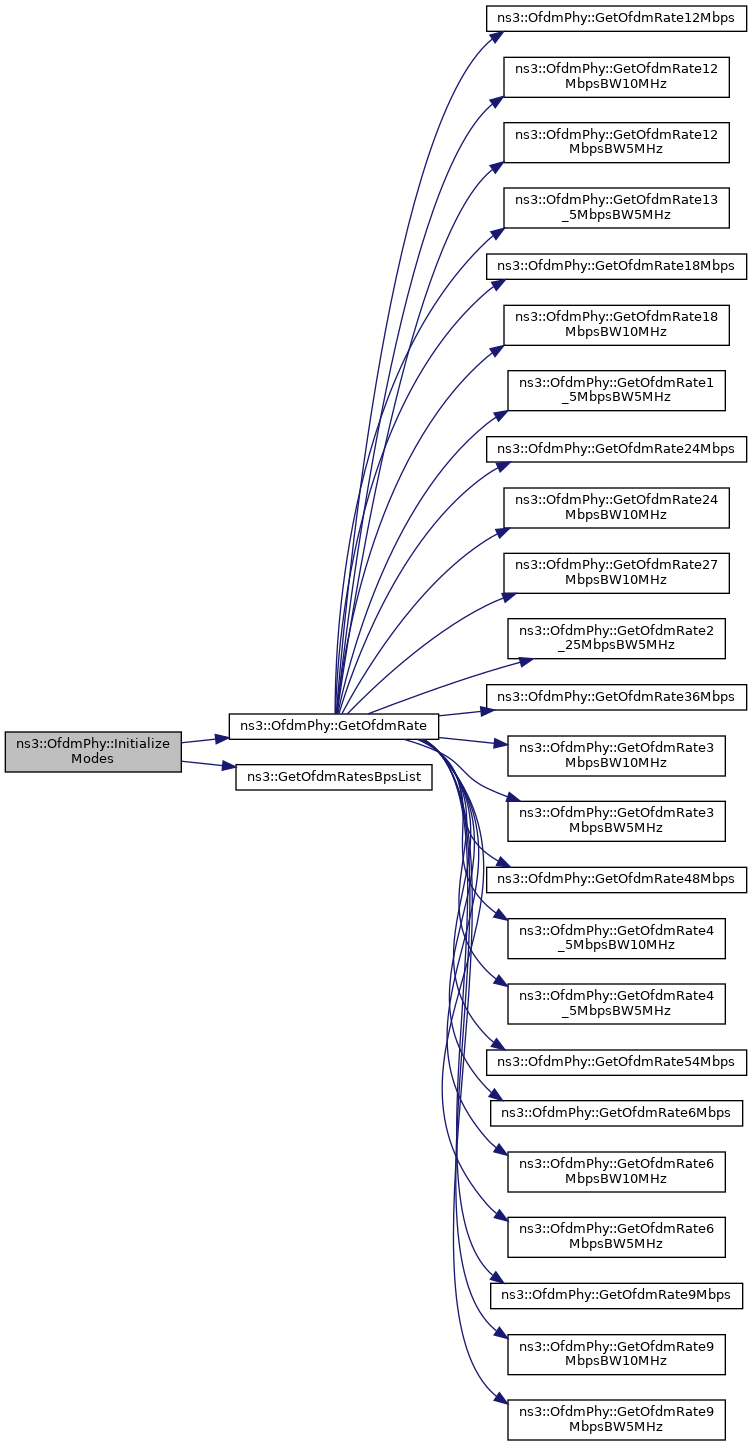

static void	InitializeModes ()
	Initialize all OFDM modes (for all variants). More...

static bool	IsAllowed (const WifiTxVector &txVector)
	Check whether the combination in TXVECTOR is allowed. More...

Protected Member Functions

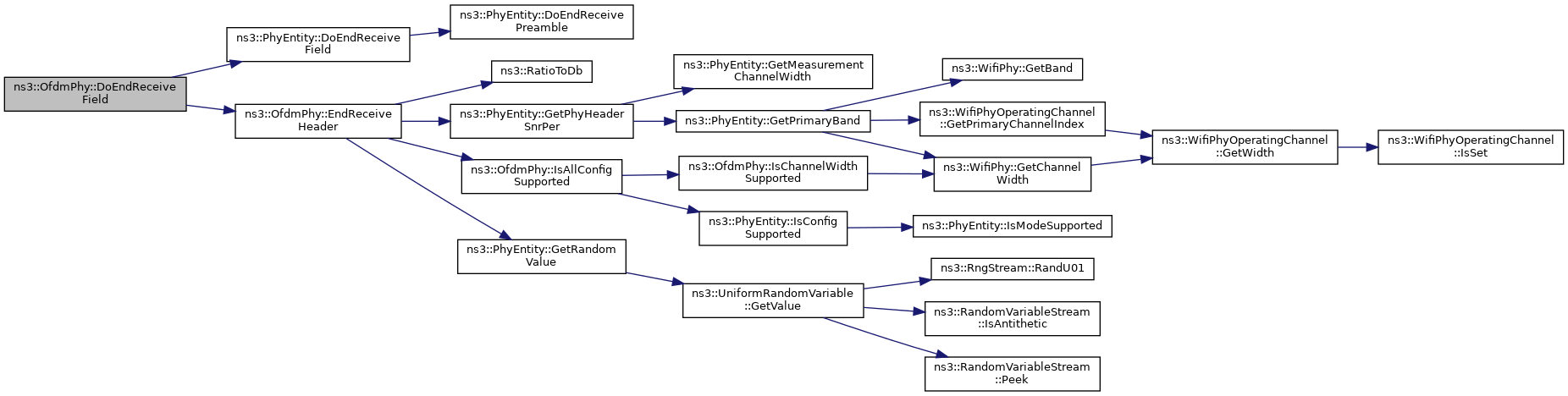

PhyFieldRxStatus	DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override
	End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More...

PhyFieldRxStatus	EndReceiveHeader (Ptr< Event > event)
	End receiving the header, perform OFDM-specific actions, and provide the status of the reception. More...

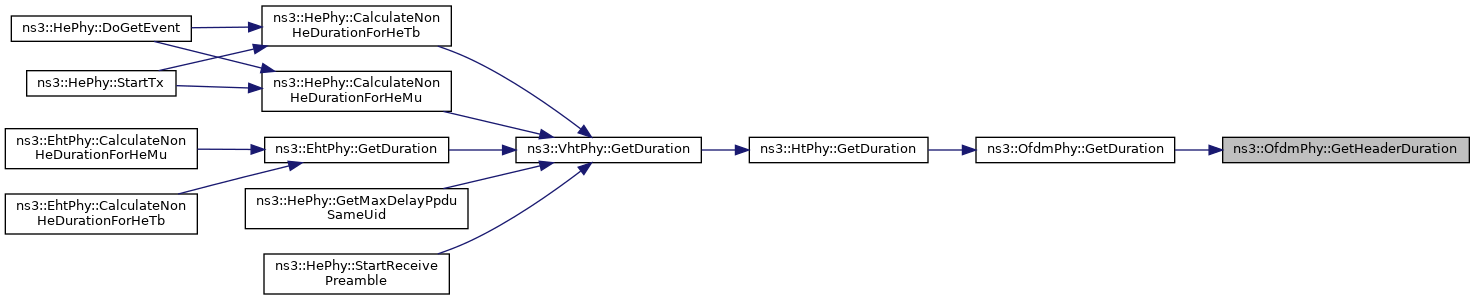

virtual Time	GetHeaderDuration (const WifiTxVector &txVector) const

virtual WifiMode	GetHeaderMode (const WifiTxVector &txVector) const

uint32_t	GetMaxPsduSize () const override
	Get the maximum PSDU size in bytes. More...

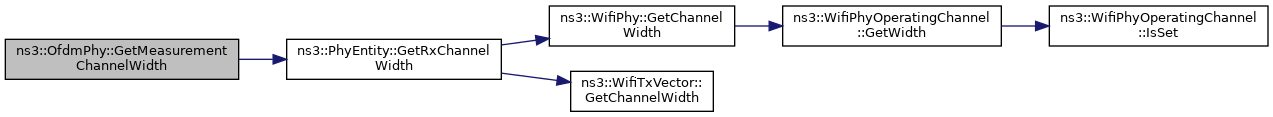

uint16_t	GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override
	Return the channel width used to measure the RSSI. More...

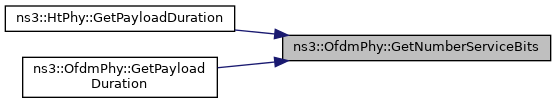

uint8_t	GetNumberServiceBits () const

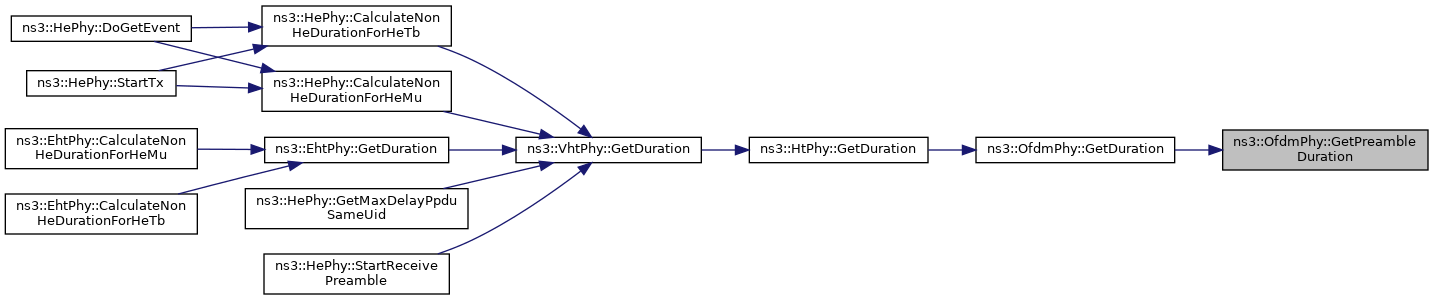

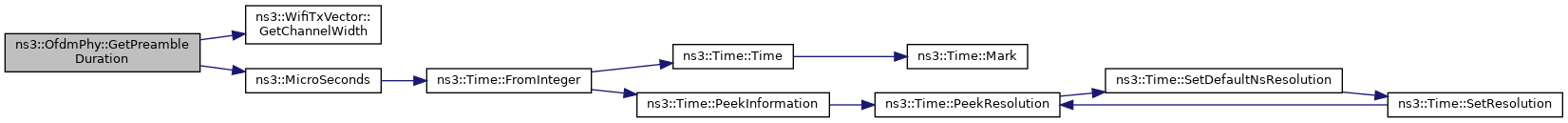

virtual Time	GetPreambleDuration (const WifiTxVector &txVector) const

Time	GetSignalExtension (WifiPhyBand band) const

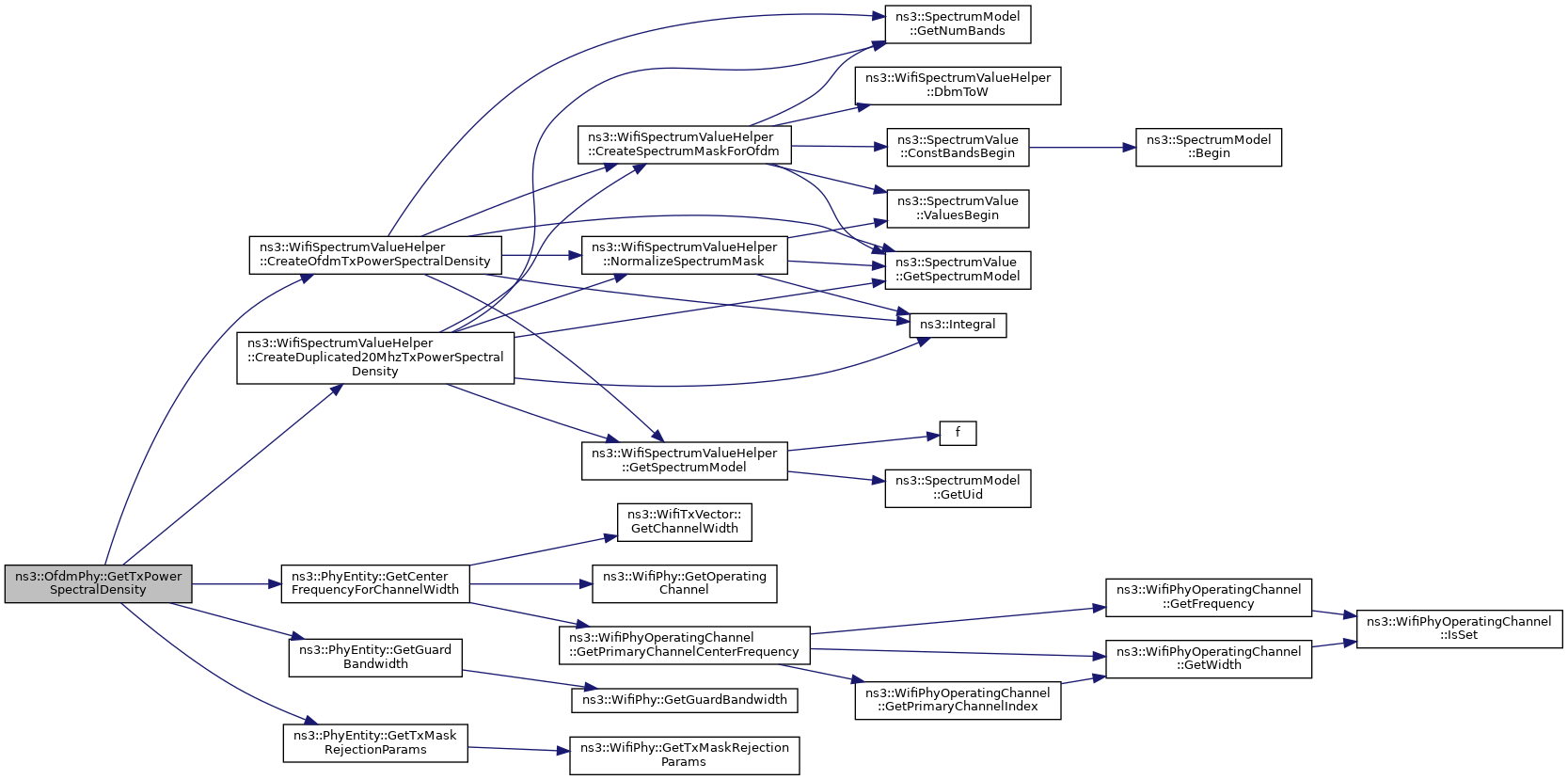

Ptr< SpectrumValue >	GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override

virtual bool	IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (including bandwidth) is supported by the PHY. More...

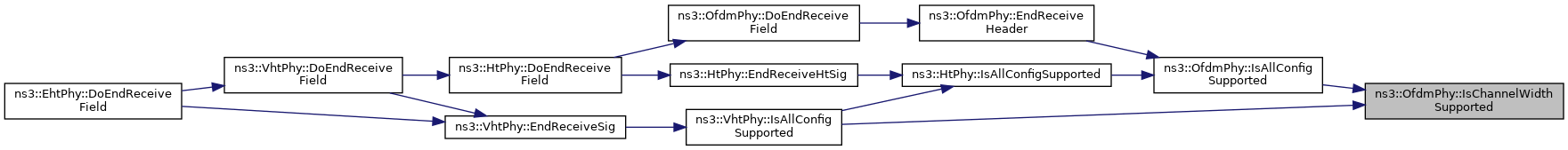

virtual bool	IsChannelWidthSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the PPDU's bandwidth is supported by the PHY. More...

Protected Member Functions inherited from ns3::PhyEntity
void	AbortCurrentReception (WifiPhyRxfailureReason reason)
	Abort the current reception. More...

void	AddPreambleEvent (Ptr< Event > event)
	Add an entry to the map of current preamble events (stored in WifiPhy). More...

Ptr< Event >	CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartHePortionRxing=false)
	Create an event using WifiPhy's InterferenceHelper class. More...

virtual void	DoAbortCurrentReception (WifiPhyRxfailureReason reason)
	Perform amendment-specific actions before aborting the current reception. More...

virtual void	DoEndReceivePayload (Ptr< const WifiPpdu > ppdu)
	Perform amendment-specific actions at the end of the reception of the payload. More...

virtual PhyFieldRxStatus	DoEndReceivePreamble (Ptr< Event > event)
	End receiving the preamble, perform amendment-specific actions, and provide the status of the reception. More...

virtual Ptr< Event >	DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW)
	Get the event corresponding to the incoming PPDU. More...

virtual void	DoResetReceive (Ptr< Event > event)
	Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header. More...

virtual bool	DoStartReceiveField (WifiPpduField field, Ptr< Event > event)
	Start receiving a given field, perform amendment-specific actions, and signify if it is supported. More...

virtual Time	DoStartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

void	DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx)
	Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event. More...

void	EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration)
	The last symbol of an MPDU in an A-MPDU has arrived. More...

void	EndPreambleDetectionPeriod (Ptr< Event > event)
	End the preamble detection period. More...

void	ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration)
	Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event. More...

virtual CcaIndication	GetCcaIndication (const Ptr< const WifiPpdu > ppdu)
	Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY. More...

uint16_t	GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const
	Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More...

virtual std::pair< uint16_t, WifiSpectrumBandInfo >	GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const
	Get the channel width and band to use (will be overloaded by child classes). More...

Ptr< const Event >	GetCurrentEvent () const
	Get the pointer to the current event (stored in WifiPhy). More...

const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > &	GetCurrentPreambleEvents () const
	Get the map of current preamble events (stored in WifiPhy). More...

Time	GetDelayUntilCcaEnd (double thresholdDbm, const WifiSpectrumBandInfo &band)
	Return the delay until CCA busy is ended for a given sensitivity threshold (in dBm) and a given band. More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const

SnrPer	GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const
	Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class. More...

WifiSpectrumBandInfo	GetPrimaryBand (uint16_t bandWidth) const
	If the operating channel width is a multiple of 20 MHz, return the info corresponding to the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More...

double	GetRandomValue () const
	Obtain a random value from the WifiPhy's generator. More...

std::pair< bool, SignalNoiseDbm >	GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration)
	Get the reception status for the provided MPDU and notify. More...

virtual uint16_t	GetRxChannelWidth (const WifiTxVector &txVector) const
	Return the channel width used in the reception spectrum model. More...

double	GetRxPowerWForPpdu (Ptr< Event > event) const
	Obtain the received power (W) for a given band. More...

WifiSpectrumBandInfo	GetSecondaryBand (uint16_t bandWidth) const
	If the channel bonding is used, return the info corresponding to the secondary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More...

std::tuple< double, double, double >	GetTxMaskRejectionParams () const

virtual void	HandleRxPpduWithSameContent (Ptr< Event > event, Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPower)
	Handle reception of a PPDU that carries the same content of another PPDU. More...

virtual bool	IsConfigSupported (Ptr< const WifiPpdu > ppdu) const
	Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More...

void	NotifyInterferenceRxEndAndClear (bool reset)
	Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy. More...

void	NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration)
	Fire the trace indicating that the PHY is starting to receive the payload of a PPDU. More...

virtual void	RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector)
	Perform amendment-specific actions when the payload is unsuccessfuly received. More...

virtual void	RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu)
	Perform amendment-specific actions when the payload is successfully received. More...

void	ScheduleEndOfMpdus (Ptr< Event > event)
	Schedule end of MPDUs events. More...

void	StartPreambleDetectionPeriod (Ptr< Event > event)
	Start the preamble detection period. More...

void	StartReceivePayload (Ptr< Event > event)
	Start receiving the PSDU (i.e. More...

Static Protected Member Functions
static uint64_t	CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculateDataRate (WifiCodeRate codeRate, uint16_t constellationSize, uint16_t channelWidth)
	Calculates data rate from the supplied parameters. More...

static uint64_t	CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate)
	Calculate the PHY rate in bps from code rate and data rate. More...

static double	GetCodeRatio (WifiCodeRate codeRate)
	Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More...

static Time	GetSymbolDuration (uint16_t channelWidth)

static uint16_t	GetUsableSubcarriers ()

Static Private Member Functions
static WifiMode	CreateOfdmMode (std::string uniqueName, bool isMandatory)
	Create an OFDM mode from a unique name, the unique name must already be contained inside ModulationLookupTable. More...

Static Private Attributes
static const ModulationLookupTable	m_ofdmModulationLookupTable
	lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation More...

static const PpduFormats	m_ofdmPpduFormats
	OFDM PPDU formats. More...

Additional Inherited Members
Public Types inherited from ns3::PhyEntity
typedef std::pair< std::pair< Time, Time >, WifiMode >	PhyHeaderChunkInfo
	A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used. More...

typedef std::map< WifiPpduField, PhyHeaderChunkInfo >	PhyHeaderSections
	A map of PhyHeaderChunkInfo elements per PPDU field. More...

enum	PhyRxFailureAction { DROP = 0 , ABORT , IGNORE }
	Action to perform in case of RX failure. More...

Protected Types inherited from ns3::PhyEntity
using	CcaIndication = std::optional< std::pair< Time, WifiChannelListType > >
	CCA end time and its corresponding channel list type (can be std::nullopt if IDLE) More...

typedef std::pair< WifiCodeRate, uint16_t >	CodeRateConstellationSizePair
	A pair to hold modulation information: code rate and constellation size. More...

typedef std::map< std::string, CodeRateConstellationSizePair >	ModulationLookupTable
	A modulation lookup table using unique name of modulation as key. More...

typedef std::map< WifiPreamble, std::vector< WifiPpduField > >	PpduFormats
	A map of PPDU field elements per preamble type. More...

typedef std::pair< uint64_t, uint16_t >	UidStaIdPair
	A pair of a UID and STA_ID. More...

Protected Attributes inherited from ns3::PhyEntity
std::vector< EventId >	m_endOfMpduEvents
	the end of MPDU events (only used for A-MPDUs) More...

std::vector< EventId >	m_endPreambleDetectionEvents
	the end of preamble detection events More...

std::vector< EventId >	m_endRxPayloadEvents
	the end of receive events (only one unless UL MU reception) More...

std::list< WifiMode >	m_modeList
	the list of supported modes More...

std::map< UidStaIdPair, SignalNoiseDbm >	m_signalNoiseMap
	Map of the latest signal power and noise power in dBm (noise power includes the noise figure) More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes) More...

std::map< UidStaIdPair, std::vector< bool > >	m_statusPerMpduMap
	Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU. More...

Ptr< WifiPhy >	m_wifiPhy
	Pointer to the owning WifiPhy. More...

Static Protected Attributes inherited from ns3::PhyEntity
static uint64_t	m_globalPpduUid = 0
	Global counter of the PPDU UID. More...

Detailed Description

PHY entity for OFDM (11a)

This class is also used for the 10 MHz and 5 MHz bandwidth variants addressing vehicular communications (default is 20 MHz bandwidth).

Refer to IEEE 802.11-2016, clause 17.

Definition at line 60 of file ofdm-phy.h.

Constructor & Destructor Documentation

◆ OfdmPhy()

ns3::OfdmPhy::OfdmPhy	(	OfdmPhyVariant	variant = `OFDM_PHY_DEFAULT`,
		bool	buildModeList = `true`
	)

Constructor for OFDM PHY.

Parameters

variant	the OFDM PHY variant
buildModeList	flag used to add OFDM modes to list (disabled by child classes to only add child classes' modes)

Definition at line 106 of file ofdm-phy.cc.

References GetOfdmRate(), ns3::GetOfdmRatesBpsList(), ns3::PhyEntity::m_modeList, NS_ABORT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::OFDM_PHY_10_MHZ, ns3::OFDM_PHY_5_MHZ, and ns3::OFDM_PHY_DEFAULT.

Here is the call graph for this function:

◆ ~OfdmPhy()

ns3::OfdmPhy::~OfdmPhy ( )

override

Destructor for OFDM PHY.

Definition at line 146 of file ofdm-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ BuildPpdu()

Ptr< WifiPpdu > ns3::OfdmPhy::BuildPpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		Time	ppduDuration
	)

overridevirtual

Build amendment-specific PPDU.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for the PPDU
ppduDuration	the transmission duration of the PPDU

Returns: the amendment-specific WifiPpdu

Reimplemented from ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 293 of file ofdm-phy.cc.

References ns3::WifiPhy::GetLatestPhyEntity(), ns3::WifiPhy::GetOperatingChannel(), ns3::PhyEntity::m_wifiPhy, and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ CalculateDataRate() [1/2]

uint64_t ns3::OfdmPhy::CalculateDataRate	(	Time	symbolDuration,
		uint16_t	usableSubCarriers,
		uint16_t	numberOfBitsPerSubcarrier,
		double	codingRate
	)

staticprotected

Calculates data rate from the supplied parameters.

Parameters

symbolDuration	the symbol duration
usableSubCarriers	the number of usable subcarriers for data
numberOfBitsPerSubcarrier	the number of data bits per subcarrier
codingRate	the coding rate

Returns: the data bit rate of this signal in bps.

Definition at line 621 of file ofdm-phy.cc.

References ns3::Time::GetNanoSeconds().

Here is the call graph for this function:

◆ CalculateDataRate() [2/2]

uint64_t ns3::OfdmPhy::CalculateDataRate	(	WifiCodeRate	codeRate,
		uint16_t	constellationSize,
		uint16_t	channelWidth
	)

staticprotected

Calculates data rate from the supplied parameters.

Parameters

codeRate	the code rate of the mode
constellationSize	the size of modulation constellation
channelWidth	the considered channel width in MHz

Returns: the data bit rate of this signal in bps.

Definition at line 612 of file ofdm-phy.cc.

References GetCodeRatio(), GetSymbolDuration(), and GetUsableSubcarriers().

Referenced by ns3::HtPhy::CalculateDataRate(), ns3::ErpOfdmPhy::GetDataRate(), GetDataRate(), and ns3::ErpOfdmPhy::GetPhyRate().

Here is the call graph for this function:

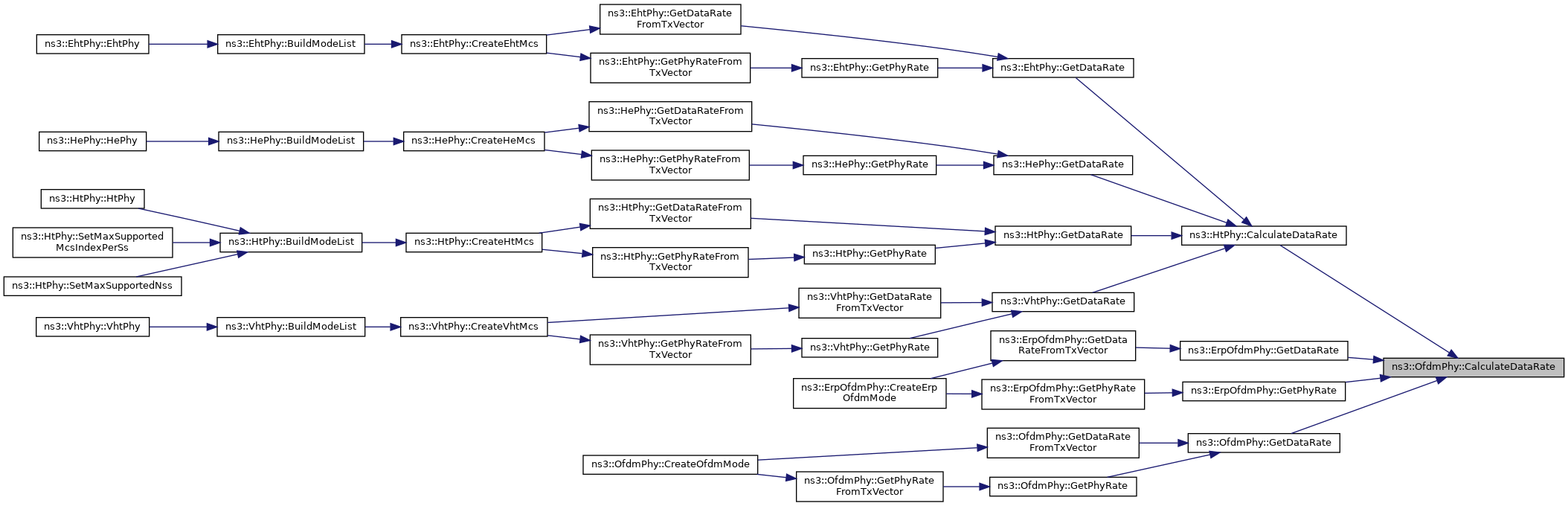

Here is the caller graph for this function:

◆ CalculatePhyRate()

uint64_t ns3::OfdmPhy::CalculatePhyRate	(	WifiCodeRate	codeRate,
		uint64_t	dataRate
	)

staticprotected

Calculate the PHY rate in bps from code rate and data rate.

Parameters

codeRate	the WifiCodeRate
dataRate	the data rate in bps

Returns: the physical rate in bps from WifiCodeRate and data rate.

Definition at line 568 of file ofdm-phy.cc.

References GetCodeRatio().

Referenced by ns3::ErpOfdmPhy::GetPhyRate(), and GetPhyRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateOfdmMode()

WifiMode ns3::OfdmPhy::CreateOfdmMode	(	std::string	uniqueName,
		bool	isMandatory
	)

staticprivate

Create an OFDM mode from a unique name, the unique name must already be contained inside ModulationLookupTable.

This method binds all the callbacks used by WifiMode.

Parameters

uniqueName	the unique name of the WifiMode
isMandatory	whether the WifiMode is mandatory

Returns: the OFDM WifiMode

Definition at line 530 of file ofdm-phy.cc.

References ns3::WifiModeFactory::CreateWifiMode(), GetCodeRate(), GetConstellationSize(), GetDataRateFromTxVector(), GetPhyRateFromTxVector(), IsAllowed(), m_ofdmModulationLookupTable, ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, and ns3::WIFI_MOD_CLASS_OFDM.

Here is the call graph for this function:

◆ DoEndReceiveField()

PhyEntity::PhyFieldRxStatus ns3::OfdmPhy::DoEndReceiveField	(	WifiPpduField	field,
		Ptr< Event >	event
	)

overrideprotectedvirtual

End receiving a given field, perform amendment-specific actions, and provide the status of the reception.

Parameters

field	the ending PPDU field
event	the event holding incoming PPDU's information

Returns: status of the reception of the PPDU field

Reimplemented from ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 307 of file ofdm-phy.cc.

References ns3::PhyEntity::DoEndReceiveField(), EndReceiveHeader(), NS_LOG_FUNCTION, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Referenced by ns3::HtPhy::DoEndReceiveField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ EndReceiveHeader()

PhyEntity::PhyFieldRxStatus ns3::OfdmPhy::EndReceiveHeader ( Ptr< Event > event )

protected

End receiving the header, perform OFDM-specific actions, and provide the status of the reception.

Parameters

event the event holding incoming PPDU's information

Returns: status of the reception of the header

Definition at line 318 of file ofdm-phy.cc.

References ns3::PhyEntity::ABORT, ns3::PhyEntity::PhyFieldRxStatus::actionIfFailure, ns3::PhyEntity::DROP, ns3::PhyEntity::GetPhyHeaderSnrPer(), ns3::PhyEntity::GetRandomValue(), IsAllConfigSupported(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, ns3::L_SIG_FAILURE, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PhyEntity::SnrPer::per, ns3::RatioToDb(), ns3::PhyEntity::PhyFieldRxStatus::reason, ns3::PhyEntity::SnrPer::snr, ns3::UNSUPPORTED_SETTINGS, and ns3::WIFI_PPDU_FIELD_NON_HT_HEADER.

Referenced by DoEndReceiveField().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCcaThreshold()

double ns3::OfdmPhy::GetCcaThreshold	(	const Ptr< const WifiPpdu >	ppdu,
		WifiChannelListType	channelType
	)		const

overridevirtual

Return the CCA threshold in dBm for a given channel type.

If the channel type is not provided, the default CCA threshold is returned.

Parameters

ppdu	the PPDU that is being received
channelType	the channel type

Returns: the CCA threshold in dBm

Reimplemented from ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 675 of file ofdm-phy.cc.

References ns3::DbmToW(), ns3::WifiPhy::GetCcaSensitivityThreshold(), ns3::PhyEntity::GetCcaThreshold(), ns3::PhyEntity::GetRxChannelWidth(), ns3::PhyEntity::m_wifiPhy, and ns3::WToDbm().

Referenced by ns3::HtPhy::GetCcaIndication().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCodeRate()

WifiCodeRate ns3::OfdmPhy::GetCodeRate ( const std::string & name )

static

Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the OFDM mode

Returns: WifiCodeRate corresponding to the unique name

Definition at line 548 of file ofdm-phy.cc.

References m_ofdmModulationLookupTable.

Referenced by CreateOfdmMode(), GetDataRate(), and GetPhyRate().

Here is the caller graph for this function:

◆ GetCodeRatio()

double ns3::OfdmPhy::GetCodeRatio ( WifiCodeRate codeRate )

staticprotected

Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5.

Parameters

codeRate the WifiCodeRate

Returns: the ratio form of WifiCodeRate.

Definition at line 580 of file ofdm-phy.cc.

References NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_1_2, ns3::WIFI_CODE_RATE_2_3, ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_UNDEFINED.

Referenced by CalculateDataRate(), CalculatePhyRate(), and ns3::HtPhy::GetCodeRatio().

Here is the caller graph for this function:

◆ GetConstellationSize()

uint16_t ns3::OfdmPhy::GetConstellationSize ( const std::string & name )

static

Return the constellation size from the OFDM mode's unique name using ModulationLookupTable.

This is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the OFDM mode

Returns: constellation size corresponding to the unique name

Definition at line 554 of file ofdm-phy.cc.

References m_ofdmModulationLookupTable.

Referenced by CreateOfdmMode(), and GetDataRate().

Here is the caller graph for this function:

◆ GetDataRate()

uint64_t ns3::OfdmPhy::GetDataRate	(	const std::string &	name,
		uint16_t	channelWidth
	)

static

Return the data rate from the OFDM mode's unique name and the supplied parameters.

This function calls CalculateDataRate and is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the OFDM mode
channelWidth	the considered channel width in MHz

Returns: the data bit rate of this signal in bps.

Definition at line 604 of file ofdm-phy.cc.

References CalculateDataRate(), GetCodeRate(), and GetConstellationSize().

Referenced by GetDataRateFromTxVector(), and GetPhyRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDataRateFromTxVector()

uint64_t ns3::OfdmPhy::GetDataRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)

static

Return the data rate corresponding to the supplied TXVECTOR.

This function is mainly used as a callback for WifiMode operation.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID (only here to have a common signature for all callbacks)

Returns: the data bit rate in bps.

Definition at line 598 of file ofdm-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), GetDataRate(), ns3::WifiTxVector::GetMode(), and ns3::WifiMode::GetUniqueName().

Referenced by CreateOfdmMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDuration()

Time ns3::OfdmPhy::GetDuration	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters.

Parameters

field	the PPDU field (or group of fields)
txVector	the transmission parameters

Returns: the duration of the PPDU field

Reimplemented from ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 191 of file ofdm-phy.cc.

References ns3::PhyEntity::GetDuration(), GetHeaderDuration(), GetPreambleDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

Referenced by ns3::HtPhy::GetDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeaderDuration()

Time ns3::OfdmPhy::GetHeaderDuration ( const WifiTxVector & txVector ) const

protectedvirtual

Parameters

txVector the transmission parameters

Returns: the duration of the SIGNAL field

Reimplemented in ns3::ErpOfdmPhy.

Definition at line 229 of file ofdm-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), and ns3::MicroSeconds().

Referenced by GetDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetHeaderMode()

WifiMode ns3::OfdmPhy::GetHeaderMode ( const WifiTxVector & txVector ) const

protectedvirtual

Parameters

txVector the transmission parameters

Returns: the WifiMode used for the SIGNAL field

Reimplemented in ns3::ErpOfdmPhy.

Definition at line 166 of file ofdm-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), GetOfdmRate1_5MbpsBW5MHz(), GetOfdmRate3MbpsBW10MHz(), and GetOfdmRate6Mbps().

Referenced by GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMaxPsduSize()

uint32_t ns3::OfdmPhy::GetMaxPsduSize ( ) const

overrideprotectedvirtual

Get the maximum PSDU size in bytes.

Returns: the maximum PSDU size in bytes

Implements ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 659 of file ofdm-phy.cc.

◆ GetMeasurementChannelWidth()

uint16_t ns3::OfdmPhy::GetMeasurementChannelWidth ( const Ptr< const WifiPpdu > ppdu ) const

overrideprotectedvirtual

Return the channel width used to measure the RSSI.

Parameters

ppdu	the PPDU that is being received

Returns: the channel width (in MHz) used for RSSI measurement

Implements ns3::PhyEntity.

Definition at line 665 of file ofdm-phy.cc.

References ns3::PhyEntity::GetRxChannelWidth().

Referenced by ns3::HePhy::GetMeasurementChannelWidth().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNumberServiceBits()

uint8_t ns3::OfdmPhy::GetNumberServiceBits ( ) const

protected

Returns: the number of service bits

Definition at line 281 of file ofdm-phy.cc.

Referenced by ns3::HtPhy::GetPayloadDuration(), and GetPayloadDuration().

Here is the caller graph for this function:

◆ GetOfdmRate()

WifiMode ns3::OfdmPhy::GetOfdmRate	(	uint64_t	rate,
		uint16_t	bw = `20`
	)

static

Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz).

Parameters

rate	the rate in bps
bw	the bandwidth in MHz

Returns: a WifiMode for OFDM

Definition at line 411 of file ofdm-phy.cc.

Referenced by OfdmPhy(), ns3::WifiRemoteStationManager::AdjustTxVectorForIcf(), InitializeModes(), and ns3::OfdmPpdu::SetTxVectorFromLSigHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetOfdmRate12Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate12Mbps ( )

static

Return a WifiMode for OFDM at 12Mbps.

Returns: a WifiMode for OFDM at 12 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate12MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate12MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate12MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate12MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate13_5MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate13_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate18Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate18Mbps ( )

static

Return a WifiMode for OFDM at 18 Mbps.

Returns: a WifiMode for OFDM at 18 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate18MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate18MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate1_5MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate1_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing

Referenced by GetHeaderMode(), and GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate24Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate24Mbps ( )

static

Return a WifiMode for OFDM at 24 Mbps.

Returns: a WifiMode for OFDM at 24 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate24MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate24MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate27MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate27MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate2_25MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate2_25MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate36Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate36Mbps ( )

static

Return a WifiMode for OFDM at 36 Mbps.

Returns: a WifiMode for OFDM at 36 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate3MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate3MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing

Referenced by GetHeaderMode(), and GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate3MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate3MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate48Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate48Mbps ( )

static

Return a WifiMode for OFDM at 48 Mbps.

Returns: a WifiMode for OFDM at 48 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate4_5MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate4_5MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate4_5MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate4_5MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate54Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate54Mbps ( )

static

Return a WifiMode for OFDM at 54 Mbps.

Returns: a WifiMode for OFDM at 54 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate6Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate6Mbps ( )

static

Return a WifiMode for OFDM at 6 Mbps.

Returns: a WifiMode for OFDM at 6 Mbps

Referenced by GetHeaderMode(), ns3::HtPhy::GetLSigMode(), and GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate6MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate6MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate6MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate6MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate9Mbps()

static WifiMode ns3::OfdmPhy::GetOfdmRate9Mbps ( )

static

Return a WifiMode for OFDM at 9 Mbps.

Returns: a WifiMode for OFDM at 9 Mbps

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate9MbpsBW10MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate9MbpsBW10MHz ( )

static

Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing.

Returns: a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetOfdmRate9MbpsBW5MHz()

static WifiMode ns3::OfdmPhy::GetOfdmRate9MbpsBW5MHz ( )

static

Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing.

Returns: a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing

Referenced by GetOfdmRate().

Here is the caller graph for this function:

◆ GetPayloadDuration()

Time ns3::OfdmPhy::GetPayloadDuration	(	uint32_t	size,
		const WifiTxVector &	txVector,
		WifiPhyBand	band,
		MpduType	mpdutype,
		bool	incFlag,
		uint32_t &	totalAmpduSize,
		double &	totalAmpduNumSymbols,
		uint16_t	staId
	)		const

overridevirtual

Parameters

size	the number of bytes in the packet to send
txVector	the TXVECTOR used for the transmission of this packet
band	the frequency band
mpdutype	the type of the MPDU as defined in WifiPhy::MpduType.
incFlag	this flag is used to indicate that the variables need to be update or not This function is called a couple of times for the same packet so variables should not be increased each time.
totalAmpduSize	the total size of the previously transmitted MPDUs for the concerned A-MPDU. If incFlag is set, this parameter will be updated.
totalAmpduNumSymbols	the number of symbols previously transmitted for the MPDUs in the concerned A-MPDU, used for the computation of the number of symbols needed for the last MPDU. If incFlag is set, this parameter will be updated.
staId	the STA-ID of the PSDU (only used for MU PPDUs)

Returns: the duration of the PSDU

Implements ns3::PhyEntity.

Definition at line 253 of file ofdm-phy.cc.

References ns3::FemtoSeconds(), ns3::WifiMode::GetDataRate(), ns3::Time::GetFemtoSeconds(), ns3::WifiTxVector::GetMode(), ns3::Time::GetNanoSeconds(), GetNumberServiceBits(), GetSignalExtension(), and ns3::MicroSeconds().

Here is the call graph for this function:

◆ GetPhyRate()

uint64_t ns3::OfdmPhy::GetPhyRate	(	const std::string &	name,
		uint16_t	channelWidth
	)

static

Return the PHY rate from the OFDM mode's unique name and the supplied parameters.

This function calls CalculatePhyRate and is mainly used as a callback for WifiMode operation.

Parameters

name	the unique name of the OFDM mode
channelWidth	the considered channel width in MHz

Returns: the physical bit rate of this signal in bps.

Definition at line 560 of file ofdm-phy.cc.

References CalculatePhyRate(), GetCodeRate(), and GetDataRate().

Referenced by GetPhyRateFromTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPhyRateFromTxVector()

uint64_t ns3::OfdmPhy::GetPhyRateFromTxVector	(	const WifiTxVector &	txVector,
		uint16_t	staId
	)

static

Return the PHY rate corresponding to the supplied TXVECTOR.

This function is mainly used as a callback for WifiMode operation.

Parameters

txVector	the TXVECTOR used for the transmission
staId	the station ID (only here to have a common signature for all callbacks)

Returns: the physical bit rate of this signal in bps.

Definition at line 574 of file ofdm-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetMode(), GetPhyRate(), and ns3::WifiMode::GetUniqueName().

Referenced by CreateOfdmMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPpduFormats()

const PhyEntity::PpduFormats & ns3::OfdmPhy::GetPpduFormats ( ) const

overridevirtual

Return the PPDU formats of the PHY.

Returns: the PPDU formats of the PHY

Implements ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 185 of file ofdm-phy.cc.

References m_ofdmPpduFormats.

◆ GetPreambleDuration()

Time ns3::OfdmPhy::GetPreambleDuration ( const WifiTxVector & txVector ) const

protectedvirtual

Parameters

txVector the transmission parameters

Returns: the duration of the preamble field

See also: WIFI_PPDU_FIELD_PREAMBLE

Reimplemented in ns3::ErpOfdmPhy.

Definition at line 205 of file ofdm-phy.cc.

References ns3::WifiTxVector::GetChannelWidth(), and ns3::MicroSeconds().

Referenced by GetDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetRxPpduFromTxPpdu()

Ptr< const WifiPpdu > ns3::OfdmPhy::GetRxPpduFromTxPpdu ( Ptr< const WifiPpdu > ppdu )

overridevirtual

The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel.

By default and for performance reasons, all RX PHYs will work on the same WifiPpdu instance from TX instead of a copy of it. Child classes can change that behavior and do a copy and/or change the content of the parameters stored in WifiPpdu.

Parameters

ppdu	the WifiPpdu transmitted by the TX PHY

Returns: the WifiPpdu to be used by the RX PHY

Reimplemented from ns3::PhyEntity.

Definition at line 688 of file ofdm-phy.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::PhyEntity::GetRxPpduFromTxPpdu(), ns3::PhyEntity::m_wifiPhy, and min.

Referenced by ns3::HePhy::GetRxPpduFromTxPpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSigMode()

WifiMode ns3::OfdmPhy::GetSigMode	(	WifiPpduField	field,
		const WifiTxVector &	txVector
	)		const

overridevirtual

Get the WifiMode for the SIG field specified by the PPDU field.

Parameters

field	the PPDU field
txVector	the transmission parameters

Returns: the WifiMode used for the SIG field

Reimplemented from ns3::PhyEntity.

Reimplemented in ns3::VhtPhy.

Definition at line 152 of file ofdm-phy.cc.

References GetHeaderMode(), ns3::PhyEntity::GetSigMode(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, and ns3::WIFI_PPDU_FIELD_PREAMBLE.

Referenced by ns3::HtPhy::GetSigMode().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSignalExtension()

Time ns3::OfdmPhy::GetSignalExtension ( WifiPhyBand band ) const

protected

Parameters

band	the frequency band being used

Returns: the signal extension duration

Definition at line 287 of file ofdm-phy.cc.

References ns3::MicroSeconds(), and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by ns3::HtPhy::GetPayloadDuration(), and GetPayloadDuration().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetSymbolDuration()

Time ns3::OfdmPhy::GetSymbolDuration ( uint16_t channelWidth )

staticprotected

Parameters

channelWidth the channel width in MHz

Returns: the symbol duration

Definition at line 637 of file ofdm-phy.cc.

References ns3::MicroSeconds().

Referenced by CalculateDataRate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTxPowerSpectralDensity()

Ptr< SpectrumValue > ns3::OfdmPhy::GetTxPowerSpectralDensity	(	double	txPowerW,
		Ptr< const WifiPpdu >	ppdu
	)		const

overrideprotectedvirtual

Parameters

txPowerW	power in W to spread across the bands
ppdu	the PPDU that will be transmitted

Returns: Pointer to SpectrumValue

This is a helper function to create the right TX PSD corresponding to the amendment of this PHY.

Implements ns3::PhyEntity.

Definition at line 365 of file ofdm-phy.cc.

References ns3::WifiSpectrumValueHelper::CreateDuplicated20MhzTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateOfdmTxPowerSpectralDensity(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::PhyEntity::GetTxMaskRejectionParams(), and NS_LOG_FUNCTION.

Here is the call graph for this function:

◆ GetUsableSubcarriers()

uint16_t ns3::OfdmPhy::GetUsableSubcarriers ( )

staticprotected

Returns: the number of usable subcarriers for data

Definition at line 631 of file ofdm-phy.cc.

Referenced by CalculateDataRate(), ns3::EhtPhy::GetDataRate(), ns3::HePhy::GetDataRate(), ns3::HtPhy::GetDataRate(), ns3::VhtPhy::GetDataRate(), and ns3::VhtPhy::GetUsableSubcarriers().

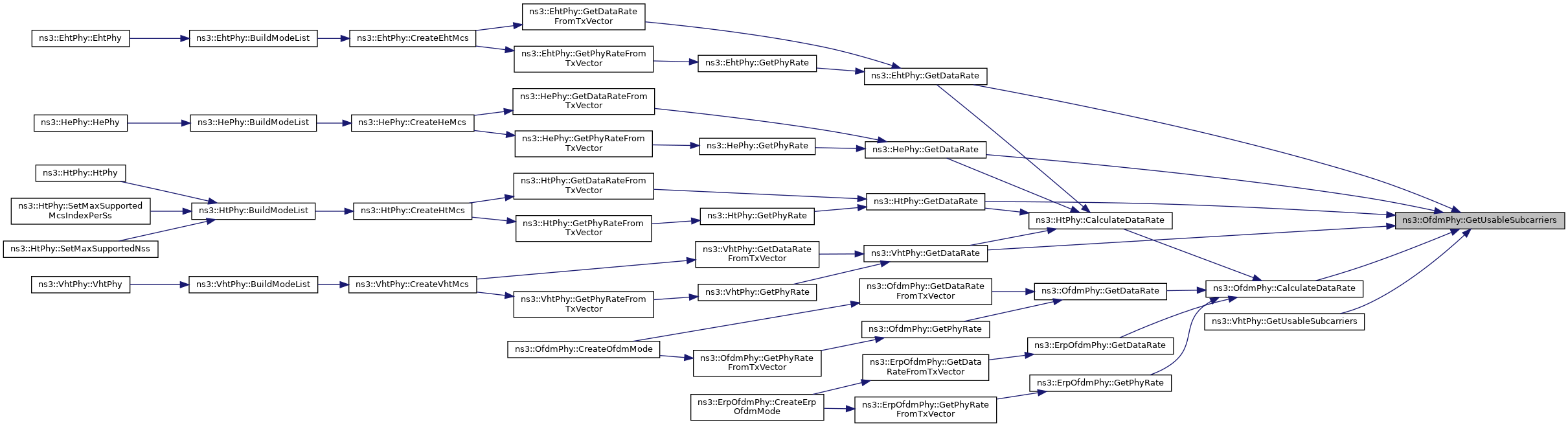

Here is the caller graph for this function:

◆ InitializeModes()

void ns3::OfdmPhy::InitializeModes ( )

static

Initialize all OFDM modes (for all variants).

Definition at line 399 of file ofdm-phy.cc.

References GetOfdmRate(), and ns3::GetOfdmRatesBpsList().

Referenced by anonymous_namespace{ofdm-phy.cc}::ConstructorOfdm::ConstructorOfdm().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAllConfigSupported()

bool ns3::OfdmPhy::IsAllConfigSupported	(	WifiPpduField	field,
		Ptr< const WifiPpdu >	ppdu
	)		const

protectedvirtual

Checks if the signaled configuration (including bandwidth) is supported by the PHY.

Parameters

field	the current PPDU field (SIG used for checking config)
ppdu	the received PPDU

Returns: true if supported, false otherwise

Reimplemented in ns3::VhtPhy, and ns3::HtPhy.

Definition at line 355 of file ofdm-phy.cc.

References IsChannelWidthSupported(), and ns3::PhyEntity::IsConfigSupported().

Referenced by EndReceiveHeader(), and ns3::HtPhy::IsAllConfigSupported().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsAllowed()

bool ns3::OfdmPhy::IsAllowed ( const WifiTxVector & txVector )

static

Check whether the combination in TXVECTOR is allowed.

This function is used as a callback for WifiMode operation.

Parameters

txVector the TXVECTOR

Returns: true if this combination is allowed, false otherwise.

Definition at line 653 of file ofdm-phy.cc.

Referenced by CreateOfdmMode().

Here is the caller graph for this function:

◆ IsChannelWidthSupported()

bool ns3::OfdmPhy::IsChannelWidthSupported ( Ptr< const WifiPpdu > ppdu ) const

protectedvirtual

Checks if the PPDU's bandwidth is supported by the PHY.

Parameters

ppdu	the received PPDU

Returns: true if supported, false otherwise

Definition at line 342 of file ofdm-phy.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::PhyEntity::m_wifiPhy, and NS_LOG_DEBUG.

Referenced by IsAllConfigSupported(), and ns3::VhtPhy::IsAllConfigSupported().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_ofdmModulationLookupTable

const PhyEntity::ModulationLookupTable ns3::OfdmPhy::m_ofdmModulationLookupTable

staticprivate

Initial value:

{

    { "OfdmRate6Mbps",          { WIFI_CODE_RATE_1_2, 2 } },
    { "OfdmRate9Mbps",          { WIFI_CODE_RATE_3_4, 2 } },
    { "OfdmRate12Mbps",         { WIFI_CODE_RATE_1_2, 4 } },
    { "OfdmRate18Mbps",         { WIFI_CODE_RATE_3_4, 4 } },
    { "OfdmRate24Mbps",         { WIFI_CODE_RATE_1_2, 16 } },
    { "OfdmRate36Mbps",         { WIFI_CODE_RATE_3_4, 16 } },
    { "OfdmRate48Mbps",         { WIFI_CODE_RATE_2_3, 64 } },
    { "OfdmRate54Mbps",         { WIFI_CODE_RATE_3_4, 64 } },
    { "OfdmRate3MbpsBW10MHz",   { WIFI_CODE_RATE_1_2, 2 } },
    { "OfdmRate4_5MbpsBW10MHz", { WIFI_CODE_RATE_3_4, 2 } },
    { "OfdmRate6MbpsBW10MHz",   { WIFI_CODE_RATE_1_2, 4 } },
    { "OfdmRate9MbpsBW10MHz",   { WIFI_CODE_RATE_3_4, 4 } },
    { "OfdmRate12MbpsBW10MHz",  { WIFI_CODE_RATE_1_2, 16 } },
    { "OfdmRate18MbpsBW10MHz",  { WIFI_CODE_RATE_3_4, 16 } },
    { "OfdmRate24MbpsBW10MHz",  { WIFI_CODE_RATE_2_3, 64 } },
    { "OfdmRate27MbpsBW10MHz",  { WIFI_CODE_RATE_3_4, 64 } },
    { "OfdmRate1_5MbpsBW5MHz",  { WIFI_CODE_RATE_1_2, 2 } },
    { "OfdmRate2_25MbpsBW5MHz", { WIFI_CODE_RATE_3_4, 2 } },
    { "OfdmRate3MbpsBW5MHz",    { WIFI_CODE_RATE_1_2, 4 } },
    { "OfdmRate4_5MbpsBW5MHz",  { WIFI_CODE_RATE_3_4, 4 } },
    { "OfdmRate6MbpsBW5MHz",    { WIFI_CODE_RATE_1_2, 16 } },
    { "OfdmRate9MbpsBW5MHz",    { WIFI_CODE_RATE_3_4, 16 } },
    { "OfdmRate12MbpsBW5MHz",   { WIFI_CODE_RATE_2_3, 64 } },
    { "OfdmRate13_5MbpsBW5MHz", { WIFI_CODE_RATE_3_4, 64 } }
}

lookup table to retrieve code rate and constellation size corresponding to a unique name of modulation

Definition at line 455 of file ofdm-phy.h.

Referenced by CreateOfdmMode(), GetCodeRate(), and GetConstellationSize().

◆ m_ofdmPpduFormats

const PhyEntity::PpduFormats ns3::OfdmPhy::m_ofdmPpduFormats

staticprivate

Initial value:

{
    { WIFI_PREAMBLE_LONG, { WIFI_PPDU_FIELD_PREAMBLE,
                            WIFI_PPDU_FIELD_NON_HT_HEADER,
                            WIFI_PPDU_FIELD_DATA } }
}

OFDM PPDU formats.

Definition at line 452 of file ofdm-phy.h.
