PHY entity for HE (11ax) More...
#include "he-phy.h"

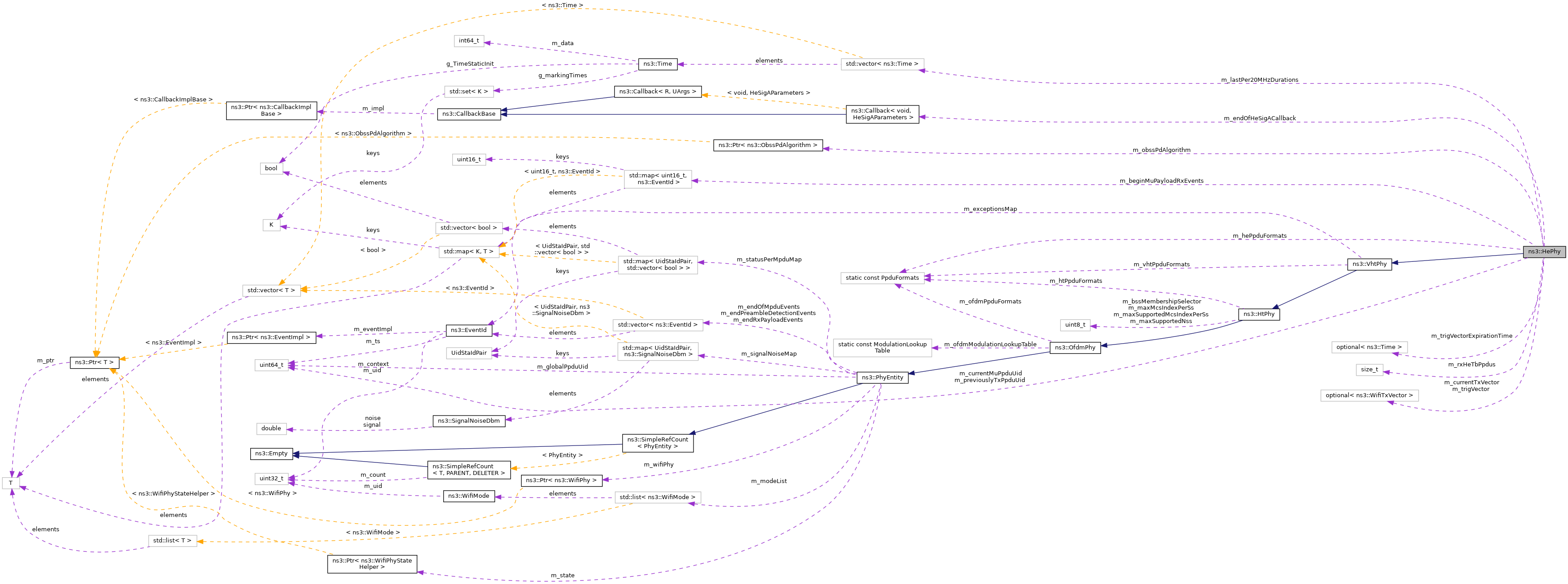

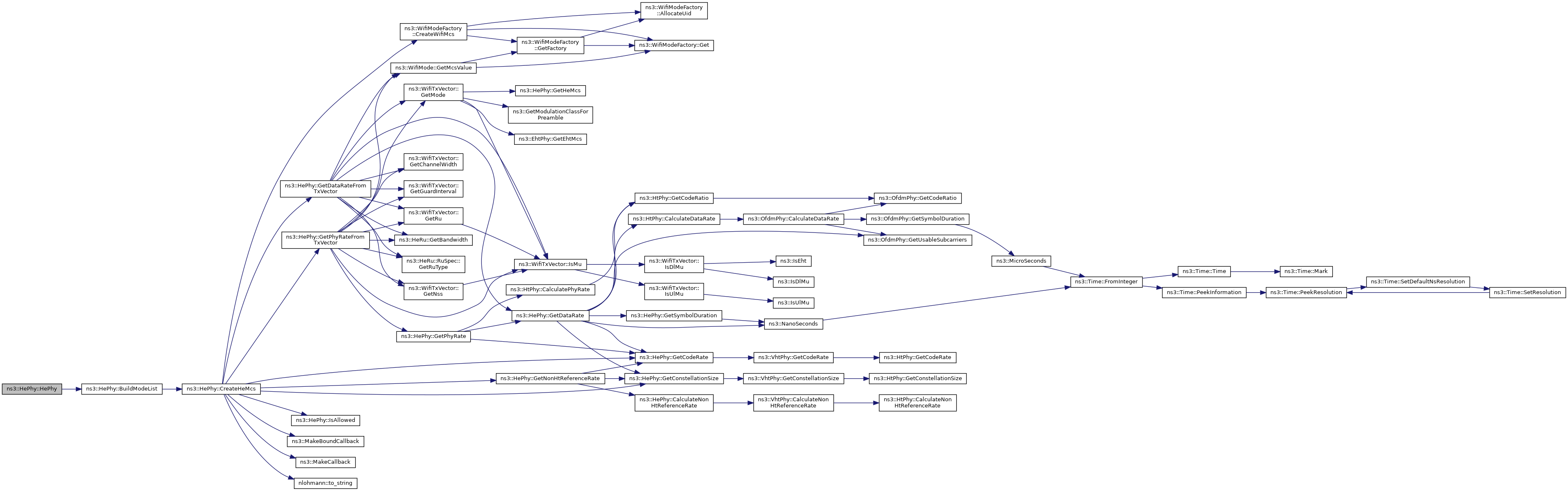

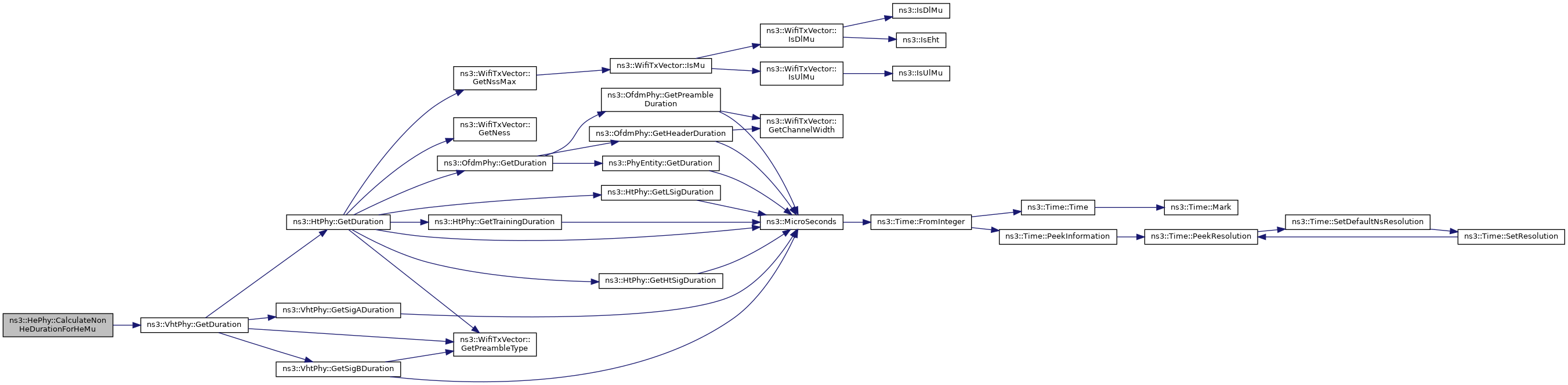

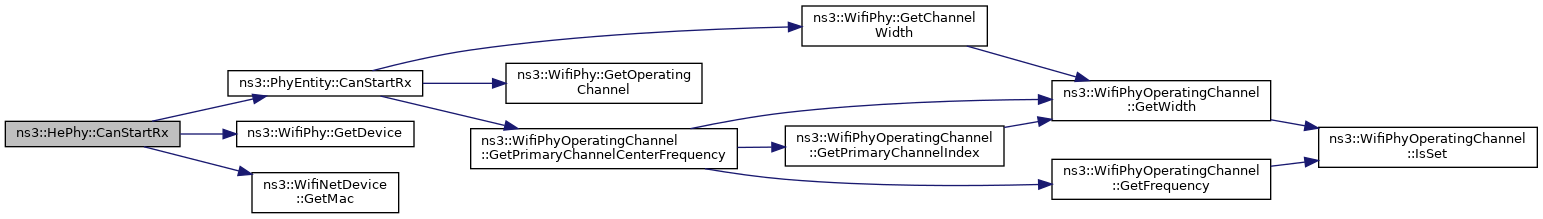

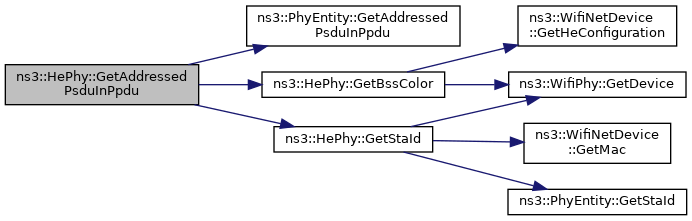

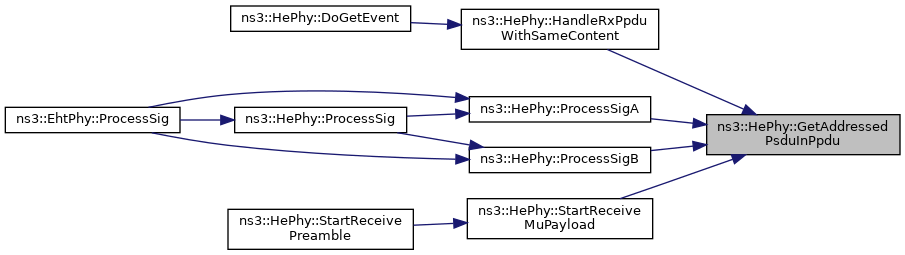

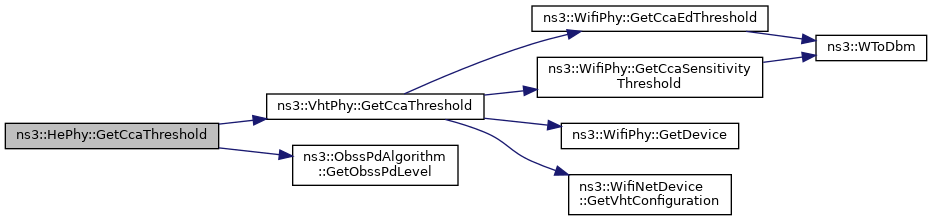

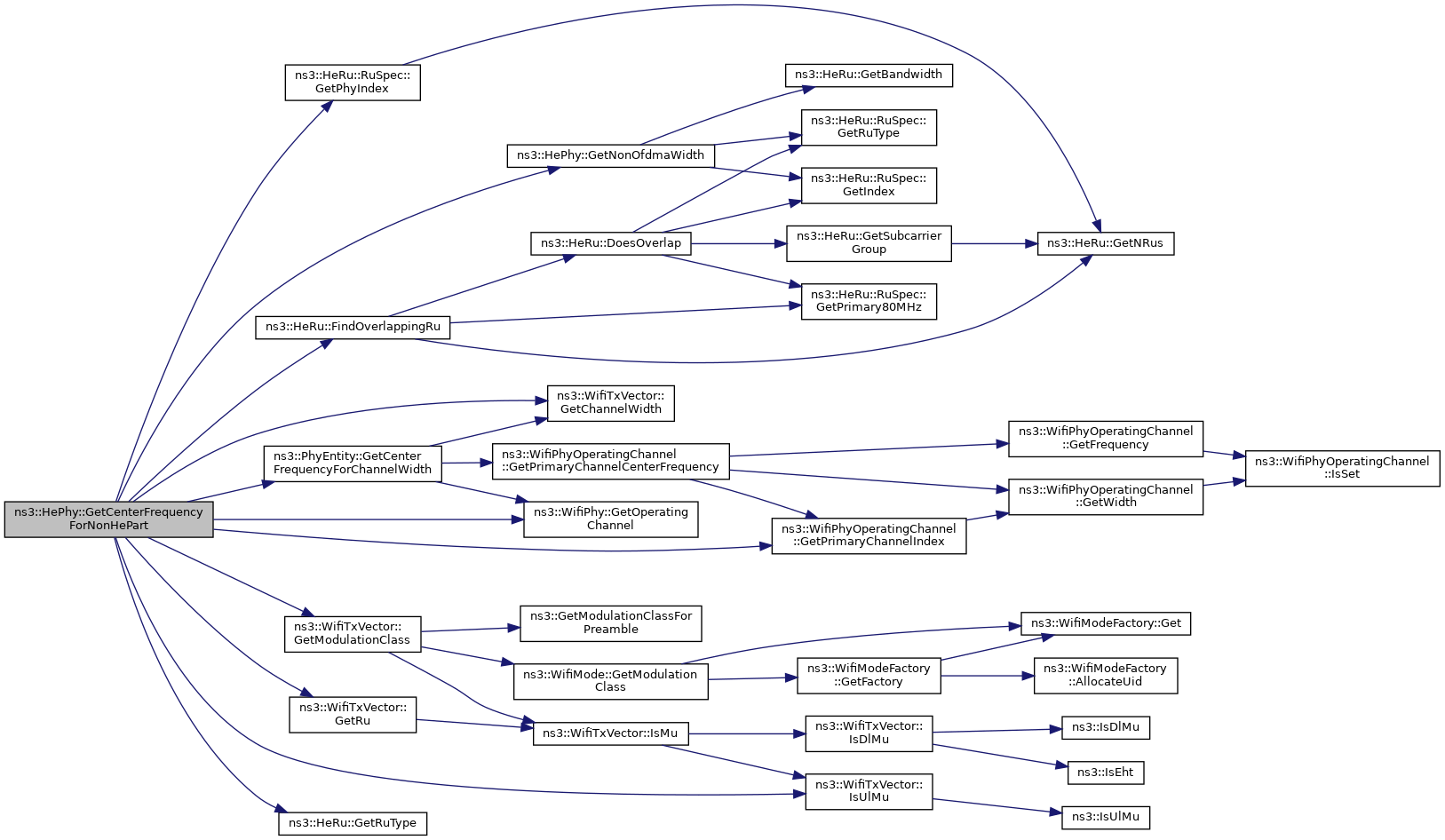

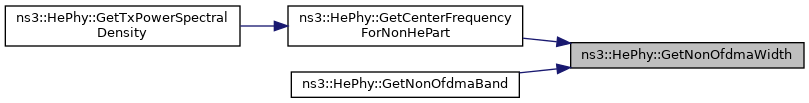

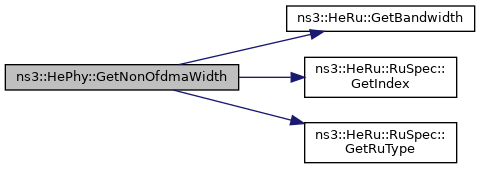

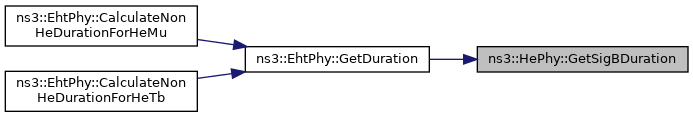

Inheritance diagram for ns3::HePhy: Collaboration diagram for ns3::HePhy:Public Types | |
| typedef Callback< void, HeSigAParameters > | EndOfHeSigACallback |
| Callback upon end of HE-SIG-A. More... | |
| Public Types inherited from ns3::PhyEntity | |
| typedef std::pair< std::pair< Time, Time >, WifiMode > | PhyHeaderChunkInfo |
| A pair containing information on the PHY header chunk, namely the start and stop times of the chunk and the WifiMode used. More... | |
| typedef std::map< WifiPpduField, PhyHeaderChunkInfo > | PhyHeaderSections |
| A map of PhyHeaderChunkInfo elements per PPDU field. More... | |
| enum | PhyRxFailureAction { DROP = 0 , ABORT , IGNORE } |
| Action to perform in case of RX failure. More... | |
Public Member Functions | |
| HePhy (bool buildModeList=true) | |
| Constructor for HE PHY. More... | |
| ~HePhy () override | |
| Destructor for HE PHY. More... | |
| Ptr< WifiPpdu > | BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override |
| Build amendment-specific PPDU. More... | |
| virtual Time | CalculateNonHeDurationForHeMu (const WifiTxVector &txVector) const |
| virtual Time | CalculateNonHeDurationForHeTb (const WifiTxVector &txVector) const |
| Time | CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band) const override |
| void | CancelAllEvents () override |
| Cancel and clear all running events. More... | |
| bool | CanStartRx (Ptr< const WifiPpdu > ppdu) const override |
| Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU. More... | |
| Ptr< const WifiPsdu > | GetAddressedPsduInPpdu (Ptr< const WifiPpdu > ppdu) const override |
| Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU). More... | |
| uint8_t | GetBssColor () const |
| double | GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override |
| Return the CCA threshold in dBm for a given channel type. More... | |
| uint16_t | GetCenterFrequencyForNonHePart (const WifiTxVector &txVector, uint16_t staId) const |
| Get the center frequency of the non-HE portion of the current TxVector for the given STA-ID. More... | |
| uint64_t | GetCurrentHeTbPpduUid () const |
| Time | GetLSigDuration (WifiPreamble preamble) const override |
| uint16_t | GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override |
| Return the channel width used to measure the RSSI. More... | |
| WifiSpectrumBandInfo | GetNonOfdmaBand (const WifiTxVector &txVector, uint16_t staId) const |
| Get the band used to transmit the non-OFDMA part of an HE TB PPDU. More... | |
| uint16_t | GetNonOfdmaWidth (HeRu::RuSpec ru) const |
| Get the width in MHz of the non-OFDMA portion of an HE TB PPDU. More... | |
| Ptr< ObssPdAlgorithm > | GetObssPdAlgorithm () const |
| Gets the OBSS-PD algorithm. More... | |
| const PpduFormats & | GetPpduFormats () const override |
| Return the PPDU formats of the PHY. More... | |
| WifiSpectrumBandInfo | GetRuBandForRx (const WifiTxVector &txVector, uint16_t staId) const |
| Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More... | |
| WifiSpectrumBandInfo | GetRuBandForTx (const WifiTxVector &txVector, uint16_t staId) const |
| Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU. More... | |
| Ptr< const WifiPpdu > | GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override |
| The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel. More... | |
| Time | GetSigADuration (WifiPreamble preamble) const override |
| WifiMode | GetSigAMode () const override |
| Time | GetSigBDuration (const WifiTxVector &txVector) const override |
| WifiMode | GetSigBMode (const WifiTxVector &txVector) const override |
| WifiMode | GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override |
| Get the WifiMode for the SIG field specified by the PPDU field. More... | |
| uint16_t | GetStaId (const Ptr< const WifiPpdu > ppdu) const override |
| Return the STA ID that has been assigned to the station this PHY belongs to. More... | |
| Time | GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override |
| void | NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration, WifiChannelListType channelType) override |
| Notify PHY state helper to switch to CCA busy state,. More... | |
| void | NotifyEndOfHeSigA (HeSigAParameters params) |
| Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received. More... | |
| void | SetEndOfHeSigACallback (EndOfHeSigACallback callback) |
| Set a callback for a end of HE-SIG-A. More... | |
| void | SetObssPdAlgorithm (const Ptr< ObssPdAlgorithm > algorithm) |
| Sets the OBSS-PD algorithm. More... | |

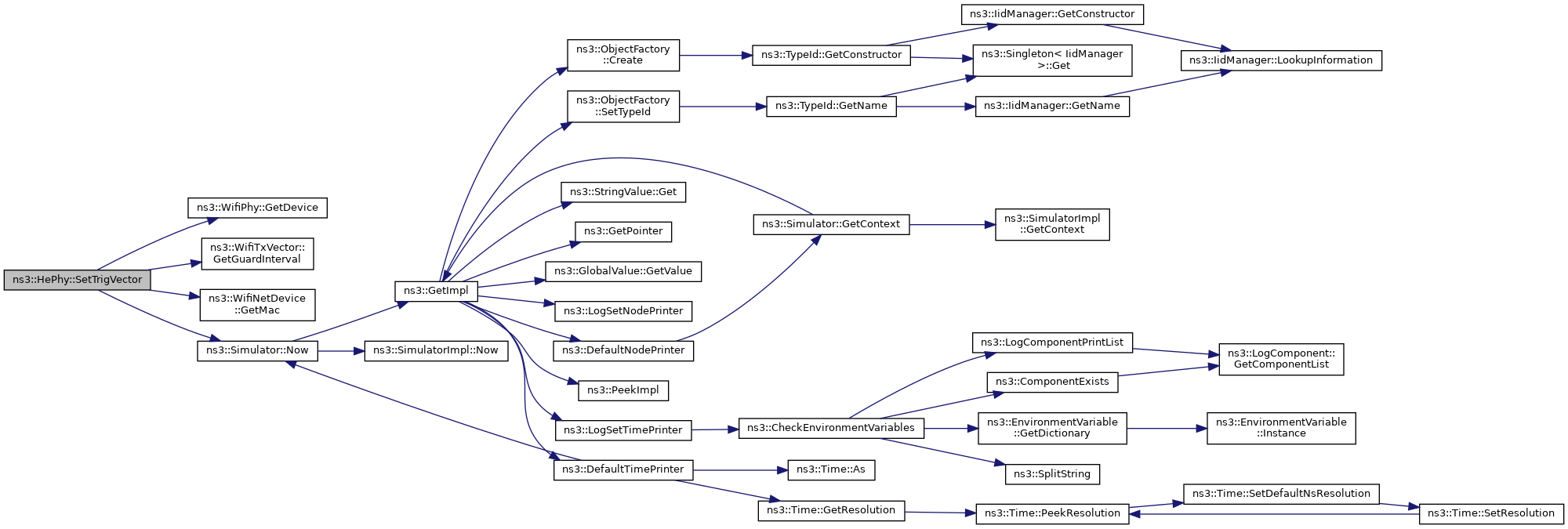

| void | SetTrigVector (const WifiTxVector &trigVector, Time validity) |
| Set the TRIGVECTOR and the associated expiration time. More... | |

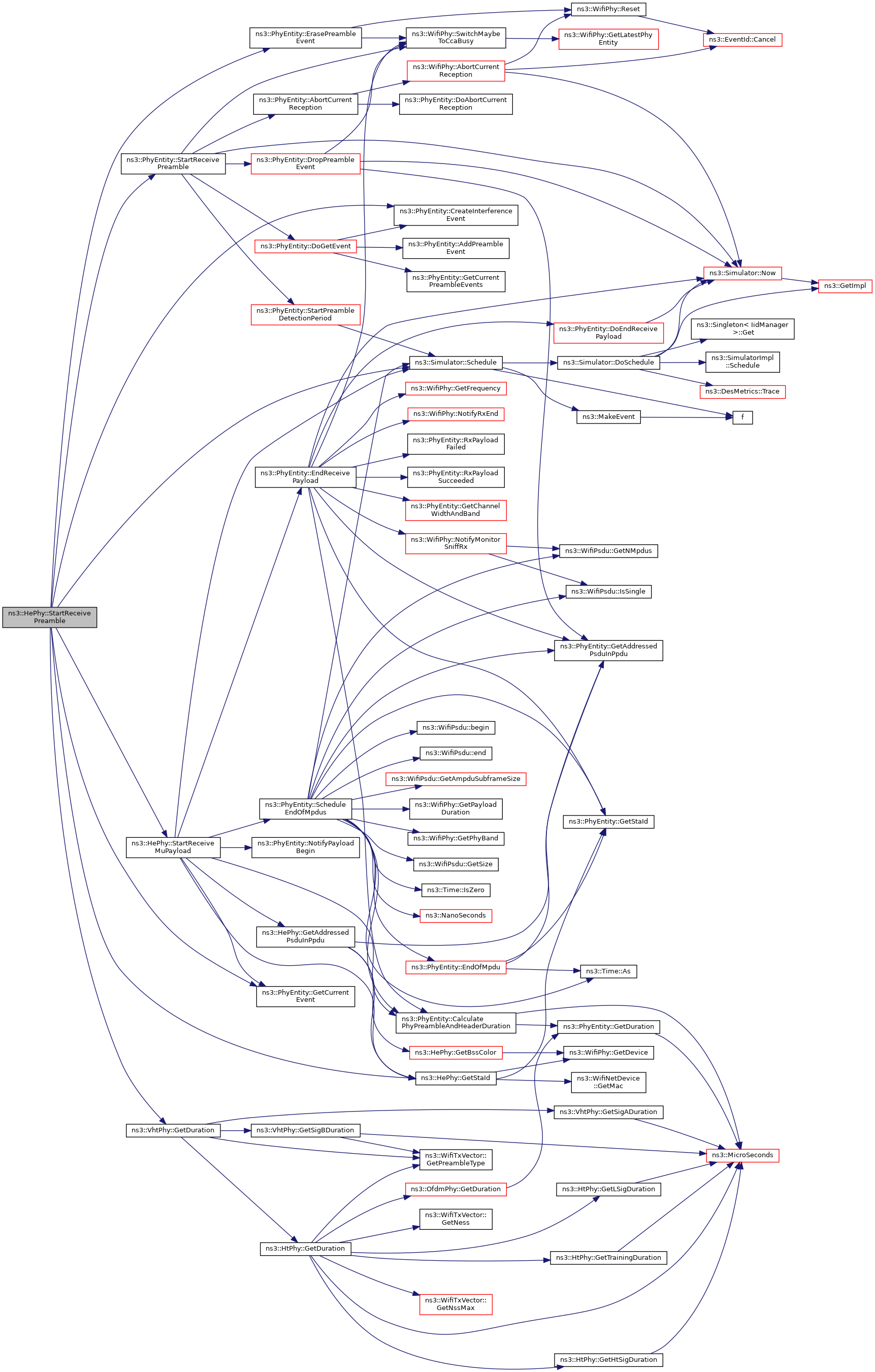

| void | StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration) override |
| Start receiving the PHY preamble of a PPDU (i.e. More... | |

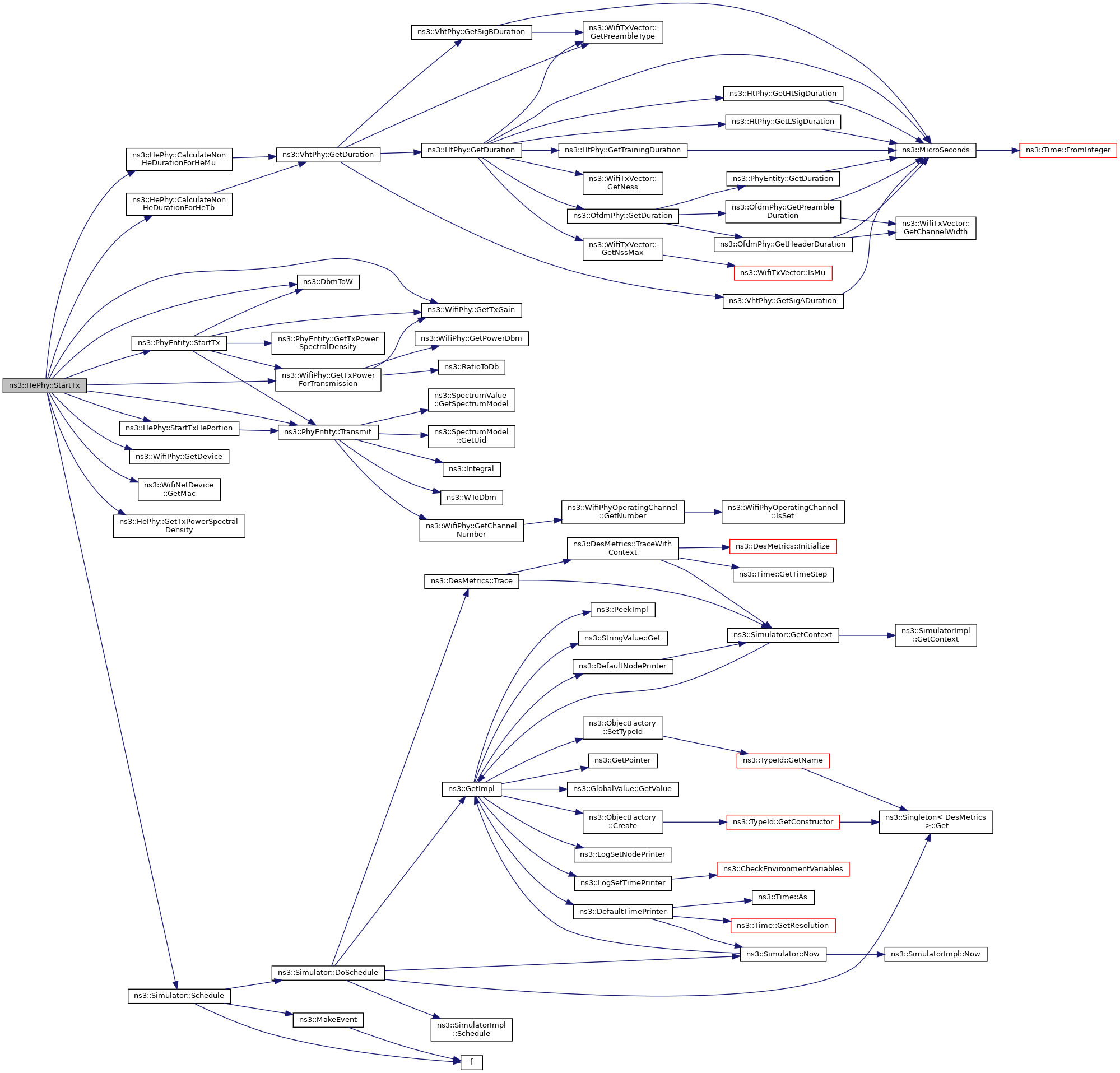

| void | StartTx (Ptr< const WifiPpdu > ppdu) override |
| This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions. More... | |
| void | SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu) override |
| Check if PHY state should move to CCA busy state based on current state of interference tracker. More... | |
| Public Member Functions inherited from ns3::VhtPhy | |
| VhtPhy (bool buildModeList=true) | |
| Constructor for VHT PHY. More... | |
| ~VhtPhy () override | |
| Destructor for VHT PHY. More... | |
| Ptr< WifiPpdu > | BuildPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, Time ppduDuration) override |
| Build amendment-specific PPDU. More... | |
| double | GetCcaThreshold (const Ptr< const WifiPpdu > ppdu, WifiChannelListType channelType) const override |
| Return the CCA threshold in dBm for a given channel type. More... | |
| Time | GetDuration (WifiPpduField field, const WifiTxVector &txVector) const override |
| Get the duration of the PPDU field (or group of fields) used by this entity for the given transmission parameters. More... | |
| Time | GetLSigDuration (WifiPreamble preamble) const override |
| const PpduFormats & | GetPpduFormats () const override |
| Return the PPDU formats of the PHY. More... | |
| WifiMode | GetSigMode (WifiPpduField field, const WifiTxVector &txVector) const override |
| Get the WifiMode for the SIG field specified by the PPDU field. More... | |
| Time | GetTrainingDuration (const WifiTxVector &txVector, uint8_t nDataLtf, uint8_t nExtensionLtf=0) const override |
| Public Member Functions inherited from ns3::HtPhy | |
| HtPhy (uint8_t maxNss=1, bool buildModeList=true) | |
| Constructor for HT PHY. More... | |
| ~HtPhy () override | |
| Destructor for HT PHY. More... | |
| uint8_t | GetBssMembershipSelector () const |
| uint8_t | GetMaxSupportedMcsIndexPerSs () const |
| Set the maximum supported MCS index per spatial stream. More... | |
| WifiMode | GetMcs (uint8_t index) const override |
| Get the WifiMode corresponding to the given MCS index. More... | |
| Time | GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override |
| bool | HandlesMcsModes () const override |
| Check if the WifiModes handled by this PHY are MCSs. More... | |
| bool | IsMcsSupported (uint8_t index) const override |
| Check if the WifiMode corresponding to the given MCS index is supported. More... | |
| void | SetMaxSupportedMcsIndexPerSs (uint8_t maxIndex) |
| Set the maximum supported MCS index per spatial stream. More... | |
| void | SetMaxSupportedNss (uint8_t maxNss) |
| Configure the maximum number of spatial streams supported by this HT PHY. More... | |
| Public Member Functions inherited from ns3::OfdmPhy | |
| OfdmPhy (OfdmPhyVariant variant=OFDM_PHY_DEFAULT, bool buildModeList=true) | |
| Constructor for OFDM PHY. More... | |
| ~OfdmPhy () override | |
| Destructor for OFDM PHY. More... | |
| Time | GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId) const override |
| Ptr< const WifiPpdu > | GetRxPpduFromTxPpdu (Ptr< const WifiPpdu > ppdu) override |
| The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel. More... | |
| Public Member Functions inherited from ns3::PhyEntity | |
| virtual | ~PhyEntity () |
| Destructor for PHY entity. More... | |
| std::list< WifiMode >::const_iterator | begin () const |
| Return a const iterator to the first WifiMode. More... | |
| Time | CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector) const |
| void | CancelRunningEndPreambleDetectionEvents () |
| Cancel all end preamble detection events. More... | |
| std::list< WifiMode >::const_iterator | end () const |
| Return a const iterator to past-the-last WifiMode. More... | |
| void | EndReceiveField (WifiPpduField field, Ptr< Event > event) |
| End receiving a given field. More... | |
| void | EndReceivePayload (Ptr< Event > event) |
| The last symbol of the PPDU has arrived. More... | |
| Time | GetDurationUpToField (WifiPpduField field, const WifiTxVector &txVector) const |
| Get the duration of the PPDU up to (but excluding) the given field. More... | |
| WifiPpduField | GetNextField (WifiPpduField currentField, WifiPreamble preamble) const |
| Return the field following the provided one. More... | |
| virtual uint8_t | GetNumModes () const |
| PhyHeaderSections | GetPhyHeaderSections (const WifiTxVector &txVector, Time ppduStart) const |
| Return a map of PHY header chunk information per PPDU field. More... | |
| Time | GetRemainingDurationAfterField (Ptr< const WifiPpdu > ppdu, WifiPpduField field) const |
| Get the remaining duration of the PPDU after the end of the given field. More... | |
| virtual bool | IsModeSupported (WifiMode mode) const |
| Check if the WifiMode is supported. More... | |
| bool | NoEndPreambleDetectionEvents () const |
| void | ResetReceive (Ptr< Event > event) |
| Reset PHY at the end of the PPDU under reception after it has failed the PHY header. More... | |
| void | SetOwner (Ptr< WifiPhy > wifiPhy) |
| Set the WifiPhy owning this PHY entity. More... | |
| void | StartReceiveField (WifiPpduField field, Ptr< Event > event) |
| Start receiving a given field. More... | |
| void | Transmit (Time txDuration, Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, const std::string &type) |
| This function prepares most of the WifiSpectrumSignalParameters parameters and invokes SpectrumWifiPhy's Transmit method. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< PhyEntity > | |
| SimpleRefCount () | |
| Default constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o[[maybe_unused]]) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount () const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o[[maybe_unused]]) |
| Assignment operator. More... | |
| void | Ref () const |
| Increment the reference count. More... | |
| void | Unref () const |
| Decrement the reference count. More... | |
Static Public Member Functions | |
| static WifiSpectrumBandIndices | ConvertHeRuSubcarriers (uint16_t bandWidth, uint16_t guardBandwidth, uint32_t subcarrierSpacing, HeRu::SubcarrierRange subcarrierRange, uint8_t bandIndex=0) |
| static std::pair< uint16_t, Time > | ConvertHeTbPpduDurationToLSigLength (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band) |
| Compute the L-SIG length value corresponding to the given HE TB PPDU duration. More... | |

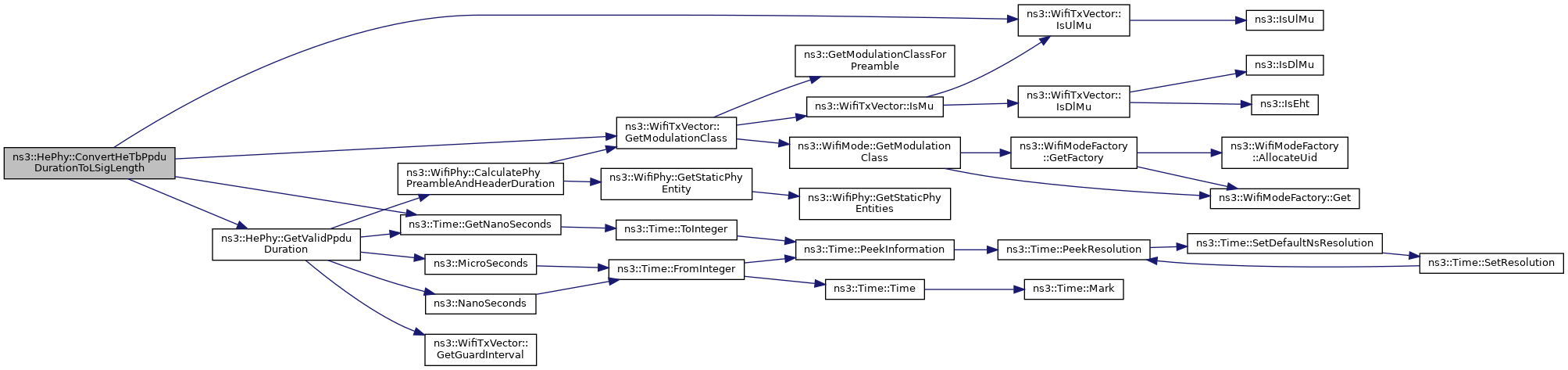

| static Time | ConvertLSigLengthToHeTbPpduDuration (uint16_t length, const WifiTxVector &txVector, WifiPhyBand band) |
| static WifiMode | CreateHeMcs (uint8_t index) |
| Create and return the HE MCS corresponding to the provided index. More... | |
| static WifiCodeRate | GetCodeRate (uint8_t mcsValue) |
| Return the coding rate corresponding to the supplied HE MCS index. More... | |

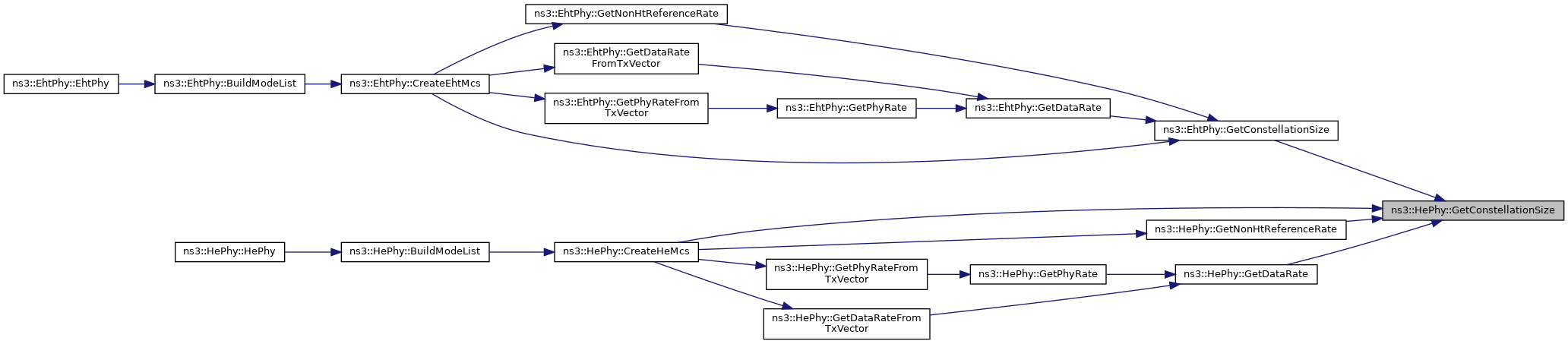

| static uint16_t | GetConstellationSize (uint8_t mcsValue) |
| Return the constellation size corresponding to the supplied HE MCS index. More... | |

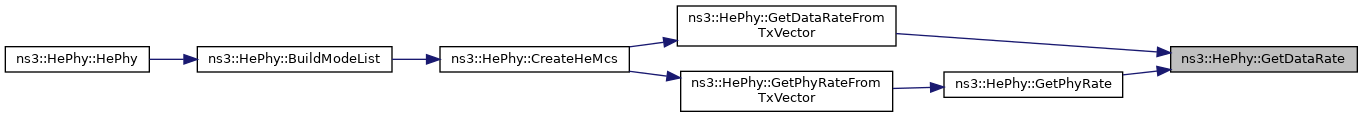

| static uint64_t | GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams. More... | |

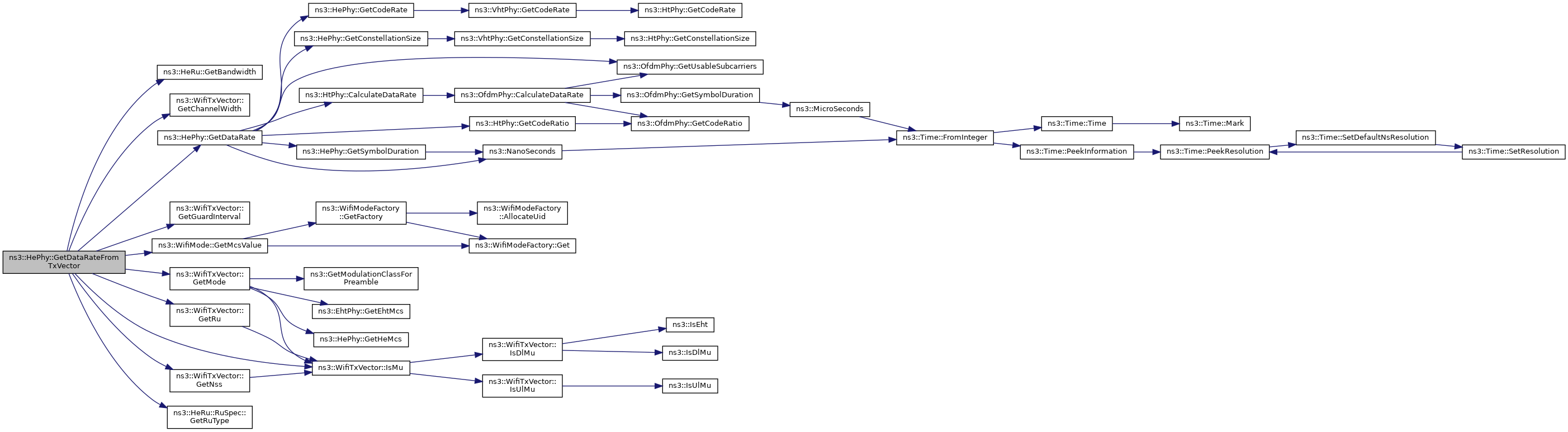

| static uint64_t | GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID) |
| Return the data rate corresponding to the supplied TXVECTOR for the STA-ID. More... | |
| static WifiMode | GetHeMcs (uint8_t index) |
| Return the HE MCS corresponding to the provided index. More... | |
| static WifiMode | GetHeMcs0 () |
| Return MCS 0 from HE MCS values. More... | |
| static WifiMode | GetHeMcs1 () |
| Return MCS 1 from HE MCS values. More... | |
| static WifiMode | GetHeMcs10 () |
| Return MCS 10 from HE MCS values. More... | |
| static WifiMode | GetHeMcs11 () |
| Return MCS 11 from HE MCS values. More... | |
| static WifiMode | GetHeMcs2 () |
| Return MCS 2 from HE MCS values. More... | |
| static WifiMode | GetHeMcs3 () |
| Return MCS 3 from HE MCS values. More... | |
| static WifiMode | GetHeMcs4 () |
| Return MCS 4 from HE MCS values. More... | |
| static WifiMode | GetHeMcs5 () |
| Return MCS 5 from HE MCS values. More... | |
| static WifiMode | GetHeMcs6 () |
| Return MCS 6 from HE MCS values. More... | |
| static WifiMode | GetHeMcs7 () |
| Return MCS 7 from HE MCS values. More... | |
| static WifiMode | GetHeMcs8 () |
| Return MCS 8 from HE MCS values. More... | |
| static WifiMode | GetHeMcs9 () |
| Return MCS 9 from HE MCS values. More... | |
| static uint64_t | GetNonHtReferenceRate (uint8_t mcsValue) |
| Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index. More... | |
| static uint64_t | GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream. More... | |
| static uint64_t | GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId=SU_STA_ID) |
| Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID. More... | |
| static void | InitializeModes () |
| Initialize all HE modes. More... | |
| static bool | IsAllowed (const WifiTxVector &txVector) |
| Check whether the combination in TXVECTOR is allowed. More... | |
| Static Public Member Functions inherited from ns3::VhtPhy | |
| static WifiCodeRate | GetCodeRate (uint8_t mcsValue) |
| Return the coding rate corresponding to the supplied VHT MCS index. More... | |
| static uint16_t | GetConstellationSize (uint8_t mcsValue) |
| Return the constellation size corresponding to the supplied VHT MCS index. More... | |
| static uint64_t | GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the data rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial streams. More... | |
| static uint64_t | GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the data rate corresponding to the supplied TXVECTOR. More... | |
| static uint64_t | GetNonHtReferenceRate (uint8_t mcsValue) |
| Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied VHT MCS index. More... | |
| static uint64_t | GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the PHY rate corresponding to the supplied VHT MCS index, channel width, guard interval, and number of spatial stream. More... | |
| static uint64_t | GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the PHY rate corresponding to the supplied TXVECTOR. More... | |
| static WifiMode | GetVhtMcs (uint8_t index) |
| Return the VHT MCS corresponding to the provided index. More... | |
| static WifiMode | GetVhtMcs0 () |
| Return MCS 0 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs1 () |
| Return MCS 1 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs2 () |
| Return MCS 2 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs3 () |
| Return MCS 3 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs4 () |
| Return MCS 4 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs5 () |
| Return MCS 5 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs6 () |
| Return MCS 6 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs7 () |
| Return MCS 7 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs8 () |
| Return MCS 8 from VHT MCS values. More... | |
| static WifiMode | GetVhtMcs9 () |
| Return MCS 9 from VHT MCS values. More... | |
| static void | InitializeModes () |
| Initialize all VHT modes. More... | |
| static bool | IsAllowed (const WifiTxVector &txVector) |
| Check whether the combination in TXVECTOR is allowed. More... | |
| static bool | IsCombinationAllowed (uint8_t mcsValue, uint16_t channelWidth, uint8_t nss) |
| Check whether the combination of <MCS, channel width, NSS> is allowed. More... | |
| Static Public Member Functions inherited from ns3::HtPhy | |
| static WifiCodeRate | GetCodeRate (uint8_t mcsValue) |
| Return the coding rate corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More... | |
| static uint16_t | GetConstellationSize (uint8_t mcsValue) |
| Return the constellation size corresponding to the supplied HT MCS index between 0 and 7, since HT MCS index > 8 is used for higher NSS. More... | |
| static uint64_t | GetDataRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the data rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial streams. More... | |
| static uint64_t | GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the data rate corresponding to the supplied TXVECTOR. More... | |
| static WifiCodeRate | GetHtCodeRate (uint8_t mcsValue) |
| Return the coding rate corresponding to the supplied HT MCS index. More... | |
| static uint16_t | GetHtConstellationSize (uint8_t mcsValue) |
| Return the constellation size corresponding to the supplied HT MCS index. More... | |
| static WifiMode | GetHtMcs (uint8_t index) |
| Return the HT MCS corresponding to the provided index. More... | |
| static WifiMode | GetHtMcs0 () |
| Return MCS 0 from HT MCS values. More... | |
| static WifiMode | GetHtMcs1 () |
| Return MCS 1 from HT MCS values. More... | |
| static WifiMode | GetHtMcs10 () |
| Return MCS 10 from HT MCS values. More... | |
| static WifiMode | GetHtMcs11 () |
| Return MCS 11 from HT MCS values. More... | |
| static WifiMode | GetHtMcs12 () |
| Return MCS 12 from HT MCS values. More... | |
| static WifiMode | GetHtMcs13 () |
| Return MCS 13 from HT MCS values. More... | |
| static WifiMode | GetHtMcs14 () |
| Return MCS 14 from HT MCS values. More... | |
| static WifiMode | GetHtMcs15 () |
| Return MCS 15 from HT MCS values. More... | |
| static WifiMode | GetHtMcs16 () |
| Return MCS 16 from HT MCS values. More... | |
| static WifiMode | GetHtMcs17 () |
| Return MCS 17 from HT MCS values. More... | |
| static WifiMode | GetHtMcs18 () |
| Return MCS 18 from HT MCS values. More... | |
| static WifiMode | GetHtMcs19 () |
| Return MCS 19 from HT MCS values. More... | |
| static WifiMode | GetHtMcs2 () |
| Return MCS 2 from HT MCS values. More... | |
| static WifiMode | GetHtMcs20 () |
| Return MCS 20 from HT MCS values. More... | |
| static WifiMode | GetHtMcs21 () |
| Return MCS 21 from HT MCS values. More... | |
| static WifiMode | GetHtMcs22 () |
| Return MCS 22 from HT MCS values. More... | |
| static WifiMode | GetHtMcs23 () |
| Return MCS 23 from HT MCS values. More... | |
| static WifiMode | GetHtMcs24 () |
| Return MCS 24 from HT MCS values. More... | |
| static WifiMode | GetHtMcs25 () |
| Return MCS 25 from HT MCS values. More... | |
| static WifiMode | GetHtMcs26 () |
| Return MCS 26 from HT MCS values. More... | |
| static WifiMode | GetHtMcs27 () |
| Return MCS 27 from HT MCS values. More... | |
| static WifiMode | GetHtMcs28 () |
| Return MCS 28 from HT MCS values. More... | |
| static WifiMode | GetHtMcs29 () |
| Return MCS 29 from HT MCS values. More... | |
| static WifiMode | GetHtMcs3 () |
| Return MCS 3 from HT MCS values. More... | |
| static WifiMode | GetHtMcs30 () |
| Return MCS 30 from HT MCS values. More... | |
| static WifiMode | GetHtMcs31 () |
| Return MCS 31 from HT MCS values. More... | |
| static WifiMode | GetHtMcs4 () |
| Return MCS 4 from HT MCS values. More... | |
| static WifiMode | GetHtMcs5 () |
| Return MCS 5 from HT MCS values. More... | |
| static WifiMode | GetHtMcs6 () |
| Return MCS 6 from HT MCS values. More... | |
| static WifiMode | GetHtMcs7 () |
| Return MCS 7 from HT MCS values. More... | |
| static WifiMode | GetHtMcs8 () |
| Return MCS 8 from HT MCS values. More... | |
| static WifiMode | GetHtMcs9 () |
| Return MCS 9 from HT MCS values. More... | |
| static WifiMode | GetLSigMode () |
| static uint64_t | GetNonHtReferenceRate (uint8_t mcsValue) |
| Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HT MCS index. More... | |
| static uint64_t | GetPhyRate (uint8_t mcsValue, uint16_t channelWidth, uint16_t guardInterval, uint8_t nss) |
| Return the PHY rate corresponding to the supplied HT MCS index, channel width, guard interval, and number of spatial stream. More... | |
| static uint64_t | GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the PHY rate corresponding to the supplied TXVECTOR. More... | |
| static void | InitializeModes () |
| Initialize all HT modes. More... | |
| static bool | IsAllowed (const WifiTxVector &txVector) |
| Check whether the combination in TXVECTOR is allowed. More... | |
| Static Public Member Functions inherited from ns3::OfdmPhy | |
| static WifiCodeRate | GetCodeRate (const std::string &name) |
| Return the WifiCodeRate from the OFDM mode's unique name using ModulationLookupTable. More... | |
| static uint16_t | GetConstellationSize (const std::string &name) |
| Return the constellation size from the OFDM mode's unique name using ModulationLookupTable. More... | |
| static uint64_t | GetDataRate (const std::string &name, uint16_t channelWidth) |
| Return the data rate from the OFDM mode's unique name and the supplied parameters. More... | |
| static uint64_t | GetDataRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the data rate corresponding to the supplied TXVECTOR. More... | |
| static WifiMode | GetOfdmRate (uint64_t rate, uint16_t bw=20) |
| Return a WifiMode for OFDM corresponding to the provided rate and the channel bandwidth (20, 10, or 5 MHz). More... | |
| static WifiMode | GetOfdmRate12Mbps () |
| Return a WifiMode for OFDM at 12Mbps. More... | |
| static WifiMode | GetOfdmRate12MbpsBW10MHz () |
| Return a WifiMode for OFDM at 12 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate12MbpsBW5MHz () |
| Return a WifiMode for OFDM at 12 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate13_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 13.5 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate18Mbps () |
| Return a WifiMode for OFDM at 18 Mbps. More... | |
| static WifiMode | GetOfdmRate18MbpsBW10MHz () |
| Return a WifiMode for OFDM at 18 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate1_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 1.5 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate24Mbps () |
| Return a WifiMode for OFDM at 24 Mbps. More... | |
| static WifiMode | GetOfdmRate24MbpsBW10MHz () |
| Return a WifiMode for OFDM at 24 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate27MbpsBW10MHz () |
| Return a WifiMode for OFDM at 27 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate2_25MbpsBW5MHz () |
| Return a WifiMode for OFDM at 2.25 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate36Mbps () |
| Return a WifiMode for OFDM at 36 Mbps. More... | |
| static WifiMode | GetOfdmRate3MbpsBW10MHz () |
| Return a WifiMode for OFDM at 3 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate3MbpsBW5MHz () |
| Return a WifiMode for OFDM at 3 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate48Mbps () |
| Return a WifiMode for OFDM at 48 Mbps. More... | |
| static WifiMode | GetOfdmRate4_5MbpsBW10MHz () |
| Return a WifiMode for OFDM at 4.5 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate4_5MbpsBW5MHz () |
| Return a WifiMode for OFDM at 4.5 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate54Mbps () |
| Return a WifiMode for OFDM at 54 Mbps. More... | |
| static WifiMode | GetOfdmRate6Mbps () |
| Return a WifiMode for OFDM at 6 Mbps. More... | |
| static WifiMode | GetOfdmRate6MbpsBW10MHz () |
| Return a WifiMode for OFDM at 6 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate6MbpsBW5MHz () |
| Return a WifiMode for OFDM at 6 Mbps with 5 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate9Mbps () |
| Return a WifiMode for OFDM at 9 Mbps. More... | |
| static WifiMode | GetOfdmRate9MbpsBW10MHz () |
| Return a WifiMode for OFDM at 9 Mbps with 10 MHz channel spacing. More... | |
| static WifiMode | GetOfdmRate9MbpsBW5MHz () |
| Return a WifiMode for OFDM at 9 Mbps with 5 MHz channel spacing. More... | |
| static uint64_t | GetPhyRate (const std::string &name, uint16_t channelWidth) |
| Return the PHY rate from the OFDM mode's unique name and the supplied parameters. More... | |
| static uint64_t | GetPhyRateFromTxVector (const WifiTxVector &txVector, uint16_t staId) |
| Return the PHY rate corresponding to the supplied TXVECTOR. More... | |
| static void | InitializeModes () |
| Initialize all OFDM modes (for all variants). More... | |
| static bool | IsAllowed (const WifiTxVector &txVector) |
| Check whether the combination in TXVECTOR is allowed. More... | |
Protected Member Functions | |
| void | DoAbortCurrentReception (WifiPhyRxfailureReason reason) override |
| Perform amendment-specific actions before aborting the current reception. More... | |
| void | DoEndReceivePayload (Ptr< const WifiPpdu > ppdu) override |
| Perform amendment-specific actions at the end of the reception of the payload. More... | |
| Ptr< Event > | DoGetEvent (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW) override |
| Get the event corresponding to the incoming PPDU. More... | |
| void | DoResetReceive (Ptr< Event > event) override |
| Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header. More... | |

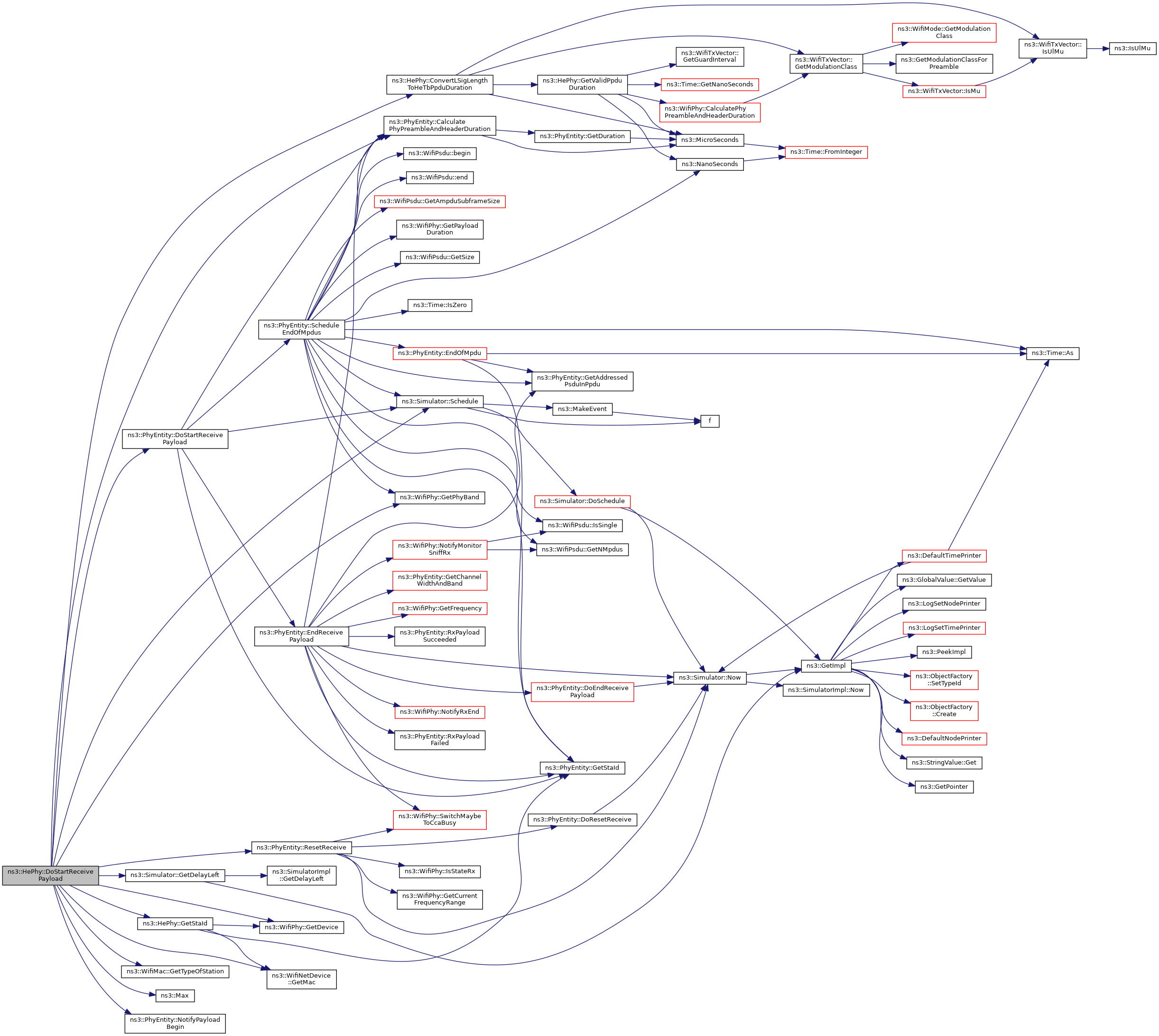

| Time | DoStartReceivePayload (Ptr< Event > event) override |
| Start receiving the PSDU (i.e. More... | |
| std::pair< uint16_t, WifiSpectrumBandInfo > | GetChannelWidthAndBand (const WifiTxVector &txVector, uint16_t staId) const override |
| Get the channel width and band to use (will be overloaded by child classes). More... | |

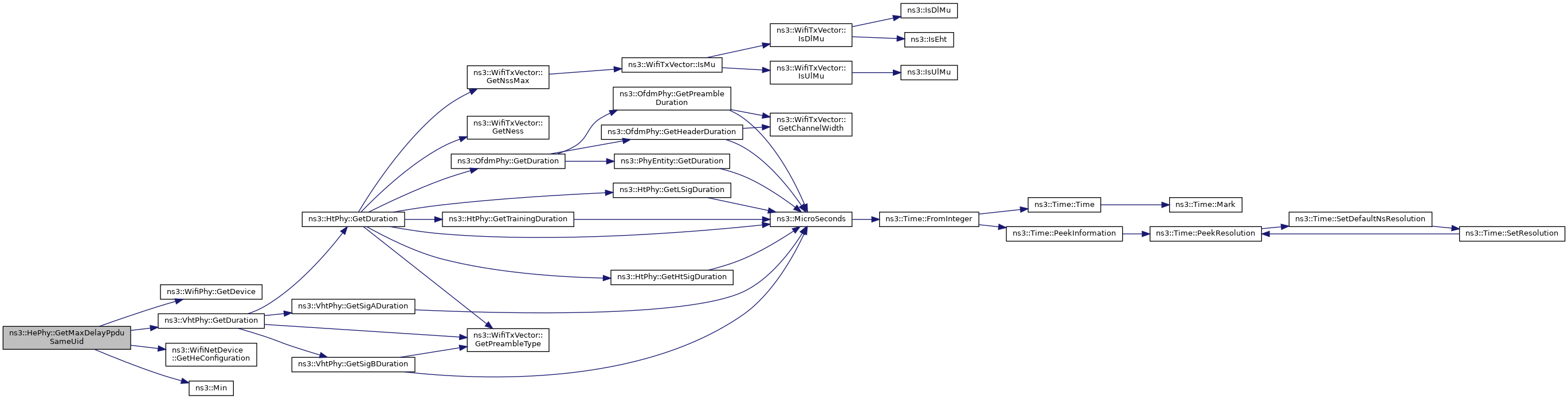

| Time | GetMaxDelayPpduSameUid (const WifiTxVector &txVector) override |
| Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively. More... | |
| uint32_t | GetMaxPsduSize () const override |
| Get the maximum PSDU size in bytes. More... | |
| virtual uint32_t | GetSigBSize (const WifiTxVector &txVector) const |
| Ptr< SpectrumValue > | GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override |
| WifiConstPsduMap | GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector) const override |
| Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More... | |
| void | HandleRxPpduWithSameContent (Ptr< Event > event, Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPower) override |
| Handle reception of a PPDU that carries the same content of another PPDU. More... | |
| bool | IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override |
| Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More... | |
| uint64_t | ObtainNextUid (const WifiTxVector &txVector) override |
| Obtain the next UID for the PPDU to transmit. More... | |
| PhyFieldRxStatus | ProcessSig (Ptr< Event > event, PhyFieldRxStatus status, WifiPpduField field) override |
| Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More... | |

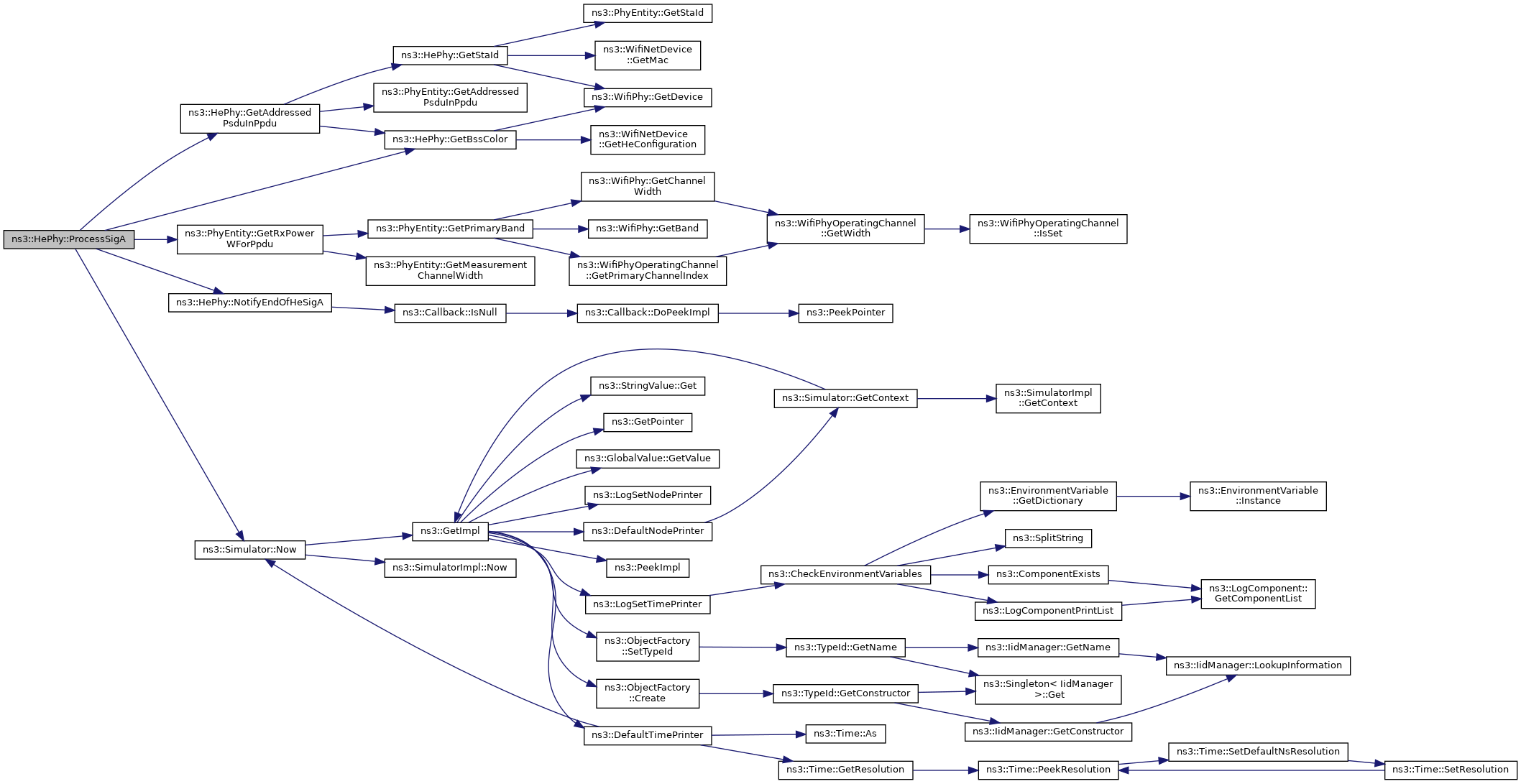

| virtual PhyFieldRxStatus | ProcessSigA (Ptr< Event > event, PhyFieldRxStatus status) |
| Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception. More... | |

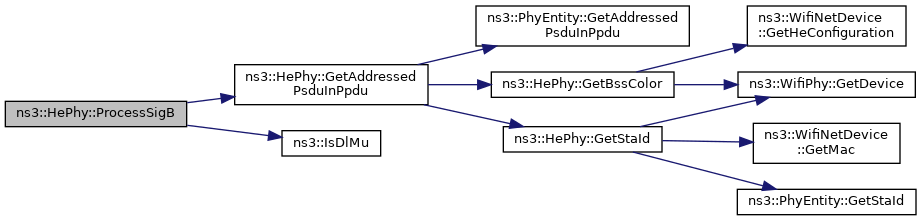

| virtual PhyFieldRxStatus | ProcessSigB (Ptr< Event > event, PhyFieldRxStatus status) |
| Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception. More... | |
| void | RxPayloadFailed (Ptr< const WifiPsdu > psdu, double snr, const WifiTxVector &txVector) override |
| Perform amendment-specific actions when the payload is unsuccessfuly received. More... | |
| void | RxPayloadSucceeded (Ptr< const WifiPsdu > psdu, RxSignalInfo rxSignalInfo, const WifiTxVector &txVector, uint16_t staId, const std::vector< bool > &statusPerMpdu) override |
| Perform amendment-specific actions when the payload is successfully received. More... | |
| void | StartReceiveMuPayload (Ptr< Event > event) |
| Start receiving the PSDU (i.e. More... | |
| Protected Member Functions inherited from ns3::VhtPhy | |
| PhyFieldRxStatus | DoEndReceiveField (WifiPpduField field, Ptr< Event > event) override |
| End receiving a given field, perform amendment-specific actions, and provide the status of the reception. More... | |
| PhyFieldRxStatus | EndReceiveSig (Ptr< Event > event, WifiPpduField field) |
| End receiving the SIG-A or SIG-B, perform VHT-specific actions, and provide the status of the reception. More... | |
| CcaIndication | GetCcaIndication (const Ptr< const WifiPpdu > ppdu) override |
| Get CCA end time and its corresponding channel list type when a new signal has been received by the PHY. More... | |
| virtual WifiPhyRxfailureReason | GetFailureReason (WifiPpduField field) const |
| Get the failure reason corresponding to the unsuccessful processing of a given PPDU field. More... | |
| Time | GetHtSigDuration () const override |
| WifiMode | GetHtSigMode () const override |
| uint32_t | GetMaxPsduSize () const override |
| Get the maximum PSDU size in bytes. More... | |
| uint8_t | GetNumberBccEncoders (const WifiTxVector &txVector) const override |
| bool | IsAllConfigSupported (WifiPpduField field, Ptr< const WifiPpdu > ppdu) const override |
| Checks if the signaled configuration (including bandwidth) is supported by the PHY. More... | |
| Protected Member Functions inherited from ns3::HtPhy | |
| Ptr< SpectrumValue > | GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override |
| bool | IsConfigSupported (Ptr< const WifiPpdu > ppdu) const override |
| Checks if the signaled configuration (excluding bandwidth) is supported by the PHY. More... | |
| Protected Member Functions inherited from ns3::OfdmPhy | |
| PhyFieldRxStatus | EndReceiveHeader (Ptr< Event > event) |
| End receiving the header, perform OFDM-specific actions, and provide the status of the reception. More... | |
| virtual Time | GetHeaderDuration (const WifiTxVector &txVector) const |
| virtual WifiMode | GetHeaderMode (const WifiTxVector &txVector) const |
| uint16_t | GetMeasurementChannelWidth (const Ptr< const WifiPpdu > ppdu) const override |
| Return the channel width used to measure the RSSI. More... | |
| uint8_t | GetNumberServiceBits () const |
| virtual Time | GetPreambleDuration (const WifiTxVector &txVector) const |
| Time | GetSignalExtension (WifiPhyBand band) const |
| Ptr< SpectrumValue > | GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu) const override |
| virtual bool | IsChannelWidthSupported (Ptr< const WifiPpdu > ppdu) const |
| Checks if the PPDU's bandwidth is supported by the PHY. More... | |
| Protected Member Functions inherited from ns3::PhyEntity | |
| void | AbortCurrentReception (WifiPhyRxfailureReason reason) |
| Abort the current reception. More... | |
| void | AddPreambleEvent (Ptr< Event > event) |
| Add an entry to the map of current preamble events (stored in WifiPhy). More... | |
| Ptr< Event > | CreateInterferenceEvent (Ptr< const WifiPpdu > ppdu, Time duration, RxPowerWattPerChannelBand &rxPower, bool isStartHePortionRxing=false) |
| Create an event using WifiPhy's InterferenceHelper class. More... | |
| virtual PhyFieldRxStatus | DoEndReceivePreamble (Ptr< Event > event) |
| End receiving the preamble, perform amendment-specific actions, and provide the status of the reception. More... | |
| virtual bool | DoStartReceiveField (WifiPpduField field, Ptr< Event > event) |
| Start receiving a given field, perform amendment-specific actions, and signify if it is supported. More... | |
| void | DropPreambleEvent (Ptr< const WifiPpdu > ppdu, WifiPhyRxfailureReason reason, Time endRx) |
| Drop the PPDU and the corresponding preamble detection event, but keep CCA busy state after the completion of the currently processed event. More... | |
| void | EndOfMpdu (Ptr< Event > event, Ptr< const WifiPsdu > psdu, size_t mpduIndex, Time relativeStart, Time mpduDuration) |
| The last symbol of an MPDU in an A-MPDU has arrived. More... | |
| void | EndPreambleDetectionPeriod (Ptr< Event > event) |
| End the preamble detection period. More... | |
| void | ErasePreambleEvent (Ptr< const WifiPpdu > ppdu, Time rxDuration) |
| Erase the event corresponding to the PPDU from the list of preamble events, but consider it as noise after the completion of the current event. More... | |
| uint16_t | GetCenterFrequencyForChannelWidth (const WifiTxVector &txVector) const |
| Get the center frequency of the channel corresponding the current TxVector rather than that of the supported channel width. More... | |
| Ptr< const Event > | GetCurrentEvent () const |
| Get the pointer to the current event (stored in WifiPhy). More... | |
| const std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > > & | GetCurrentPreambleEvents () const |
| Get the map of current preamble events (stored in WifiPhy). More... | |
| Time | GetDelayUntilCcaEnd (double thresholdDbm, const WifiSpectrumBandInfo &band) |
| Return the delay until CCA busy is ended for a given sensitivity threshold (in dBm) and a given band. More... | |
| uint16_t | GetGuardBandwidth (uint16_t currentChannelWidth) const |
| SnrPer | GetPhyHeaderSnrPer (WifiPpduField field, Ptr< Event > event) const |
| Obtain the SNR and PER of the PPDU field from the WifiPhy's InterferenceHelper class. More... | |
| WifiSpectrumBandInfo | GetPrimaryBand (uint16_t bandWidth) const |
| If the operating channel width is a multiple of 20 MHz, return the info corresponding to the primary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More... | |
| double | GetRandomValue () const |
| Obtain a random value from the WifiPhy's generator. More... | |
| std::pair< bool, SignalNoiseDbm > | GetReceptionStatus (Ptr< const WifiPsdu > psdu, Ptr< Event > event, uint16_t staId, Time relativeMpduStart, Time mpduDuration) |
| Get the reception status for the provided MPDU and notify. More... | |
| virtual uint16_t | GetRxChannelWidth (const WifiTxVector &txVector) const |
| Return the channel width used in the reception spectrum model. More... | |
| double | GetRxPowerWForPpdu (Ptr< Event > event) const |
| Obtain the received power (W) for a given band. More... | |
| WifiSpectrumBandInfo | GetSecondaryBand (uint16_t bandWidth) const |
| If the channel bonding is used, return the info corresponding to the secondary channel of the given bandwidth (which must be a multiple of 20 MHz and not exceed the operating channel width). More... | |
| std::tuple< double, double, double > | GetTxMaskRejectionParams () const |
| void | NotifyInterferenceRxEndAndClear (bool reset) |
| Notify WifiPhy's InterferenceHelper of the end of the reception, clear maps and end of MPDU event, and eventually reset WifiPhy. More... | |
| void | NotifyPayloadBegin (const WifiTxVector &txVector, const Time &payloadDuration) |
| Fire the trace indicating that the PHY is starting to receive the payload of a PPDU. More... | |
| void | ScheduleEndOfMpdus (Ptr< Event > event) |
| Schedule end of MPDUs events. More... | |
| void | StartPreambleDetectionPeriod (Ptr< Event > event) |
| Start the preamble detection period. More... | |
| void | StartReceivePayload (Ptr< Event > event) |
| Start receiving the PSDU (i.e. More... | |
Static Protected Member Functions | |
| static uint64_t | CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize) |
| Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More... | |

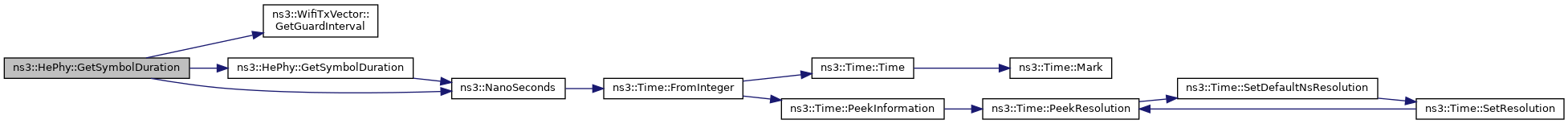

| static Time | GetSymbolDuration (Time guardInterval) |
| static uint16_t | GetUsableSubcarriers (uint16_t channelWidth) |
| Static Protected Member Functions inherited from ns3::VhtPhy | |
| static uint64_t | CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize) |
| Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More... | |
| static uint16_t | GetUsableSubcarriers (uint16_t channelWidth) |
| Static Protected Member Functions inherited from ns3::HtPhy | |
| static uint64_t | CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate, uint8_t nss) |
| Calculates data rate from the supplied parameters. More... | |
| static uint64_t | CalculateNonHtReferenceRate (WifiCodeRate codeRate, uint16_t constellationSize) |
| Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size. More... | |
| static uint64_t | CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate) |
| Return the PHY rate corresponding to the supplied code rate and data rate. More... | |
| static double | GetCodeRatio (WifiCodeRate codeRate) |
| Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More... | |
| static Time | GetSymbolDuration (Time guardInterval) |
| static Time | GetSymbolDuration (uint16_t channelWidth) |
| static uint16_t | GetUsableSubcarriers (uint16_t channelWidth) |
| Static Protected Member Functions inherited from ns3::OfdmPhy | |
| static uint64_t | CalculateDataRate (Time symbolDuration, uint16_t usableSubCarriers, uint16_t numberOfBitsPerSubcarrier, double codingRate) |
| Calculates data rate from the supplied parameters. More... | |
| static uint64_t | CalculateDataRate (WifiCodeRate codeRate, uint16_t constellationSize, uint16_t channelWidth) |
| Calculates data rate from the supplied parameters. More... | |
| static uint64_t | CalculatePhyRate (WifiCodeRate codeRate, uint64_t dataRate) |
| Calculate the PHY rate in bps from code rate and data rate. More... | |
| static double | GetCodeRatio (WifiCodeRate codeRate) |
| Convert WifiCodeRate to a ratio, e.g., code ratio of WIFI_CODE_RATE_1_2 is 0.5. More... | |
| static Time | GetSymbolDuration (uint16_t channelWidth) |
| static uint16_t | GetUsableSubcarriers () |
Protected Attributes | |
| std::map< uint16_t, EventId > | m_beginMuPayloadRxEvents |
| the beginning of the MU payload reception events (indexed by STA-ID) More... | |
| uint64_t | m_currentMuPpduUid |
| UID of the HE MU or HE TB PPDU being received. More... | |
| std::optional< WifiTxVector > | m_currentTxVector |
| If the STA is an AP STA, this holds the TXVECTOR of the PPDU that has been sent. More... | |
| EndOfHeSigACallback | m_endOfHeSigACallback |
| end of HE-SIG-A callback More... | |
| uint64_t | m_previouslyTxPpduUid |
| UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs. More... | |
| std::optional< WifiTxVector > | m_trigVector |
| the TRIGVECTOR More... | |
| std::optional< Time > | m_trigVectorExpirationTime |
| expiration time of the TRIGVECTOR More... | |
| Protected Attributes inherited from ns3::HtPhy | |
| uint8_t | m_bssMembershipSelector |
| the BSS membership selector More... | |
| uint8_t | m_maxMcsIndexPerSs |
| the maximum MCS index per spatial stream as defined by the standard More... | |
| uint8_t | m_maxSupportedMcsIndexPerSs |
| the maximum supported MCS index per spatial stream More... | |
| Protected Attributes inherited from ns3::PhyEntity | |
| std::vector< EventId > | m_endOfMpduEvents |
| the end of MPDU events (only used for A-MPDUs) More... | |
| std::vector< EventId > | m_endPreambleDetectionEvents |
| the end of preamble detection events More... | |
| std::vector< EventId > | m_endRxPayloadEvents |
| the end of receive events (only one unless UL MU reception) More... | |
| std::list< WifiMode > | m_modeList |
| the list of supported modes More... | |
| std::map< UidStaIdPair, SignalNoiseDbm > | m_signalNoiseMap |
| Map of the latest signal power and noise power in dBm (noise power includes the noise figure) More... | |
| Ptr< WifiPhyStateHelper > | m_state |
| Pointer to WifiPhyStateHelper of the WifiPhy (to make it reachable for child classes) More... | |
| std::map< UidStaIdPair, std::vector< bool > > | m_statusPerMpduMap |
| Map of the current reception status per MPDU that is filled in as long as MPDUs are being processed by the PHY in case of an A-MPDU. More... | |
| Ptr< WifiPhy > | m_wifiPhy |
| Pointer to the owning WifiPhy. More... | |
Private Member Functions | |
| void | BuildModeList () override |
| Build mode list. More... | |
| uint8_t | GetNumberBccEncoders (const WifiTxVector &txVector) const override |
| std::vector< Time > | GetPer20MHzDurations (const Ptr< const WifiPpdu > ppdu) |
| Compute the per-20 MHz CCA durations vector that indicates for how long each 20 MHz subchannel (corresponding to the index of the element in the vector) is busy and where a zero duration indicates that the subchannel is idle. More... | |
| Time | GetSymbolDuration (const WifiTxVector &txVector) const override |
| Ptr< SpectrumValue > | GetTxPowerSpectralDensity (double txPowerW, Ptr< const WifiPpdu > ppdu, HePpdu::TxPsdFlag flag) const |
| This is a helper function to create the TX PSD of the non-HE and HE portions. More... | |
| void | NotifyCcaBusy (Time duration, WifiChannelListType channelType, const std::vector< Time > &per20MHzDurations) |
| Notify PHY state helper to switch to CCA busy state,. More... | |
| void | StartTxHePortion (Ptr< const WifiPpdu > ppdu, double txPowerDbm, Ptr< SpectrumValue > txPowerSpectrum, Time hePortionDuration) |
| Start the transmission of the HE portion of the MU PPDU. More... | |
Static Private Member Functions | |
| static Time | GetValidPpduDuration (Time ppduDuration, const WifiTxVector &txVector, WifiPhyBand band) |
| Given a PPDU duration value, the TXVECTOR used to transmit the PPDU and the PHY band, compute a valid PPDU duration considering the number and duration of symbols, the preamble duration and the guard interval. More... | |
Private Attributes | |
| std::vector< Time > | m_lastPer20MHzDurations |
| Hold the last per-20 MHz CCA durations vector. More... | |
| Ptr< ObssPdAlgorithm > | m_obssPdAlgorithm |
| OBSS-PD algorithm. More... | |
| std::size_t | m_rxHeTbPpdus |
| Number of successfully received HE TB PPDUS. More... | |
Static Private Attributes | |
| static const PpduFormats | m_hePpduFormats |
| HE PPDU formats. More... | |
Additional Inherited Members | |
| Protected Types inherited from ns3::PhyEntity | |
| using | CcaIndication = std::optional< std::pair< Time, WifiChannelListType > > |
| CCA end time and its corresponding channel list type (can be std::nullopt if IDLE) More... | |
| typedef std::pair< WifiCodeRate, uint16_t > | CodeRateConstellationSizePair |
| A pair to hold modulation information: code rate and constellation size. More... | |
| typedef std::map< std::string, CodeRateConstellationSizePair > | ModulationLookupTable |
| A modulation lookup table using unique name of modulation as key. More... | |
| typedef std::map< WifiPreamble, std::vector< WifiPpduField > > | PpduFormats |
| A map of PPDU field elements per preamble type. More... | |
| typedef std::pair< uint64_t, uint16_t > | UidStaIdPair |
| A pair of a UID and STA_ID. More... | |
| Static Protected Attributes inherited from ns3::PhyEntity | |
| static uint64_t | m_globalPpduUid = 0 |
| Global counter of the PPDU UID. More... | |
PHY entity for HE (11ax)
HE PHY is based on VHT PHY.
Refer to P802.11ax/D4.0, clause 27.
| typedef Callback<void, HeSigAParameters> ns3::HePhy::EndOfHeSigACallback |
| ns3::HePhy::HePhy | ( | bool | buildModeList = true | ) |
Constructor for HE PHY.
| buildModeList | flag used to add HE modes to list (disabled by child classes to only add child classes' modes) |
Definition at line 78 of file he-phy.cc.
References BuildModeList(), HE_PHY, ns3::HtPhy::m_bssMembershipSelector, m_currentMuPpduUid, ns3::HtPhy::m_maxMcsIndexPerSs, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, m_previouslyTxPpduUid, and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
override |
|
overrideprivatevirtual |
Build mode list.
Should be redone whenever the maximum MCS index per spatial stream ,or any other important parameter having an impact on the MCS index (e.g. number of spatial streams for HT), changes.
Reimplemented from ns3::HtPhy.
Definition at line 104 of file he-phy.cc.
References CreateHeMcs(), HE_PHY, ns3::HtPhy::m_bssMembershipSelector, ns3::HtPhy::m_maxSupportedMcsIndexPerSs, ns3::PhyEntity::m_modeList, NS_ASSERT, NS_LOG_FUNCTION, and NS_LOG_LOGIC.
Referenced by HePhy().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Build amendment-specific PPDU.
| psdus | the PHY payloads (PSDUs) |
| txVector | the TXVECTOR that was used for the PPDU |
| ppduDuration | the transmission duration of the PPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 350 of file he-phy.cc.
References ns3::WifiPhy::GetOperatingChannel(), ns3::PhyEntity::m_wifiPhy, NS_LOG_FUNCTION, ObtainNextUid(), and ns3::HePpdu::PSD_NON_HE_PORTION.
Here is the call graph for this function:
|
virtual |
| txVector | the transmission parameters used for the HE MU PPDU |
Reimplemented in ns3::EhtPhy.
Definition at line 311 of file he-phy.cc.
References ns3::VhtPhy::GetDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, ns3::WIFI_PPDU_FIELD_SIG_A, and ns3::WIFI_PPDU_FIELD_SIG_B.
Referenced by DoGetEvent(), and StartTx().
Here is the call graph for this function: Here is the caller graph for this function:
|
virtual |
| txVector | the transmission parameters used for the HE TB PPDU |
Reimplemented in ns3::EhtPhy.
Definition at line 302 of file he-phy.cc.
References ns3::VhtPhy::GetDuration(), ns3::WIFI_PPDU_FIELD_NON_HT_HEADER, ns3::WIFI_PPDU_FIELD_PREAMBLE, and ns3::WIFI_PPDU_FIELD_SIG_A.
Referenced by DoGetEvent(), and StartTx().

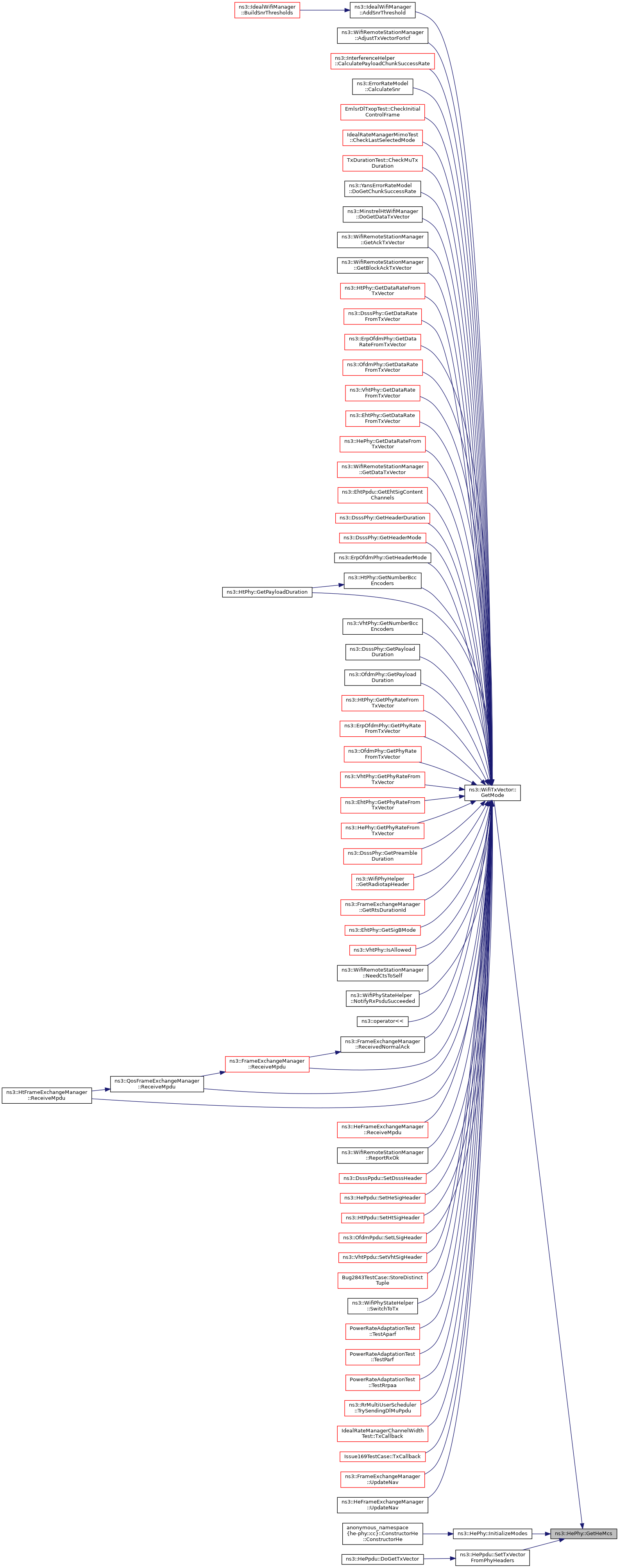

Here is the call graph for this function: Here is the caller graph for this function:
|
staticprotected |
Return the rate (in bps) of the non-HT Reference Rate which corresponds to the supplied code rate and constellation size.
| codeRate | the convolutional coding rate |
| constellationSize | the size of modulation constellation |
To convert an HE MCS to its corresponding non-HT Reference Rate use the modulation and coding rate of the HT MCS and lookup in Table 10-10 of IEEE P802.11ax/D6.0.
Definition at line 1725 of file he-phy.cc.
References ns3::VhtPhy::CalculateNonHtReferenceRate(), NS_FATAL_ERROR, ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.
Referenced by ns3::EhtPhy::CalculateNonHtReferenceRate(), and GetNonHtReferenceRate().

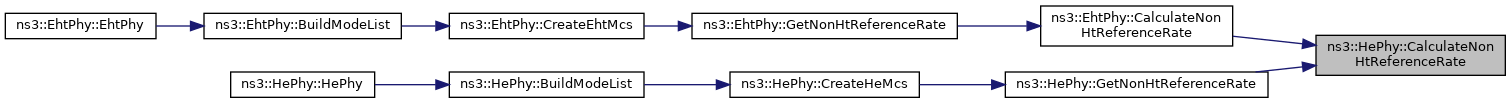

Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
| psduMap | the PSDU(s) to transmit indexed by STA-ID |
| txVector | the TXVECTOR used for the transmission of the PPDU |
| band | the frequency band being used |
Reimplemented from ns3::PhyEntity.
Definition at line 1504 of file he-phy.cc.
References ns3::WifiPhy::CalculateTxDuration(), ConvertLSigLengthToHeTbPpduDuration(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetLength(), ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::IsDlMu(), ns3::Time::IsStrictlyPositive(), ns3::WifiTxVector::IsUlMu(), NS_ABORT_MSG_IF, NS_ASSERT, ns3::Seconds(), and ns3::WIFI_MOD_CLASS_HE.
Here is the call graph for this function:
|
overridevirtual |
Cancel and clear all running events.
Reimplemented from ns3::PhyEntity.
Definition at line 412 of file he-phy.cc.
References ns3::PhyEntity::CancelAllEvents(), m_beginMuPayloadRxEvents, and NS_LOG_FUNCTION.
Here is the call graph for this function:Determine whether the PHY shall issue a PHY-RXSTART.indication primitive in response to a given PPDU.
| ppdu | the PPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 1774 of file he-phy.cc.
References ns3::AP, ns3::PhyEntity::CanStartRx(), ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::PhyEntity::m_wifiPhy, and third::mac.
Here is the call graph for this function:
|
static |
| bandWidth | the width (MHz) of the band used for the OFDMA transmission. Must be a multiple of 20 MHz |
| guardBandwidth | width of the guard band (MHz) |
| subcarrierSpacing | the subcarrier spacing (MHz) |
| subcarrierRange | the subcarrier range of the HE RU |
| bandIndex | the index (starting at 0) of the band within the operating channel |
This is a helper function to convert HE RU subcarriers, which are relative to the center frequency subcarrier, to the indexes used by the Spectrum model.
Definition at line 1819 of file he-phy.cc.
References NS_FATAL_ERROR.
Referenced by ns3::SpectrumWifiPhy::GetHeRuBands(), GetNonOfdmaBand(), GetRuBandForRx(), and GetRuBandForTx().

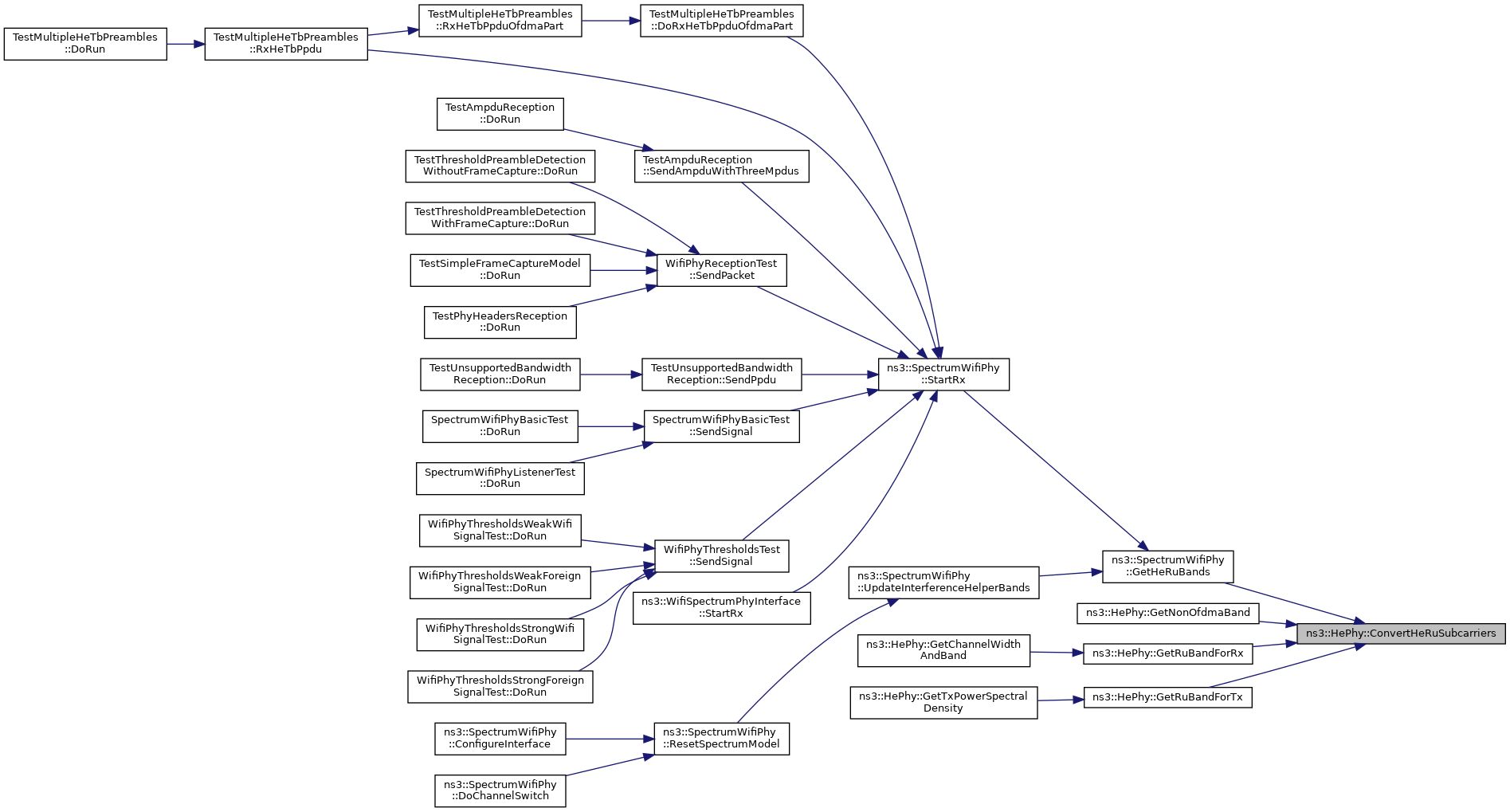

Here is the caller graph for this function:
|
static |
Compute the L-SIG length value corresponding to the given HE TB PPDU duration.
If the latter is not a feasible duration (considering the selected guard interval), a proper duration is computed and returned along with the L-SIG length value.
| ppduDuration | the duration of the HE TB PPDU |
| txVector | the TXVECTOR used for the transmission of this HE TB PPDU |
| band | the frequency band being used |
Definition at line 269 of file he-phy.cc.
References ns3::WifiTxVector::GetModulationClass(), ns3::Time::GetNanoSeconds(), GetValidPpduDuration(), ns3::WifiTxVector::IsUlMu(), two-ray-to-three-gpp-ch-calibration::m, NS_ABORT_IF, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.
Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
| length | the L-SIG length value |
| txVector | the TXVECTOR used for the transmission of this HE TB PPDU |
| band | the frequency band being used |
Definition at line 288 of file he-phy.cc.
References ns3::WifiTxVector::GetModulationClass(), GetValidPpduDuration(), ns3::WifiTxVector::IsUlMu(), two-ray-to-three-gpp-ch-calibration::m, ns3::MicroSeconds(), NS_ABORT_IF, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PHY_BAND_2_4GHZ.
Referenced by CalculateTxDuration(), DoStartReceivePayload(), and ns3::HeFrameExchangeManager::SendPsduMapWithProtection().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Create and return the HE MCS corresponding to the provided index.
This method binds all the callbacks used by WifiMode.
| index | the index of the MCS |
Definition at line 1597 of file he-phy.cc.
References ns3::WifiModeFactory::CreateWifiMcs(), GetCodeRate(), GetConstellationSize(), GetDataRateFromTxVector(), GetNonHtReferenceRate(), GetPhyRateFromTxVector(), IsAllowed(), ns3::MakeBoundCallback(), ns3::MakeCallback(), NS_ASSERT_MSG, nlohmann::to_string(), and ns3::WIFI_MOD_CLASS_HE.
Referenced by BuildModeList().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Perform amendment-specific actions before aborting the current reception.
| reason | the reason the reception is aborted |
Reimplemented from ns3::PhyEntity.
Definition at line 424 of file he-phy.cc.
References ns3::PhyEntity::DoAbortCurrentReception(), ns3::PhyEntity::m_endOfMpduEvents, NS_LOG_FUNCTION, and ns3::OBSS_PD_CCA_RESET.
Here is the call graph for this function:Perform amendment-specific actions at the end of the reception of the payload.
| ppdu | the incoming PPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 887 of file he-phy.cc.
References ns3::PhyEntity::DoEndReceivePayload(), ns3::WifiPhy::GetLastRxEndTime(), m_currentMuPpduUid, ns3::PhyEntity::m_endRxPayloadEvents, m_rxHeTbPpdus, ns3::PhyEntity::m_state, ns3::PhyEntity::m_wifiPhy, ns3::PhyEntity::NotifyInterferenceRxEndAndClear(), ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:
|
overrideprotectedvirtual |
Get the event corresponding to the incoming PPDU.
We store all incoming preamble events, perform amendment-specific actions, and a decision is made at the end of the preamble detection window.
| ppdu | the incoming PPDU |
| rxPowersW | the receive power in W per band |
Reimplemented from ns3::PhyEntity.
Definition at line 457 of file he-phy.cc.
References ns3::PhyEntity::AddPreambleEvent(), CalculateNonHeDurationForHeMu(), CalculateNonHeDurationForHeTb(), ns3::PhyEntity::CreateInterferenceEvent(), ns3::PhyEntity::DoGetEvent(), ns3::PhyEntity::GetCurrentPreambleEvents(), HandleRxPpduWithSameContent(), m_previouslyTxPpduUid, NS_LOG_DEBUG, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:Perform amendment-specific actions before resetting PHY at the end of the PPDU under reception after it has failed the PHY header.
| event | the event holding incoming PPDU's information |
Reimplemented from ns3::PhyEntity.
Definition at line 442 of file he-phy.cc.
References m_beginMuPayloadRxEvents, ns3::Simulator::Now(), NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:Start receiving the PSDU (i.e.
the first symbol of the PSDU has arrived) and perform amendment-specific actions.
| event | the event holding incoming PPDU's information |
Reimplemented from ns3::PhyEntity.
Definition at line 789 of file he-phy.cc.
References ns3::AP, ns3::PhyEntity::CalculatePhyPreambleAndHeaderDuration(), ConvertLSigLengthToHeTbPpduDuration(), ns3::PhyEntity::DoStartReceivePayload(), ns3::Simulator::GetDelayLeft(), ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::WifiPhy::GetPhyBand(), GetStaId(), ns3::WifiMac::GetTypeOfStation(), m_beginMuPayloadRxEvents, ns3::PhyEntity::m_endRxPayloadEvents, ns3::PhyEntity::m_signalNoiseMap, ns3::PhyEntity::m_statusPerMpduMap, ns3::PhyEntity::m_wifiPhy, ns3::Max(), ns3::PhyEntity::NotifyPayloadBegin(), NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::PhyEntity::ResetReceive(), ns3::Simulator::Schedule(), and ns3::WIFI_MOD_CLASS_HE.
Here is the call graph for this function:
|
overridevirtual |
Get the PSDU addressed to that PHY in a PPDU (useful for MU PPDU).
| ppdu | the PPDU to extract the PSDU from |
Reimplemented from ns3::PhyEntity.
Definition at line 545 of file he-phy.cc.
References ns3::PhyEntity::GetAddressedPsduInPpdu(), GetBssColor(), GetStaId(), NS_ASSERT, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Referenced by HandleRxPpduWithSameContent(), ProcessSigA(), ProcessSigB(), and StartReceiveMuPayload().
Here is the call graph for this function: Here is the caller graph for this function:| uint8_t ns3::HePhy::GetBssColor | ( | ) | const |
Definition at line 557 of file he-phy.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetHeConfiguration(), and ns3::PhyEntity::m_wifiPhy.
Referenced by GetAddressedPsduInPpdu(), and ProcessSigA().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Return the CCA threshold in dBm for a given channel type.
If the channel type is not provided, the default CCA threshold is returned.
| ppdu | the PPDU that is being received |
| channelType | the channel type |
Reimplemented from ns3::PhyEntity.
Definition at line 1096 of file he-phy.cc.
References ns3::VhtPhy::GetCcaThreshold(), ns3::ObssPdAlgorithm::GetObssPdLevel(), m_obssPdAlgorithm, max, and ns3::WIFI_CHANLIST_PRIMARY.
Here is the call graph for this function:| uint16_t ns3::HePhy::GetCenterFrequencyForNonHePart | ( | const WifiTxVector & | txVector, |
| uint16_t | staId | ||
| ) | const |
Get the center frequency of the non-HE portion of the current TxVector for the given STA-ID.
Note this method is only to be used for UL MU.
| txVector | the TXVECTOR that has the RU allocation |
| staId | the STA-ID of the station taking part of the UL MU |
Definition at line 1412 of file he-phy.cc.
References ns3::HeRu::FindOverlappingRu(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetModulationClass(), GetNonOfdmaWidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::GetRuType(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, and ns3::WIFI_MOD_CLASS_HE.
Referenced by GetTxPowerSpectralDensity().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Get the channel width and band to use (will be overloaded by child classes).
| txVector | the transmission parameters |
| staId | the station ID of the PSDU |
Reimplemented from ns3::PhyEntity.
Definition at line 972 of file he-phy.cc.
References ns3::HeRu::GetBandwidth(), ns3::PhyEntity::GetChannelWidthAndBand(), ns3::WifiTxVector::GetRu(), GetRuBandForRx(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().
Here is the call graph for this function:
|
static |
Return the coding rate corresponding to the supplied HE MCS index.
This function is used as a callback for WifiMode operation.
| mcsValue | the MCS index |
Definition at line 1613 of file he-phy.cc.
References ns3::VhtPhy::GetCodeRate(), ns3::WIFI_CODE_RATE_3_4, and ns3::WIFI_CODE_RATE_5_6.
Referenced by CreateHeMcs(), ns3::EhtPhy::GetCodeRate(), GetDataRate(), GetNonHtReferenceRate(), and GetPhyRate().

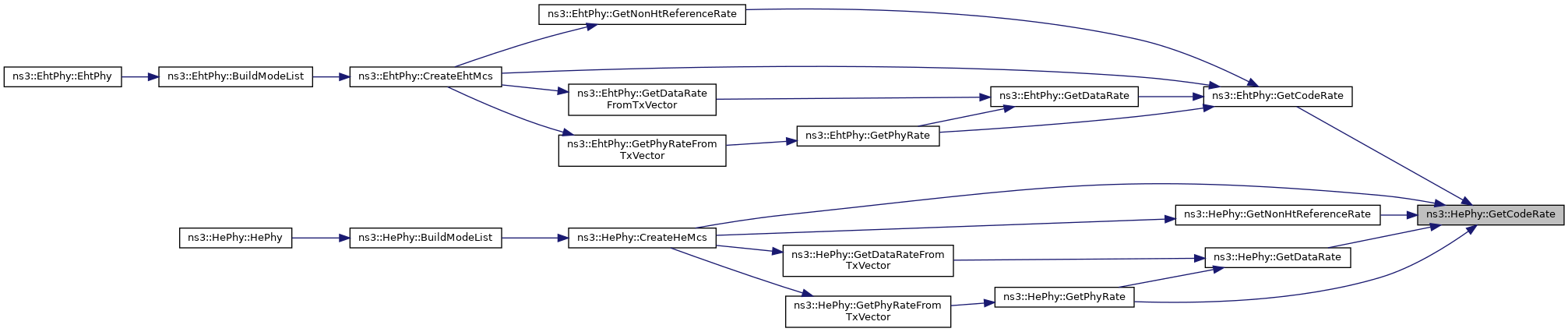

Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Return the constellation size corresponding to the supplied HE MCS index.
This function is used as a callback for WifiMode operation.
| mcsValue | the MCS index |
Definition at line 1627 of file he-phy.cc.
References ns3::VhtPhy::GetConstellationSize().
Referenced by CreateHeMcs(), ns3::EhtPhy::GetConstellationSize(), GetDataRate(), and GetNonHtReferenceRate().
Here is the call graph for this function: Here is the caller graph for this function:| uint64_t ns3::HePhy::GetCurrentHeTbPpduUid | ( | ) | const |
Definition at line 1072 of file he-phy.cc.
References m_currentMuPpduUid.
|
static |
Return the data rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial streams.
| mcsValue | the MCS index |
| channelWidth | the channel width in MHz |
| guardInterval | the guard interval duration in nanoseconds |
| nss | the number of spatial streams |
Definition at line 1676 of file he-phy.cc.
References ns3::HtPhy::CalculateDataRate(), GetCodeRate(), ns3::HtPhy::GetCodeRatio(), GetConstellationSize(), GetSymbolDuration(), ns3::OfdmPhy::GetUsableSubcarriers(), ns3::NanoSeconds(), and NS_ASSERT.
Referenced by GetDataRateFromTxVector(), and GetPhyRate().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Return the data rate corresponding to the supplied TXVECTOR for the STA-ID.
| txVector | the TXVECTOR used for the transmission |
| staId | the station ID for MU (unused if SU) |
Definition at line 1662 of file he-phy.cc.
References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), GetDataRate(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().
Referenced by CreateHeMcs().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Return the HE MCS corresponding to the provided index.
| index | the index of the MCS |
Definition at line 1548 of file he-phy.cc.
References CASE, and NS_ABORT_MSG.
Referenced by ns3::WifiTxVector::GetMode(), InitializeModes(), and ns3::HePpdu::SetTxVectorFromPhyHeaders().
Here is the caller graph for this function:
|
static |
Return MCS 0 from HE MCS values.
|
static |
Return MCS 1 from HE MCS values.
|
static |
Return MCS 10 from HE MCS values.
|
static |
Return MCS 11 from HE MCS values.
|
static |
Return MCS 2 from HE MCS values.
|
static |
Return MCS 3 from HE MCS values.
|
static |
Return MCS 4 from HE MCS values.
|
static |
Return MCS 5 from HE MCS values.
|
static |
Return MCS 6 from HE MCS values.
|
static |
Return MCS 7 from HE MCS values.
|
static |
Return MCS 8 from HE MCS values.
|
static |
Return MCS 9 from HE MCS values.
|
overridevirtual |
| preamble | the type of preamble |
Reimplemented from ns3::HtPhy.
Definition at line 185 of file he-phy.cc.
References ns3::MicroSeconds().
Here is the call graph for this function:
|
overrideprotectedvirtual |
Obtain the maximum time between two PPDUs with the same UID to consider they are identical and their power can be added construtively.
| txVector | the TXVECTOR used for the transmission of the PPDUs |
Reimplemented from ns3::PhyEntity.
Definition at line 1292 of file he-phy.cc.
References ns3::WifiPhy::GetDevice(), ns3::VhtPhy::GetDuration(), ns3::WifiNetDevice::GetHeConfiguration(), ns3::PhyEntity::m_wifiPhy, ns3::Min(), NS_ASSERT, and ns3::WIFI_PPDU_FIELD_TRAINING.
Here is the call graph for this function:
|
overrideprotectedvirtual |
Get the maximum PSDU size in bytes.
Implements ns3::PhyEntity.
|
overridevirtual |
Return the channel width used to measure the RSSI.
| ppdu | the PPDU that is being received |
The PHY shall not issue a PHY-RXSTART.indication primitive in response to a PPDU that does not overlap the primary channel unless the PHY at an AP receives the HE TB PPDU solicited by the AP. For the HE TB PPDU solicited by the AP, the PHY shall issue a PHY-RXSTART.indication primitive for a PPDU received in the primary or at the secondary 20 MHz channel, the secondary 40 MHz channel, or the secondary 80 MHz channel.
Implements ns3::PhyEntity.
Definition at line 1078 of file he-phy.cc.
References ns3::OfdmPhy::GetMeasurementChannelWidth(), and m_previouslyTxPpduUid.
Here is the call graph for this function:
|
static |
Calculate the rate in bps of the non-HT Reference Rate corresponding to the supplied HE MCS index.
This function calls CalculateNonHtReferenceRate and is used as a callback for WifiMode operation.
| mcsValue | the HE MCS index |
Definition at line 1717 of file he-phy.cc.
References CalculateNonHtReferenceRate(), GetCodeRate(), and GetConstellationSize().
Referenced by CreateHeMcs().
Here is the call graph for this function: Here is the caller graph for this function:| WifiSpectrumBandInfo ns3::HePhy::GetNonOfdmaBand | ( | const WifiTxVector & | txVector, |
| uint16_t | staId | ||
| ) | const |
Get the band used to transmit the non-OFDMA part of an HE TB PPDU.
| txVector | the TXVECTOR used for the transmission |
| staId | the STA-ID of the station taking part of the UL MU |
Definition at line 1031 of file he-phy.cc.
References ConvertHeRuSubcarriers(), ns3::WifiPhy::ConvertIndicesToFrequencies(), ns3::HeRu::FindOverlappingRu(), two-ray-to-three-gpp-ch-calibration::frequencies, ns3::WifiPhy::GetChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiTxVector::GetModulationClass(), GetNonOfdmaWidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiPhy::GetSubcarrierSpacing(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HE.
Here is the call graph for this function:| uint16_t ns3::HePhy::GetNonOfdmaWidth | ( | HeRu::RuSpec | ru | ) | const |
Get the width in MHz of the non-OFDMA portion of an HE TB PPDU.
| ru | the RU in which the HE TB PPDU is sent |
Definition at line 1060 of file he-phy.cc.
References ns3::HeRu::GetBandwidth(), ns3::HeRu::RuSpec::GetIndex(), ns3::HeRu::RuSpec::GetRuType(), and ns3::HeRu::RU_26_TONE.
Referenced by GetCenterFrequencyForNonHePart(), and GetNonOfdmaBand().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprivatevirtual |
| txVector | the transmission parameters |
Add an encoder when crossing maxRatePerCoder frontier.
The value of 320 Mbps and 350 Mbps for normal GI and short GI (resp.) were obtained by observing the rates for which Nes was incremented in tables 19-27 to 19-41 of IEEE 802.11-2016.
Reimplemented from ns3::HtPhy.
| Ptr< ObssPdAlgorithm > ns3::HePhy::GetObssPdAlgorithm | ( | ) | const |
Gets the OBSS-PD algorithm.
Definition at line 707 of file he-phy.cc.
References m_obssPdAlgorithm.
Compute the per-20 MHz CCA durations vector that indicates for how long each 20 MHz subchannel (corresponding to the index of the element in the vector) is busy and where a zero duration indicates that the subchannel is idle.
The vector is non-empty if the operational channel width is larger than 20 MHz.
| ppdu | the incoming PPDU or nullptr for any signal |
27.3.20.6.5 Per 20 MHz CCA sensitivity: If the operating channel width is greater than 20 MHz and the PHY issues a PHY-CCA.indication primitive, the PHY shall set the per20bitmap to indicate the busy/idle status of each 20 MHz subchannel.
A signal is present on the 20 MHz subchannel at or above a threshold of –62 dBm at the receiver's antenna(s). The PHY shall indicate that the 20 MHz subchannel is busy a period aCCATime after the signal starts and shall continue to indicate the 20 MHz subchannel is busy while the threshold continues to be exceeded.
A 20 MHz non-HT, HT_MF, HT_GF, VHT, or HE PPDU at or above max(–72 dBm, OBSS_ PDlevel) at the receiver's antenna(s) is present on the 20 MHz subchannel. The PHY shall indicate that the 20 MHz subchannel is busy with > 90% probability within a period aCCAMidTime.
The 20 MHz subchannel is in a channel on which a 40 MHz non-HT duplicate, HT_MF, HT_GF, VHT or HE PPDU at or above max(–72 dBm, OBSS_PDlevel + 3 dB) at the receiver's antenna(s) is present. The PHY shall indicate that the 20 MHz subchannel is busy with > 90% probability within a period aCCAMidTime.
The 20 MHz subchannel is in a channel on which an 80 MHz non-HT duplicate, VHT or HE PPDU at or above max(–69 dBm, OBSS_PDlevel + 6 dB) at the receiver's antenna(s) is present. The PHY shall indicate that the 20 MHz subchannel is busy with > 90% probability within a period aCCAMidTime.
Definition at line 1174 of file he-phy.cc.
References ns3::WifiPhyOperatingChannel::GetAll20MHzChannelIndicesInPrimary(), ns3::WifiPhy::GetBand(), ns3::WifiPhy::GetChannelWidth(), ns3::PhyEntity::GetDelayUntilCcaEnd(), ns3::WifiPhy::GetFrequency(), ns3::ObssPdAlgorithm::GetObssPdLevel(), ns3::WifiPhy::GetOperatingChannel(), m_obssPdAlgorithm, ns3::PhyEntity::m_wifiPhy, max, NS_ASSERT_MSG, and NS_LOG_FUNCTION.
Referenced by NotifyCcaBusy(), and SwitchMaybeToCcaBusy().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Return the PHY rate corresponding to the supplied HE MCS index, channel width, guard interval, and number of spatial stream.
This function calls HtPhy::CalculatePhyRate and is mainly used as a callback for WifiMode operation.
| mcsValue | the HE MCS index |
| channelWidth | the considered channel width in MHz |
| guardInterval | the considered guard interval duration in nanoseconds |
| nss | the considered number of stream |
Definition at line 1640 of file he-phy.cc.
References ns3::HtPhy::CalculatePhyRate(), GetCodeRate(), and GetDataRate().
Referenced by GetPhyRateFromTxVector().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Return the PHY rate corresponding to the supplied TXVECTOR for the STA-ID.
| txVector | the TXVECTOR used for the transmission |
| staId | the station ID for MU (unused if SU) |
Definition at line 1648 of file he-phy.cc.
References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiMode::GetMcsValue(), ns3::WifiTxVector::GetMode(), ns3::WifiTxVector::GetNss(), GetPhyRate(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), and ns3::WifiTxVector::IsMu().
Referenced by CreateHeMcs().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Return the PPDU formats of the PHY.
Implements ns3::PhyEntity.
Definition at line 179 of file he-phy.cc.
References m_hePpduFormats.

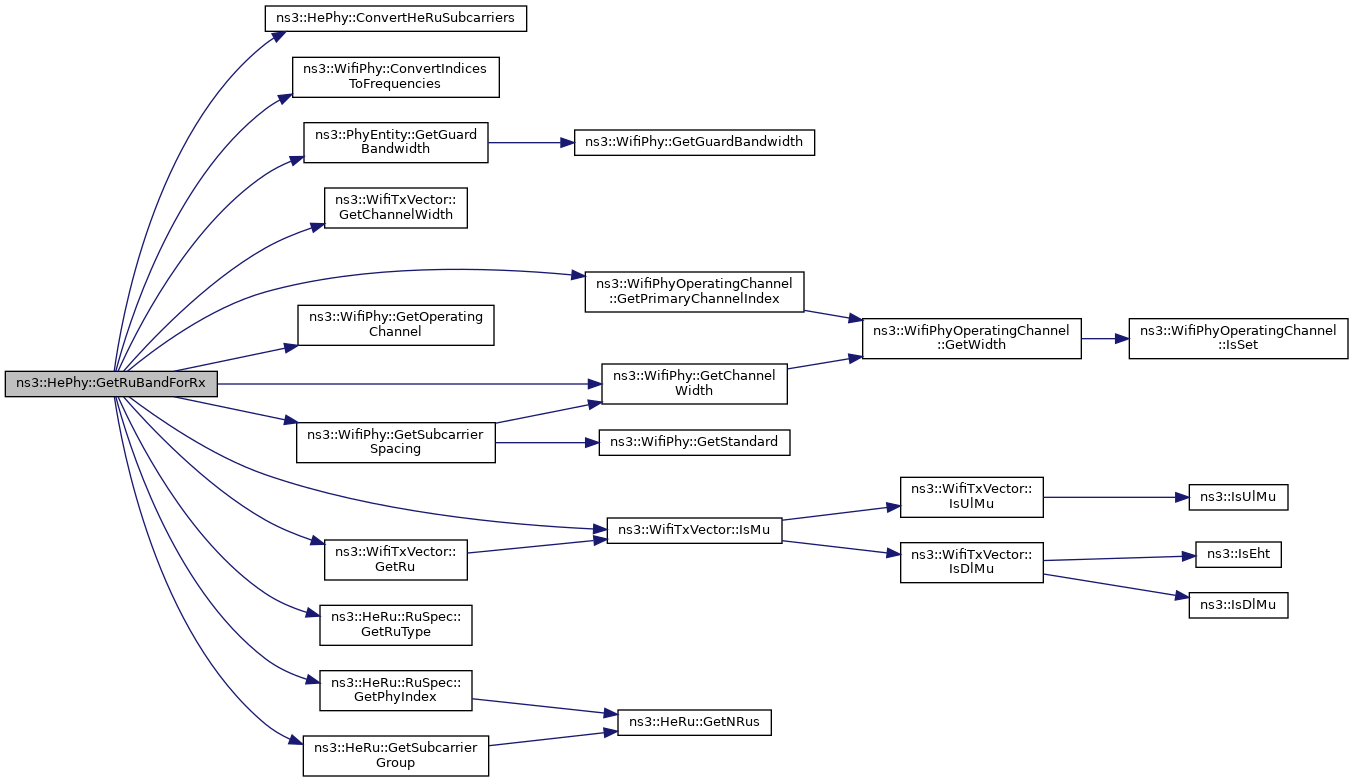

| WifiSpectrumBandInfo ns3::HePhy::GetRuBandForRx | ( | const WifiTxVector & | txVector, |
| uint16_t | staId | ||
| ) | const |
Get the band in the RX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.
| txVector | the TXVECTOR used for the transmission |
| staId | the STA-ID of the station |
Definition at line 1008 of file he-phy.cc.
References ConvertHeRuSubcarriers(), ns3::WifiPhy::ConvertIndicesToFrequencies(), two-ray-to-three-gpp-ch-calibration::frequencies, ns3::WifiPhy::GetChannelWidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiPhy::GetSubcarrierSpacing(), ns3::WifiTxVector::IsMu(), ns3::PhyEntity::m_wifiPhy, and NS_ASSERT.
Referenced by GetChannelWidthAndBand().
Here is the call graph for this function: Here is the caller graph for this function:| WifiSpectrumBandInfo ns3::HePhy::GetRuBandForTx | ( | const WifiTxVector & | txVector, |
| uint16_t | staId | ||
| ) | const |
Get the band in the TX spectrum associated with the RU used by the PSDU transmitted to/by a given STA in a DL MU PPDU/HE TB PPDU.
| txVector | the TXVECTOR used for the transmission |
| staId | the STA-ID of the station |
Definition at line 986 of file he-phy.cc.
References ConvertHeRuSubcarriers(), ns3::WifiPhy::ConvertIndicesToFrequencies(), two-ray-to-three-gpp-ch-calibration::frequencies, ns3::WifiTxVector::GetChannelWidth(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::HeRu::RuSpec::GetPhyIndex(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRu(), ns3::HeRu::RuSpec::GetRuType(), ns3::HeRu::GetSubcarrierGroup(), ns3::WifiPhy::GetSubcarrierSpacing(), ns3::WifiTxVector::IsMu(), ns3::PhyEntity::m_wifiPhy, and NS_ASSERT.
Referenced by GetTxPowerSpectralDensity().

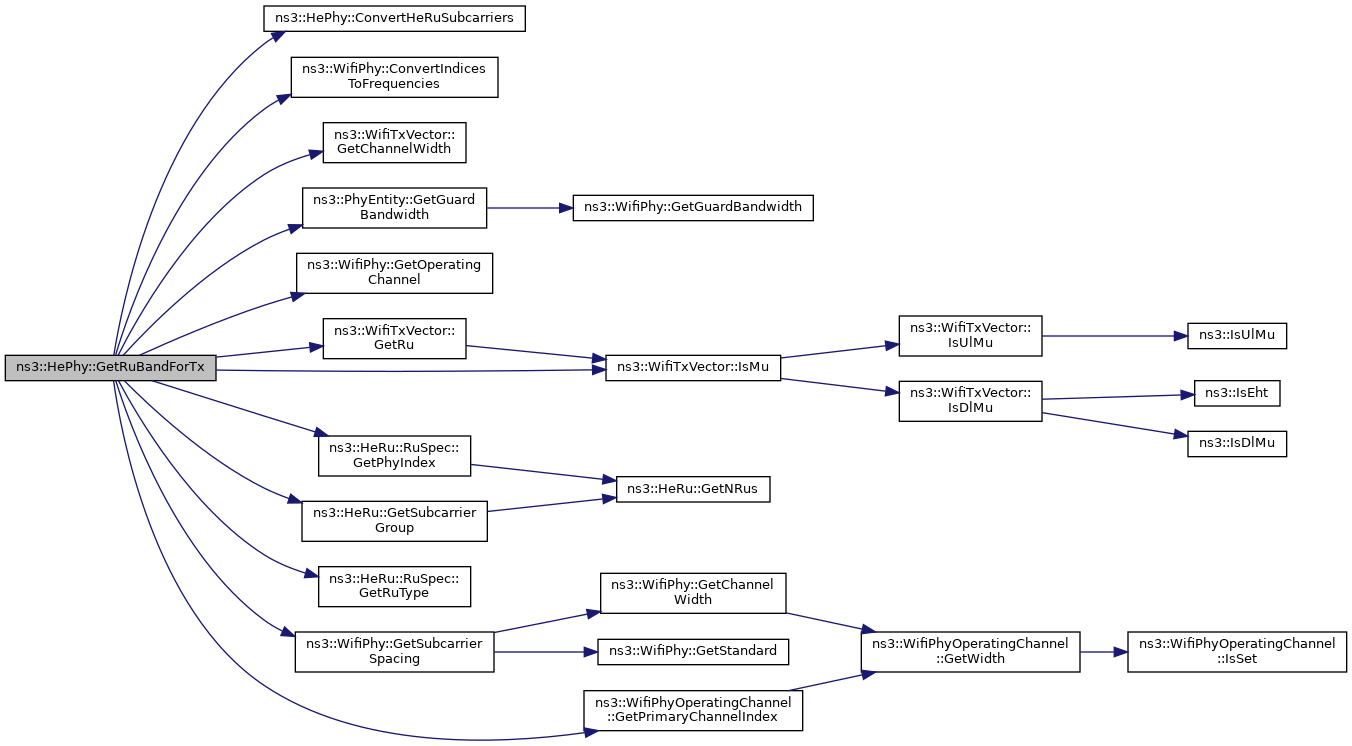

Here is the call graph for this function: Here is the caller graph for this function:The WifiPpdu from the TX PHY is received by each RX PHY attached to the same channel.
By default and for performance reasons, all RX PHYs will work on the same WifiPpdu instance from TX instead of a copy of it. Child classes can change that behavior and do a copy and/or change the content of the parameters stored in WifiPpdu.
| ppdu | the WifiPpdu transmitted by the TX PHY |
Reimplemented from ns3::PhyEntity.
Definition at line 1793 of file he-phy.cc.
References ns3::OfdmPhy::GetRxPpduFromTxPpdu(), m_trigVector, m_trigVectorExpirationTime, ns3::Simulator::Now(), NS_ASSERT, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:
|
overridevirtual |
| preamble | the type of preamble |
Reimplemented from ns3::VhtPhy.
Definition at line 212 of file he-phy.cc.
References ns3::MicroSeconds(), and ns3::WIFI_PREAMBLE_HE_ER_SU.
Referenced by ns3::EhtPhy::GetDuration().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Reimplemented from ns3::VhtPhy.
Definition at line 140 of file he-phy.cc.
References ns3::VhtPhy::GetVhtMcs0().
Referenced by ns3::EhtPhy::GetSigMode(), and GetSigMode().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
| txVector | the transmission parameters |
Reimplemented from ns3::VhtPhy.
Definition at line 236 of file he-phy.cc.
References ns3::FemtoSeconds(), ns3::WifiMode::GetDataRate(), GetSigBMode(), GetSigBSize(), and ns3::MicroSeconds().
Referenced by ns3::EhtPhy::GetDuration().
Here is the call graph for this function: Here is the caller graph for this function:
|

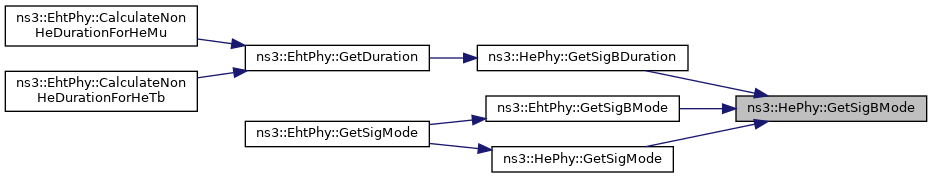

overridevirtual |
| txVector | the transmission parameters |
Get smallest HE MCS index among station's allocations and use the VHT version of the index. This enables to have 800 ns GI, 52 data tones, and 312.5 kHz spacing while ensuring that MCS will be decoded by all stations.
Reimplemented from ns3::VhtPhy.
Definition at line 146 of file he-phy.cc.
References ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetPreambleType(), ns3::VhtPhy::GetVhtMcs0(), ns3::VhtPhy::GetVhtMcs1(), ns3::VhtPhy::GetVhtMcs2(), ns3::VhtPhy::GetVhtMcs3(), ns3::VhtPhy::GetVhtMcs4(), ns3::VhtPhy::GetVhtMcs5(), ns3::IsDlMu(), min, and NS_ABORT_MSG_IF.
Referenced by GetSigBDuration(), ns3::EhtPhy::GetSigBMode(), and GetSigMode().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
| txVector | the transmission parameters |
Reimplemented in ns3::EhtPhy.
Definition at line 220 of file he-phy.cc.
References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetModulationClass(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiTxVector::GetPreambleType(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), ns3::WifiTxVector::GetRuAllocation(), ns3::HePpdu::GetSigBFieldSize(), ns3::IsDlMu(), ns3::WifiTxVector::IsSigBCompression(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HE.
Referenced by GetSigBDuration(), and ns3::EhtPhy::GetSigBSize().

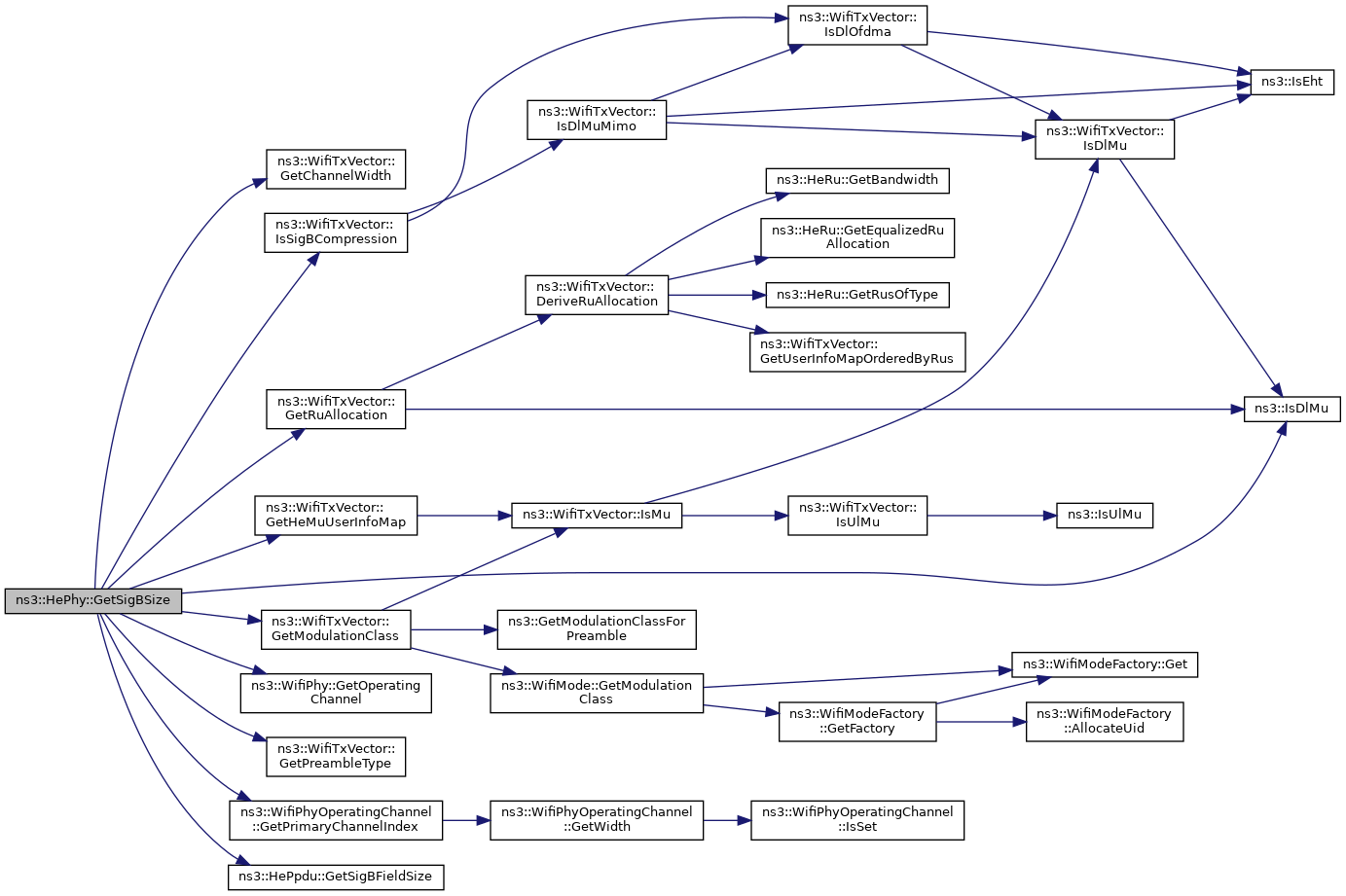

Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Get the WifiMode for the SIG field specified by the PPDU field.
| field | the PPDU field |
| txVector | the transmission parameters |
Reimplemented from ns3::PhyEntity.
Definition at line 117 of file he-phy.cc.
References ns3::WifiTxVector::GetModulationClass(), GetSigAMode(), GetSigBMode(), ns3::VhtPhy::GetSigMode(), ns3::WifiTxVector::IsDlMu(), NS_ASSERT, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_TRAINING.
Referenced by ns3::EhtPhy::GetSigMode().
Here is the call graph for this function: Here is the caller graph for this function:Return the STA ID that has been assigned to the station this PHY belongs to.

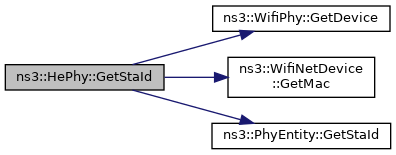

This is typically called for MU PPDUs, in order to pick the correct PSDU.
| ppdu | the PPDU for which the STA ID is requested |
Reimplemented from ns3::PhyEntity.
Reimplemented in OfdmaTestHePhy, and MuMimoTestHePhy.
Definition at line 572 of file he-phy.cc.
References ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::PhyEntity::GetStaId(), ns3::PhyEntity::m_wifiPhy, third::mac, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Referenced by DoStartReceivePayload(), GetAddressedPsduInPpdu(), GetTxPowerSpectralDensity(), IsConfigSupported(), StartReceiveMuPayload(), and StartReceivePreamble().

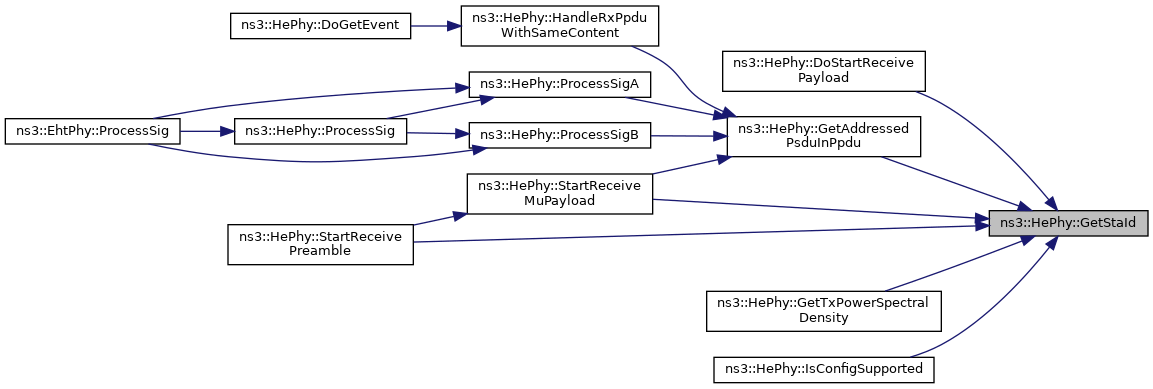

Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprivatevirtual |
| txVector | the transmission parameters |
Reimplemented from ns3::HtPhy.
Definition at line 327 of file he-phy.cc.
References ns3::WifiTxVector::GetGuardInterval(), GetSymbolDuration(), ns3::NanoSeconds(), and NS_ASSERT.
Here is the call graph for this function:| guardInterval | the guard interval duration |
Definition at line 1711 of file he-phy.cc.
References ns3::NanoSeconds().
Referenced by ns3::EhtPhy::GetDataRate(), GetDataRate(), and GetSymbolDuration().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
| txVector | the transmission parameters |
| nDataLtf | the number of data LTF fields (excluding those in preamble) |
| nExtensionLtf | the number of extension LTF fields |
Reimplemented from ns3::HtPhy.
Definition at line 191 of file he-phy.cc.
References ns3::WifiTxVector::GetModulationClass(), ns3::WifiTxVector::IsUlMu(), ns3::MicroSeconds(), NS_ABORT_MSG_IF, NS_ASSERT, and ns3::WIFI_MOD_CLASS_HE.

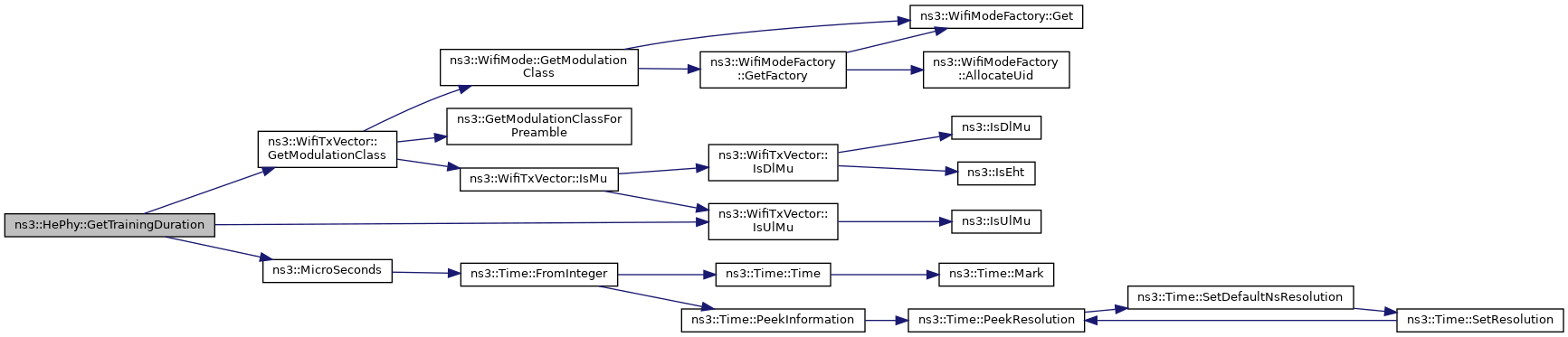

Here is the call graph for this function:
|
overrideprotectedvirtual |
| txPowerW | power in W to spread across the bands |
| ppdu | the PPDU that will be transmitted |
This is a helper function to create the right TX PSD corresponding to the amendment of this PHY.
Implements ns3::PhyEntity.
Definition at line 1311 of file he-phy.cc.
References NS_ASSERT.
Referenced by StartTx().
Here is the caller graph for this function:
|
private |
This is a helper function to create the TX PSD of the non-HE and HE portions.
| txPowerW | power in W to spread across the bands |
| ppdu | the PPDU that will be transmitted |
| flag | flag indicating whether the PSD is for non-HE portion or HE portion |
Definition at line 1320 of file he-phy.cc.
References ns3::WifiSpectrumValueHelper::CreateDuplicated20MhzTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateHeMuOfdmTxPowerSpectralDensity(), ns3::WifiSpectrumValueHelper::CreateHeOfdmTxPowerSpectralDensity(), ns3::WifiPhyOperatingChannel::GetAll20MHzChannelIndicesInPrimary(), ns3::HeRu::GetBandwidth(), ns3::PhyEntity::GetCenterFrequencyForChannelWidth(), GetCenterFrequencyForNonHePart(), ns3::PhyEntity::GetGuardBandwidth(), ns3::WifiPhy::GetOperatingChannel(), ns3::WifiPhyOperatingChannel::GetPrimaryChannelIndex(), GetRuBandForTx(), GetStaId(), ns3::PhyEntity::GetTxMaskRejectionParams(), ns3::WifiSpectrumBandInfo::indices, ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_FUNCTION, ns3::HePpdu::PSD_NON_HE_PORTION, ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:
|
staticprotected |
|
staticprivate |
Given a PPDU duration value, the TXVECTOR used to transmit the PPDU and the PHY band, compute a valid PPDU duration considering the number and duration of symbols, the preamble duration and the guard interval.
| ppduDuration | the given PPDU duration |
| txVector | the given TXVECTOR |
| band | the PHY band |
Definition at line 256 of file he-phy.cc.
References ns3::WifiPhy::CalculatePhyPreambleAndHeaderDuration(), ns3::WifiTxVector::GetGuardInterval(), ns3::Time::GetNanoSeconds(), ns3::MicroSeconds(), ns3::NanoSeconds(), and ns3::WIFI_PHY_BAND_2_4GHZ.
Referenced by ConvertHeTbPpduDurationToLSigLength(), and ConvertLSigLengthToHeTbPpduDuration().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU.
The STA-ID value is properly determined based on whether the given PSDU has to be transmitted as a DL or UL frame.
| psdu | the given PSDU |
| txVector | the TXVECTOR to use to send the PSDU |
Reimplemented from ns3::PhyEntity.
Definition at line 1754 of file he-phy.cc.
References ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetPreambleType(), ns3::IsUlMu(), NS_ASSERT, and ns3::SU_STA_ID.
Here is the call graph for this function:
|
overrideprotectedvirtual |
Handle reception of a PPDU that carries the same content of another PPDU.
This is typically called upon reception of preambles of HE MU PPDUs or reception of non-HT duplicate control frames that carries the exact same content sent from different STAs. If the delay between the PPDU and the first PPDU carrying the same content is small enough, PPDU can be decoded and its power is added constructively, and the TXVECTOR is updated accordingly. Otherwise, a new interference event is created and PPDU is dropped by the PHY.
| event | the event of the ongoing reception |
| ppdu | the newly received PPDU (UL MU or non-HT duplicate) |
| rxPower | the received power (W) per band of the newly received PPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 523 of file he-phy.cc.
References GetAddressedPsduInPpdu(), ns3::PhyEntity::GetCurrentEvent(), ns3::PhyEntity::HandleRxPpduWithSameContent(), m_previouslyTxPpduUid, ns3::PhyEntity::m_wifiPhy, ns3::WifiPhy::NotifyRxDrop(), NS_LOG_DEBUG, ns3::RXING, and ns3::WIFI_PPDU_TYPE_UL_MU.
Referenced by DoGetEvent().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Initialize all HE modes.
Definition at line 1539 of file he-phy.cc.
References GetHeMcs().
Referenced by anonymous_namespace{he-phy.cc}::ConstructorHe::ConstructorHe().
Here is the call graph for this function: Here is the caller graph for this function:
|
static |
Check whether the combination in TXVECTOR is allowed.
This function is used as a callback for WifiMode operation.
| txVector | the TXVECTOR |
Definition at line 1748 of file he-phy.cc.
Referenced by ns3::EhtPhy::CreateEhtMcs(), and CreateHeMcs().
Here is the caller graph for this function:Checks if the signaled configuration (excluding bandwidth) is supported by the PHY.
| ppdu | the received PPDU |
true if supported, false otherwise Reimplemented from ns3::PhyEntity.
Definition at line 750 of file he-phy.cc.
References ns3::WifiPhy::GetMaxSupportedRxSpatialStreams(), GetStaId(), ns3::PhyEntity::IsModeSupported(), ns3::PhyEntity::m_wifiPhy, NS_ASSERT, NS_LOG_DEBUG, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:
|
overridevirtual |
Notify PHY state helper to switch to CCA busy state,.
| ppdu | the incoming PPDU or nullptr for any signal |
| duration | the duration of the CCA state |
| channelType | the channel type for which the CCA busy state is reported. |
Reimplemented from ns3::PhyEntity.
Definition at line 1155 of file he-phy.cc.
References ns3::Time::As(), GetPer20MHzDurations(), NS_LOG_DEBUG, NS_LOG_FUNCTION, and ns3::Time::S.
Referenced by SwitchMaybeToCcaBusy().
Here is the call graph for this function: Here is the caller graph for this function:
|
private |
Notify PHY state helper to switch to CCA busy state,.
| duration | the duration of the CCA state |
| channelType | the channel type for which the CCA busy state is reported. |
| per20MHzDurations | the per-20 MHz CCA durations vector |
Definition at line 1164 of file he-phy.cc.
References m_lastPer20MHzDurations, ns3::PhyEntity::m_state, and NS_LOG_FUNCTION.
| void ns3::HePhy::NotifyEndOfHeSigA | ( | HeSigAParameters | params | ) |
Fire a EndOfHeSigA callback (if connected) once HE-SIG-A field has been received.
This method is scheduled immediately after end of HE-SIG-A, once field processing is finished.
| params | the HE-SIG-A parameters |
Definition at line 719 of file he-phy.cc.
References ns3::Callback< R, UArgs >::IsNull(), m_endOfHeSigACallback, and two-ray-to-three-gpp-ch-calibration::params.
Referenced by ProcessSigA().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Obtain the next UID for the PPDU to transmit.
Note that the global UID counter could be incremented.
| txVector | the transmission parameters |
Reimplemented from ns3::PhyEntity.
Definition at line 1272 of file he-phy.cc.
References ns3::WifiPhy::GetPreviouslyRxPpduUid(), ns3::WifiTxVector::IsTriggerResponding(), ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_globalPpduUid, m_previouslyTxPpduUid, ns3::PhyEntity::m_wifiPhy, NS_ASSERT, and NS_LOG_FUNCTION.
Referenced by ns3::EhtPhy::BuildPpdu(), and BuildPpdu().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Process SIG-A or SIG-B, perform amendment-specific actions, and provide an updated status of the reception.
| event | the event holding incoming PPDU's information |
| status | the status of the reception of the correctly received SIG-A or SIG-B after the configuration support check |
| field | the current PPDU field to identify whether it is SIG-A or SIG-B |
Reimplemented from ns3::VhtPhy.
Definition at line 590 of file he-phy.cc.
References NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, ProcessSigA(), ProcessSigB(), ns3::WIFI_PPDU_FIELD_SIG_A, ns3::WIFI_PPDU_FIELD_SIG_B, and ns3::WIFI_PREAMBLE_HE_SU.
Referenced by ns3::EhtPhy::ProcessSig().

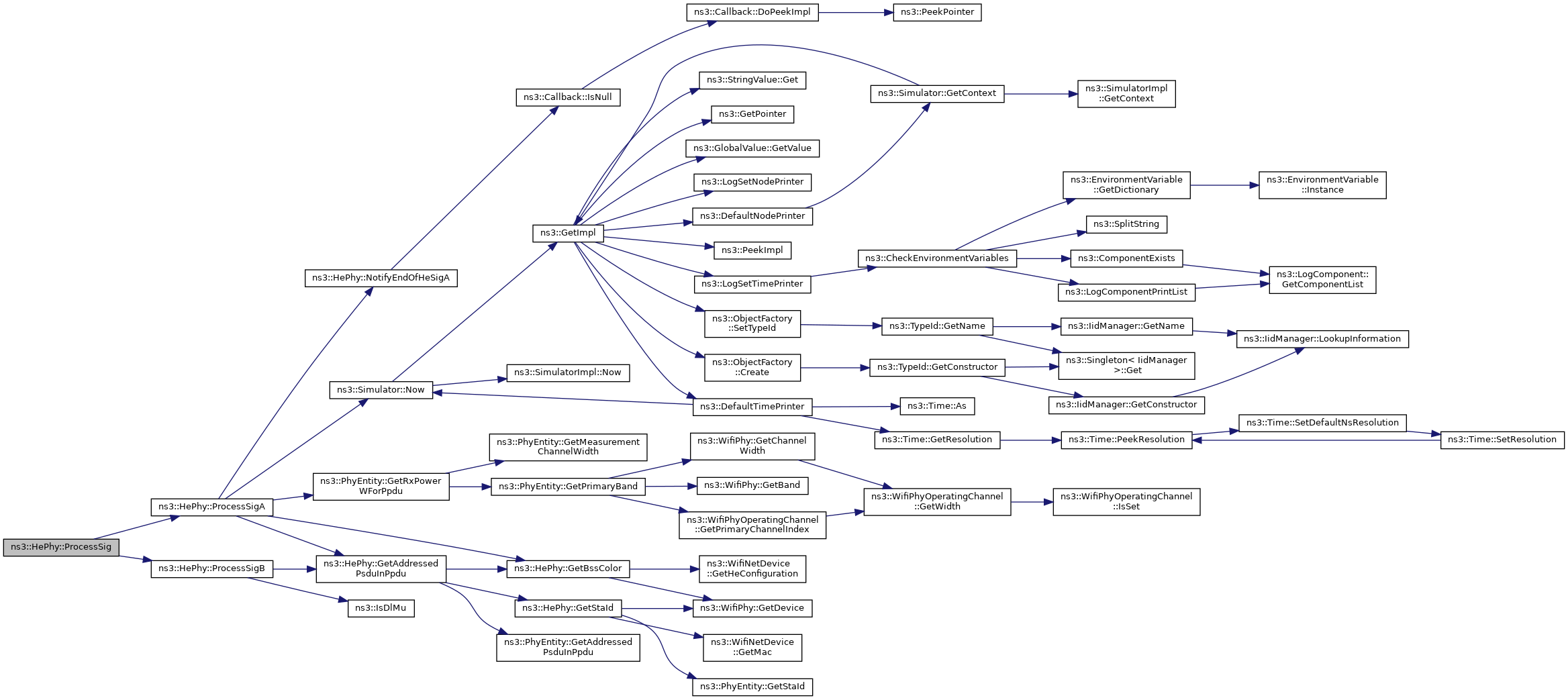

Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Process SIG-A, perform amendment-specific actions, and provide an updated status of the reception.
| event | the event holding incoming PPDU's information |
| status | the status of the reception of the correctly received SIG-A after the configuration support check |
Definition at line 607 of file he-phy.cc.
References ns3::PhyEntity::DROP, ns3::FILTERED, GetAddressedPsduInPpdu(), GetBssColor(), ns3::PhyEntity::GetRxPowerWForPpdu(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, m_currentMuPpduUid, m_trigVector, m_trigVectorExpirationTime, NotifyEndOfHeSigA(), ns3::Simulator::Now(), NS_ABORT_IF, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, two-ray-to-three-gpp-ch-calibration::params, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Referenced by ns3::EhtPhy::ProcessSig(), and ProcessSig().
Here is the call graph for this function: Here is the caller graph for this function:
|
protectedvirtual |
Process SIG-B, perform amendment-specific actions, and provide an updated status of the reception.
| event | the event holding incoming PPDU's information |
| status | the status of the reception of the correctly received SIG-A after the configuration support check |
Definition at line 728 of file he-phy.cc.
References ns3::PhyEntity::DROP, ns3::FILTERED, GetAddressedPsduInPpdu(), ns3::IsDlMu(), ns3::PhyEntity::PhyFieldRxStatus::isSuccess, m_currentMuPpduUid, NS_ASSERT, NS_LOG_DEBUG, and NS_LOG_FUNCTION.
Referenced by ns3::EhtPhy::ProcessSig(), and ProcessSig().
Here is the call graph for this function: Here is the caller graph for this function:
|
overrideprotectedvirtual |
Perform amendment-specific actions when the payload is unsuccessfuly received.
| psdu | the PSDU that we failed to received |
| snr | the SNR of the received PSDU in linear scale |
| txVector | TXVECTOR of the PSDU |
Reimplemented from ns3::PhyEntity.
Definition at line 877 of file he-phy.cc.
References ns3::WifiTxVector::IsUlMu(), ns3::PhyEntity::m_state, and NS_LOG_FUNCTION.
Here is the call graph for this function:
|
overrideprotectedvirtual |
Perform amendment-specific actions when the payload is successfully received.
| psdu | the successfully received PSDU |
| rxSignalInfo | the info on the received signal ( |
| txVector | TXVECTOR of the PSDU |
| staId | the station ID of the PSDU (only used for MU) |
| statusPerMpdu | reception status per MPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 859 of file he-phy.cc.
References ns3::WifiTxVector::GetPreambleType(), ns3::IsUlMu(), m_rxHeTbPpdus, ns3::PhyEntity::m_state, and NS_LOG_FUNCTION.
Here is the call graph for this function:| void ns3::HePhy::SetEndOfHeSigACallback | ( | EndOfHeSigACallback | callback | ) |
Set a callback for a end of HE-SIG-A.
| callback | the EndOfHeSigACallback to set |
Definition at line 713 of file he-phy.cc.
References m_endOfHeSigACallback.
| void ns3::HePhy::SetObssPdAlgorithm | ( | const Ptr< ObssPdAlgorithm > | algorithm | ) |
Sets the OBSS-PD algorithm.
| algorithm | the OBSS-PD algorithm |
Definition at line 701 of file he-phy.cc.
References m_obssPdAlgorithm.
| void ns3::HePhy::SetTrigVector | ( | const WifiTxVector & | trigVector, |
| Time | validity | ||
| ) |
Set the TRIGVECTOR and the associated expiration time.
A TRIGVECTOR shall expire when the TX timer associated with the transmission of the Trigger Frame expires.
| trigVector | the TRIGVECTOR |
| validity | the amount of time (from now) until expiration of the TRIGVECTOR |
Definition at line 335 of file he-phy.cc.
References ns3::AP, ns3::WifiPhy::GetDevice(), ns3::WifiTxVector::GetGuardInterval(), ns3::WifiNetDevice::GetMac(), m_trigVector, m_trigVectorExpirationTime, ns3::PhyEntity::m_wifiPhy, third::mac, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Time::US.
Here is the call graph for this function:Start receiving the PSDU (i.e.
the first symbol of the PSDU has arrived) of an MU transmission. This function is called upon the RX event corresponding to the HE portion of the MU PPDU.
| event | the event holding incoming HE portion of the PPDU's information |
m_beginMuPayloadRxEvents should still be running only for APs, since canceled in StartReceivePayload for STAs. This is because SpectrumWifiPhy does not have access to the device type and thus blindly schedules things, letting the parent WifiPhy class take into account device type.
Definition at line 931 of file he-phy.cc.
References ns3::PhyEntity::CalculatePhyPreambleAndHeaderDuration(), ns3::PhyEntity::EndReceivePayload(), GetAddressedPsduInPpdu(), ns3::PhyEntity::GetCurrentEvent(), GetStaId(), ns3::LOG_FUNCTION, m_beginMuPayloadRxEvents, ns3::PhyEntity::m_endRxPayloadEvents, m_rxHeTbPpdus, ns3::PhyEntity::m_signalNoiseMap, ns3::PhyEntity::m_statusPerMpduMap, ns3::PhyEntity::NotifyPayloadBegin(), NS_ASSERT, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::PhyEntity::ScheduleEndOfMpdus().
Referenced by StartReceivePreamble().
Here is the call graph for this function: Here is the caller graph for this function:
|
overridevirtual |
Start receiving the PHY preamble of a PPDU (i.e.
the first bit of the preamble has arrived).
This method triggers the start of the preamble detection period (
| ppdu | the arriving PPDU |
| rxPowersW | the receive power in W per band |
| rxDuration | the duration of the PPDU |
Reimplemented from ns3::PhyEntity.
Definition at line 362 of file he-phy.cc.
References ns3::PhyEntity::CreateInterferenceEvent(), ns3::PhyEntity::ErasePreambleEvent(), ns3::PhyEntity::GetCurrentEvent(), ns3::VhtPhy::GetDuration(), GetStaId(), m_beginMuPayloadRxEvents, m_currentMuPpduUid, ns3::Time::NS, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, ns3::HePpdu::PSD_HE_PORTION, ns3::Simulator::Schedule(), StartReceiveMuPayload(), ns3::PhyEntity::StartReceivePreamble(), ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_FIELD_TRAINING.
Here is the call graph for this function:This function is called by SpectrumWifiPhy to send the PPDU while performing amendment-specific actions.
| ppdu | the PPDU to send |
Reimplemented from ns3::PhyEntity.
Definition at line 1440 of file he-phy.cc.
References ns3::AP, CalculateNonHeDurationForHeMu(), CalculateNonHeDurationForHeTb(), ns3::DbmToW(), ns3::WifiPhy::GetDevice(), ns3::WifiNetDevice::GetMac(), ns3::WifiPhy::GetTxGain(), ns3::WifiPhy::GetTxPowerForTransmission(), GetTxPowerSpectralDensity(), m_currentTxVector, ns3::PhyEntity::m_wifiPhy, third::mac, NS_ASSERT, NS_LOG_FUNCTION, ns3::HePpdu::PSD_HE_PORTION, ns3::HePpdu::PSD_NON_HE_PORTION, ns3::Simulator::Schedule(), ns3::PhyEntity::StartTx(), StartTxHePortion(), ns3::PhyEntity::Transmit(), ns3::WIFI_PPDU_TYPE_DL_MU, and ns3::WIFI_PPDU_TYPE_UL_MU.
Here is the call graph for this function:
|
private |
Start the transmission of the HE portion of the MU PPDU.
| ppdu | the PPDU |
| txPowerDbm | the total TX power in dBm |
| txPowerSpectrum | the TX PSD |
| hePortionDuration | the duration of the HE portion |
Definition at line 1491 of file he-phy.cc.
References NS_ASSERT, NS_LOG_FUNCTION, ns3::HePpdu::PSD_HE_PORTION, and ns3::PhyEntity::Transmit().
Referenced by StartTx().

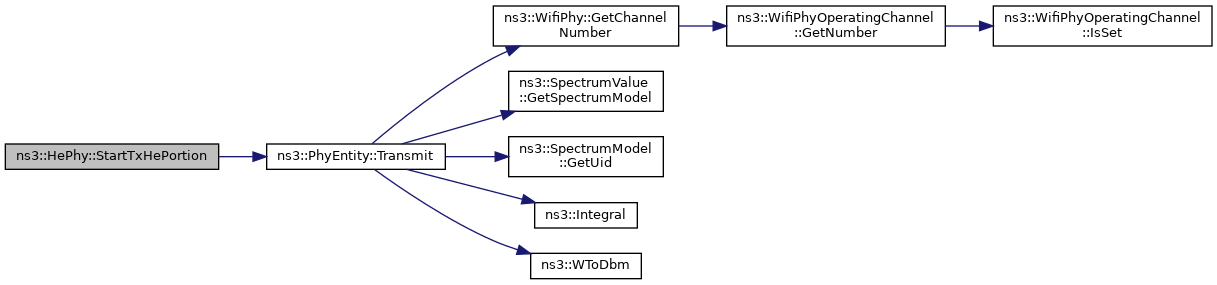

Here is the call graph for this function: Here is the caller graph for this function:Check if PHY state should move to CCA busy state based on current state of interference tracker.
| ppdu | the incoming PPDU or nullptr for any signal |
Reimplemented from ns3::PhyEntity.
Definition at line 1126 of file he-phy.cc.
References ns3::VhtPhy::GetCcaIndication(), GetPer20MHzDurations(), m_lastPer20MHzDurations, NotifyCcaBusy(), NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::S, ns3::Seconds(), and ns3::WIFI_CHANLIST_PRIMARY.
Here is the call graph for this function:
|
protected |
the beginning of the MU payload reception events (indexed by STA-ID)
Definition at line 561 of file he-phy.h.
Referenced by CancelAllEvents(), DoResetReceive(), DoStartReceivePayload(), StartReceiveMuPayload(), and StartReceivePreamble().
|
protected |
UID of the HE MU or HE TB PPDU being received.
Definition at line 558 of file he-phy.h.
Referenced by HePhy(), DoEndReceivePayload(), GetCurrentHeTbPpduUid(), ProcessSigA(), ProcessSigB(), and StartReceivePreamble().
|
protected |
If the STA is an AP STA, this holds the TXVECTOR of the PPDU that has been sent.
Definition at line 567 of file he-phy.h.
Referenced by MuRtsCtsHePhy::SetMuRtsTxVector(), and StartTx().
|
protected |
end of HE-SIG-A callback
Definition at line 564 of file he-phy.h.
Referenced by NotifyEndOfHeSigA(), and SetEndOfHeSigACallback().
|
staticprivate |
HE PPDU formats.
Definition at line 637 of file he-phy.h.
Referenced by GetPpduFormats().
|
private |
Hold the last per-20 MHz CCA durations vector.
Definition at line 641 of file he-phy.h.
Referenced by NotifyCcaBusy(), and SwitchMaybeToCcaBusy().
|
private |
OBSS-PD algorithm.
Definition at line 640 of file he-phy.h.
Referenced by GetCcaThreshold(), GetObssPdAlgorithm(), GetPer20MHzDurations(), and SetObssPdAlgorithm().
|
protected |
UID of the previously sent PPDU, used by AP to recognize response HE TB PPDUs.
Definition at line 556 of file he-phy.h.
Referenced by HePhy(), DoGetEvent(), GetMeasurementChannelWidth(), HandleRxPpduWithSameContent(), ObtainNextUid(), and MuRtsCtsHePhy::SetPreviousTxPpduUid().
|
private |
Number of successfully received HE TB PPDUS.
Definition at line 639 of file he-phy.h.
Referenced by DoEndReceivePayload(), RxPayloadSucceeded(), and StartReceiveMuPayload().
|
protected |
the TRIGVECTOR
Definition at line 565 of file he-phy.h.
Referenced by GetRxPpduFromTxPpdu(), ProcessSigA(), and SetTrigVector().
|
protected |
expiration time of the TRIGVECTOR
Definition at line 566 of file he-phy.h.
Referenced by GetRxPpduFromTxPpdu(), ProcessSigA(), and SetTrigVector().
1.9.1
