HE PPDU (11ax) More...

#include "he-ppdu.h"

Inheritance diagram for ns3::HePpdu:

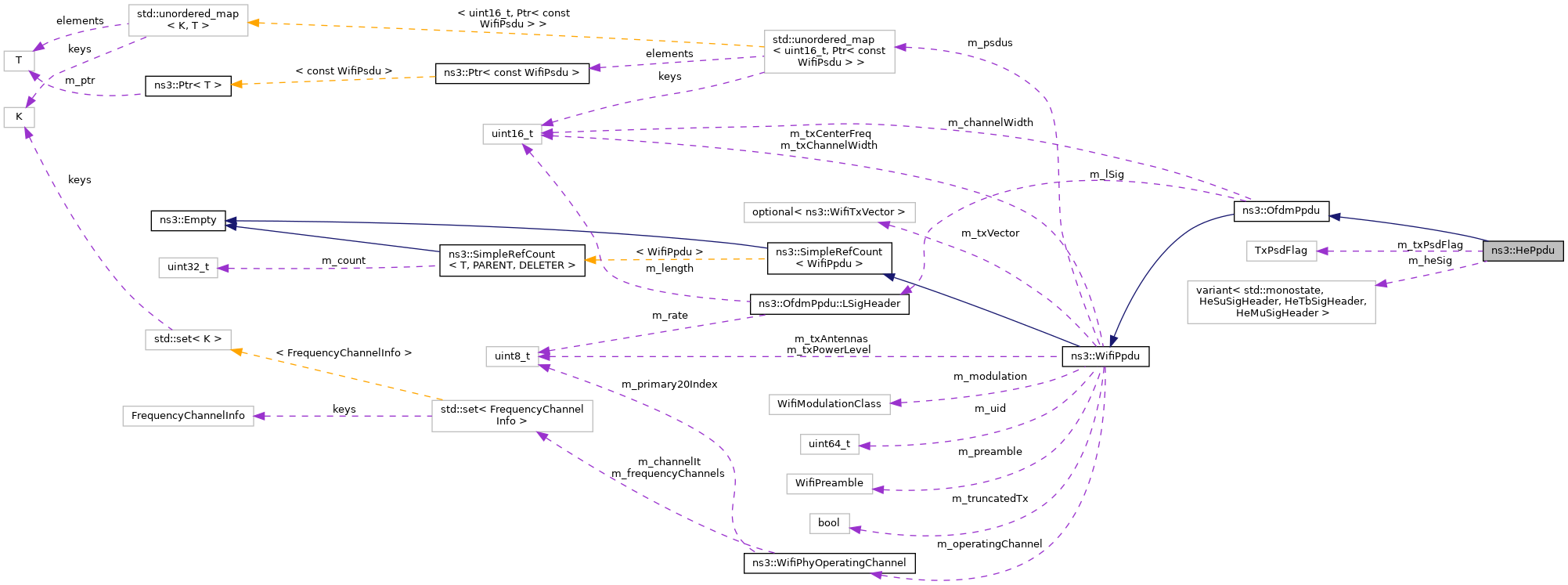

Collaboration diagram for ns3::HePpdu:

Classes
struct	HeMuSigHeader
	HE-SIG PHY header for HE MU PPDUs (HE-SIG-A1/A2/B) More...

struct	HeSigBUserSpecificField
	User Specific Fields in HE-SIG-Bs. More...

struct	HeSuSigHeader
	HE-SIG PHY header for HE SU PPDUs (HE-SIG-A1/A2) More...

struct	HeTbSigHeader
	HE-SIG PHY header for HE TB PPDUs (HE-SIG-A1/A2) More...

Public Types
using	HeSigBContentChannels = std::vector< std::vector< HeSigBUserSpecificField > >
	HE SIG-B Content Channels. More...

using	HeSigHeader = std::variant< std::monostate, HeSuSigHeader, HeTbSigHeader, HeMuSigHeader >
	type of the HE-SIG PHY header More...

enum	TxPsdFlag { PSD_NON_HE_PORTION , PSD_HE_PORTION }
	The transmit power spectral density flag, namely used to correctly build PSDs for pre-HE and HE portions. More...

Public Member Functions
	HePpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, Time ppduDuration, uint64_t uid, TxPsdFlag flag)
	Create an MU HE PPDU, storing a map of PSDUs. More...

	HePpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, Time ppduDuration, uint64_t uid)
	Create an SU HE PPDU, storing a PSDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Ptr< const WifiPsdu >	GetPsdu (uint8_t bssColor, uint16_t staId=SU_STA_ID) const
	Get the payload of the PPDU. More...

uint16_t	GetStaId () const override
	Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise. More...

uint16_t	GetTxChannelWidth () const override
	Get the channel width over which the PPDU will effectively be transmitted. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

TxPsdFlag	GetTxPsdFlag () const

WifiPpduType	GetType () const override
	Return the PPDU type (. More...

void	SetTxPsdFlag (TxPsdFlag flag) const

void	UpdateTxVectorForUlMu (const std::optional< WifiTxVector > &trigVector) const
	Update the TXVECTOR for HE TB PPDUs, since the information to decode HE TB PPDUs is not available from the PHY headers but it requires information from the TRIGVECTOR of the AP expecting these HE TB PPDUs. More...

Public Member Functions inherited from ns3::OfdmPpdu
	OfdmPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, uint64_t uid, bool instantiateLSig=true)
	Create an OFDM PPDU. More...

Ptr< WifiPpdu >	Copy () const override
	Copy this instance. More...

Time	GetTxDuration () const override
	Get the total transmission duration of the PPDU. More...

Public Member Functions inherited from ns3::WifiPpdu
	WifiPpdu (const WifiConstPsduMap &psdus, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, uint64_t uid)
	Create a PPDU storing a map of PSDUs. More...

	WifiPpdu (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, const WifiPhyOperatingChannel &channel, uint64_t uid=UINT64_MAX)
	Create a PPDU storing a PSDU. More...

virtual	~WifiPpdu ()
	Destructor for WifiPpdu. More...

bool	DoesOverlapChannel (uint16_t minFreq, uint16_t maxFreq) const
	Check whether the given PPDU overlaps a given channel. More...

WifiModulationClass	GetModulation () const
	Get the modulation used for the PPDU. More...

WifiPreamble	GetPreamble () const
	Get the preamble of the PPDU. More...

Ptr< const WifiPsdu >	GetPsdu () const
	Get the payload of the PPDU. More...

uint16_t	GetTxCenterFreq () const

const WifiTxVector &	GetTxVector () const
	Get the TXVECTOR used to send the PPDU. More...

uint64_t	GetUid () const
	Get the UID of the PPDU. More...

bool	IsTruncatedTx () const

void	Print (std::ostream &os) const
	Print the PPDU contents. More...

void	ResetTxVector () const
	Reset the TXVECTOR. More...

void	SetTruncatedTx ()
	Indicate that the PPDU's transmission was aborted due to transmitter switch off. More...

void	UpdateTxVector (const WifiTxVector &updatedTxVector) const
	Update the TXVECTOR based on some information known at the receiver. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiPpdu >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Static Public Member Functions
static HeSigBContentChannels	GetHeSigBContentChannels (const WifiTxVector &txVector, uint8_t p20Index)
	Get the HE SIG-B content channels for a given PPDU IEEE 802.11ax-2021 27.3.11.8.2 HE-SIG-B content channels. More...

static std::pair< std::size_t, std::size_t >	GetNumRusPerHeSigBContentChannel (uint16_t channelWidth, const RuAllocation &ruAllocation, bool sigBCompression, uint8_t numMuMimoUsers)
	Get the number of STAs per HE-SIG-B content channel. More...

static uint32_t	GetSigBFieldSize (uint16_t channelWidth, const RuAllocation &ruAllocation, bool sigBCompression, std::size_t numMuMimoUsers)
	Get variable length HE SIG-B field size. More...

Protected Member Functions
void	SetHeMuUserInfos (WifiTxVector &txVector, const RuAllocation &ruAllocation, const HeSigBContentChannels &contentChannels, bool sigBCompression, uint8_t numMuMimoUsers) const
	Reconstruct HeMuUserInfoMap from HE-SIG-B header. More...

virtual void	SetTxVectorFromPhyHeaders (WifiTxVector &txVector) const
	Fill in the TXVECTOR from PHY headers. More...

Static Protected Member Functions
static uint8_t	GetChannelWidthEncodingFromMhz (uint16_t channelWidth)
	Convert channel width expressed in MHz to bandwidth field encoding in HE-SIG-A. More...

static uint16_t	GetChannelWidthMhzFromEncoding (uint8_t bandwidth)
	Convert channel width expressed in MHz from bandwidth field encoding in HE-SIG-A. More...

static uint8_t	GetGuardIntervalAndNltfEncoding (uint16_t gi, uint8_t nltf)
	Convert guard interval (in ns) and NLTF to its encoding in HE-SIG-A. More...

static uint16_t	GetGuardIntervalFromEncoding (uint8_t giAndNltfSize)
	Convert guard interval (in ns) from its encoding in HE-SIG-A. More...

static uint8_t	GetMuMimoUsersEncoding (uint8_t nUsers)
	Convert number of MU-MIMO users to its encoding in HE-SIG-A. More...

static uint8_t	GetMuMimoUsersFromEncoding (uint8_t encoding)
	Convert number of MU-MIMO users from its encoding in HE-SIG-A. More...

static uint8_t	GetNssFromNstsEncoding (uint8_t nsts)
	Convert number of spatial streams from NSTS field encoding in HE-SIG-A. More...

static uint8_t	GetNstsEncodingFromNss (uint8_t nss)
	Convert number of spatial streams to NSTS field encoding in HE-SIG-A. More...

Protected Attributes
TxPsdFlag	m_txPsdFlag
	the transmit power spectral density flag More...

Protected Attributes inherited from ns3::OfdmPpdu
LSigHeader	m_lSig
	the L-SIG PHY header More...

Protected Attributes inherited from ns3::WifiPpdu
WifiModulationClass	m_modulation
	the modulation used for the transmission of this PPDU More...

const WifiPhyOperatingChannel &	m_operatingChannel
	the operating channel of the PHY More...

WifiPreamble	m_preamble
	the PHY preamble More...

WifiConstPsduMap	m_psdus
	the PSDUs contained in this PPDU More...

uint16_t	m_txCenterFreq
	the center frequency (MHz) used for the transmission of this PPDU More...

std::optional< WifiTxVector >	m_txVector
	the TXVECTOR at TX PHY or the reconstructed TXVECTOR at RX PHY (or std::nullopt if TXVECTOR has not been reconstructed yet) More...

uint64_t	m_uid
	the unique ID of this PPDU More...

Private Member Functions
WifiTxVector	DoGetTxVector () const override
	Get the TXVECTOR used to send the PPDU. More...

virtual bool	IsDlMu () const
	Return true if the PPDU is a DL MU PPDU. More...

virtual bool	IsMu () const
	Return true if the PPDU is a MU PPDU. More...

virtual bool	IsUlMu () const
	Return true if the PPDU is an UL MU PPDU. More...

std::string	PrintPayload () const override
	Print the payload of the PPDU. More...

void	SetHeSigHeader (const WifiTxVector &txVector)
	Fill in the HE-SIG header. More...

void	SetLSigHeader (Time ppduDuration)
	Fill in the L-SIG header. More...

void	SetPhyHeaders (const WifiTxVector &txVector, Time ppduDuration)
	Fill in the PHY headers. More...

Private Attributes
HeSigHeader	m_heSig
	the HE-SIG PHY header More...

Detailed Description

HE PPDU (11ax)

HePpdu stores a preamble, PHY headers and a map of PSDUs of a PPDU with HE header

Definition at line 49 of file he-ppdu.h.

Member Typedef Documentation

◆ HeSigBContentChannels

using ns3::HePpdu::HeSigBContentChannels = std::vector<std::vector<HeSigBUserSpecificField> >

HE SIG-B Content Channels.

Definition at line 61 of file he-ppdu.h.

◆ HeSigHeader

using ns3::HePpdu::HeSigHeader = std::variant<std::monostate, HeSuSigHeader, HeTbSigHeader, HeMuSigHeader>

type of the HE-SIG PHY header

Definition at line 108 of file he-ppdu.h.

Member Enumeration Documentation

◆ TxPsdFlag

enum ns3::HePpdu::TxPsdFlag

The transmit power spectral density flag, namely used to correctly build PSDs for pre-HE and HE portions.

Enumerator
PSD_NON_HE_PORTION	Non-HE portion of an HE PPDU.
PSD_HE_PORTION	HE portion of an HE PPDU.

Definition at line 114 of file he-ppdu.h.

Constructor & Destructor Documentation

◆ HePpdu() [1/2]

ns3::HePpdu::HePpdu	(	Ptr< const WifiPsdu >	psdu,
		const WifiTxVector &	txVector,
		const WifiPhyOperatingChannel &	channel,
		Time	ppduDuration,
		uint64_t	uid
	)

Create an SU HE PPDU, storing a PSDU.

Parameters

psdu	the PHY payload (PSDU)
txVector	the TXVECTOR that was used for this PPDU
channel	the operating channel of the PHY used to transmit this PPDU
ppduDuration	the transmission duration of this PPDU
uid	the unique ID of this PPDU

Definition at line 76 of file he-ppdu.cc.

References third::channel, IsMu(), NS_ASSERT, NS_LOG_FUNCTION, and SetPhyHeaders().

Here is the call graph for this function:

◆ HePpdu() [2/2]

ns3::HePpdu::HePpdu	(	const WifiConstPsduMap &	psdus,
		const WifiTxVector &	txVector,
		const WifiPhyOperatingChannel &	channel,
		Time	ppduDuration,
		uint64_t	uid,
		TxPsdFlag	flag
	)

Create an MU HE PPDU, storing a map of PSDUs.

This PPDU can either be UL or DL.

Parameters

psdus	the PHY payloads (PSDUs)
txVector	the TXVECTOR that was used for this PPDU
channel	the operating channel of the PHY used to transmit this PPDU
ppduDuration	the transmission duration of this PPDU
uid	the unique ID of this PPDU or of the triggering PPDU if this is an HE TB PPDU
flag	the flag indicating the type of Tx PSD to build

Definition at line 54 of file he-ppdu.cc.

References third::channel, ns3::WifiPpdu::m_psdus, NS_LOG_FUNCTION, and SetPhyHeaders().

Here is the call graph for this function:

Member Function Documentation

◆ Copy()

Ptr< WifiPpdu > ns3::HePpdu::Copy ( void ) const

overridevirtual

Copy this instance.

Returns: a Ptr to a copy of this instance.

Reimplemented from ns3::WifiPpdu.

Definition at line 336 of file he-ppdu.cc.

◆ DoGetTxVector()

WifiTxVector ns3::HePpdu::DoGetTxVector ( ) const

overrideprivatevirtual

Get the TXVECTOR used to send the PPDU.

Returns: the TXVECTOR of the PPDU.

Reimplemented from ns3::WifiPpdu.

Definition at line 167 of file he-ppdu.cc.

References ns3::WifiPpdu::m_preamble, ns3::WifiTxVector::SetPreambleType(), and SetTxVectorFromPhyHeaders().

Here is the call graph for this function:

◆ GetChannelWidthEncodingFromMhz()

uint8_t ns3::HePpdu::GetChannelWidthEncodingFromMhz ( uint16_t channelWidth )

staticprotected

Convert channel width expressed in MHz to bandwidth field encoding in HE-SIG-A.

Parameters

channelWidth the channel width in MHz

Returns: the value used to encode the bandwidth field in HE-SIG-A

Definition at line 695 of file he-ppdu.cc.

Referenced by ns3::EhtPpdu::SetEhtPhyHeader(), and SetHeSigHeader().

Here is the caller graph for this function:

◆ GetChannelWidthMhzFromEncoding()

uint16_t ns3::HePpdu::GetChannelWidthMhzFromEncoding ( uint8_t bandwidth )

staticprotected

Convert channel width expressed in MHz from bandwidth field encoding in HE-SIG-A.

Parameters

bandwidth the value of the bandwidth field in HE-SIG-A

Returns: the channel width in MHz

Definition at line 716 of file he-ppdu.cc.

Referenced by SetTxVectorFromPhyHeaders(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

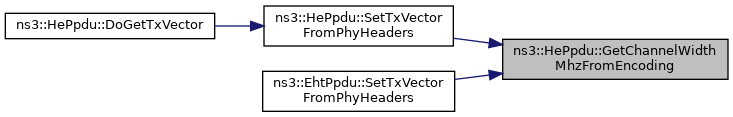

Here is the caller graph for this function:

◆ GetGuardIntervalAndNltfEncoding()

uint8_t ns3::HePpdu::GetGuardIntervalAndNltfEncoding	(	uint16_t	gi,
		uint8_t	nltf
	)

staticprotected

Convert guard interval (in ns) and NLTF to its encoding in HE-SIG-A.

Parameters

gi	the guard interval in nanoseconds
nltf	the the number of long training symbols

Returns: the value used to encode the NSTS field in HE-SIG-A

Definition at line 737 of file he-ppdu.cc.

Referenced by ns3::EhtPpdu::SetEhtPhyHeader(), and SetHeSigHeader().

Here is the caller graph for this function:

◆ GetGuardIntervalFromEncoding()

uint16_t ns3::HePpdu::GetGuardIntervalFromEncoding ( uint8_t giAndNltfSize )

staticprotected

Convert guard interval (in ns) from its encoding in HE-SIG-A.

Parameters

giAndNltfSize the value used to encode the guard interval and NLTF field in HE-SIG-A

Returns: the guard interval in nanoseconds

Definition at line 758 of file he-ppdu.cc.

Referenced by SetTxVectorFromPhyHeaders(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ GetHeSigBContentChannels()

HePpdu::HeSigBContentChannels ns3::HePpdu::GetHeSigBContentChannels	(	const WifiTxVector &	txVector,
		uint8_t	p20Index
	)

static

Get the HE SIG-B content channels for a given PPDU IEEE 802.11ax-2021 27.3.11.8.2 HE-SIG-B content channels.

Parameters

txVector	the TXVECTOR used for the PPDU
p20Index	the index of the primary20 channel

Returns: HE-SIG-B content channels

Definition at line 554 of file he-ppdu.cc.

References ns3::WifiTxVector::GetChannelWidth(), ns3::WifiTxVector::GetHeMuUserInfo(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetRuAllocation(), ns3::WifiTxVector::GetUserInfoMapOrderedByRus(), ns3::WifiTxVector::IsSigBCompression(), ns3::NO_USER_STA_ID, and NS_ASSERT.

Referenced by ns3::EhtPpdu::GetEhtSigContentChannels(), and SetHeSigHeader().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetMuMimoUsersEncoding()

uint8_t ns3::HePpdu::GetMuMimoUsersEncoding ( uint8_t nUsers )

staticprotected

Convert number of MU-MIMO users to its encoding in HE-SIG-A.

Parameters

nUsers the number of MU-MIMO users

Returns: the number of MU-MIMO users to its encoding in HE-SIG-A

Definition at line 789 of file he-ppdu.cc.

References NS_ASSERT.

Referenced by SetHeSigHeader().

Here is the caller graph for this function:

◆ GetMuMimoUsersFromEncoding()

uint8_t ns3::HePpdu::GetMuMimoUsersFromEncoding ( uint8_t encoding )

staticprotected

Convert number of MU-MIMO users from its encoding in HE-SIG-A.

Parameters

encoding the number of MU-MIMO users encoded in HE-SIG-A

Returns: the number of MU-MIMO users from its encoding in HE-SIG-A

Definition at line 796 of file he-ppdu.cc.

References two-ray-to-three-gpp-ch-calibration::encoding.

Referenced by SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ GetNssFromNstsEncoding()

uint8_t ns3::HePpdu::GetNssFromNstsEncoding ( uint8_t nsts )

staticprotected

Convert number of spatial streams from NSTS field encoding in HE-SIG-A.

Parameters

nsts	the value of the NSTS field in HE-SIG-A

Returns: the number of spatial streams

Definition at line 783 of file he-ppdu.cc.

Referenced by SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ GetNstsEncodingFromNss()

uint8_t ns3::HePpdu::GetNstsEncodingFromNss ( uint8_t nss )

staticprotected

Convert number of spatial streams to NSTS field encoding in HE-SIG-A.

Parameters

nss	the number of spatial streams

Returns: the value used to encode the NSTS field in HE-SIG-A

Definition at line 776 of file he-ppdu.cc.

References NS_ASSERT.

Referenced by SetHeSigHeader().

Here is the caller graph for this function:

◆ GetNumRusPerHeSigBContentChannel()

std::pair< std::size_t, std::size_t > ns3::HePpdu::GetNumRusPerHeSigBContentChannel	(	uint16_t	channelWidth,
		const RuAllocation &	ruAllocation,
		bool	sigBCompression,
		uint8_t	numMuMimoUsers
	)

static

Get the number of STAs per HE-SIG-B content channel.

This is applicable only for MU. See section 27.3.10.8.3 of IEEE 802.11ax draft 4.0.

Parameters

channelWidth	the channel width occupied by the PPDU (in MHz)
ruAllocation	8 bit RU_ALLOCATION per 20 MHz
sigBCompression	flag whether SIG-B compression is used by the PPDU
numMuMimoUsers	the number of MU-MIMO users addressed by the PPDU

Returns: a pair containing the number of RUs in each HE-SIG-B content channel (resp. 1 and 2)

Definition at line 486 of file he-ppdu.cc.

References NS_ASSERT_MSG.

Referenced by ns3::EhtPpdu::GetNumRusPerEhtSigBContentChannel().

Here is the caller graph for this function:

◆ GetPsdu()

Ptr< const WifiPsdu > ns3::HePpdu::GetPsdu	(	uint8_t	bssColor,
		uint16_t	staId = `SU_STA_ID`
	)		const

Get the payload of the PPDU.

Parameters

bssColor	the BSS color of the PHY calling this function.
staId	the STA-ID of the PHY calling this function.

Returns: the PSDU

Definition at line 374 of file he-ppdu.cc.

References ns3::IsMu(), ns3::IsUlMu(), NS_ASSERT, and ns3::SU_STA_ID.

Here is the call graph for this function:

◆ GetSigBFieldSize()

uint32_t ns3::HePpdu::GetSigBFieldSize	(	uint16_t	channelWidth,
		const RuAllocation &	ruAllocation,
		bool	sigBCompression,
		std::size_t	numMuMimoUsers
	)

static

Get variable length HE SIG-B field size.

Parameters

channelWidth	the channel width occupied by the PPDU (in MHz)
ruAllocation	8 bit RU_ALLOCATION per 20 MHz
sigBCompression	flag whether SIG-B compression is used by the PPDU
numMuMimoUsers	the number of MU-MIMO users addressed by the PPDU

Returns: field size in bytes

Definition at line 639 of file he-ppdu.cc.

References max.

Referenced by ns3::HePhy::GetSigBSize().

Here is the caller graph for this function:

◆ GetStaId()

uint16_t ns3::HePpdu::GetStaId ( ) const

overridevirtual

Get the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise.

Returns: the ID of the STA that transmitted the PPDU for UL MU, SU_STA_ID otherwise

Reimplemented from ns3::WifiPpdu.

Definition at line 411 of file he-ppdu.cc.

References ns3::IsUlMu(), and NS_ASSERT.

Here is the call graph for this function:

◆ GetTxChannelWidth()

uint16_t ns3::HePpdu::GetTxChannelWidth ( ) const

overridevirtual

Get the channel width over which the PPDU will effectively be transmitted.

Returns: the effective channel width (in MHz) used for the tranmsission

Reimplemented from ns3::WifiPpdu.

Definition at line 418 of file he-ppdu.cc.

References NS_LOG_INFO, and ns3::SU_STA_ID.

◆ GetTxDuration()

Time ns3::HePpdu::GetTxDuration ( ) const

overridevirtual

Get the total transmission duration of the PPDU.

Returns: the transmission duration of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 314 of file he-ppdu.cc.

References ns3::IsDlMu(), two-ray-to-three-gpp-ch-calibration::m, ns3::MicroSeconds(), ns3::NanoSeconds(), NS_ASSERT, ns3::Seconds(), and ns3::WIFI_PHY_BAND_2_4GHZ.

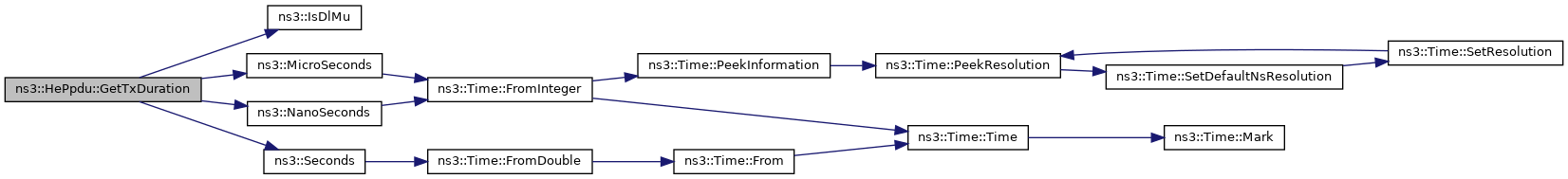

Here is the call graph for this function:

◆ GetTxPsdFlag()

HePpdu::TxPsdFlag ns3::HePpdu::GetTxPsdFlag ( ) const

Returns: the transmit PSD flag set for this PPDU

See also: TxPsdFlag

Definition at line 437 of file he-ppdu.cc.

◆ GetType()

WifiPpduType ns3::HePpdu::GetType ( ) const

overridevirtual

Return the PPDU type (.

See also: WifiPpduType)

Returns: the PPDU type

Reimplemented from ns3::WifiPpdu.

Definition at line 342 of file he-ppdu.cc.

References ns3::WIFI_PPDU_TYPE_DL_MU, ns3::WIFI_PPDU_TYPE_SU, ns3::WIFI_PPDU_TYPE_UL_MU, ns3::WIFI_PREAMBLE_HE_MU, and ns3::WIFI_PREAMBLE_HE_TB.

◆ IsDlMu()

bool ns3::HePpdu::IsDlMu ( ) const

privatevirtual

Return true if the PPDU is a DL MU PPDU.

Returns: true if the PPDU is a DL MU PPDU

Reimplemented in ns3::EhtPpdu.

Definition at line 362 of file he-ppdu.cc.

References ns3::WIFI_PREAMBLE_HE_MU.

Referenced by SetLSigHeader(), and SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ IsMu()

bool ns3::HePpdu::IsMu ( ) const

privatevirtual

Return true if the PPDU is a MU PPDU.

Returns: true if the PPDU is a MU PPDU

Definition at line 356 of file he-ppdu.cc.

References ns3::IsDlMu(), and ns3::IsUlMu().

Referenced by HePpdu(), and SetTxVectorFromPhyHeaders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ IsUlMu()

bool ns3::HePpdu::IsUlMu ( ) const

privatevirtual

Return true if the PPDU is an UL MU PPDU.

Returns: true if the PPDU is an UL MU PPDU

Reimplemented in ns3::EhtPpdu.

Definition at line 368 of file he-ppdu.cc.

References ns3::WIFI_PREAMBLE_HE_TB.

Referenced by SetTxVectorFromPhyHeaders().

Here is the caller graph for this function:

◆ PrintPayload()

std::string ns3::HePpdu::PrintPayload ( ) const

overrideprivatevirtual

Print the payload of the PPDU.

Returns: information on the payload part of the PPDU

Reimplemented from ns3::WifiPpdu.

Definition at line 679 of file he-ppdu.cc.

References ns3::IsMu(), and ns3::SU_STA_ID.

Here is the call graph for this function:

◆ SetHeMuUserInfos()

void ns3::HePpdu::SetHeMuUserInfos	(	WifiTxVector &	txVector,
		const RuAllocation &	ruAllocation,
		const HeSigBContentChannels &	contentChannels,
		bool	sigBCompression,
		uint8_t	numMuMimoUsers
	)		const

protected

Reconstruct HeMuUserInfoMap from HE-SIG-B header.

Parameters

txVector	the TXVECTOR to set its HeMuUserInfoMap
ruAllocation	the RU_ALLOCATION per 20 MHz
contentChannels	the HE-SIG-B content channels
sigBCompression	flag whether SIG-B compression is used by the PPDU
numMuMimoUsers	the number of MU-MIMO users addressed by the PPDU

Definition at line 225 of file he-ppdu.cc.

References ns3::HeRu::GetBandwidth(), ns3::WifiTxVector::GetChannelWidth(), ns3::HeRu::GetRusOfType(), ns3::HeRu::GetRuSpecs(), ns3::WifiTxVector::IsAllocated(), max, ns3::NO_USER_STA_ID, NS_ASSERT, ns3::HeRu::RU_2x996_TONE, ns3::HeRu::RU_996_TONE, and ns3::WifiTxVector::SetHeMuUserInfo().

Referenced by SetTxVectorFromPhyHeaders(), and ns3::EhtPpdu::SetTxVectorFromPhyHeaders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetHeSigHeader()

void ns3::HePpdu::SetHeSigHeader ( const WifiTxVector & txVector )

private

Fill in the HE-SIG header.

Parameters

txVector the TXVECTOR that was used for this PPDU

Definition at line 121 of file he-ppdu.cc.

Referenced by SetPhyHeaders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetLSigHeader()

void ns3::HePpdu::SetLSigHeader ( Time ppduDuration )

private

Fill in the L-SIG header.

Parameters

ppduDuration the transmission duration of this PPDU

Definition at line 102 of file he-ppdu.cc.

References ns3::Time::GetNanoSeconds(), ns3::WifiPhyOperatingChannel::GetPhyBand(), IsDlMu(), ns3::WifiPhyOperatingChannel::IsSet(), two-ray-to-three-gpp-ch-calibration::m, ns3::OfdmPpdu::m_lSig, ns3::WifiPpdu::m_operatingChannel, NS_ASSERT, ns3::OfdmPpdu::LSigHeader::SetLength(), and ns3::WIFI_PHY_BAND_2_4GHZ.

Referenced by SetPhyHeaders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetPhyHeaders()

void ns3::HePpdu::SetPhyHeaders	(	const WifiTxVector &	txVector,
		Time	ppduDuration
	)

private

Fill in the PHY headers.

Parameters

txVector	the TXVECTOR that was used for this PPDU
ppduDuration	the transmission duration of this PPDU

Definition at line 94 of file he-ppdu.cc.

References NS_LOG_FUNCTION, SetHeSigHeader(), and SetLSigHeader().

Referenced by HePpdu().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetTxPsdFlag()

void ns3::HePpdu::SetTxPsdFlag ( TxPsdFlag flag ) const

Parameters

flag	the transmit PSD flag set for this PPDU

See also: TxPsdFlag

Definition at line 443 of file he-ppdu.cc.

References NS_LOG_FUNCTION.

◆ SetTxVectorFromPhyHeaders()

void ns3::HePpdu::SetTxVectorFromPhyHeaders ( WifiTxVector & txVector ) const

protectedvirtual

Fill in the TXVECTOR from PHY headers.

Parameters

txVector the TXVECTOR to fill in

Reimplemented in ns3::EhtPpdu.

Definition at line 176 of file he-ppdu.cc.

Referenced by DoGetTxVector().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateTxVectorForUlMu()

void ns3::HePpdu::UpdateTxVectorForUlMu ( const std::optional< WifiTxVector > & trigVector ) const

Update the TXVECTOR for HE TB PPDUs, since the information to decode HE TB PPDUs is not available from the PHY headers but it requires information from the TRIGVECTOR of the AP expecting these HE TB PPDUs.

Parameters

trigVector the TRIGVECTOR or std::nullopt if no TRIGVECTOR is available at the caller

Definition at line 450 of file he-ppdu.cc.

References NS_ASSERT, NS_LOG_FUNCTION, ns3::WIFI_MOD_CLASS_HE, and ns3::WIFI_PPDU_TYPE_UL_MU.

Member Data Documentation

◆ m_heSig

HeSigHeader ns3::HePpdu::m_heSig

private

the HE-SIG PHY header

Definition at line 366 of file he-ppdu.h.

Referenced by SetHeSigHeader(), and SetTxVectorFromPhyHeaders().

◆ m_txPsdFlag

TxPsdFlag ns3::HePpdu::m_txPsdFlag

mutableprotected

the transmit power spectral density flag

Definition at line 320 of file he-ppdu.h.

The documentation for this class was generated from the following files:

src/wifi/model/he/he-ppdu.h
src/wifi/model/he/he-ppdu.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ HeSigBContentChannels

◆ HeSigHeader

Member Enumeration Documentation

◆ TxPsdFlag

Constructor & Destructor Documentation

◆ HePpdu() [1/2]

◆ HePpdu() [2/2]

Member Function Documentation

◆ Copy()

◆ DoGetTxVector()

◆ GetChannelWidthEncodingFromMhz()

◆ GetChannelWidthMhzFromEncoding()

◆ GetGuardIntervalAndNltfEncoding()

◆ GetGuardIntervalFromEncoding()

◆ GetHeSigBContentChannels()

◆ GetMuMimoUsersEncoding()

◆ GetMuMimoUsersFromEncoding()

◆ GetNssFromNstsEncoding()

◆ GetNstsEncodingFromNss()

◆ GetNumRusPerHeSigBContentChannel()

◆ GetPsdu()

◆ GetSigBFieldSize()

◆ GetStaId()

◆ GetTxChannelWidth()

◆ GetTxDuration()

◆ GetTxPsdFlag()

◆ GetType()

◆ IsDlMu()

◆ IsMu()

◆ IsUlMu()

◆ PrintPayload()

◆ SetHeMuUserInfos()

◆ SetHeSigHeader()

◆ SetLSigHeader()

◆ SetPhyHeaders()

◆ SetTxPsdFlag()

◆ SetTxVectorFromPhyHeaders()

◆ UpdateTxVectorForUlMu()

Member Data Documentation

◆ m_heSig

◆ m_txPsdFlag
