MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission. More...

#include "multi-user-scheduler.h"

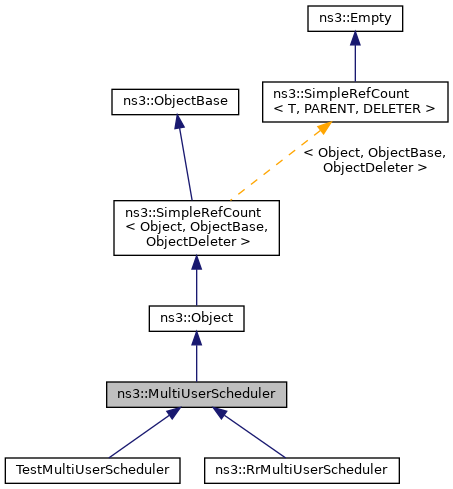

Inheritance diagram for ns3::MultiUserScheduler:

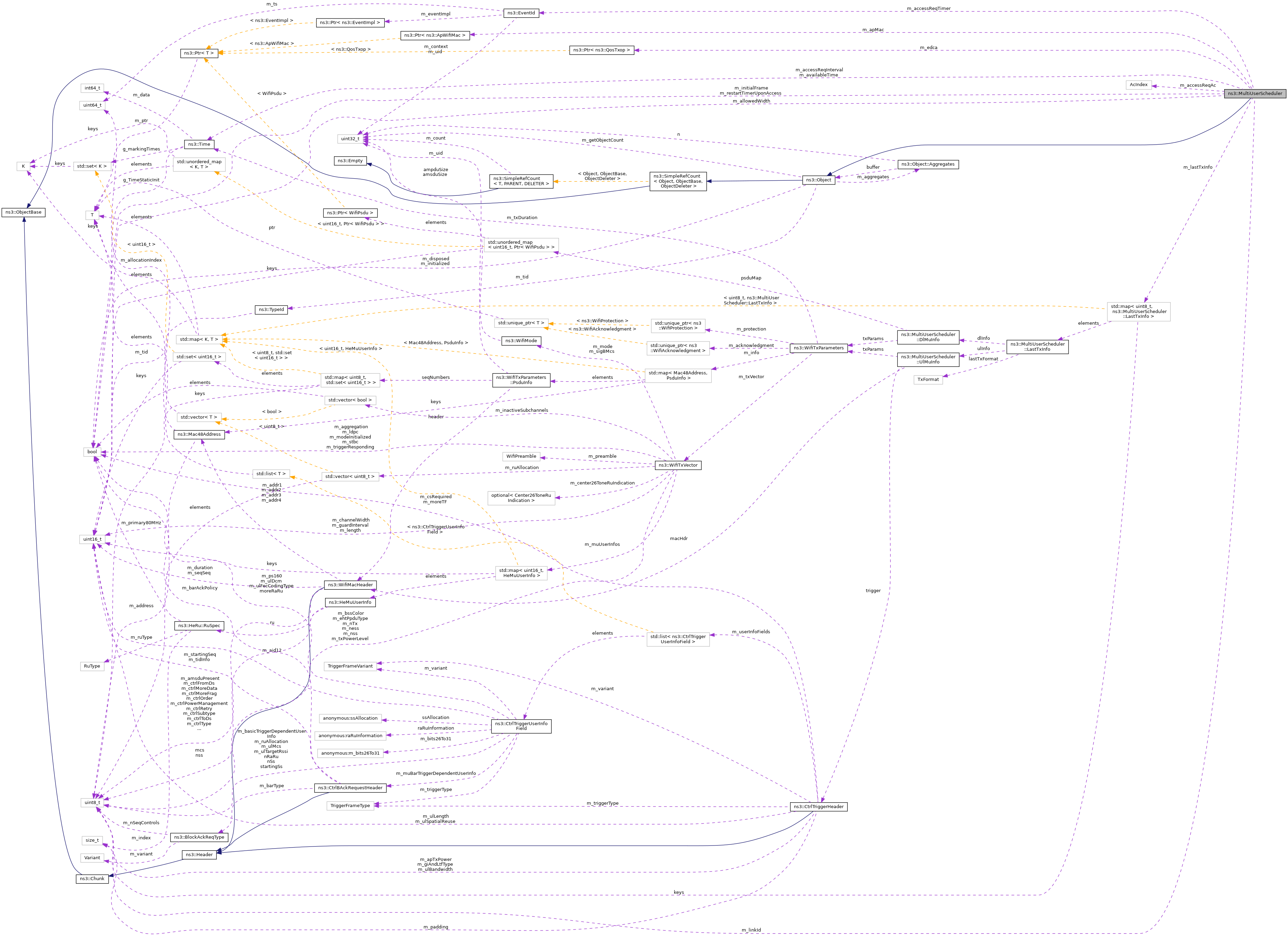

Collaboration diagram for ns3::MultiUserScheduler:

Classes
struct	DlMuInfo
	Information to be provided in case of DL MU transmission. More...

struct	LastTxInfo
	Type for the information about the last transmission. More...

struct	UlMuInfo
	Information to be provided in case of UL MU transmission. More...

Public Types
enum	TxFormat { NO_TX = 0 , SU_TX , DL_MU_TX , UL_MU_TX }
	Enumeration of the possible transmission formats. More...

Public Member Functions
	MultiUserScheduler ()

	~MultiUserScheduler () override

DlMuInfo &	GetDlMuInfo (uint8_t linkId)
	Get the information required to perform a DL MU transmission on the given link. More...

UlMuInfo &	GetUlMuInfo (uint8_t linkId)
	Get the information required to solicit an UL MU transmission on the given link. More...

TxFormat	NotifyAccessGranted (Ptr< QosTxop > edca, Time availableTime, bool initialFrame, uint16_t allowedWidth, uint8_t linkId)
	Notify the Multi-user Scheduler that the given AC of the AP gained channel access. More...

void	SetAccessReqInterval (Time interval)
	Set the duration of the interval between two consecutive requests for channel access made by the MultiUserScheduler. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

Ptr< HeFrameExchangeManager >	GetHeFem (uint8_t linkId) const
	Get the HE Frame Exchange Manager attached to the AP on the given link. More...

TxFormat	GetLastTxFormat (uint8_t linkId)
	Get the format of the last transmission on the given link, as determined by the last call to NotifyAccessGranted that did not return NO_TX. More...

uint32_t	GetMaxSizeOfQosNullAmpdu (const CtrlTriggerHeader &trigger) const
	Get the maximum size in bytes among the A-MPDUs containing QoS Null frames and solicited by the given (BSRP) Trigger Frame. More...

Ptr< WifiMpdu >	GetTriggerFrame (const CtrlTriggerHeader &trigger, uint8_t linkId) const
	Get an MPDU containing the given Trigger Frame. More...

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (uint8_t linkId) const
	Get the station manager attached to the AP on the given link. More...

void	NotifyNewAggregate () override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes
uint16_t	m_allowedWidth
	the allowed width in MHz for the current transmission More...

Ptr< ApWifiMac >	m_apMac
	the AP wifi MAC More...

Time	m_availableTime
	the time available for frame exchange More...

Ptr< QosTxop >	m_edca
	the AC that gained channel access More...

bool	m_initialFrame
	true if a TXOP is being started More...

uint8_t	m_linkId
	the ID of the link over which channel access has been granted More...

Private Member Functions
void	AccessReqTimeout ()
	Perform actions required on expiration of the channel access request timer, such as requesting channel access (if not requested already) and restarting the channel access request timer. More...

void	CheckTriggerFrame ()
	Ensure that the Trigger Frame returned in case of UL MU transmission is correct. More...

virtual DlMuInfo	ComputeDlMuInfo ()=0
	Compute the information required to perform a DL MU transmission. More...

virtual UlMuInfo	ComputeUlMuInfo ()=0
	Prepare the information required to solicit an UL MU transmission. More...

virtual TxFormat	SelectTxFormat ()=0
	Select the format of the next transmission. More...

void	SetWifiMac (Ptr< ApWifiMac > mac)
	Set the wifi MAC. More...

Private Attributes
AcIndex	m_accessReqAc
	AC we request channel access for. More...

Time	m_accessReqInterval
	duration of the interval between channel access requests More...

EventId	m_accessReqTimer
	the timer controlling additional channel access requests More...

std::map< uint8_t, LastTxInfo >	m_lastTxInfo
	Information about the last transmission. More...

bool	m_restartTimerUponAccess
	whether the channel access timer has to be restarted upon channel access More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

MultiUserScheduler is an abstract base class defining the API that APs supporting at least VHT can use to determine the format of their next transmission.

VHT APs can only transmit DL MU PPDUs by using MU-MIMO, while HE APs can transmit both DL MU PPDUs and UL MU PPDUs by using OFDMA in addition to MU-MIMO.

However, given that DL MU-MIMO is not yet supported, a MultiUserScheduler can only be aggregated to HE APs.

Definition at line 51 of file multi-user-scheduler.h.

Member Enumeration Documentation

◆ TxFormat

enum ns3::MultiUserScheduler::TxFormat

Enumeration of the possible transmission formats.

Enumerator
NO_TX
SU_TX
DL_MU_TX
UL_MU_TX

Definition at line 63 of file multi-user-scheduler.h.

Constructor & Destructor Documentation

◆ MultiUserScheduler()

ns3::MultiUserScheduler::MultiUserScheduler ( )

Definition at line 81 of file multi-user-scheduler.cc.

◆ ~MultiUserScheduler()

ns3::MultiUserScheduler::~MultiUserScheduler ( )

override

Definition at line 85 of file multi-user-scheduler.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ AccessReqTimeout()

void ns3::MultiUserScheduler::AccessReqTimeout ( )

private

Perform actions required on expiration of the channel access request timer, such as requesting channel access (if not requested already) and restarting the channel access request timer.

Definition at line 175 of file multi-user-scheduler.cc.

References ns3::WifiMac::GetChannelAccessManager(), ns3::WifiMac::GetNLinks(), ns3::WifiMac::GetQosTxop(), ns3::Time::IsStrictlyPositive(), m_accessReqAc, m_accessReqInterval, m_accessReqTimer, m_apMac, ns3::Txop::NOT_REQUESTED, NS_LOG_FUNCTION, ns3::ChannelAccessManager::RequestAccess(), and ns3::Simulator::Schedule().

Referenced by DoInitialize(), NotifyAccessGranted(), and SetAccessReqInterval().

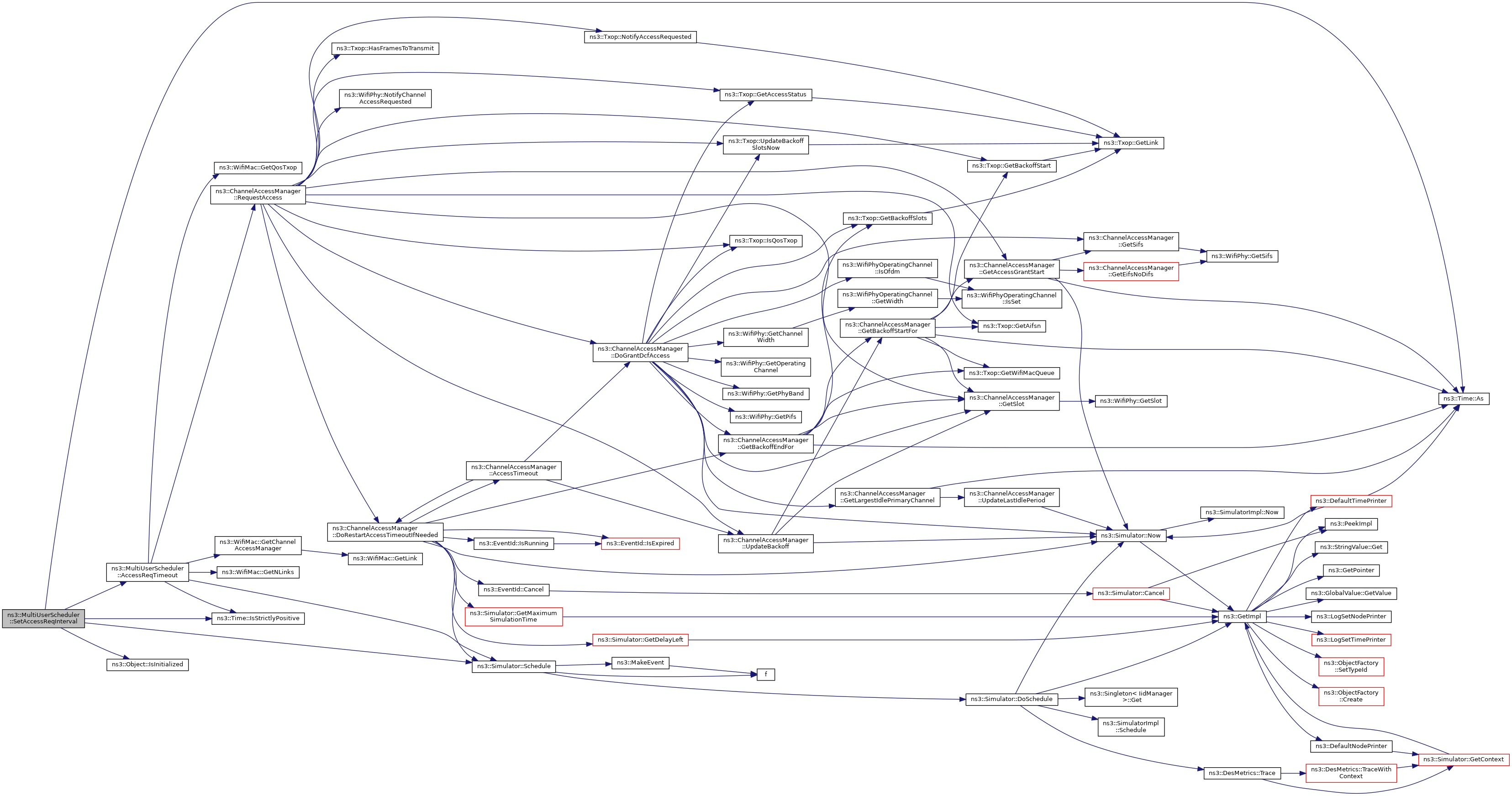

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CheckTriggerFrame()

void ns3::MultiUserScheduler::CheckTriggerFrame ( )

private

Ensure that the Trigger Frame returned in case of UL MU transmission is correct.

Currently, this method sets the CS Required, the AP Tx Power and the UL Target Receive Power subfields.

Definition at line 307 of file multi-user-scheduler.cc.

References GetHeFem(), m_lastTxInfo, m_linkId, and NS_LOG_FUNCTION.

Referenced by NotifyAccessGranted().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ComputeDlMuInfo()

virtual DlMuInfo ns3::MultiUserScheduler::ComputeDlMuInfo ( )

privatepure virtual

Compute the information required to perform a DL MU transmission.

Returns: the information required to perform a DL MU transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ ComputeUlMuInfo()

virtual UlMuInfo ns3::MultiUserScheduler::ComputeUlMuInfo ( )

privatepure virtual

Prepare the information required to solicit an UL MU transmission.

Returns: the information required to solicit an UL MU transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ DoDispose()

void ns3::MultiUserScheduler::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::RrMultiUserScheduler.

Definition at line 91 of file multi-user-scheduler.cc.

References ns3::EventId::Cancel(), ns3::Object::DoDispose(), m_accessReqTimer, m_apMac, m_edca, m_lastTxInfo, and NS_LOG_FUNCTION.

Referenced by ns3::RrMultiUserScheduler::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DoInitialize()

void ns3::MultiUserScheduler::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::RrMultiUserScheduler.

Definition at line 119 of file multi-user-scheduler.cc.

References AccessReqTimeout(), ns3::Time::IsStrictlyPositive(), m_accessReqInterval, m_accessReqTimer, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Referenced by ns3::RrMultiUserScheduler::DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetDlMuInfo()

MultiUserScheduler::DlMuInfo & ns3::MultiUserScheduler::GetDlMuInfo ( uint8_t linkId )

Get the information required to perform a DL MU transmission on the given link.

Note that this method can only be called if GetTxFormat returns DL_MU_TX on the given link.

Parameters

linkId the ID of the given link

Returns: the information required to perform a DL MU transmission

Definition at line 251 of file multi-user-scheduler.cc.

References DL_MU_TX, GetWifiRemoteStationManager(), ns3::ApWifiMac::IsAssociated(), m_apMac, m_lastTxInfo, and NS_ABORT_MSG_IF.

Here is the call graph for this function:

◆ GetHeFem()

Ptr< HeFrameExchangeManager > ns3::MultiUserScheduler::GetHeFem ( uint8_t linkId ) const

protected

Get the HE Frame Exchange Manager attached to the AP on the given link.

Parameters

linkId the ID of the given link

Returns: the HE Frame Exchange Manager attached to the AP on the given link

Definition at line 169 of file multi-user-scheduler.cc.

References ns3::WifiMac::GetFrameExchangeManager(), and m_apMac.

Referenced by CheckTriggerFrame(), GetTriggerFrame(), TestMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

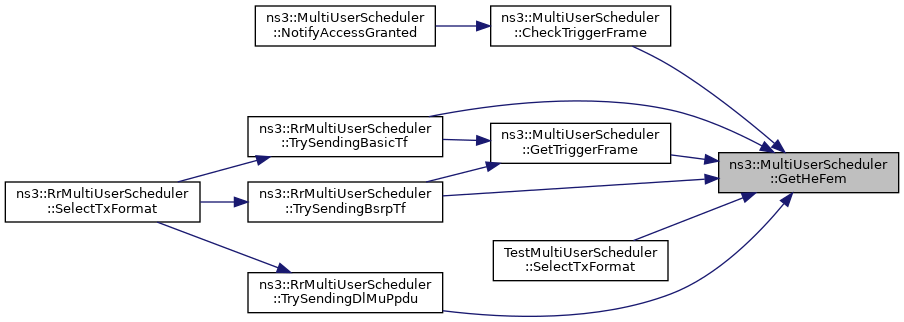

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetLastTxFormat()

MultiUserScheduler::TxFormat ns3::MultiUserScheduler::GetLastTxFormat ( uint8_t linkId )

protected

Get the format of the last transmission on the given link, as determined by the last call to NotifyAccessGranted that did not return NO_TX.

Parameters

linkId the ID of the given link

Returns: the format of the last transmission on the given link

Definition at line 245 of file multi-user-scheduler.cc.

References m_lastTxInfo.

Referenced by ns3::RrMultiUserScheduler::SelectTxFormat().

Here is the caller graph for this function:

◆ GetMaxSizeOfQosNullAmpdu()

uint32_t ns3::MultiUserScheduler::GetMaxSizeOfQosNullAmpdu ( const CtrlTriggerHeader & trigger ) const

protected

Get the maximum size in bytes among the A-MPDUs containing QoS Null frames and solicited by the given (BSRP) Trigger Frame.

For each station addressed by the Trigger Frame, the expected response is an A-MPDU containing as many QoS Null frames as the number of TIDs for which a BlockAck agreement has been established between the station and the AP.

Parameters

trigger the given Trigger Frame

Returns: the maximum size in bytes among the A-MPDUs containing QoS Null frames and solicited by the given Trigger Frame

Definition at line 320 of file multi-user-scheduler.cc.

References first::address, ns3::WifiMac::GetBaAgreementEstablishedAsRecipient(), ns3::ApWifiMac::GetMldOrLinkAddressByAid(), ns3::WifiMacHeader::GetSerializedSize(), ns3::MpduAggregator::GetSizeIfAggregated(), m_apMac, max, NS_ASSERT_MSG, ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsTo(), ns3::WIFI_MAC_FCS_LENGTH, and ns3::WIFI_MAC_QOSDATA_NULL.

Referenced by TestMultiUserScheduler::SelectTxFormat(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().

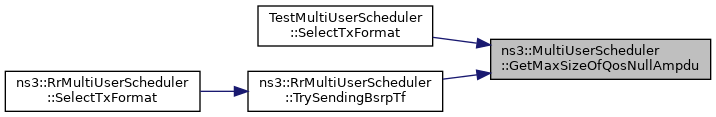

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTriggerFrame()

Ptr< WifiMpdu > ns3::MultiUserScheduler::GetTriggerFrame	(	const CtrlTriggerHeader &	trigger,
		uint8_t	linkId
	)		const

protected

Get an MPDU containing the given Trigger Frame.

Parameters

trigger	the given Trigger Frame
linkId	the ID of the link on which the Trigger Frame has to be sent

Returns: an MPDU containing the given Trigger Frame

Definition at line 281 of file multi-user-scheduler.cc.

References ns3::Packet::AddHeader(), ns3::CtrlTriggerHeader::begin(), ns3::Mac48Address::GetBroadcast(), GetHeFem(), ns3::CtrlTriggerHeader::GetNUserInfoFields(), ns3::ApWifiMac::GetStaList(), m_apMac, NS_ASSERT, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), and ns3::WIFI_MAC_CTL_TRIGGER.

Referenced by ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingBsrpTf().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::MultiUserScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 40 of file multi-user-scheduler.cc.

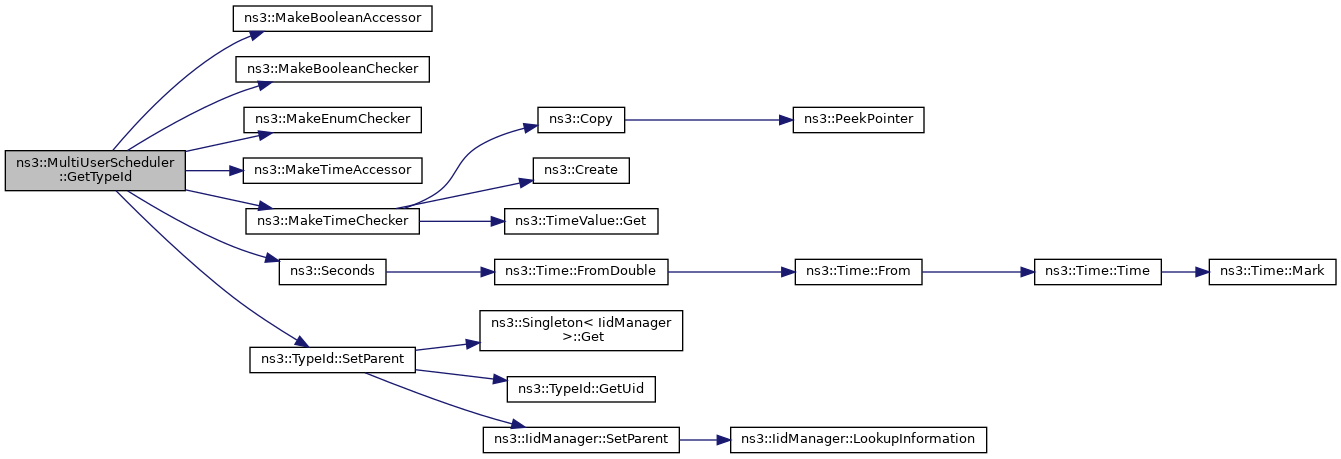

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, m_accessReqAc, m_accessReqInterval, m_restartTimerUponAccess, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::Seconds(), and ns3::TypeId::SetParent().

Here is the call graph for this function:

◆ GetUlMuInfo()

MultiUserScheduler::UlMuInfo & ns3::MultiUserScheduler::GetUlMuInfo ( uint8_t linkId )

Get the information required to solicit an UL MU transmission on the given link.

Note that this method can only be called if GetTxFormat returns UL_MU_TX on the given link.

Parameters

linkId the ID of the given link

Returns: the information required to solicit an UL MU transmission

Definition at line 272 of file multi-user-scheduler.cc.

References m_lastTxInfo, NS_ABORT_MSG_IF, and UL_MU_TX.

◆ GetWifiRemoteStationManager()

Ptr< WifiRemoteStationManager > ns3::MultiUserScheduler::GetWifiRemoteStationManager ( uint8_t linkId ) const

protected

Get the station manager attached to the AP on the given link.

Parameters

linkId the ID of the given link

Returns: the station manager attached to the AP on the given link

Definition at line 163 of file multi-user-scheduler.cc.

References ns3::WifiMac::GetWifiRemoteStationManager(), and m_apMac.

Referenced by TestMultiUserScheduler::ComputeWifiTxVector(), GetDlMuInfo(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

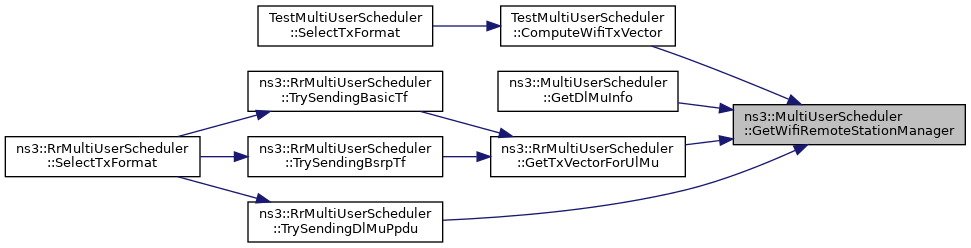

Here is the call graph for this function:

Here is the caller graph for this function:

◆ NotifyAccessGranted()

MultiUserScheduler::TxFormat ns3::MultiUserScheduler::NotifyAccessGranted	(	Ptr< QosTxop >	edca,
		Time	availableTime,
		bool	initialFrame,
		uint16_t	allowedWidth,
		uint8_t	linkId
	)

Notify the Multi-user Scheduler that the given AC of the AP gained channel access.

The Multi-user Scheduler determines the format of the next transmission.

Parameters

edca	the EDCAF which has been granted the opportunity to transmit
availableTime	the amount of time allowed for the frame exchange. Pass Time::Min() in case the TXOP limit is null
initialFrame	true if the frame being transmitted is the initial frame of the TXOP. This is used to determine whether the TXOP limit can be exceeded
allowedWidth	the allowed width in MHz for the next transmission
linkId	the ID of the link over which channel access was gained

Returns: the format of the next transmission

Definition at line 199 of file multi-user-scheduler.cc.

References AccessReqTimeout(), ns3::EventId::Cancel(), CheckTriggerFrame(), ComputeDlMuInfo(), ComputeUlMuInfo(), DL_MU_TX, ns3::EventId::IsRunning(), ns3::Time::IsStrictlyPositive(), m_accessReqInterval, m_accessReqTimer, m_allowedWidth, m_availableTime, m_edca, m_initialFrame, m_lastTxInfo, m_linkId, m_restartTimerUponAccess, NO_TX, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), SelectTxFormat(), and UL_MU_TX.

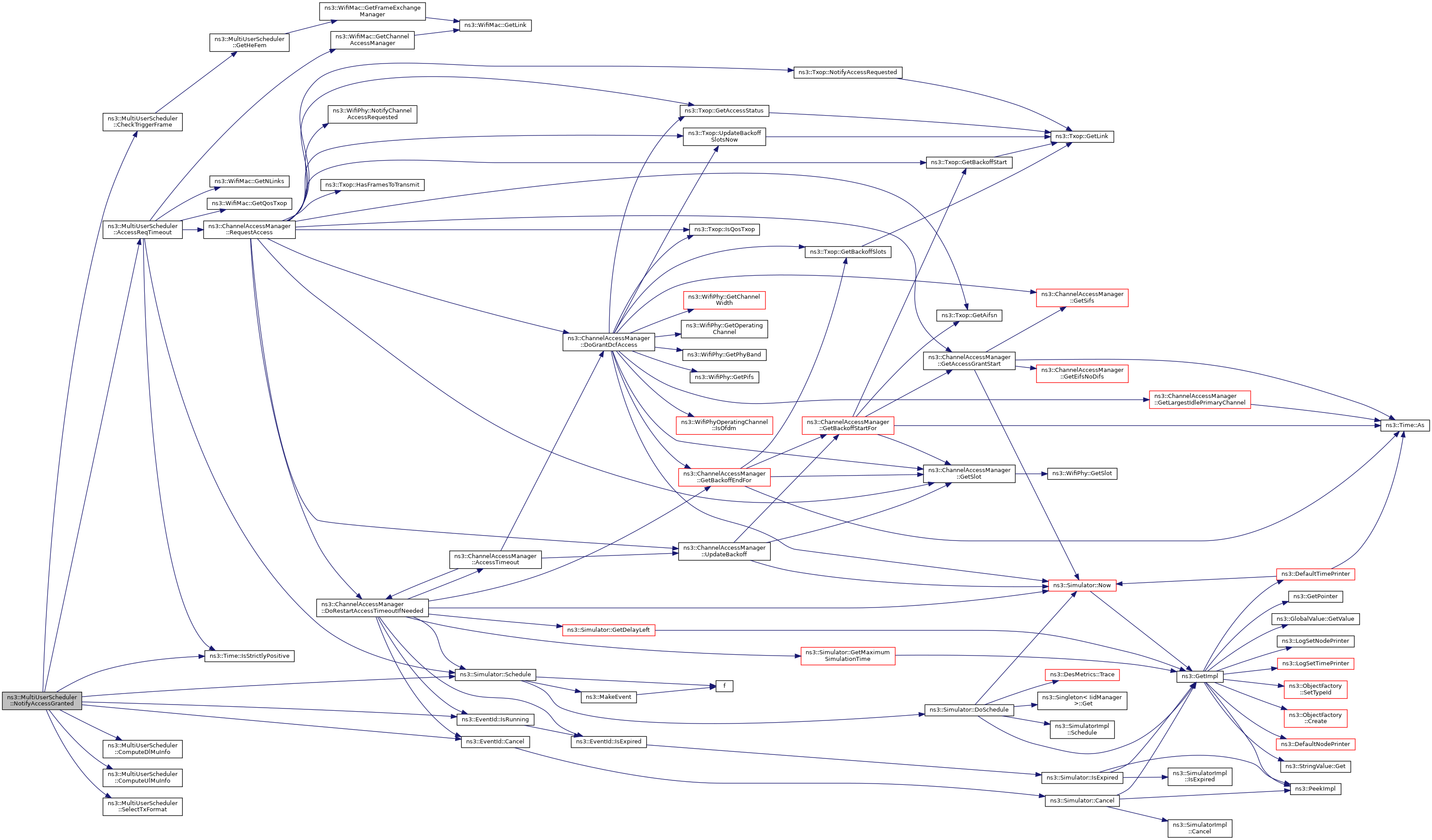

Here is the call graph for this function:

◆ NotifyNewAggregate()

void ns3::MultiUserScheduler::NotifyNewAggregate ( )

overrideprotectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overridden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 102 of file multi-user-scheduler.cc.

References m_apMac, ns3::Object::NotifyNewAggregate(), NS_LOG_FUNCTION, and SetWifiMac().

Here is the call graph for this function:

◆ SelectTxFormat()

virtual TxFormat ns3::MultiUserScheduler::SelectTxFormat ( )

privatepure virtual

Select the format of the next transmission.

Returns: the format of the next transmission

Implemented in TestMultiUserScheduler, and ns3::RrMultiUserScheduler.

Referenced by NotifyAccessGranted().

Here is the caller graph for this function:

◆ SetAccessReqInterval()

void ns3::MultiUserScheduler::SetAccessReqInterval ( Time interval )

Set the duration of the interval between two consecutive requests for channel access made by the MultiUserScheduler.

Parameters

interval the duration of the interval between two consecutive requests for channel access

Definition at line 131 of file multi-user-scheduler.cc.

References AccessReqTimeout(), ns3::Time::As(), ns3::Object::IsInitialized(), ns3::Time::IsStrictlyPositive(), m_accessReqInterval, m_accessReqTimer, ns3::Time::MS, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Here is the call graph for this function:

◆ SetWifiMac()

void ns3::MultiUserScheduler::SetWifiMac ( Ptr< ApWifiMac > mac )

private

Set the wifi MAC.

Note that it must be the MAC of an HE AP.

Parameters

mac	the AP wifi MAC

Definition at line 144 of file multi-user-scheduler.cc.

References ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiMac::GetNLinks(), m_apMac, third::mac, NS_ABORT_MSG_IF, NS_ASSERT, and NS_LOG_FUNCTION.

Referenced by NotifyNewAggregate().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_accessReqAc

AcIndex ns3::MultiUserScheduler::m_accessReqAc

private

AC we request channel access for.

Definition at line 248 of file multi-user-scheduler.h.

Referenced by AccessReqTimeout(), and GetTypeId().

◆ m_accessReqInterval

Time ns3::MultiUserScheduler::m_accessReqInterval

private

duration of the interval between channel access requests

Definition at line 247 of file multi-user-scheduler.h.

Referenced by AccessReqTimeout(), DoInitialize(), GetTypeId(), NotifyAccessGranted(), and SetAccessReqInterval().

◆ m_accessReqTimer

EventId ns3::MultiUserScheduler::m_accessReqTimer

private

the timer controlling additional channel access requests

Definition at line 246 of file multi-user-scheduler.h.

Referenced by AccessReqTimeout(), DoDispose(), DoInitialize(), NotifyAccessGranted(), and SetAccessReqInterval().

◆ m_allowedWidth

uint16_t ns3::MultiUserScheduler::m_allowedWidth

protected

the allowed width in MHz for the current transmission

Definition at line 189 of file multi-user-scheduler.h.

Referenced by ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_apMac

Ptr<ApWifiMac> ns3::MultiUserScheduler::m_apMac

protected

◆ m_availableTime

Time ns3::MultiUserScheduler::m_availableTime

protected

the time available for frame exchange

Definition at line 187 of file multi-user-scheduler.h.

Referenced by NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_edca

Ptr<QosTxop> ns3::MultiUserScheduler::m_edca

protected

the AC that gained channel access

Definition at line 186 of file multi-user-scheduler.h.

Referenced by DoDispose(), NotifyAccessGranted(), ns3::RrMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_initialFrame

bool ns3::MultiUserScheduler::m_initialFrame

protected

true if a TXOP is being started

Definition at line 188 of file multi-user-scheduler.h.

Referenced by NotifyAccessGranted(), TestMultiUserScheduler::SelectTxFormat(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_lastTxInfo

std::map<uint8_t, LastTxInfo> ns3::MultiUserScheduler::m_lastTxInfo

private

Information about the last transmission.

Definition at line 245 of file multi-user-scheduler.h.

Referenced by CheckTriggerFrame(), DoDispose(), GetDlMuInfo(), GetLastTxFormat(), GetUlMuInfo(), and NotifyAccessGranted().

◆ m_linkId

uint8_t ns3::MultiUserScheduler::m_linkId

protected

the ID of the link over which channel access has been granted

Definition at line 190 of file multi-user-scheduler.h.

Referenced by CheckTriggerFrame(), ns3::RrMultiUserScheduler::GetTxVectorForUlMu(), NotifyAccessGranted(), ns3::RrMultiUserScheduler::SelectTxFormat(), ns3::RrMultiUserScheduler::TrySendingBasicTf(), ns3::RrMultiUserScheduler::TrySendingBsrpTf(), and ns3::RrMultiUserScheduler::TrySendingDlMuPpdu().

◆ m_restartTimerUponAccess

bool ns3::MultiUserScheduler::m_restartTimerUponAccess

private

whether the channel access timer has to be restarted upon channel access

Definition at line 249 of file multi-user-scheduler.h.

Referenced by GetTypeId(), and NotifyAccessGranted().

The documentation for this class was generated from the following files:

src/wifi/model/he/multi-user-scheduler.h
src/wifi/model/he/multi-user-scheduler.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Enumeration Documentation

◆ TxFormat

Constructor & Destructor Documentation

◆ MultiUserScheduler()

◆ ~MultiUserScheduler()

Member Function Documentation

◆ AccessReqTimeout()

◆ CheckTriggerFrame()

◆ ComputeDlMuInfo()

◆ ComputeUlMuInfo()

◆ DoDispose()

◆ DoInitialize()

◆ GetDlMuInfo()

◆ GetHeFem()

◆ GetLastTxFormat()

◆ GetMaxSizeOfQosNullAmpdu()

◆ GetTriggerFrame()

◆ GetTypeId()

◆ GetUlMuInfo()

◆ GetWifiRemoteStationManager()

◆ NotifyAccessGranted()

◆ NotifyNewAggregate()

◆ SelectTxFormat()

◆ SetAccessReqInterval()

◆ SetWifiMac()

Member Data Documentation

◆ m_accessReqAc

◆ m_accessReqInterval

◆ m_accessReqTimer

◆ m_allowedWidth

◆ m_apMac

◆ m_availableTime

◆ m_edca

◆ m_initialFrame

◆ m_lastTxInfo

◆ m_linkId

◆ m_restartTimerUponAccess
