RrMultiUserScheduler is a simple OFDMA scheduler that indicates to perform a DL OFDMA transmission if the AP has frames to transmit to at least one station. More...

#include "rr-multi-user-scheduler.h"

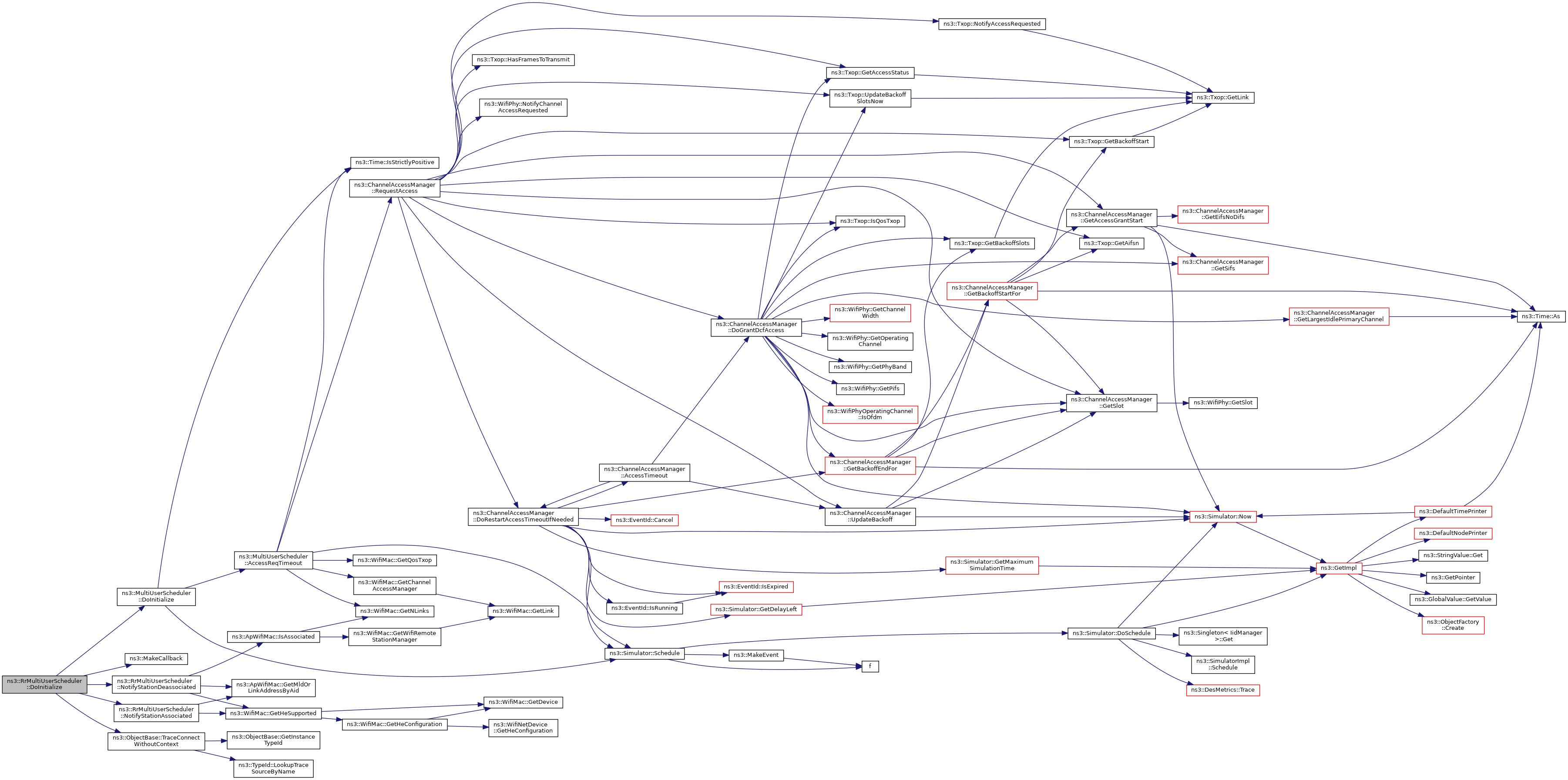

Inheritance diagram for ns3::RrMultiUserScheduler:

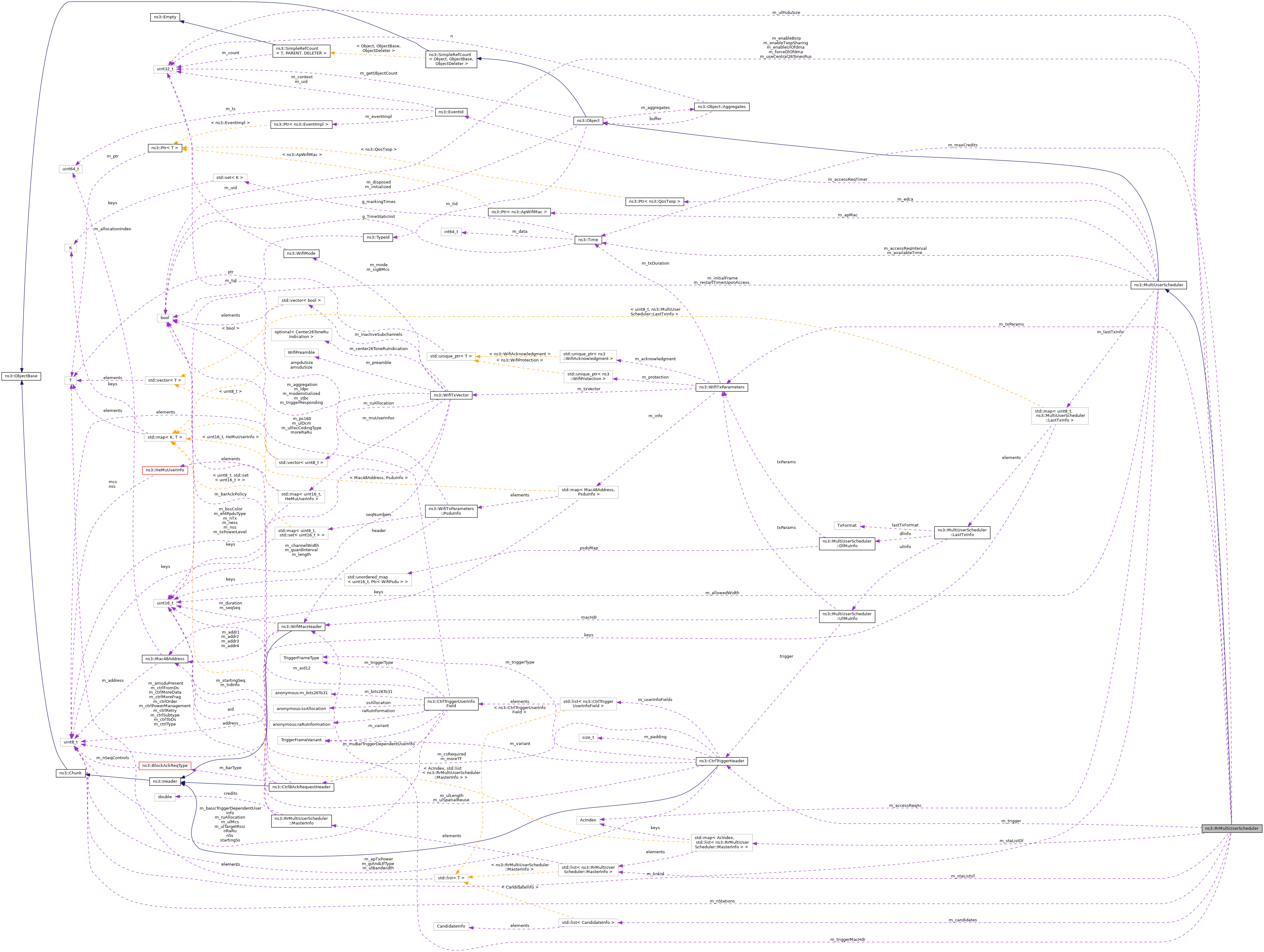

Collaboration diagram for ns3::RrMultiUserScheduler:

Classes
struct	MasterInfo
	Information used to sort stations. More...

Public Member Functions
	RrMultiUserScheduler ()

	~RrMultiUserScheduler () override

Public Member Functions inherited from ns3::MultiUserScheduler
	MultiUserScheduler ()

	~MultiUserScheduler () override

DlMuInfo &	GetDlMuInfo (uint8_t linkId)
	Get the information required to perform a DL MU transmission on the given link. More...

UlMuInfo &	GetUlMuInfo (uint8_t linkId)
	Get the information required to solicit an UL MU transmission on the given link. More...

TxFormat	NotifyAccessGranted (Ptr< QosTxop > edca, Time availableTime, bool initialFrame, uint16_t allowedWidth, uint8_t linkId)
	Notify the Multi-user Scheduler that the given AC of the AP gained channel access. More...

void	SetAccessReqInterval (Time interval)
	Set the duration of the interval between two consecutive requests for channel access made by the MultiUserScheduler. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::MultiUserScheduler
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

void	DoInitialize () override
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::MultiUserScheduler
Ptr< HeFrameExchangeManager >	GetHeFem (uint8_t linkId) const
	Get the HE Frame Exchange Manager attached to the AP on the given link. More...

TxFormat	GetLastTxFormat (uint8_t linkId)
	Get the format of the last transmission on the given link, as determined by the last call to NotifyAccessGranted that did not return NO_TX. More...

uint32_t	GetMaxSizeOfQosNullAmpdu (const CtrlTriggerHeader &trigger) const
	Get the maximum size in bytes among the A-MPDUs containing QoS Null frames and solicited by the given (BSRP) Trigger Frame. More...

Ptr< WifiMpdu >	GetTriggerFrame (const CtrlTriggerHeader &trigger, uint8_t linkId) const
	Get an MPDU containing the given Trigger Frame. More...

Ptr< WifiRemoteStationManager >	GetWifiRemoteStationManager (uint8_t linkId) const
	Get the station manager attached to the AP on the given link. More...

void	NotifyNewAggregate () override
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Types
typedef std::pair< std::list< MasterInfo >::iterator, Ptr< WifiMpdu > >	CandidateInfo
	Information stored for candidate stations. More...

Private Member Functions
DlMuInfo	ComputeDlMuInfo () override
	Compute the information required to perform a DL MU transmission. More...

UlMuInfo	ComputeUlMuInfo () override
	Prepare the information required to solicit an UL MU transmission. More...

void	FinalizeTxVector (WifiTxVector &txVector)
	Finalize the given TXVECTOR by only including the largest subset of the current set of candidate stations that can be allocated equal-sized RUs (with the possible exception of using central 26-tone RUs) without leaving RUs unallocated. More...

template<class Func >
WifiTxVector	GetTxVectorForUlMu (Func canBeSolicited)
	Compute a TXVECTOR that can be used to construct a Trigger Frame to solicit transmissions from suitable stations, i.e., stations that have established a BlockAck agreement with the AP and for which the given predicate returns true. More...

void	NotifyStationAssociated (uint16_t aid, Mac48Address address)
	Notify the scheduler that a station associated with the AP. More...

void	NotifyStationDeassociated (uint16_t aid, Mac48Address address)
	Notify the scheduler that a station deassociated with the AP. More...

TxFormat	SelectTxFormat () override
	Select the format of the next transmission. More...

virtual TxFormat	TrySendingBasicTf ()
	Check if it is possible to send a Basic Trigger Frame given the current time limits. More...

virtual TxFormat	TrySendingBsrpTf ()
	Check if it is possible to send a BSRP Trigger Frame given the current time limits. More...

virtual TxFormat	TrySendingDlMuPpdu ()
	Check if it is possible to send a DL MU PPDU given the current time limits. More...

void	UpdateCredits (std::list< MasterInfo > &staList, Time txDuration, const WifiTxVector &txVector)
	Update credits of the stations in the given list considering that a PPDU having the given duration is being transmitted or solicited by using the given TXVECTOR. More...

Private Attributes
std::list< CandidateInfo >	m_candidates
	Candidate stations for MU TX. More...

bool	m_enableBsrp
	send a BSRP before an UL MU transmission More...

bool	m_enableTxopSharing
	allow A-MPDUs of different TIDs in a DL MU PPDU More...

bool	m_enableUlOfdma
	enable the scheduler to also return UL_OFDMA More...

bool	m_forceDlOfdma
	return DL_OFDMA even if no DL MU PPDU was built More...

Time	m_maxCredits
	Max amount of credits a station can have. More...

uint8_t	m_nStations
	Number of stations/slots to fill. More...

std::map< AcIndex, std::list< MasterInfo > >	m_staListDl
	Per-AC list of stations (next to serve for DL first) More...

std::list< MasterInfo >	m_staListUl
	List of stations to serve for UL. More...

CtrlTriggerHeader	m_trigger
	Trigger Frame to send. More...

WifiMacHeader	m_triggerMacHdr
	MAC header for Trigger Frame. More...

WifiTxParameters	m_txParams
	TX parameters. More...

uint32_t	m_ulPsduSize
	the size in byte of the solicited PSDU More...

bool	m_useCentral26TonesRus
	whether to allocate central 26-tone RUs More...

Additional Inherited Members
Public Types inherited from ns3::MultiUserScheduler
enum	TxFormat { NO_TX = 0 , SU_TX , DL_MU_TX , UL_MU_TX }
	Enumeration of the possible transmission formats. More...

Protected Attributes inherited from ns3::MultiUserScheduler
uint16_t	m_allowedWidth
	the allowed width in MHz for the current transmission More...

Ptr< ApWifiMac >	m_apMac
	the AP wifi MAC More...

Time	m_availableTime
	the time available for frame exchange More...

Ptr< QosTxop >	m_edca
	the AC that gained channel access More...

bool	m_initialFrame
	true if a TXOP is being started More...

uint8_t	m_linkId
	the ID of the link over which channel access has been granted More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

RrMultiUserScheduler is a simple OFDMA scheduler that indicates to perform a DL OFDMA transmission if the AP has frames to transmit to at least one station.

RrMultiUserScheduler assigns RUs of equal size (in terms of tones) to stations to which the AP has frames to transmit belonging to the AC who gained access to the channel or higher. The maximum number of stations that can be granted an RU is configurable. Associated stations are served based on their priority. The priority is determined by the credits/debits a station gets when it is selected or not for transmission.

Todo:: Take the supported channel width of the stations into account while selecting stations and assigning RUs to them.

Definition at line 44 of file rr-multi-user-scheduler.h.

Member Typedef Documentation

◆ CandidateInfo

typedef std::pair<std::list<MasterInfo>::iterator, Ptr<WifiMpdu> > ns3::RrMultiUserScheduler::CandidateInfo

private

Information stored for candidate stations.

Definition at line 156 of file rr-multi-user-scheduler.h.

Constructor & Destructor Documentation

◆ RrMultiUserScheduler()

ns3::RrMultiUserScheduler::RrMultiUserScheduler ( )

Definition at line 101 of file rr-multi-user-scheduler.cc.

References NS_LOG_FUNCTION.

◆ ~RrMultiUserScheduler()

ns3::RrMultiUserScheduler::~RrMultiUserScheduler ( )

override

Definition at line 106 of file rr-multi-user-scheduler.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ ComputeDlMuInfo()

MultiUserScheduler::DlMuInfo ns3::RrMultiUserScheduler::ComputeDlMuInfo ( )

overrideprivatevirtual

Compute the information required to perform a DL MU transmission.

Returns: the information required to perform a DL MU transmission

Implements ns3::MultiUserScheduler.

Definition at line 868 of file rr-multi-user-scheduler.cc.

References ns3::WifiTxParameters::m_txDuration, ns3::WifiTxParameters::m_txVector, Min, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::MultiUserScheduler::DlMuInfo::psduMap, ns3::QosUtilsMapTidToAc(), ns3::swap(), and ns3::MultiUserScheduler::DlMuInfo::txParams.

Here is the call graph for this function:

◆ ComputeUlMuInfo()

MultiUserScheduler::UlMuInfo ns3::RrMultiUserScheduler::ComputeUlMuInfo ( )

overrideprivatevirtual

Prepare the information required to solicit an UL MU transmission.

Returns: the information required to solicit an UL MU transmission

Implements ns3::MultiUserScheduler.

Definition at line 958 of file rr-multi-user-scheduler.cc.

◆ DoDispose()

void ns3::RrMultiUserScheduler::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::MultiUserScheduler.

Definition at line 130 of file rr-multi-user-scheduler.cc.

References ns3::WifiTxParameters::Clear(), ns3::MultiUserScheduler::DoDispose(), ns3::MultiUserScheduler::m_apMac, m_candidates, m_staListDl, m_staListUl, m_txParams, ns3::MakeCallback(), NotifyStationAssociated(), NotifyStationDeassociated(), NS_LOG_FUNCTION, and ns3::ObjectBase::TraceDisconnectWithoutContext().

Here is the call graph for this function:

◆ DoInitialize()

void ns3::RrMultiUserScheduler::DoInitialize ( void )

overrideprotectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::MultiUserScheduler.

Definition at line 112 of file rr-multi-user-scheduler.cc.

References ns3::MultiUserScheduler::DoInitialize(), ns3::MultiUserScheduler::m_apMac, m_staListDl, ns3::MakeCallback(), NotifyStationAssociated(), NotifyStationDeassociated(), NS_ASSERT, NS_LOG_FUNCTION, ns3::ObjectBase::TraceConnectWithoutContext(), and ns3::wifiAcList.

Here is the call graph for this function:

◆ FinalizeTxVector()

void ns3::RrMultiUserScheduler::FinalizeTxVector ( WifiTxVector & txVector )

private

Finalize the given TXVECTOR by only including the largest subset of the current set of candidate stations that can be allocated equal-sized RUs (with the possible exception of using central 26-tone RUs) without leaving RUs unallocated.

The given TXVECTOR must be a MU TXVECTOR and must contain an HeMuUserInfo entry for each candidate station. The finalized TXVECTOR contains a subset of such HeMuUserInfo entries. The set of candidate stations is also updated by removing stations that are not allocated an RU.

Parameters

txVector the given TXVECTOR

Definition at line 770 of file rr-multi-user-scheduler.cc.

References ns3::WifiTxVector::GetHeMuUserInfoMap(), min, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiTxVector::SetHeMuUserInfo(), and ns3::swap().

Referenced by GetTxVectorForUlMu().

Here is the call graph for this function:

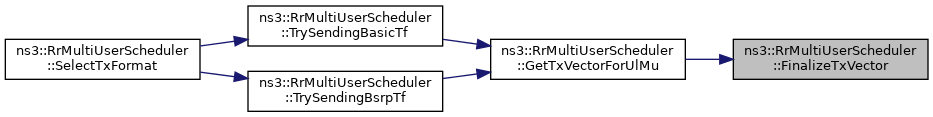

Here is the caller graph for this function:

◆ GetTxVectorForUlMu()

template<class Func >

WifiTxVector ns3::RrMultiUserScheduler::GetTxVectorForUlMu ( Func canBeSolicited )

private

Compute a TXVECTOR that can be used to construct a Trigger Frame to solicit transmissions from suitable stations, i.e., stations that have established a BlockAck agreement with the AP and for which the given predicate returns true.

Template Parameters

Func	[deduced] the type of the given predicate

Parameters

canBeSolicited a predicate returning false for stations that shall not be solicited

Returns: a TXVECTOR that can be used to construct a Trigger Frame to solicit transmissions from suitable stations

Definition at line 183 of file rr-multi-user-scheduler.cc.

References FinalizeTxVector(), ns3::WifiMac::GetBaAgreementEstablishedAsRecipient(), ns3::WifiMac::GetEhtSupported(), ns3::HeRu::GetEqualSizedRusForStations(), ns3::WifiMac::GetFrameExchangeManager(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::WifiTxVector::GetPreambleType(), ns3::MultiUserScheduler::GetWifiRemoteStationManager(), ns3::MultiUserScheduler::m_allowedWidth, ns3::MultiUserScheduler::m_apMac, m_candidates, ns3::MultiUserScheduler::m_linkId, m_nStations, m_staListUl, m_useCentral26TonesRus, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiTxVector::SetBssColor(), ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetEhtPpduType(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetPreambleType(), ns3::WIFI_MAC_QOSDATA, ns3::WIFI_PREAMBLE_EHT_TB, and ns3::WIFI_PREAMBLE_HE_TB.

Referenced by TrySendingBasicTf(), and TrySendingBsrpTf().

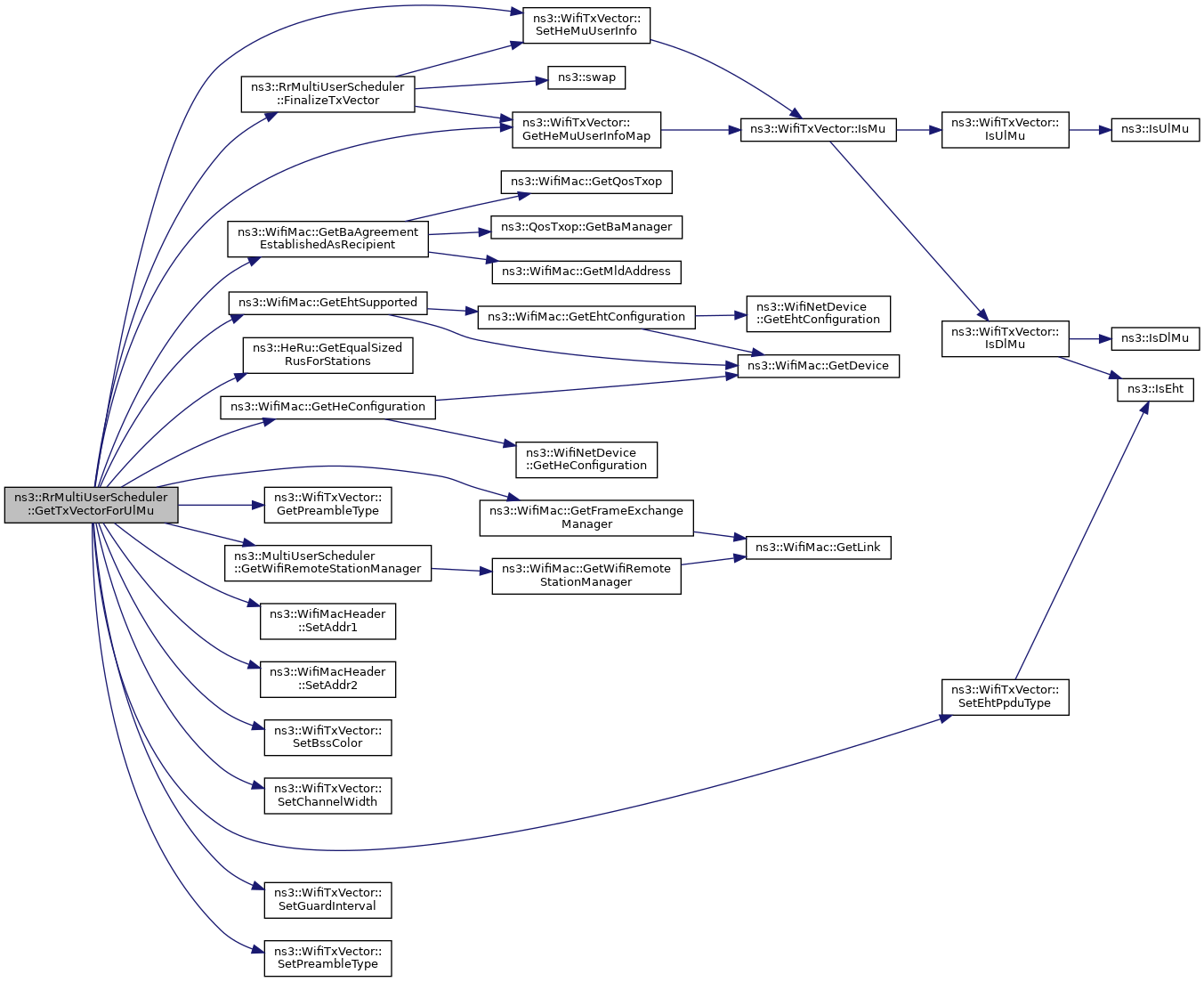

Here is the call graph for this function:

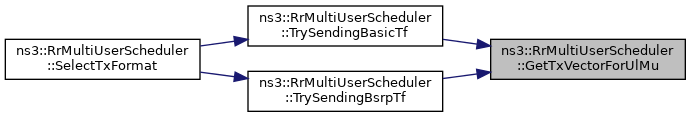

Here is the caller graph for this function:

◆ GetTypeId()

TypeId ns3::RrMultiUserScheduler::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 43 of file rr-multi-user-scheduler.cc.

References m_enableBsrp, m_enableTxopSharing, m_enableUlOfdma, m_forceDlOfdma, m_maxCredits, m_nStations, m_ulPsduSize, m_useCentral26TonesRus, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::Seconds(), and ns3::TypeId::SetParent().

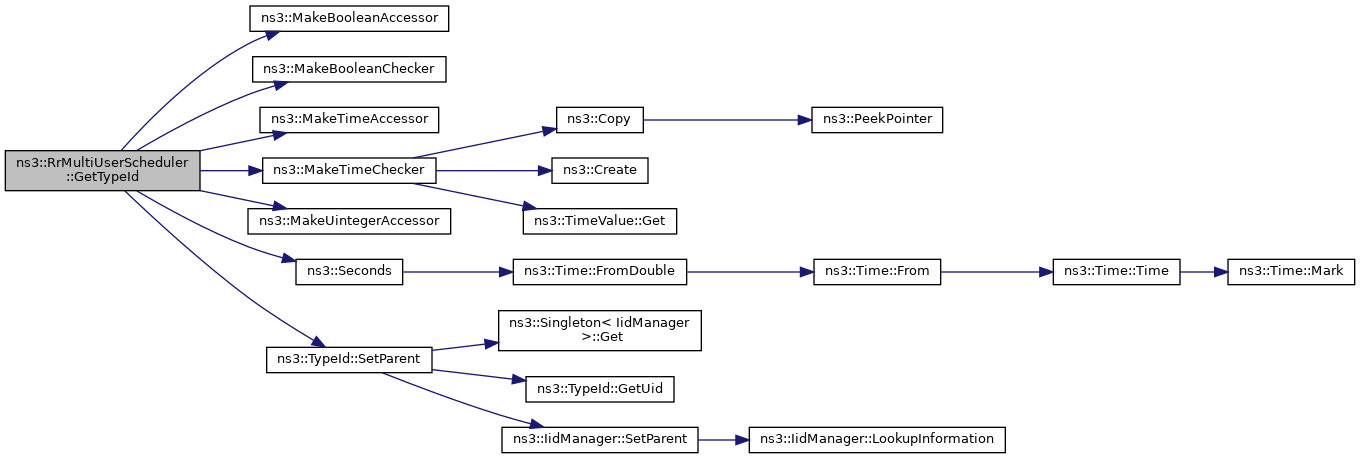

Here is the call graph for this function:

◆ NotifyStationAssociated()

void ns3::RrMultiUserScheduler::NotifyStationAssociated	(	uint16_t	aid,
		Mac48Address	address
	)

private

Notify the scheduler that a station associated with the AP.

Parameters

aid	the AID of the station
address	the MAC address of the station

Definition at line 539 of file rr-multi-user-scheduler.cc.

References first::address, ns3::WifiMac::GetHeSupported(), ns3::ApWifiMac::GetMldOrLinkAddressByAid(), ns3::MultiUserScheduler::m_apMac, m_staListDl, m_staListUl, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by DoDispose(), and DoInitialize().

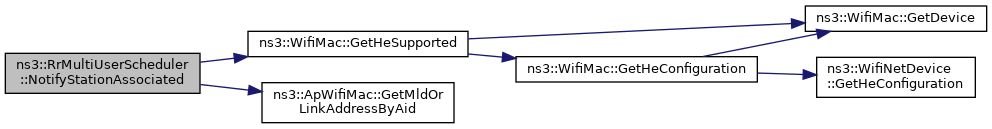

Here is the call graph for this function:

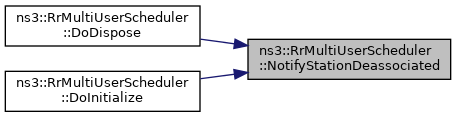

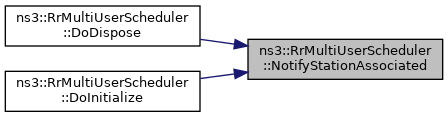

Here is the caller graph for this function:

◆ NotifyStationDeassociated()

void ns3::RrMultiUserScheduler::NotifyStationDeassociated	(	uint16_t	aid,
		Mac48Address	address
	)

private

Notify the scheduler that a station deassociated with the AP.

Parameters

aid	the AID of the station
address	the MAC address of the station

Definition at line 574 of file rr-multi-user-scheduler.cc.

References first::address, ns3::RrMultiUserScheduler::MasterInfo::aid, ns3::WifiMac::GetHeSupported(), ns3::ApWifiMac::GetMldOrLinkAddressByAid(), ns3::ApWifiMac::IsAssociated(), ns3::MultiUserScheduler::m_apMac, m_staListDl, m_staListUl, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by DoDispose(), and DoInitialize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SelectTxFormat()

MultiUserScheduler::TxFormat ns3::RrMultiUserScheduler::SelectTxFormat ( )

overrideprivatevirtual

Select the format of the next transmission.

Returns: the format of the next transmission

Implements ns3::MultiUserScheduler.

Definition at line 147 of file rr-multi-user-scheduler.cc.

References ns3::BSRP_TRIGGER, ns3::MultiUserScheduler::DL_MU_TX, ns3::WifiMac::GetHeSupported(), ns3::MultiUserScheduler::GetLastTxFormat(), ns3::CtrlTriggerHeader::GetType(), ns3::MultiUserScheduler::m_apMac, ns3::MultiUserScheduler::m_edca, m_enableBsrp, m_enableUlOfdma, ns3::MultiUserScheduler::m_linkId, m_trigger, NS_LOG_FUNCTION, ns3::QosTxop::PeekNextMpdu(), ns3::MultiUserScheduler::SU_TX, TrySendingBasicTf(), TrySendingBsrpTf(), and TrySendingDlMuPpdu().

Here is the call graph for this function:

◆ TrySendingBasicTf()

MultiUserScheduler::TxFormat ns3::RrMultiUserScheduler::TrySendingBasicTf ( )

privatevirtual

Check if it is possible to send a Basic Trigger Frame given the current time limits.

Returns: UL_MU_TX if it is possible to send a Basic TF, DL_MU_TX if we can try to send a DL MU PPDU and NO_TX if the remaining time is too short

Definition at line 376 of file rr-multi-user-scheduler.cc.

Referenced by SelectTxFormat().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrySendingBsrpTf()

MultiUserScheduler::TxFormat ns3::RrMultiUserScheduler::TrySendingBsrpTf ( )

privatevirtual

Check if it is possible to send a BSRP Trigger Frame given the current time limits.

Returns: UL_MU_TX if it is possible to send a BSRP TF, NO_TX otherwise

Definition at line 292 of file rr-multi-user-scheduler.cc.

References ns3::RrMultiUserScheduler::MasterInfo::aid, ns3::Time::As(), ns3::CtrlTriggerHeader::begin(), ns3::BSRP_TRIGGER, ns3::WifiPhy::CalculateTxDuration(), ns3::WifiTxParameters::Clear(), ns3::HePhy::ConvertHeTbPpduDurationToLSigLength(), ns3::WifiMacHeader::GetAddr1(), ns3::CtrlTriggerHeader::GetGuardInterval(), ns3::MultiUserScheduler::GetHeFem(), ns3::WifiTxVector::GetHeMuUserInfoMap(), ns3::CtrlTriggerHeader::GetHeTbTxVector(), ns3::MultiUserScheduler::GetMaxSizeOfQosNullAmpdu(), ns3::WifiPhy::GetPhyBand(), ns3::WifiPhy::GetSifs(), ns3::ApWifiMac::GetStaList(), ns3::MultiUserScheduler::GetTriggerFrame(), GetTxVectorForUlMu(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiTxParameters::m_acknowledgment, ns3::MultiUserScheduler::m_allowedWidth, ns3::MultiUserScheduler::m_apMac, ns3::MultiUserScheduler::m_availableTime, ns3::MultiUserScheduler::m_linkId, ns3::WifiTxParameters::m_protection, m_staListUl, m_trigger, m_triggerMacHdr, ns3::WifiTxParameters::m_txDuration, m_txParams, ns3::WifiTxParameters::m_txVector, ns3::Max(), ns3::Time::Min(), ns3::Time::MS, ns3::MultiUserScheduler::NO_TX, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Seconds(), ns3::WifiTxVector::SetGuardInterval(), ns3::CtrlTriggerHeader::SetUlLength(), and ns3::MultiUserScheduler::UL_MU_TX.

Referenced by SelectTxFormat().

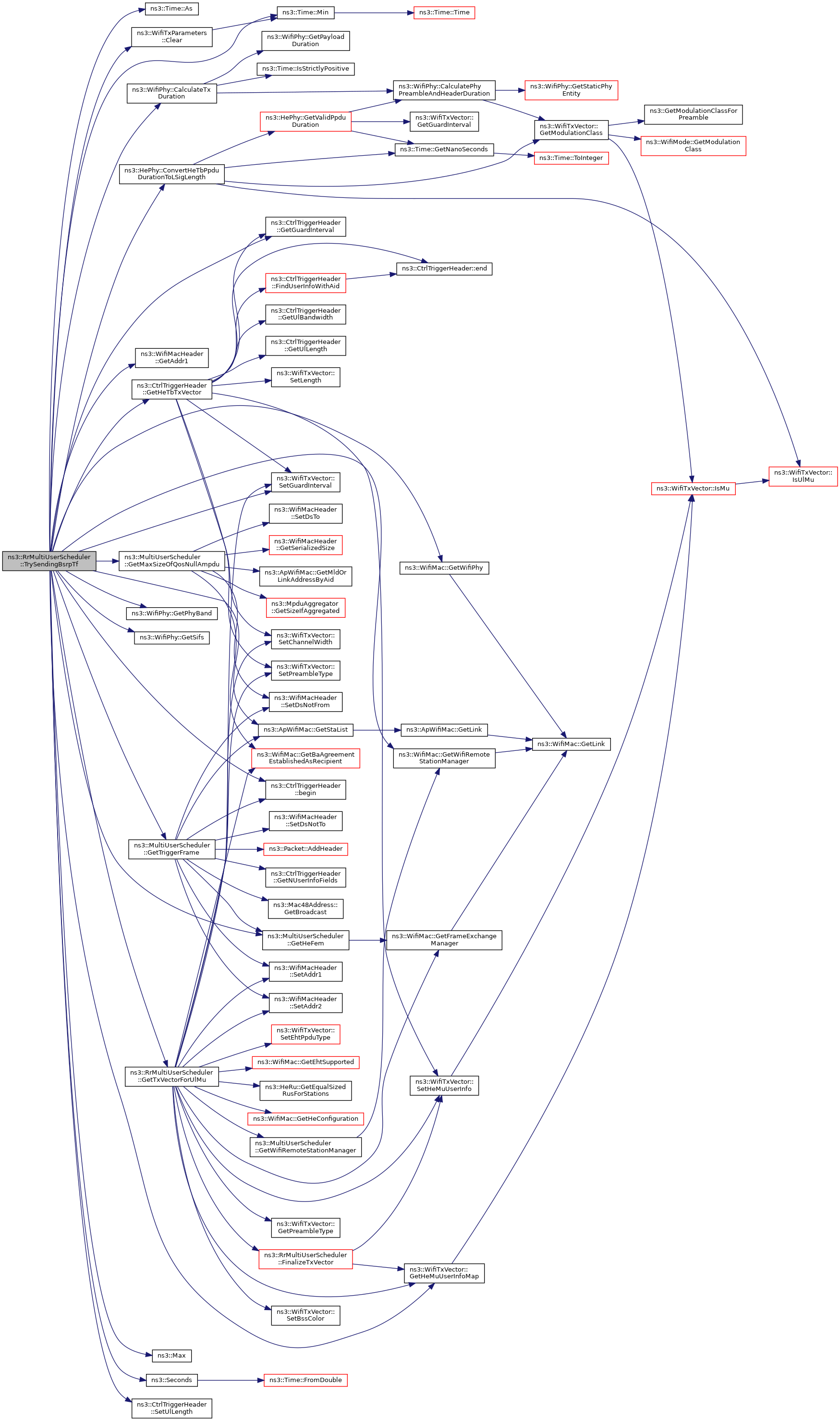

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TrySendingDlMuPpdu()

MultiUserScheduler::TxFormat ns3::RrMultiUserScheduler::TrySendingDlMuPpdu ( )

privatevirtual

Check if it is possible to send a DL MU PPDU given the current time limits.

Returns: DL_MU_TX if it is possible to send a DL MU PPDU, SU_TX if a SU PPDU can be transmitted (e.g., there are no HE stations associated or sending a DL MU PPDU is not possible and m_forceDlOfdma is false) or NO_TX otherwise

Definition at line 600 of file rr-multi-user-scheduler.cc.

Referenced by SelectTxFormat().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UpdateCredits()

void ns3::RrMultiUserScheduler::UpdateCredits	(	std::list< MasterInfo > &	staList,
		Time	txDuration,
		const WifiTxVector &	txVector
	)

private

Update credits of the stations in the given list considering that a PPDU having the given duration is being transmitted or solicited by using the given TXVECTOR.

Parameters

staList	the list of stations
txDuration	the TX duration of the PPDU being transmitted or solicited
txVector	the TXVECTOR for the PPDU being transmitted or solicited

Definition at line 823 of file rr-multi-user-scheduler.cc.

References ns3::Time::As(), ns3::RrMultiUserScheduler::MasterInfo::credits, ns3::WifiTxVector::GetHeMuUserInfoMap(), min, NS_ASSERT, NS_LOG_FUNCTION, and ns3::Time::ToDouble().

Referenced by TrySendingBasicTf().

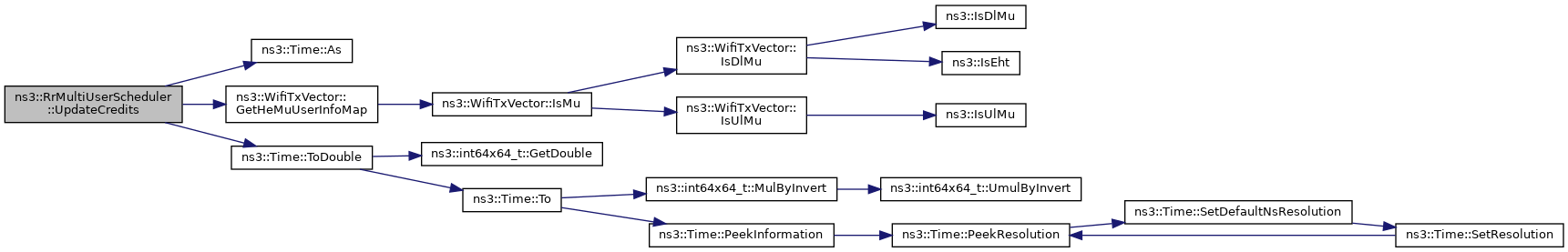

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

◆ m_candidates

std::list<CandidateInfo> ns3::RrMultiUserScheduler::m_candidates

private

Candidate stations for MU TX.

Definition at line 168 of file rr-multi-user-scheduler.h.

Referenced by DoDispose(), GetTxVectorForUlMu(), and TrySendingDlMuPpdu().

◆ m_enableBsrp

bool ns3::RrMultiUserScheduler::m_enableBsrp

private

send a BSRP before an UL MU transmission

Definition at line 162 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId(), and SelectTxFormat().

◆ m_enableTxopSharing

bool ns3::RrMultiUserScheduler::m_enableTxopSharing

private

allow A-MPDUs of different TIDs in a DL MU PPDU

Definition at line 159 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId(), and TrySendingDlMuPpdu().

◆ m_enableUlOfdma

bool ns3::RrMultiUserScheduler::m_enableUlOfdma

private

enable the scheduler to also return UL_OFDMA

Definition at line 161 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId(), and SelectTxFormat().

◆ m_forceDlOfdma

bool ns3::RrMultiUserScheduler::m_forceDlOfdma

private

return DL_OFDMA even if no DL MU PPDU was built

Definition at line 160 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId().

◆ m_maxCredits

Time ns3::RrMultiUserScheduler::m_maxCredits

private

Max amount of credits a station can have.

Definition at line 169 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId().

◆ m_nStations

uint8_t ns3::RrMultiUserScheduler::m_nStations

private

Number of stations/slots to fill.

Definition at line 158 of file rr-multi-user-scheduler.h.

Referenced by GetTxVectorForUlMu(), GetTypeId(), and TrySendingDlMuPpdu().

◆ m_staListDl

std::map<AcIndex, std::list<MasterInfo> > ns3::RrMultiUserScheduler::m_staListDl

private

Per-AC list of stations (next to serve for DL first)

Definition at line 166 of file rr-multi-user-scheduler.h.

Referenced by DoDispose(), DoInitialize(), NotifyStationAssociated(), NotifyStationDeassociated(), and TrySendingDlMuPpdu().

◆ m_staListUl

std::list<MasterInfo> ns3::RrMultiUserScheduler::m_staListUl

private

List of stations to serve for UL.

Definition at line 167 of file rr-multi-user-scheduler.h.

Referenced by DoDispose(), GetTxVectorForUlMu(), NotifyStationAssociated(), NotifyStationDeassociated(), TrySendingBasicTf(), and TrySendingBsrpTf().

◆ m_trigger

CtrlTriggerHeader ns3::RrMultiUserScheduler::m_trigger

private

Trigger Frame to send.

Definition at line 170 of file rr-multi-user-scheduler.h.

Referenced by SelectTxFormat(), TrySendingBasicTf(), and TrySendingBsrpTf().

◆ m_triggerMacHdr

WifiMacHeader ns3::RrMultiUserScheduler::m_triggerMacHdr

private

MAC header for Trigger Frame.

Definition at line 171 of file rr-multi-user-scheduler.h.

Referenced by TrySendingBasicTf(), and TrySendingBsrpTf().

◆ m_txParams

WifiTxParameters ns3::RrMultiUserScheduler::m_txParams

private

TX parameters.

Definition at line 172 of file rr-multi-user-scheduler.h.

Referenced by DoDispose(), TrySendingBasicTf(), TrySendingBsrpTf(), and TrySendingDlMuPpdu().

◆ m_ulPsduSize

uint32_t ns3::RrMultiUserScheduler::m_ulPsduSize

private

the size in byte of the solicited PSDU

Definition at line 164 of file rr-multi-user-scheduler.h.

Referenced by GetTypeId(), and TrySendingBasicTf().

◆ m_useCentral26TonesRus

bool ns3::RrMultiUserScheduler::m_useCentral26TonesRus

private

whether to allocate central 26-tone RUs

Definition at line 163 of file rr-multi-user-scheduler.h.

Referenced by GetTxVectorForUlMu(), GetTypeId(), and TrySendingDlMuPpdu().

The documentation for this class was generated from the following files:

src/wifi/model/he/rr-multi-user-scheduler.h
src/wifi/model/he/rr-multi-user-scheduler.cc

Classes

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ CandidateInfo

Constructor & Destructor Documentation

◆ RrMultiUserScheduler()

◆ ~RrMultiUserScheduler()

Member Function Documentation

◆ ComputeDlMuInfo()

◆ ComputeUlMuInfo()

◆ DoDispose()

◆ DoInitialize()

◆ FinalizeTxVector()

◆ GetTxVectorForUlMu()

◆ GetTypeId()

◆ NotifyStationAssociated()

◆ NotifyStationDeassociated()

◆ SelectTxFormat()

◆ TrySendingBasicTf()

◆ TrySendingBsrpTf()

◆ TrySendingDlMuPpdu()

◆ UpdateCredits()

Member Data Documentation

◆ m_candidates

◆ m_enableBsrp

◆ m_enableTxopSharing

◆ m_enableUlOfdma

◆ m_forceDlOfdma

◆ m_maxCredits

◆ m_nStations

◆ m_staListDl

◆ m_staListUl

◆ m_trigger

◆ m_triggerMacHdr

◆ m_txParams

◆ m_ulPsduSize

◆ m_useCentral26TonesRus
