TestMultiUserScheduler Class Reference
Wifi Models » wifi module tests | Test suites

Dummy Multi User Scheduler used to test OFDMA ack sequences. More...

+ Inheritance diagram for TestMultiUserScheduler:

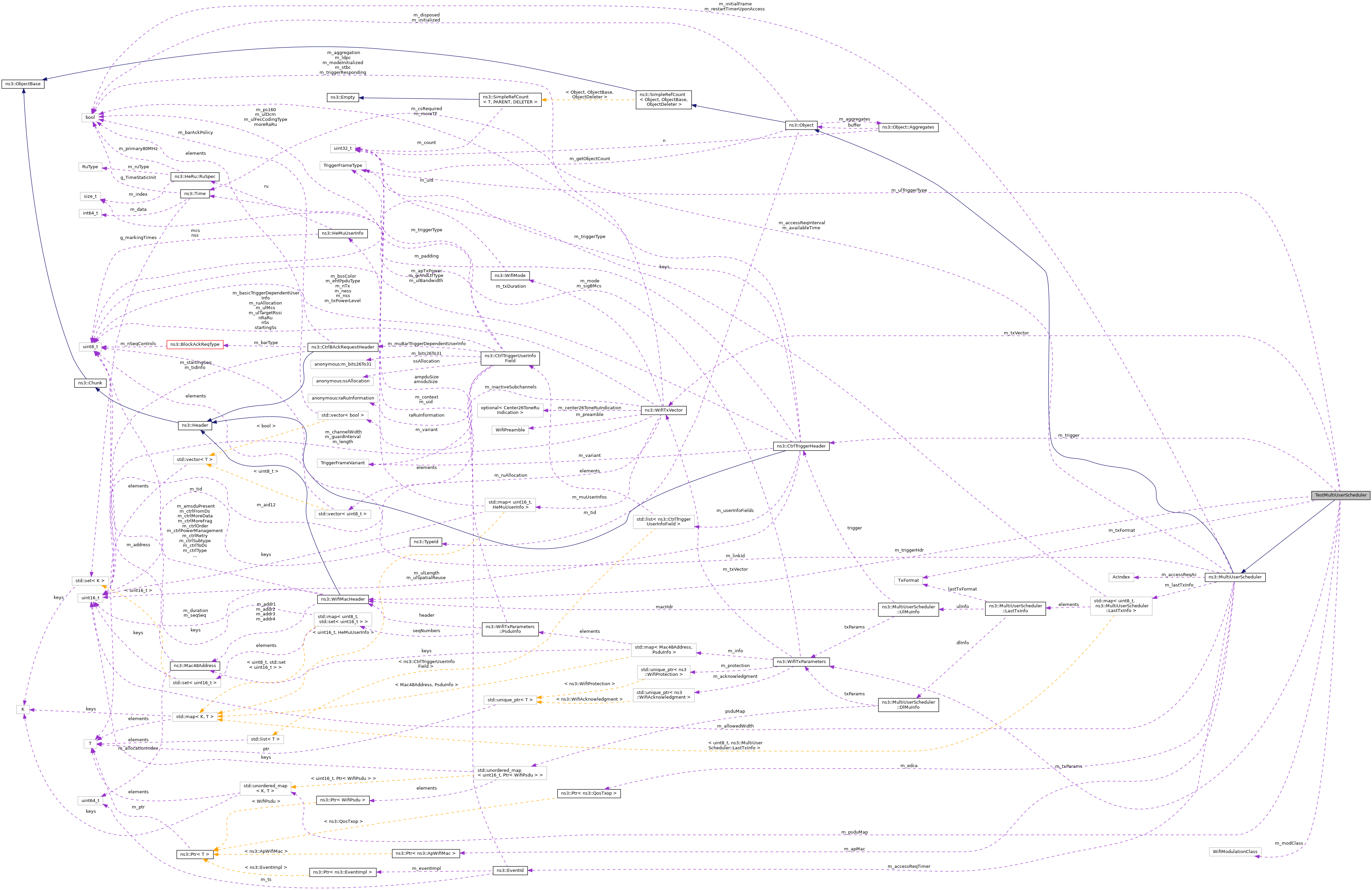

+ Collaboration diagram for TestMultiUserScheduler:

Public Member Functions

 TestMultiUserScheduler ()

 ~TestMultiUserScheduler () override

- Public Member Functions inherited from ns3::MultiUserScheduler
 MultiUserScheduler ()

 ~MultiUserScheduler () override

DlMuInfo & GetDlMuInfo (uint8_t linkId)
 Get the information required to perform a DL MU transmission on the given link. More...

UlMuInfo & GetUlMuInfo (uint8_t linkId)
 Get the information required to solicit an UL MU transmission on the given link. More...

TxFormat NotifyAccessGranted (Ptr< QosTxop > edca, Time availableTime, bool initialFrame, uint16_t allowedWidth, uint8_t linkId)
 Notify the Multi-user Scheduler that the given AC of the AP gained channel access. More...

void SetAccessReqInterval (Time interval)
 Set the duration of the interval between two consecutive requests for channel access made by the MultiUserScheduler. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

 ~Object () override
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose ()
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator () const
 Get an iterator to the Objects aggregated to this one. More...

TypeId GetInstanceTypeId () const override
 Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T > GetObject () const
 Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object > GetObject () const
 Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object > GetObject (TypeId tid) const
 Specialization of (TypeId tid) for objects of type ns3::Object. More...

void Initialize ()
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized () const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Default constructor. More...

 SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
 Copy constructor. More...

uint32_t GetReferenceCount () const
 Get the reference count of the object. More...

SimpleRefCount & operator= (const SimpleRefCount &o[[maybe_unused]])
 Assignment operator. More...

void Ref () const
 Increment the reference count. More...

void Unref () const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising errors. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::MultiUserScheduler
static TypeId GetTypeId ()
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId ()
 Register this type. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId ()
 Get the type ID. More...


Private Member Functions

DlMuInfo ComputeDlMuInfo () override
 Compute the information required to perform a DL MU transmission. More...

UlMuInfo ComputeUlMuInfo () override
 Prepare the information required to solicit an UL MU transmission. More...

void ComputeWifiTxVector ()
 Compute the TX vector to use for MU PPDUs. More...

TxFormat SelectTxFormat () override
 Select the format of the next transmission. More...


Private Attributes

WifiModulationClass m_modClass
 modulation class for DL MU PPDUs and TB PPDUs More...

WifiPsduMap m_psduMap
 the DL MU PPDU to transmit More...

CtrlTriggerHeader m_trigger
 Trigger Frame to send. More...

WifiMacHeader m_triggerHdr
 MAC header for Trigger Frame. More...

TxFormat m_txFormat
 the format of next transmission More...

WifiTxParameters m_txParams
 TX parameters. More...

WifiTxVector m_txVector
 the TX vector for MU PPDUs More...

TriggerFrameType m_ulTriggerType
 Trigger Frame type for UL MU. More...


Additional Inherited Members

- Public Types inherited from ns3::MultiUserScheduler
enum  TxFormat { NO_TX = 0 , SU_TX , DL_MU_TX , UL_MU_TX }
 Enumeration of the possible transmission formats. More...

- Protected Member Functions inherited from ns3::MultiUserScheduler
void DoDispose () override
 Destructor implementation. More...

void DoInitialize () override
 Initialize() implementation. More...

Ptr< HeFrameExchangeManager > GetHeFem (uint8_t linkId) const
 Get the HE Frame Exchange Manager attached to the AP on the given link. More...

TxFormat GetLastTxFormat (uint8_t linkId)
 Get the format of the last transmission on the given link, as determined by the last call to NotifyAccessGranted that did not return NO_TX. More...

uint32_t GetMaxSizeOfQosNullAmpdu (const CtrlTriggerHeader &trigger) const
 Get the maximum size in bytes among the A-MPDUs containing QoS Null frames and solicited by the given (BSRP) Trigger Frame. More...

Ptr< WifiMpdu > GetTriggerFrame (const CtrlTriggerHeader &trigger, uint8_t linkId) const
 Get an MPDU containing the given Trigger Frame. More...

Ptr< WifiRemoteStationManager > GetWifiRemoteStationManager (uint8_t linkId) const
 Get the station manager attached to the AP on the given link. More...

void NotifyNewAggregate () override
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted ()
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::MultiUserScheduler
uint16_t m_allowedWidth
 the allowed width in MHz for the current transmission More...

Ptr< ApWifiMac > m_apMac
 the AP wifi MAC More...

Time m_availableTime
 the time available for frame exchange More...

Ptr< QosTxop > m_edca
 the AC that gained channel access More...

bool m_initialFrame
 true if a TXOP is being started More...

uint8_t m_linkId
 the ID of the link over which channel access has been granted More...

- Related Functions inherited from ns3::ObjectBase
static TypeId GetObjectIid ()
 Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...


Detailed Description

Dummy Multi User Scheduler used to test OFDMA ack sequences.

This Multi User Scheduler returns SU_TX until the simulation time reaches 1.5 seconds (when all BA agreements have been established). Afterwards, it cycles through UL_MU_TX (with a BSRP Trigger Frame), UL_MU_TX (with a Basic Trigger Frame) and DL_MU_TX. This scheduler requires that 4 stations are associated with the AP.

Definition at line 61 of file wifi-mac-ofdma-test.cc.

Constructor & Destructor Documentation

◆ TestMultiUserScheduler()

TestMultiUserScheduler::TestMultiUserScheduler ( )

Definition at line 112 of file wifi-mac-ofdma-test.cc.

References ns3::BSRP_TRIGGER, and NS_LOG_FUNCTION.

◆ ~TestMultiUserScheduler()

TestMultiUserScheduler::~TestMultiUserScheduler ( )
override

Definition at line 119 of file wifi-mac-ofdma-test.cc.

References NS_LOG_FUNCTION_NOARGS.

Member Function Documentation

◆ ComputeDlMuInfo()

MultiUserScheduler::DlMuInfo TestMultiUserScheduler::ComputeDlMuInfo ( )
overrideprivatevirtual

Compute the information required to perform a DL MU transmission.

Returns
the information required to perform a DL MU transmission

Implements ns3::MultiUserScheduler.

Definition at line 355 of file wifi-mac-ofdma-test.cc.

References m_psduMap, m_txParams, and NS_LOG_FUNCTION.

◆ ComputeUlMuInfo()

MultiUserScheduler::UlMuInfo TestMultiUserScheduler::ComputeUlMuInfo ( )
overrideprivatevirtual

Prepare the information required to solicit an UL MU transmission.

Returns
the information required to solicit an UL MU transmission

Implements ns3::MultiUserScheduler.

Definition at line 362 of file wifi-mac-ofdma-test.cc.

References m_trigger, m_triggerHdr, m_txParams, and NS_LOG_FUNCTION.

◆ ComputeWifiTxVector()

void TestMultiUserScheduler::ComputeWifiTxVector ( )
private

Compute the TX vector to use for MU PPDUs.

Definition at line 287 of file wifi-mac-ofdma-test.cc.

References ns3::WifiPhy::GetChannelWidth(), ns3::WifiMac::GetHeConfiguration(), ns3::WifiMac::GetHeSupported(), ns3::WifiTxVector::GetPreambleType(), ns3::ApWifiMac::GetStaList(), ns3::WifiMac::GetWifiPhy(), ns3::MultiUserScheduler::GetWifiRemoteStationManager(), ns3::WifiTxVector::IsDlMu(), ns3::IsEht(), ns3::MultiUserScheduler::m_apMac, m_modClass, m_txVector, NS_ABORT_MSG, NS_ABORT_MSG_IF, ns3::WifiTxVector::SetChannelWidth(), ns3::WifiTxVector::SetEhtPpduType(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetHeMuUserInfo(), ns3::WifiTxVector::SetPreambleType(), ns3::WifiTxVector::SetRuAllocation(), ns3::WifiTxVector::SetTxPowerLevel(), ns3::SINGLE_LINK_OP_ID, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PREAMBLE_EHT_MU, and ns3::WIFI_PREAMBLE_HE_MU.

Referenced by SelectTxFormat().

+ Here is the call graph for this function:
+ Here is the caller graph for this function:

◆ GetTypeId()

TypeId TestMultiUserScheduler::GetTypeId ( void  )
static

Get the type ID.

Returns
the object TypeId

Definition at line 96 of file wifi-mac-ofdma-test.cc.

References m_modClass, ns3::MakeEnumChecker(), ns3::TypeId::SetParent(), ns3::WIFI_MOD_CLASS_EHT, and ns3::WIFI_MOD_CLASS_HE.

+ Here is the call graph for this function:

◆ SelectTxFormat()

MultiUserScheduler::TxFormat TestMultiUserScheduler::SelectTxFormat ( )
overrideprivatevirtual

Select the format of the next transmission.

Returns
the format of the next transmission

Implements ns3::MultiUserScheduler.

Definition at line 125 of file wifi-mac-ofdma-test.cc.

References ns3::Packet::AddHeader(), ns3::CtrlTriggerHeader::begin(), ns3::WifiTxParameters::Clear(), ComputeWifiTxVector(), ns3::MultiUserScheduler::DL_MU_TX, ns3::WifiMacHeader::GetAddr1(), ns3::WifiMac::GetAddress(), ns3::CtrlTriggerHeader::GetGuardInterval(), ns3::MultiUserScheduler::GetHeFem(), ns3::WifiMac::GetHeSupported(), ns3::CtrlTriggerHeader::GetHeTbTxVector(), ns3::MultiUserScheduler::GetMaxSizeOfQosNullAmpdu(), ns3::QosTxop::GetNextMpdu(), ns3::WifiPhy::GetPhyBand(), ns3::WifiMac::GetQosTxop(), ns3::WifiPhy::GetSifs(), ns3::ApWifiMac::GetStaList(), ns3::WifiMac::GetWifiPhy(), ns3::WifiMac::GetWifiRemoteStationManager(), ns3::WifiTxParameters::m_acknowledgment, ns3::MultiUserScheduler::m_allowedWidth, ns3::MultiUserScheduler::m_apMac, ns3::MultiUserScheduler::m_availableTime, ns3::MultiUserScheduler::m_initialFrame, m_modClass, ns3::WifiTxParameters::m_protection, m_psduMap, m_trigger, m_triggerHdr, ns3::WifiTxParameters::m_txDuration, m_txFormat, m_txParams, ns3::WifiTxParameters::m_txVector, m_txVector, m_ulTriggerType, Min, ns3::Now(), NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::QosTxop::PeekNextMpdu(), ns3::Seconds(), ns3::WifiMacHeader::SetAddr1(), ns3::WifiMacHeader::SetAddr2(), ns3::WifiMacHeader::SetDsNotFrom(), ns3::WifiMacHeader::SetDsNotTo(), ns3::WifiTxVector::SetGuardInterval(), ns3::WifiTxVector::SetPreambleType(), ns3::CtrlTriggerHeader::SetUlLength(), ns3::SINGLE_LINK_OP_ID, ns3::MultiUserScheduler::SU_TX, ns3::MultiUserScheduler::UL_MU_TX, ns3::WIFI_MAC_CTL_TRIGGER, ns3::WIFI_MOD_CLASS_HE, ns3::WIFI_PREAMBLE_EHT_TB, and ns3::WIFI_PREAMBLE_HE_TB.

+ Here is the call graph for this function:

Member Data Documentation

◆ m_modClass

WifiModulationClass TestMultiUserScheduler::m_modClass
private

modulation class for DL MU PPDUs and TB PPDUs

Definition at line 90 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeWifiTxVector(), GetTypeId(), and SelectTxFormat().

◆ m_psduMap

WifiPsduMap TestMultiUserScheduler::m_psduMap
private

the DL MU PPDU to transmit

Definition at line 89 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeDlMuInfo(), and SelectTxFormat().

◆ m_trigger

CtrlTriggerHeader TestMultiUserScheduler::m_trigger
private

Trigger Frame to send.

Definition at line 85 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeUlMuInfo(), and SelectTxFormat().

◆ m_triggerHdr

WifiMacHeader TestMultiUserScheduler::m_triggerHdr
private

MAC header for Trigger Frame.

Definition at line 86 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeUlMuInfo(), and SelectTxFormat().

◆ m_txFormat

TxFormat TestMultiUserScheduler::m_txFormat
private

the format of next transmission

Definition at line 83 of file wifi-mac-ofdma-test.cc.

Referenced by SelectTxFormat().

◆ m_txParams

WifiTxParameters TestMultiUserScheduler::m_txParams
private

TX parameters.

Definition at line 88 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeDlMuInfo(), ComputeUlMuInfo(), and SelectTxFormat().

◆ m_txVector

WifiTxVector TestMultiUserScheduler::m_txVector
private

the TX vector for MU PPDUs

Definition at line 87 of file wifi-mac-ofdma-test.cc.

Referenced by ComputeWifiTxVector(), and SelectTxFormat().

◆ m_ulTriggerType

TriggerFrameType TestMultiUserScheduler::m_ulTriggerType
private

Trigger Frame type for UL MU.

Definition at line 84 of file wifi-mac-ofdma-test.cc.

Referenced by SelectTxFormat().

The documentation for this class was generated from the following file:
