802.11 PHY layer model More...

#include "yans-wifi-phy.h"

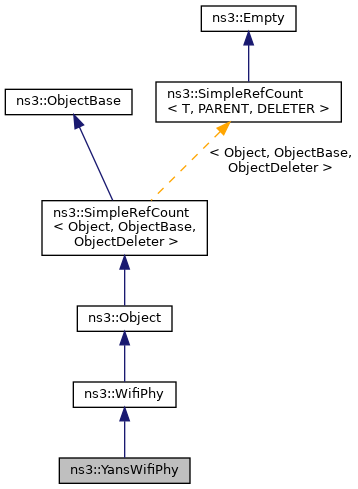

Inheritance diagram for ns3::YansWifiPhy:

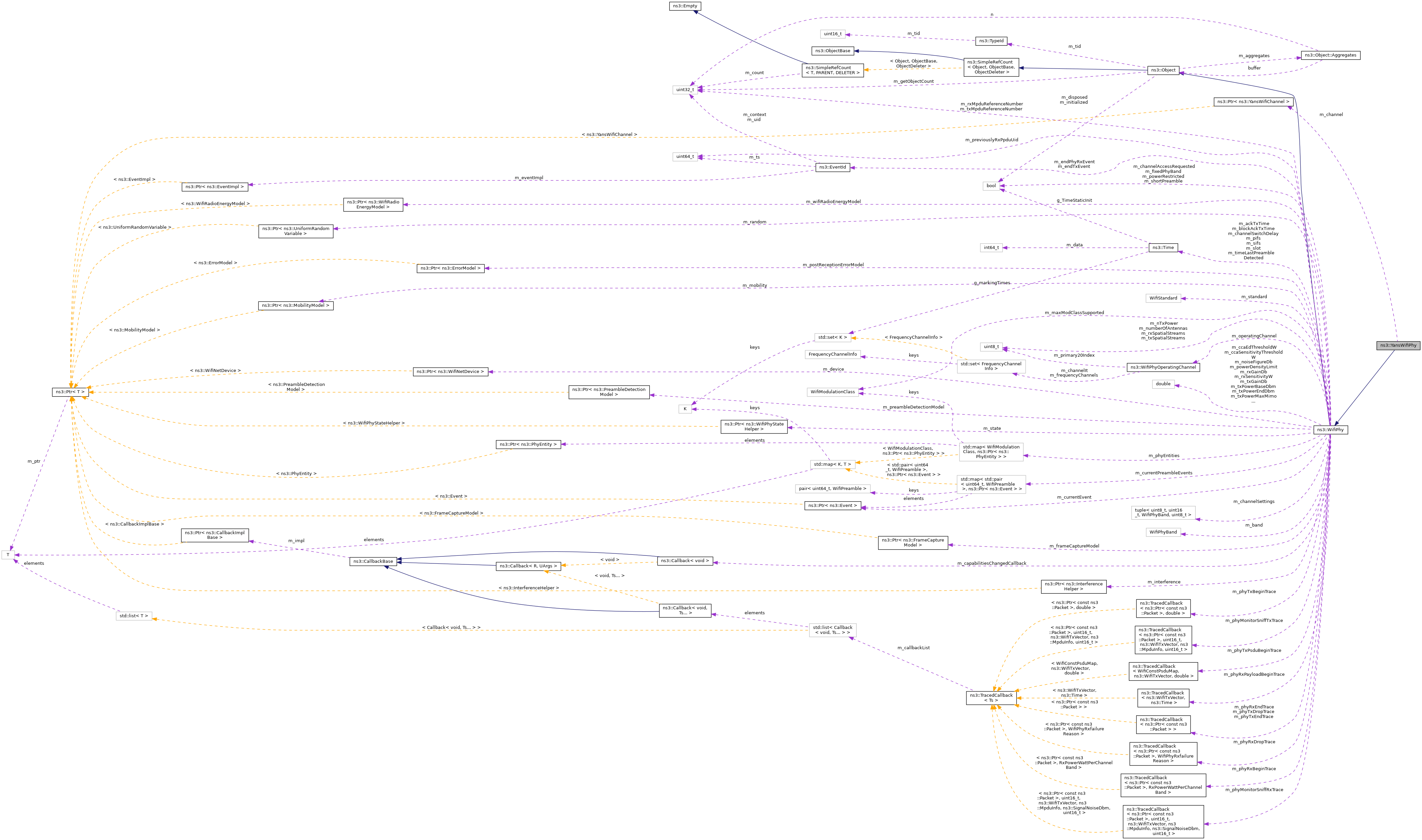

Collaboration diagram for ns3::YansWifiPhy:

Public Member Functions
	YansWifiPhy ()

	~YansWifiPhy () override

WifiSpectrumBandFrequencies	ConvertIndicesToFrequencies (const WifiSpectrumBandIndices &indices) const override
	This is a helper function to convert start and stop indices to start and stop frequencies. More...

WifiSpectrumBandInfo	GetBand (uint16_t bandWidth, uint8_t bandIndex=0) override
	Get the info of a given band. More...

Ptr< Channel >	GetChannel () const override
	Return the Channel this WifiPhy is connected to. More...

FrequencyRange	GetCurrentFrequencyRange () const override
	Get the frequency range of the current RF interface. More...

uint16_t	GetGuardBandwidth (uint16_t currentChannelWidth) const override

std::tuple< double, double, double >	GetTxMaskRejectionParams () const override

void	SetChannel (const Ptr< YansWifiChannel > channel)
	Set the YansWifiChannel this YansWifiPhy is to be connected to. More...

void	SetInterferenceHelper (const Ptr< InterferenceHelper > helper) override
	Sets the interference helper. More...

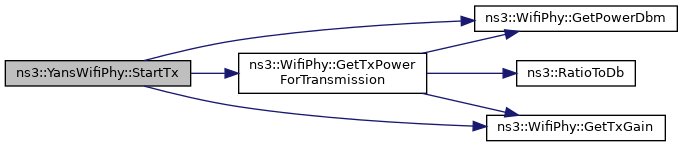

void	StartTx (Ptr< const WifiPpdu > ppdu) override

Public Member Functions inherited from ns3::WifiPhy
	WifiPhy ()

	~WifiPhy () override

virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	CalculateSnr (const WifiTxVector &txVector, double ber) const

virtual void	ConfigureStandard (WifiStandard standard)
	Configure the PHY-level parameters for different Wi-Fi standard. More...

void	EndReceiveInterBss ()
	For HE receptions only, check and possibly modify the transmit power restriction state at the end of PPDU reception. More...

Time	GetAckTxTime () const
	Return the estimated Ack TX time for this PHY. More...

Time	GetBlockAckTxTime () const
	Return the estimated BlockAck TX time for this PHY. More...

std::list< uint8_t >	GetBssMembershipSelectorList () const
	The WifiPhy::BssMembershipSelector() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception modes that this WifiPhy(-derived class) can support - a set of WifiMode objects which we call the BssMembershipSelectorSet, and which is stored inside HT PHY (and above) instances. More...

double	GetCcaEdThreshold () const
	Return the CCA energy detection threshold (dBm). More...

double	GetCcaSensitivityThreshold () const
	Return the CCA sensitivity threshold (dBm). More...

uint8_t	GetChannelNumber () const
	Return current channel number. More...

Time	GetChannelSwitchDelay () const

uint16_t	GetChannelWidth () const

WifiMode	GetDefaultMode () const
	Get the default WifiMode supported by the PHY. More...

Time	GetDelayUntilIdle ()

Ptr< WifiNetDevice >	GetDevice () const
	Return the device this PHY is associated with. More...

uint16_t	GetFrequency () const

Time	GetLastRxEndTime () const
	Return the end time of the last received packet. More...

Time	GetLastRxStartTime () const
	Return the start time of the last received packet. More...

Ptr< PhyEntity >	GetLatestPhyEntity () const
	Get the latest PHY entity supported by this PHY instance. More...

WifiModulationClass	GetMaxModulationClassSupported () const

uint8_t	GetMaxSupportedRxSpatialStreams () const

uint8_t	GetMaxSupportedTxSpatialStreams () const

WifiMode	GetMcs (WifiModulationClass modulation, uint8_t mcs) const
	Get the WifiMode object corresponding to the given MCS of the given modulation class. More...

std::list< WifiMode >	GetMcsList () const
	The WifiPhy::GetMcsList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception MCS indices that this WifiPhy(-derived class) can support - a set of MCS indices which is stored by each HT PHY (and above). More...

std::list< WifiMode >	GetMcsList (WifiModulationClass modulation) const
	Get the list of supported MCSs for the given modulation class (i.e. More...

Ptr< MobilityModel >	GetMobility () const
	Return the mobility model this PHY is associated with. More...

std::list< WifiMode >	GetModeList () const
	The WifiPhy::GetModeList() method is used (e.g., by a WifiRemoteStationManager) to determine the set of transmission/reception (non-MCS) modes that this WifiPhy(-derived class) can support - a set of modes which is stored by each non-HT PHY. More...

std::list< WifiMode >	GetModeList (WifiModulationClass modulation) const
	Get the list of supported (non-MCS) modes for the given modulation class (i.e. More...

uint16_t	GetNMcs () const

uint8_t	GetNTxPower () const
	Return the number of available transmission power levels. More...

uint8_t	GetNumberOfAntennas () const

const WifiPhyOperatingChannel &	GetOperatingChannel () const
	Get a const reference to the operating channel. More...

WifiPhyBand	GetPhyBand () const
	Get the configured Wi-Fi band. More...

Ptr< PhyEntity >	GetPhyEntity (WifiModulationClass modulation) const
	Get the supported PHY entity corresponding to the modulation class. More...

Ptr< PhyEntity >	GetPhyEntity (WifiStandard standard) const
	Get the supported PHY entity corresponding to the wifi standard. More...

Ptr< PhyEntity >	GetPhyEntityForPpdu (const Ptr< const WifiPpdu > ppdu) const
	Get the supported PHY entity to use for a received PPDU. More...

Time	GetPifs () const
	Return the PCF Interframe Space (PIFS) for this PHY. More...

double	GetPowerDbm (uint8_t power) const
	Get the power of the given power level in dBm. More...

uint64_t	GetPreviouslyRxPpduUid () const

uint8_t	GetPrimary20Index () const

uint8_t	GetPrimaryChannelNumber (uint16_t primaryChannelWidth) const
	Get channel number of the primary channel. More...

double	GetRxGain () const
	Return the reception gain (dB). More...

double	GetRxSensitivity () const
	Return the receive sensitivity threshold (dBm). More...

bool	GetShortPhyPreambleSupported () const
	Return whether short PHY preamble is supported. More...

Time	GetSifs () const
	Return the Short Interframe Space (SIFS) for this PHY. More...

Time	GetSlot () const
	Return the slot duration for this PHY. More...

WifiStandard	GetStandard () const
	Get the configured Wi-Fi standard. More...

Ptr< WifiPhyStateHelper >	GetState () const
	Return the WifiPhyStateHelper of this PHY. More...

uint32_t	GetSubcarrierSpacing () const

uint16_t	GetTxBandwidth (WifiMode mode, uint16_t maxAllowedBandWidth=std::numeric_limits< uint16_t >::max()) const
	Get the bandwidth for a transmission occurring on the current operating channel and using the given WifiMode, subject to the constraint that the TX bandwidth cannot exceed the given maximum allowed value. More...

double	GetTxGain () const
	Return the transmission gain (dB). More...

double	GetTxPowerEnd () const
	Return the maximum available transmission power level (dBm). More...

double	GetTxPowerForTransmission (Ptr< const WifiPpdu > ppdu) const
	Compute the transmit power for the next transmission. More...

double	GetTxPowerStart () const
	Return the minimum available transmission power level (dBm). More...

bool	HasFixedPhyBand () const

bool	IsMcsSupported (WifiModulationClass modulation, uint8_t mcs) const
	Check if the given MCS of the given modulation class is supported by the PHY. More...

bool	IsModeSupported (WifiMode mode) const
	Check if the given WifiMode is supported by the PHY. More...

bool	IsReceivingPhyHeader () const

bool	IsStateCcaBusy () const

bool	IsStateIdle () const

bool	IsStateOff () const

bool	IsStateRx () const

bool	IsStateSleep () const

bool	IsStateSwitching () const

bool	IsStateTx () const

void	NotifyChannelAccessRequested ()
	Notify the PHY that an access to the channel was requested. More...

void	NotifyMonitorSniffRx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, SignalNoiseDbm signalNoise, std::vector< bool > statusPerMpdu, uint16_t staId=SU_STA_ID)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being received. More...

void	NotifyMonitorSniffTx (Ptr< const WifiPsdu > psdu, uint16_t channelFreqMhz, WifiTxVector txVector, uint16_t staId=SU_STA_ID)
	Public method used to fire a MonitorSniffer trace for a wifi PSDU being transmitted. More...

void	NotifyRxBegin (Ptr< const WifiPsdu > psdu, const RxPowerWattPerChannelBand &rxPowersW)
	Public method used to fire a PhyRxBegin trace. More...

void	NotifyRxDrop (Ptr< const WifiPsdu > psdu, WifiPhyRxfailureReason reason)
	Public method used to fire a PhyRxDrop trace. More...

void	NotifyRxEnd (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyRxEnd trace. More...

void	NotifyTxBegin (WifiConstPsduMap psdus, double txPowerW)
	Public method used to fire a PhyTxBegin trace. More...

void	NotifyTxDrop (Ptr< const WifiPsdu > psdu)
	Public method used to fire a PhyTxDrop trace. More...

void	NotifyTxEnd (WifiConstPsduMap psdus)
	Public method used to fire a PhyTxEnd trace. More...

void	RegisterListener (const std::shared_ptr< WifiPhyListener > &listener)

void	ResetCca (bool powerRestricted, double txPowerMaxSiso=0, double txPowerMaxMimo=0)
	Reset PHY to IDLE, with some potential TX power restrictions for the next transmission. More...

void	ResumeFromOff ()
	Resume from off mode. More...

void	ResumeFromSleep ()
	Resume from sleep mode. More...

void	Send (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	This function is a wrapper for the Send variant that accepts a WifiConstPsduMap as first argument. More...

void	Send (WifiConstPsduMap psdus, const WifiTxVector &txVector)

void	SetCapabilitiesChangedCallback (Callback< void > callback)

void	SetCcaEdThreshold (double threshold)
	Sets the CCA energy detection threshold (dBm). More...

void	SetCcaSensitivityThreshold (double threshold)
	Sets the CCA sensitivity threshold (dBm). More...

virtual void	SetDevice (const Ptr< WifiNetDevice > device)
	Sets the device this PHY is associated with. More...

void	SetErrorRateModel (const Ptr< ErrorRateModel > model)
	Sets the error rate model. More...

void	SetFixedPhyBand (bool enable)
	Configure whether it is prohibited to change PHY band after initialization. More...

void	SetFrameCaptureModel (const Ptr< FrameCaptureModel > frameCaptureModel)
	Sets the frame capture model. More...

void	SetMaxModulationClassSupported (WifiModulationClass modClass)
	Set the maximum modulation class that has to be supported by this PHY object. More...

void	SetMaxSupportedRxSpatialStreams (uint8_t streams)

void	SetMaxSupportedTxSpatialStreams (uint8_t streams)

void	SetMobility (const Ptr< MobilityModel > mobility)
	assign a mobility model to this device More...

void	SetNTxPower (uint8_t n)
	Sets the number of transmission power levels available between the minimum level and the maximum level. More...

void	SetNumberOfAntennas (uint8_t antennas)

void	SetOffMode ()
	Put in off mode. More...

void	SetOperatingChannel (const ChannelTuple &channelTuple)
	If the standard for this object has not been set yet, store the given channel settings. More...

void	SetOperatingChannel (const WifiPhyOperatingChannel &channel)
	If the standard for this object has not been set yet, store the channel settings corresponding to the given operating channel. More...

void	SetPifs (Time pifs)
	Set the PCF Interframe Space (PIFS) for this PHY. More...

void	SetPostReceptionErrorModel (const Ptr< ErrorModel > em)
	Attach a receive ErrorModel to the WifiPhy. More...

void	SetPreambleDetectionModel (const Ptr< PreambleDetectionModel > preambleDetectionModel)
	Sets the preamble detection model. More...

void	SetPreviouslyRxPpduUid (uint64_t uid)
	Set the UID of the previously received PPDU. More...

void	SetReceiveErrorCallback (RxErrorCallback callback)

void	SetReceiveOkCallback (RxOkCallback callback)

void	SetRxGain (double gain)
	Sets the reception gain (dB). More...

void	SetRxNoiseFigure (double noiseFigureDb)
	Sets the RX loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

void	SetRxSensitivity (double threshold)
	Sets the receive sensitivity threshold (dBm). More...

void	SetShortPhyPreambleSupported (bool preamble)
	Enable or disable short PHY preamble. More...

void	SetSifs (Time sifs)
	Set the Short Interframe Space (SIFS) for this PHY. More...

void	SetSleepMode ()
	Put in sleep mode. More...

void	SetSlot (Time slot)
	Set the slot duration for this PHY. More...

void	SetTxGain (double gain)
	Sets the transmission gain (dB). More...

void	SetTxPowerEnd (double end)
	Sets the maximum available transmission power level (dBm). More...

void	SetTxPowerStart (double start)
	Sets the minimum available transmission power level (dBm). More...

void	SetWifiRadioEnergyModel (const Ptr< WifiRadioEnergyModel > wifiRadioEnergyModel)
	Sets the wifi radio energy model. More...

void	StartReceivePreamble (Ptr< const WifiPpdu > ppdu, RxPowerWattPerChannelBand &rxPowersW, Time rxDuration)
	Start receiving the PHY preamble of a PPDU (i.e. More...

void	UnregisterListener (const std::shared_ptr< WifiPhyListener > &listener)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::WifiPhy
static void	AddStaticPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
	Add the PHY entity to the map of implemented PHY entities for the given modulation class. More...

static Time	CalculatePhyPreambleAndHeaderDuration (const WifiTxVector &txVector)

static Time	CalculateTxDuration (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector, WifiPhyBand band)
	This function is a wrapper for the CalculateTxDuration variant that accepts a WifiConstPsduMap as first argument. More...

static Time	CalculateTxDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, uint16_t staId=SU_STA_ID)

static Time	CalculateTxDuration (WifiConstPsduMap psduMap, const WifiTxVector &txVector, WifiPhyBand band)

static uint32_t	GetMaxPsduSize (WifiModulationClass modulation)
	Get the maximum PSDU size in bytes for the given modulation class. More...

static Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype, bool incFlag, uint32_t &totalAmpduSize, double &totalAmpduNumSymbols, uint16_t staId)

static Time	GetPayloadDuration (uint32_t size, const WifiTxVector &txVector, WifiPhyBand band, MpduType mpdutype=NORMAL_MPDU, uint16_t staId=SU_STA_ID)

static Time	GetPreambleDetectionDuration ()

static Time	GetStartOfPacketDuration (const WifiTxVector &txVector)

static const Ptr< const PhyEntity >	GetStaticPhyEntity (WifiModulationClass modulation)
	Get the implemented PHY entity corresponding to the modulation class. More...

static TypeId	GetTypeId ()
	Get the type ID. More...

static WifiConstPsduMap	GetWifiConstPsduMap (Ptr< const WifiPsdu > psdu, const WifiTxVector &txVector)
	Get a WifiConstPsduMap from a PSDU and the TXVECTOR to use to send the PSDU. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Protected Member Functions
void	DoDispose () override
	Destructor implementation. More...

Protected Member Functions inherited from ns3::WifiPhy
void	AddPhyEntity (WifiModulationClass modulation, Ptr< PhyEntity > phyEntity)
	Add the PHY entity to the map of supported PHY entities for the given modulation class for the WifiPhy instance. More...

virtual void	DoChannelSwitch ()
	Actually switch channel based on the stored channel settings. More...

void	DoInitialize () override
	Initialize() implementation. More...

std::optional< Time >	GetDelayUntilChannelSwitch ()
	Perform any actions necessary when user changes operating channel after initialization. More...

void	NotifyCcaBusy (const Ptr< const WifiPpdu > ppdu, Time duration)
	Notify PHY state helper to switch to CCA busy state,. More...

void	Reset ()
	Reset data upon end of TX or RX. More...

void	SwitchMaybeToCcaBusy (const Ptr< const WifiPpdu > ppdu=nullptr)
	Check if PHY state should move to CCA busy state based on current state of interference tracker. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Private Attributes
Ptr< YansWifiChannel >	m_channel
	YansWifiChannel that this YansWifiPhy is connected to. More...

Additional Inherited Members
Public Types inherited from ns3::WifiPhy
using	ChannelTuple = std::tuple< uint8_t, uint16_t, WifiPhyBand, uint8_t >
	Tuple identifying an operating channel. More...

typedef void(*	MonitorSnifferRxCallback) (Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, SignalNoiseDbm signalNoise, uint16_t staId)
	TracedCallback signature for monitor mode receive events. More...

typedef void(*	MonitorSnifferTxCallback) (const Ptr< const Packet > packet, uint16_t channelFreqMhz, WifiTxVector txVector, MpduInfo aMpdu, uint16_t staId)
	TracedCallback signature for monitor mode transmit events. More...

typedef void(*	PhyRxBeginTracedCallback) (Ptr< const Packet > packet, RxPowerWattPerChannelBand rxPowersW)
	TracedCallback signature for PhyRxBegin trace source. More...

typedef void(*	PhyRxPayloadBeginTracedCallback) (WifiTxVector txVector, Time psduDuration)
	TracedCallback signature for start of PSDU reception events. More...

typedef void(*	PhyTxBeginTracedCallback) (Ptr< const Packet > packet, double txPowerW)
	TracedCallback signature for Phy transmit events. More...

typedef void(*	PsduTxBeginCallback) (WifiConstPsduMap psduMap, WifiTxVector txVector, double txPowerW)
	TracedCallback signature for PSDU transmit events. More...

Protected Attributes inherited from ns3::WifiPhy
Ptr< Event >	m_currentEvent
	Hold the current event. More...

std::map< std::pair< uint64_t, WifiPreamble >, Ptr< Event > >	m_currentPreambleEvents
	store event associated to a PPDU (that has a unique ID and preamble combination) whose preamble is being received More...

EventId	m_endPhyRxEvent
	the end of PHY receive event More...

EventId	m_endTxEvent
	the end of transmit event More...

Ptr< InterferenceHelper >	m_interference
	Pointer to a helper responsible for interference computations. More...

std::map< WifiModulationClass, Ptr< PhyEntity > >	m_phyEntities
	This map holds the supported PHY entities. More...

uint64_t	m_previouslyRxPpduUid
	UID of the previously received PPDU, reset to UINT64_MAX upon transmission. More...

Ptr< UniformRandomVariable >	m_random
	Provides uniform random variables. More...

uint32_t	m_rxMpduReferenceNumber
	A-MPDU reference number to identify all received subframes belonging to the same received A-MPDU. More...

Ptr< WifiPhyStateHelper >	m_state
	Pointer to WifiPhyStateHelper. More...

uint32_t	m_txMpduReferenceNumber
	A-MPDU reference number to identify all transmitted subframes belonging to the same received A-MPDU. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11 PHY layer model

This PHY implements a model of 802.11a. The model implemented here is based on the model described in "Yet Another Network Simulator" published in WNS2 2006; an author-prepared version of this paper is at: https://hal.inria.fr/file/index/docid/78318/filename/yans-rr.pdf

This PHY model depends on a channel loss and delay model as provided by the ns3::PropagationLossModel and ns3::PropagationDelayModel classes, both of which are members of the ns3::YansWifiChannel class.

Definition at line 47 of file yans-wifi-phy.h.

Constructor & Destructor Documentation

◆ YansWifiPhy()

ns3::YansWifiPhy::YansWifiPhy ( )

Definition at line 46 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

◆ ~YansWifiPhy()

ns3::YansWifiPhy::~YansWifiPhy ( )

override

Definition at line 59 of file yans-wifi-phy.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

◆ ConvertIndicesToFrequencies()

WifiSpectrumBandFrequencies ns3::YansWifiPhy::ConvertIndicesToFrequencies ( const WifiSpectrumBandIndices & indices ) const

overridevirtual

This is a helper function to convert start and stop indices to start and stop frequencies.

Parameters

indices the start/stop indices to convert

Returns: the converted frequencies

Implements ns3::WifiPhy.

Definition at line 122 of file yans-wifi-phy.cc.

◆ DoDispose()

void ns3::YansWifiPhy::DoDispose ( void )

overrideprotectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overridden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::WifiPhy.

Definition at line 65 of file yans-wifi-phy.cc.

References ns3::WifiPhy::DoDispose(), m_channel, and NS_LOG_FUNCTION.

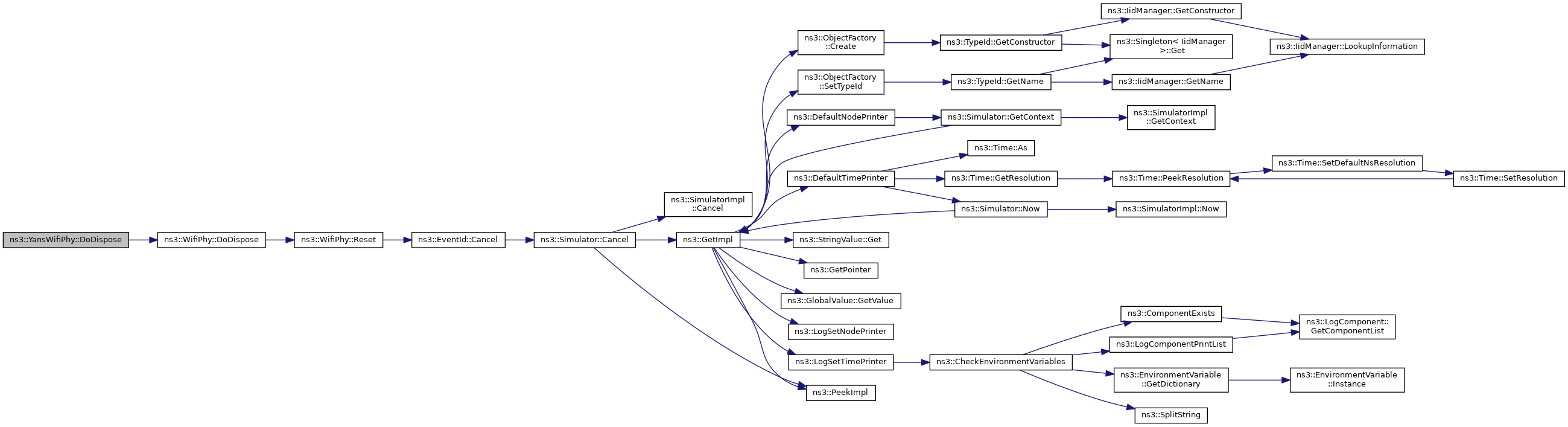

Here is the call graph for this function:

◆ GetBand()

WifiSpectrumBandInfo ns3::YansWifiPhy::GetBand	(	uint16_t	bandWidth,
		uint8_t	bandIndex = `0`
	)

overridevirtual

Get the info of a given band.

Parameters

bandWidth	the width of the band to be returned (MHz)
bandIndex	the index of the band to be returned

Returns: the info that defines the band

Implements ns3::WifiPhy.

Definition at line 110 of file yans-wifi-phy.cc.

◆ GetChannel()

Ptr< Channel > ns3::YansWifiPhy::GetChannel ( ) const

overridevirtual

Return the Channel this WifiPhy is connected to.

Returns: the Channel this WifiPhy is connected to

Implements ns3::WifiPhy.

Definition at line 73 of file yans-wifi-phy.cc.

References m_channel.

◆ GetCurrentFrequencyRange()

FrequencyRange ns3::YansWifiPhy::GetCurrentFrequencyRange ( ) const

overridevirtual

Get the frequency range of the current RF interface.

Returns: the frequency range of the current RF interface

Implements ns3::WifiPhy.

Definition at line 116 of file yans-wifi-phy.cc.

References ns3::WHOLE_WIFI_SPECTRUM.

◆ GetGuardBandwidth()

uint16_t ns3::YansWifiPhy::GetGuardBandwidth ( uint16_t currentChannelWidth ) const

overridevirtual

Parameters

currentChannelWidth channel width of the current transmission (MHz)

Returns: the width of the guard band (MHz)

Note: in order to properly model out of band transmissions for OFDM, the guard band has been configured so as to expand the modeled spectrum up to the outermost referenced point in "Transmit spectrum mask" sections' PSDs of each PHY specification of 802.11-2016 standard. It thus ultimately corresponds to the current channel bandwidth (which can be different from devices max channel width).

This method is only relevant for SpectrumWifiPhy.

Implements ns3::WifiPhy.

Definition at line 96 of file yans-wifi-phy.cc.

References NS_ABORT_MSG.

◆ GetTxMaskRejectionParams()

std::tuple< double, double, double > ns3::YansWifiPhy::GetTxMaskRejectionParams ( ) const

overridevirtual

Returns: a tuple containing the minimum rejection (in dBr) for the inner band, the minimum rejection (in dBr) for the outer band, and the maximum rejection (in dBr) for the outer band for the transmit spectrum mask.

This method is only relevant for SpectrumWifiPhy.

Implements ns3::WifiPhy.

Definition at line 103 of file yans-wifi-phy.cc.

References NS_ABORT_MSG.
