the interface for Wifi's error models More...

#include "error-rate-model.h"

Inheritance diagram for ns3::ErrorRateModel:

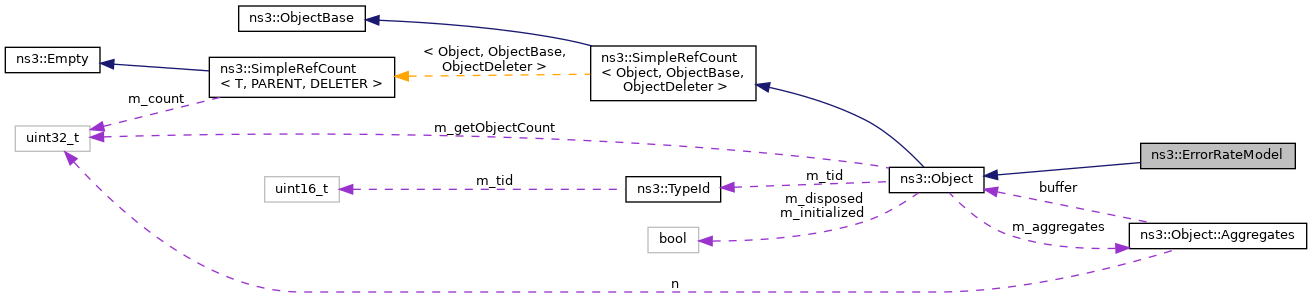

Collaboration diagram for ns3::ErrorRateModel:

Public Member Functions
virtual int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

double	CalculateSnr (const WifiTxVector &txVector, double ber) const

double	GetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas=1, WifiPpduField field=WIFI_PPDU_FIELD_DATA, uint16_t staId=SU_STA_ID) const
	This method returns the probability that the given 'chunk' of the packet will be successfully received by the PHY. More...

virtual bool	IsAwgn () const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

	~Object () override
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose ()
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator () const
	Get an iterator to the Objects aggregated to this one. More...

TypeId	GetInstanceTypeId () const override
	Get the most derived TypeId for this Object. More...

template<typename T >
Ptr< T >	GetObject () const
	Get a pointer to the requested aggregated Object. More...

template<>
Ptr< Object >	GetObject () const
	Specialization of () for objects of type ns3::Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

template<>
Ptr< Object >	GetObject (TypeId tid) const
	Specialization of (TypeId tid) for objects of type ns3::Object. More...

void	Initialize ()
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized () const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising errors. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId ()
	Register this type. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId ()
	Get the type ID. More...

Private Member Functions
virtual double	DoGetChunkSuccessRate (WifiMode mode, const WifiTxVector &txVector, double snr, uint64_t nbits, uint8_t numRxAntennas, WifiPpduField field, uint16_t staId) const =0
	A pure virtual method that must be implemented in the subclass. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoInitialize ()
	Initialize() implementation. More...

virtual void	NotifyNewAggregate ()
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted ()
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid ()
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

the interface for Wifi's error models

Definition at line 35 of file error-rate-model.h.

Member Function Documentation

◆ AssignStreams()

int64_t ns3::ErrorRateModel::AssignStreams ( int64_t stream )

virtual

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 104 of file error-rate-model.cc.

◆ CalculateSnr()

double ns3::ErrorRateModel::CalculateSnr	(	const WifiTxVector &	txVector,
		double	ber
	)		const

Parameters

txVector	a specific transmission vector including WifiMode
ber	a target BER

Returns: the SNR which corresponds to the requested BER

Definition at line 39 of file error-rate-model.cc.

References GetChunkSuccessRate(), ns3::WifiTxVector::GetMode(), and NS_ASSERT.

Here is the call graph for this function:

◆ DoGetChunkSuccessRate()

virtual double ns3::ErrorRateModel::DoGetChunkSuccessRate	(	WifiMode	mode,
		const WifiTxVector &	txVector,
		double	snr,
		uint64_t	nbits,
		uint8_t	numRxAntennas,
		WifiPpduField	field,
		uint16_t	staId
	)		const

privatepure virtual

A pure virtual method that must be implemented in the subclass.

Parameters

mode	the Wi-Fi mode applicable to this chunk
txVector	TXVECTOR of the overall transmission
snr	the SNR of the chunk
nbits	the number of bits in this chunk
numRxAntennas	the number of active RX antennas
field	the PPDU field to which the chunk belongs to
staId	the station ID for MU

Returns: probability of successfully receiving the chunk

Implemented in ns3::YansErrorRateModel, ns3::TableBasedErrorRateModel, and ns3::NistErrorRateModel.

Referenced by GetChunkSuccessRate().

Here is the caller graph for this function:

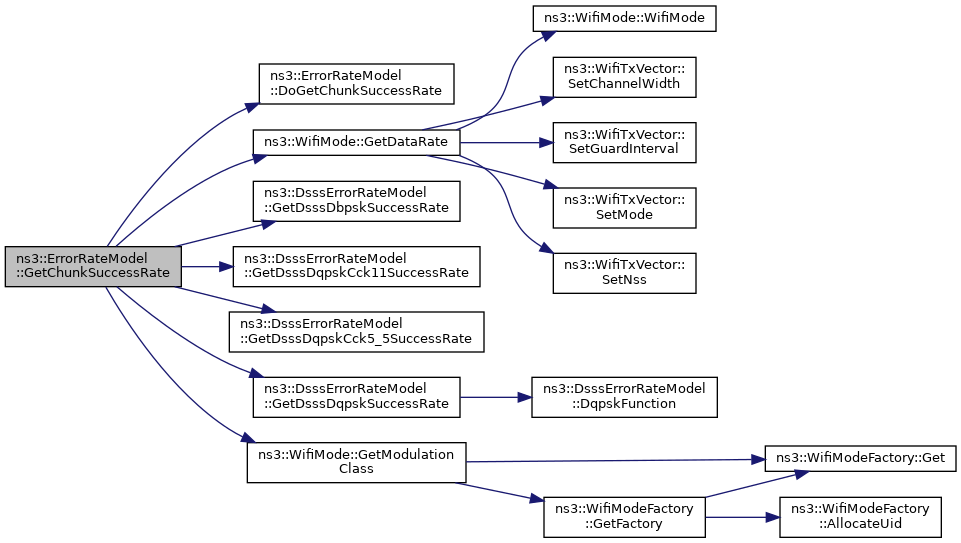

◆ GetChunkSuccessRate()

double ns3::ErrorRateModel::GetChunkSuccessRate	(	WifiMode	mode,
		const WifiTxVector &	txVector,
		double	snr,
		uint64_t	nbits,
		uint8_t	numRxAntennas = `1`,
		WifiPpduField	field = `WIFI_PPDU_FIELD_DATA`,
		uint16_t	staId = `SU_STA_ID`
	)		const

This method returns the probability that the given 'chunk' of the packet will be successfully received by the PHY.

A chunk can be viewed as a part of a packet with equal SNR. The probability of successfully receiving the chunk depends on the mode, the SNR, and the size of the chunk.

Note that both a WifiMode and a WifiTxVector (which contains a WifiMode) are passed into this method. The WifiTxVector may be from a signal that contains multiple modes (e.g. PHY header sent differently from PHY payload). Consequently, the mode parameter is what the method uses to calculate the chunk error rate, and the txVector is used for other information as needed.

This method handles 802.11b rates by using the DSSS error rate model. For all other rates, the method implemented by the subclass is called.

Parameters

mode	the Wi-Fi mode applicable to this chunk
txVector	TXVECTOR of the overall transmission
snr	the SNR of the chunk
nbits	the number of bits in this chunk
numRxAntennas	the number of active RX antennas (1 if not provided)
field	the PPDU field to which the chunk belongs to (assumes this is for the payload part if not provided)
staId	the station ID for MU
