The Reduced Neighbor Report element. More...

#include "reduced-neighbor-report.h"

Inheritance diagram for ns3::ReducedNeighborReport:

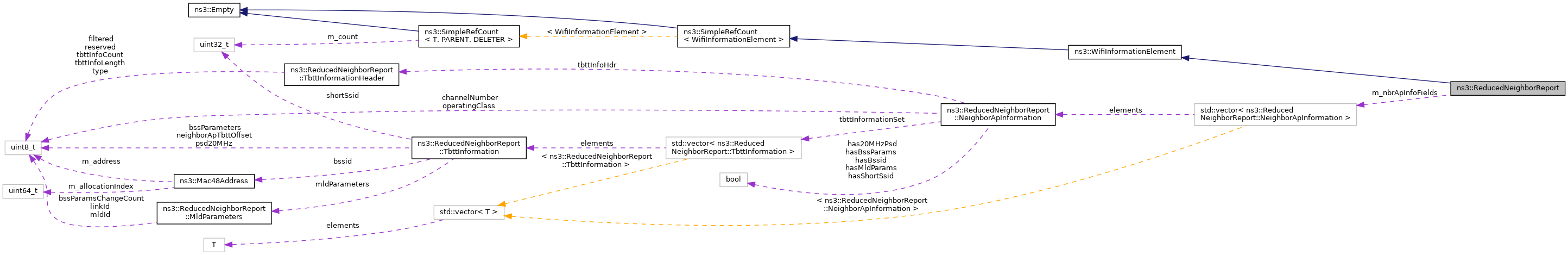

Collaboration diagram for ns3::ReducedNeighborReport:

Classes
struct	MldParameters
	MLD Parameters subfield. More...

struct	NeighborApInformation
	Neighbor AP information field. More...

struct	TbttInformation
	TBTT Information field. More...

struct	TbttInformationHeader
	TBTT Information Header subfield. More...

Public Member Functions
	ReducedNeighborReport ()

void	AddNbrApInfoField ()
	Add a Neighbor AP Information field. More...

void	AddTbttInformationField (std::size_t nbrApInfoId)
	Add a TBTT Information fields to the TBTT Information Set field of the given Neighbor AP Information field. More...

uint16_t	DeserializeInformationField (Buffer::Iterator start, uint16_t length) override
	Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId	ElementId () const override
	Get the wifi information element ID. More...

Mac48Address	GetBssid (std::size_t nbrApInfoId, std::size_t index) const
	Get the BSSID field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

uint8_t	GetBssParameters (std::size_t nbrApInfoId, std::size_t index) const
	Get the BSS Parameters field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

uint16_t	GetInformationFieldSize () const override
	Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t	GetLinkId (std::size_t nbrApInfoId, std::size_t index) const
	Get the Link ID value in the MLD Parameters subfield (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

uint8_t	GetMldId (std::size_t nbrApInfoId, std::size_t index) const
	Get the MLD ID value in the MLD Parameters subfield (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

std::size_t	GetNNbrApInfoFields () const
	Get the number of Neighbor AP Information fields. More...

std::size_t	GetNTbttInformationFields (std::size_t nbrApInfoId) const
	Get the number of TBTT Information fields included in the TBTT Information Set field of the given Neighbor AP Information field. More...

WifiPhyOperatingChannel	GetOperatingChannel (std::size_t nbrApInfoId) const
	Get the operating channel coded into the Operating Class and the Channel Number fields of the given Neighbor AP Information field. More...

uint8_t	GetPsd20MHz (std::size_t nbrApInfoId, std::size_t index) const
	Get the 20 MHz PSD field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

uint32_t	GetShortSsid (std::size_t nbrApInfoId, std::size_t index) const
	Get the Short SSID field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field. More...

bool	HasBssid (std::size_t nbrApInfoId) const
	Return true if the BSSID field is present in all the TBTT Information fields of the given Neighbor AP Information field. More...

bool	HasBssParameters (std::size_t nbrApInfoId) const
	Return true if the BSS Parameters field is present in all the TBTT Information fields of the given Neighbor AP Information field. More...

bool	HasMldParameters (std::size_t nbrApInfoId) const
	Return true if the MLD Parameters subfield is present in all the TBTT Information fields of the given Neighbor AP Information field. More...

bool	HasPsd20MHz (std::size_t nbrApInfoId) const
	Return true if the 20 MHz PSD field is present in all the TBTT Information fields of the given Neighbor AP Information field. More...

bool	HasShortSsid (std::size_t nbrApInfoId) const
	Return true if the Short SSID field is present in all the TBTT Information fields of the given Neighbor AP Information field. More...

void	SerializeInformationField (Buffer::Iterator start) const override
	Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void	SetBssid (std::size_t nbrApInfoId, std::size_t index, Mac48Address bssid)
	Set the BSSID field of the i-th TBTT Information field of the given Neighbor AP Information field. More...

void	SetBssParameters (std::size_t nbrApInfoId, std::size_t index, uint8_t bssParameters)
	Set the BSS Parameters field of the i-th TBTT Information field of the given Neighbor AP Information field. More...

void	SetMldParameters (std::size_t nbrApInfoId, std::size_t index, uint8_t mldId, uint8_t linkId, uint8_t changeSequence)
	Set the MLD Parameters subfield of the i-th TBTT Information field of the given Neighbor AP Information field. More...

void	SetOperatingChannel (std::size_t nbrApInfoId, const WifiPhyOperatingChannel &channel)
	Set the Operating Class and the Channel Number fields of the given Neighbor AP Information field based on the given operating channel. More...

void	SetPsd20MHz (std::size_t nbrApInfoId, std::size_t index, uint8_t psd20MHz)
	Set the 20 MHz PSD field of the i-th TBTT Information field of the given Neighbor AP Information field. More...

void	SetShortSsid (std::size_t nbrApInfoId, std::size_t index, uint32_t shortSsid)
	Set the Short SSID field of the i-th TBTT Information field of the given Neighbor AP Information field. More...

Public Member Functions inherited from ns3::WifiInformationElement
virtual	~WifiInformationElement ()

Buffer::Iterator	Deserialize (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements), which must be present. More...

Buffer::Iterator	DeserializeIfPresent (Buffer::Iterator i)
	Deserialize entire IE (which may possibly be fragmented into multiple elements) if it is present. More...

virtual WifiInformationElementId	ElementIdExt () const
	Get the wifi information element ID extension. More...

uint16_t	GetSerializedSize () const
	Get the size of the serialized IE including Element ID and length fields (for every element this IE is possibly fragmented into). More...

virtual bool	operator== (const WifiInformationElement &a) const
	Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void	Print (std::ostream &os) const
	Generate human-readable form of IE. More...

Buffer::Iterator	Serialize (Buffer::Iterator i) const
	Serialize entire IE including Element ID and length fields. More...

Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
	SimpleRefCount ()
	Default constructor. More...

	SimpleRefCount (const SimpleRefCount &o[[maybe_unused]])
	Copy constructor. More...

uint32_t	GetReferenceCount () const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o[[maybe_unused]])
	Assignment operator. More...

void	Ref () const
	Increment the reference count. More...

void	Unref () const
	Decrement the reference count. More...

Private Member Functions
uint8_t	ReadTbttInformationCount (std::size_t nbrApInfoId) const
	Get the TBTT Information Count field of the given Neighbor AP Information field. More...

void	ReadTbttInformationLength (std::size_t nbrApInfoId)
	Use the TBTT Information Length field of the given Neighbor AP Information field to set the xxxPresent flags of the NeighborApInformation struct. More...

void	WriteTbttInformationCount (std::size_t nbrApInfoId) const
	Set the TBTT Information Count field of the given Neighbor AP Information field based on the size of the tbttInformationSet field. More...

void	WriteTbttInformationLength (std::size_t nbrApInfoId) const
	Set the TBTT Information Length field of the given Neighbor AP Information field based on the xxxPresent flags of the NeighborApInformation struct. More...

Private Attributes
std::vector< NeighborApInformation >	m_nbrApInfoFields
	one or more Neighbor AP Information fields More...

Detailed Description

The Reduced Neighbor Report element.

This class knows how to serialise and deserialise the Reduced Neighbor Report element.

Definition at line 40 of file reduced-neighbor-report.h.

Constructor & Destructor Documentation

◆ ReducedNeighborReport()

ns3::ReducedNeighborReport::ReducedNeighborReport ( )

Definition at line 32 of file reduced-neighbor-report.cc.

Member Function Documentation

◆ AddNbrApInfoField()

void ns3::ReducedNeighborReport::AddNbrApInfoField ( )

Add a Neighbor AP Information field.

Definition at line 49 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields.

Referenced by DeserializeInformationField(), GetRnrLinkInfoTest::DoRun(), ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ AddTbttInformationField()

void ns3::ReducedNeighborReport::AddTbttInformationField ( std::size_t nbrApInfoId )

Add a TBTT Information fields to the TBTT Information Set field of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Definition at line 353 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by DeserializeInformationField(), GetRnrLinkInfoTest::DoRun(), ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ DeserializeInformationField()

uint16_t ns3::ReducedNeighborReport::DeserializeInformationField	(	Buffer::Iterator	start,
		uint16_t	length
	)

overridevirtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start	an iterator which points to where the information should be written.
length	the expected number of bytes to read

Returns: the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 685 of file reduced-neighbor-report.cc.

References AddNbrApInfoField(), AddTbttInformationField(), m_nbrApInfoFields, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadLsbtohU32(), ReadTbttInformationCount(), ReadTbttInformationLength(), ns3::Buffer::Iterator::ReadU8(), and two-ray-to-three-gpp-ch-calibration::start.

Here is the call graph for this function:

◆ ElementId()

WifiInformationElementId ns3::ReducedNeighborReport::ElementId ( ) const

overridevirtual

Get the wifi information element ID.

Returns: the wifi information element ID

Implements ns3::WifiInformationElement.

Definition at line 37 of file reduced-neighbor-report.cc.

References IE_REDUCED_NEIGHBOR_REPORT.

◆ GetBssid()

Mac48Address ns3::ReducedNeighborReport::GetBssid	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the BSSID field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the BSSID field

Definition at line 436 of file reduced-neighbor-report.cc.

References HasBssid(), m_nbrApInfoFields, and NS_ASSERT.

Here is the call graph for this function:

◆ GetBssParameters()

uint8_t ns3::ReducedNeighborReport::GetBssParameters	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the BSS Parameters field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the BSS Parameters field

Definition at line 494 of file reduced-neighbor-report.cc.

References HasBssParameters(), m_nbrApInfoFields, and NS_ASSERT.

Here is the call graph for this function:

◆ GetInformationFieldSize()

uint16_t ns3::ReducedNeighborReport::GetInformationFieldSize ( ) const

overridevirtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field - if the IE is not fragmented)

Returns: the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 595 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields.

◆ GetLinkId()

uint8_t ns3::ReducedNeighborReport::GetLinkId	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the Link ID value in the MLD Parameters subfield (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the Link ID value

Definition at line 566 of file reduced-neighbor-report.cc.

References HasMldParameters(), m_nbrApInfoFields, and NS_ASSERT.

Here is the call graph for this function:

◆ GetMldId()

uint8_t ns3::ReducedNeighborReport::GetMldId	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the MLD ID value in the MLD Parameters subfield (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the MLD ID value

Definition at line 557 of file reduced-neighbor-report.cc.

References HasMldParameters(), m_nbrApInfoFields, and NS_ASSERT.

Referenced by ns3::WifiAssocManager::GetNextAffiliatedAp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetNNbrApInfoFields()

std::size_t ns3::ReducedNeighborReport::GetNNbrApInfoFields ( ) const

Get the number of Neighbor AP Information fields.

Returns: the number of Neighbor AP Information fields

Definition at line 43 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields.

Referenced by GetRnrLinkInfoTest::DoRun(), ns3::WifiAssocManager::GetNextAffiliatedAp(), ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

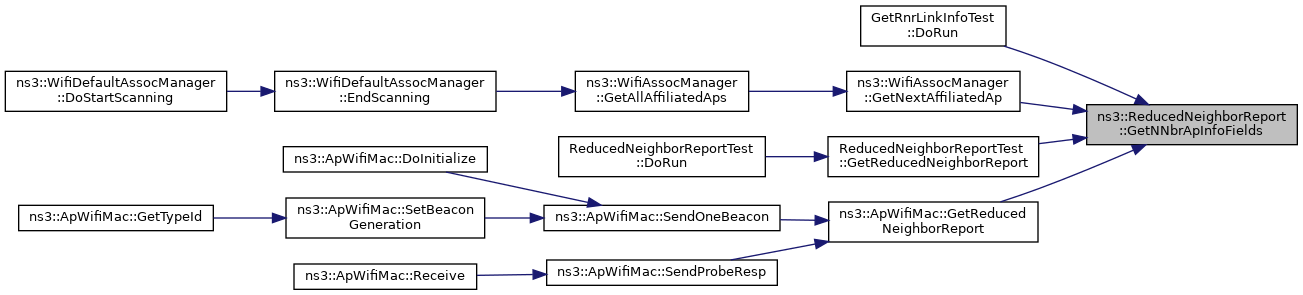

Here is the caller graph for this function:

◆ GetNTbttInformationFields()

std::size_t ns3::ReducedNeighborReport::GetNTbttInformationFields ( std::size_t nbrApInfoId ) const

Get the number of TBTT Information fields included in the TBTT Information Set field of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: the number of TBTT Information fields

Definition at line 346 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetRnrLinkInfoTest::DoRun(), and ns3::WifiAssocManager::GetNextAffiliatedAp().

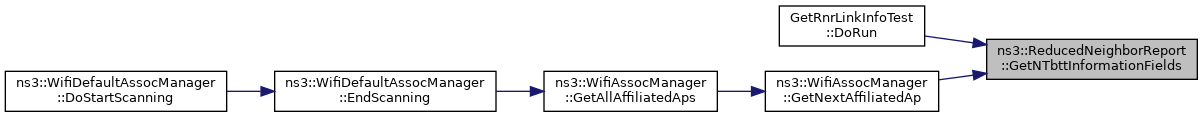

Here is the caller graph for this function:

◆ GetOperatingChannel()

WifiPhyOperatingChannel ns3::ReducedNeighborReport::GetOperatingChannel ( std::size_t nbrApInfoId ) const

Get the operating channel coded into the Operating Class and the Channel Number fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: the PHY operating channel

Definition at line 198 of file reduced-neighbor-report.cc.

References third::channel, ns3::WifiPhyOperatingChannel::m_frequencyChannels, m_nbrApInfoFields, NS_ABORT_IF, NS_ABORT_MSG, NS_ASSERT, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_PHY_BAND_6GHZ, ns3::WIFI_PHY_BAND_UNSPECIFIED, ns3::WIFI_PHY_OFDM_CHANNEL, and ns3::WIFI_STANDARD_UNSPECIFIED.

◆ GetPsd20MHz()

uint8_t ns3::ReducedNeighborReport::GetPsd20MHz	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the 20 MHz PSD field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the 20 MHz PSD field

Definition at line 522 of file reduced-neighbor-report.cc.

References HasPsd20MHz(), m_nbrApInfoFields, and NS_ASSERT.

Here is the call graph for this function:

◆ GetShortSsid()

uint32_t ns3::ReducedNeighborReport::GetShortSsid	(	std::size_t	nbrApInfoId,
		std::size_t	index
	)		const

Get the Short SSID field (must be present) in the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field

Returns: the Short SSID field

Definition at line 464 of file reduced-neighbor-report.cc.

References HasShortSsid(), m_nbrApInfoFields, and NS_ASSERT.

Here is the call graph for this function:

◆ HasBssid()

bool ns3::ReducedNeighborReport::HasBssid ( std::size_t nbrApInfoId ) const

Return true if the BSSID field is present in all the TBTT Information fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: true if the BSSID field is present

Definition at line 428 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetBssid().

Here is the caller graph for this function:

◆ HasBssParameters()

bool ns3::ReducedNeighborReport::HasBssParameters ( std::size_t nbrApInfoId ) const

Return true if the BSS Parameters field is present in all the TBTT Information fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: true if the BSS Parameters field is present

Definition at line 486 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetBssParameters().

Here is the caller graph for this function:

◆ HasMldParameters()

bool ns3::ReducedNeighborReport::HasMldParameters ( std::size_t nbrApInfoId ) const

Return true if the MLD Parameters subfield is present in all the TBTT Information fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: true if the MLD Parameters subfield is present

Definition at line 549 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetLinkId(), GetMldId(), and ns3::WifiAssocManager::GetNextAffiliatedAp().

Here is the caller graph for this function:

◆ HasPsd20MHz()

bool ns3::ReducedNeighborReport::HasPsd20MHz ( std::size_t nbrApInfoId ) const

Return true if the 20 MHz PSD field is present in all the TBTT Information fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: true if the 20 MHz PSD field is present

Definition at line 514 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetPsd20MHz().

Here is the caller graph for this function:

◆ HasShortSsid()

bool ns3::ReducedNeighborReport::HasShortSsid ( std::size_t nbrApInfoId ) const

Return true if the Short SSID field is present in all the TBTT Information fields of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: true if the Short SSID field is present

Definition at line 456 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetShortSsid().

Here is the caller graph for this function:

◆ ReadTbttInformationCount()

uint8_t ns3::ReducedNeighborReport::ReadTbttInformationCount ( std::size_t nbrApInfoId ) const

private

Get the TBTT Information Count field of the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Returns: the TBTT Information Count

Definition at line 587 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ ReadTbttInformationLength()

void ns3::ReducedNeighborReport::ReadTbttInformationLength ( std::size_t nbrApInfoId )

private

Use the TBTT Information Length field of the given Neighbor AP Information field to set the xxxPresent flags of the NeighborApInformation struct.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Definition at line 388 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, NS_ABORT_MSG, and NS_ASSERT.

Referenced by DeserializeInformationField().

Here is the caller graph for this function:

◆ SerializeInformationField()

void ns3::ReducedNeighborReport::SerializeInformationField ( Buffer::Iterator start ) const

overridevirtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters

start an iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 631 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, two-ray-to-three-gpp-ch-calibration::start, WriteTbttInformationCount(), WriteTbttInformationLength(), and ns3::WriteTo().

Here is the call graph for this function:

◆ SetBssid()

void ns3::ReducedNeighborReport::SetBssid	(	std::size_t	nbrApInfoId,
		std::size_t	index,
		Mac48Address	bssid
	)

Set the BSSID field of the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field
bssid	the BSSID value

Definition at line 417 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ SetBssParameters()

void ns3::ReducedNeighborReport::SetBssParameters	(	std::size_t	nbrApInfoId,
		std::size_t	index,
		uint8_t	bssParameters
	)

Set the BSS Parameters field of the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field
bssParameters	the BSS Parameters value

Definition at line 473 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ SetMldParameters()

void ns3::ReducedNeighborReport::SetMldParameters	(	std::size_t	nbrApInfoId,
		std::size_t	index,
		uint8_t	mldId,
		uint8_t	linkId,
		uint8_t	changeSequence
	)

Set the MLD Parameters subfield of the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field
mldId	the MLD ID value
linkId	the Link ID value
changeSequence	the Change Sequence value

Definition at line 531 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by GetRnrLinkInfoTest::DoRun(), ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ SetOperatingChannel()

void ns3::ReducedNeighborReport::SetOperatingChannel	(	std::size_t	nbrApInfoId,
		const WifiPhyOperatingChannel &	channel
	)

Set the Operating Class and the Channel Number fields of the given Neighbor AP Information field based on the given operating channel.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
channel	the PHY operating channel

Definition at line 55 of file reduced-neighbor-report.cc.

References third::channel, m_nbrApInfoFields, NS_ABORT_MSG, NS_ABORT_MSG_IF, NS_ASSERT, ns3::WIFI_PHY_BAND_2_4GHZ, ns3::WIFI_PHY_BAND_5GHZ, ns3::WIFI_PHY_BAND_6GHZ, and ns3::WIFI_PHY_BAND_UNSPECIFIED.

Referenced by ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ SetPsd20MHz()

void ns3::ReducedNeighborReport::SetPsd20MHz	(	std::size_t	nbrApInfoId,
		std::size_t	index,
		uint8_t	psd20MHz
	)

Set the 20 MHz PSD field of the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field
psd20MHz	the 20 MHz PSD value

Definition at line 503 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ SetShortSsid()

void ns3::ReducedNeighborReport::SetShortSsid	(	std::size_t	nbrApInfoId,
		std::size_t	index,
		uint32_t	shortSsid
	)

Set the Short SSID field of the i-th TBTT Information field of the given Neighbor AP Information field.

Parameters

nbrApInfoId	identifier of the given Neighbor AP Information field
index	the index of the given TBTT Information field
shortSsid	the short SSID value

Definition at line 445 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by ReducedNeighborReportTest::GetReducedNeighborReport(), and ns3::ApWifiMac::GetReducedNeighborReport().

Here is the caller graph for this function:

◆ WriteTbttInformationCount()

void ns3::ReducedNeighborReport::WriteTbttInformationCount ( std::size_t nbrApInfoId ) const

private

Set the TBTT Information Count field of the given Neighbor AP Information field based on the size of the tbttInformationSet field.

This method is marked as const because it needs to be called within the SerializeInformationField method. In fact, only when serializing this object we can set the TBTT Information Count field based on the number of TBTT Information fields included in the given Neighbor AP Information field.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Definition at line 576 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, and NS_ASSERT.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

◆ WriteTbttInformationLength()

void ns3::ReducedNeighborReport::WriteTbttInformationLength ( std::size_t nbrApInfoId ) const

private

Set the TBTT Information Length field of the given Neighbor AP Information field based on the xxxPresent flags of the NeighborApInformation struct.

This method is marked as const because it needs to be called within the SerializeInformationField method. In fact, only when serializing this object we can set the TBTT Information Length field based on the TBTT Information field contents.

Parameters

nbrApInfoId identifier of the given Neighbor AP Information field

Definition at line 360 of file reduced-neighbor-report.cc.

References m_nbrApInfoFields, NS_ABORT_MSG, and NS_ASSERT.

Referenced by SerializeInformationField().

Here is the caller graph for this function:

Member Data Documentation

◆ m_nbrApInfoFields

std::vector<NeighborApInformation> ns3::ReducedNeighborReport::m_nbrApInfoFields

private

one or more Neighbor AP Information fields

Definition at line 341 of file reduced-neighbor-report.h.

Referenced by AddNbrApInfoField(), AddTbttInformationField(), DeserializeInformationField(), GetBssid(), GetBssParameters(), GetInformationFieldSize(), GetLinkId(), GetMldId(), GetNNbrApInfoFields(), GetNTbttInformationFields(), GetOperatingChannel(), GetPsd20MHz(), GetShortSsid(), HasBssid(), HasBssParameters(), HasMldParameters(), HasPsd20MHz(), HasShortSsid(), ReadTbttInformationCount(), ReadTbttInformationLength(), SerializeInformationField(), SetBssid(), SetBssParameters(), SetMldParameters(), SetOperatingChannel(), SetPsd20MHz(), SetShortSsid(), WriteTbttInformationCount(), and WriteTbttInformationLength().

The documentation for this class was generated from the following files:

src/wifi/model/reduced-neighbor-report.h
src/wifi/model/reduced-neighbor-report.cc

Classes

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ReducedNeighborReport()

Member Function Documentation

◆ AddNbrApInfoField()

◆ AddTbttInformationField()

◆ DeserializeInformationField()

◆ ElementId()

◆ GetBssid()

◆ GetBssParameters()

◆ GetInformationFieldSize()

◆ GetLinkId()

◆ GetMldId()

◆ GetNNbrApInfoFields()

◆ GetNTbttInformationFields()

◆ GetOperatingChannel()

◆ GetPsd20MHz()

◆ GetShortSsid()

◆ HasBssid()

◆ HasBssParameters()

◆ HasMldParameters()

◆ HasPsd20MHz()

◆ HasShortSsid()

◆ ReadTbttInformationCount()

◆ ReadTbttInformationLength()

◆ SerializeInformationField()

◆ SetBssid()

◆ SetBssParameters()

◆ SetMldParameters()

◆ SetOperatingChannel()

◆ SetPsd20MHz()

◆ SetShortSsid()

◆ WriteTbttInformationCount()

◆ WriteTbttInformationLength()

Member Data Documentation

◆ m_nbrApInfoFields
